THL-000AG101EXD

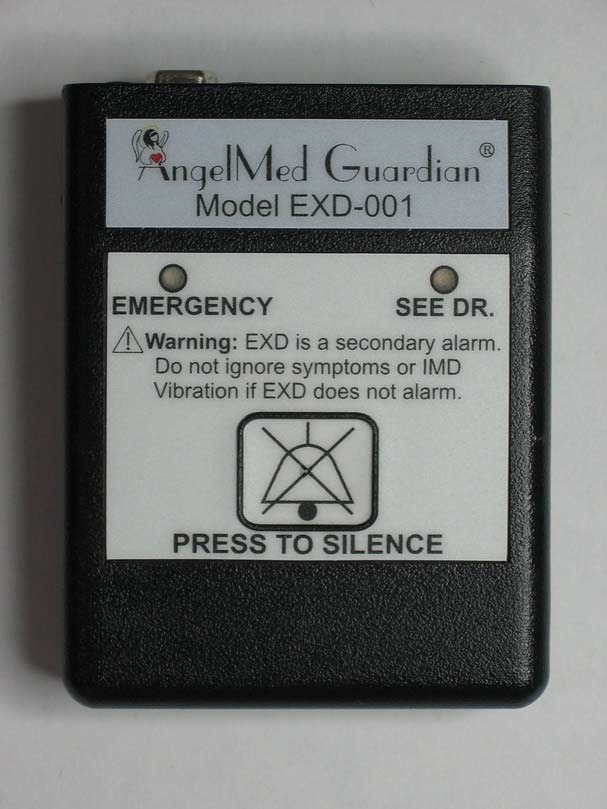

AngelMed Guardian ® External Device (EXD) User’s Manual 2 Table of Contents 1 Introduction................................................................ 4 2 Guardian System Overview ...................................... 4 2.1 System Components .................................................... 4 2.2 Indications & Contraindications.................................. 5 2.3 Intra-System Communication...................................... 5 2.4 Available Literature..................................................... 7 3 EXD Device Description ............................................ 8 3.1 How Supplied .............................................................. 8 3.2 Appearance .................................................................. 8 3.3 Neck Cord & Belt Case ............................................. 10 3.4 Alarm & Alert Functionality ..................................... 12 3.5 Certifications ............................................................. 15 4 Setup.......................................................................... 16 5 Care & Maintenance................................................ 17 5.1 Battery Power ............................................................ 17 5.2 General Care & Maintenance Items .......................... 20 6 Electromagnetic Interference Precautions ............ 21 6.1 Sources of Strong EMI .............................................. 21 6.2 Cell Phone Precautions.............................................. 22 6.3 Security System Precautions ..................................... 22 7 Troubleshooting ....................................................... 23 8 Service & Support.................................................... 23 8.1 Service ....................................................................... 23 8.2 Technical Support...................................................... 24 3 9 Specifications ............................................................ 24 10 Index.......................................................................... 26 4 1 Introduction The AngelMed Guardian ® External Device (EXD), a battery-operated hand-held telemetry device, is one of five primary components of the Guardian System. This manual describes how to use and maintain the EXD. 2 Guardian System Overview The Guardian System detects changes in patients’ electrograms, using baseline electrograms from the previous day for comparison. If a change exceeds a pre-specified threshold, the system warns the patient and stores pertinent data for subsequent review. Two levels of warnings are possible: emergency alarms, for significant events that require immediate medical attention, and “see doctor” alerts, for less-significant events that require medical attention as soon as possible (e.g., in 1-2 days.) 2.1 System Components The Guardian System has five components: External Device (EXD) – a hand-held telemetry device that warns the patient of alarms and alerts via beeps and a red or yellow flashing LED, and is used to silence alarms and alerts. The EXD is also used for communication between the Programmer and the IMD. Implantable Medical Device (IMD) – an implantable programmable device that vibrates to warn the patient of 5 alarms and alerts, and stores electrogram signals and other data. Lead – a standard bipolar cardiac lead (St. Jude Medical Model 1488T) that is attached to the right ventricle. Lead Adapter – an adapter that connects the lead to the IMD and houses the antenna. Programmer – a customized computer that allows the physician to program IMD parameters and alarm settings for each patient. It also enables the physician to retrieve and review data collected by the IMD. 2.2 Indications & Contraindications The Guardian System is contraindicated when neither the patient nor patient caregiver can take appropriate action in response to alarms and alerts. Indications and contraindications for the EXD and IMD, individually, are discussed in the AngelMed Guardian ® Clinical Study Protocol. 2.3 Intra-System Communication Figure 1 shows the Guardian System communication architecture. The following points can be seen: • The EXD is the “hub” of communication between the IMD and Programmer. The EXD is used to set up communication sessions between the IMD and Programmer, in order to retrieve IMD data and set IMD parameters. It is also used to silence alarms and alerts. 6 • The EXD uses both near field and far field telemetry. Near-field telemetry (maximum distance of 5 cm or 2 inches) is used to silence alarms and alerts and to establish communication sessions between the IMD and Programmer. Far-field telemetry (maximum distance of 1.8 meters or 6 feet) is used for communication between the IMD and EXD after a session has been established and to initiate synchronous alarms and alerts on the EXD and IMD. • The EXD and Programmer each contain a serial port that allows them to be connected via cable. Fig. 1: Guardian System Communication Architecture 7 2.4 Available Literature • AngelMed Guardian ® Clinical Study Protocol • AngelMed Guardian ® Implantable Medical Device (IMD) User’s Manual • AngelMed Guardian ® Lead Adapter Instructions for Use • AngelMed Guardian ® Programmer Manual • Patient Manual for the AngelMed Guardian ® System • Product Information Manual for the AngelMed Guardian ® External Device (EXD) • St. Jude Medical Tendril® SDX Model 1488T/TC/K Endocardial Steroid-Eluting Active Fixation Pacing Leads User’s Manual 8 3 EXD Device Description 3.1 How Supplied The EXD is packaged with a neck cord and a belt case. Batteries are supplied separately. 3.2 Appearance Front – The front of the EXD contains the emergency and “see doctor” LEDs, and the “Press to Silence” button. The Emergency LED flashes red during alarms. The See Docto r LED flashes yellow during alerts. The Press to Silence button can be used to silence alarms and alerts and to check EXD battery power. Fig. 2 Front of EXD 9 Back – The back of the EXD c…
