THYDG941HOME WEATHER STATION

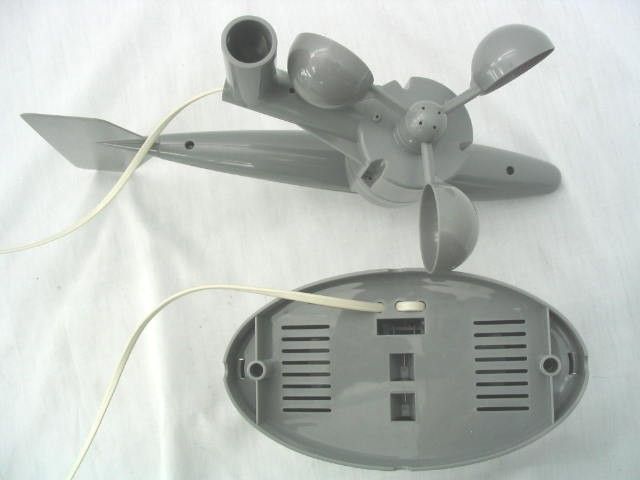

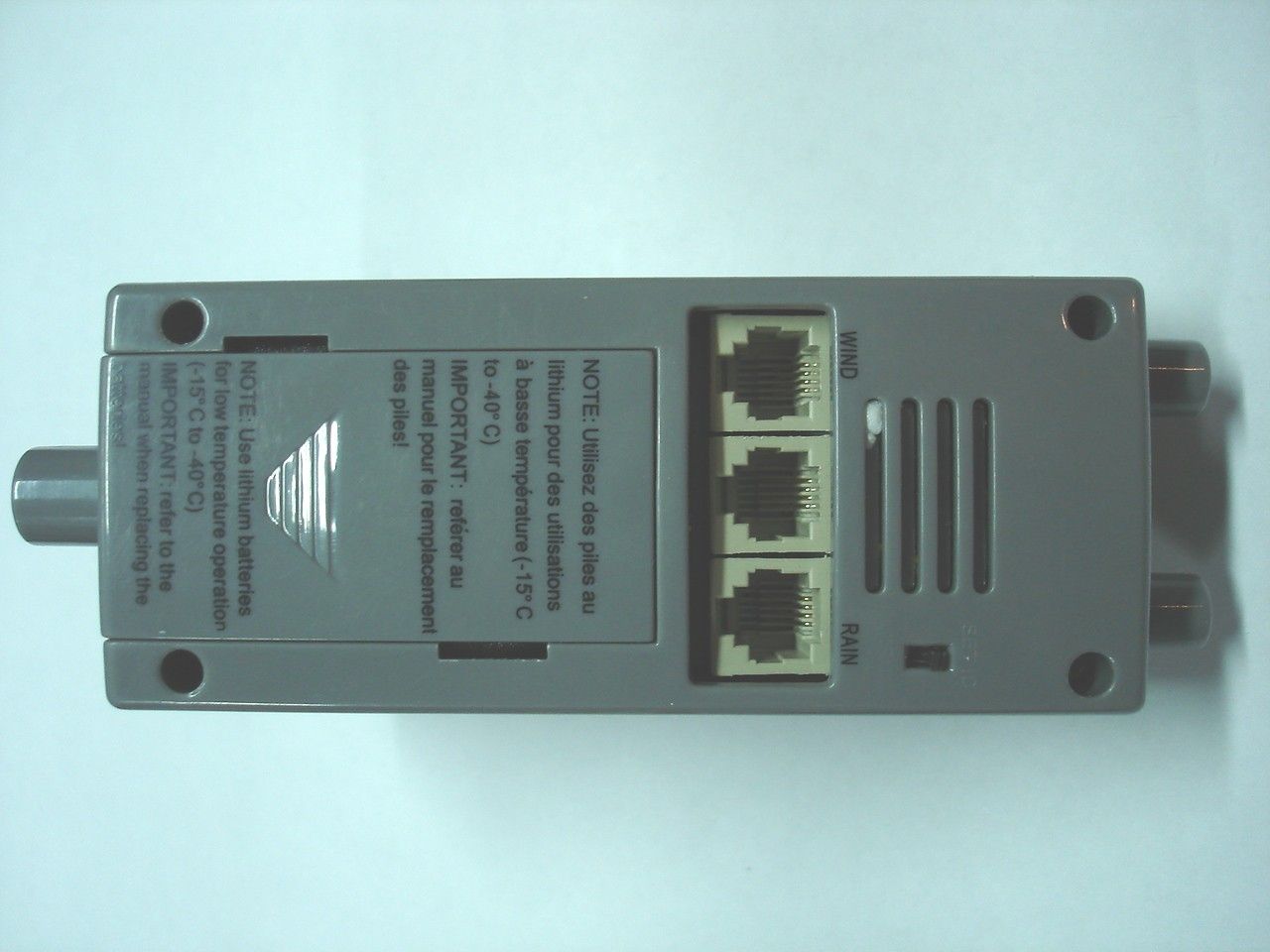

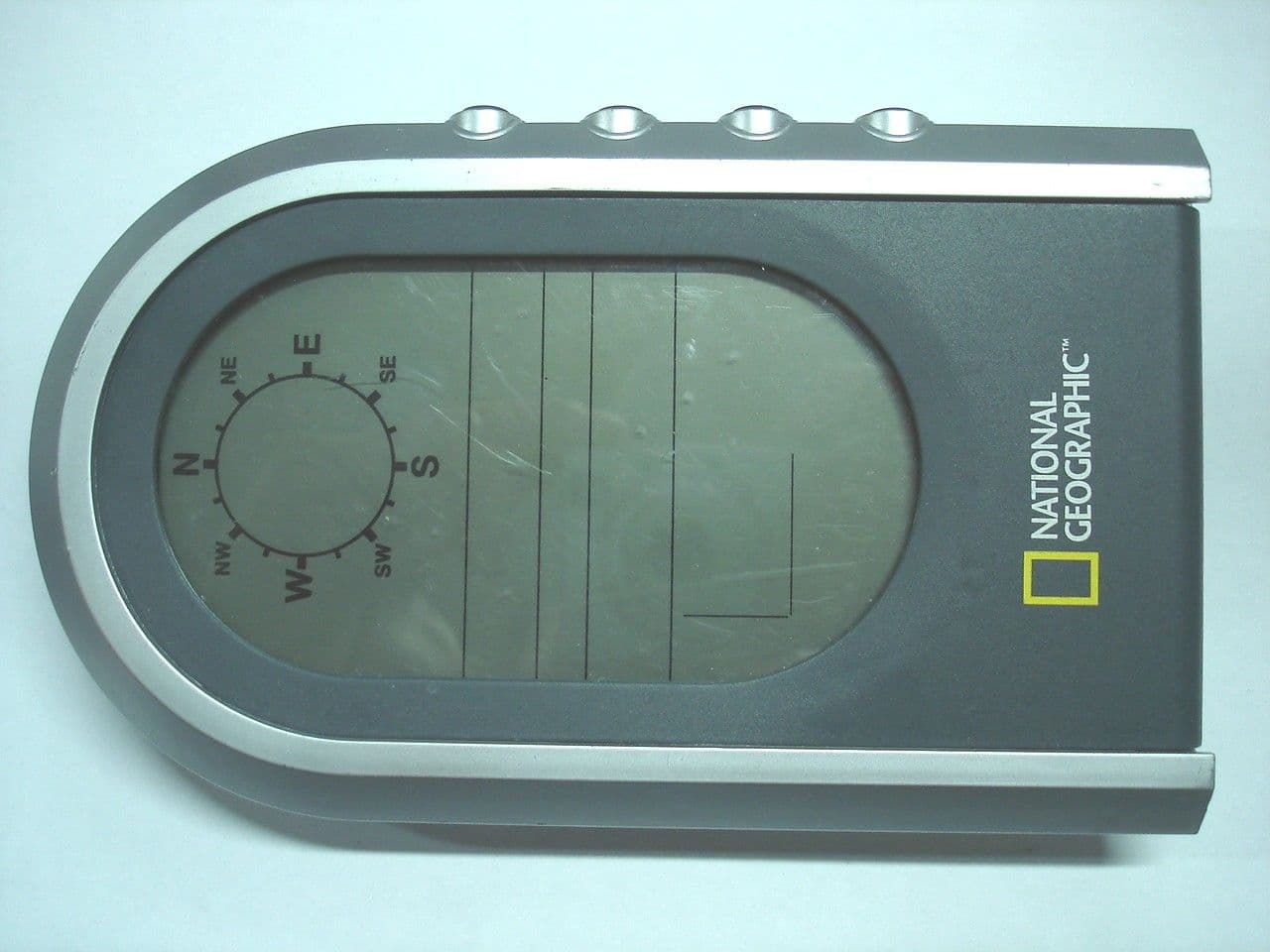

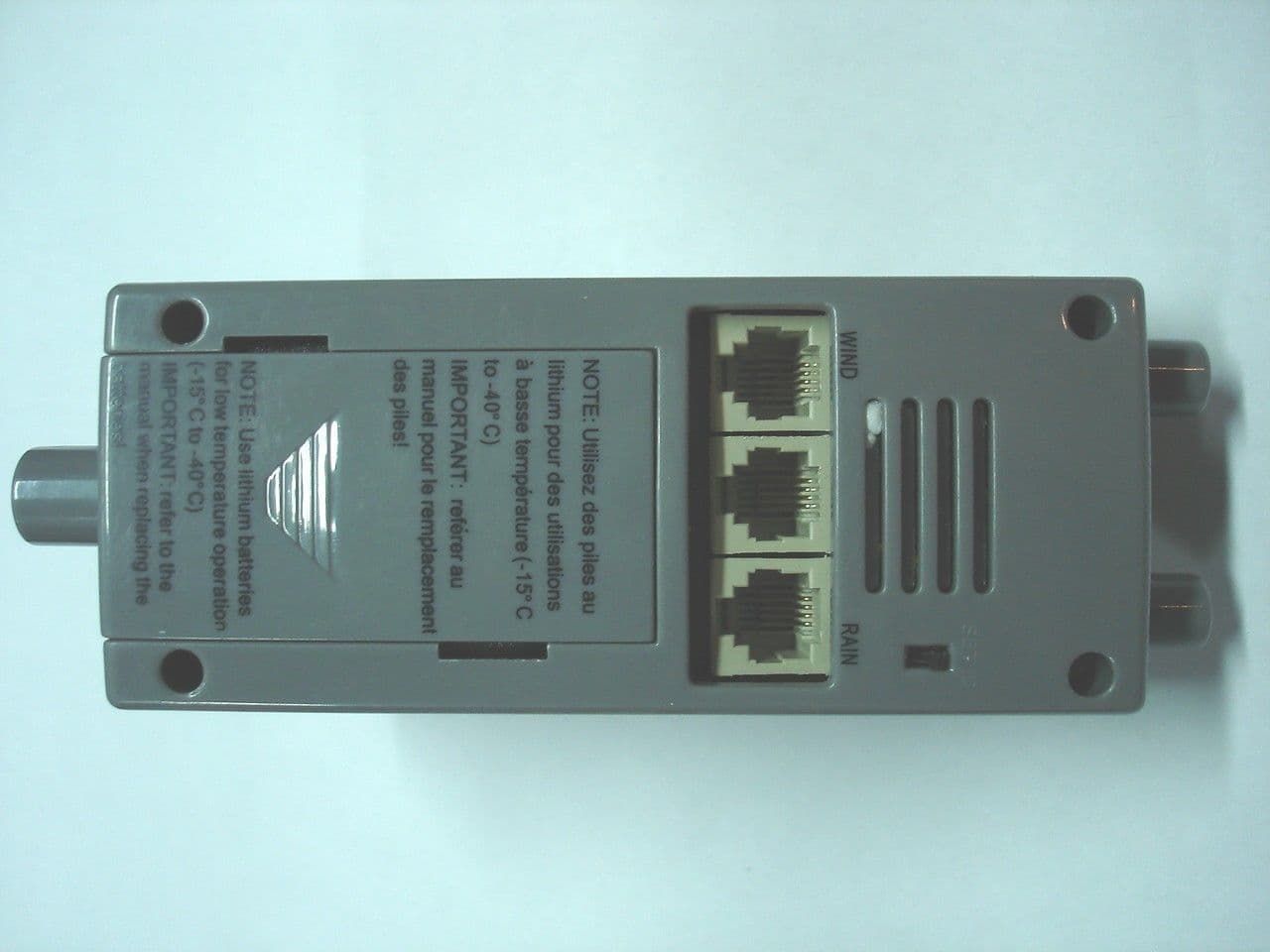

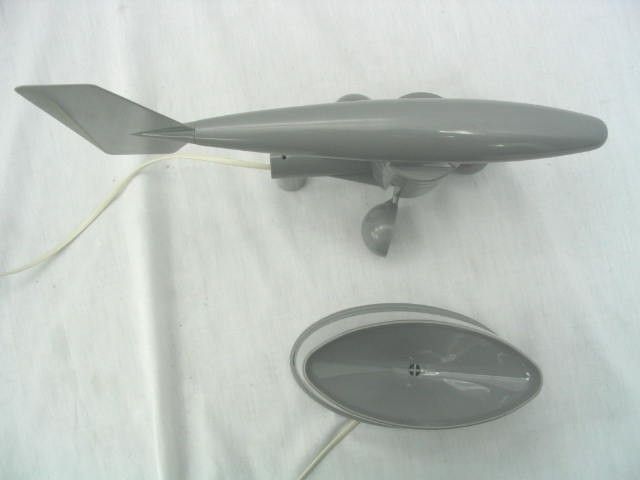

Operation Description The Home Weather Station is powered by 2 x 1.5V ìAAî size battery for transmitter and AC120V/DC6V adaptor or 4 X 1.5V ìAAî size battery for receiver. The transmitter and receiver is operation at 433.920MHz. The transmitter unit is located at outdoor and it has three difference sensors for measure out door Temperature, Rain & Wind Speed, and transmit a radio signal to receiver unit. The receive unit is located at indoor, and it can receive the transmitter signal and indicate at the LCD display. It has another three difference internal sensors in the unit for measure indoor Temperature, Humidity and Pressure. Refer to the circuit design, the circuit description is listed as below: Tx unit

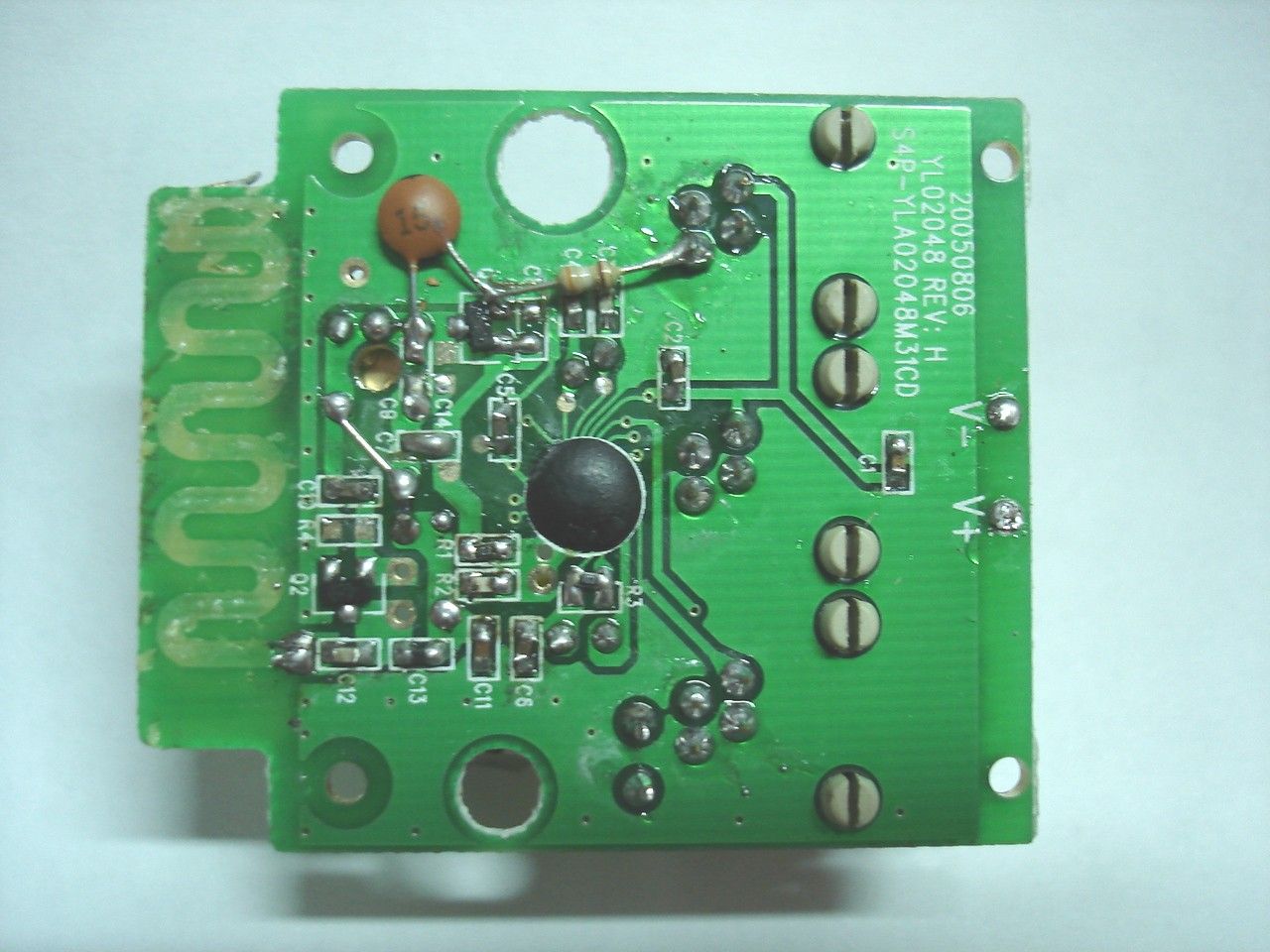

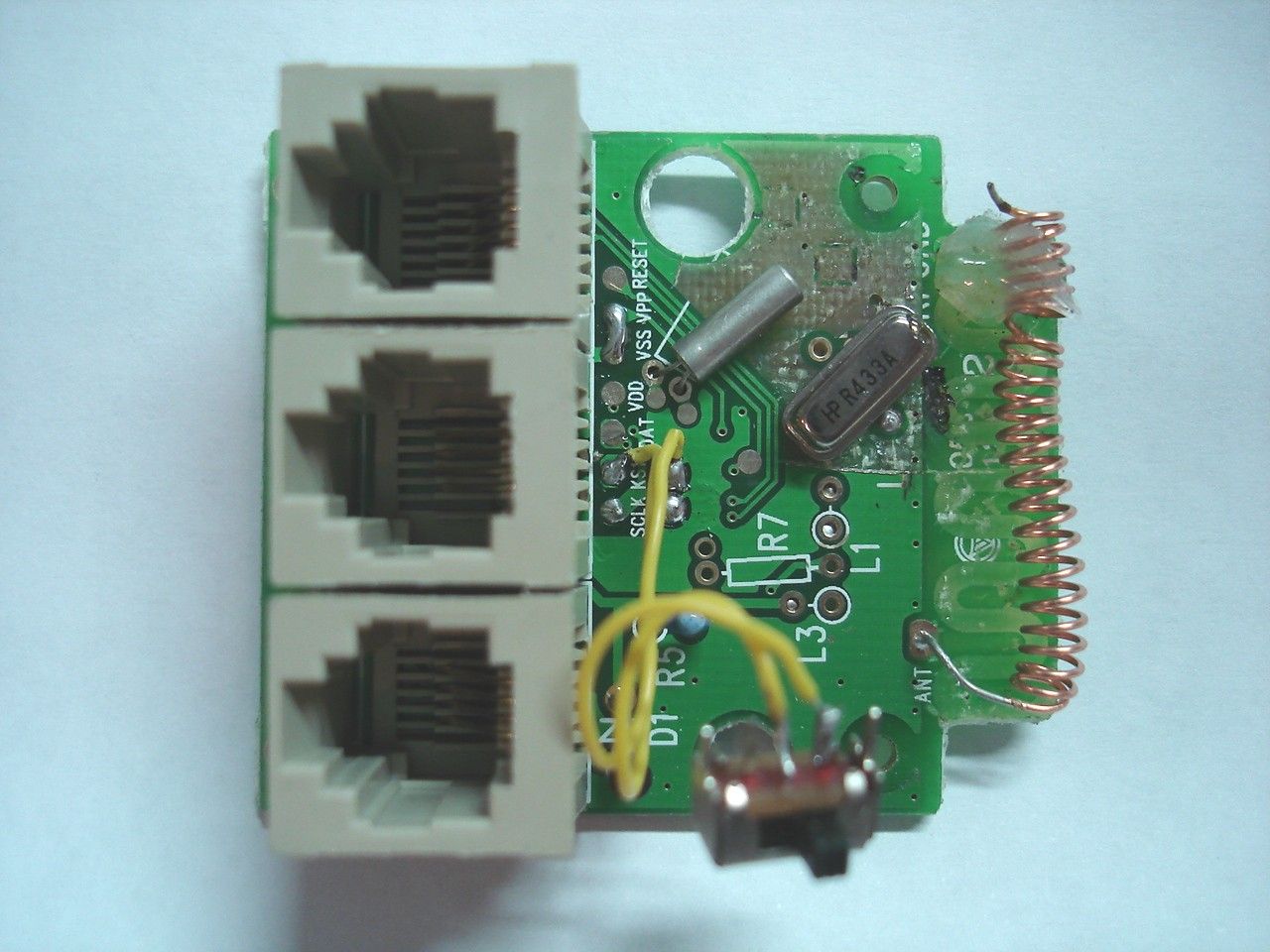

 Y1, Q1 and associate circuit act as oscillator for RF.
 X1 and associate circuit act as oscillator for transmitter IC.
 Y1 and associate circuit act as oscillator for wind sensor IC.
 U1, Q3(A1505A2Y) and associate circuit act as temperature sensor + data encoder.

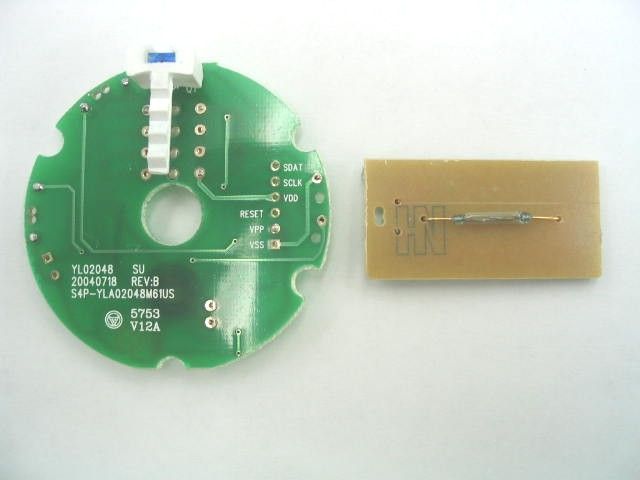

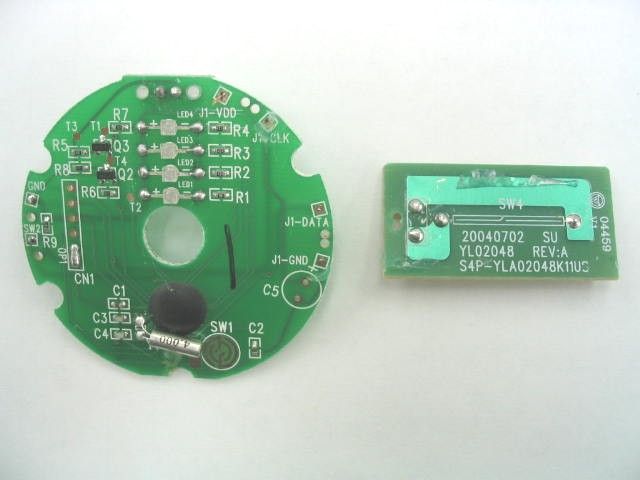

 U1 and associate circuit act wind speed & direction sensor.
 Q2, Q3 and associate circuit act as rain sensor.
 Q2(TC3566S), and associate circuit act as RF transmitter.

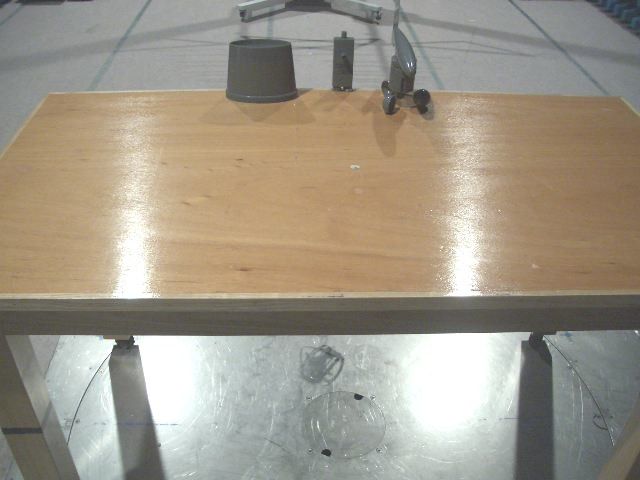

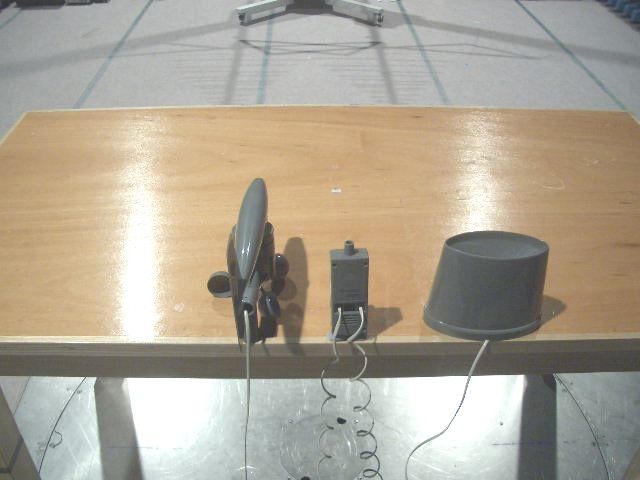

TEST REPORT Report No. : AF022383-001 Date : 2005 September 26 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : THYDG941 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF212372(6) Client : Norton Instruments Llc. 2221 Niagara Falls Blvd, Niagara Falls, 14304, New York Sample Description : One(1) submitted sample stated to be Home Weather Station of Model No. DG941 Rating : 4 x 1.5V AA size batteries No. of submitted sample : One (1) piece*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 July 05 2005 July 05 – 2005 September 26 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 11. The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : The following thirty-four models are the same in circuitry and components and construction, and therefore model DG941 was chosen to be the representative of the test sample: THERMOR : DG955, DG965, DG941 BIOS WEATHER/METEO : BW970, BW975, BW995 NATIONAL GEOGRAPHIC : IN970, IN975, IN995 PRIVITE LABEL : PL001, PL002, PL003, PL004, PL005, PL006, PL007, PL008, PL009, PL010, PL011, PL012, PL013, PL014, PL015, PL016, PL017, PL018, PL019, PL020, PL021, PL022, PL023, PL024, PL025 TEST REPORT Report No. : AF022383-001 Date : 2005 September 26 FCC ID : THYDG941 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .................................................................................................................................. 3 1.1 General Description ........................................................................................................................... 3 1.2 Location of the test site ...................................................................................................................... 4 1.3 List of measuring equipment.............................................................................................................. 5 2 Description of the radiated emission test .................................................................................................. 6 2.1 Test Procedure ................................................................................................................................... 6 2.2 Test Result ......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data .............................................................................................. 7 3 Description of the Line-conducted Test .................................................................................................... 8 3.1 Test Procedure ................................................................................................................................... 8 3.2 Test Result ......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ........................................................... 8 4 Photograph ................................................................................................................................................ 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission............................. 9 4.2 Photographs of the External and Internal Configurations of the EUT............................................... 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ........................................................................................................................................ 10 5.2 Duty Cycle ....................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................ 10 6 Appendices .............................................................................................................................................. 11 TEST REPORT Report No. : AF022383-001 Date : 2005 September 26 FCC ID : THYDG941 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Home Weather Station. Operating at 433.920MHz which is controlled by a crystal. The EUT is powered by 4 x 1.5V AA size battery. It has four difference sensors for measure wind speed, wind direction, temperature and rain at out door. When it received the data from the sensors, it will transmit a radio signal to receiver. The brief circuit description is listed as follows : - Y1, Q1 and associated circuit act as oscillator for RF. - X1 and associated circuit act as oscillator for …

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Job No.: WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1 Bandwidth 2
