TIB-NOMAD-MX3-1Game Call Transmitter

FCC NOTICES: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Cass Creek International, LLC could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement for Portable Devices This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment is in direct contact with the body of the user under normal operating conditions. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. NOMAD MX3 RECEIVER/CALL- HAND HELD USE 1. On/Off. Turn on receiver by rotating the thumbwheel volume control clockwise (#5). The LED on/off indicator will light (#1). Turn off the receiver by rotating the volume dial control fully counterclockwise until it clicks off (#5). 2. Call Select/Interrupt. Select a sound and activate the call by depressing the corresponding button (#10). Any subsequent button pushed will interrupt the playing sound with the new call, allowing you to vary the type, length, and sequence of calls. 3. Auto Off . If no call selection is activated for an hour, the receiver will automatically turn off and the unit will go into battery saver mode. To reactivate receiver, simply push a call select button on the receiver (#10). NOMAD MX3 TRANSMITTER/RECEIVER CALL—REMOTE 1. On/Off . The receiver is turned on by rotating the thumbwheel clockwise (#5). 2. Frequency . Select the receiver frequency to channel A, B or C (#8). More than one receiver can be set to any one channel. Place the receiver in the field and return to your hunting position. 3. Transmitter . Press the receiver selection button on the transmitter (#11), for the corresponding receiver selection (#8), on the receiver. The button selected will become backlit (#11) on the transmitter. Now, whatever call selection button (#17) is chosen will be played through the designated receiver. 4. Volume . Select the volume level on the transmitter (#14) for the designated receiver. The volume indicator (#15) will show the volume level. 5. Sound . Choose an animal call and press the call select button (#17). The sound will be heard from the receiver. The call can be stopped by pressing the transmitter button (A,B or C) (#11) or interrupt the sound by pressing a new call select button (#17). 6. Auto Off . a) TRANSMITTER. The transmitter will turn off when nothing is backlit or automatically go into a battery saver mode after 5 minutes if no buttons are pressed and the LEDS will turn off (#11, #15). Press any button and the unit is awake and be fully functional. b.) RECEIVER/CALL. If no signal is transmitted to the receiver within one hour, the receiver will automatically go into battery saver mode. To wake up the receiver, press any button on the receiver. Example: THREE RECEIVERS THREE SOUNDS Choose channel A on the transmitter (#11), press a call select button (#17) and hear the sound from a receiver. Turn off the A channel button (#11) and the sound will stop. Turn on the B channel button (#11) and press a new call select button (#17). The new sound will now come out of the B channel receiver. Leave the B (#11) channel button on and select the C channel button (#11) and play the desired sound (#17). The new sound will come out of the C receiver while the B receiver is still playing. You can interrupt, stop, or vary the sounds and receivers to create new call patterns. MOVING SOUND PATENT PENDING FEATURE 1. On the transmitter – Activate any combination of two or three channel buttons (A, B, and/or C) (#11). 2. Select a game sound (#17) and play the sound through one of the receivers. 3. MOVE SOUND A-B-C DIRECTION. Press the right side of the moving sound bar (#18) and the sound last played on the transmitter will “move”. The call will begin at the A receiver with the sound moving onto the B receiver and then onto the C receiver, with the same process. Note: The A, B and C lights will flash sequentially for thirty seconds to designate the moving sound with the sound taking thirty seconds to move to each speaker. 4. MOVE SOUND C-B-A DIRECTION. Do as above but press the left side of the moving sound bar (#18). FOR UPDATED INSTRUCTIONS, FAQS OR OTHER QUESTIONS GO TO OUR WEBSITE ( www.casscreek.com ) Cass Creek International, LLC 1881 Lyndon Boulevard Falconer, New York 14733 (716) 665-6532 Fax: (716) 665-6536 Website: www.casscreek.com Email: [email protected] MADE IN CHINA

FCC ID: TIB-NOMAD-MX3-1 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for Cass Creek International, LLC, Inc., a Nomad MX3 Remote Control Electronic Game Call Transmitter, Model Number: 921 & 938, with a FCC ID: TIB-NOMAD-MX3-1 for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.231. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/sr

Letter of Agency Date: August 8, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Cass Creek International, LLC authorizes D.L.S. Electronic Systems, Inc. to act on their behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: August 8, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: TIB-NOMAD-MX3-1 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Request for Confidentiality Date: August 8, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: TIB-NOMAD-MX3-1 Pursuant to 47 CFR Section 0.459 Cass Creek International, LLC understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Cass Creek International, LLC understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: August 8, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: TIB-NOMAD-MX3-1 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: August 8, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: TIB-NOMAD-MX3-1 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

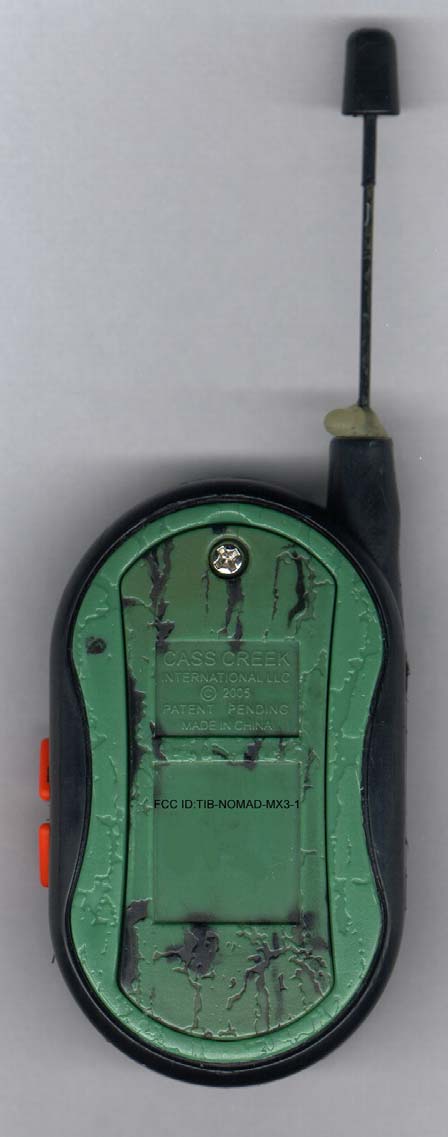

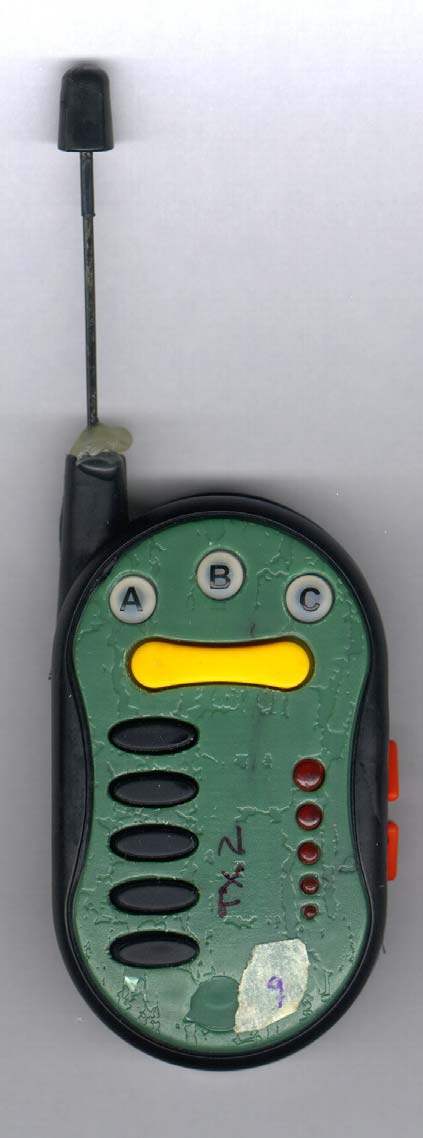

Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Front of Unit Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Back of Unit Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Battery Cover Removed

Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Front Cover Removed Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Inside of Covers Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Circuit Board Component Side Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Antenna Removed Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: RF Shield Removed Company: Cass Creek International Model: Nomad MX3 FCC ID: TIB-NOMAD-MX3-1 Date: 07-24-2005 Photo Description: Circuit Board Switch Side

FCC IC TIB-NOMAD-MX3-1 Nomad MX3 Remote Control Electronic Game Call TRANSMITTER OPERATION AND DESCRIPTION: This transmitter system consists of an integrated rf transmitter, "micrel part", and a microcontroller. The microcontroller translates user input into bi-phase encoded 16 bit data, enables the transmitter part, and then applies the ask signal to the micrel part's input. The transmission consists of 14 sync bits and the 16 data and is retransmitted 10 times per button press for a total cycle time of 0.9078 seconds. The antenna is a simple monopole antenna and the ground system consists of grounded traces on the pcb. The same transmitter is used in both models with the digital code being change for each model. 12345678 A B C D E F G H 2.76msec 16 data bits clock extractionsync data 2.76msec/bit each transmission is repeated 10 times with a 15msec pause between 9 x 15msec + 2.76msec/bit x 28bits x 10 = 0.9078 sec UPS Symbols/ UCC Codes UCC CODE Product Number PRODUCT DESCRIPTION UCC CODE Product Number PRODUCT DESCRIPTION 890834000037 037 Turkey Call 890834000 890834000013 013 Deer Call 890834000 890834000068 068 Elk Call 890834000 890834000044 044 Duck Call 890834000 890834000020 020 Predator Call 890834000 890834000051 051 Goose Call 890834000 890834000877 877 Spring Gobbler Call 890834000 890834000884 884 Predator II Call 890834000 890834000891 891 Crow Call 890834000 890834000082 082 Speaker 890834000 890834000075 075 Gift Pack 890834000 890834000907 907 Moose Call 890834000 890834000921 921 Nomad Deer w/Transmitter 890834000 890834000945 945 Nomad Deer Receiver 890834000 890834000938 938 Nomad Predator w/Trans. 890834000 890834000952 952 Nomad Predator Receiver 890834000 890834000969 969 Nomad Rep Pack 890834000 890834000976 976 Nomad Turkey w/Trans. 890834000 890834000983 983 Nomad Turkey Receiver 890834000 890834000709 709 Nomad Elk w/Transmitter 890834000 890834000716 716 Nomad Elk Receiver 890834000 890834000501 501 Nomad Can.Goose w/Trans. 890834000 890834000518 518 Nomad Can.Goose Receiver 890834000 890834000808 808 Nomad Sp.Gobbler w/Trans. 890834000 890834000815 815 Nomad Sp.Gobbler Receiver 890834000 890834000822 822 Nomad Predator II w/Trans. 890834000 890834000839 839 Nomad Predator II Receiver 890834000 890834000846 846 Nomad Crow w/Transmitter 890834000 890834000853 853 Nomad Crow Receiver 890834000 890834000860 860 Nomad Sno-Goose w/Trans. 890834000 890834000723 723 Nomad Sno-Goose Receiver 890834000 890834000303 303 Nomad Moose w/Transmitter890834000 890834000310 310 Nomad Moose Receiver 890834000 890834000419 419 Nomad Hog w/Transmitter 890834000 890834000426 426 Nomad Hog Receiver 890834000 890834000433 433 Hog Call 890834000 890834000099 099 Big Speaker 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000 890834000

RF Exposure Exhibit for Case Creek International TIB-NOMAD-MX3-1 Portable Devices are defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user or nearby persons. Therefore, this device is classified under section 2.1093 as a “portable” device. Although this device is categorically excluded from RF exposure evaluation under Part 2, it can be shown that the device meets the limits used for evaluating other devices (those which are not excluded) under this section. Section 2.1093(d-2) for portable devices state that the limits for general population/uncontrolled exposure is .08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as average over any 1 gram of tissue. The FCC OET Bulletin 65 Section 2 can be used to determine compliance with guidelines for human exposure to RF radiation. We will use equation 3 of that section for predicting RF fields. S = PG 4πR 2 S = power density (units e.g. mW/cm 2 ) P = power into to the antenna (or power output) (units e.g. mW) G = power gain of the antenna (worst case = 1) R = distance to the center of antenna (units e.g. cm) The highest power measurement for this device is 80.8 dBuV. For this prediction we will use a worst-case power of 81 dBm or 2.5 uW. Since the device is “portable”, we will use a worst-case distance of 20 cm. For worst-case antenna gain, we will use a gain of one. Using equation 3 of OET Bulletin 65 Section 2, the power density is calculated to be 0.0000005 mW/cm 2 . This is well within the limit given in 2.1093 (d-2).

1250 Peterson Dr., Wheeling, IL 60090 Company: Cass Creek International, LLC Model Tested: #938-Nomad MX3 Predator Receiver with Transmitter & #921-Nomad MX3 Deer Receiver with Transmitter ReportNumber:11558 FCC Rules and Regulations / Intentional Radiators Periodic operational in the 40.66-40.70 MHz Band and above 70 MHz. Part 15, Subpart C, Section 15.231 THE FOLLOWING ''MEETS'' THE ABOVE TEST SPECIFICATION Formal Name: Nomad MX3 Remote Control Electronic Game Call Kind of Equipment: Electronic Game Call Test Configuration: Stand Alone Tested at 3V DC (nominal) Model Number(s): #938-Nomad MX3 Predator Receiver with Transmitter & #921-Nomad MX3 Deer Receiver with Transmitter Model(s) Tested: #938-Nomad MX3 Predator Receiver with Transmitter & #921-Nomad MX3 Deer Receiver with Transmitter Serial Number(s): 890834000938-Nomad MX3 Predator Receiver with Transmitter Date of Tests: June 21 & July 24, 2005 Test Conducted For: Cass Creek International, LLC 1881 Lyndon Boulevard Falconer, New York 14733 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems. Page - 1 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Cass Creek International, LLC Model Tested: #938-Nomad MX3 Predator Receiver with Transmitter & #921-Nomad MX3 Deer Receiver with Transmitter ReportNumber:11558 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: Cass Creek International, LLC Page - 2 - 1250 Peterson Dr., Wheeling, IL 6009 Company: Cass Creek International, LLC Model Tested: #938-Nomad MX3 Predator Receiver with Transmitter & #921-Nomad MX3 Deer Receiver with Transmitter ReportNumber:11558 TABLE OF CONTENTS i. Cover Page.......................................................................................................................................1 ii. Signature Page.................................................................................................................................2 iii. Table of Contents.............................................................................................................................3 iv. NVLAP Certificate of Accreditation...............................................................................................4 v. NVLAP Scope of Accreditation......................................................................................................5 1.0 Summary of Test Report................................................................................................................17 2.0 Introduction....................................................................................................................................17 3.0 Object.............................................................................................................................................17 4.0 Test Set-Up....................................................................................................................................18 5.0 Test Equipment..............................................................................................................................19 6.0 Ambient Measurements.................................................................................................................20 7.0 Description of Test Sample............................................................................................................21 8.0 Additional Description of Test Sample..........................................................................................22 9.0 Photo Information and Test Set-Up...............................................................................................23 10.0 Radiated Photos Taken During Testing.........................................................................................24 11.0 Results of Tests..............................................................................................................................26 12.0 Conclusion.....................................................................................................................................26 TABLE 1 – EQUIPMENT LIST...............................................................................................................27 Appendix A – Electric Field Radiated Emissions Test..............................................................................29 1.0 Pulsed Operation (Duty Cycle Correction Factor).........................................................................30 1.0 Graph(s) taken of the Pulsed Operation (DCCF)...........................................................................31 2.0 Bandwidths....................................................................................................................................36 2.0 Graph(s) taken of the Bandwidth Emissions.................................................................................37 3.0 Field Strength of Spurious Emission Measurements.....................................................................39 3.0 Data taken of the Fundamental and Spurious Emissions...............................................................40 4.0 Restricted Bands............................................................................................................................42 Page -3- 1250 Peterson Dr., Wheeling, IL 6009 Company: Cass Creek International, LLC Model Tested: #938-Nomad MX3 Predator Receiver with Transmitter & #921-Nomad MX3 Deer Receiver with Transmitter ReportNumber:11558 Page -4- 1250 Peterson Dr., Wheeling, IL 6009 Company: Cass Creek International, LLC Model Tested: #938-Nomad MX3 Predator Receiver with Transmit…
