TJ2-RREMURS Data Modem

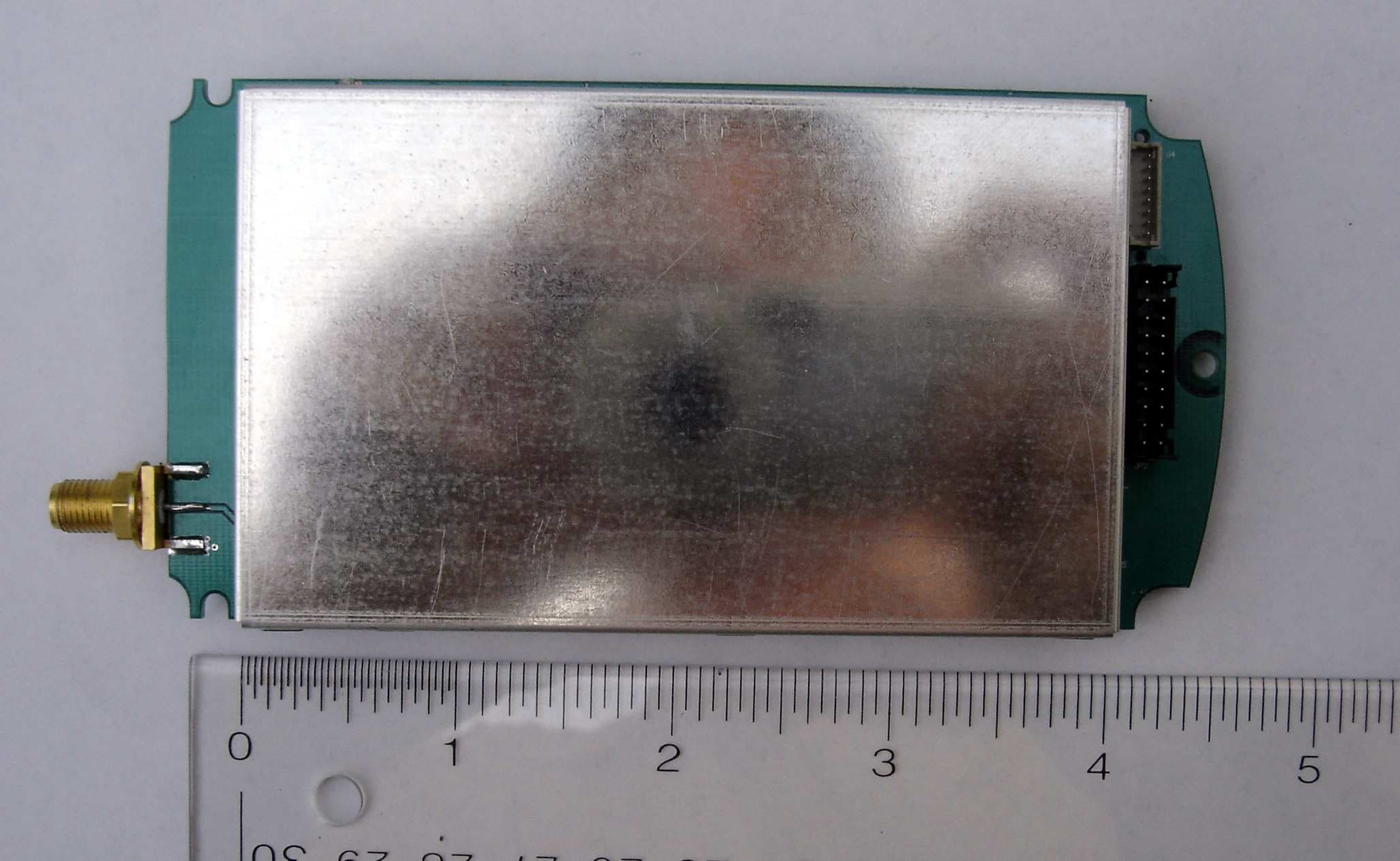

Company Confidential 1 Raveon Technologies Corp. CalSense “RRE” RF MODEM User Manual Version A2 August 15, 2005 CALSENSE 2075 Corte del Nogal Suite P Carlsbad, CA 92009 Company Confidential 2 Raveon Technologies Corp. Overview This RF MODEM is a 2 watt VHF data modem in module form, suitable for integration in OEM products. It is completely self-contained, self-regulated, and shielded. It contains a receiver, a transmitter, base-band circuits, and a microprocessor. The user interface to it is ASYNC data in and out. Modem operation is transparent to the user, although the configuration of the MODEM is via the user serial port. FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This product complies with FCC Part 95 for operation on the MURS radio service. Features • Built-in VHF band transceiver with integrated modem • Unlicensed MURS band operation • Small size • Very low cost narrow-band radio modem • 2 watts of RF output • Full spec –30 to +60 degrees C • Easily configured using “AT” commands • User interface is asynchronous serial data for TX, RX, and configuration. • TTL level inputs and outputs • Low receive and standby current consumption Company Confidential 3 Raveon Technologies Corp. Specifications General All measurements made per TIA-603-B Vpwr input Voltage.................................................................................................5.0V DC Average current draw, /SLEEP asserted (low)...........................................................<20mA Average current draw, ENABLE negated (low)..........................................................<200uA Current draw when receiving data.............................................................................<90mA Current draw when transmitting data...........................................................................<2.5A Power supply ripple and noise limit.................................................................<100mV RMS Frequency Stability................................................................................. better than ±5ppm User selectable channels:...........................................................Five, see frequencies below 1..................................................................................................151.820 MHz 2..................................................................................................151.880 MHz 3..................................................................................................151.940 MHz 4..................................................................................................154.570 MHz 5..................................................................................................154.600 MHz Serial Port Baud Rates.........................................300, 1200, 2400, 4800, 9600, 19200, 57600 Operating temperature range.........................................................................-30ºC to +60ºC Maximum over-the-air data rate..............................................................................4800bps Storage temperature range............................................................................-30ºC to +80ºC TX-RX and RX-TX turn-around time..........................................................................<50mS Wake-up time from /SLEEP......................................................................................<60mS Power on (or ENABLE asserted) time to operational................................................<250mS Transmitter Maximum RF Power output...................................................................................2.0 watts Maximum Duty Cycle...................................................................................................10% Maximum Transmit frequency deviation................................................................± 2.25kHz TX Spurious outputs.............................................................................................< -70dBc Occupied Bandwidth mask: (i) On any frequency from the center of the authorized bandwidth f(o) to 5.625 kHz removed from f(o): Zero dB. (ii) On any frequency removed from the center Company Confidential 4 Raveon Technologies Corp. of the authorized bandwidth by a displacement frequency (f(d) in kHz) of more than 5.625 kHz but no more than 12.5kHz: at least 7.27(f(d) -2.88 kHz) dB. (iii) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (f(d)in kHz) of more than 12.5 kHz: at least 50 + 10 log (P) dB or 70 dB, whichever is the lesser attenuation. Receiver RX sensitivity (1% BER).........................................................................................-110dBm RX selectivity.............................................................................................................-60dB RX intermodulation rejection......................................................................-65dB at 2400bps User Input and Output Signals Voltage Levels.......................................................................................3.3V HCMOS levels RX and TX data.................................................................................................Async data Modem handshake signals............................................................RTS, CTS, DTR, DSR, CD RF I/O .................................................…

Text truncated - open the document above for the full version.

® CALIFORNIA SENSOR CORPORATION 2075 Corte del Nogal Ste P Carlsbad, CA 92011-1415 ph (760) 438-0525 (800) 572-8608 fax (760) 438-2619 www.calsense.com Date: August 15, 2005 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This letter will authorize the appointment of M. FLOM ASSOCIATES, INC. to act as our Agent in all FCC matters. This appointment is affective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Thank you, David Byma, President Calsense Cc: file

® CALIFORNIA SENSOR CORPORATION 2075 Corte del Nogal Ste P Carlsbad, CA 92011-1415 ph (760) 438-0525 (800) 572-8608 fax (760) 438-2619 www.calsense.com August 15, 2005 Federal Communications Commission, EQUIPMENT APPROVAL SERVICES, P. O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: FCC ID-TJ2, Model Number RRe Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. Schematics, Block Diagrams, Alignment/Tune Up Procedures, Theory of Operation and Active Devices. These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, David Byma, President Calsense Cc: file

Date: June 27, 2005 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: CALSENSE Equipment: MURS Transceiver FCC ID: TJ2-RRE FCC Rules: Modular, 95J Gentlemen: On behalf of the Applicant the following statement on Modular Approval is provided. 1. The modular transmitter has its own RF shielding. This ensures that the module does not have to rely upon the shielding provided by the device into which it is installed 2. The TJ2-RRE has buffered modulation/data inputs to ensure that the module will comply with modular requirements. 3. The module contains its own on-board power supply regulation. 4. The antenna is external to the module using a unique connector. 5. The modular transmitter was tested in a stand-alone configuration. 6. The modular is labeled with its own FCC ID number, and, as the FCC ID will not visible when the module is installed inside another device, an exterior label will be used. An example label is provided with the application. 7. The device complies with Parts 15B, and 95J of the FCC Rules. A copy of instructions, specific to the Rule Parts, is included in the application for equipment authorization. 8. The module complies with the applicable RF exposure requirements and an MPE Assessment (47 CFR 1.1310) is included with the filing. A 20cm distance is specified for a zero dBd antenna. Attested By: David E. Lee, Quality Assurance Manager

Example of FCC Label CALSENSE Carlsbad, CA Model: RRE FCC ID: TJ2-RRE Location of FCC Label

M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580073 Date: August 25, 2005 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: CALSENSE Equipment: RRE FCC ID: TJ2-RRE FCC Rules: Radiofrequency Radiation Exposure Limits 47 CFR 1.1310 MPE - Mobiles X Fixed Based Station Gentlemen: On behalf of the Applicant, enclosed please find the Supplemental Test Data Report, the whole for Environmental Assessment (MPE) of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, David E. Lee, Quality Assurance Manager enclosure(s) cc: Applicant DEL/del M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580073 Environmental Assessment for Mobiles/Fixed Base Station for FCC ID: TJ2-RRE Model:RRE to Federal Communications Commission 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits Date Of Report: August 25, 2005 On the Behalf of the Applicant: CALSENSE At the Request of: P.O. 1135 Raveon Technologies Corporation 2722 Loker Avenue West, Suite D Carlsbad, CA 92008 Attention of: John Sonnenberg 760-931-8001; fax: 760-931-8004 Email: [email protected] Supervised By: David E. Lee, Quality Assurance Manager M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580073 Table of Contents Rule Description Page . Test Report 1 . Identification of the Equipment Under Test 2 . Standard Test Conditions and Engineering Practices 4 M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 1 of 5 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580073 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report (Supplemental) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0580073 d) Client: Raveon Technologies Corporation 2722 Loker Avenue West, Suite D Carlsbad, CA 92008 e) Identification: RRE FCC ID: TJ2-RRE Description: MURS Data Modem f) EUT Condition: Not required unless specified in individual tests. g) Report Date: August 25, 2005 EUT Received: August 1, 2005 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: David E. Lee, Quality Assurance Manager n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 2 of 5 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580073 Identification of the Equipment Under Test (EUT) Name and Address of Applicant: CALSENSE 2075 Corte del Nogal Suite P Carlsbad, CA 92011-1415 Manufacturer: Applicant FCC ID: TJ2-RRE Model Number: RRE Description: MURS Data Modem Type of Emission: 11K2F1D Frequency Range, MHz: 151.820 to 154.600 Power Rating, Watts: 2.0 Switchable Variable X N/A Modulation: AMPS TDMA CDMA X OTHER Antenna: Helical Monopole Whip X Other Note: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 0 dBd) and RF Power set to highest nominal power across all channels. M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 3 of 5 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580073 A2LA “A2LA has accredited M. Flom Associates, Inc. Chandler, AZ for technical competence in the field of Electrical Testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO/IEC 17025 – 1999 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Certificate Number: 2152-01 NIST I am pleased to inform you that your laboratory has been validated by the Chinese Taipei Bureau of Standards, Metrology and Inspection (BSMI) under the Asia Pacific Economic Cooperation Mutual Recognition Agreement (APEC MRA). Your laboratory is now formally designated to act as a Conformity Assessment Body (CAB) under Appendix B, Phase I Procedures, of the APEC MRA between the American Institute in Taiwan (AIT) and the Taipei Economic and Cultural Representative Office (TECRO) in the United States, covering equipment subject to Electro-Magnetic Compatibility (EMC) requirements. The names of all validated and nominated laboratories will be posted on the NIST website at http://ts.nist.gov/mra under the ‘Asia’ category.” BSMI Number: SL2-IN-E-041R M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Page 4 of 5 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580073 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992/2000, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104 °F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance w…

Text truncated - open the document above for the full version.

M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580020 Date: August 16, 2005 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Raveon Technologies Corporation Equipment: RRE FCC ID: TJ2-RRE FCC Rules: 95J Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, David E. Lee, Quality Assurance Manager enclosure(s) cc: Applicant DEL/del M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580020 Transmitter Certification of Model: RRE FCC ID: TJ2-RRE to Federal Communications Commission Rule Part(s) 95J, Modular and Confidentiality Date of report: August 16, 2005 On the Behalf of the Applicant: CALSENSE At the Request of: P.O. 1135 Raveon Technologies Corporation 2722 Loker Avenue West, Suite D Carlsbad, CA 92008 Attention of: John Sonnenberg 760-931-8001; fax: 760-931-8004 Email: [email protected] Supervised by: David E. Lee, Quality Assurance Manager M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580020 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Raveon Technologies Corporation FCC ID: TJ2-RRE By Applicant: 1. Letter of Authorization 2. Confidentiality Request: 0.457 And 0.459 3. Identification Drawings, 2.1033(c)(11) Label Location of Label Compliance Statement Location of Compliance Statement 4. Photographs, 2.1033(c)(12) 5. Documentation: 2.1033(c) (3) User Manual (9) Tune Up Info (10) Schematic Diagram (10) Circuit Description Block Diagram Parts List Active Devices 6. MPE Report By M.F.A. Inc.: A. Testimonial & Statement of Certification M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580020 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, fax (480) 926-3598 MFA p0580001, d0580020 Table of Contents Rule Description Page 2.1033(c)(14) Rule Summary 2 . Standard Test Conditions and Engineering Practices 3 2.1033(c) General Information Required 5 2.1046(a) Carrier Output Power (Conducted) 8 2.1051 Unwanted Emissions (Transmitter Conducted) 10 2.1053(a) Field Strength of Spurious Radiation 12 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 17 2.1055(a)(1) Frequency Stability (Temperature Variation) 25 2.1055(b)(1) Frequency Stability (Voltage Variation) 27 2.202(g) Necessary Bandwidth and Emission Bandwidth 29 M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 1 of 29 Chandler, Arizona 85225-7176 FCC ID: TJ2-RRE (480) 926-3100 phone, (480) 926-3598 fax MFA p0580001, d0580020 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0580020 d) Client: Raveon Technologies Corporation 2722 Loker Avenue West, Suite D Carlsbad, CA 92008 e) Identification: RRE FCC ID: TJ2-RRE EUT Description: MURS Data Modem f) EUT Condition: Not required unless specified in individual tests. g) Report Date: August 16, 2005 EUT Received: August 2, 2005 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: David E. Lee, Quality Assurance Manager n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107…

Text truncated - open the document above for the full version.
