TJ6PR0345Panther RFID Reader

0450-0792_Rev_0.2_PRELIMINARY_Panther_Install_Guide.doc Ver. 0.2 Preliminary Page 1 8/11/2005 Panther Installation Guide ESI Proprietary and Confidential 0450-0792_Rev_0.2_PRELIMINARY_Panther_Install_Guide.doc Ver. 0.2 Preliminary Page 2 8/11/2005 REGULATORY INFORMATION.....................................................................................................................................3 INTRODUCTION......................................................................................................................................................4 ABOUT THE PANTHER READER.................................................................................................................................4 Basic Features.....................................................................................................................................................4 Advanced Features...............................................................................................................................................4 LICENSING................................................................................................................................................................4 SYSTEM REQUIREMENTS....................................................................................................................................5 Capacities............................................................................................................................................................5 SPECIFICATIONS....................................................................................................................................................5 ABOUT DOOR LOCK CONTROL.........................................................................................................................6 ELECTRIC AND ELECTROMAGNETIC DOOR LOCKS....................................................................................................6 DISCLAIMER..............................................................................................................................................................7 FEATURE SUMMARY.............................................................................................................................................8 BASIC FEATURES.......................................................................................................................................................8 RFID FEATURES.......................................................................................................................................................8 INSTALLING THE RFID READER.......................................................................................................................9 MOUNTING AND CONNECTING...................................................................................................................................9 PROGRAMMING....................................................................................................................................................11 OVERVIEW..............................................................................................................................................................11 PROGRAMMING FUNCTIONS....................................................................................................................................11 Function 157: Door unlock timer......................................................................................................................11 Function 169: System Features..........................................................................................................................12 Function 37 - RFID programming.....................................................................................................................12 Function 371 – Access Schedule programming.................................................................................................12 Function 372 – RFID Tag programming...........................................................................................................14 User programming.............................................................................................................................................15 HOW TO PROGRAM..................................................................................................................................................15 Overview............................................................................................................................................................15 Non-RFID features.............................................................................................................................................15 RFID applications..............................................................................................................................................15 HOW TO PROGRAM FOR SPECIFIC APPLICATIONS.....................................................................................................15 RFID READER DISPLAY REFERENCE........................................................................................................................16 TROUBLESHOOTING................................................................................................................................................16 GLOSSARY..............................................................................................................................................................16 0450-0792_Rev_0.2_PRELIMINARY_Panther_Install_Guide.doc Ver. 0.2 Preliminary Page 3 8/11/2005 Regulatory information United States of America FCC Part 15 FCC Notice: Any change or modification not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to th…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 24, 2005 RE: Estech Systems, Inc. FCC ID: TJ6PR0345 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) FYI: My apologies on the length of time it took to get these comments back to you. But there were a couple of issues that did arise which need to be addressed. 2.) Testing for this 125 KHz device appears to have been done in a 10M semi-anechoic chamber. I can find very little public information to show how a chamber will react at these very long wavelengths. This is not to say the data was taken incorrectly, but there is very little I can find to indicate how any chamber will or should react at these frequencies. This does call into question not only the fundamental but all spurious emission measurements below 30MHz. In addition, this also could potentially affect the published uncertainty budget. I am loathe to ever requiring any unnecessary testing from any laboratory, but for this case I need some assurance that the measurements are performed properly. Kindly provide some additional correlative data showing that these measurements are still valid, especially since 3M measurements were extrapolated to 300M. I will accept either retesting on an OATS or manufacturer’s data on typical chamber performance. 3.) The Manual is identified as “confidential” on the face page. Please bear in mind that a Manual is rarely ever allowed to be a confidential document. In addition, this seems to be only a portion of the Manual with much information missing. One of the most important issues is being certain that the end user does not have any access to any controls which will permit operation in unauthorized frequency bands. Kindly provide a more complete Manual. 4.) The label for this device should display the 15.19(a)(3) statement on the device. In addition, the “FCC Logo” only applies to devices which seek Equipment Authorization using the Declaration of Conformity process. See 15.19(b) as well as Part 2 of the Rules for further information. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax Nick Kobrosly AETL Testing Inc. c/o National Technical Systems (Calgary) 5151 – 47 Street N.E. Calgary, AB CANADA T3J 3R2 August 23, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: TJ6PR0345 Please find below responses to your questions regarding the above application, if you have any further questions or concerns, please do not hesitate to contact me at 403-568-6625 or Glen Moore at 403-568- 6605 x223. 1.) FYI: My apologies on the length of time it took to get these comments back to you. But there were a couple of issues that did arise which need to be addressed. Response: No problem. 2.) Testing for this 125 KHz device appears to have been done in a 10M semi-anechoic chamber. I can find very little public information to show how a chamber will react at these very long wavelengths. This is not to say the data was taken incorrectly, but there is very little I can find to indicate how any chamber will or should react at these frequencies. This does call into question not only the fundamental but all spurious emission measurements below 30MHz. In addition, this also could potentially affect the published uncertainty budget. I am loathe to ever requiring any unnecessary testing from any laboratory, but for this case I need some assurance that the measurements are performed properly. Kindly provide some additional correlative data showing that these measurements are still valid, especially since 3M measurements were extrapolated to 300M. I will accept either retesting on an OATS or manufacturer’s data on typical chamber performance. Response: The measurements were performed in accordance with ANSI C63.4, which is referenced by the FCC and IC. Section 5.3 of ANSI C63.4 specifies that measurements on a ground plane may yield a higher emission level (worst case from compliance perspective). It does not preclude the use of another facility provided it meets the requirements of Figure 5. There is no site attenuation or OATS requirements below 30 MHz; I.E. a ground plane is not required, but an obstruction-free zone per Figure 5 is a must, which our testing facility does meet. 3.) The Manual is identified as “confidential” on the face page. Please bear in mind that a Manual is rarely ever allowed to be a confidential document. In addition, this seems to be only a portion of NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax the Manual with much information missing. One of the most important issues is being certain that the end user does not have any access to any controls which will permit operation in unauthorized frequency bands. Kindly provide a more complete Manual. Response: Confidentiality was not requested for the manual. The manual will be updated to remove the word “confidential” from the cover page. An updated manual will be uploaded shortly. 4.) The label for this device should display the 15.19(a)(3) statement on the device. In addition, the “FCC Logo” only applies to devices which seek Equipment Authorization using the Declaration of Conformity process. See 15.19(b) as well as Part 2 of the Rules for further information. Response: The statement from Sec. 15.19 will be added to the device. The FCC Logo is added because the customer is classifying the digital unintentional portion under FCC Part 15 Class B. This has no bearing on the certification of the intentional radiator except the customer wishes to reflect the DOC in the same report. Sincerely, Nick Kobrosly Director of Operations NTS Calgary On Behalf of Estech Systems Inc.

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 - 47 th Street NE • Calgary, Alberta T3J 3R2 Phone : (403) 568-6625 • Fax : (403) 568-6970 August 12, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: TJ6PR0345 Please be advised pursuant to 47CFR 0.459 that the following information is to be held permanently confidential on behalf of Estech Systems Inc • Schematics • Detailed Block Diagram • Operational Description This application contains technical information that Estech Systems Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the marketplace. Thank you for your attention to this matter. Sincerely, Glen Moore EMC Manager NTS On Behalf of Estech Systems Inc

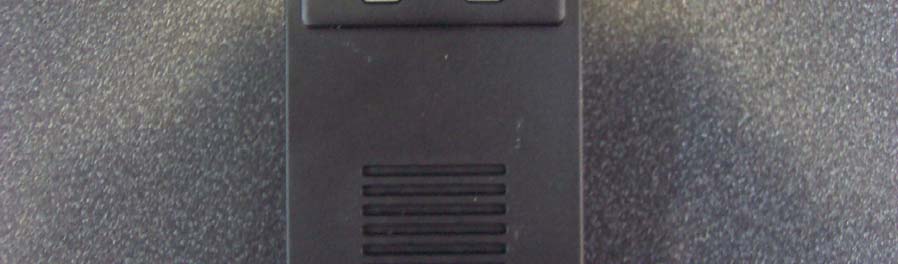

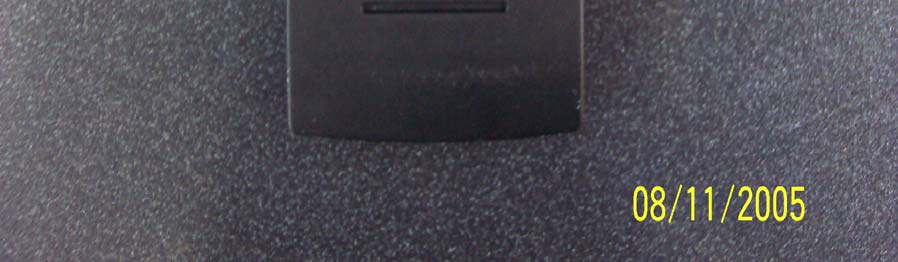

Applicant Name: Estech Systems Inc NTS Project: CG-126 FCC ID: TJ6PR0345 Date: August 12, 2005 Revision #: 0 External Photographs External Photograph 1 – Top View Applicant Name: Estech Systems Inc NTS Project: CG-126 FCC ID: TJ6PR0345 Date: August 12, 2005 Revision #: 0 External Photograph 2 – Bottom View

Applicant Name: Estech Systems Inc NTS Project: CG-126 FCC ID: TJ6PR0345 Date: August 12, 2005 Revision #: 0 Label Location Label Content

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 568-6605 Fax : (403) 568-6970 Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.225 Estech Systems Inc. FCC ID # 1T1MF08B33727 Project Code CG-126 (Report CG-126-0) Revision: 0 July 25, 2005 Prepared for: Estech Systems Inc. Author: Kuganesan Pararajasingam EMC Engineer Approved by: Nick Kobrosly Director of Operations CG-126 Rev: 0 Model: Panther Emissions Test Report Estech Systems Inc. FCC ID # TJ6PR0345 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 24 August 12, 2005 Report Summary NTS Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: FCC 101386 IC 46405-3978 File # IC3978-2 Standards Council of Canada Accredited Laboratory No. 440 Performed For: Estech Systems Inc. 3701 E. Plano Parkway Plano, Texas 75074 USA Customer Representative: Craig Kibby Senior Hardware Engineer EUT Description: EUT Description Manufacturer Model Revision Serial Number 125kHz Panther RFID Reader Estech Systems Inc. IVX A CG-126 Rev: 0 Model: Panther Emissions Test Report Estech Systems Inc. FCC ID # TJ6PR0345 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 24 August 12, 2005 Test Summary Deviations* from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A Radiated E-Field Emissions 30 MHz – 1 GHz No No No PASS FCC 15.209 B Conducted Voltage Emissions 150 kHz – 30 MHz AC Power Leads No No No PASS FCC 15.207 C Radiated H-Field Emissions 9 kHz – 30 MHz No No No PASS FCC 15.209 Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: ______________________ Kuganesan Pararajasingam EMC Engineer Checked By: ______ ________________ Glen Moore EMC Manager CG-126 Rev: 0 Model: Panther Emissions Test Report Estech Systems Inc. FCC ID # TJ6PR0345 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 24 August 12, 2005 Table of Contents REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS .............................................................................................................................................5 1.0 INTRODUCTION ................................................................................................................................................6 1.1 PURPOSE.................................................................................................................................................................................... 6 2.0 EUT DESCRIPTION ...........................................................................................................................................6 2.1 CONFIGURATION.......................................................................................................................................................................... 6 2.2 MODE OF OPERATION.................................................................................................................................................................. 6 3.0 SUPPORT EQUIPMENT ....................................................................................................................................6 3.1 CONFIGURATION.......................................................................................................................................................................... 6 3.2 CABLES....................................................................................................................................................................................... 7 APPENDICES .....................................................…
