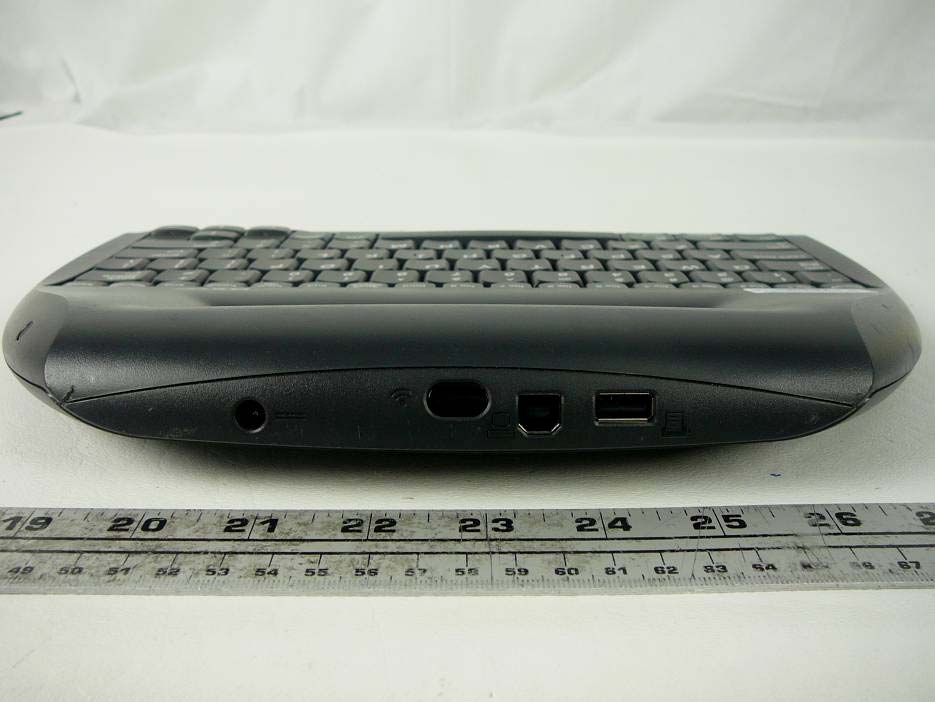

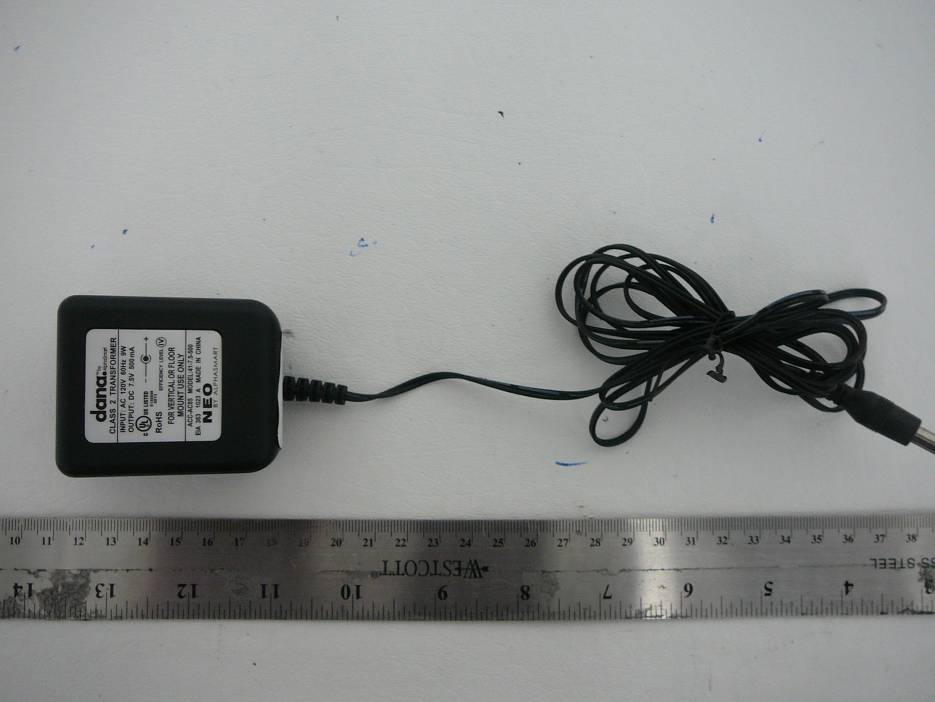

Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 46 of 50 FCC Part 15.247/IC RSS-210 Test Report 16 Exhibit C - EUT Photographs 16.1 EUT Front Side View 16.2 EUT Back Side View Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 47 of 50 FCC Part 15.247/IC RSS-210 Test Report 16.3 EUT Port Side View 16.4 AC/DC Adaptor Front View

Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 48 of 50 FCC Part 15.247/IC RSS-210 Test Report 16.5 EUT Cover off View 16.6 EUT Cover off Close up View Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 49 of 50 FCC Part 15.247/IC RSS-210 Test Report 16.7 EUT PCB Front View 16.8 EUT PCB Back View Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 50 of 50 FCC Part 15.247/IC RSS-210 Test Report 16.9 LCD PCB Front View 16.10 LCD PCB Back View --- END OF REPORT ---

Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 9 of 50 FCC Part 15.247/IC RSS-210 Test Report 4 FCC §15.247 (i), §2.1093 & IC RSS-102 - RF Exposure Information 4.1 Applicable Standards FCC §15.247(i) and §2.1093. According to KDB 447498 1) c), portable device with output power >60/f GHz mW shall include SAR data for equipment approval. IC RSS-102 §2.5.1, above 2.2 GHz up o 3 GHz, if the output power (the higher of the conducted or radiated – EIRP, source-based time Average output) is less than or equal to 20 mw for general public use and 100 mw for controlled use, SAR evaluation can be exempted. 4.2 Results Maximum peak output power of device: -0.49 dBm Antenna Gain: 3.3 dBi EIRP = -0.49 + 3.3 = 2.81 dBm = 1.91 mw 60/f GHz = 60/2.440 = 24.59 mW The EIRP of EUT was less than the SAR threshold; the SAR measurement is not required.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) L FCC PART 15.247 IC RSS-210, ISSUE 8, DECEMBER 2010 TEST AND MEASUREMENT REPORT For Renaissance Learning Inc. PO Box 8036, Wisconsin Rapids, Wisconsin 54495-8036, USA Report Type: Original Report Product Type: Interactive Educational Writing Device/Laptop Test Engineer: Lionel Lara Report Number: R1109194-247 Report Date: 2011-11-16 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (SP) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: TJA-NEO2A IC: 6077A-NEO2A Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 2 of 50 FCC Part 15.247/IC RSS-210 Test Report TABLE OF CONTENTS 1 General Description .................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ....................................................................................... 5 1.2 Mechanical Description of EUT .......................................................................................................................... 5 1.3 Objective.............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) .............................................................................................................................. 5 1.5 Test Methodology................................................................................................................................................ 5 1.6 Measurement Uncertainty.................................................................................................................................... 5 1.7 Test Facility......................................................................................................................................................... 6 2 System Test Configuration ......................................................................................................................................... 7 2.1 Justification.......................................................................................................................................................... 7 2.2 EUT Exercise Software ....................................................................................................................................... 7 2.3 Special Equipment ............................................................................................................................................... 7 2.4 Equipment Modifications .................................................................................................................................... 7 2.5 Local Support Equipment .................................................................................................................................... 7 2.6 Power Supply List and Details............................................................................................................................. 7 2.7 EUT Internal Configuration Details .................................................................................................................... 7 2.8 External I/O Cabling List and AC Cord .............................................................................................................. 7 3 Summary of Test Results ............................................................................................................................................ 8 4 FCC §15.247 (i), §2.1093 & IC RSS-102 - RF Exposure Information .................................................................... 9 4.1 Applicable Standards ........................................................................................................................................... 9 4.2 Results ................................................................................................................................................................. 9 5 FCC §15.203 & IC RSS-Gen §7.1.4 – Antenna Description .................................................................................... 10 5.1 Applicable Standard .......................................................................................................................................... 10 5.2 Antenna Connector Construction....................................................................................................................... 10 6 FCC §15.207 & IC RSS-Gen §7.2.2 – AC Line Conducted Emissions.................................................................... 11 6.1 Applicable Standards ......................................................................................................................................... 11 6.2 Test Setup .......................................................................................................................................................... 11 6.3 Test Equipment List and Details........................................................................................................................ 11 6.4 Test Setup Block Diagram................................................................................................................................. 12 6.5 Test Procedure ......................................................................…

Text truncated - open the document above for the full version.

Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 43 of 50 FCC Part 15.247/IC RSS-210 Test Report 15 Exhibit B - Test Setup Photographs 15.1 Conducted Emissions –Front View 15.2 Conducted Emissions – Side View Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 44 of 50 FCC Part 15.247/IC RSS-210 Test Report 15.3 Transmitter Radiated Spurious Emissions – Front View 15.4 Transmitter Radiated Spurious Emissions – Rear View Renaissance Learning Inc. FCC ID: TJA-NEO2A, IC: 6077A-NEO2A Report Number: R1109194-247 Page 45 of 50 FCC Part 15.247/IC RSS-210 Test Report 15.5 Receiver Radiated Emissions – Front View 15.6 Receiver Radiated Emissions – Rear View
