TJHHVD-200GRFID Card Reader

2 Main Features 3 Part Name and Contents of Package 4 Installation 5 How to use 6 Operation 7 Troubleshooting 8 Precautions –when usage 9 Precautions –troubleshooting 10 Specification 11 Certificate of Warranty Main Features Installation “” “”“”“” Safety Precaution when installation How to use How to use Visa wave card “” Operating “” “” “” “” “” “” Operation ... ...... ...... Troubleshooting “”“” “”“” “”“” Precaution Precaution When Usage “” Precaution troubleshooting ’ Specification ’

3F Samwhan Bldg 98-20, Woonnidong Jongro-gu, Seoul August 8, 2005 Federal Communications Commision Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : HismarTech Co., Ltd. FCC ID : T J H H V D - 2 0 0 G Request for Confidentiality Gentlemen : In accordance with 0.457 and 0.459 of CFR 47, HismarTech Co., Ltd. Hereby requests confidentiality of the Schematics, Block diagram, Part list, Layout diagram and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which HismarTech Co., Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, HismarTech Co., Ltd. Considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, David Kim / General Manager

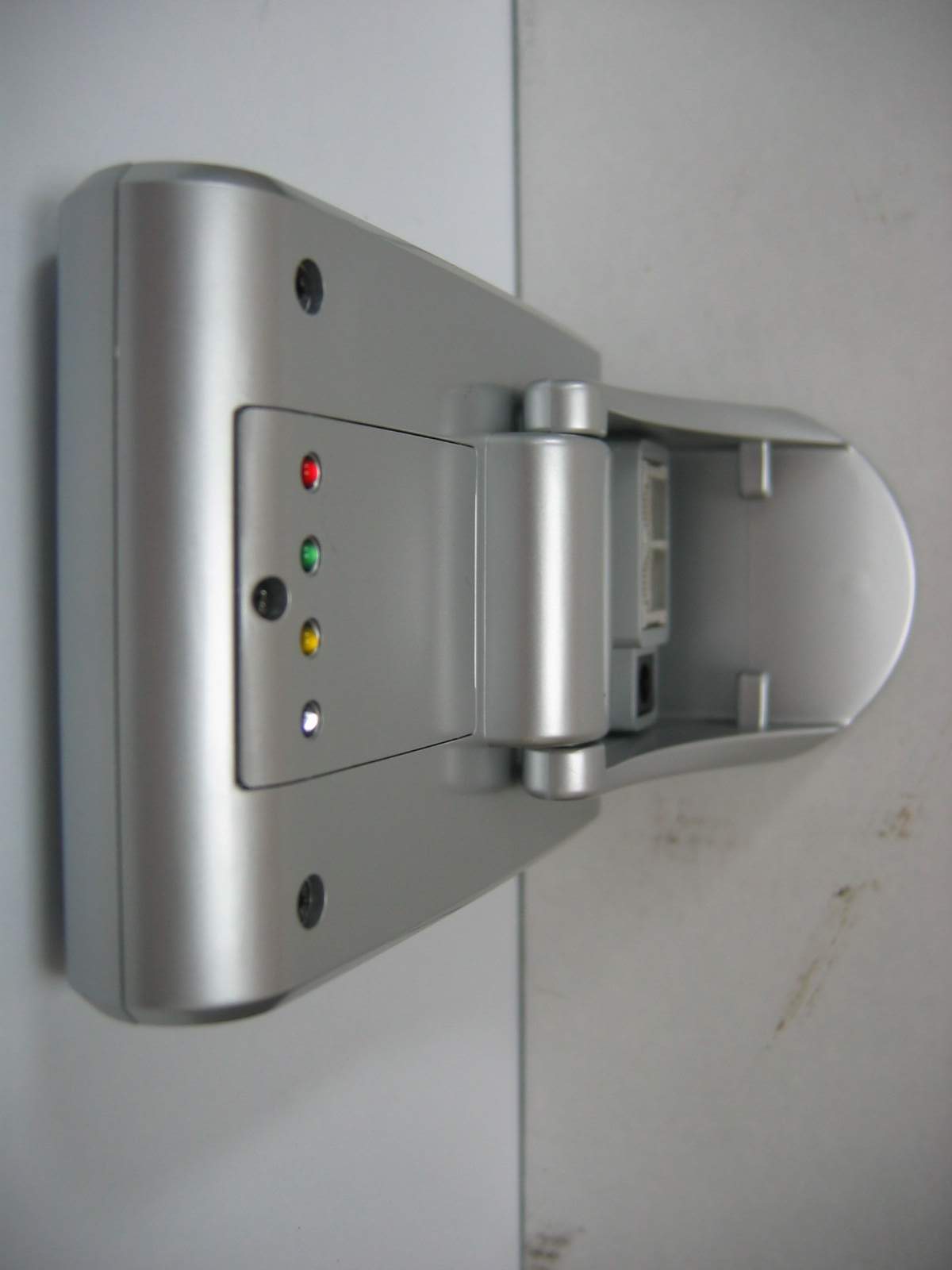

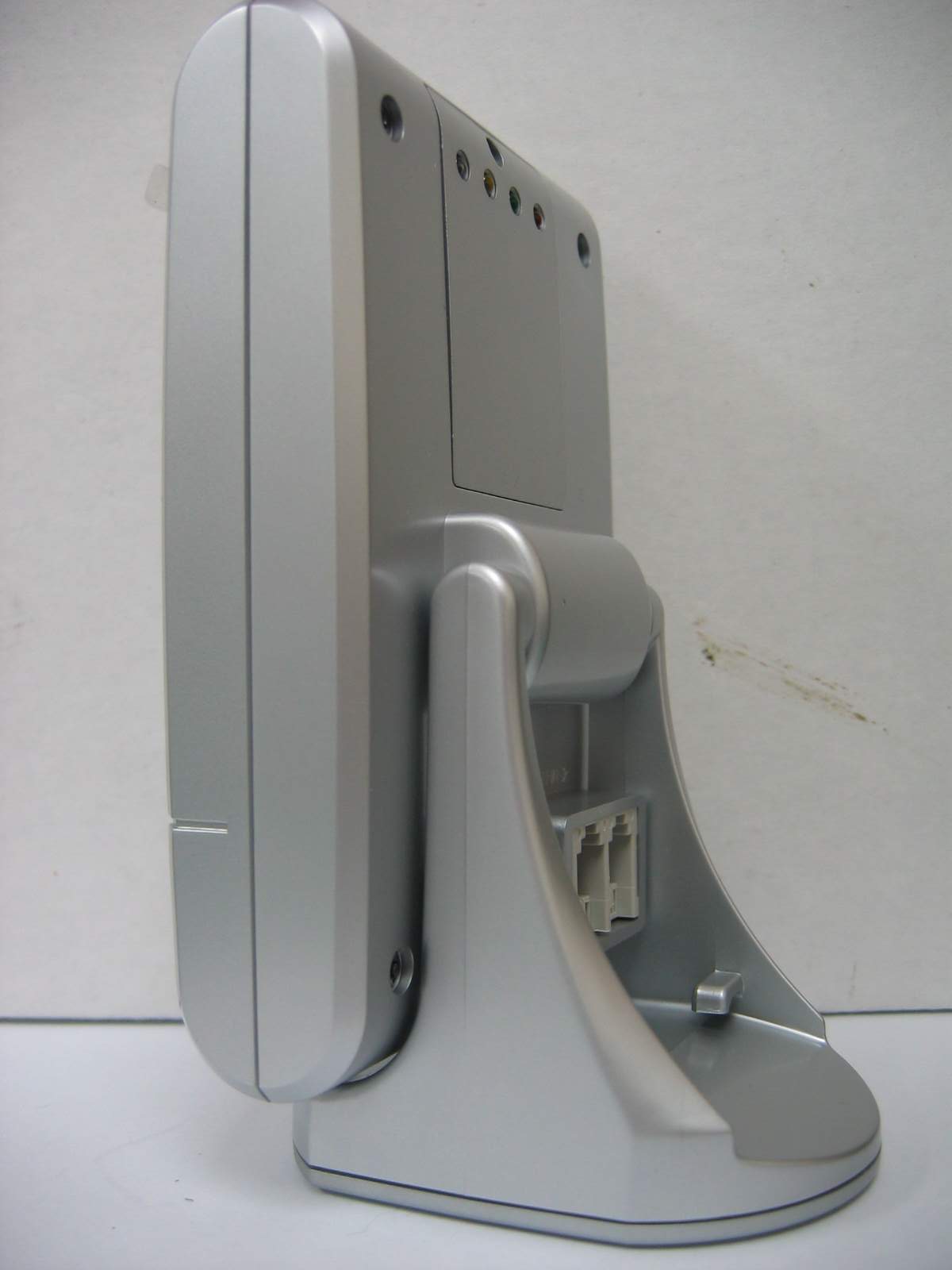

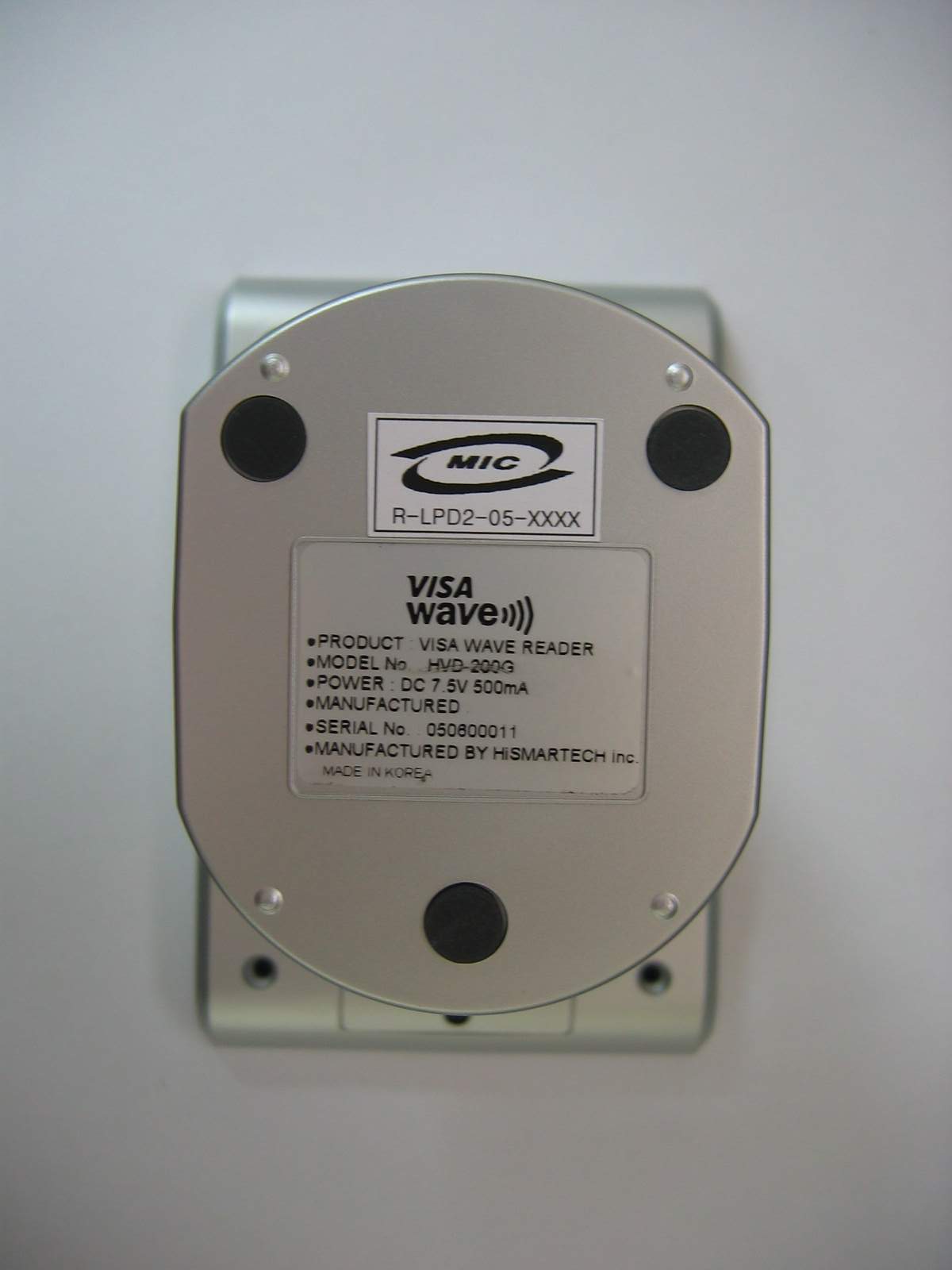

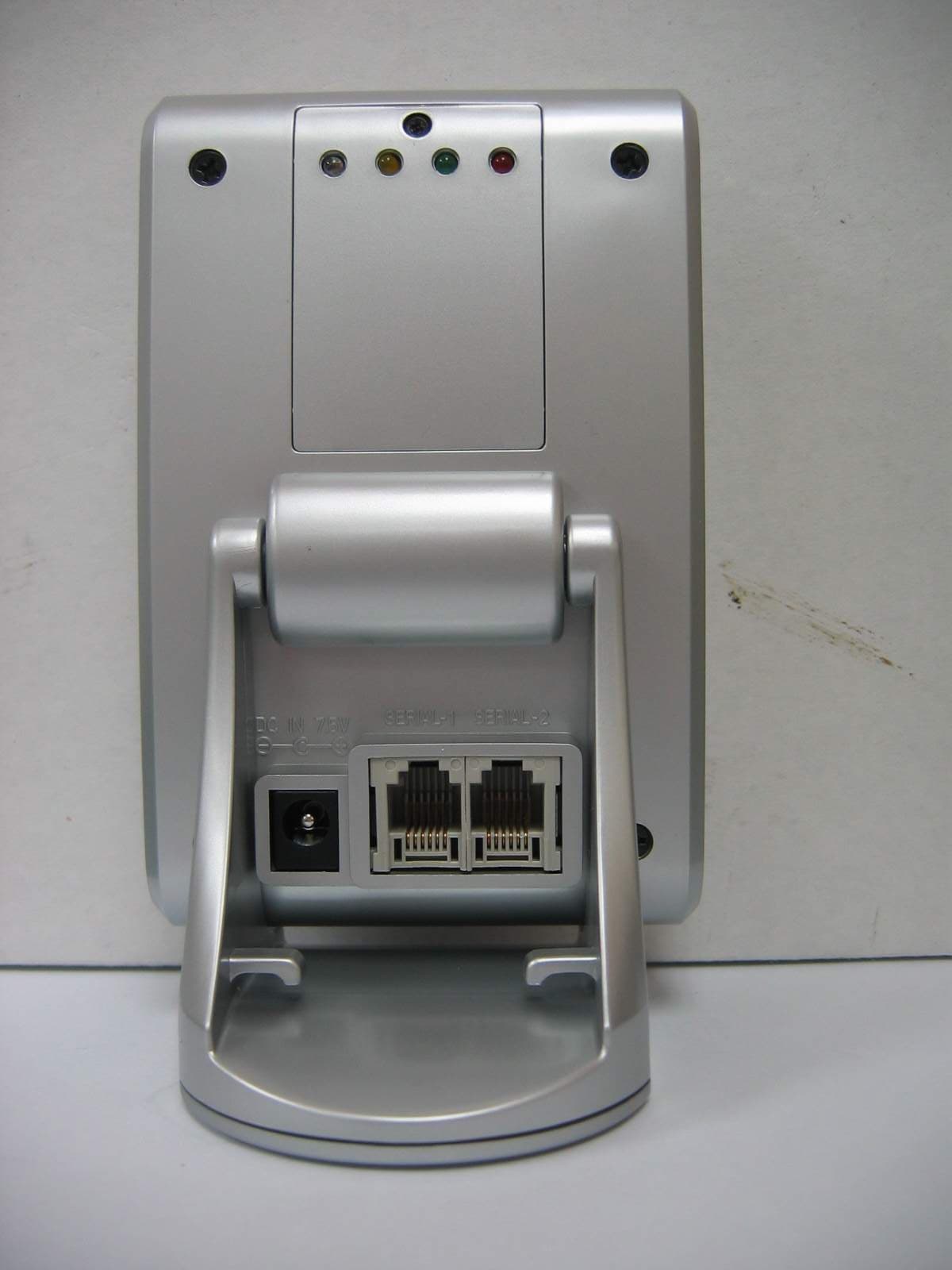

BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Appendix 3. Internal Photos Front BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Back BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Right BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Left BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Top BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Bottom

BWS TECH Inc . 1 of 1 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Appendix 1. FCC ID Label & Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The following FCC Warning statement will be described in the user manual. FCC Warning CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) HismarTech Co., Ltd. RFID Card Reader (13.56 MHz) Model : HVD-200G FCC ID : TJHHVD-200G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL

BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Appendix 4. Internal Photos Cabinet Inside BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Main Top BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Main Bottom BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Patch Antenna / Top BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Patch Antenna / Bottom BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) LCD / Top BWS TECH Inc . 1 of 10 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) LCD / Bottom

NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY Unit L/D DESIGN NUMB ER Remark 1 IC Real Time Clock, SSOP-8 RS5C372A RICOH 1 EA U112 IC TTL, INVERTER, 74HC04, SOP-14 74HC04D ST PhilipsHitachi 1EA U8 3 IC MCU, ATMEGA128-16AI, TQFP ATMEGA128 ATMEL 1 EA U44 IC TTL, LATCH, 74HC573, SO-20 74HC573 ST PhilipsHitachi 1EA U5 5 IC ISO14443 READER IC, MF RC531, SOP-32 MF RC531 Philips 1 EA U36 IC SRAM, 32KBytes, KM62256B, SOP-28 KM62256BIS62C256 HY62WT081 Samsung Hynix 1EA U6 7 IC TTL, 74HC139, 1-4 DECODER/MULTIPLEXER, SOP-16 74HC139D ST PhilipsHitachi 1EA U7 8IC IC-LIN, 7805, VOLTAGE REGULATOR, +5V, 3-LEADTO-220 LM7805 NATIONAL ONSEMI 1 EA U10 9 IC TTL, 74HC125, QUADRUPLE BUS BUFFER, SOP-14 74HC125 ST PhilipsHitachi 1 EA U12 10 IC Serial Communication IC, MAX232, NARROW, 150 MIL MAX232,SP23 2 MAXIM,SIPEX 1 EA U1 11 IC Serial Eeprom, 24C64, SOIC-8 24C64 1 EA U9 Option12 IC USB, PDIUSBD12, TSSOP28 PDIUSBD12 Philips 1 EA U2 Option NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY Unit L/D DESIGN NUMB ER Remark 13 Varistor Chip Varistor, 3216 VN32-180J-182 10 EA RV1,RV2,RV3,RV4,RV5,RV6,RV7,RV8, RV9,RV10 14 CRYSTAL 13.56MHz, ATS-49/U, SMD 13.56MHz 1 EA Y215 CRYSTAL 14.7456MHz, ATS-49/U, SMD 14.7456MHz 1 EA Y316 CRYSTAL 6MHz, ATS-49/U, SMD 6MHz 1 EA Y1 Option16 CRYSTAL 10MHz, ATS-49/U, SMD 10MHz 1 EA Y517 CRYSTAL 32KHz, SMD 32KSII0G Skytech 1 EA Y418 BUZZER BUZZER 5V, 12pi, 회로 비내장형 KP12-185A KEPO 1 EA BZ119 RESISTOR 22, 1608J, 5% 1/8W, RES-CHIP 1 EA R34 20 RESISTOR 18,1608J,5% 1/8W, RES-CHIP 2EA R5,R6 21 RESISTOR 100, 1608J,5%, 1/8W, RES-CHIP 5 EA R1,R2,R3,R4,R64 22 RESISTOR 220, 1608J, 5% 1/8W, RES-CHIP 12 EA R43,R44,R45,R46,R47,R48,R57,R58, R59,R60,R61,R62 23 RESISTOR 330, 1608J, 5% 1/8W, RES-CHIP 2 EA R67,R68 24 RESISTOR 470, 1608J, 5% 1/8W, RES-CHIP 7EA R7,R17,R18,R19,R24 , R65 , R66 25 RESISTOR 1K, 1608J, 5% 1/8W, RES-CHIP 3 EA R14, R15,R32 25 RESISTOR 10K, Volume RES, 3314J-2-103, SMD 3314J BOURNS 1 EA R30 NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY 단위 내/외자 DESIGN NUMBE R비고 28 RESISTOR 39K, 1608J, 5% 1/8W, RES-CHIP 1 EA R31 29 RESISTOR 4.7K, 1608J, 5% 1/8W, RES-CHIP 1EA R12 30 RESISTOR 10K, 1608J, 5% 1/8W, RES-CHIP 30 EA R9,R11,R16,R20,R21,R22,R23,R25,R26,R27,R28,R29,R35,R36,R37,R38,R39,R40,R41,R42,R49,R50,R51,R52,R53,R54,R55,R56,R 33 31 RESISTOR 1M, 1608J, 5% 1/8W, RES-CHIP 4 EA R7,R8,R13,R63 32 CAPACITOR 100nF, 50V, 1608, +-20%, CAP-CHIP 21 EA BC1,BC2,BC3,BC4,BC5,C9,C11,C15,C17,C23,C36,C40,C41,C44,C45,C46,C47,C48,C49,C50,C 51 33 CAPACITOR 15pF, 50V, 1608, +-5%, CAP-CHIP 9EA C12,C13,C18,C3 1,C32,C34,C35,C 52,C53 34 CAPACITOR 27pF, 50V, 1608, +-5%, CAP-CHIP 3EA C20,C22,C25 35 CAPACITOR 47pF, 50V, 1608, +-5%, CAP-CHIP 2EA C21,C27 36 CAPACITOR 100pF, 50V, 1608, +-5%, CAP-CHIP 1 EA C28 37 CAPACITOR 120pF, 50V, 1608, +-5%, CAP-CHIP 1EA C30 38 CAPACITOR 20pF, 50V, 1608, +-5%, CAP-CHIP 1EA C56 39 CAPACITOR 200pF, 50V, 1608, +-5%, CAP-CHIP 2EA C29,C24 NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY Unit L/D DESIGN NUMB ER Remark 40 CAPACITOR 220pF, 50V, 1608, +-5%, CAP-CHIP 4 EA C1,C2,C4,C8 40 CAPACITOR 1uF, 50V, 1608, +-5%, CAP-CHIP 1 EA C10 41 CAPACITOR 1uF, 16V, A-SIZE, CAP-TANTAL 4 EA C3,C5,C6,C7 42 CAPACITOR 10uF, 6.3V, A-SIZE, CAP-TANTAL 8EA C14,C16,C33,C37, C42,C43,C54,C55 43 CAPACITOR 100uF, 10V, D-SIZE, CAP-TANTAL, 1 EA C38 44 CAPACITOR 220uF, 6.3V, D-SIZE, CAP-TANTAL, 1 EA C3945 SOCKET SIMLOCK TM430705311 TMTECH 4 EA J11,J13 J12,J14 OPTION 46 INDUCTOR CHIP INDUCTOR, 2012J, 0.82uH Samsung ele 2 EA L1,L247 BEAD CHIP BEAD, 2012, 33 Ohm CIB21P330NE Samsung ele 6 EA BD1,BD2,BD3,BD4,BD5,BD6 48 DIODE SWITCHING DIODE, KDS184, SOT-23 KDS184 KEC 8 EA D6,D7,D8,D9,D10, D11,D12,D13 48 DIODE SMALL SINGLE DIODE, 1N4148, SMD 1N4148 2 EA D14,D1549 DIODE SCHOTTKY BARRIER RECTIFIER, 40V, 1A, SS14 LL5819SM5819 SS14 TSC SEMTECH JGD 1EA D5 50 TRANSISTOR TR-PNP, 2N3906, SOT-23 9EA Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9 51 LED BLUE, DIP, 3 PI 1EA D1 52 LED YELLOW, DIP, 3 PI 1EA D2 53 LED RED, DIP, 3 PI 1EA D4 NO ITEM DESCRIPTION VENDER PART NUMBER VENDER Q'TY Unit L/D DESIGN NUMB ER Remark 54 LED GREEN, DIP, 3 PI 1EA D3 55 CONNECTOR DC JACK, Straight, 2.5pi 1EA J9 56 CONNECTOR Modular JACK, RJ-11-6P6C-2 Array, Straight TMTECH 2 EA J 7,J8 57 CONNECTOR 2.54mm, 1x3, PINHEADER SOCKET, STRAIGHT 2 EA J4,J558 CONNECTOR 2.54mm, 1x4, PINHEADER SOCKET, STRAIGHT 2 EA J1,J259 CONNECTOR FPC 1mm Pitch, 18P, SMD, Bottom 1 EA J10 60 CONNECTOR 2.0mm, 2x3, PINHEADER SOCKET, STRAIGHT 1 EA J6 OPtion61 LCD Display, Graphic LCD HY12232L3 KDTC 1 EA62 RESISTOR 470, 1608J, 5% 1/8W, RES-CHIP 4 EA R1,R2,R3,R4 ANT PCB 63 LED RED, 2012, SMD, High luminance 1 EA LED4 ANT PCB 64 LED GREEN, 2012, SMD, High Luminance 1 EA LED3 ANT PCB 65 LED YELLOW, 2012, SMD, High Luminance 1 EA LED2 ANT PCB66 LED BLUE, 2012, SMD, High Luminance 1 EA LED1 ANT PCB 67 CONNECTOR 2.54mm, 1x3, PINHEADER, STRAIGHT, 14.6 mm(L) 2 EA J4,J3 ANT PCB 68 CONNECTOR 2.54mm, 1x4, PINHEADER, STRAIGHT, 14.6 mm(L) 2 EA J1,J2 ANT PCB 69 PCB ANTENNA PCB, 1 Once, 1.6T, 2-LAYER 1 EA70 PCB MAIN PCB, 1 Once, 1.6T, 4-LAYER 1EA

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. RF MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE PRODUCT : RFID Card Reader MODEL/TYPE NO : HVD-200G FCC ID : TJHHVD-200G TRADE NAME : HISMARTECH APPLICANT : HismarTech Co., Ltd. FCC RULE PART(S) : FCC Part 15, Subpart C FCC PROCEDURE : Certification FCC CLASSIFICATION : Low Power Communication Device Transmitter (DXX) EMISSION DESIGNATOR : A1D FREQUENCY RANGE : 13.56 MHz EMISSION LEVEL : Below 10000 μV/m (at 30 meters) DATES OF TEST : August 8, 2005 DATES OF ISSUE : August 29, 2005 TEST REPORT No. : BWS-05-RF-023 TEST LAB. : BWS Tech., Inc. (Registration No. : 553281) This RFID Card Reader Model HVD-200G has been tested in accordance with the measurement procedures specified CFR 47 Part 2.947 and ANSI C63.4-2000 at the BWS TECH/RF Test Laboratory and has been shown to be complied with the FCC Technical Specification described above. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TaeHyun Nam Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 611-1 Maesan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 BWS TECH Inc . 2 of 50 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) TABLE OF CONTENTS Pages 1. General Information 3 2. DESCRIPTION OF ATTACHMENTS 4 3. INTRODUCTION 5 4. PRODUCT INFORMATION 6 5. DESCRIPTION OF TESTS 7 6. TEST RESULTS 10 7. TEST Data 12 8. TEST EQUIPMENT LIST 18 Appendix 1. FCC ID Label and Location Appendix 2. Test Setup Photos Appendix 3. External Photos Appendix 4. Internal Photos Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Layout Appendix 8. Part List Appendix 9. User Manual BWS TECH Inc . 3 of 18 FCC Part 24 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) RF TEST REPORT Scope – Measurement and determination of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of relevant international standard 1. General Information Applicant Information Other Information EUT Type : RFID Card Reader Model Name : HVD-200G FCC Identifier : TJHHVD-200G Brand Name : HISMARTECH S/N : ProtoType Freq. Range : 13.56 MHz Emission Level : Below 10000 μV/m (at 30 meters) Emission Designator : A1D FCC Classification : Low Power Communication Device Transmitter (DXX) Rule Part(s) : FCC Part 15, Subpart C Test Procedure : Certification Dates of Tests : August 8, 2005 Place of Tests : BWS TECH Inc. 611-1 Maesan-Ri, Mohyun-Myun, Yongin- City, Gyunggi-Do 449-853, Korea EMC Testing Laboratory (FCC Registration Number : 553281) TEL: +82 31 333 5997 FAX: +82 31 333 0017 Test Report No. : BWS-05-RF-023 Company Name : HismarTech Co., Ltd. Company Address : 3F Samwhan Bldg 98-20, Woonnidong Jongro-gu, Seoul Phone/Fax : Phone : +82-2708-2950 Fax : +82-2708-2801 BWS TECH Inc . 4 of 18 FCC Part 24 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) 2. DESCRIPTION OF ATTACHMENTS Appendix 1. FCC ID Label and Location -. Sample FCC ID Label and location information is shown Appendix 2. Test Setup Photos -. Radiated Emission Test setup photos are shown Appendix 3. External Photos -. External photos are shown Appendix 4. Internal Photos -. Internal photos are shown Appendix 5. Block Diagram -. The block diagram is shown Appendix 6. Schematics -. The circuit diagrams are shown Appendix 7. Layout -. The layouts are shown. Appendix 8. Part List -. The part lists are shown. Appendix 9. User Manual -. The user manual is shown. BWS TECH Inc . 5 of 18 FCC Part 24 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) 3. INTRODUCTION The measurement tests were conducted at the open area test site of BWS TECH Inc. facility located at 611-1 Maesan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do 449-853, Korea. The measurement facilities were constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281). All measurements contained in this application were conducted in accordance with FCC Rules and regulations CFR 47and American National Standard Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000). Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive sp…

Text truncated - open the document above for the full version.

BWS TECH Inc . 1 of 5 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Appendix 2. Test Setup Photos Power Line Conducted Emission Test Setup BWS TECH Inc . 1 of 5 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) Radiated Emission Test Setup BWS TECH Inc . 1 of 5 FCC Part 15 Certification Report No: BWS-05-RF-023 Date of Test : August 8, 2005 HismarTech Co., Ltd. RFID Card Reader FCC ID: TJHHVD-200G (Model: H V D -200G) 13.56 MHz Fundamental Field Strength Level Test Setup
