http://www.lemonnc.com connect everthing Honest Technology Co., LTD. HT-WiFi B02 IEEE 802.11a/b/g/n 2T2R WLAN Module With USB2.0 Interface a. That module is limited to OEM installation ONLY. b. That module is limited to installation in mobile or fixed applications, according to Part 2.1091(b). c.That separate approval is required for all other operating configurations, including portable configurations d.The OEM integrator is responsible for ensuring that the end-user has no manual instructions to remove or install module. e.The module is limited to installation in mobile or fixed applications install module. Note: with respect to Part 2.1093 and different antenna configurations. Datasheet 2014-12-10 http://www.lemonnc.com connect everthing A. General Description HT-WiFi B02 is a WLAN 11 a/b/g/n USB module (2.4G & 5.2G & 5.8G), which fully supports the features and functional compliance of IEEE 802.11 a/b/g/n standards. It supports up to 300Mbps high-speed wireless network connections. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective. It is targeted at competitive superior performance, better power Management applications. B. Features General 4-pins Φ2.0 mm Pin, Total Size 60.4mm x 20mm IEEE 802.11a/b/g/n compatible WLAN Support MIMO: 2T2R Complete 802.11a/b/g/n solution for 2.4GHz, 5.2G band and 5.8G band 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 20MHz bandwidth 300Mbps receive PHY rate and 3000Mbps transmit PHY rate using 40MHz bandwidth Compatible with 802.11a/b/g/n specification Backward compatible with 802.11b/g devices while operating in 802.11n mode Host Interface Complies with USB Specification Revision 2.0 Standards Supported IEEE 802.11b/g/n compatible WLAN IEEE 802.11e QoS Enhancement (WMM) IEEE 802.11h TPC, Spectrum Measurement 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services Support Wifi station, SoftAP (2.4G, 5.2G, 5.8G) Standards General Specification Table 1. Standards General Specification Model Name HT-WiFi B02 Product Description IEEE 802.11a/b/g/n 2x2 Wireless LAN USB Dongle WLAN Standard IEEE 802.11a/b/g/n WiFI Compliant Host Interface USB 2.0 Major Chipset Broadcom BCM43236KMLG Dimension 61mm X 20mm X 9mm [Including DIP(2*4) Connector] Operating Conditions Voltage 5V +/-10% Temperature Operating: 0~65°C Storage: -20~85°C Electrical Specifications Frequency Range 2.4 GHz ISM band (Ch1~Ch11 the table¹) 5GHz U-NII band (Please see the table²) http://www.lemonnc.com connect everthing Modulation 802.11a/g/n:OFDM 802.11b:CCK(11,5.5Mbps),DQPSK(2Mbps),DBPSK(1Mbps) Output Power 2.4 GHz 802.11b:16dBm +/-2dBm @EVM≦-9dB 802.11g:15dBm +/-2dBm @EVM≦-25dB 802.11n:14dBm +/-2dBm HT20 @EVM≦-28dB 802.11n:14dBm +/-2dBm HT40 @EVM≦-28dB 5GHz 802.11a:20dBm +/-2dBm @EVM≦-25dB Antenna Interface PCB Antenna (NC) U.F.L RF-Connector(0~6GHz) Antenna Reference Antennas with 5 dBi peak gain Impedance: 50 ohm; Bandwidth: 300MHz VSWR: < 2.0 Polarization: Linear Band: 2.4~5 GHz Radiation Efficiency: >50% Receive Sensitivity 2.4 GHz 11Mbps:-76dBm(max) @8%PER 11b 54Mbps:-70dBm(max) @10%PER 11g MCS7:-64dBm(max) @10%PER HT20 11n MCS7:-61dBm(max) @10%PER HT40 11n 5GHz 54Mbps:-70dBm(max) @10%PER 11a Data Rates 802.11b: 1,2,5.5,11Mbps 802.11a/g: 6,9,12,18,24,36,48,54Mbps 802.11n: MCS 0~15 up to 300Mbps Operating System Compatibility Windows Vista 32-and 64-bit and Windows XP Linux and VxWorks for access point and router applications http://www.lemonnc.com connect everthing ¹2.4GHz Channel table Band(GHz) Operating Channel Numbers Channel center frequencies(MHz) 2.4GHz~2484GHz 1 2412 2 2417 3 2422 4 2427 5 2432 6 2437 7 2442 8 2447 9 2452 10 2457 11 2462 ²5GHz Channel table Band(GHz) Operating Channel Numbers Channel center frequencies(MHz) 5.15GHz~5.25GHz 36 5180 40 5200 44 5220 48 5240 5.725GHz~5.825GHz 149 5745 153 5765 157 5785 161 5805 C. Application • Video Transmitter • Personal digital assistants • Desktop and laptop personal computers • Automotive telematics systems • Computer peripheral devices (USB dongles) http://www.lemonnc.com connect everthing D. Functional Block Diagram Figure 1: Functional Block Diagram E. Pin definition Table 3. Pin definition Pin number Name Type Description 1 Power Power 5V Power input 2 USB_D- Analog USB Differential signal 3 USB_D+ Analog USB Differential signal 4 GND Power Ground Figure 2: Pin definition（Top View） http://www.lemonnc.com connect everthing F. Electrical and Thermal Characteristics Figure 3: Frequency Test Diagram G. Ordering Information Table 4: Ordering Information Part Number Interface Operating Temperature Range MOQ (pcs) CK-W-B236-UD USB 0 °C to 65 °C 1000 http://www.lemonnc.com connect everthing H. OEM Labeling Requirements NOTICE: The OEM must make sure that FCC labeling requirements are met. This includes a clearly visible exterior label on the outside of the final product housingthatdiplays the contents shown in this label. MANUFACTURERS NAME BRAND NAME OR TRADE NAME Contains FCC ID: TJWHTB02 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,including interference that May cause undesired operation. I. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received,including interference that May cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party Responsible for compliance could void the user’s authority to operate this equipment. J. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled Environment. This equipment should be installed and op…

Text truncated - open the document above for the full version.

Honest Technology Address: Kyung-Dong Bldg., 5F, 906-5, Jijok-Dong, Yuseong-Gu, Daejeon, South Korea Tel: +82-42-477-0717 Fax: +82-42-477-0719 2014-12-24 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: TJWHTB02 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Jae-Yong Lee/ Engineer Contact information / address : Kyung-Dong Bldg., 5F, 906-5, Jijok-Dong, Yuseong-Gu, Daejeon, South Korea Tel: +82-42-477-0717 Fax: +82-42-477-0719

Honest Technology FCC ID: TJWHTB02 POWER OF ATTORNEY 2014-12-24 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on (2015-12-24). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Honest Technology), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ------------------------------- Client’s name / title : Jae-Yong Lee/ Engineer Contact information / address : Kyung-Dong Bldg., 5F, 906-5, Jijok-Dong, Yuseong-Gu, Daejeon, South Korea Tel: +82-42-477-0717 Fax: +82-42-477-0719

Applicant/Grantee Honest Technology FCC ID: TJWHTB02 Section 15.212 Modular Transmitters Request for Modular Approval ■ Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The shielding is on WiFi modular, please refer to external photo Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Buffered Data input stage has been integrated in chip(BCM43236). Y 3 The modular transmitter must have its own power supply regulation. The IC PAM2306A offer the power for the whole module Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. EUT is equipped with two onboard PCB antenna，Detail please reference internal photo. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Please reference exhibition test setup photo for the stand-alone test configuration. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: “TJWHTB02” or “Contains FCC ID: “TJWHTB02” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The instruction on the labeling rule of the end product has been stated in the user manual of this module, please also see the exhibition label sample. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instruction for maintaining compliance has been clearly stated in the user manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. For the max output power is 28.2mw and the antenna gain is 2.0dBi so the EIRP of the module is 44.7mw, due to Low Output Power, the device meets FCC RF Exposure exemption Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Client’s name / title : Jae-Yong Le…

Text truncated - open the document above for the full version.

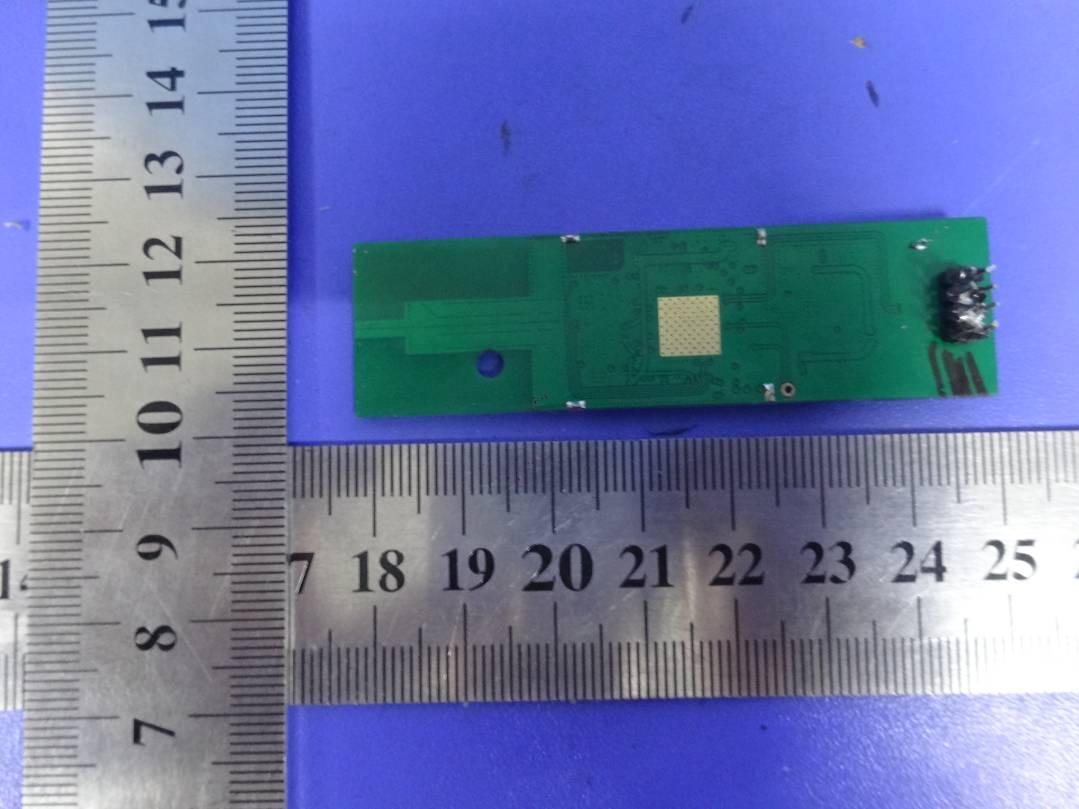

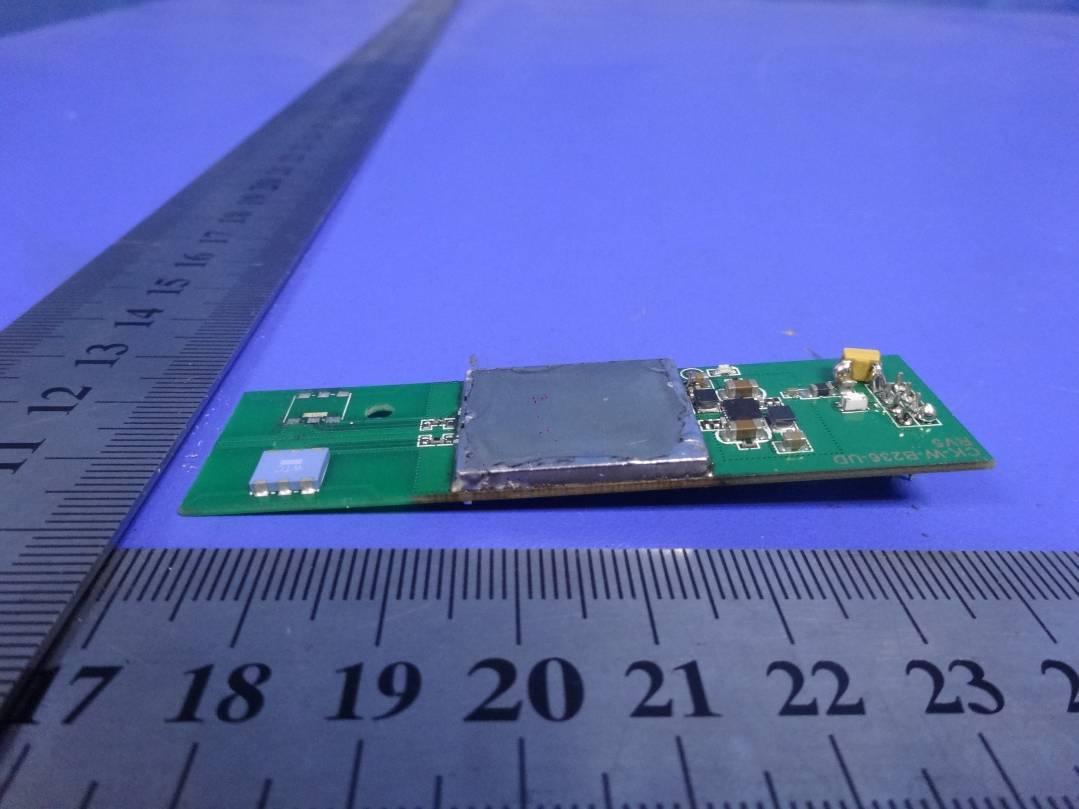

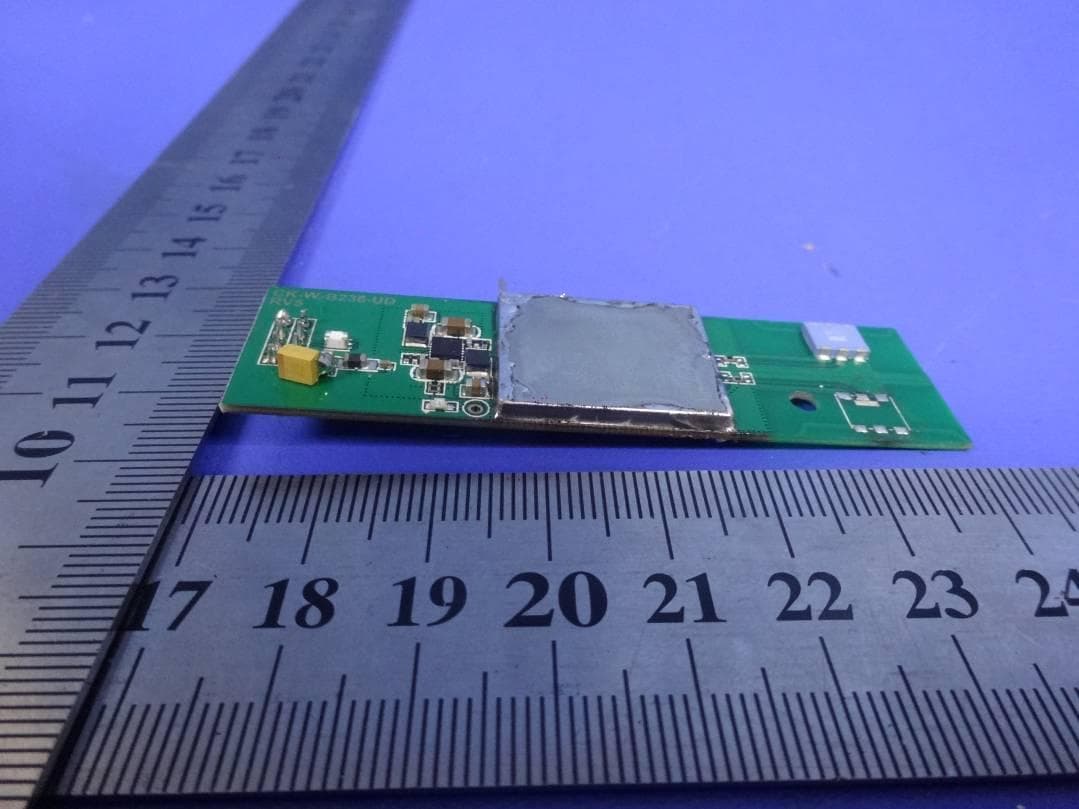

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TJWHTB02 Report No.:LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1.EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TJWHTB02 Report No.:LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TJWHTB02 Report No.:LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID:TJWHTB02 Report No.:LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: 2.0x1.0cm Label And Location

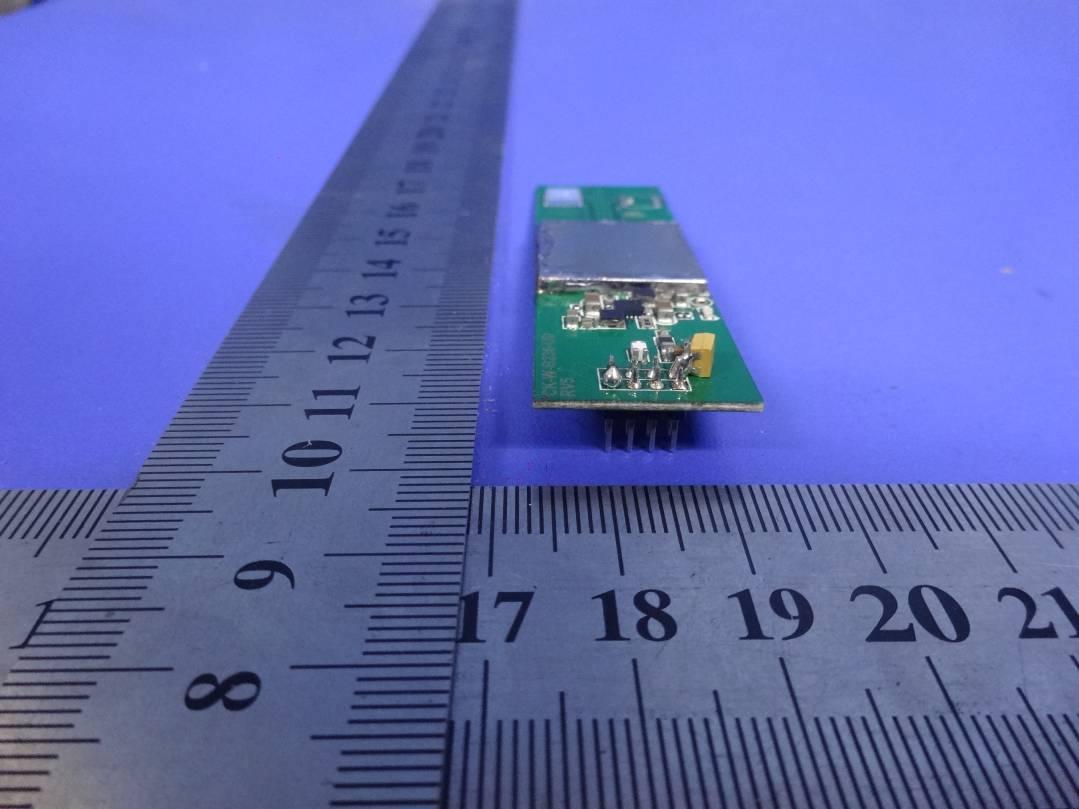

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: TJWHTB02 Report No.:LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1.INTERIOR PHOTOGRAPHS OF EUT Fig.1

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 8. RADIO FREQUENCY EXPOSURE 8.1．Limit According to §1.1310 and §2.1091 RF exposure is calculated. Table: Limits for General Population/Uncontrolled Exposure F = frequency in MHz * = Plane-wave equivalent power density Maximum Permissible Exposure The MPE was calculated at 20cm to show compliance with the power density limit. S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna. Note: 1. Manufacturer declared that the maximum antenna gain is 3.0dBi for TX. 2. Manufacturer declared that the nearest distance between human and the EUT is 20cm. 3. Only record worst case data. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 802.11b Conducted Peak output Power in dBm 16.78 dBm Max. Conducted Peak output Power in mW 47.64 mW Prediction distance 20 cm Prediction frequency 2462 MHz Antenna Gain(typical) 5.0 dBi Antenna Gain(numeric) 3.16 Power density at prediction frequency( S) 0.0300 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 802.11g Conducted Peak output Power in dBm 15.96 dBm Max. Conducted Peak output Power in mW 39.45 mW Prediction distance 20 cm Prediction frequency 2462 MHz Antenna Gain(typical) 5.0 dBi Antenna Gain(numeric) 3.16 Power density at prediction frequency( S) 0.0248 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 802.11n-HT20 Conducted Peak output Power in dBm 16.08 dBm Max. Conducted Peak output Power in mW 40.55 mW Prediction distance 20 cm Prediction frequency 2462 MHz Antenna Gain(typical) 5.0 dBi Antenna Gain(numeric) 3.16 Power density at prediction frequency( S) 0.0255 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 802.11n-HT40 Conducted Peak output Power in dBm 15.45 dBm Max. Conducted Peak output Power in mW 35.08 mW Prediction distance 20 cm Prediction frequency 2452 MHz Antenna Gain(typical) 5.0 dBi Antenna Gain(numeric) 3.16 Power density at prediction frequency( S) 0.0221 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 802.11a(5180~5240MHz) Conducted Peak output Power in dBm 21.27 dBm Max. Conducted Peak output Power in mW 133.97 mW Prediction distance 20 cm Prediction frequency 5180 MHz Antenna Gain(typical) 5.0 dBi Antenna Gain(numeric) 3.16 Power density at prediction frequency( S) 0.0843 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 802.11a(5745~5805MHz) Conducted Peak output Power in dBm 20.72 dBm Max. Conducted Peak output Power in mW 118.03 mW Prediction distance 20 cm Prediction frequency 5805 MHz Antenna Gain(typical) 5.0 dBi Antenna Gain(numeric) 3.16 Power density at prediction frequency( S) 0.0742 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 8.2 Test Results The power density level worst case at 20 cm is below the uncontrolled exposure limit.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 69 FCC TEST REPORT For Honest Technology Module Model No.: HT-WiFi B02 Prepared for : Honest Technology Address : Kyung-Dong Bldg., 5F, 906-5, Jijok-Dong, Yuseong-Gu, Daejeon, South Korea Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : December 15, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : December 15, 2014 - December 22, 2014 Date of Report : December 22, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 69 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2013 Report Reference No. .............. : LCS1412170872E Date of Issue ................................ : December 22, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Honest Technology Address ........................................ : Kyung-Dong Bldg., 5F, 906-5, Jijok-Dong, Yuseong-Gu, Daejeon, South Korea Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247): 2013 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Module Trade Mark .................................. : HT Model/ Type reference ................. : HT-WiFi B02 Ratings ......................................... : DC 5.0V,460mA Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 69 FCC -- TEST REPORT Type / Model........................... : HT-WiFi B02 EUT......................................... : Module Applicant............................... : Honest Technology Address.................................. : Kyung-Dong Bldg., 5F, 906-5, Jijok-Dong, Yuseong-Gu, Daejeon, South Korea Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Createk Technology Co.,Ltd Address................................... : 4/F,Block D,Yunsheng Industrial, Tangtou Third Industrial Shiyan Street,Baoan District,Shenzhen.GD.China. Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Createk Technology Co.,Ltd Address................................... : 4/F,Block D,Yunsheng Industrial, Tangtou Third Industrial Shiyan Street,Baoan District,Shenzhen.GD.China. Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1412170872E December 22, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.: LCS1412170872E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 69 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 5 1.3. EXTERNAL I/O CABLE .......................................................................................................................................... 5 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................... 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................ 6 1.6. MEASUREMENT UNCERTAINTY ............................................................................................................................ 6 1.7. DESCRIPTION OF TEST MODES ............................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.:LCS1412170872E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.:LCS1412170872E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:TJWHTB02 Report No.:LCS1412170872E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 1.2. Photo of Line Conducted Emissions Measurement Fig.5 Fig.6
