TK4-10-WLE200NX

Compex Systems Pte Ltd

WIRELESS-A/B/G/N NETWORK MINI PCIe ADAPTER

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Oct 20, 2010
Application Purpose: Original Equipment
Date of Application: Oct 20, 2010
Equipment Note: WIRELESS-A/B/G/N NETWORK MINI PCIe ADAPTER
Frequency Range: 5755.00000000 - 5795.00000000
Company: Compex Systems Pte Ltd
Country: Singapore

Documents & Files

Select a file to view

Users Manual

Block Diagram

Cover Letter(s)

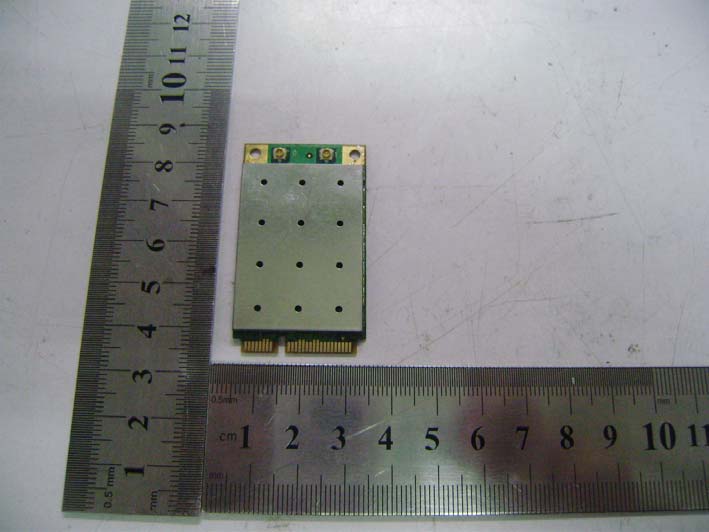

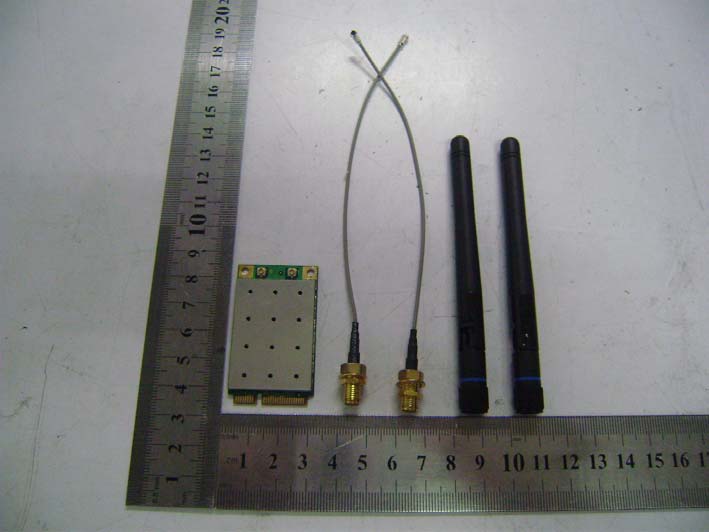

External Photos

ID Label/Location Info

Internal Photos

Operational Description

RF Exposure Info

Schematics

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
4	15C	5.75 GHz - 5.79 GHz	300.00 mW

Modular Type

Single Modular Approval

Grant Notes

Modular Approval. Power listed is the maximum combined conducted output power. This Modular Approval is limited to OEM installation for mobile and fixed applications only. This device may not be sold to the general public. Device is a dual transmitters draft 802.11abgn Router / access point (AP) / operating in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 MHz to 2452 MHz and 5755 MHz to 5795 MHz. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.
