TKG-OWAP-3300AG-1WLAN 802.11a/b/g mini-PCI Module

WLAN a+b+g mini-PCI Module CM9 OEM Installation Manual (The module is sold only to the OEM integrators & the manual is valid only for the OEM manufactures) Version: 1.0 March 2004 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: This module is restricted to mobile configuration. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter 3 Table of Contents 1. INTRODUCTION 4 2. DRIVER/UTILITY INSTALLATION / UNINSTALLATION 10 2.1 INSTALLATION......................................................................................................10 2.2 ADDITIONAL SETUP PROCESSES..........................................................................14 2.3 UNINSTALLATION.................................................................................................. 15 3. CONNECTING TO AN EXISTING NETWORK16 4. CREATING AN AD HOC NEW NETWORK21 5. MODIFYING A WIRELESS NETWORK 24 5.1 INFRASTRUCTURE MODE AND AD HOC MODE....................................................24 5.2 MODIFYING A WIRELESS NETWORK................................................................... 25 5.3 DEFAULT SETTINGS WINDOWS XP ZERO-CONFIGURATION..............................32 APPENDIX A: FAQ ABOUT WLAN 33 APPENDIX B: SPECIFICATION 35 4 1. Introduction 1.1 The WLAN 802.11a+b+g mini-PCI Module Thank you for purchasing the WLAN a+b+g mini-PCI Module that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. System Requirements l A laptop PC contains: - 32 MB memory or greater - 300 MHz processor or higher l Microsoft ® Win ™ 2000/ME/98 Second Edition/XP 1.2 Hardware Installation & Antenna Information l Module is installed in the Personal Computer, located on the bottom side of the Personal Computer or installed in the router. (see the following diagrams). 5 l Antennas are embedded in the two sides (see the two antennas shown below) 7 *Caution !! (1). This module cannot be bound in a tablet computer for RF exposure issues. (See label 1) (2). Due to the RF exposure issues, this module can be used in a laptop computer in normal operation, but cannot be used when it is put above the lap and the LCD screen is in the closed position. (See label 2) Label 1 Label 2 The device can’t be operated above the lap when the LCD is closed 8 (3). This module must be labeled with FCC ID. (See label 3) (4). If the FCC ID is not visible when the module is installed inside another device, then the outside of device must also display a label referring to the enclosed module. The exterior label can be “ Contains Transmitter Module FCC ID:TKG-OWAP-3300AG-1 ” or similar wording. (See label 4) Label 3 Label 4 9 Please put Label 2 & Label 4 to the enclosure of end product to note the end user. 10 Driver/Utility Installation / Uninstallation Important!! When using antenna1, 2, 4, 8, the install driver is“cm9_V1.0_20040312-SA.exe”. When using antenna3, 5, 6 , 7, the install driver is“cm9_V1.0_20040312-SB.exe”. Antenna 1: PIFA (Wistron NeWeb Antenna 2: Dipole (GA30038-YMSE Antenna 3: Dipole (Long-Chu Co. Antenna 4: Dipole (Long-Chu Co. Antenna 5: Dipole ( Antenna 6: Dipole (Long-Chu Co. Antenna 7: Dipole (Long-Chu Co. Antenna 8: Dipole (Long-Chu Co. 2.1 Installation Note! The Installation Section in this User Manual describes the first-time installation for Windows. To re-install the driver, please first uninstall the previously installed driver. See Chapter 2.3 “Uninstallation” in this User Manual. Follow the steps below to complete the driver/utility installation: 1. Insert the Installation Software CD into the CD…

Text truncated - open the document above for the full version.

20 Additional Note for Windows XP In Windows XP, it is recommended that you use the WLAN a+b+g mini-PCI Module Configuration Utility. Before using the Utility, please follow the steps below to disable the Windows XP Zero Configuration: Option 1: 1. Double click the shortcut icon to open the Utility. 2. From the Windows System Tray, you should see the signal icon. Right-click it and select “Disable Zero-Configuration”. Option 2: 1. Go to “Control Panel” and double click “Network Connections”. 2. Right-click “Wireless Network Connection” of “WLAN a+b+g mini-PCI Module”, and select “Properties”. 3. Select “Wireless Networks” tab, and uncheck the check box of “Use Windows to configure my wireless network settings”, and then click “OK”. 21 4. Creating an Ad Hoc New Network 1. In the Configuration window, click New . 2. Select the “Profile Editor” tab. 22 3. Choose the check box of Enable Advanced Setting to edit all settings. 4. If joining or creating an Ad-Hoc network, choose Ad Hoc. 5. If the correct country is not selected, select the country where the computer is located. ALERT! Different countries have different regulations that affect which channels can be used. You should always choose the country where you are physically located to avoid using an illegal channel. 6. Click OK (or Apply if using the other tabs) to save the settings. For details of each setting, refer to Modifying a Wireless Network on page 20. 7. Click the Security tab. If not using security, select None. 8. If security is used, select Pre-Shared Key and click on the Configure button. 23 9. Enter an encryption key in the Shared: First field. 10. Click OK (or Apply if using the other tabs) to save the settings. The new Network Name is listed in the Profile List. The driver does not allow channel selection in Ad-Hoc mode. Instead, the driver starts with an initial channel then checks channel status. If the channel is busy, the driver automatically uses a different channel. For details of each setting, please see chapter 5. 24 5. Modifying a Wireless Network 5.1 Infrastructure Mode and Ad Hoc Mode You can set the Wireless Network Adapter to work in either Infrastructure mode or Ad Hoc mode. Infrastructure Mode In infrastructure mode, devices communicate with each other by first going through an Access Point (AP). Wireless devices can communicate with each other or can communicate with a wired network. When one AP is connected to wired network and a set of wireless stations, it is referred to as a BSS (Basic Service Set). Ad Hoc Mode Ad-hoc mode is also called “peer-to-peer mode” or “Independent Basic Service Set (IBSS)”. In ad hoc mode, devices communicate directly with each other without using an Access Point (AP). 25 5.2 Modifying a Wireless Network 1. Open “WLAN a+b+g mini-PCI Module Configuration” by double clicking the shortcut icon on the desktop. Note! If there’s no network name listed in the “Profile List”, click Refresh button and double click a Network Name from Available Networks. The chosen Network Name is listed in the Profile List. 2. From the Profile List, select one Profile and click Modify button . 26 3. Select Profile Editor tab and edit the settings. Click OK to save the modifications. n Configuration Name: This name identifies the configuration. This name should be unique. n Network Name (SSID1) (SSID2) (SSID3): The name of the wireless network. This name cannot be longer than 32 characters. If the field is set to be “ANY” or is left blank, your computer will connect to an AP with the best signal strength. n Network Connection: Specifies the mode of the network. Two options are “Infrastructure” and “Ad Hoc”. n Power Saving: Minimizes power consumption while maintaining network connectivity and high data transfer performance. In Ad Hoc mode, Power Savings function cannot be enabled. The power management options are: • Off: PC Card is powered up at all times. • Normal: PC Card sleeps less often and stays asleep for a shorter period. • Maximum: PC Card sleeps more frequently and stays asleep as much as possible. n Wireless Mode: Three options are “802.11b”, “802.11a”, “802.11g” 27 n Ad Hoc Net Start: Specifies a band to establish an Ad Hoc network if no matching SSID is found. three options are available: 802.11b, 802.11a, and 802.11g. n 802.11b Range: Options are Normal Range and Extended Range. This function can let user to determine the transfer range in 802.11b mode. Extended Range can prolong the transfer range with a lower data transmitting rate. n Scan Mode: Options are Active Scan, Passive Scan and Auto. In Active Scan, the driver sends out the probe request frames from each channel and collects the response frames from the responding. In Passive Scan, the driver scan each requested channel, listening the beacons on each channel. n Transmit Power: This setting allows you to change the output power of the PC Card to increase or decrease the coverage area,but can not exceed the authorized max. power output. n QoS: Disables or enables the PC Card to cooperate in a network using QoS (Quality of Service). n Country: Select the country where this PC Card will operate. ALERT! Different countries have different regulations that affect which channels can be used. You should always choose the country where you are physically located to avoid using an illegal channel.(When this product sells to US, client will disable the other frequency of outside USA) n 2.4 GHz Preamble: Allows Ad-Hoc compatibility with other 2.4 GHz devices. Two options are Short and Long and Long only. Use Long Only when configuring the client for an 802.11b RoamAbout AP wireless network. 28 4. Select Security tab and choose the security mode. Note! Check with your Network Administrator for the security features supported by your AP. n WPA: Enables the use of WiFi protected Access (WPA). This option requires IT administration. a) Select WPA to open the WPA EAP drop-down menu. The options includes TLS and PEAP. b) Click on the Configure bu…

Text truncated - open the document above for the full version.

Date: 05/05/2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation,including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Confidentiality Request FCC ID : TKG-OWAP-3300AG-1 Product : WLAN 802.11a/b/g mini-PCI Module Model : CM9 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours,

Transmitter Modular Approval Letter Date: May 05, 2006 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: TKG-OWAP-3300AG-1 Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a Reverse SMA PLUG type of connector at the transmitter end and is Dipole antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Compliance Certificaiton Services Inc. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: TKG-OWAP-3300AG-1” or “Contains TX FCCID: TKG-OWAP-3300AG-1” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”.)

Compliance Certification Services Inc. Report No.：50714006 Page 1 of 9 External Photo Compliance Certification Services Inc. Report No.：50714006 Page 2 of 9 Compliance Certification Services Inc. Report No.：50714006 Page 3 of 9 Compliance Certification Services Inc. Report No.：50714006 Page 4 of 9 Compliance Certification Services Inc. Report No.：50714006 Page 5 of 9 Compliance Certification Services Inc. Report No.：50714006 Page 6 of 9 Compliance Certification Services Inc. Report No.：50714006 Page 7 of 9

Company : Aphelion Communications Inc Model : CM9 Product : WLAN 802.11a/b/g mini-PCI Module WLAN 802.11a/b/g mini-PCI Module Model No: CM9 FCC IDTKG-OWAP-3300AG-1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Location Label Format on host device “Contains FCC ID: TKG-OWAP-3300AG-1”

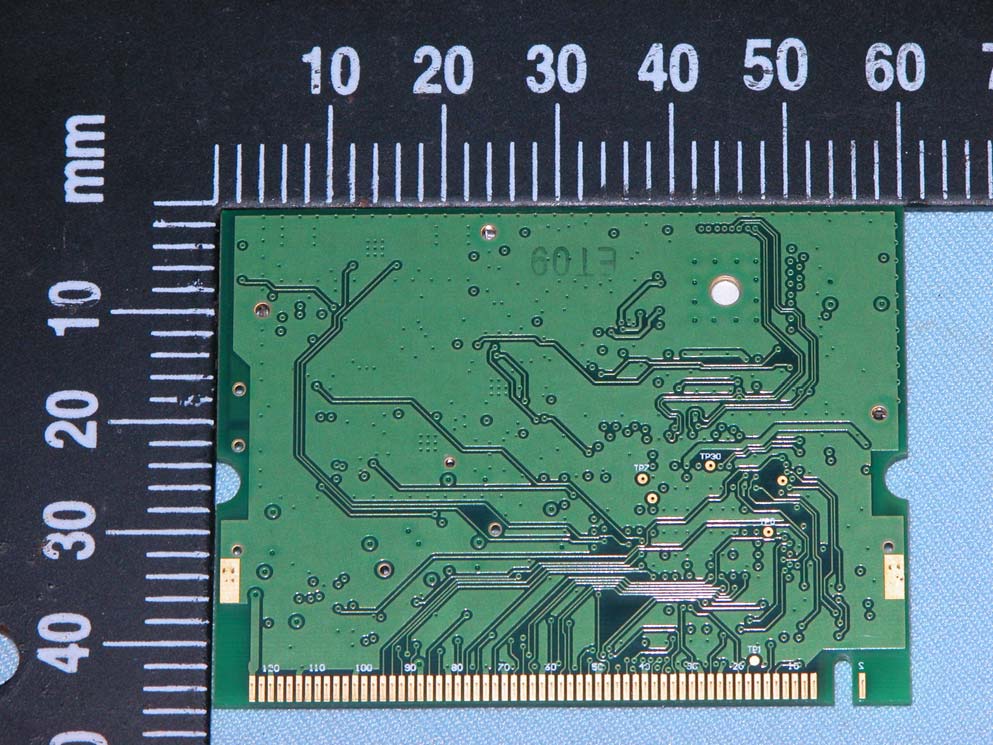

Compliance Certification Services Inc. Report No.：50714006 Page 8 of 9 Internal Photo Compliance Certification Services Inc. Report No.：50714006 Page 9 of 9

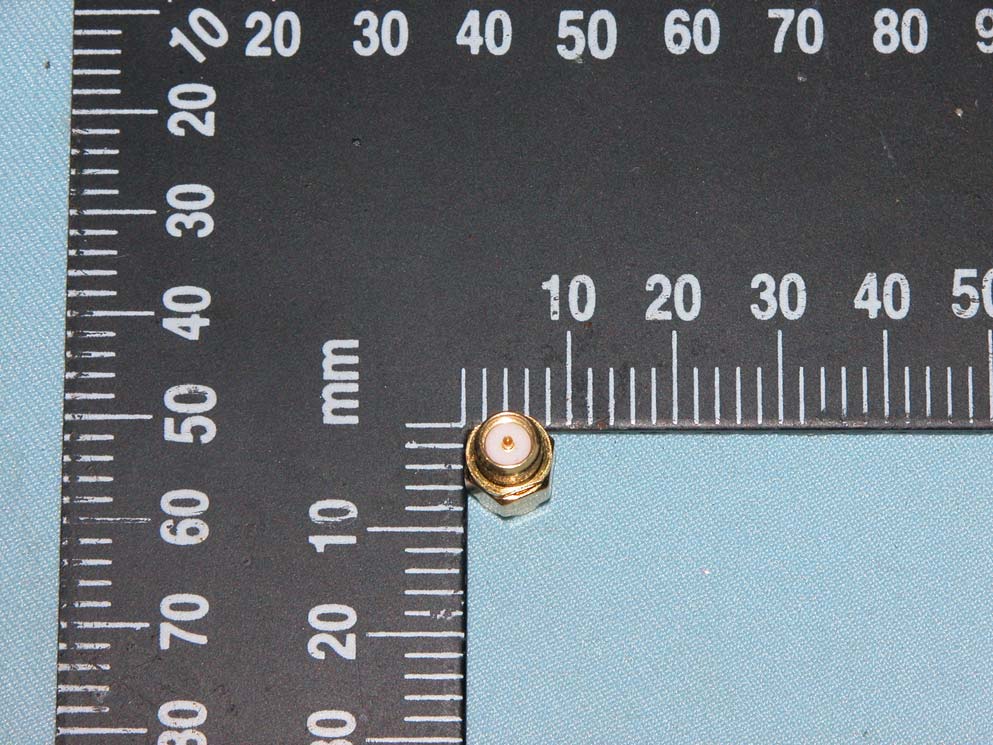

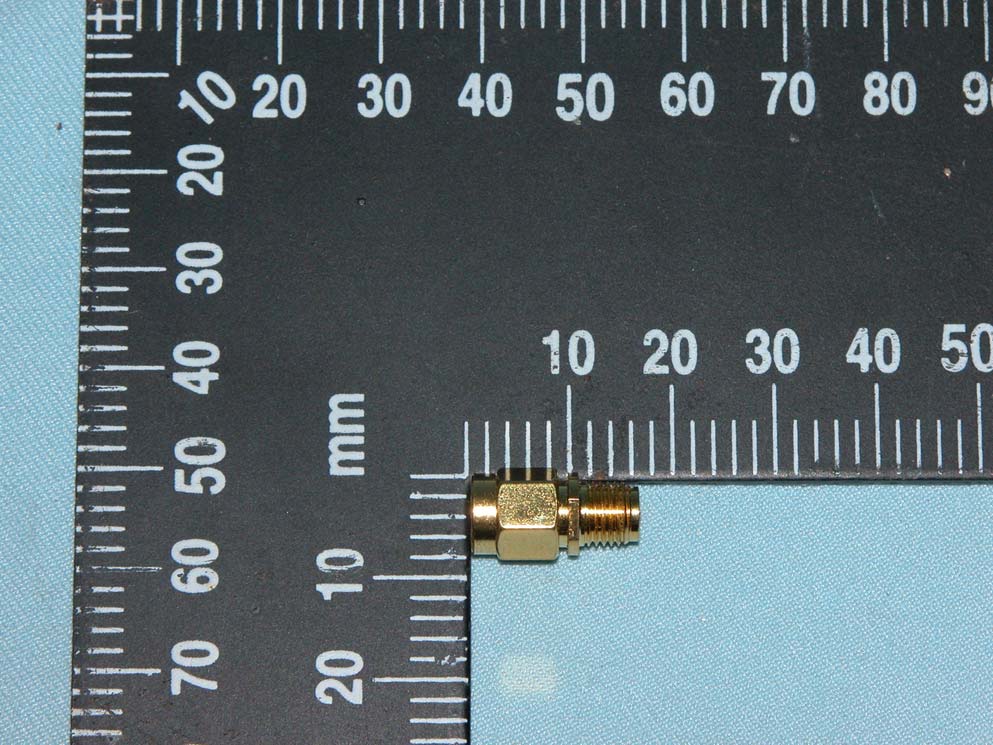

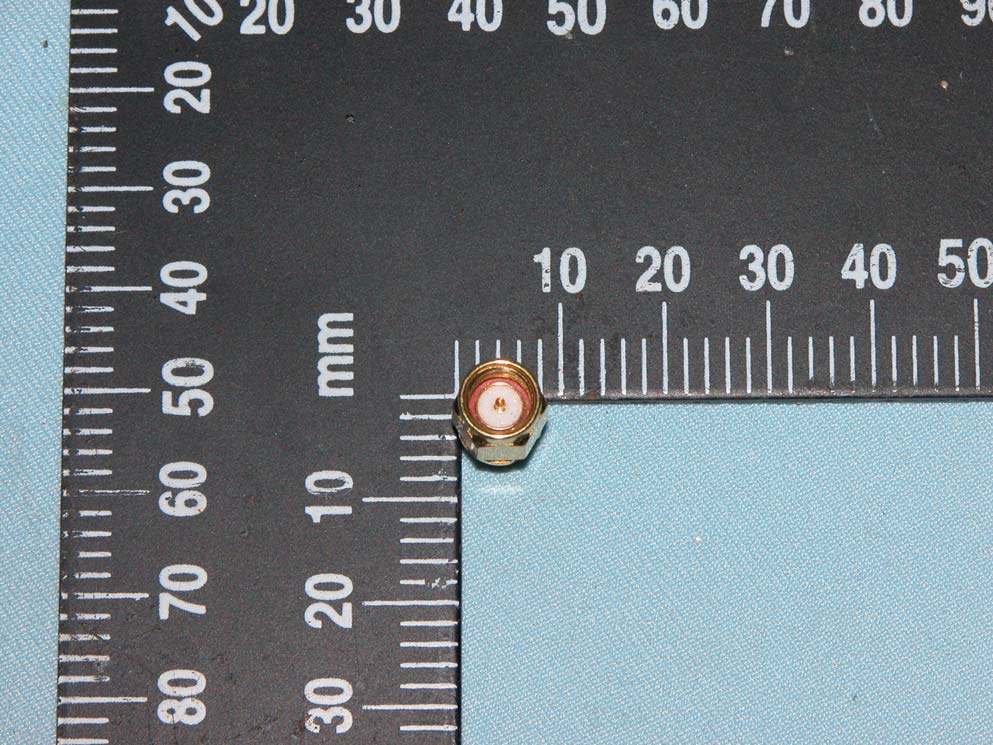

RFA-25-C5M3 Specifications Frequency range 2400 MHz – 2500 MHz 4900 MHz -5875 MHz Gain 2 dBi 2 dBi VSWR 2.0 : 1 Max. 2.0 : 1 Max. Polarization Linear, vertical Linear, vertical Power handling 2 W (cw) 2 W (cw) Impedance 50 50 Connector Reverse SMA PLUG Environmental & Mechanical Characteristics Temperature -10 Humidity 95% @ 25 Radome color Black Radome material ABS Weight 10 gw Dimensions 126 x 18 x 29 mm

Compliance Certification Services Inc. FCC ID：TKG-OWAP-3300AG-1 Report No.：50714006-RP1-1 Page 1 of 2 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID：TKG-OWAP-3300AG-1 Report No.：50714006-RP1-1 Page 2 of 2 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted Mode Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11a 20.0 16.41 2 1.00 0.012295 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc. FCC ID：TKG-OWAP-3300AG-1 Report No.：50714006-RP1-1 Page 1 of 59 FCC 47 CFR PART 15 SUBPART E AND ANSI C63.4 : 2003 TEST REPORT For WLAN 802.11a/b/g mini-PCI Module Model : CM9 Trade Name : Wistron NeWeb Corporation (WNC) Issued for Aphelion Communications Inc Room 313,3F, Bldg.52, No.195, Chung Hsing Rd., Sec 4, Chutung, HsinChu, Taiwan. Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. FCC ID：TKG-OWAP-3300AG-1 Report No.：50714006-RP1-1 Page 2 of 59 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................5 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES .......................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................ 6 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9-10 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 11 8.1 26dB BANDWIDTH .............................................................................................................. 11-14 8.2 PEAK CONDUCTED TRANSMIT POWER ......................................................................... 15-19 8.3 AVERAGE POWER............................................................................................................... 20-21 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 22-23 8.5 PEAK POWER SPECTRAL DENSITY ................................................................................. 24-27 8.6 PEAK EXCURSION .............................................................................................................. 28-31 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 32-34 8.8 RADIATED EMISSIONS ...................................................................................................... 35 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 35-39 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 40 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 41-43 8.8.4 RESTRICTED BAND EDGES ........................................................................................ 44-47 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 48-51 9. TRANSMISSION IN ABSENCE OF DATA............................................................................. 52 10. FREQUENCY STABILITY...................................................................................................... 53-54 11. ANTENNA REQUIREMENT .................................................................................................. 55 11.1 STANDARD APPLICABLE................................................................................................. 55 11.2 ANTENNA CONNECTED CONSTRUCTION .................................................................... 55 APPENDIX SETUP PHOTOS....................................................................................................... 56-59 Compliance Certification Services Inc. FCC ID：TKG-OWAP-3300AG-1 Report No.：50714006-RP1-1 Page 3 of 59 1. TEST REPORT CERTIFICATION Applicant ： Aphelion Communications Inc Address ： Room 313,3F, Bldg.52, No.195, Chung Hsing Rd., Sec 4, Chutung, HsinChu, Taiwan. Equipment Under Test ： WLAN 802.11a/b/g mini-PCI Module Model ： CM9 Trade Name ： Wistron NeWeb Corporation (WNC) Tested Date ： July 14 ~ September 14, 2005 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart E : 2004 AND ANSI C63.4 : 2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification…
