TLS1382940499927MHz Radio Transmitter

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO O R TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS T O THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER A UTHORITY TO OPERATE THE EQUIPMENT . ）

Full power source Stable voltage circuit Oscillate circuit Codec circuit Transmitting circuit

FCC ID label location FCC ID Label Sample FCC ID: TLS13829404999 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

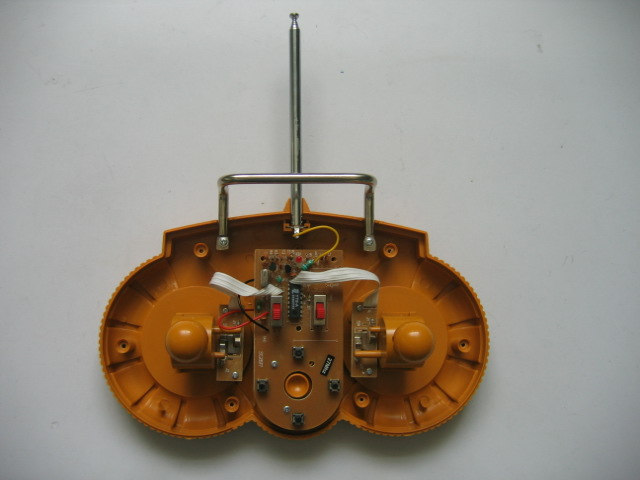

Circuit Description In transmitter,TX-5 as logic control coder circuit ,IC 18(R,L),45B,F,68 917pin as input tip ,1516pin as surge input tipoutput tip, SO of 10 pin as decode signal output tip,Q1 X1C and the other consisting of 27.145MHZ frequency oscillator, Q2L2 C and the other make the output signal from decode circuit mixing ,after mixing the signal modulate and high-frequency amplify, and output to antenna. In receiver, after high-frequency signal induced from antenna and C1 arriveQ1, Q1 T1C2 and the other consisting of frequency-selectover-regenerative high-frequency received circuit, The signal through RX-5 COMS circuit reactor decode count logicflip-latchpulse amplify and the other circuits. Order to control selection through circuit in function output pin .IC (RX-5) of 678910131415 161718 pin as function output pin, and relevant drive circuit control electromotor complete with all functions.

Report No.: SZEMO050800863RFF Page: 1 of 8 FCC ID: TLS13829404999 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : SZEMO050800863RF(SGS SZ No. SZTYR050801050/EL) Applicant: CHENGHAI QINGYI TOYS FACTORY FCC ID: TLS13829404999 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: R/C CONSTRUCTION CAR SET Model No.: Country of Origin: Labelled Age Grading: A037(A033, A034, A035, A036, A038, A050, A051, A052, A053) China 3 YEARS AND UP Standards: FCC PART 15, SUBPART C : 2004 Section 15.227 Date of Receipt: 17 August 2005 Date of Test: 17 to 25 August 2005 Date of Issue: 29 August 2005 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: TLS13829404999 Report No.: SZEMO050800863RFF Page: 2 of 8 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.227 PASS Occupied Bandwidth FCC PART 15 :2004 Section 15.215 PASS Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. FCC ID: TLS13829404999 Report No.: SZEMO050800863RFF Page: 3 of 8 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 DETAILS OF E.U.T. ............................................................................................................................................ 4 4.3 DESCRIPTION OF SUPPORT UNITS....................................................................................................................... 4 4.4 TEST LOCATION................................................................................................................................................. 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER...................................................................................... 4 4.6 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS........................................................................................................................................... 6 5.2 E.U.T. OPERATION............................................................................................................................................ 6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................... 6 5.3.1 Radiated Emissions...................................................................................................................................6 5.3.2 Occupied Bandwidth.................................................................................................................................8 FCC ID: TLS13829404999 Report No.: SZEMO050800863RFF Page: 4 of 8 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant Name: CHENGHAI QINGYI TOYS FACTORY Applicant Address: Xinan Industrial Area, Chenghai District, Shantou City, Guangdong 4.2 Details of E.U.T. EUT Name: Item No.: R/C CONSTRUCTION CAR SET A037(A033, A034, A035, A036, A038, A050, A051, A052, A053 Power Supply: 9V DC (1*9.0V ‘6F22’ Size Battery) for Tx Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit: a 27.145MHz radio transmitter. 4.4 Test Location All tests were p…

Text truncated - open the document above for the full version.
