TLTAGP3330Bluetooth GPS

User Manual Bluetooth GPS Receiver ABG 33868 Version 1.0 ABG 33868 Bluetooth GPS Receiver All rights reserved. No parts of this work may be reproduced in any form or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the written permission of the publisher. Products that are referred to in this document may be either trademarks and/ or registered trademarks of the respective owners. The publisher and the author make no claim to these trademarks. While every precaution has been taken in the preparation of this document, the publisher and the author assume no responsibility for errors or omissions, or for damages resulting from the use of information contained in this document or from the use of programs and source code that may accompany it. In no event shall the publisher and the author be liable for any loss of profit or any other commercial damage caused or alleged to have been caused directly or indirectly by this document. Printed: June 2006 in (Taipei, Taiwan R.O.C) Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1. Introduction The ABG33868 is a compact-size, high performance Bluetooth GPS receiver with elegant mechanical design. The core of this elegant device is the SiRF star III GPS IC. The ABG33868 is a class 2 Bluetooth device, with range of 10 meters. It supports v1.1 Bluetooth Serial Port Profile, which ensures compatibility with all devices such as PDAs and smart phones which also support the SPP Bluetooth Profile. There are three LED indicators on the ABG33868 – a green (GPS) LED, a blue (Bluetooth) LED, and a red (power status) LED. The green LED will be lit when the GPS receiver is in acquisition mode, and will start blinking every 2 seconds when the GPS position is fixed (i.e., tracking mode). The blue LED will be blinking every 2 seconds when the Bluetooth is in connection and be blinking every 8 seconds if the Bluetooth connection between the host and ABG33868 is lost. The red LED will be blinking to indicate the battery power level is low, on when charging the battery and off if the battery is fully charged. It also incorporates an intelligent power management scheme so that the GPS is turned off if before the Bluetooth connection is established, or when the Bluetooth connection is lost. 2. Packing List Before you star up, make sure that your package includes the following items. If any item is missing or damaged, please contact your dealer immediately. z Bluetooth GPS receiver z Rechargeable Li-ion battery (Optional) z A CD with the User Manual z DC car power charger z Travel charger (Optional) 3. Main Features z SiRF Star III GPS chipset z 20 parallel channels z NMEA0183 compliant protocol z Fast TTFF at low signal level z High accuracy z Smart power saving z WAAS/ ENGOS is supported z Bluetooth Technology 4. Specification System Specification Frequency L1, 1575.42 MHz C/A Code 1.023MHz chip rate Channels 20 all-in-view tracking Tracking Sensitivity -159 dBm Position Horizontal 10m 2D RMS (without SA) WAAS enabled 5m 2D RMS (without SA) Time 1 micro-second synchronized to GPS time Accuracy Velocity 0.1m/sec 95% (without SA) Datum Datum WGS-84 Hot Start 1 sec., average (with ephemeris and almanac valid) Warm Start 38 sec., average (with almanac but without ephemeris) Cold Start 42 sec., average (neither almanac nor ephemeris) Acquisition Rate Reacquisition 0.1 sec,. average (interruption recovery time) GPS Output data NMEA0183 protocol Protocol GPS transfer rate 38400 Acceleration Less than 4g Altitude 18,000 meters max. Dynamic Condition Velocity 515 meters/ sec. max. Interface Bluetooth V1.1 certified with a Class 2 Bluetooth radio Power Voltage Rechargeable Li-ion battery Dimension 66.0 x 39.0 x 18.9 mm (L x W x H) Operating -20°C ～ +60°C Storage -20°C ～ +80°C Temperature Humidity Up to 95% non-condensing 5. Operations of ABG33868 GPS RECEIVER 5.1 Device Description: 5.2 Mechanical Drawing: Bluetooth status LED GPS status LED GPS reset button Power LED Power button 5.3 LED Status: Symbol LED Status Description 1. Stand-by m…

Text truncated - open the document above for the full version.

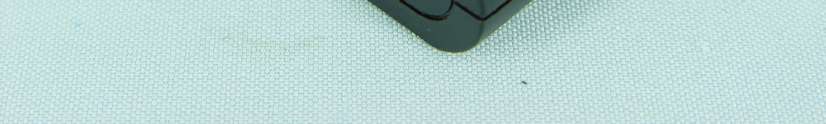

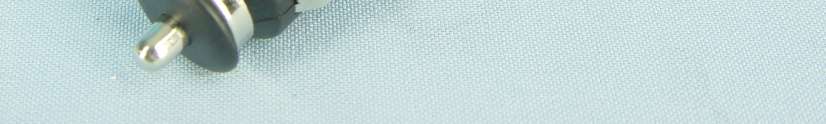

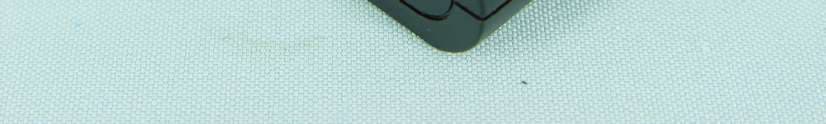

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Label_location (1024x1280x16M jpeg)

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: TLTAGP3330 Report No.: RF950929L12 Technical Description The transmitter of the EUT (Bluetooth GPS) is powered by 3.7Vdc from Rechargeable Li-ion battery or 5Vdc from AC adapter or Car charger. The antenna is chip antenna without antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. The other instruction, please have a look at the users manual.

FCC ID: TLTAGP3330 Report No: SA950929L12 1 RF EXPOSURE REPORT REPORT NO.: SA950929L12 MODEL NO.: ABG33868 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AMOD Technology Co., Ltd. ADDRESS: 8F., No. 46, Lane 10, Jihu Road, Taipei 11492, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: TLTAGP3330 Report No: SA950929L12 2 Conclusion No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.580 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 0.820 1.208 EIRP Power 0.820 1.208 *Note: The antenna is PCB antenna with 0dBi gain Threshold for no SAR evaluation is 24.585mW Transmitter power is 1.208mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950929L12 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950929L12 MODEL NO.: ABG33868 RECEIVED: Sep. 28, 2006 TESTED: Oct. 13 ~ Oct. 20, 2006 ISSUED: Oct. 24, 2006 APPLICANT: AMOD Technology Co., Ltd. ADDRESS: 8F., No. 46, Lane 10, Jihu Road, Taipei 11492, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 Report No.: RF950929L12 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION......................................................................................................4 2. SUMMARY OF TEST RESULTS.................................................................................5 2.1 MEASUREMENT UNCERTAINTY........................................................................................6 3. GENERAL INFORMATION........................................................................................7 3.1 GENERAL DESCRIPTION OF EUT......................................................................................7 3.2 DESCRIPTION OF TEST MODES........................................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST....................................................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................................10 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS......................................................12 3.2.4 DESCRIPTION OF SUPPORT UNITS................................................................................12 4. TEST TYPES AND RESULTS...................................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT.......................................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.....................................................13 4.1.2 TEST INSTRUMENTS........................................................................................................13 4.1.3 TEST PROCEDURES........................................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD................................................................................14 4.1.5 TEST SETUP.....................................................................................................................15 4.1.6 EUT OPERATING CONDITIONS........................................................................................15 4.1.7 TEST RESULTS.................................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT............................................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..........................................................22 4.2.2 TEST INSTRUMENTS........................................................................................................23 4.2.3 TEST PROCEDURES........................................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD................................................................................24 4.2.5 TEST SETUP.....................................................................................................................25 4.2.6 EUT OPERATING CONDITIONS........................................................................................25 4.2.7 TEST RESULTS.................................................................................................................26 4.3 NUMBER OF HOPPING FREQUENCY USED....................................................................31 4.3.1 LIMIT OF HOPPING FREQUENCY USED..........................................................................31 4.3.2 TEST INSTRUMENTS........................................................................................................31 4.3.3 TEST PROCEDURES........................................................................................................31 4.3.4 DEVIATION FROM TEST STANDARD................................................................................32 4.3.5 TEST SETUP.....................................................................................................................32 4.3.6 TEST RESULTS.................................................................................................................32 4.4 DWELL TIME ON EACH CHANNEL...................................................................................34 4.4.1 LIMIT OF DWELL TIME USED............................................................................................34 4.4.2 TEST INSTRUMENTS........................................................................................................34 4.4.3 TEST PROCEDURES........................................................................................................34 4.4.4 DEVIATION FROM TEST STANDARD................................................................................34 4.4.5 TEST SETUP.....................................................................................................................35 Report No.: RF950929L12 3 Report Format Version 2.0.5 4.4.6 TEST RESULTS..................................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Test Mode A) 2 RADIATED EMISSION TEST (Test Mode A) 3 RADIATED EMISSION TEST (Test Mode B)
