TLWBM2001USB BLUETOOTH DONGLE

Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 1 BTWIN™ is a Trademark of BTNetworks. BM2001 (Bluetooth USB Adapter) User’s Guide BTNetworks Co., LTD 2005 08.30 Ver 3.0 Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 2 Table of Contents 1 Introduction (Model: BM2001) 4 2 Bluetooth USB Adapter & Bluetooth USB Dongle 6 3 What is the Bluetooth USB Adapter? 6 4 External View 7 5 Contents of Package 8 6 Antenna Configuration Scenario 9 7 Specification 9 8 About the DIP Switch 10 8.1 Function select switch 10 8.2 Baud Rate Switch 10 9 Function Select Switch 11 9.1 Select the Role (MASTER / SLAVE) 11 9.2 Select the Mode 12 10 Set the Baud Rate 13 11 LED / Reset Switch 14 11.1 Power indication LED / Status indication LED 14 11.2 Reset Switch 14 12 Power Consumption 14 13 The Bluetooth Communication with BM2001 15 14 Install the BM2001 device driver 16 14.1 Windows 98 & Windows 2000 16 14.2 Windows XP 21 15 Remove the BTWIN BM2001 USB Adapter driver 25 16 Set COM Port for BM2001 USB Adapter 26 16.1 Windows 98 26 Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 3 16.2 Windows 2000 & XP 27 17 DIP-Switch Configuration Mode 29 17.1 Check on default setting before testing BM2001 29 17.2 Communication Test at 9600 bps (default Setting) 29 17.2 Communication Test at 115,200 bps (change the baud rate) 32 18 PC Configuration Mode 35 18.1 Pre Setting before using the PC Configuration Mode 35 18.2 How to use the PC Configuration Mode 37 19 Operating Modes 45 19.1 MODE 1 45 19.2 MODE 2 45 19.3 MODE 3 47 Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 4 1. Introduction (Model: BM2001) Bluetooth USB Adapter, BM2001 is product that is developed, designed and produced by BTNetworks. It is able to replacement standard RS232 cable perfectly. Š Bluetooth communication’s security is very strong because it use the frequency hopping and 128bit encryption in 2.4Ghz frequency range. Š Hardware setting is very easy and simple. - The maintenance is very convenience. - One pair of BM2001 will try to connect automatically whenever power up. Š It needs an installing for the USB device driver. - Doesn’t need to install the application software. Š You can choice various configurations with DIP Switch (In DIP-Switch mode) - Set Baud Rate (1,200 bps ~ 115,200 bps) - Set the Role as Master or Slave - Select Mode: DIP-Switch Configuration mode or PC configuration mode Š BM2001 doesn’t need the external power because it use the power of PC’s USB port Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 5 Š Default Setting (Factory Setting) & explain the each mode. Part DIP Switch Configuration Mode PC Configuration Mode Set device name Set Pin Code View Local BD Address Set Baud rate Set Remote BD Address Variable Select Role Select Role (Master/ Slave) Values - Master Search for bluetooth device and - Slave Connect new device Select Mode Set Baud rate - DIP Switch Mode Set Stop bit - PC Configuration Mode Set Parity bit Set Hardware flow control You can set up the value with HyperTerminal program of Windows. Ramark When connect other bluetooth device, Using this mode. DIP Switch Mode is the default Setting. Baud rate = 9600 bps Device Name = BTNetworks Data Bit = 8 Bit PIN Code = BTWIN Default Stop Bit =1 Bit Operating Mode = MODE1 Setting Parity Bit =No Parity Bit Baud rate = 9600 bps Hardware flow Control = None Data Bit = 8 Bit Role = MASTER or SLAVE Stop Bit =1 Bit Parity Bit =No Parity Bit Hardware flow Control = None ROLE = MASTER Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 6 2. Bluetooth USB Adapter & Bluetooth USB Dongle. Part Bluetooth USB Adapter USB Dongle Hardware View Bluetooth Serial Adapter is added USB TO Serial Converter feature. Software View Bluetooth Module includes running software. Bluetooth Application software works on the PC. Device driver Need Need Application Software Don’t need Need Bluetooth Support Profile SPP SPP, PAN, DUN, LAN, HID etc 3. What is the Bluetooth USB Adapter? Bluetooth USB Adapter is a Bluetooth Serial Adapter plus USB to Serial converter feature. But it is not a USB dongle. It doesn’t need an application software like a BTW of Widcomm. Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 7 4. External View Power LED <TOP View> <Bottom View> DIP Switch Cover <Left View> <Right View> Reset Switch Power Switch USB Port Status LED Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 8 5. Contents of Package No Picture Qty Ramark 1 BM2001 2 2 External Antenna (2.5 dB) 2 3 BTWIN™ BM2001User’s Guide CD 1 Default Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 9 6. Antenna Configuration Scenario 7. Specification Part Specification Bluetooth Spec Bluetooth Specification V1.1 Communication distance 100 M Frequency Range 2.4 GHz ISM Band Sensitivity -83dBm (Typical) Transmit Power 12dBm (Typical) Size 66 * 31 mm Support Bluetooth Profile SPP Input Power 4 - 12 V Current Consumption Maximum 100 mA Operating Temperature -10 ~ 70°C°C Communication Speed 1,200bps ~ 115,200bps Antenna Dipole Antenna (2.5 dB) PC interface USB Wireless Total Solution Company For your Free Bluetooth USB Adapter BM2001 User’s Guide 10 8. About the DIP Switch Open the DIP-switch cover, and you can see the below picture. Function Select Switch Baud Rate Switch 8.1 Function select switch Pin #1 and #2 don’t use. Pin #3 is used to select the role. - The master is up. - The slave is down. Pin #4 is used to select the mode. - The DIP Switch mode is up. - PC configuration mode is down. 8.2 Baud Rate Switch You may set the baud rate with this DIP Switch. - Pin #2,3,4 are used to set the baud rate. - You can choice the baud rate from 1,200 bps to 115,200 bps. * Caution : If you want to s…

Text truncated - open the document above for the full version.

1F. Yoonjae Bldg., 1530-1, Seocho-Dong, Seocho-Gu, Seoul, Korea Aug 31, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: BTNetworks Co., Ltd. FCC ID : TLWBM2001 FCC Part 15 Subpart C Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, BTNetworks Co., Ltd.hereby requests confidentiality of the Block diagram, Schematics, Parts list, Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which BTNetworks Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, BTNetworks Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, J.H. LEE President

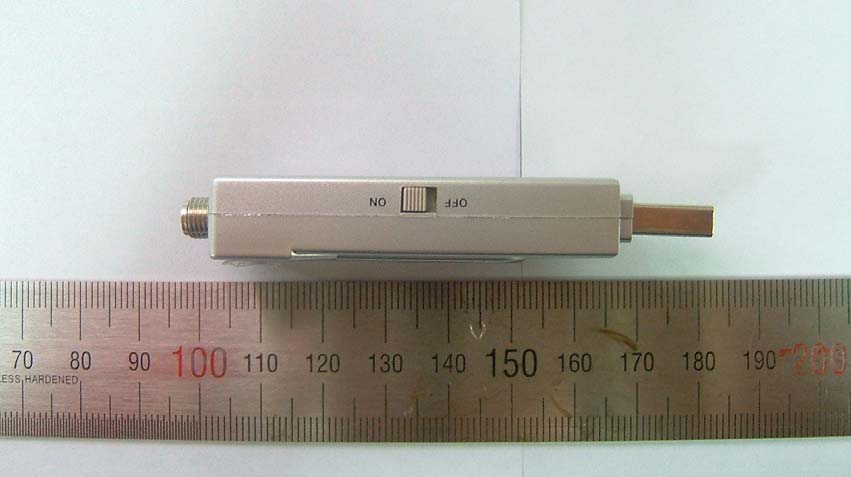

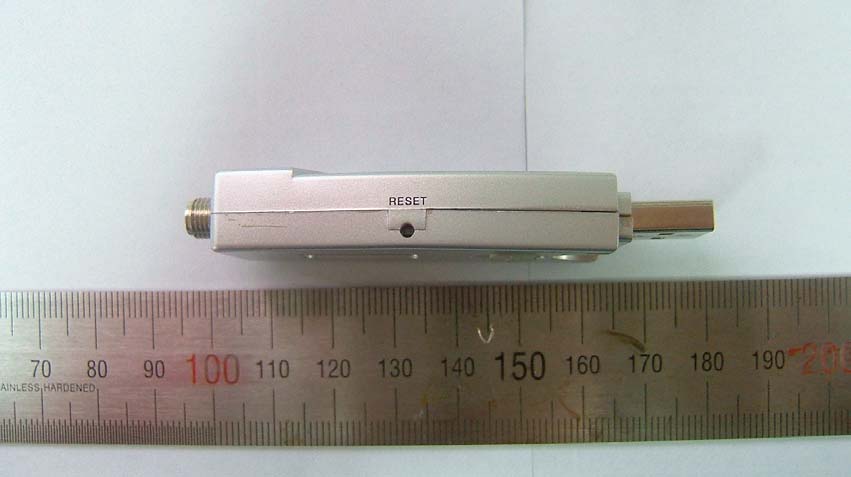

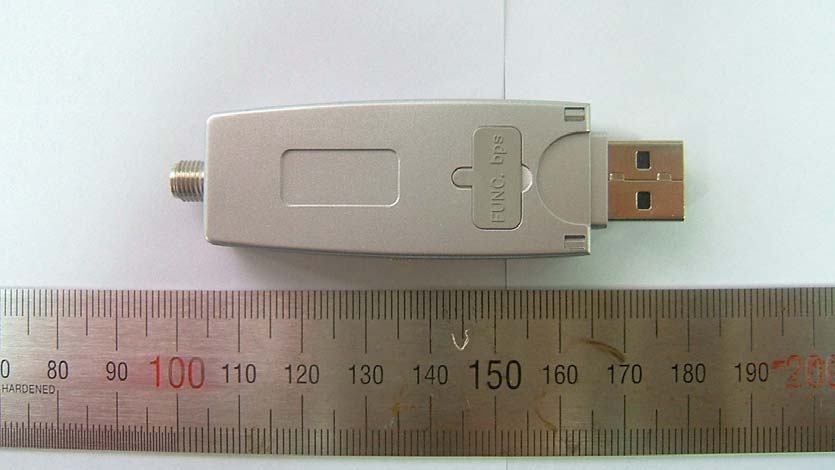

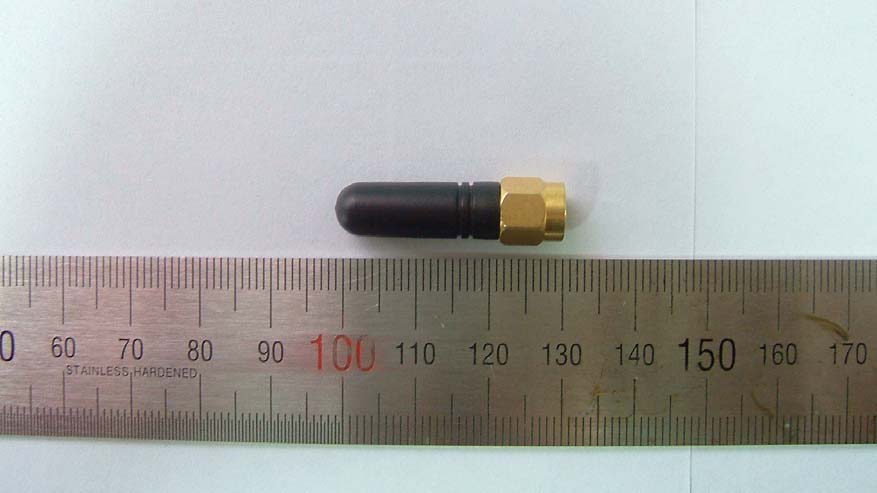

FCC ID: TLWBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: TLWBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2 FCC ID: TLWBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 3 FCC ID: TLWBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 3

FCC ID: TLWBM2001 FCC ID SAMPLE LABEL & LOCATION MODEL NAME: TLWBM2001 LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID: TLWBM2001

FCC ID: TWLBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: TWLBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2 FCC ID: TWLBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 3

DEMC#DR50110508K Copyright ○ c 2005, DIGITAL EMC Co., Ltd. SAR TEST PLOTS DIGITAL EMC CO., LTD DUT: BM2001 Communication System: CW; Frequency: 2402 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2402 MHz; σ = 1.94 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.27, 4.27, 4.27); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-25; Ambient Temp: 22.0; Tissue Temp: 21.7 1.5cm from Body, 2402MHz Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.265 dB Peak SAR (extrapolated) = 0.116 W/kg SAR(1 g) = 0.049 mW/g; SAR(10 g) = 0.024 mW/g 0 dB = 0.053mW/g DIGITAL EMC CO., LTD DUT: BM2001 Communication System: CW; Frequency: 2441 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2441 MHz; σ = 2 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.27, 4.27, 4.27); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-25; Ambient Temp: 22.0; Tissue Temp: 21.7 1.5cm from Body, 2441MHz Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.017 dB Peak SAR (extrapolated) = 0.096 W/kg SAR(1 g) = 0.047 mW/g; SAR(10 g) = 0.023 mW/g 0 dB = 0.054mW/g DIGITAL EMC CO., LTD DUT: BM2001 Communication System: CW; Frequency: 2480 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2480 MHz; σ = 2.03 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.27, 4.27, 4.27); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-25; Ambient Temp: 22.0; Tissue Temp: 21.7 1.5cm from Body, 2480MHz Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.045 dB Peak SAR (extrapolated) = 0.309 W/kg SAR(1 g) = 0.064 mW/g; SAR(10 g) = 0.027 mW/g 0 dB = 0.056mW/g

DEMC#DR50110508K Copyright ○ c 2005, DIGITAL EMC Co., Ltd. SAR VALIDATION PLOTS DIGITAL EMC CO., LTD DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:726 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.86 mho/m; ε r = 37.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.66, 4.66, 4.66); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-25; Ambient Temp: 22.0; Tissue Temp: 21.7 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.032 dB Peak SAR (extrapolated) = 25.5 W/kg SAR(1 g) = 12.1 mW/g; SAR(10 g) = 5.57 mW/g 0 dB = 13.5mW/g

DEMC#DR50110508K Copyright ○ c 2005, DIGITAL EMC Co., Ltd. 1703 PROBE CALIBRATION

DEMC#DR50110508K Copyright ○ c 2005, DIGITAL EMC Co., Ltd. DIPOLE CALIBRATION

DEMC#DR50110508K Copyright ○ c 2005, DIGITAL EMC Co., Ltd. SAR TEST SET UP PHOTO FCC ID: TLWBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: TLWBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2 (Body)

DEMC#DR50110508K Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 1 of 21 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: Aug. 25, 2005 Test Report S/N:DR50110508K Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT EUT Type: 2.4 GHz Bluetooth TX Frequency Range: 2402 ~ 2480 MHz RX Frequency Range: 2402 ~ 2480 MHz Max. RF Output Power: 11.77dBm conducted (GFSK) Max. SAR Measurement: 0.064W/kg Body SAR Model(s) Name: BM2001 FCC Classification: Part 15 Spread Spectrum Transmitter (DSS) Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Application Type: Certification Test Device Serial No.: Identical prototype Data of issue: August 26, 2005 Tested by : Reviewed by : Won-Jung Lee (Engineer) Harvey Sung (Chief Engineering Director) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. TLWBM2001 BT Networks DEMC#DR50110508K Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 2 of 21 1. INTRODUCTION ...................................................................................................... 3 SAR DEFINITION .................................................................................................... 3 2. SAR MEASUREMENT SETUP......................................................................................... 4 Robotic System.......................................................................................................... 4 System Hardware ....................................................................................................... 4 System Electronics...................................................................................................... 4 3. DASY4 E-FIELD PROBE SYSTEM................................................................................... 5 Probe Measurement System......................................................................................... 5 Probe Specifications .................................................................................................... 5 4. Probe Calibration Process............................................................................................ 6 Dosimetric Assessment Procedure.................................................................................. 6 Free Space Assessment ............................................................................................... 6 Temperature Assessment ............................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES.............................................................................. 7 SAM Phantom ........................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization ....................................................... 7 Device Holder for Transmitters..................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS.................................................................................. 8 Automated Test System Specifications.......................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ........................................................... 9 Measurement Procedure............................................................................................. 9 Specific Anthropomorphic Mannequin (SAM) Specifications.............................................. 9 8. DEFINITION OF REFERENCE POINTS .......................................................................... 10 EAR Reference Point................................................................................................... 10 Handset Reference Points............................................................................................ 10 9. TEST CONFIGURATION POSITIONS ............................................................................. 11 Positioning for Cheek/Touch ........................................................................................ 11 Positioning for Ear /15° Tilt ......................................................................................... 12 Body Holster /Belt Clip Configurations .......................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS.................................................................. 14 Uncontrolled Environment ........................................................................................... 14 Controlled Environment........................................................................................ ....... 14 11. MEASUREMENT UNCERTAINTIES............................................................................... 15 SAR Measurement Uncertainties .................................................................................. 15 12. SYSTEM VERIFICATION........................................................................................... 16 Tissue Verification...................................................................................................... 16 Test System Verification.............................................................................................. 16 13. SAR TE…

Text truncated - open the document above for the full version.

DEMC#DR50110508M FCC ID: TLWBM2001 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 1 of 40 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE BTNetworks Co.,Ltd. 1F, Yoonjae Bldg., 1530-1, Seocho-Dong, Seocho-Gu, Seoul, Korea 137-070 Dates of Tests: August 18 ~ August 26,2005 Test Report S/N: DR50110508M Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Device name : Bluetooth USB Adapter Manufacturer : BTNetworks Co., Ltd. FCC ID : TLWBM2001 Model name : BM2001 Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.247 Subpart C ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480 MHz Max. Output power : 11.77dBm Conducted Data of issue : August 29, 2005 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. TLWBM2001 BTNetworks Co., Ltd. DEMC#DR50110508M FCC ID: TLWBM2001 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 2 of 40 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.6 CONDUCTED SPURIOUS EMISSIONS-------------------------------------------------------- 3.2.7 RADIATED EMISSIONS ------------------------------------------------------------------ 3.2.8 AC LINE CONDUCTED EMISSIONS ------------------------------------------------------- ANNEX TEST EQUIPMENT USED FOR TESTS ---------------------------------------------------- 3 4 6 6 7 7 9 12 15 19 22 28 34 38 DEMC#DR50110508M FCC ID: TLWBM2001 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 3 of 40 1. General information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer August 29, 2005 Won -Jung LEE Data Name Signature Report Reviewed By: manager August 29, 2005 Harvay Sung Data Name Signature Ordering party: Company name : BTNetworks Co., Ltd. Address : 1F, Yoonjae Bldg., 1530-1, Seocho-Dong, Seocho-Gu Zip code : 137-070 City/town : Seoul Country : Korea Date of order : August 29, 2005 DEMC#DR50110508M FCC ID: TLWBM2001 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 4 of 40 2. Information about test item TLWBM2001 2.1 Equipment information Equipment model name BM2001 Type of equipment Bluetooth USB Adapter Frequency band 2402 ~ 2480 MHz Type of Modulation GFSK Channel Spacing 1.0 MHz Type of antenna Dipole Antenna Power DC 4V ~ 12V 2.2 Tested frequency Frequency TX RX Low frequency 2402MHz 2402MHz Middle frequency 2441MHz 2441MHz High frequency 2480MHz 2480MHz DEMC#DR50110508M FCC ID: TLWBM2001 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 5 of 40 TLWBM2001 2.4 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 5 VDC (powered by USB Port of PC) 2.5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Printer SRP-770 SRP77008060035 SAMSUNG Notebook computer ARMADA6500 6708BA0001B LG Mouse SMOP5000WX 04010159130 CHIC TECHNOLOGY CORP 2.6 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> none DEMC#DR50110508M FCC ID: TLWBM2001 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 6 of 40 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) I. Transmit mode(Tx) Carrier Frequency Separation > 25 kHz C Number of Hopping Frequencies > 75 hops C 20 dB Bandwidth < 1 MHz C 15.247(a) Dwell Time 0.4 seconds within a 30 second period per any frequency C 15.247(b) Transmitter Output Power < 1Watt C Band-edge / Conducted 2400 < f < 2483.5 MHz C 15.247(c) Conducted Spurious Emissions The radiated emission to any 100 kHz of outband shall be at least 20dB below the highest inband spectral density. Conducted C 15.205 15.209 Radiated Emissions < FCC 15.209 limits Radiated C 15.207 AC Conducted Emissions EN 55022 AC Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 DEMC#DR50110508M FCC ID: TLWBM2001 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 7 of 40 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading…

Text truncated - open the document above for the full version.

FCC ID: TWLBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: TWLBM2001 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2
