TMV-IBS128121INTELLIGENT BATTERYMATE SERIES

VER 050629 IBI operation Page 1 of 1 Consumer Operation Manual for I.B.I : 1. Make sure the I.B.I. is installed to the cigarette lighter socket completely. Insert the master key and turn it to “ON” position. 2. Start checking the battery status by identifying the color of LED on the I.B.I. : LED COLOR & VOICE ALARM STATUS MEANING GREEN LED GOOD CONDITION OF BATTERY WITH 1/3~3/3 CAPACITY. YELLOW LED VOICE ALARM BATTERY NEEDS TO BE RECHARGED. RED LED VOICE ALARM BATTERY RUN-OUT : NEEDS TO BE REPLACED OR CHECKED AT THE GARAGE. 3. For further exact test result in the situation of Green LED brightness, it is recommended to proceed the step B of further testing : STEP B : a. Turn on the headlight for once within 1 minute.(Do not turn on the headlight too long and frequently, otherwise the testing result will not be correct.) b. Re-checking the LED indication. If LED shown GREEN again, that means the battery is in normal condition. Then you could start the engine. 4. If the LED is showed yellow or red at any time, please go to the garage for electric system checking. You may have to have the battery be replaced. 5. EXTRA INDICATION IN DRIVING : LED COLOR & VOICE ALARM (IN DRIVING) STATUS MEANING (IN DRIVING) GREEN LED BATTERY CHARGING SYSTEM IS NORMAL. YELLOW LED VOICE ALARM RED LED VOICE ALARM 1. THE CHARGING SYSTEM IS ABNORMAL. OR 2. POWER GENERATOR IS ABNORMAL. NOTICE : 1. Just plug into the socket when you want to see the battery condition. 2. Please do not let equipments be operated abnormally (ex. Keep pushing the window switch after the window has been closed completely) in order to prevent the alarm caused of instantaneous action current. VER 050629 IBI operation Page 2 of 2 3. There is the alarming due to the battery is not recharged fully or the battery is in the status of being drained. It would be ceased after the battery is recharged enough by the generator of the vehicle after a period time of driving. If it keeps alarming after driving, please go to the garage for detail checking on the electric system of the vehicle and the battery may need to be replaced if necessary. 4. There will be the alarming when using the cigarette lighter and it is the normal situation. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

VER050624 Installation Manual Page 1 of 1 IB & RIB Installation Manual Basic Installation(I.B.& R.I.B.) VER050624 Installation Manual Page 2 of 2 1. Stop the engine and open the hood. 2. Find the suitable surface and space that the device will be put. Clean the battery surface where the device will be attached. 3. Use the double sided 3M foam tapes to stick the back side of I.B./R.I.B. for attaching on the battery. 4. Disconnect the vehicle Pos.(+) cable on battery. 5. Connect vehicle Pos.(+) cable to the Post Adapter of I.B./ R.I.B. 6. Connect the I.B./R.I.B. Pos.(+) Red cable securely to the Pos.(+) terminal post of battery. 7. Release Neg.(-) battery cable from Neg.(-) battery post, then install the black ground wire with the U-clip securely to assembly. VER050624 Installation Manual Page 3 of 3 Extra Installation for R.I.B. Please run a test according to the operation manual after installation. NOTICE A. When the vehicle cable is not long enough to install the unit, please purchase after-market cable. It is available at the auto parts stores. B. Please reprogram any vehicle memory devices after installation. C. Car alarms can be wired directly to battery, bypassing the unit. Please note that the alarm operation may drain the battery. D. There is the graphic of optional installation for reference. If you are not sure whether the installation is workable or not, please ask the help from the technical assistant of the garages. Disable the Remote Intelligent Batterymate If you want to disable the I.B./R.I.B. function, please just do the following : 1. Disconnect the I.B./R.I.B. Pos.(+) Red cable from the Pos.(+) terminal post on battery. 2. Disconnect the Pos.(+) battery cable from the Post Adapter of I.B./R.I.B. 3. Reconnect the Pos.(+) battery cable to Pos. (+) terminal post on battery. 4. Reconnect the I.B./R.I.B. Pos.(+) Red cable securely to the I.B./R.I.B. self - Post Adapter. 5. Take the Remote Controller out of the cigarette lighter socket. 6. Finished to disable the I.B./R.I.B This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Insert the Remote Controller to cigarette lighter socket of the vehicle. (The Remote Controller can be pulled out from the socket after checking the battery, no need to insert to socket always.

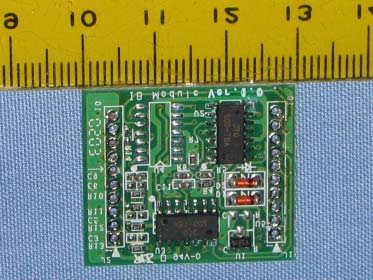

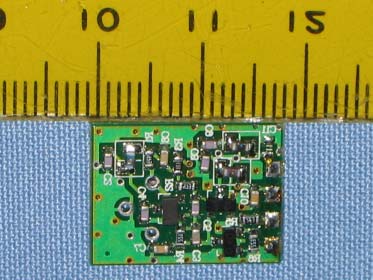

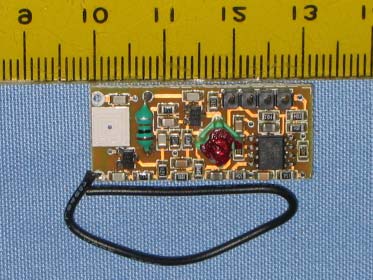

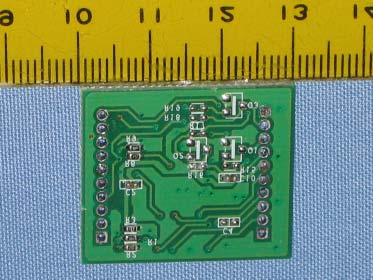

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 11 PART I: PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 6 of 11 PRAR II: PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 7 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 8 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 9 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 10 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 11 of 11 PHOTOS OF EUT

FCC ID:TMV-IBS128121 Sample of FCC ID Label and warning statement FCC ID:TMV-IBS128121 Label Location warning statemen t

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 11 PART I: PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 6 of 11 PRAR II: PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 7 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 8 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 9 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 10 of 11 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 11 of 11 PHOTOS OF EUT

FCC ID:TMV-IBS128121 Operational Description of the equipment IBS(Intelligent BatteryMate Series) is suitable for any vehicle or engine-driven device which uses a standard 12-volt battery. Our IBS is a small, computer chip driven, electronic device. IBS monitors battery capacity and detects a drain on voltage (lights left on , door ajar, 2 way radio, GPS, computer, short in system etc...) If a drain is detected, IBS disconnects the battery – preventing deep discharge, saving starting power. – i.e. minimizing the dangers associated with a dead battery - like getting stranded. IBS saves down time (man hours, service calls, upset customers etc.) and prevents damage to computer, and electrical system (Jump starting can do major damage to electrical system). It maximizes battery life (by not allowing the battery to go dead you get the maximum life out of the battery. IBS can evaluate the battery capacity before start the vehicle. IBS provides overloading and short circuit protection that is the Life-secure function preventing drivers and passengers from dangers or car fires. IBS prevents the battery from deep discharging by disconnecting the battery at a factory preset level. Enough power is left to start the engine. Simply push the black button of device or red button of remote controller, and the battery is automatically reconnected. PRODUCT Intelligent Batterymate Series MODEL NO. IBI121XXX, IB128XXX, RIB128XXX POWER REQUIREMENTS DC 12 V CARRIER FREQUENCY 315MHz MODULATION TYPE AM/ASK/CCK OPERATING TEMPERATURE RANGE -20~+85 FCC ID:TMV-IBS128121 Function IBI121XXX IB128XXX RIB128XXX Overuse(Over-discharged) Disconnect / Trouble free X X Overloading / Short circuit Protection X X LED Indication for Battery Capacity X X X Audible Alarm (Low Voltage & Battery Needs To Be Recharged.) X X Remote Module X Cigarette Lighter Socket X Audible Alarm While Charging System Is Abnormal. X X Audible Alarm While Power Generator is Abnormal. X X

55 44 33 22 11 D D C C B B A A SMD R, C = 0603 BUZZER Cutted edge RED GREEN silk print needs mark instertion direc tion R AME431BB A C 2SC1623 C BE SQ 5*5 mm D9 G CC R <Doc> 1.0 I.B.I A4 11 Tuesday, September 13, 2005 TitleSize Document Number Rev Date: Sheet of VOUT VCC5V VOUT VCC5V VOUT VOUT VCC5V +- U1CABT-002 10 9 8 411 R5R J3 CON2 2.54mm 12 R12340K U2AME431BBJETB25 R A C REF ANDON CATHODE R1310K R10330 12 3 Q12SC1623 R11K R21K PAD1 1 LS1 PB-12N23MP-12 D9L039AGW 1 2 3 C3100U +- U1AABT-002 32 1 411 R9RR8R R11300K R3R C10.1U 55 44 33 22 11 D D C C B B A A 634 7 1 5 2 23 1 54 E B C 2SC1623 RC A AME431B SMD&DIP LAYOUT U3, U6 are RF module K1,K2 bottom view ACS750 2NC 1A 3C BAS70 2N3906 add T.P. 1.0 RIB RX A3 11 Tuesday, September 13, 2005 TitleSize Document Number Rev Date: Sheet of IN4+IN2-IN3-IN1- D4+ D4+ IN3- LOADNO LOADLED5-LED3-LED4-LED2- VOUTIN2-IN4+ LED1-VOUTCURRENT SENSOR OUTPUT IN1-VCC+5V LED4-LED5- CURRENT SENSOR OUTPUT VCC+5V NE555 OUTPUT LED2- LED3- LED1- LED1- D1+ D1+ NE555 OUTPUT VOUT LOAD NO LOAD D1+ GND VCC5V VCC5V VCC5V NE555 OUTPUT VB+ VOUT VB+ VB+ VB+ VOUT VOUT VB+ VOUT_IC VOUT Q6 2SC1623 D4BAS70 R36NC/0 R19R TP2 T POINT R R37NC/0 R34 47K R12R R38NC/0 R20R R27340K R39NC/0 R40NC/0 SW1 PUSH SW TS-858B 2 1 36 5 4 R41NC/0 R420 TP7T POINT R U6CJ100RX-315MHZ 2 3 4 5 VCC DIGITAK DIGITAK GND R49R TP17T POINT R D5BAS70 E1ANTENNA 1 TP21T POINT R EC B Q22SC1384 D81N4001 R22R C11330U D11N4001 R23R C31000U TP3HOLEA 123 4 5 87 6 TP8T POINT R TP11T POINT R C9NC/10U R320 R13 NC/0 TP14T POINT R TP22T POINT R Q12SC1623 U2NJM555M 2 53 76 4 8 1 TR CV Q DISTHR R VDD VSS C40.1U TP52mm 1 R510 D61N4001 R16 NC/0 U7NC/SE555_DIP 2 53 76 4 8 1 TR CV Q DISTHR R VDD VSS Q72N3906 TP9T POINT R TP12 T POINT R C70.1U R1 R R21R R310K C8 NC/0.1U R1710K R48R R50R R9R Q52SC1623 D71N4001 TP16T POINT R R7R LED5GREEN R11R J2CON1012345678910 EC B Q32SC1384 LED3GREEN J1CON10 12345678910 R5R LED4GREEN C10100U U3NC/RWS-315 1 2 3 4 5 6 7 8 GND DIGITAK OUT LINEAR OUT VCC VCC GND GND ANT TP10 T POINT R TP13 T POINT R U4HT-12D 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 120 A0 A1 A2 A3 A4 A5 A6 A7 GNDD8 D9 D10 D11 DIN OSC2 OSC1 VT VCC NCNC R4R LED2 YELLOW R29 0 K2 RELAY 822E-1A-C 4 36 12 57 LED1RED U1ACS750SCA-100 4 5 1 2 3 current+ current- VCC GND OUTPUT R330 U5AME431BBJETB25 R A C REF ANDON CATHODE TP15T POINT R R441K TP20 T POINT R R1810K K1 RELAY 822E-1A-C 4 36 12 57 R2410K C5 220U R6R R431K R52R R10RR281K TP1 T POINT R C2100U R451K D10BAS70 R300 C1330U R471K R2R R8R R461K C6100U TP6 T POINT R TP18T POINT R R26300K TP19 T POINT R Q4 2SC1623 D2BAS70 TP4HOLEA 123 4 5 87 6 R350 55 44 33 22 11 D D C C B B A A co-layout C R A AME431BB C 2SC1623 E B <Doc> 1.0 IB Module A3 11 Tuesday, September 13, 2005 TitleSize Document Number Rev Date: Sheet of GND CURRENT SENSOR OUTPUT LED5- LED1- D4+ D4+VCC5V CURRENT SENSOR OUTPUTLED2- IN2- LED1- OVER LOAD LED4-D4+ IN3-IN1-IN4+ LOAD LOAD LED3- RELAY OFF OVER LOAD VCC5V NO LOAD LED5-NO LOAD NO POWER VCC5VLED1- IN4+ GND LED4- LED3- IN3- IN2- IN1- LED2- RELAY OFF NO POWER VCC5V VOUT VOUT VCC5V VCC5V VCC5V VCC5V VCC5V VOUT VOUT VCC5V VOUT VCC5V VOUT VOUT VOUT VOUT VOUT VOUT VOUT VOUT VOUT VOUT_1 VOUT_1 VOUT VCC5V R13R R12R +- U3DABT-002 1213 14 411 J2CON1012345678910 R4R R7R D11N4148 D21N4148 12 3 Q2NC/2SC1623 +- U4ANC/ABT-002 32 1 411 +- U3CABT-002 10 9 8 411 R18NC/1K C4 NC/1U +- U2CABT-002 10 9 8 411 R16NC/1K U1AME431BBJETB25 R A C REF ANDON CATHODE R8R R17NC/10K R3330 C100.1U R6R C5 NC/1U C110.1U R19NC/10K +- U4CNC/ABT-002 10 9 8 411 C6 NC/1U C3 NC/1U R2340K +- U3BABT-002 56 7 411 +- U4BNC/ABT-002 56 7 411 J1CON10 12345678910 12 3 Q3NC/2SC1623 12 3 Q1NC/2SC1623 C90.1UR10R C20.1U U1ANC/TO-92_CM431 1 3 2 CATHODE ANDON REF R11R +- U2DABT-002 1213 14 411 R9R R15NC/10K +- U2AABT-002 32 1 411 +- U3AABT-002 32 1 411 R1300K R5R R14NC/1K +- U2BABT-002 56 7 411 55 44 33 22 11 D D C C B B A A SMD R, C = 0603 GREEN silk print needs markinstertion direction RED Cutted edge TX module 315MHz SQ 5*5 mm RG D9 J2 ==> SW1 BH-511A CC <Doc> 1.0 RIB TX A3 11 Tuesday, September 13, 2005 TitleSize Document Number Rev Date: Sheet of VCC_12V VOUT VOUT VOUT VOUT VCC5V VCC5V VCC5V VCC5V VCC_BAT VCC_12V R17NC/0 R6NC BT1BATTERY HOLDER 21 J3 CON2 2.54mm 12 +- U1CABT-002 10 9 8 411 R23NC/10K R12340K D11N4148 TP1ANT 1 R7NC R19NC/0 R8R C2NC/0.1U R9R D5NC/1N4148 U2AME431BBJETB25 R A C REF ANDON CATHODE R34 NC/0 D41N4148 U4 HT-12E 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 120 A0 A1 A2 A3 A4 A5 A6 A7 GNDAD8 AD9 AD10 AD11 TE OSC2 OSC1 DOUT VCC NCNC R24NC/10K R32NC/0 R13 10K R20NC/0 D9L039AGW 1 2 3 R10330 R15NC/0 C1 0.1U D6NC/1N4148 12 3 Q12SC1623 R140 PAD1 1 R3R LS1 PB-12N23MP-12 U3TXC1 3214 VCC DATA IN GND ANT R5R R210 R16NC/0 +- U1AABT-002 32 1 411 R22NC/10K R11K R4R D3NC/1N4148 +- U1BABT-002 56 7 411 D2NC/1N4148 R21K R310 R11300K R25NC/10K R261M R27 NC/0 SW1 PUSH SW R13-502A D105.1V R28 NC/0 R29 NC/0 R33 1K R18NC/0 R30 NC/0
