- 1 - Column type electric micrometer Manual TOSEI ENGINEERING CORP. AT50900-R002-Ex - i - Attention and asking in use Defend the following matter to use this machine safely. Warning 1.Avoid a temperature outside the use range, humidity, a drop of water, dust, lamp soot, direct sunshine, strong shock, and a big vibration and the corrosivity gas, etc. Equipment..breakdown..electric shock..equipment..fall..body..trouble..cause. 2.The rack where the equipment is installed must use the one that the weight of the equipment can be endured enough. Moreover, secure the stability of the rack enough. The trouble might be caused by the fall of the equipment and the rack the body. 3.Connect power cable with the outlet of the voltage displayed in equipment name plate. There are an electric shock and fear of a fire due to the breakdown. 4. Ground grounding conductor surely. When breaking down and leaking electricity, it is likely to get an electric shock. 5.A dangerous electric current flows to the power supply and the telecommunication cable. To prevent the electric shock, work with all power supplies are turned off when this machine and the attachment unit are set up or are moved, and power cable removed from the outlet. 6.Do not trample down, and do not pull the coupling cable that connects between power cable and the equipment. Moreover, take the part of the plug when you pull out the cable. It is likely to damage it. Never use damaged neither power cable nor coupling cable. There is the one that a dangerous electric current flows, too and the death or the serious injury might be owed in power cable and the coupling cable when getting an electric shock. 7.Never insert the foreign body (especially, electroconductive material such as metal pieces) from the space of the equipment. The serious injury might be owed due to the electric shock, a fire, and the breakdown. -ii- Attention 1.Power cable must use the one of the attachment. Moreover, never use it for other equipment. 2.Do not use power cable while bundled. 3.Do the pulling out opening of the coupling cable that connects between power cable and the equipment after turning off the power supply of the equipment without fail. Notes when wireless is used In the woking frequency belt of this equipment, besides industry, the science, and the medical equipment such as microwave ovens. ..premises station (.. require licensing for the mobile object identification used in the production line etc. of the factory. The station) and the specific small electric power station (station that doesn't require licensing) are operated. 1.It is a premises station and a specific small electric power in the vicinity for the mobile object identification before using this equipment. Confirm the station is not operated. 2.The case with the electric wave interference is a departure from this equipment by any chance against the premises station for the mobile object identification. Contact the following where to make contact after the woking frequency is promptly changed in case of giving birth or the launching of the electric wave is stopped, and consult about the treatment (for instance, installation of the partition etc.) etc. for the interference evasion. 3.Additionally, electric wave interference from this equipment against specific small electric power station for mobile object identification Inquire of the following where to make contact when something embarrassed when the case is generated occurs. Where to make contact TOSEI ENGINEERING CORP. AUTO METROLOGY DEVISION Tel 81-29-830-1882 Fax 81-29-832-1891 - iii - FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). -iv- Wireless article display The following article display sign is stuck on the model that corresponds to the wireless. In this display, 2.4GHz belt machine used and modulation system are F H systems, and the assumption interference distances. However, the band of the use of all bands and the mobile object identification system can be evaded by 10m or less. It shows. Notes when foreign countries are taken out They are wisdoms because it various restricts the locale when this machine is taken out outside the country in prior. DoneWhen it is taken out outside the country without informing, and the accident occurs, our company cannot assume the responsibility.

Letter Of Agency September 27, 2005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Please be advised that TOSEI ENGINEERING CORP. authorizes UL Apex Co., Ltd. to act on our behalf, until otherwise notified, for applications submitted to Federal Communication Commission. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Full Name: Hiroyuki Kobayashi Position: Director of Auto Metrology Division FCC Labeling Requirements and Information September 27, 2005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: FCC Labeling Requirements FCC ID:TNY0999058 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Full Name: Hiroyuki Kobayashi Position: Director of Auto Metrology Division Request for Confidentiality September 27, 2005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID:TNY0999058 Please be advised that the following information is to be held confidential and behalf of, TOSEI ENGINEERING CORP., referring to the FCC rules 0.457 and 0.459: Block Diagram Schematics Theory of Operation Parts List The application contains technical information which TOSEI ENGINEERING CORP. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Full Name: Hiroyuki Kobayashi Position: Director of Auto Metrology Division Manufacturer’s Letter September 27, 2005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: TNY0999058 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Sincerely, Full Name: Hiroyuki Kobayashi Position: Director of Auto Metrology Division

FCC ID: TNY0999058 Date: 30 September, 2005 Model: AE51041 Applicant : TOSEI ENGINEERING CORP. Request for Limited Modular Approval The Wireless Module (Model: AE51041) is designed by TOSEI ENGINEERING CORP. The modular transmitter will be equipped and used only for host device such as measuring equipment which can supply regulate power of 3.3V stably. The modular transmitter complies the module basic requirement (Item 1 to 8) in FCC Public Notice: Part 15 Unlicensed Modular Transmitter Approval (DA00-1407) as indicated below. [Module basic requirement] (1) Have its own RF shielding: This modular transmitter has it own RF shielding. Please refer to the following Photo; (2) The modular transmitter must have buffered modulation/data inputs: Data input to this modular transmitter is controlled as not generating excessive data speed and abnormal modulation. (3) The modular transmitter must have its own power supply regulation: The modular transmitter does not have its own power supply, but regulated power of 3.3V is supplied from the host device. (4) The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c): There is no antenna connector. This antenna is soldered on the circuit board, so the user can not remove it. (5) The modular transmitter must be tested in a stand alone: The test has been performed as a stand alone. (6) The modular transmitter must be labeled with its own FCC ID, and, if the FCC ID are not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module: This modular transmitter is complied with this requirement. Please refer to the Label drawing and location. In addition, the final product will display FCC ID of the module. (7) The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: The necessary explanation to be complied with this requirement is contained in the manual. (8) The modular transmitter must comply with any applicable RF exposure requirements: Please refer to the RF exposure statement. Hiroyuki Kobayashi Director Auto Metrology Division RF shielding

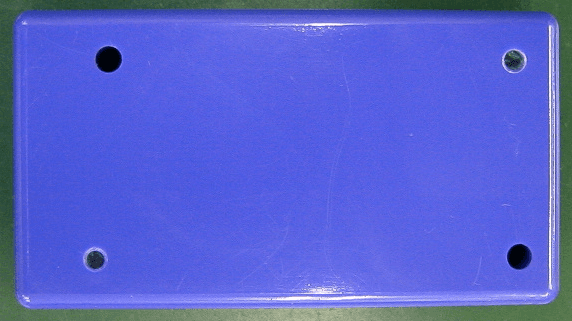

Wireless Module AE51041 External Apperance Left Top Right Bottom ReaFront

WIRELESS MODULE FCC COMPLIANCE LABEL DESIGN material: vinyl chloride Label Paste Location Module Top View FCC COMPLIANCE LABEL

Wireless Module AE51041 Internal Apperance

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: TOSEI ENGINEERING CORP. Type of Equipment: Wireless Module Model No. : AE51041 FCC ID: TNY0999058 TOSEI ENGINEERING CORP. declares that Model : Wireless Module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). The “AE51041“ has 12.3 mW of conducted Peak Output power and 5.69 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “AE51041“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* * r 2 ) Where P = 12.30mW (Maximum peak output power) G = 0.46Numerical Antenna gain; equal to-3.35 r =20.0 cm For: AE51041S = 0.00113 mW/cm 2 No. : 25HE0235-HO-1 RF Exposure / SAR Statement

Test report No. : 25HE0235-HO-1b Page : 2 of 46 Issued date : September 26, 2005 Revised date : October 19, 2005 FCC ID : TNY0999058 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information...............................................................................................................3 SECTION 2: Equipment under test (E.U.T.)............................................................................................3 SECTION 3: Test specification, procedures & results..............................................................................5 SECTION 4: Operation of E.U.T. during testing......................................................................................8 SECTION 5: Conducted Emission..........................................................................................................10 SECTION 6: Spurious Emission..............................................................................................................11 SECTION 7: Bandwidth..........................................................................................................................11 SECTION 8: Maximum Peak Output Power..........................................................................................12 SECTION 9: Carrier Frequency Separation..........................................................................................12 SECTION 10: Number of Hopping Frequency.......................................................................................12 SECTION 11: Dwell time.........................................................................................................................12 APPENDIX 1: Photographs of test setup................................................................................................13 Conducted Emission........................................................................................................................................13 Spurious Emission (Radiated).........................................................................................................................14 Worst Case Position (Z-axis:Horizontal / Y-axis:Vertical).............................................................................15 APPENDIX 2:Test instruments................................................................................................................16 APPENDIX 3: Data of EMI test...............................................................................................................17 Conducted Emission........................................................................................................................................17 Carrier Frequency Separation........................................................................................................................18 20dB Bandwidth..............................................................................................................................................20 Number of Hopping Frequency......................................................................................................................22 Maximum Peak Output Power.......................................................................................................................27 Conducted Spurious Emission........................................................................................................................29 99% Occupied Bandwidth..............................................................................................................................33 Radiated Spurious Emission...........................................................................................................................34 Test report No. : 25HE0235-HO-1b Page : 3 of 46 Issued date : September 26, 2005 Revised date : October 19, 2005 FCC ID : TNY0999058 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : TOSEI ENGINEERING CORP. Address : 4-6,Higashi-Nakanuki,Tsuchiura-City, Ibaraki, 300-0006 Japan Telephone Number : +81-29-832-4082 Facsimile Number : +81-29-830-1891 Contact Person : Takashi Kikuchi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Module Model No. : AE51041 Serial No. : 00-0A-D2-3A-02-AF Rating : DC3.3V, 0.15A Country of Manufacture : Japan Receipt Date of Sample : June 17, 2005 Condition of E.U.T. : Production model Test report No. : 25HE0235-HO-1b Page : 4 of 46 Issued date : September 26, 2005 Revised date : October 19, 2005 FCC ID : TNY0999058 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) 2.2 Product Description <General Information> Type of Equipment Transceiver Frequency Band Lower Limit: 2402MHz Upper Limit: 2480MHz Type of Modulation FHSS Antenna Type Chip Antenna Antenna Gain -3.35dBi Antenna Connector type Printed Circuit Pattern Mode of Operation Duplex Method of Frequency Generation Synthesizer Power Supply DC3.3V Operation Temperature Range 0-40 degree C FCC 15.31 (e) This EUT will be equipped and used only for host device such as measuring equipment which can supply regulate power of 3.3V stably. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25HE0235-HO-1b Page : 5 of 46 Issued date : September 26, 2005 Revised date : October 19, 2005 FCC ID : TNY0999058 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 59…

Text truncated - open the document above for the full version.

Test report No. : 25HE0235-HO-1b Page : 13 of 46 Issued date : September 26, 2005 Revised date : October 19, 2005 FCC ID : TNY0999058 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 25HE0235-HO-1b Page : 14 of 46 Issued date : September 26, 2005 Revised date : October 19, 2005 FCC ID : TNY0999058 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Spurious Emission (Radiated) Front Rear Test report No. : 25HE0235-HO-1b Page : 15 of 46 Issued date : September 26, 2005 Revised date : October 19, 2005 FCC ID : TNY0999058 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (Z-axis:Horizontal / Y-axis:Vertical) X-axis Y-axis Z-axis
