TO5MW-5024GHz Microwave Sensor

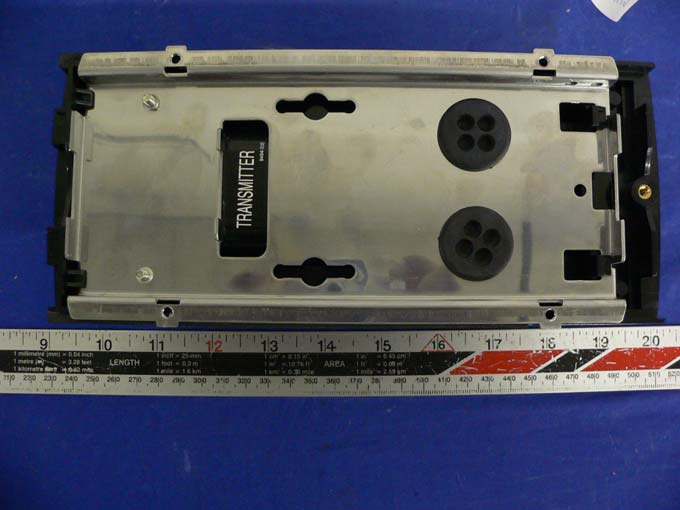

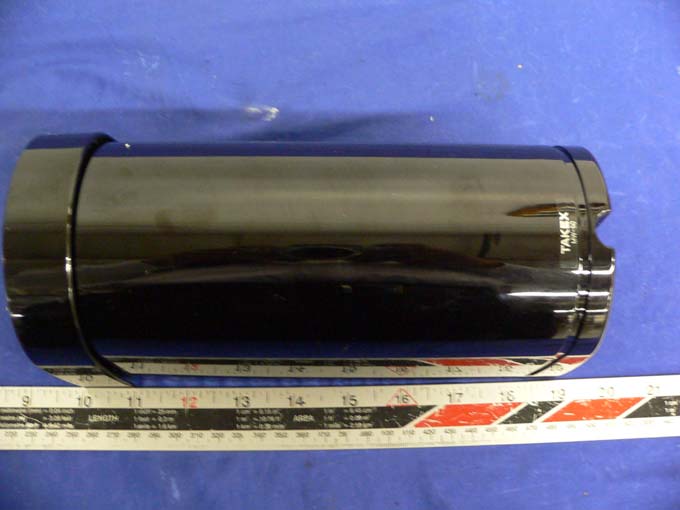

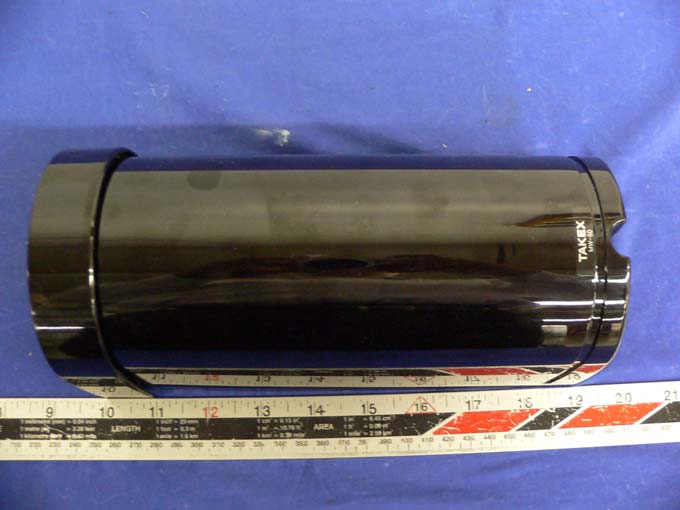

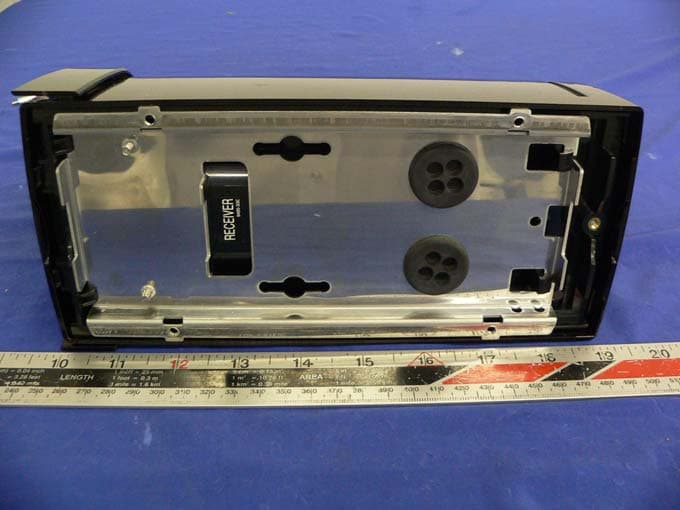

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS Transmitter – Front View Transmitter – Rear View Receiver – Front View Receiver – Rear View Receiver – Antenna View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT EUT Top View Cover off / Proposed Label location FCC ID: TO5MW-50 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

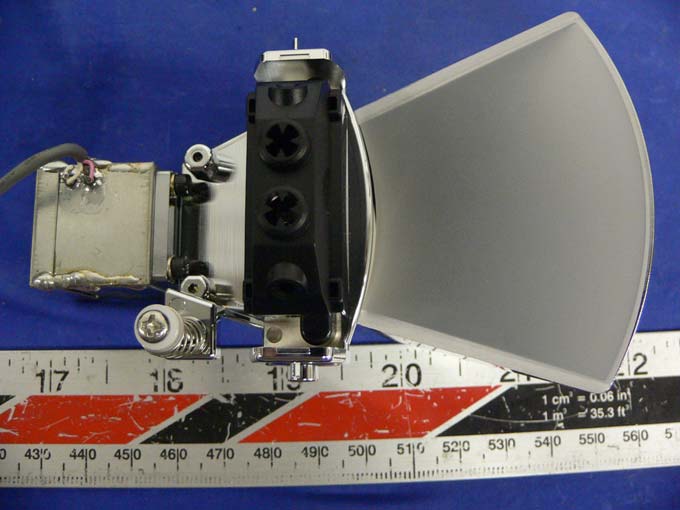

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Transmitter – Cover off View Transmitter – Component View I Transmitter – Component View II Transmitter – Antenna View Receiver – Cover off View Receiver – Component View I Receiver – Component View II Receiver – Component View III Receiver – Component View IV

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.245 EMI MEASUREMENT AND TEST REPORT For TAKEX AMERICA, INC. 1330 ORLEANS DRIVE SUNNYVALE, CA 94089 FCC ID: TO5MW-50 This Report Concerns: Original Report Equipment Type: 24GHz Microwave Sensor Test Engineer: Kevin Lee Report No.: R0507275 Report Date: 2005-10-13 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 TAKEX AMERICA, INC. FCC ID: TO5MW-50 Report # R0507275Rpt Page 2 of 12 FCC Part 15.247Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 SCHEMATICS AND BLOCK DIAGRAM............................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 POWER SUPPLY INFORMATION.....................................................................................................................................4 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................5 SUMMARY OF TEST RESULTS FOR FCC PART 15.245 .....................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 ANTENNA CONNECTED CONSTRUCTION......................................................................................................................7 §15.24,5 §15.205 & §15.209 - SPURIOUS RADIATED EMISSION.........................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................9 SPECTRUM ANALYZER SETUP......................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................11 TAKEX AMERICA, INC. FCC ID: TO5MW-50 Report # R0507275Rpt Page 3 of 12 FCC Part 15.247Test Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The TAKEX AMERICA, INC. product, Model: MW-50 or the "EUT" as referred to in this report is a 24GHz Microwave Sensor which measures approximately 4.25”L x 4.25”W x 9”H. * The test data gathered are from production sample, serial number: 0001B provided by the manufacturer. Objective This type approval report is prepared on behalf of TAKEX AMERICA, INC. in accordance with Part 2, Subpart J, Part 15, Subparts A , B and C of the Federal Communication Commissions rules. The objective is to determine compliance with FCC rules for Radiated Emission. Related Submittal(s)/Grant(s) No Related Submittals Test Methodology All measurements contained in this report were conducted with ANSI C63.4 - 2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory, Corp. Test Facility The Open Area Test site used by BACL to coll…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission – Front View Radiated Emission – Rear View
