TO9-SR150FIXED / BASE VHF TRANSCEIVER-MODULE

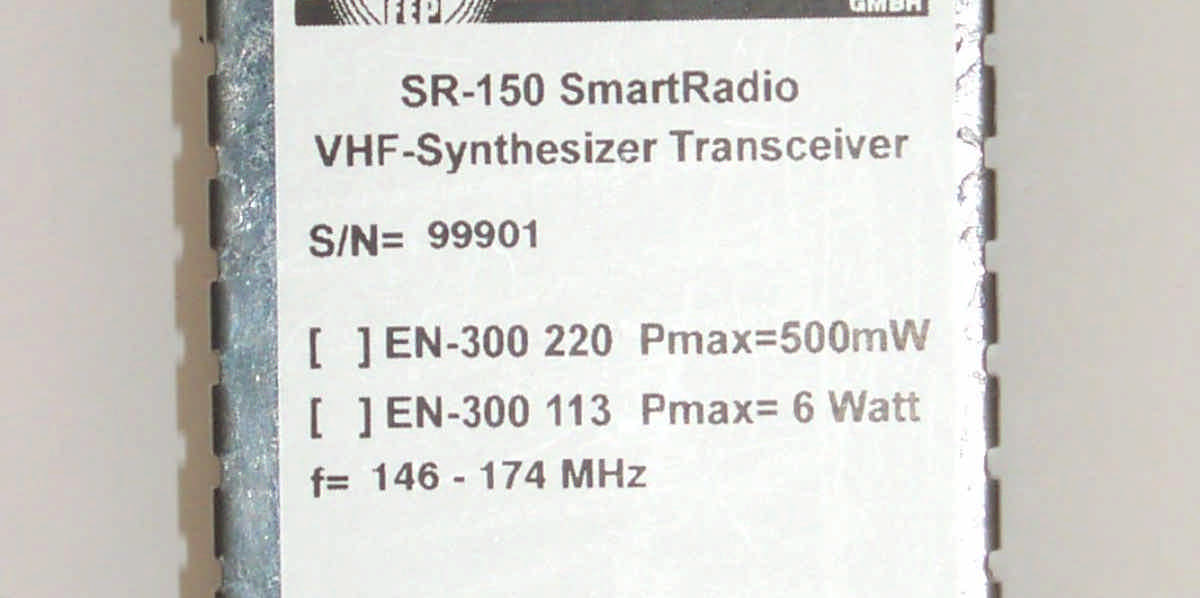

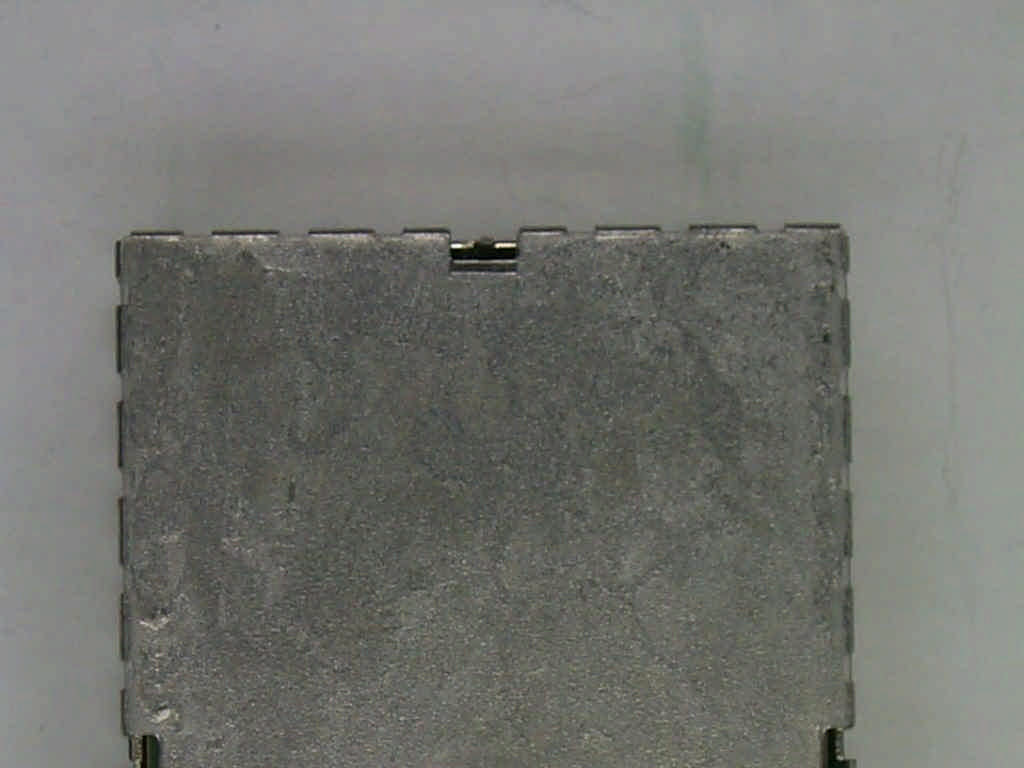

Annex B:External photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page1 of2 40893eut20.jpg: EUT, front view Annex B:External photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page2 of2 40893eut22.jpg: EUT, rear view

Annex C:Internal photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page1 of6 40893eut23.jpg:Main-PCB, front view Annex C:Internal photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page2 of6 40893eut21.jpg:Main-PCB, rear view Annex C:Internal photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page3 of6 40893VCO3.jpg: VCO-PCB, front view Annex C:Internal photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page4 of6 40893VCO1.jpg: VCO-PCB, rear view Annex C:Internal photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page5 of6 40893TB1.jpg: Test board 1 Annex C:Internal photos of the EUT to test report R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page6 of6 40893TB2.jpg: Test board 2

Funk-Electronic Piciorgros GmbH FCC ID: TO9-SR150 RF EXPOSURE INFORMATION In accordance with CFR Title 47, Part 2.1091(c), this transmitter is exempted from routine environmental evaluation for RF exposure. This exemption is subject to the limits posted in Parts 1.1307(c) and 1.1307(d) of CFR Title 47.

Calculation: RF-Exposure Worse case calculation (duty cycle = 100%) Type identification: SR-150 Smart Radio (VHF-version with 6 W output) In accordance to the CFR Part 47, §1.1310 S: Limit for power density according to CFR Part 47, §1.1310: 0.2 mW/cm² = 2W/m² P: maximum conducted rf-power: 6 W D: Duty cycle: 100 % G: antenna gain: e.g. 10 dBd = 12,15 dBi = 16.41 R: minimum distance to the center of radiation of the antenna (m), => The transceiver is classified as mobile device therefore the distance between the transmitting antenna and human body shall be at least 1.98 m The limit for “General Population/Uncontrolled Exposure” of the power density is 0.2mW/cm² = 2 W/m² acc. to CFR Part 47, §1.1310 m m W W S GDP R98.1 2**4 41.16*6 **4 ** 2 2 === π π ²**4 * R GP S π =

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 TEST REPORT Test Report Reference: R40893VHF3 rd Version Equipment under Test:SmartRadio SR-150 VHF-Synthesizer Transceiver Applicant: Funk-Electronic Piciorgros GmbH Manufacturer: Funk-Electronic Piciorgros GmbH Test Laboratory (CAB) accredited by DATech GmbH in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DAT-P-105/99-21 and FCC Test site registration number 90877 TEST REPORT REFERENCE: R40893VHF3 rd Version Examiner: Raimund BLASKDate of issue:14June 2007Page2 of44 Contents:Page 1 IDENTIFICATION.....................................................................................................................................3 1.1 APPLICANT.....................................................................................................................................3 1.2 MANUFACTURER..........................................................................................................................3 1.3 DATES.............................................................................................................................................3 1.4 TEST LABORATORY......................................................................................................................4 1.5RESERVATION...............................................................................................................................4 1.6 NORMATIVE REFERENCES..........................................................................................................4 1.7 TEST RESULTS..............................................................................................................................4 2 TECHNICAL DATA OF EQUIPMENT......................................................................................................5 2.1 DEVICE UNDER TEST ...................................................................................................................5 2.2 PERIPHERY DEVICES...................................................................................................................5 2.3 MODIFICATIONS............................................................................................................................5 3 TEST PROCEDURES..............................................................................................................................6 4 OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................9 5 LIST OF MEASUREMENTS.....................................................................................................................10 5.1 RF POWER OUTPUTAT TERMINALS 47CFR2.1046................................................................11 5.2OCCUPIED BANDWIDTH47CFR2.1049.....................................................................................12 5.3 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 47CFR2.1051 AND 90.210.....................15 5.4 FREQUENCY STABILITY WITH TEMPERATUREVARIATION47CFR2.1055 AND 90.213 ......24 5.5FREQUENCY STABILITYWITH PRIMARY VOLTAGE VARIATION47CFR2.1055 / 90.213.....25 5.6TRANSMITTER TRANSIENT FREQUENCY BEHAVIOR47CFR90.214.....................................26 5.7 RADIATED SPURIOUS EMISSIONS 47CFR2.1053 / 90.210......................................................30 6 MEASUREMENT EQUIPMENT...............................................................................................................36 7 LIST OF ANNEXES..................................................................................................................................44 TEST REPORT REFERENCE: R40893VHF3 rd Version Examiner: Raimund BLASKDate of issue:14June 2007Page3 of44 1 IDENTIFICATION 1.1APPLICANT Name:Funk-Electronic PICIORGROS Address:Claudiastraße 5 D-51149 Köln-Porz Country:Germany Name for contact purposes:Mr. Michael D. Piciorgros Tel:+49-(0)-2203-911770 Fax:+49-(0)-22 03 -913006 e-mail address:[email protected] 1.2MANUFACTURER Name:Funk-Electronic PICIORGROS Address:Claudiastraße 5 D-51149 Köln-Porz Country:Germany Name for contact purposes:Mr. Michael D. Piciorgros Tel:+49-(0)-2203-911770 Fax:+49-(0)-22 03 -913006 e-mail address:[email protected] 1.3DATES Date of receipt of test sample:24 June 2005 Start of test:24 June 2005 End of test:26 September 2005 and Date of receipt of test sample:6 May 2007 Start of test:7 May 2007 End of test:7 May 2007 TEST REPORT REFERENCE: R40893VHF3 rd Version Examiner: Raimund BLASKDate of issue:14June 2007Page4 of44 1.4TEST LABORATORY The tests were carried out at:PHOENIX TEST-LAB GmbH Königswinkel 10 D-32825 BlombergPhone:+49 (0) 52 35 / 95 00-0 GermanyFax:+49 (0) 52 35 / 95 00-10 accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under Reg. No. DAT-P-105/99-21, FCC Test site registration number 90877. Test engineer:Raimund BLASK14June 2007 NameDate Test report checked by:Bernd STEINER14June 2007 NameDate Stamp 1.5RESERVATION T h i s t e s t r e p o r t i s o nl y v a l i d i n i t s o r i g i n a l f o r m . Any reproduction of its contents without written permission of the accredited test laboratory PHOENIX TEST-LAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TEST-LAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TEST-LAB Logo and the TEST REPORT REFERENCE. 1.6NORMATIVE REFERENCES [1]FCC 47 CFR Part 90 (October 2004), Private Land Mobile Radio Service [2]FCC 47 CFR Part 2 (October 2004) [3]TIA/EIA-603-C (17 August 2004), Land Mobile FM or PM Communication Equipment, Measurement and Performance Standards 1.7TEST RESULTS The requirements of this test document are fulfilled by the equipment under test. The complete test results are presented in the foll…

Text truncated - open the document above for the full version.

Annex D:List of measurement equipment to R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page1 of16 No.Test equipment:Type:Manufacturer:Serial No.PM-No. 1Fully anechoic chamber M8-Siemens MatsushitaB83117-E7019- T231 480190 2Fully anechoic chamber M20-Albatross ProjectsB83107-E2439- T232 480303 3Open area test site-Phoenix Test-Lab-480085 4Outdoor test site-Phoenix Test-Lab-480293 5Measuring receiverESAIRohde & Schwarz831953/001 833181/018 480025 480026 6Measuring receiverESMIRohde & Schwarz843977/001 843530/018 480179 480180 7Measuring receiverESI 40Rohde & Schwarz100064480355 8Measuring receiverESCS 30Rohde & Schwarz828985/014480270 9Measuring receiverESVS30Rohde & Schwarz829673/012480024 10Spectrum analyserR3261CAdvantest51720469480144 11Loop antennaHFH2-Z2Rohde & Schwarz832609/014480059 12BILOG AntennaCBL6112 AChase2034480185 13BILOG AntennaCBL6112 BChase2688480328 14BILOG AntennaCBL6111 AChase1643480147 15Bikon AntennaHK 116Rohde & Schwarz833599/008480071 16Bikon AntennaHK 116Rohde & Schwarz836891/012480122 17Log-Per AntennaHL 223Rohde & Schwarz835556/014480123 18Log-Per AntennaHL 223Rohde & Schwarz833335/005480072 19Horn Antenna3115 AEMCO9609-4918480183 20Horn Antenna3115 BEMCO9609-4922480184 21Precision DipoleHZ 12Rohde & Schwarz831781/02480061 22Precision DipoleHZ 13Rohde & Schwarz831782/02480062 23Shorted DipoleVHAA 9110Schwarzbeck143480166 24Loop Antenna225 mm-Phoenix Test-Lab-410085 25Loop Antenna110 mm-Phoenix Test-Lab-410084 26Test fixture-Phoenix Test-Lab-410160 27Signal generatorSMP 03Rohde & Schwarz848986/004480245 28Signal generatorSMHURohde & Schwarz844170/017480266 29Signal generatorSME 06Rohde & Schwarz844530/008480174 30Signal generatorSMGRohde & Schwarz8334497/030480013 31Signal generator83650LAgilent3844A00554480333 Annex D:List of measurement equipment to R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page2 of16 No.Test equipment:Type:Manufacturer:Serial No.PM-No. 32Radio communication analyser CMTA 54Rohde & Schwarz841904/011480169 33Oscilloscope 4channel54540AHewlett Packard33 39A00192480001 34Oscilloscope 2 channel54520AHewlett Packard3344A00390480007 35Radio Code AnalyserSI4923Schlumberger1231064480432 36Signal generatorTOE 7704TOELLNER39385480008 37CombinerZFSC-2-11Mini Circuits-410089 38CombinerZFSC-2-11Mini Circuits-410090 39CombinerZFSC-2-11Mini Circuits-410169 40CombinerZFSC-2-11Mini Circuits-410170 41CombinerZFSC-4-1Mini Circuits-410171 42Power splitterZFSC-2-10GMini Circuits-480564 43Power splitterZFSC-2-10GMiniCircuits-480565 44Power splitter11850CHewlett Packard01052410069 46Power splitter-Suhner-410070 47Power dividerPWD-2533- 02 -SMA-79 Midwest Microwave-480443 48Symmetrical transformer-Phoenix Test Lab-410086 49Feeding bridge A-Phoenix Test Lab-410087 50Feeding bridge A-Phoenix Test Lab-410088 51Regulating transformerBR802Block-480094 52Regulating transformerBR802Block-480095 53Regulating transformerB9701089Block105713480341 54Power supplyTOE 8752Toellner31566480010 55Power supplyTOE 8852Toellner51712480233 56Power supplyTOE 8752Toellner31569480009 57Power supplyTOE 8852Toellner51786490001 58Climatic chamberKS600/75LRS-Simulatoren19002901490065 59Climatic chamberKS600/75RS-Simulatoren19004201490070 60Climatic chamberST2K220/75RS-Simulatoren9803901490020 61Climatic chamberMK 240BINDER05 -79022480462 62Climatic chamberGTS500.40GTS1660490073 63Climatic ChamberKS600/75RS Simulatoren20000401490081 Annex D:List of measurement equipment to R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page3 of16 No.Test equipment:Type:Manufacturer:Serial No.PM-No. 64Double circulator-Motorola-- 65Directional couplerZFDC-2O-5Mini Circuits-410092 66Directional coupler4001B-20Narda Microwave02010410150 67Directional coupler774DHewlett Packard06375410149 68Impedance matching unit-Phoenix-Test-Lab-410091 69High Pass FilterHP-350Dirk Fischer Elektronik-410151 70High Pass FilterHP-450Dirk Fischer Elektronik-410152 71High Pass FilterHP-1000Dirk Fischer Elektronik-410147 72High Pass FilterHP 4000Dirk Fischer Elektronik-480445 73High Pass FilterWHJS1000C 11/60EF Wainwright Instruments GmbH 1480413 74IF-Filter 20 kHz/25 kHzMQF 10.7- 1400/11 Telefilter0043480323 75IF-Filter 12.5 kHzMQF 10.7- 0850/11 Telefilter0043480324 76BIAS TEEZNBT-60 -1WMini Circuits-410185 77DC blockBLK-18Mini Circuits15542480575 78Tuneable Notch FilterTTR 375- 3EE TELONIC Berkeley-480330 79Tuneable Notch FilterTTR 190- 3EE TELONIC Berkeley97284-6480331 80Tuneable NotchFilterTTR 95-3EETELONIC Berkeley00104-2480332 81Tuneable Notch FilterWRCA800/9 00 -0.2/40- 6EEK Wainwright Instruments GmbH 15480414 82Tuneable Notch FilterWRCD1700/ 2000-0.2/40- 10EEK Wainwright Instruments GmbH 14480415 83Tuneable Band reject FilterWRCT2300/2 650-5/40- 10EEK Wainwright Instruments GmbH 1480446 84MixerZP-1Mini Circuits00040410148 85MixerZP-5Mini Circuits00126410159 86Variable Attenuator 0-11 dB8494BHewlett Packard3308A38264480264 87Variable Attenuator 0 - 110dB 8496BHewlett Packard3308A71365480265 88Attenuator / 3 dB / 5 WWA2-3Weinschel8250410115 89Attenuator / 3 dB / 5 WWA2-3Weinschel8251410116 Annex D:List of measurement equipment to R40893VHF3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue:14June 2007page4 of16 No.Test equipment:Type:Manufacturer:Serial No.PM-No. 90Attenuator / 3 dB / 5 WWA2-3Weinschel8252410117 91Attenuator / 3 dB / 50 W33 -3-34WeinschelBH 5062410131 92Attenuator / 6 dB / 5 WWA2-6Weinschel8253410118 93Attenuator / 6 dB / 5 WWA2-6Weinschel8254410119 94Attenuator / 6 dB / 5 WWA2-6Weinschel8255410120 95Attenuator / 6 dB / 25 W33 -6-34W…

Text truncated - open the document above for the full version.

Annex A:Photos of the test set-up to test report R40893VHF 3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue: 14 June 2007page1 of4 40893emi3.jpg: Test set-up radiated spurious emissions Annex A:Photos of the test set-up to test report R40893VHF 3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue: 14 June 2007page2 of4 40893emi8.jpg: Test set-up radiated spurious emissions Annex A:Photos of the test set-up to test report R40893VHF 3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue: 14 June 2007page3 of4 40893emi2.jpg: Test set-up radiated spurious emissions Annex A:Photos of the test set-up to test report R40893VHF 3 rd Version EUT:SmartRadio SR-150 VHF-Synthesizer Transceiver Manufacturer:Funk-Electronic Piciorgros GmbH & Co. KG Examiner: Raimund BLASKDate of issue: 14 June 2007page4 of4 40893clima2.jpg: Test set-up climatic chamber
