TOC-0002ClearCalm Model CCR01A

0 ClearCalm User’s Manual Draft Version 1 Caution Read this manual carefully. The ClearCalm communications system from Grayling will perform as designed only if used and serviced according to these instructions. If this is not done, this product could fail to perform as designed and persons who rely on this product could sustain personal injury or death. Limited Warranty Grayling Inc. Manufactured parts and components, with the exceptions noted below, are warranted to the original purchaser against defects in workmanship and materials for two (2) years from the date of the original purchase of the new product. Grayling will, at its option, repair or replace the product. Damage resulting from misuse and / or abuse is not covered. This limited warranty does not apply to failures caused by alteration or repair not performed by Grayling Wireless Inc. or it’s Authorized Repair Centers. Warranties made by Grayling with respect to this product are voided if the product is not used according to the instructions in this manual Batteries are not covered under this warranty Grayling Wireless Inc. makes no other warranty, expressed or implied for its products. We encourage our customers to request a demonstration of this equipment prior to use, or for any additional information relative to use or repairs. 2 Warnings and Cautions Caution Do not disassemble or alter this unit in any way. This will void the intrinsic safety rating and may affect the intrinsic safety of the device. Always inspect ClearCalm for damage before use. If damage is found, immediately remove the device from service. Never use a damaged or non functioning communications system. Ensure the radio you are using with ClearCalm in rated intrinsically safe before entering a hazardous atmosphere. Failure to follow the above warnings can result in personal injury or death. Caution Evaluate this unit and any radio transceiver with which it may be used. Be certain the unit is not affected adversely by radio frequency energy. The performance of the ClearCalm systems radio interface feature will only function as well as the handheld portable radio performs. ClearCalm must be tested before entering a hazardous atmosphere. If the system fails to operate as designed, disconnect at the radio and use the radio independently from the communications system. Do not attempt any repairs beyond those specified in this manual; otherwise, serious injury or death could result. Only trained and certified personnel, authorized by Grayling, are permitted to maintain this ClearCalm system. Warning TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, BATTERIES MUST BE CHANGED IN AN AREA KNOWN TO BE NONHAZARDOUS. Warning Do not attempt to charge Alkaline Batteries. PREPARATION FOR USE Prior to use, please ensure you have read and understand the “Warnings and Cautions” section of this manual. 3 The items listed below are included with your ClearCalm system. If these components are missing or damaged, please contact the place of purchase immediately. • Batteries, 3 AAA size Alkaline (Receiver), and 1 AAA size Alkaline (Transmitter) • Transmitter module • Receiver Module • Interface cable (If ordered) S YSTEM DESCRIPTION & PRODUCT INFORMATION WARNING – To ensure your personal safety, read the “Warnings and Cautions” section before use of this ClearCalm communications system. The ClearCalm SCBA communications system allows a user to communicate clearly and easily while wearing a Self Contained Breathing Apparatus, (SCBA). It is designed to allow for hands free voice amplification, hands free person-to- person team communications, as well as hand held portable radio communications to take place simultaneously. Contacting Grayling Inc. To contact Grayling call: 1-403-250-8965 (USA & Canada) Address correspondence to : Grayling Wireless Inc. 4321 23B ST NE Calgary, Alberta, Canada T2E 7V9 Or visit us at: www.gryw.com 4 REGULATORY INFORMATION EMC The CC product complies with IC and FCC to the following regulatory requirements: Canada: ICES-003, RSS210, Category 1 Equipment IC ID Number: 5388A-0001 US: FCC Part 15, Subpart B & C, Class A Digital Device FCC ID Number: TOC-0001 (Transmitter Module) TOC-0002 (Receiver Module) For Canada: Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device has been designed to operate with an antenna having a maximum of 0 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. For United States: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The product is CSA certified and UL listed to the following Intrinsically Safe standards: Canada: CAN/CSA C22.2 No.157-92; Intrinsically Safe and Non-incendive Equipment for Use in Hazardous Locations. United States: UL 913; Intrinsically Safe Apparatus and Associated Apparatus for Use In Class I, II, and III, Division 1, Hazardous (Classified Locations. 5 Product Specification and Safety Information The product is CSA certified to the following Intrinsically Safe standards: Canada: CAN/CSA C22.2 No.157-92; Intrinsically Safe and Non-incendive Equipment for Use in Hazardous Locations. United States: UL 913; Intrinsically Safe Apparatus and Asso…

Text truncated - open the document above for the full version.

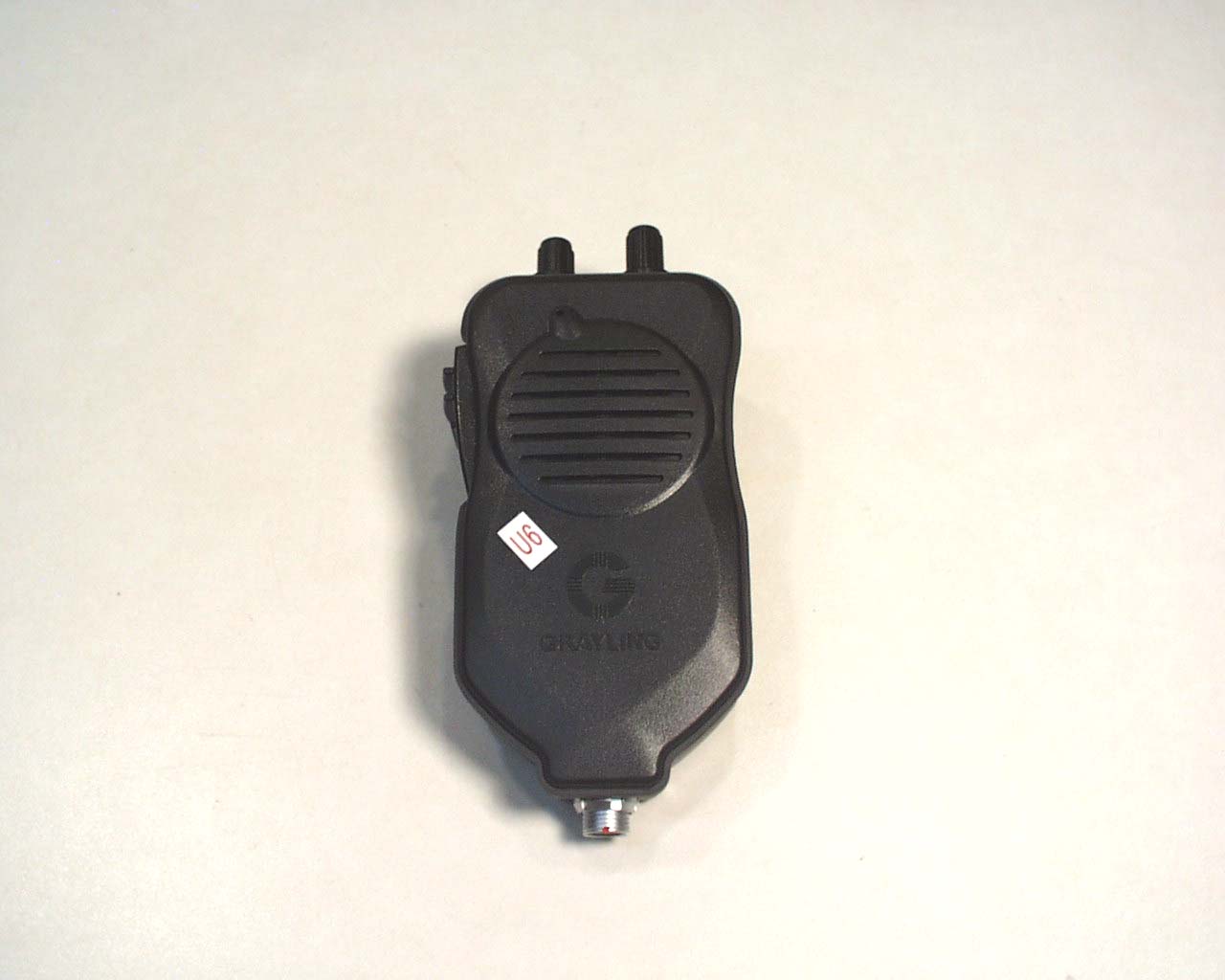

Front View of the EUT Back View of the EUT

View of the Back Side of the PCB View of the Front Side of the PCB

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification TEST OF: CCR01A FCC ID: TOC-0002 To FCC PART 15, Subpart C Section 15.249 Test Report Serial No: 73-8199 Applicant: Grayling Wireless Inc. Suite 201, 4321-23B Street NE Calgary, Alberta Canada T2E 7V9 Date of Test: March 21 & 22, 2006 Issue Date: March 28, 2006 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8199 FCC ID: TOC-0002 Page 2 of 30 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the certification requirements of FCC Part 15, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Grayling Wireless Inc. - Manufacturer: Grayling Wireless Inc. - Trade Name: Grayling Wireless - Model Number: CCR01A - FCC ID: TOC-0002 On this 28 th day of March 2006, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, NVLAP does not endorse the product described in this report. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8199 FCC ID: TOC-0002 Page 3 of 30 TABLE OF CONTENTS SECTION 1.0 CLIENT INFORMATION.................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES...........6 SECTION 4.0 OPERATION OF EUT DURING TESTING....................9 SECTION 5.0 SUMMARY OF TEST RESULTS...........................10 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.....11 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT..................18 APPENDIX 2 PHOTOGRAPHS.........................................20 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8199 FCC ID: TOC-0002 Page 4 of 30 SECTION 1.0 CLIENT INFORMATION 1.1 Client Information: Company Name: Grayling Wireless Inc. Suite 201, 4321-23B Street NE Calgary, Alberta Canada T2E 7V9 Contact Name: Keyes Lowe Title: Project Manager 1.2 Manufacturer: Company Name: Grayling Wireless Inc. Suite 201, 4321-23B Street NE Calgary, Alberta Canada T2E 7V9 Contact Name: Keyes Lowe Title: Project Manager COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8199 FCC ID: TOC-0002 Page 5 of 30 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: Grayling Wireless Model Number: CCR01A Serial Number: MB303 Options Fitted: N/A Country of Manufacture: Canada 2.2 Description of EUT: The CCR01A is a transceiver for use with the CCT01A of the ClearCalm system that attaches to the lapel or belt of the user. The CCR01A has a speaker for local communication or will interface a long range communication system. A Motorola HT1000 was used to terminate the long range interface cable of the CCR01A. The CCR01A is powered from 3 - AAA batteries. The CCR01A uses 5 channels in the 902 to 928 MHz frequency range. Testing was performed with the CCR01A operating on the lower, middle, and upper channels as specified in FCC §15.31(m). Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 906.0 MHz 910.0 MHz 915.0 MHz 919.0 MHz 923.0 MHz This report covers the transmitter portion of the CCR01A that is subject to the requirements of FCC Part 15, Subpart C. The receiver and digital circuitry of the CCR01A that is subject to FCC Part 15, Subpart B is covered in separate testing and report. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8199 FCC ID: TOC-0002 Page 6 of 30 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15). Section 15.249 Operation within the bands 902 – 928 MHz, 2400 – 2483.5 MHz, 5725 – 5875 MHz, and 24.0 – 24.25 GHz Purpose of Test: The tests were performed to demonstrate initial compliance. 3.2 Methods & Procedures: 3.2.1 §15.224 (a) Except as provided in paragraph (b) of this section, the field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following: Fundamental Frequency Field Strength of Fundamental (millivolts/meter) Field Strength of Harmonics (microvolts/meter) 902 – 928 MHz 50 500 2400 – 2483.5 MHz 50 500 5725 – 5875 MHz 50 500 24.0 – 24.25 GHz 250 2500 (b) Fixed, point-to-point operation as referred to in this paragraph shall be limited to systems employing a fixed transmitter transmitting to a fixed remote location. Point-to- multipoint systems, omnidirectional applications, and multiple co-located intentional radiators transmitting the same information are not allowed. Fixed, point-to-point operation is permitted in the 24.05-24.25 GHz band subject to the following conditions: (1) The field strength of emissions in this band shall not exceed 2500 millivolts/meter. (2) The frequency tolerance of the carrier signal shall be maintained within + 0.001% of the operating frequency over a temperature variation of –20 degrees to +50 degrees C at normal supply COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8199 FCC ID: TOC-0002 Page 7 of 30 voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. For battery operated equipment, the equipment tests shall be performed using a new battery. (3) Antenna gain must be at least 33 dBi. Alternatively, the main lobe beamwidth must not exceed 3.5 degrees. The beamwidth limit shall apply to both the azimuth and elevation planes. At antenna gains over 33 dBi or beamwidths…

Text truncated - open the document above for the full version.

Front View of the Test Setup (Horizontal, Flat Alignment) Back View of the Test Setup (Horizontal, Flat Alignment) Front View of the Radiated Test Setup (Horizontal on Edge Alignment) Back View of the Test Setup (Horizontal on Edge Alignment) Front View of the Test Setup (Vertical Alignment) Back View of the Test Setup (Vertical Alignment)
