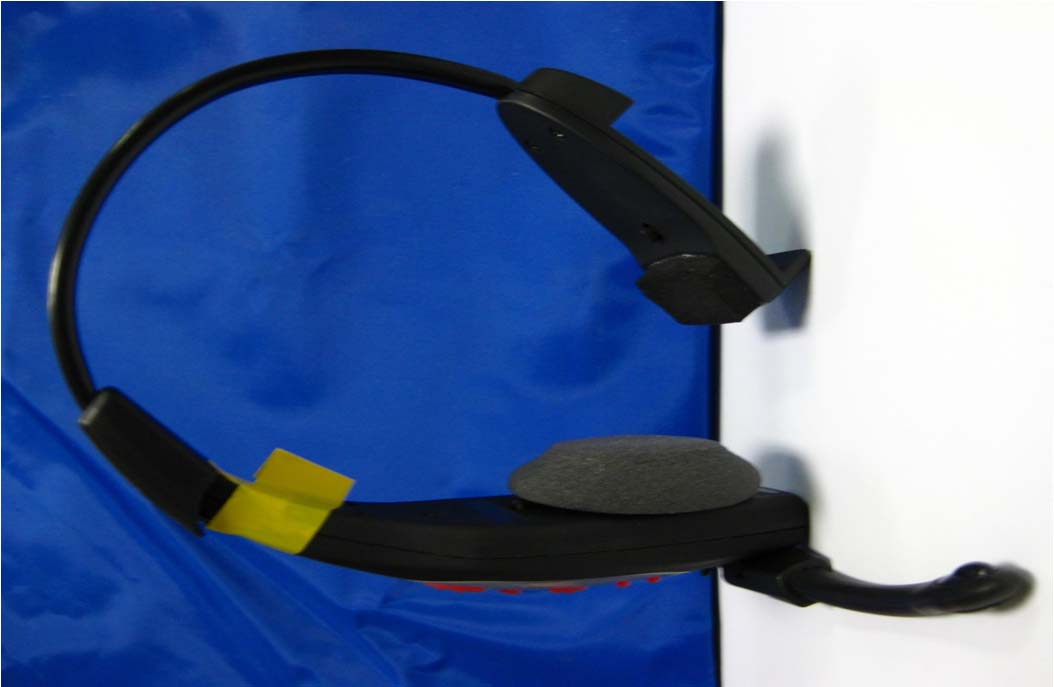

TOM-RF1060RF1060

24-Hour Customer Service & Technical Support www.rftechno.com 1.800.598.2370 SINCE 1989 Brought To You By The Drive-Thru Experts R.F. TECHNOLOGIES, INC. RF1060 Headset OPERATING INSTRUCTIONS For Use With 3M C1060 Drive-Thru Systems OPERATIONAl CONTENTS Safety Information Headset Controls and Indicators Configuration Settings Headset Preparation Headset Operation Maintenance Troubleshooting Warranty Information Repair and Purchase Information SAFETY INFORMATION • Use inside a dry location only • Always disconnect power to outlet before installing or remove base power supply • Do not open, crush, expose to heat above 200º or incinerate battery ENVIRONMENTAl CONTAMINATION Please refer to your local, state and federal laws for battery, charger, and headset disposal. Please return them to R.F. Technologies, Inc., for proper disposal. IMPORTANT INFORMATION • Clean headset contacts with a water moistened cotton swab • Turn headset off and then on, to set the volume to mid level, then adjust volume to desired level FCC INFORMATION This device complies with part 15 of the FCC Rules listed ID TOM-RF1060. IC # 9830A-RF1060. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limites are designed to provide a reasonable protection against harmful interference when the equipment is operated ina commercial environment. This eqiupment generates, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manuals, may cause harmful interference to radio communications. Changes or modifications not expressly aproved by the party responsible for compliance could void the user’s authority to operate the equipment. SINCE 1989 WARRANTY INFORMATION The RF1060 All-In-One headset contains a 1 year warranty. Excessive abuse and electronic component malfunction due to power surges that are not protected with a power conditioner or surge protector voids warranty. REPAIR, SERVICE & PARTS Please contact R.F. Technologies, Inc at 1-800-598-2370 or online at www. rftechno.com. Headquarters 330 Lexington Drive Buffalo Grove IL 60089 (847) 495-7335 | Fax (847) 495-7418 Parts & PrOduCtION FaCILItY 542 South Prairie Street Bethalto IL 62010 (618) 377-2654 | Fax (618) 377-1320 r.F. teCHNOLOGIes, INC. “The Drive-Thru Experts” 24 HOur teCHNICaL suPPOrt 1-800-598-2370 On/Off Switch Volume UP Control Volume DOWN Control T1 (Talk Lane 1) Switch T2 (Talk Lane 2) Switch Page Switch Talk Lock Switch (Hands Free) Mic Boom Support Sleeve To Prevent Mic Boom Separation From Case Earphone / Earpad Battery Headset Programming Window Battery Release Headband Adjustment Slide Headband Support Jacket Prevents Headband From Separating From Case Windscreen Microphone Battery Side Indicator LED CONTROlS & INDICATORS : RF1060 PREPARATION Adjust Headband Slide headband out of headset to make larger Push headband in headset to make smaller Mic Positioning Align the mic boom with the corner of your mouth by rotating the mic up or down. Do not bend or pull. OPERATION Turning On The Headset Operating Modes Standby Mode Talk/Listen Mode Press the ON switch located on the inside of the headset. A single tone will sound and the LED indicator will glow green to indicate the headset has been turned on single-lane, dual-lane, standard communication, duplex communication Standby enables the headset to wait for menu sign or other headset communcation Used to talk / listen to customer at menu sign. Mode is available with all sys- tem configurations sINGLe-LaNe staNdard or duPLeX COMMuNICatION A. Single beep alert tone at 2-second intervals when vechicle deteted B. Press and hold T1 or T2 to talk to the customer at the menu sign. Release T1 or T2 to listen duaL-LaNe staNdard or duPLeX COMMuNICatION In dual-lane sytems, some headsets are programmed to communicate with Lane 1 and others are programmed to communicate with Lane 2. The head- sets are labeled accordingly: 1. tone sounds in headset when customer detected at menu sign: A. Lane 1 single beep, repeated at 2-second intervals B. Lane 2 double beep, repeated at 2-second intervals 2. When single beep is heard, press and hold T1 and talk to customer at menu sign 1. Release T1 to listen. When double beep is heard, press and hold T2 and talk to customer at menu sign 2. Releast T2 to listen. CROSS-LANE COMMUNICATION SYSTEMS (Communication During Heavy Use) During busy times, the cross-lane module is turned OFF and the system func- tions like a dual lane duplex systm. Some headsets are programmed for lane 1 and others lane 2. (Communication During Off-Peak Hours) During off-peak use, the cross-lane module is turned ON to enable a single operator to communicate with customers in either lane (1 or 2) 1. Tone sounds when customer detected at menu sign: A. Lane 1, single beep B. Lane 2, double beep 2. When single beep is heard, press and hold T1 and talk to customer at menu sign 1. Release T1 to listen. When double beep is heard, press and hold T2 and talk to customer at menu sign 2. Releast T2 to listen. OPERATION (CONT.) Talk Lock Mode “Hands Free” Page Mode Page Monitor Mode Crucial Informaiton Use this to operate “hands free”. This feature only available with duplex system configurations. The headset automatically switches from standby to talk/listen when a cus- tomer is detected at menu sign. Headset automatically switches back to standby when customer leaves menu sign. “Hands Free” operation (talk lock mode) prevents all other headset operators from communicating. Will not work in cross lane mode Press the talk lock switch to enable “hands free” mode Press T1 or P to return to normal operation Led indicator changes from glowing green to red when talk lock is enabled Used to talk to other headset operators without being heard by customer. Can be used with all system configurations Do not u…
