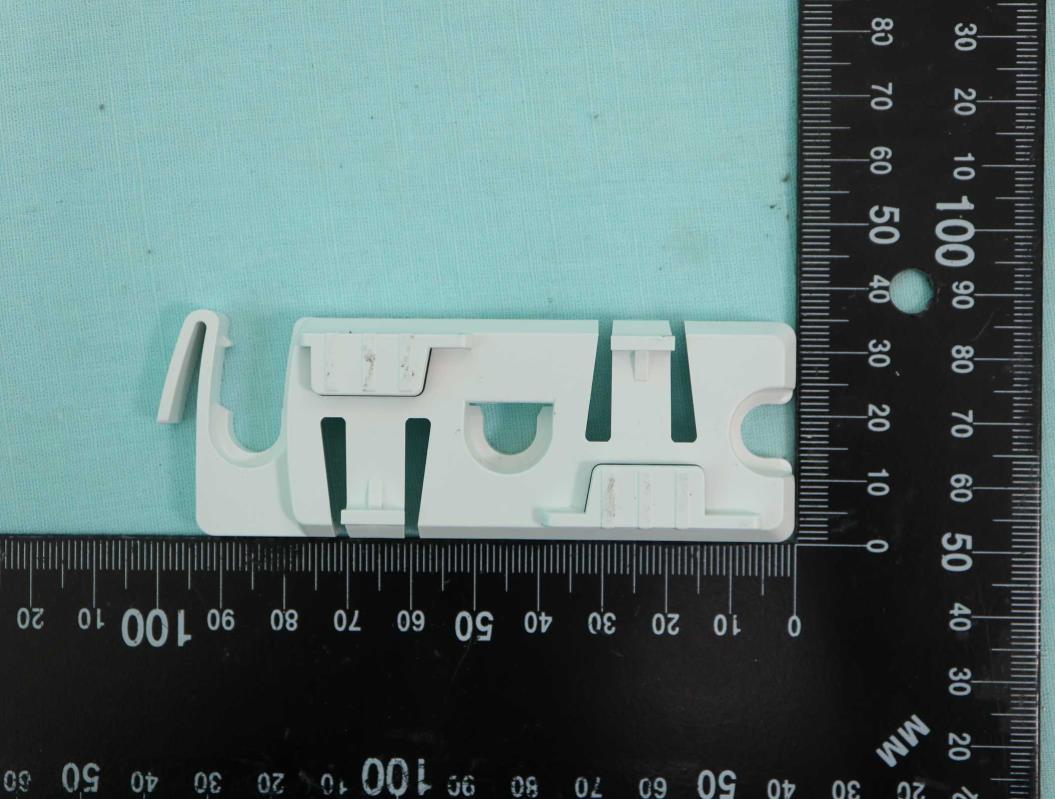

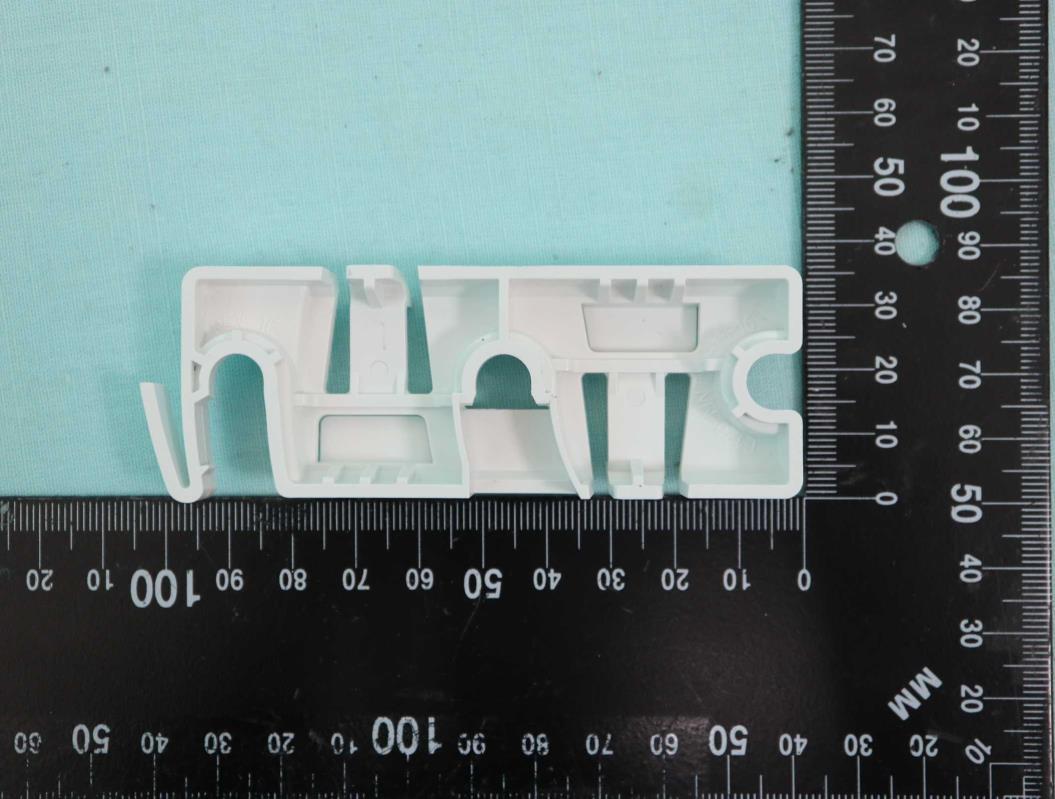

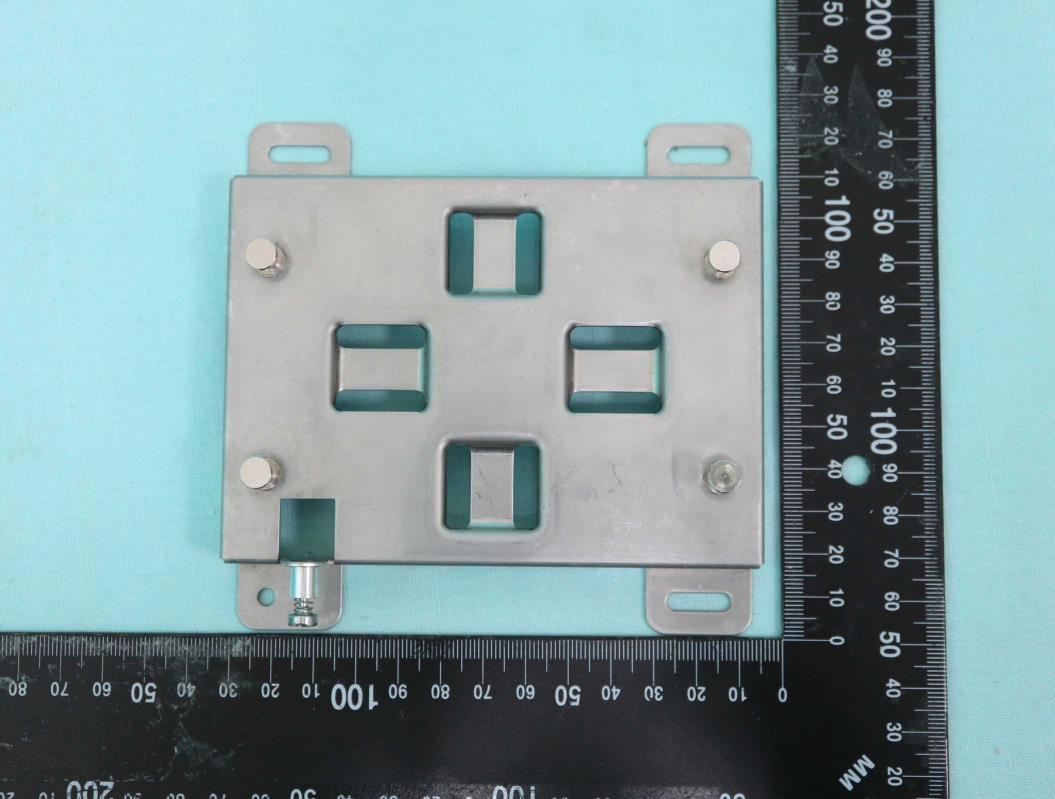

TOR-C230802.11 a/n/ac/ax + b/g/n/ax Access Point

PDOC-00172-01 Our social responsibility includes conducting business in a manner that minimizes our ecological impact on the environment and reducing waste in our supply chain. To that end, the Quick Start Guide and Safety Manual are available at www.arista.com. Getting Started Instructions on getting started with your new access point, including installation and initial configuration instructions, are available at http://www.arista.com/en/support/product-documentation Other documents available at this location include: You can access Arista documentation at https://www.arista.com/en/support Documents available at this location include: • Wireless Manager Appliance Quick Start Guide • Safety and Compliance Guide • WiFi Regulatory Compliance Statements • User Manual You may also download current software, as well as view FAQs, Warranty Information, Knowledge Base articles, Security Advisories, Software Licenses, and Field Notices at https://www.arista.com/en/support Receiving and Inspecting the Equipment Upon receiving the access point, inspect the shipping boxes and record any external damage. Retain the packing materials if you suspect that part of the shipment is damaged; the carrier may need to inspect them. If the boxes were not damaged in transit, unpack them carefully. Ensure that you do not discard any accessories that may be packaged in the same box as the main unit. Inspect the packing list and confirm that you received all listed items. Compare the packing list with your purchase order. Obtaining Technical Assistance Customers, partners, resellers, or distributors holding a valid Arista Service Contract can obtain technical support through these sources: Email: [email protected]. This is the easiest way to create a new service request. Include a detailed description of the problem and the output of “show tech-support”. Web: www.arista.com/en/support. A support case may be created through the support portal on our website. 5453 Great America Parkway Santa Clara, CA 95054 USA 408 547-5500 www.arista.com Arista, Mojo, the Arista logo, and the Mojo logo are trademarks or registered trademarks of Arista Networks, Inc. and Mojo Networks, LLC. in the U.S. and other countries. © 2020 Arista Networks, Inc. www.arista.com Headquarters 408 547-5500 www.arista.com Support 408 547-5502 866 476-0000 [email protected] Sales 408 547-5501 866 497-0000 [email protected] AP-C230 Getting Started Guide Package Contents The C-230 package must contain the following components. Note: For a fully functional device, please update its firmware to the latest version. Ceiling Mounting the C-230 1. Affix bracket to T - Grid.2. Rotate bracket to snap on to T- Grid. 3. Place the first mounting post on the rear-side of the device on to the lower notch of the bracket. 5. Ensure that all the mounting posts on the rear- side of the device are snapped in to the respective notches on the bracket. 4. Rotate the device such that the center mounting post fits in to the center notch on the bracket. 15/16” (24mm) Mounting Bracket (MNT-AP-24MM) C-230 Wall Mounting the C-230 1. Drill four mounting holes in the wall. 2. Insert four anchors. 3. Affix mounting bracket on the wall 4. Attach device to the mounting bracket. Pull the release key outward. Attach the AP stubs to the bracket holder ensuring a firm fit. 6. Fasten release key screw with a tamper resistant T10 torx screwdriver to lock AP to the bracket. 5. Once attached, push in the release key to lock the hooks and make sure all hooks are locked in place. Note: If needed, the wall mounting accessory SKU (MNT-AP-FLAT-14CM) can be ordered and purchased separately. Getting the C-230 Online Step 1: Power up Plug one end of an Ethernet cable into the PoE+ (802.3at) switch or injector and the other end into the Ethernet/PoE+ port on the C-230. Ensure the PoE+ source you are using is turned ON, or use a compatible power adaptor (Arista SKU: PWR-AP-W4) to power the C-230. Warning: If you are not using PoE+, ensure that you use only an AC power adaptor supported by the C-230 access point (AP). This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked “Class 2”, Listed Power Adapter or DC power source marked “L.P.S.” (or “Limited Power Source”) and rated from 12 V DC, 2.5A minimum. Troubleshooting Using an 802.11ax access point on a 100 Mbps or a 1 Gbps Ethernet connection may cause WiFi performance issues. Use the 5 Gbps Ethernet uplink for best results. 1. Check whether the Ethernet cable is plugged into the correct port (PoE+) on the AP and the other end of the cable is plugged into an Ethernet jack or port on a switch that is turned ON. 2. If the AP did not receive a valid IP address from the DHCP server, check whether the DHCP server is ON and available on the VLAN/subnet to which the AP is connected. If the AP still fails to get a valid IP address, reboot the AP by pressing the reset button to see if the problem gets resolved. 3. If you are using Arista Cloud Services, then open the TCP port 443 (SSL). If you have an on-premises installation, then open the ports UDP 3851 and port 80. If you are using a Proxy, Web Accelerator or URL Content Filter in between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact Technical Support. Step 3: Check the LED status Power LED: The table below describes the states of the Power LED. Reduced capability indicates that the AP is getting less than the required maximum power from the PoE switch, i.e., 802.3af instead of 802.3at. LAN1 LED: ON when the interface is up. LAN2 LED: ON when the interface is up and either wired guest or link aggregation is configured. Radio LEDs: ON when the corresponding radio is operational. Step 2: Connect to the network If you are using a PoE+ injector, make sure the data connection is plugged into …

Text truncated - open the document above for the full version.

PDOC-00176-01 Our social responsibility includes conducting business in a manner that minimizes our ecological impact on the environment and reducing waste in our supply chain. To that end, the Quick Start Guide and Safety Manual are available at www.arista.com. Getting Started Instructions on getting started with your new access point, including installation and initial configuration instructions, are available at http://www.arista.com/en/support/product-documentation Other documents available at this location include: You can access Arista documentation at https://www.arista.com/en/support Documents available at this location include: • Wireless Manager Appliance Quick Start Guide • Safety and Compliance Guide • WiFi Regulatory Compliance Statements • User Manual You may also download current software, as well as view FAQs, Warranty Information, Knowledge Base articles, Security Advisories, Software Licenses, and Field Notices at https://www.arista.com/en/support Receiving and Inspecting the Equipment Upon receiving the access point, inspect the shipping boxes and record any external damage. Retain the packing materials if you suspect that part of the shipment is damaged; the carrier may need to inspect them. If the boxes were not damaged in transit, unpack them carefully. Ensure that you do not discard any accessories that may be packaged in the same box as the main unit. Inspect the packing list and confirm that you received all listed items. Compare the packing list with your purchase order. Obtaining Technical Assistance Customers, partners, resellers, or distributors holding a valid Arista Service Contract can obtain technical support through these sources: Email: [email protected]. This is the easiest way to create a new service request. Include a detailed description of the problem and the output of “show tech-support”. Web: www.arista.com/en/support. A support case may be created through the support portal on our website. 5453 Great America Parkway Santa Clara, CA 95054 USA 408 547-5500 www.arista.com Arista, Mojo, the Arista logo, and the Mojo logo are trademarks or registered trademarks of Arista Networks, Inc. and Mojo Networks, LLC. in the U.S. and other countries. © 2020 Arista Networks, Inc. www.arista.com Headquarters 408 547-5500 www.arista.com Support 408 547-5502 866 476-0000 [email protected] Sales 408 547-5501 866 497-0000 [email protected] 00176-01 AP-C230E Getting Started Guide Package Contents The C-230E package must contain the following components. Note: For a fully functional device, please update its firmware to the latest version. Ceiling Mounting the C-230E 1. Affix bracket to T - Grid.2. Rotate bracket to snap on to T- Grid. 3. Place the first mounting post on the rear-side of the device on to the lower notch of the bracket. 5. Ensure that all the mounting posts on the rear- side of the device are snapped in to the respective notches on the bracket. 4. Rotate the device such that the center mounting post fits in to the center notch on the bracket. 15/16” (24mm) Mounting Bracket (MNT-AP-24MM) C-230E Wall Mounting the C-230E 1. Drill four mounting holes in the wall. 2. Insert four anchors. 3. Affix mounting bracket on the wall 4. Attach device to the mounting bracket. Pull the release key outward. Attach the AP stubs to the bracket holder ensuring a firm fit. 6. Fasten release key screw with a tamper resistant T10 torx screwdriver to lock AP to the bracket. 5. Once attached, push in the release key to lock the hooks and make sure all hooks are locked in place. Note: If needed, the wall mounting accessory SKU (MNT-AP-FLAT-14CM) can be ordered and purchased separately. External Antennas: Connect dual-band antennas to the left and right ports (marked “2.4/5”) and 5 GHz antennas to the center port (marked “5”). Connector Type: RP-SMA. Access radios Troubleshooting Using an 802.11ax access point on a 100 Mbps or a 1 Gbps Ethernet connection may cause WiFi performance issues. Use the 5 Gbps Ethernet uplink for best results. 1. Check whether the Ethernet cable is plugged into the correct port (PoE+) on the AP and the other end of the cable is plugged into an Ethernet jack or port on a switch that is turned ON. 2. If the AP did not receive a valid IP address from the DHCP server, check whether the DHCP server is ON and available on the VLAN/subnet to which the AP is connected. If the AP still fails to get a valid IP address, reboot the AP by pressing the reset button to see if the problem gets resolved. 3. If you are using Arista Cloud Services, then open the TCP port 443 (SSL). If you have an on-premises installation, then open the ports UDP 3851 and port 80. If you are using a Proxy, Web Accelerator or URL Content Filter in between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact Technical Support. Step 3: Check the LED status Power LED: The table below describes the states of the Power LED. Reduced capability indicates that the AP is getting less than the required maximum power from the PoE switch, i.e., 802.3af instead of 802.3at. LAN1 LED: ON when the interface is up. LAN2 LED: ON when the interface is up and either wired guest or link aggregation is configured. Radio LEDs: ON when the corresponding radio is operational. Step 2: Connect to the network If you are using a PoE+ injector, make sure the data connection is plugged into a suitable switch port with proper network connectivity. GreenOrange SolidRunning at full capability Running at reduced capability BlinkingReceived IP address, but not connected to the server Did not receive an IP address LAN 2 Power LAN 1 Getting the C-230E Online Step 1: Power up Plug one end of an Ethernet cable into the PoE+ (802.3at) switch or injector and the other end into the Ethernet/PoE+ port on the C-230E. Ensure the PoE+ source you are us…

Text truncated - open the document above for the full version.

DOC-04562-01 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Indoor Models (C-230/C-230E, C-250. C-260 and others): The device is for indoor use only. Supported in 2412~2462, 5180~5240, 5260~5320, 5500~5720, 5745~5825MHz and operation in the 2412-2462, 5180~5240, 5260~5320, 5500~5720, 5745~5825MHz bands are restricted to indoor usage only. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 25cm between the radiator & your body. Professional Installation Instruction for Outdoor Models (O-235/O-235E) 1. Professional installer: this product is designed for specific application and needs to be installed by trained personnel. The general user shall not attempt to install or change the setting. 2. External Antenna: use only the antenna(s) that have been approved by the manufacturer. The non- approved antenna(s) may produce unwanted spurious or excessive RF transmitting power that may lead to the violation of FCC limit and is prohibited (O-235E only) 3. Warning: Please carefully select the installation position and ensure that the final output power does not exceed the limit set forth in relevant rules. DOC-04562-01 Industry Canada Statement This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada' s license-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L' émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L' exploitation est autorisée aux deux conditions suivantes : 1. L' appareil ne doit pas produire de brouillage; 2. L' appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d' en compromettre le fonctionnement. Caution: (i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) Where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated. Avertissement: Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment : (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) lorsqu’il y a lieu, les types d’antennes (s’il y en a plusieurs), les numéros de modèle de l’antenne et les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, énoncée à la section 6.2.2.3, doivent être clairement indiqués. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 29cm between the radiator & your body. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 29cm de distance entre la source de rayonnement et votre corps. DOC-04562-01 The transmitter module may not be co-located with any other transmitter or antenna. Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. CAN ICES-3 (B)/NMB-3(B) The Country Code Selection feature is disabled for products marketed in the US/Canada. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent …

Text truncated - open the document above for the full version.

PDOC-00198-01 Our social responsibility includes conducting business in a manner that minimizes our ecological impact on the environment and reducing waste in our supply chain. To that end, the Quick Start Guide and Safety Manual are available at www.arista.com. Getting Started Instructions on getting started with your new access point, including installation and initial configuration instructions, are available at http://www.arista.com/en/support/product-documentation Other documents available at this location include: You can access Arista documentation at https://www.arista.com/en/support Documents available at this location include: • Wireless Manager Appliance Quick Start Guide • Safety and Compliance Guide • WiFi Regulatory Compliance Statements • User Manual You may also download current software, as well as view FAQs, Warranty Information, Knowledge Base articles, Security Advisories, Software Licenses, and Field Notices at https://www.arista.com/en/support Receiving and Inspecting the Equipment Upon receiving the access point, inspect the shipping boxes and record any external damage. Retain the packing materials if you suspect that part of the shipment is damaged; the carrier may need to inspect them. If the boxes were not damaged in transit, unpack them carefully. Ensure that you do not discard any accessories that may be packaged in the same box as the main unit. Inspect the packing list and confirm that you received all listed items. Compare the packing list with your purchase order. Obtaining Technical Assistance Customers, partners, resellers, or distributors holding a valid Arista Service Contract can obtain technical support through these sources: Email: [email protected]. This is the easiest way to create a new service request. Include a detailed description of the problem and the output of “show tech-support”. Web: www.arista.com/en/support. A support case may be created through the support portal on our website. 5453 Great America Parkway Santa Clara, CA 95054 USA 408 547-5500 www.arista.com Arista, Mojo, the Arista logo, and the Mojo logo are trademarks or registered trademarks of Arista Networks, Inc. and Mojo Networks, LLC. in the U.S. and other countries. © 2020 Arista Networks, Inc. www.arista.com Headquarters 408 547-5500 www.arista.com Support 408 547-5502 866 476-0000 [email protected] Sales 408 547-5501 866 497-0000 [email protected] AP-O235 Getting Started Guide Package Contents You should have received the following components in your O-235 package. Mounting the O-235 Pole Mount: Arista logo facing away from the pole. Mounting Accessories O-235 Mounting Bracket x1 Metal Clamp x2 Insert the two metal clamps into the bracket. Fix the bracket to a pole.Fasten the two clamps using the slotted driver. Note: For a fully functional device, please update its firmware to the latest version. 1 23 slotted driver Steel bosses x 4 Philips screw Note: The product is designed for specific application and must be professionally installed by qualified personnel who has RF and related knowledge. Getting the O-235 Online Step 1: Power up Plug one end of the Ethernet cable into the PoE+ switch or injector and plug the other end into the LAN1 (PoE+) on the O-235. Make sure the PoE+ source you are using is turned ON. Step 2: Connect to the network As you are using PoE+, the O-235 should already be connected to your network. Mount the AP to the bracket.Tighten the thumb screw using Philips 2 screw driver. 4 5 Philips #2 Screw driver Troubleshooting Using an 802.11ax access point on a 100 Mbps or a 1 Gbps Ethernet connection may cause WiFi performance issues. Use the 5 Gbps Ethernet uplink for best results. 1. Check whether the Ethernet cable is plugged into the correct port (PoE+) on the AP and the other end of the cable is plugged into an Ethernet jack or port on a switch that is turned ON. 2. If the AP did not receive a valid IP address from the DHCP server, check whether the DHCP server is ON and available on the VLAN/subnet to which the AP is connected. If the AP still fails to get a valid IP address, reboot the AP by pressing the reset button to see if the problem gets resolved. 3. If you are using Arista Cloud Services, then open the TCP port 443 (SSL). If you have an on-premises installation, then open the ports UDP 3851 and port 80. If you are using a Proxy, Web Accelerator or URL Content Filter in between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact Technical Support. Step 3: Check the LED status Power LED: The table below describes the states of the Power LED. Reduced capability indicates that the AP is getting less than the required maximum power from the PoE+ switch, i.e., 802.3af instead of 802.3at. LAN1 LED: ON when the interface is up. LAN2 LED: ON when the interface is up and either wired guest or link aggregation is configured. Radio LEDs: ON when the corresponding radio is operational. GreenOrange SolidRunning at full capabilityRunning at reduced capability BlinkingReceived IP address, but not connected to the serverDid not receive an IP address

PDOC-00199-01 Our social responsibility includes conducting business in a manner that minimizes our ecological impact on the environment and reducing waste in our supply chain. To that end, the Quick Start Guide and Safety Manual are available at www.arista.com. Getting Started Instructions on getting started with your new access point, including installation and initial configuration instructions, are available at http://www.arista.com/en/support/product-documentation Other documents available at this location include: You can access Arista documentation at https://www.arista.com/en/support Documents available at this location include: • Wireless Manager Appliance Quick Start Guide • Safety and Compliance Guide • WiFi Regulatory Compliance Statements • User Manual You may also download current software, as well as view FAQs, Warranty Information, Knowledge Base articles, Security Advisories, Software Licenses, and Field Notices at https://www.arista.com/en/support Receiving and Inspecting the Equipment Upon receiving the access point, inspect the shipping boxes and record any external damage. Retain the packing materials if you suspect that part of the shipment is damaged; the carrier may need to inspect them. If the boxes were not damaged in transit, unpack them carefully. Ensure that you do not discard any accessories that may be packaged in the same box as the main unit. Inspect the packing list and confirm that you received all listed items. Compare the packing list with your purchase order. Obtaining Technical Assistance Customers, partners, resellers, or distributors holding a valid Arista Service Contract can obtain technical support through these sources: Email: [email protected]. This is the easiest way to create a new service request. Include a detailed description of the problem and the output of “show tech-support”. Web: www.arista.com/en/support. A support case may be created through the support portal on our website. 5453 Great America Parkway Santa Clara, CA 95054 USA 408 547-5500 www.arista.com Arista, Mojo, the Arista logo, and the Mojo logo are trademarks or registered trademarks of Arista Networks, Inc. and Mojo Networks, LLC. in the U.S. and other countries. © 2020 Arista Networks, Inc. www.arista.com Headquarters 408 547-5500 www.arista.com Support 408 547-5502 866 476-0000 [email protected] Sales 408 547-5501 866 497-0000 [email protected] 00199-01 AP-O235E Getting Started Guide Package Contents You should have received the following components in your O-235E package. Mounting the O-235E Pole Mount: Arista logo facing away from the pole. Mounting Accessories O-235E Mounting Bracket x1 Metal Clamp x2 Insert the two metal clamps into the bracket. Fix the bracket to a pole.Fasten the two clamps using the slotted driver. Note: For a fully functional device, please update its firmware to the latest version. 1 23 Steel bosses x 4 Philips screw slotted driver Mount the AP to the bracket.Tighten the thumb screw using Philips 2 screw driver. 4 5 Philips #2 Screw driver External Antennas: Connect dual-band antennas to the left and right ports (marked “2.4/5”) and 5 GHz antennas to the center port (marked “5”). Connector Type: N-Type. Note: The product is designed for specific application and must be professionally installed by qualified personnel who has RF and related knowledge. Getting the O-235E Online Step 1: Power up Plug one end of the Ethernet cable into the PoE+ switch or injector and plug the other end into the LAN1 (PoE+) on the O-235E. Make sure the PoE+ source you are using is turned ON. Step 2: Connect to the network As you are using PoE+, the O-235E should already be connected to your network. Troubleshooting Using an 802.11ax access point on a 100 Mbps or a 1 Gbps Ethernet connection may cause WiFi performance issues. Use the 5 Gbps Ethernet uplink for best results. 1. Check whether the Ethernet cable is plugged into the correct port (PoE+) on the AP and the other end of the cable is plugged into an Ethernet jack or port on a switch that is turned ON. 2. If the AP did not receive a valid IP address from the DHCP server, check whether the DHCP server is ON and available on the VLAN/subnet to which the AP is connected. If the AP still fails to get a valid IP address, reboot the AP by pressing the reset button to see if the problem gets resolved. 3. If you are using Arista Cloud Services, then open the TCP port 443 (SSL). If you have an on-premises installation, then open the ports UDP 3851 and port 80. If you are using a Proxy, Web Accelerator or URL Content Filter in between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact Technical Support. Step 3: Check the LED status Power LED: The table below describes the states of the Power LED. Reduced capability indicates that the AP is getting less than the required maximum power from the PoE+ switch, i.e., 802.3af instead of 802.3at. LAN1 LED: ON when the interface is up. LAN2 LED: ON when the interface is up and either wired guest or link aggregation is configured. Radio LEDs: ON when the corresponding radio is operational. GreenOrange SolidRunning at full capability Running at reduced capability BlinkingReceived IP address, but not connected to the server Did not receive an IP address Scanning radio Scanning radio Access radios Access radios

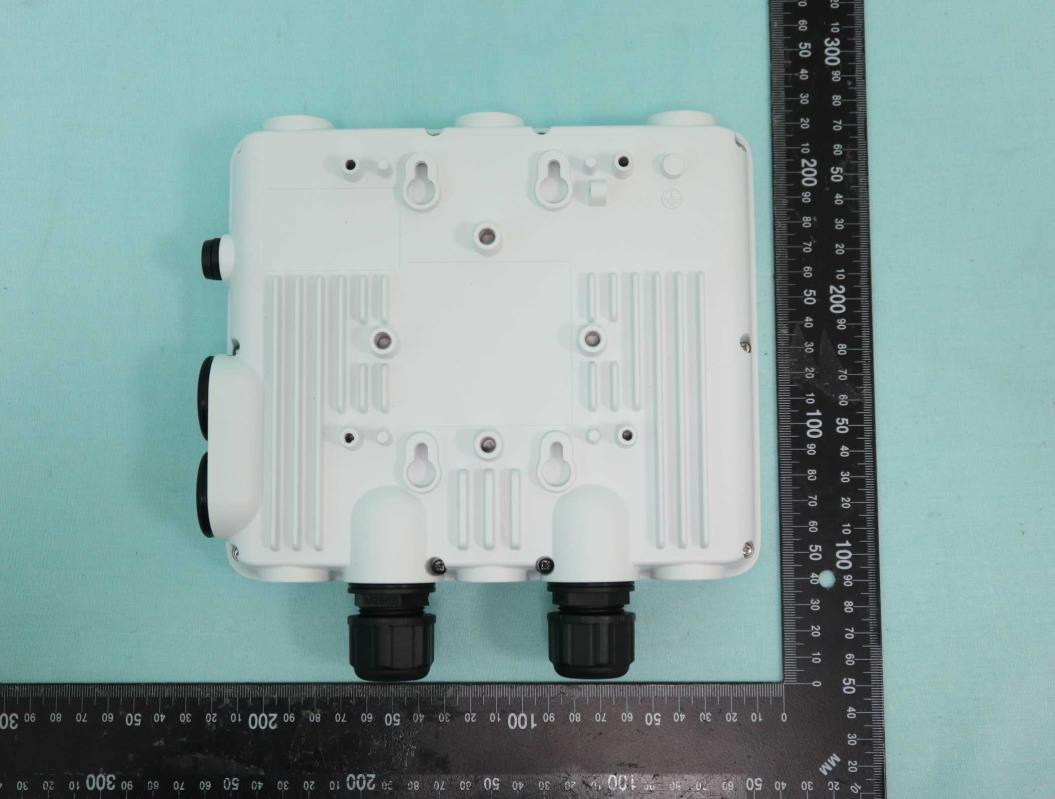

Declaration of Multiple Models Date: May 14, 2020 We, Arista Networks, Inc., hereby declare under our responsibility that the following products are electrical identical. FCC ID: TOR-C230 Product Name: 802.11 a/n/ac/ax + b/g/n/ax Access Point Brand Model Difference Arista C-230 Indoor use, Internal antenna C-230E Indoor use, External Antenna O-235 Outdoor use, Internal antenna O-235E Outdoor use, External Antenna The models listed above are identical in circuitry and electrical, mechanical and physical construction. Detailed contact information for this declaration has been listed below as the window of any issues relevant for this declaration. Sincerely, Applicant : Arista Networks, Inc. Address : 5453 Great America Parkway, Santa Clara, CA 95054, United States Signature : _________________________________ Name and Job Title. : Fernando N Solórzano, Manager, EMC design, Product Safety & Certification E-mail : [email protected] Tel. : 1 (408) 547 8279
