TOR-C75AirTight Access Point

Installation Guide C-75 Access Point 339 N. Bernardo Avenue, # 200, Mountain View, CA 94043 www.airtightnetworks.com © 2014 AirTight Networks, Inc. All rights reserved. C-75 Installation Guide 2 END USER LICENSE AGREEMENT Please read the End User License Agreement before installing the C-75 Access Point. The End User License Agreement is available at the following location http://www.airtightnetworks.com/fileadmin/pdf/AirTight-EULA.pdf. Installing the C-75 Access Point constitutes your acceptance of the terms and conditions of the End User License Agreement. DISCLAIMER THE INFORMATION IN THIS GUIDE IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE. AIRTIGHT ® NETWORKS, INC. IS NOT LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT. THIS PRODUCT HAS THE CAPABILITY TO BLOCK WIRELESS TRANSMISSIONS FOR THE PURPOSE OF PROTECTING YOUR NETWORK FROM MALICIOUS WIRELESS ACTIVITY. BASED ON THE POLICY SETTINGS, YOU HAVE THE ABILITY TO SELECT WHICH WIRELESS TRANSMISSIONS ARE BLOCKED AND, THEREFORE, THE CAPABILITY TO BLOCK AN EXTERNAL WIRELESS TRANSMISSION. IF IMPROPERLY USED, YOUR USAGE OF THIS PRODUCT MAY VIOLATE US FCC PART 15 AND OTHER LAWS. BUYER ACKNOWLEDGES THE LEGAL RESTRICTIONS ON USAGE AND UNDERSTANDS AND WILL COMPLY WITH US FCC RESTRICTIONS AS WELL AS OTHER GOVERNMENT REGULATIONS. AIRTIGHT IS NOT RESPONSIBLE FOR ANY WIRELESS INTERFERENCE CAUSED BY YOUR USE OF THE PRODUCT. AIRTIGHT NETWORKS, INC. AND ITS AUTHORIZED RESELLERS OR DISTRIBUTORS WILL ASSUME NO LIABILITY FOR ANY DAMAGE OR VIOLATION OF GOVERNMENT REGULATIONS ARISING FROM YOUR USAGE OF THE PRODUCT, EXCEPT AS EXPRESSLY DEFINED IN THE INDEMNITY SECTION OF THIS DOCUMENT. LIMITATION OF LIABILITY AirTight Networks will not be liable to customer or any other party for any indirect, incidental, special, consequential, exemplary, or reliance damages arising out of or related to the use of AirTight Wi-Fi, AirTight WIPS, AirTight Cloud Services, and AirTight devices under any legal theory, including but not limited to lost profits, lost data, or business interruption, even if AirTight Networks knows of or should have known of the possibility of such damages. Regardless of the cause of action or the form of action, the total cumulative liability of AirTight Networks for actual damages arising out of or related to the use of AirTight Wi-Fi, AirTight WIPS, AirTight Cloud Services or AirTight devices will not exceed the respective price paid for AirTight Wi-Fi, AirTight WIPS, AirTight Cloud Services, or AirTight devices. Copyright © 2014 AirTight ® Networks, Inc. All Rights Reserved. Powered by Marker Packet TM , Active Classification TM , Live Events TM , VLAN Policy Mapping TM , Smart Forensics TM , WEPGuard TM and WPAGuard TM . AirTight Networks and the AirTight Networks logo are trademarks and AirTight is a registered trademark of AirTight Networks, Inc. This product contains components from Open Source software. These components are governed by the terms and conditions of the GNU Public License. To read these terms and conditions visit http://www.gnu.org/copyleft/gpl.html. Protected by one or more of U.S. patent Nos. 7,002,943; 7,154,874; 7,216,365; 7,333,800; 7,333,481; 7,339,914; 7,406,320; 7,440,434; 7,447,184; 7,496,094; 7,536,723; 7,558,253; 7,710,933; 7,751,393; 7,764,648; 7,804,808; 7,856,209; 7,856,656; 7,970,894; 7,971,253; 8,032,939; and international patents: AU 200429804; GB 2410154; JP 4639195; DE 60 2004 038 621.9; and GB/NL/FR/SE 1976227. More patents pending. For more information on patents, please visit: www.airtightnetworks.com/patents. C-75 Installation Guide 3 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FOR COUNTRY CODE SELECTI…

Text truncated - open the document above for the full version.

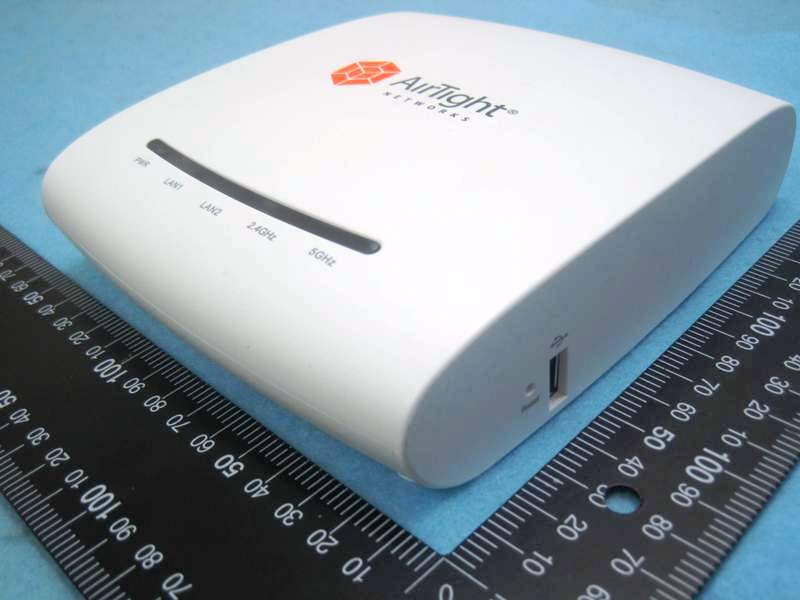

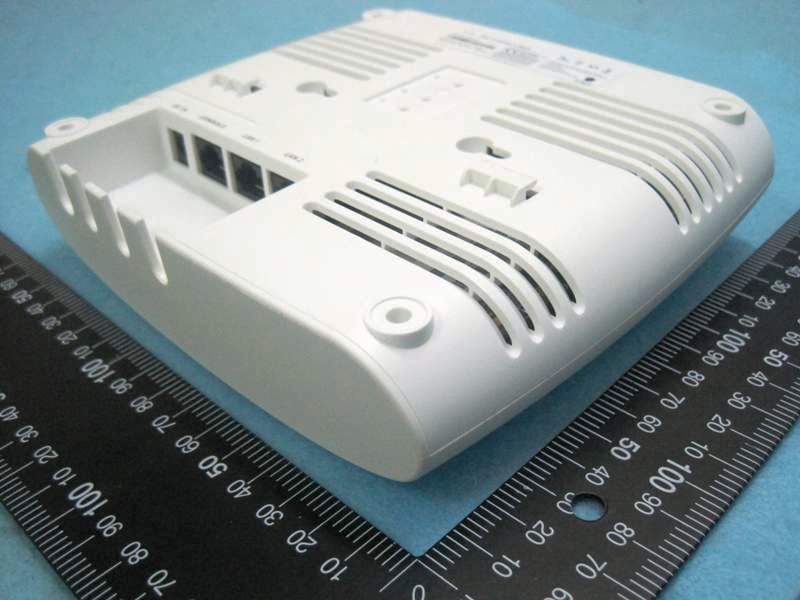

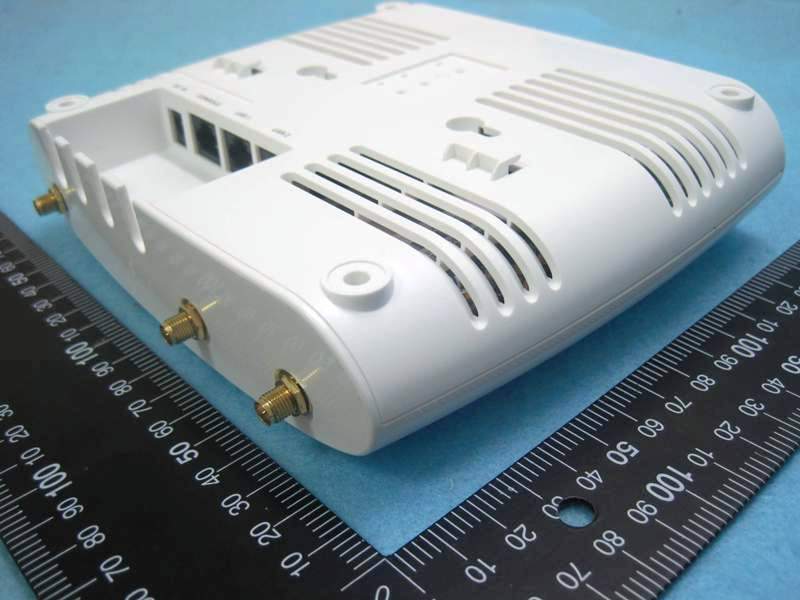

Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Photographs of EUT EUT 1 Model No.: C-75 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 EUT 2 Model No.: C-75-E Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Antenna (only for EUT 2) Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973

Model No.: C-75 Label Here Model No.: C-75-E Label Here

Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 1 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Photographs of EUT EUT 1 Model No.: C-75 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 2 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 3 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 4 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 5 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 6 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 7 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 8 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 9 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 10 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 11 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 12 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 EUT 2 Model No.: C-75-E Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 13 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 14 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 15 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 16 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 17 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 18 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 19 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 20 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973 Report No.: 411023 SPORTON International Inc. PAGE NUMBER : 21 OF 21 TEL : 886-3-327-3456 ISSUED DATE : Mar. 13, 2014 FAX : 886-3-327-0973

Report No.: FA411023 Report Format Version: 01 Page No. : i of ii FCC ID : TOR-C75 Issued Date : Mar. 13, 2014 Table of Contents 1. TABLE FOR MULTIPLE LIST................................................................................................................................... 1 2. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 2 2.1. Applicable Standard ..........................................................................................................................................................................2 2.2. MPE Calculation Method ....................................................................................................................................................................2 2.3. Calculated Result and Limit................................................................................................................................................................3 Report No.: FA411023 Report Format Version: 01 Page No. : ii of ii FCC ID : TOR-C75 Issued Date : Mar. 13, 2014 History of This Assessment Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA411023 Rev. 01 Initial issue of report Mar. 13, 2014 Report No.: FA411023 Report Format Version: 01 Page No. : 1 of 3 FCC ID : TOR-C75 Issued Date : Mar. 13, 2014 1. TABLE FOR MULTIPLE LIST The EUT has two model names which are identical to each other in all aspects except for the following table: Brand Name Model Name Antenna Description C-75 Internal Ant. EUT 1 AirTight C-75-E External Ant. EUT 2 Report No.: FA411023 Report Format Version: 01 Page No. : 2 of 3 FCC ID : TOR-C75 Issued Date : Mar. 13, 2014 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FA411023 Report Format Version: 01 Page No. : 3 of 3 FCC ID : TOR-C75 Issued Date : Mar. 13, 2014 2.3. Calculated Result and Limit EUT 1 (Model No. C-75) For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 16.48dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.50 4.4668 16.4800 44.4631 0.039532 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac MCS0, Nss1 VHT20: 26.85dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.60 4.5709 26.8526 484.4638 0.440770 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n MCS0 HT20: 24.98dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.00 3.9811 24.9846 315.1112 0.249697 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.249697 / 1 + 0.440770 / 1 = 0.690467, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No.: FA411023 Report Format Version: 01 Page No. : 4 of 3 FCC ID : TOR-C75 Issued Date : Mar. 13, 2014 EUT 2 (Model No. C-75-E) For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a: 16.82dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 16.8200 48.0839 0.030266 1 Complies For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11ac MCS0, Nss1 VHT40: 25.50dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 25.5045 355.1776 0.223561 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n MCS0 HT20: 24.30dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.00 3.1623 24.2974 268.9929 0.169…

Text truncated - open the document above for the full version.

Report No.: FR411023 FCC ID: TOR-C75 Page No. : B1 of B5 Appendix B. Radiated Emission Co-location Report Report No.: FR411023 FCC ID: TOR-C75 Page No. : B2 of B5 1. Results of Radiated Emissions for Co-located Temperature 22°C Humidity 51% Test Engineer YC Chen Configurations 2.4G + 5G Test Mode Mode 1 (EUT 1) Horizontal Report No.: FR411023 FCC ID: TOR-C75 Page No. : B3 of B5 Vertial Report No.: FR411023 FCC ID: TOR-C75 Page No. : B4 of B5 Temperature 22°C Humidity 51% Test Engineer YC Chen Configurations 2.4G + 5G Test Mode Mode 2 (EUT 2) Horizontal Report No.: FR411023 FCC ID: TOR-C75 Page No. : B5 of B5 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company AirTight Networks, Inc. Applicant Address 339 N. Bernardo Avenue, Suite #200, Mountain View, California, USA FCC ID TOR-C75 Manufacturer’s company DONG GUAN G-COM COMPUTER CO., LTD Manufacturer Address 1st Row, Yin Shan Road, Yin Hwu Industrial Area, Qingxi Town, DongGuan City, GuangDong, China Product Name AirTight Access Point Brand Name AirTight Model No. C-75, C-75-E Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jan. 10, 2014 Final Test Date Mar. 01, 2014 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01, KDB 662911 D01 v02r01, KDB644545 D01v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR411023AA Report Format Version: 01 Page No. : i of ii FCC ID: TOR-C75 Issued Date : Mar. 13, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................11 3.7. Table for Multiple List.........................................................................................................................................................................11 3.8. Table for Supporting Units .................................................................................................................................................................12 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................13 3.10. EUT Operation during Test .................................................................................................................................................................14 3.11. Duty Cycle ........................................................................................................................................................................................15 3.12. Test Configurations ...........................................................................................................................................................................23 4. TEST RESULT ................................................................................................................................................... 25 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................25 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................29 4.3. Power Spectral Density Measurement ..............................................................................................................................................34 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................60 4.5. Radiated Emissions Measurement ....................................................................................................................................................75 4.6. Emissions Measurement ..................................................................................................................................................................126 4.7. Antenna Requirements ...................................................................................................................................................................182 5. LIST OF MEASURING EQUIPMENTS ......................................…

Text truncated - open the document above for the full version.

Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A1 of A9 Appendix A. Test Photos Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A2 of A9 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A3 of A9 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A4 of A9 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A5 of A9 Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A6 of A9 Test Configuration: Above 1GHz / 2.4GHz Band Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A7 of A9 Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A8 of A9 Test Configuration: Above 1GHz / 5GHz Band Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR411023AA FCC ID: TOR-C75 Page No. : A9 of A9 Test Mode: Mode 3 FRONT VIEW REAR VIEW
