TOR-SS300AT60SpectraGuard� Access Point

Installation Guide SS-300-AT-C-60 3x3 802.11abgn Access Point/Sensor AirTight ® Networks, Inc., 339 N. Bernardo Avenue, # 200, Mountain View, CA 94043 http://www.airtightnetworks.com Product documentation is being enhanced continuously based on customer feedback. To obtain a latest copy of this document, visit http://www.airtightnetworks.com/home/support.html This page has been intentionally left blank. SS-300-AT-C-60 Access Point/Sensor Installation Guide SS‐300‐AT‐C‐60 Installation Guide END USER LICENSE AGREEMENT Please read the End User License Agreement before installing the SS‐300‐AT‐C‐60 Access Point/Sensor. The End User License Agreement is available at the following location ‐.http://www.airtightnetworks.com/fileadmin/pdf/AirTight‐EULA.pdf . Installing the SS‐300‐AT‐C‐60 Access Point/Sensor constitutes your acceptance of the terms and conditions of the End User License Agreement. DISCLAIMER THE INFORMATION IN THIS GUIDE IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE. AIRTIGHT ® NETWORKS, INC. IS NOT LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT. THIS PRODUCT HAS THE CAPABILITY TO BLOCK WIRELESS TRANSMISSIONS FOR THE PURPOSE OF PROTECTING YOUR NETWORK FROM MALICIOUS WIRELESS ACTIVITY. BASED ON THE POLICY SETTINGS, YOU HAVE THE ABILITY TO SELECT WHICH WIRELESS TRANSMISSIONS ARE BLOCKED AND, THEREFORE, THE CAPABILITY TO BLOCK AN EXTERNAL WIRELESS TRANSMISSION. IF IMPROPERLY USED, YOUR USAGE OF THIS PRODUCT MAY VIOLATE US FCC PART 15 AND OTHER LAWS. BUYER ACKNOWLEDGES THE LEGAL RESTRICTIONS ON USAGE AND UNDERSTANDS AND WILL COMPLY WITH US FCC RESTRICTIONS AS WELL AS OTHER GOVERNMENT REGULATIONS. AIRTIGHT IS NOT RESPONSIBLE FOR ANY WIRELESS INTERFERENCE CAUSED BY YOUR USE OF THE PRODUCT. AIRTIGHT AND ITS AUTHORIZED RESELLERS OR DISTRIBUTORS WILL ASSUME NO LIABILITY FOR ANY DAMAGE OR VIOLATION OF GOVERNMENT REGULATIONS ARISING FROM YOUR USAGE OF THE PRODUCT, EXPECT AS EXPRESSLY DEFINED IN THE INDEMNITY SECTION OF THIS DOCUMENT. LIMITATION OF LIABILITY AirTight will not be liable to customer or any other party for any indirect, incidental, special, consequential, exemplary, or reliance damages arising out of or related to the use of SpectraGuard ® Enterprise under any legal theory, including but not limited to lost profits, lost data, or business interruption, even if AirTight knows of or should have known of the possibility of such damages. Regardless of the cause of action or the form of action, AirTight’s total cumulative liability for actual damages arising out of or related to the use of SpectraGuard ® Enterprise will not exceed the price paid for SpectraGuard ® Enterprise. Copyright © 2012 AirTight ® Networks, Inc. All Rights Reserved. AirTight ® Networks, The AirTight logo, and SpectraGuard ® are registered trademarks of AirTight ® Networks. All other products and services are trademarks, registered trademarks, and service marks or registered service marks of their respective owners. This product contains components from Open Source software. These components are governed by the terms and conditions of the GNU Public License. To read these terms and conditions visit http://www.gnu.org/copyleft/gpl.html. This product is protected by one or more of U.S. patent Nos. 7,002,943, 7,154,874, 7,216,365, 7,333,800, 7,333,481, 7,339,914, 7,406,320, 7,440,434, 7,447,184, 7,496,094, 7,536,723, 7,558,253, 7,710,933, 7,751,393, 7,764,648, 7,804,808, 7,856,209, 7,856,656, 7,970,894, 7,971,253, 8,032,939; Australian patent No. 200429804; U.K. patent No. 2410154; Japan patent No. 4639195, and any others listed at www.airtightnetworks.com/patents. More patents pending. SS‐300‐AT‐C‐60 Installation Guide FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/ TV technician for help. CAUTION Any changes or modifications not expressly approved by the guarantee of this device could void the userʹs authority to operate the equipment. Labeling requirements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device is operation in 5.1…

Text truncated - open the document above for the full version.

AirTight Networks, Inc. FCC ID.: TOR-SS300AT60 339 N. Bernardo Avenue, Suite #200, Mountain View, California, USATel : 1-650 961 1111 The FCC ID and DoC will be placed on the equipment as shown in the photograph below.

AirTight Networks, Inc. FCC ID.: TOR-SS300AT60 339 N. Bernardo Avenue, Suite #200, Mountain View, California, USATel : 1-650 961 1111 FCC ID Label

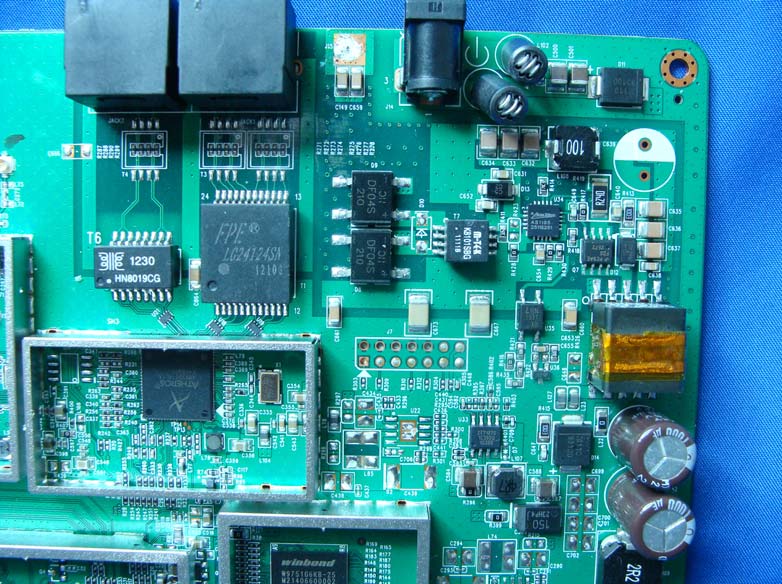

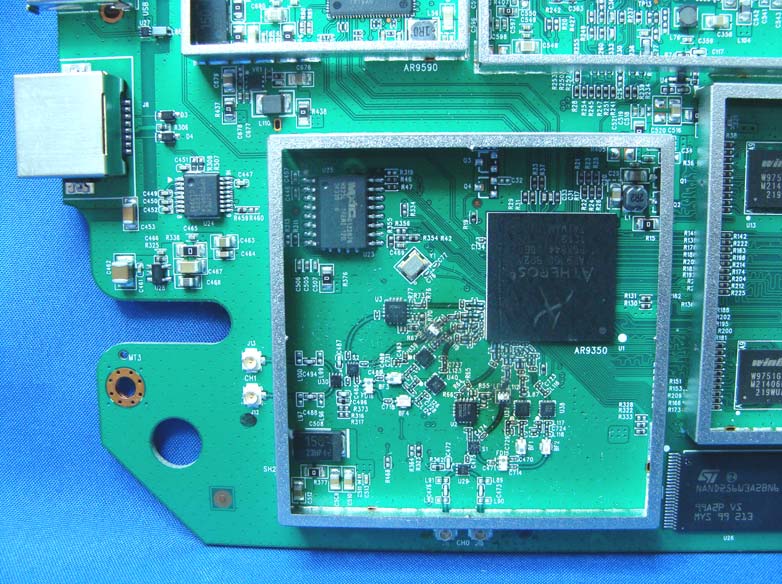

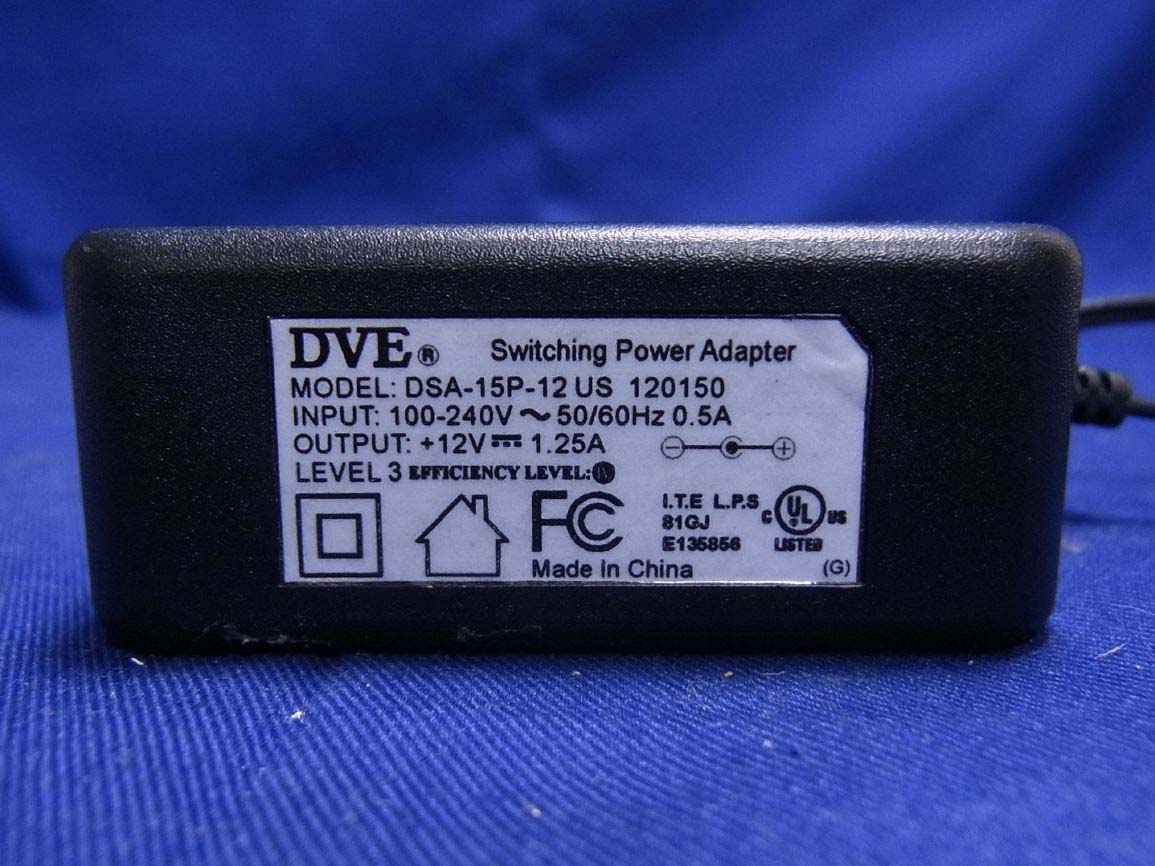

Report No.: 12A193R-RFUSP28V01 Page : 5 of 16 (9) EUT Photo (10) EUT Photo Report No.: 12A193R-RFUSP28V01 Page : 6 of 16 (11) EUT Photo (12) EUT Photo Report No.: 12A193R-RFUSP28V01 Page : 7 of 16 (13) EUT Photo (“Red”means external antenna, “Blue” means internal antenna) (14) EUT Photo 3TX_CH0 3TX_CH1 3TX_CH2 2TX_CH1 2TX_CH0 3TX_CH2 3TX_CH1 2TX_CH02TX_CH1 3TX_CH0 3TX 2TX Report No.: 12A193R-RFUSP28V01 Page : 8 of 16 (15) EUT Photo (16) EUT Photo (“Red”means external antenna, “Blue” means internal antenna) 3TX RF Chip CH0CH1CH2 Report No.: 12A193R-RFUSP28V01 Page : 9 of 16 (17) EUT Photo (18) EUT Photo (“Red”means external antenna, “Blue” means internal antenna) CH0 CH1 2TX RF Chip Report No.: 12A193R-RFUSP28V01 Page : 10 of 16 (19) EUT Photo (20) EUT Photo Report No.: 12A193R-RFUSP28V01 Page : 11 of 16 (21) EUT Photo (22) EUT Photo Report No.: 12A193R-RFUSP28V01 Page : 12 of 16 (23) EUT Photo (24) EUT Photo (PIFA Antenna) Report No.: 12A193R-RFUSP28V01 Page : 13 of 16 (25) EUT Photo (Dipole Antenna) (26) EUT Photo Report No.: 12A193R-RFUSP28V01 Page : 14 of 16 (27) EUT Photo (28) EUT Photo Report No.: 12A193R-RFUSP28V01 Page : 15 of 16 (29) EUT Photo (30) EUT Photo

Report No. 12A193R-RFUSP28V01 Page: 1 of 5 RF Exposure Evaluation declaration Product Name SpectraGuard® Access Point / Sensor Model No. SS-300-AT-C-60 FCC ID TOR-SS300AT60 Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200, Mountain View, California, USA Date of Receipt Oct. 11, 2012 Date of Declaration Oct. 29, 2012 Report No. 12A193R-RFUSP28V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12A193R-RFUSP28V01 Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12A193R-RFUSP28V01 Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product : SpectraGuard® Access Point / Sensor Test Item : RF Exposure Evaluation Test Site : No.3 OATS 2TX (Dipole Antenna) 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 68.7068 0.027273 6 2437.00 100.6932 0.039970 11 2462.00 53.7032 0.021317 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 11.3240 0.004495 6 2437.00 164.0590 0.065122 11 2462.00 13.1220 0.005209 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 56.3638 0.035459 157 5785.00 283.7919 0.178538 165 5825.00 206.5380 0.129936 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 4 of 5 802.11n-20MHz_14.4Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 11.1686 0.004433 06 2437.00 163.6817 0.064973 11 2462.00 12.7057 0.005043 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_30Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2422.00 5.5976 0.002222 04 2437.00 162.5549 0.064525 07 2452.00 9.3111 0.003696 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_14.4Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 68.0769 0.042828 157 5785.00 297.8516 0.187383 165 5825.00 184.9269 0.116340 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_30Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 54.8277 0.034493 159 5795.00 200.9093 0.126395 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 5 of 5 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 41.4954 0.026105 44 5220.00 42.0727 0.026469 48 5240.00 46.2381 0.029089 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_14.4Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 43.5512 0.027399 44 5220.00 44.1570 0.027780 48 5240.00 43.5512 0.027399 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_30Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 44.4631 0.027972 46 5230.00 47.5335 0.029904 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12A193R-RFUSP28V01 Page: 1 of 5 RF Exposure Evaluation declaration Product Name SpectraGuard® Access Point / Sensor Model No. SS-300-AT-C-60 FCC ID TOR-SS300AT60 Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200, Mountain View, California, USA Date of Receipt Oct. 11, 2012 Date of Declaration Oct. 29, 2012 Report No. 12A193R-RFUSP28V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12A193R-RFUSP28V01 Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12A193R-RFUSP28V01 Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product : SpectraGuard® Access Point / Sensor Test Item : RF Exposure Evaluation Test Site : No.3 OATS 2TX (PIFA Antenna) 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (3.89dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 78.8860 0.038435 6 2437.00 171.7908 0.083701 11 2462.00 68.0769 0.033169 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (3.89dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 17.9473 0.008744 6 2437.00 163.6817 0.079750 11 2462.00 13.4896 0.006572 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.9dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 68.3912 0.026530 157 5785.00 289.7344 0.112391 165 5825.00 268.5344 0.104167 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 4 of 5 802.11n-20MHz_14.4Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (3.89dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 17.2584 0.008409 06 2437.00 161.8080 0.078837 11 2462.00 14.7911 0.007207 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_30Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (3.89dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2422.00 9.8628 0.004805 04 2437.00 160.3245 0.078114 07 2452.00 9.0782 0.004423 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_14.4Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2.9dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 89.1251 0.034572 157 5785.00 263.6331 0.102266 165 5825.00 230.1442 0.089275 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_30Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2.9dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 71.4496 0.027716 159 5795.00 223.8721 0.086842 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 5 of 5 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.64dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 46.2381 0.016894 44 5220.00 42.4620 0.015514 48 5240.00 41.8794 0.015301 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_14.4Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2.64Bi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 42.3643 0.015479 44 5220.00 44.6684 0.016320 48 5240.00 43.4510 0.015876 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_30Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2.64dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 41.0204 0.014988 46 5230.00 43.5512 0.015912 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12A193R-RFUSP28V01 Page: 1 of 5 RF Exposure Evaluation declaration Product Name SpectraGuard® Access Point / Sensor Model No. SS-300-AT-C-60 FCC ID TOR-SS300AT60 Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200, Mountain View, California, USA Date of Receipt Oct. 11, 2012 Date of Declaration Oct. 29, 2012 Report No. 12A193R-RFUSP28V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12A193R-RFUSP28V01 Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12A193R-RFUSP28V01 Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product : SpectraGuard® Access Point / Sensor Test Item : RF Exposure Evaluation Test Site : No.3 OATS 3TX (Dipole Antenna) 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 207.0141 0.082173 6 2437.00 271.6439 0.107828 11 2462.00 133.3521 0.052933 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 50.8159 0.020171 6 2437.00 346.7369 0.137636 11 2462.00 57.8096 0.022947 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 109.3956 0.068823 157 5785.00 172.1869 0.108325 165 5825.00 169.4338 0.106593 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 4 of 5 802.11n-20MHz_21.7Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 65.4636 0.025985 06 2437.00 358.0964 0.142145 11 2462.00 56.2341 0.022322 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_45Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2422.00 31.2608 0.012409 04 2437.00 370.6807 0.147140 07 2452.00 30.6902 0.012182 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_21.7Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 115.3453 0.072566 157 5785.00 167.1091 0.105131 165 5825.00 167.8804 0.105616 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_45Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 74.6449 0.046960 159 5795.00 174.5822 0.109832 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 5 of 5 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 37.1535 0.023374 44 5220.00 43.0527 0.027085 48 5240.00 30.9030 0.019442 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_21.7Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 42.4620 0.026713 44 5220.00 43.1519 0.027148 48 5240.00 32.2849 0.020311 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_45Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 30.6196 0.019263 46 5230.00 33.4195 0.021025 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12A193R-RFUSP28V01 Page: 1 of 5 RF Exposure Evaluation declaration Product Name SpectraGuard® Access Point / Sensor Model No. SS-300-AT-C-60 FCC ID TOR-SS300AT60 Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200, Mountain View, California, USA Date of Receipt Oct. 11, 2012 Date of Declaration Oct. 29, 2012 Report No. 12A193R-RFUSP28V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12A193R-RFUSP28V01 Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12A193R-RFUSP28V01 Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product : SpectraGuard® Access Point / Sensor Test Item : RF Exposure Evaluation Test Site : No.3 OATS 3TX (PIFA Antenna) 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.14dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 280.5434 0.144787 6 2437.00 271.0192 0.139872 11 2462.00 276.6942 0.142801 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.14dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 86.8960 0.044847 6 2437.00 410.2041 0.211705 11 2462.00 77.2681 0.039878 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (5.72dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 108.8930 0.080859 157 5785.00 167.1091 0.124088 165 5825.00 179.0606 0.132963 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 4 of 5 802.11n-20MHz_21.7Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (4.14dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 88.1049 0.045471 06 2437.00 420.7266 0.217135 11 2462.00 74.6449 0.038524 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_45Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (4.14dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2422.00 61.9441 0.031969 04 2437.00 410.2041 0.211705 07 2452.00 61.9441 0.031969 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_21.7Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (5.72dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 107.1519 0.079567 157 5785.00 168.2674 0.124948 165 5825.00 179.8871 0.133577 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_45Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (5.72dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 84.5279 0.062767 159 5795.00 169.8244 0.126104 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12A193R-RFUSP28V01 Page: 5 of 5 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (3.87dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 42.2669 0.020499 44 5220.00 44.2588 0.021465 48 5240.00 44.4631 0.021564 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-20MHz_21.7Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (3.87Bi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 40.7380 0.019757 44 5220.00 42.4620 0.020594 48 5240.00 42.7563 0.020736 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). 802.11n-40MHz_45Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (3.87dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 44.6684 0.021664 46 5230.00 45.9198 0.022271 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).
