TOR-SS300ATC50SPECTRAGUARD SENSOR

Arista Networks, Inc.
SPECTRAGUARD SENSOR - FCC ID TOR-SS300ATC50 - Arista Networks, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 03, 2010
Application Purpose
Original Equipment
Date of Application
Oct 02, 2010
Equipment Note
SPECTRAGUARD SENSOR
Frequency Range
5755.00000000 - 5795.00000000
Company
Arista Networks, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ȱ Installation Guide ȱ SpectraGuard ® Enterprise An AirTight ® Product ȱ Wireless Vulnerability Management and Intrusion Prevention Version 5.7 ȱ ȱ AirTight ® Networks, Inc., 339 N. Bernardo Avenue, # 200, Mountain View, CA 94043 https://www.airtightnetworks.com Product documentation is being enhanced continuously based on customer feedback. To obtain a latest copy of this document, visit www.airtightnetworks.com/home/support.html ȱ ȱ Thisȱpageȱhasȱbeenȱintentionallyȱleftȱblank. ȱ SpectraGuard®Enterprise InstallationȱGuideȱ Disclaimerȱ SpectraGuard ® ȱEnterpriseȱInstallationȱGuideȱ iiȱ THEȱINFORMATIONȱINȱTHISȱGUIDEȱISȱSUBJECTȱTOȱCHANGEȱWITHOUTȱANYȱPRIORȱNOTICE.ȱ AIRTIGHT®ȱNETWORKS,ȱINC.ȱISȱNOTȱLIABLEȱFORȱANYȱSPECIAL,ȱINCIDENTAL,ȱINDIRECT,ȱORȱCONSEQUENTIALȱ DAMAGESȱWHATSOEVERȱ(INCLUDING,ȱWITHOUTȱLIMITATION,ȱDAMAGESȱFORȱLOSSȱOFȱBUSINESSȱPROFITS,ȱ BUSINESSȱINTERRUPTION,ȱLOSSȱOFȱBUSINESSȱINFORMATION,ȱORȱANYȱOTHERȱPECUNIARYȱLOSS)ȱARISINGȱOUTȱOF ȱ THEȱUSEȱOFȱORȱINABILITYȱTOȱUSEȱTHISȱPRODUCT.ȱ THISȱPRODUCTȱHASȱTHEȱCAPABILITYȱTOȱBLOCKȱWIRELESSȱTRANSMISSIONSȱFORȱTHEȱPURPOSEȱOFȱPROTECTINGȱ YOURȱNETWORKȱFROMȱMALICIOUSȱWIRELESSȱACTIVITY.ȱBASEDȱONȱTHEȱPOLICYȱSETTINGS,ȱYOUȱHAVEȱTHEȱ ABILITYȱTOȱSELECTȱWHICHȱWIRELESSȱTRANSMISSIONSȱAREȱBLOCKEDȱAND,ȱTHEREFORE,ȱTHEȱCAPABILITYȱTOȱ BLOCKȱANȱEXTERNALȱWIRELESSȱTRANSMISSION.ȱIFȱIMPROPERLYȱUSED,ȱYOURȱUSAGEȱOFȱTHISȱPRODUCTȱMAYȱ VIOLATEȱUSȱFCCȱPARTȱ15ȱANDȱOTHERȱLAWS.ȱBUYERȱACKNOWLEDGESȱTHEȱLEGALȱRESTRICTIONSȱONȱUSAGEȱANDȱ UNDERSTANDSȱANDȱWILLȱCOMPLYȱWITHȱUSȱFCCȱRESTRICTIONSȱASȱWELLȱASȱOTHERȱGOVERNMENTȱ REGULATIONS.ȱAIRTIGHTȱISȱNOTȱRESPONSIBLEȱFORȱANYȱWIRELESS ȱINTERFERENCEȱCAUSEDȱBYȱYOURȱUSEȱOFȱ THEȱPRODUCT.ȱAIRTIGHTȱANDȱITSȱAUTHORIZEDȱRESELLERSȱORȱDISTRIBUTORSȱWILLȱASSUMEȱNOȱLIABILITYȱFORȱ ANYȱDAMAGEȱORȱVIOLATIONȱOFȱGOVERNMENTȱREGULATIONSȱARISINGȱFROMȱYOURȱUSAGEȱOFȱTHEȱPRODUCT,ȱ EXPECTȱASȱEXPRESSLYȱDEFINEDȱINȱTHEȱINDEMNITYȱSECTIONȱOFȱTHISȱDOCUMENT.ȱ LIMITATIONȱOFȱLIABILITYȱ AirTightȱwillȱ notȱbeȱliableȱtoȱcustomerȱorȱanyȱotherȱpartyȱforȱanyȱindirect,ȱincidental,ȱspecial,ȱconsequential,ȱexemplary,ȱorȱ relianceȱdamagesȱarisingȱoutȱofȱorȱrelatedȱtoȱtheȱuseȱofȱSpectraGuard®ȱEnterpriseȱunderȱanyȱlegalȱtheory,ȱincludingȱbutȱnotȱ limitedȱtoȱlostȱprofits,ȱlostȱdata,ȱorȱbusinessȱinterruption,ȱevenȱifȱAirTightȱknowsȱof ȱorȱshouldȱhaveȱknownȱofȱtheȱpossibilityȱofȱ suchȱdamages.ȱRegardlessȱofȱtheȱcauseȱofȱactionȱorȱtheȱformȱofȱaction,ȱAirTight’sȱtotalȱcumulativeȱliabilityȱforȱactualȱdamagesȱ arisingȱoutȱofȱorȱrelatedȱtoȱtheȱuseȱofȱSpectraGuard®ȱEnterpriseȱwillȱnotȱexceedȱtheȱpriceȱpaidȱforȱSpectraGuard®ȱEnterprise.ȱ Copyrightȱ©ȱ 2003–2008ȱAirTight®ȱNetworks,ȱInc.ȱAllȱRightsȱReserved.ȱ AirTight®ȱNetworks,ȱTheȱAirTightȱlogo,ȱandȱSpectraGuard®ȱareȱregisteredȱtrademarksȱofȱAirTight®ȱNetworks.ȱAllȱotherȱ productsȱandȱservicesȱareȱtrademarks,ȱregisteredȱtrademarks,ȱandȱserviceȱmarksȱorȱregisteredȱserviceȱmarksȱofȱtheirȱrespectiveȱ owners.ȱ ThisȱproductȱcontainsȱcomponentsȱfromȱOpenȱSourceȱsoftware.ȱTheseȱcomponentsȱare ȱgovernedȱbyȱtheȱtermsȱandȱconditionsȱ ofȱtheȱGNUȱPublicȱLicense.ȱToȱreadȱtheseȱtermsȱandȱconditionsȱvisitȱhttp://www.gnu.org/copyleft/gpl.html .ȱ ThisȱproductȱisȱprotectedȱbyȱoneȱorȱmoreȱofȱU.S.ȱpatentȱNos.ȱ7,002,943,ȱ7,154,874,ȱ7,216,365,ȱ7,333,800,ȱ7,333,481,ȱ7,339,914,ȱ 7,406,320,ȱAustralianȱpatentȱNo.ȱ200429804ȱandȱanyȱothersȱlistedȱatȱwww.airtightnetworks.com/patents .ȱMoreȱpatentsȱpending.ȱ ȱ FederalȱCommunicationȱCommissionȱInterferenceȱStatementȱ ThisȱequipmentȱhasȱbeenȱtestedȱandȱfoundȱtoȱcomplyȱwithȱtheȱlimitsȱforȱaȱClassȱBȱdigitalȱdevice,ȱpursuantȱtoȱPartȱ15ȱofȱtheȱ FCCȱRules.ȱTheseȱlimitsȱareȱdesignedȱtoȱprovideȱreasonableȱprotectionȱagainstȱharmfulȱinterferenceȱinȱaȱresidentialȱ installation.ȱ Thisȱequipmentȱgeneratesȱusesȱandȱcanȱradiateȱradioȱfrequencyȱenergyȱand,ȱifȱnotȱinstalledȱandȱusedȱinȱ accordanceȱwithȱtheȱinstructions,ȱmayȱcauseȱharmfulȱinterferenceȱtoȱradioȱcommunications.ȱ However,ȱthereȱisȱnoȱguaranteeȱthatȱinterferenceȱwillȱnotȱoccurȱinȱaȱparticularȱinstallation.ȱIfȱthisȱequipmentȱdoesȱcauseȱ harmfulȱinterferenceȱtoȱradio ȱorȱtelevisionȱreception,ȱwhichȱcanȱbeȱdeterminedȱbyȱturningȱtheȱequipmentȱoffȱandȱon,ȱtheȱuserȱ isȱencouragedȱtoȱtryȱtoȱcorrectȱtheȱinterferenceȱbyȱoneȱofȱtheȱfollowingȱmeasures:ȱ xReorientȱorȱrelocateȱtheȱreceivingȱantenna.ȱ xIncreaseȱtheȱseparationȱbetweenȱtheȱequipmentȱandȱreceiver.ȱ xConnectȱtheȱequipmentȱintoȱan ȱoutletȱonȱaȱcircuitȱdifferentȱfromȱthatȱtoȱwhichȱtheȱreceiverȱisȱconnected.ȱ xConsultȱtheȱdealerȱorȱanȱexperiencedȱradio/TVȱtechnicianȱforȱhelp.ȱ ThisȱdeviceȱcompliesȱwithȱPartȱ15ȱofȱtheȱFCCȱRules.ȱOperationȱisȱsubjectȱtoȱtheȱfollowingȱtwoȱconditions:ȱ(1)ȱThisȱdeviceȱmayȱ notȱcauseȱharmfulȱinterference,ȱand ȱ(2)ȱthisȱdeviceȱmustȱacceptȱanyȱinterferenceȱreceived,ȱincludingȱinterferenceȱthatȱmayȱ causeȱundesiredȱoperation.ȱ FCCȱCaution:ȱAnyȱchangesȱorȱmodificationsȱnotȱexpresslyȱapprovedȱbyȱtheȱpartyȱresponsibleȱforȱcomplianceȱcouldȱvoidȱtheȱ userȇsȱauthorityȱtoȱoperateȱthisȱequipment.ȱ IMPORTANTȱNOTE:ȱ Disclaimerȱ SpectraGuard ® ȱEnterpriseȱInstallationȱGuideȱ iii FCCȱRadiationȱExposureȱStatement:ȱ ThisȱequipmentȱcompliesȱwithȱFCCȱradiationȱexposureȱlimitsȱsetȱforthȱforȱanȱuncontrolledȱenvironment.ȱThisȱequipmentȱ shouldȱbeȱinstalledȱandȱoperatedȱwithȱminimumȱdistanceȱ20ȱcmȱbetweenȱtheȱradiatorȱ&ȱyourȱbody.ȱ Ifȱthisȱdeviceȱisȱgoingȱtoȱbeȱoperatedȱinȱ5.15ȱ~ȱ5.25ȱGHzȱfrequencyȱrange, ȱthenȱitȱisȱrestrictedȱinȱindoorȱenvironmentȱonly.ȱ ThisȱtransmitterȱmustȱnotȱbeȱcoȬlocatedȱorȱoperatingȱinȱconjunctionȱwithȱanyȱotherȱantennaȱorȱtransmitter.ȱ This product must be installed by a professional technician/installer. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The County Code Selection feature is disabled for products marketed in the US/Canada. This Class [B] digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la clas…

Text truncated - open the document above for the full version.

External Photos

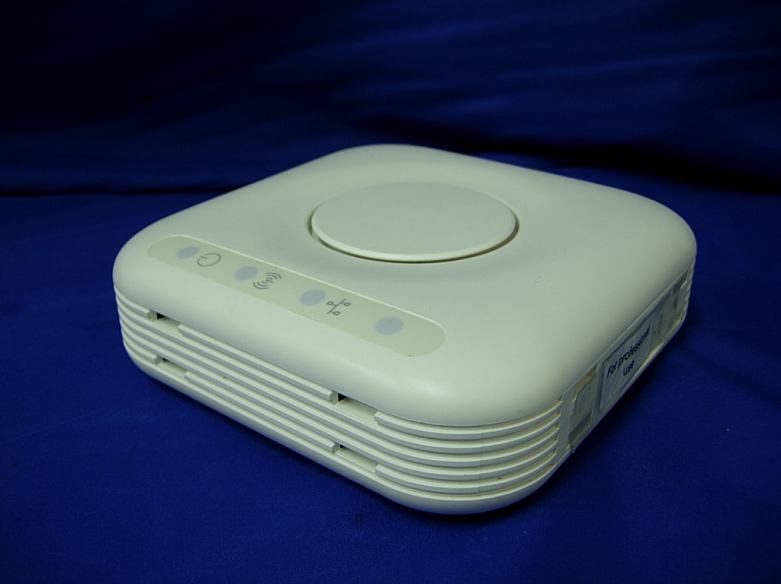

Report No.: 109037R-RFUSP32V01 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

AirTight Networks, Inc. FCC ID.: TOR-SS300ATC50 339 N. Bernardo Avenue, Suite #200 Mountain View, CA United States 94043.Tel : 1-650 961 1111 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

ID Label/Location Info

AirTight Networks, Inc. FCC ID.: TOR-SS300ATC50 339 N. Bernardo Avenue, Suite #200 Mountain View, CA United States 94043.Tel : 1-650 961 1111 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Internal Photos

Report No.: 109037R-RFUSP32V01 Page : 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 5 of 12 (9) EUT Photo (10) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 7 of 12 (13) EUT Photo (14) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 9 of 12 (17) EUT Photo (18) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 109037R-RFUSP32V01 Page : 12 of 12 (23) EUT Photo (24) EUT Photo

Operational Description

Report No. 109037R-RFUSP28V01 Page : 7 of 139 1.2. Operational Description The EUT is a SpectraGuard Sensor with a built-in 2.4GHz and 5GHz WLAN card. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11a/g). The device provided of eight kinds of transmitting speed 21.6,43.2,65.1,86.7,129.9,173.4,195 and 216Mbps in 802.11n(20M-BW) mode and 45,90,135,180,270,360,405 and 450 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), the IEEE 802.11n is Multiple In, Multiple Out” (MIMO) technology. The device adapts direct sequence spread spectrum modulation. The antenna provides diversity function to improve the receiving function and the antennas to support 3(Transmit) × 3(Receive) MIMO technology. This SpectraGuard Sensor, compliant with IEEE 802.11b and IEEE 802.11a/g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz/5GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the SpectraGuard Sensor Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11a/g/n network. The Device no radar detection and no ad-hoc operation in the DFS band, another information please refer to users manual. NOTE: All mode the power combiner is used, the factor of combiner is 10dB and offset it in test instrument. Mode 1: Transmit (802.11b 1Mbps) Mode 2: Transmit (802.11g 6Mbps) Mode 3: Transmit - 802.11a 6Mbps Mode 4: Transmit - 802.11n-20BW_21.6Mbps(2.4G Band) Mode 5: Transmit - 802.11n-40BW_45Mbps(2.4G Band) Mode 6: Transmit - 802.11n-20BW_21.6Mbps(5G Band) Test Mode: Mode 7: Transmit - 802.11n-40BW_45Mbps(5G Band)

RF Exposure Info

Report No. 109037R-RFUSP32V01 Page: 1 of 7 RF Exposure Evaluation declaration Product Name : SpectraGuard Sensor Model No. : SS-300-AT-C-50 FCC ID : TOR-SS300ATC50 Applicant : AirTight Networks, Inc. Address : 339 N. Bernardo Avenue, Suite #200 Mountain View, CA United States 94043 Date of Receipt : Aug. 30, 2010 Date of Declaration: Sep. 17, 2010 Report No. : 109037R-RFUSP32V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 109037R-RFUSP32V01 Page: 2 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. Report No. 109037R-RFUSP32V01 Page: 3 of 7 1.3. Test Result of RF Exposure Evaluation Product : SpectraGuard Sensor Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (6.16dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 459.1980 0.377338 6 2437.00 881.0489 0.723987 11 2462.00 469.8941 0.386127 The RF exposure at 20 cm is below limit. 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (6.16dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 535.7967 0.440282 6 2437.00 883.0799 0.725656 11 2462.00 638.2635 0.524482 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (6.30dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 790.6786 0.671012 157 5785.00 881.0489 0.747705 165 5825.00 835.6030 0.709138 The RF exposure at 20 cm is below limit. Report No. 109037R-RFUSP32V01 Page: 4 of 7 802.11n-20MHz_13Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (6.16dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 454.9881 0.373879 06 2437.00 946.2372 0.777554 11 2462.00 534.5644 0.439269 The RF exposure at 20 cm is below limit. 802.11n-40MHz_27Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (6.16dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2422.00 274.1574 0.225284 04 2437.00 903.6495 0.742558 07 2452.00 182.8100 0.150221 The RF exposure at 20 cm is below limit. 802.11n-20MHz_13Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (6.30dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 843.3348 0.715699 157 5785.00 859.0135 0.729005 165 5825.00 799.8343 0.678782 The RF exposure at 20 cm is below limit. 802.11n-40MHz_27Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (6.30dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 857.0378 0.727328 159 5795.00 831.7638 0.705879 The RF exposure at 20 cm is below limit. Report No. 109037R-RFUSP32V01 Page: 5 of 7 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (6.24dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 17.4181 0.014579 44 5220.00 19.0546 0.015949 48 5240.00 17.9061 0.014988 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (6.24dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 97.4990 0.081608 60 5300.00 133.0454 0.111360 64 5320.00 65.6145 0.054920 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (6.30dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 5500.00 103.2761 0.087646 120 5600.00 173.3804 0.147140 140 5700.00 140.6048 0.119325 The RF exposure at 20 cm is below limit. 802.11n-20MHz_13Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (6.24dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 22.5944 0.018912 44 5220.00 21.3796 0.017895 48 5240.00 21.9280 0.018354 The RF exposure at 20 cm is below limit. Report No. 109037R-RFUSP32V01 Page: 6 of 7 802.11n-20MHz_13Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (6.24dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 119.9499 0.100399 60 5300.00 128.5287 0.107580 64 5320.00 66.3743 0.055556 The RF exposure at 20 cm is below limit. 802.11n-20MHz_13…

Text truncated - open the document above for the full version.

Test Report

Report No. 109037R-RFUSP24V02 Page : 1 of 62 Test Report Product Name SpectraGuard Sensor Model No SS-300-AT-C-50 FCC ID. DoC Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200 Mountain View, CA United States 94043 Date of Receipt Aug. 30, 2010 Issue Date Sep. 17, 2010 Report No. 109037R-RFUSP24V02 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 109037R-RFUSP24V02 Page : 2 of 62 Test Report Certification Issue Date: Sep. 17, 2010 Report No.: 109037R-RFUSP24V02 Product Name SpectraGuard Sensor Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200 Mountain View, CA United States 94043 Manufacturer Dong Guan G-Com Computer Co., Ltd. Model No. SS-300-AT-C-50 FCC ID. DoC EUT Rated Voltage AC 100-240V, 50/60Hz EUT Test Voltage AC 120V/60Hz Trade Name AirTight Networks Applicable Standard FCC CFR Title 47 Part 15 Subpart B: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Eason Hung ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 109037R-RFUSP24V02 Page : 3 of 62 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Tested System Details....................................................................................................................7 1.3. Configuration of Tested System ....................................................................................................7 1.4. EUT Exercise Software .................................................................................................................7 1.5. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Radiated Emission .....................................................................................................................21 3.1. Test Equipment............................................................................................................................21 3.2. Test Setup ....................................................................................................................................22 3.3. Limits ..........................................................................................................................................23 3.4. Test Procedure .............................................................................................................................23 3.5. Uncertainty ..................................................................................................................................24 3.6. Test Result of Radiated Emission................................................................................................25 4. EMI Reduction Method During Compliance Testing ............................................................62 Report No. 109037R-RFUSP24V02 Page : 4 of 62 1. GENERAL INFORMATION 1.1. EUT Description Product Name SpectraGuard Sensor Trade Name AirTight Networks Model No. SS-300-AT-C-50 FCC ID. DoC Frequency Range 802.11b/g/n-20MHz: 2412-2462MHz, 802.11n-40MHz: 2422-2452MHz 802.11a/n-20MHz: 5180-5320MHz, 5500-5700MHz and 5745-5825MHz 802.11n-40MHz: 5190-5310MHz, 5510-5670MHz and 5755-5795MHz Number of Channels 802.11b/g/n-20MHz: 11, n-40MHz: 7 802.11a/n-20MHz: 24, n-40MHz: 11 Data Speed 802.11b: 1-11Mbps, 802.11a/g: 6-54Mbps, 802.11n: up to 450Mbps Channel separation 802.11b/g/n-20MHz: 5 MHz, 802.11a/n-20MHz: 20MHz 802.11n-40MHz: 40MHz Type of Modulation 802.11b:DSSS, DBPSK, DQPSK, CCK 802.11a/g/n: OFDM, BPSK, QPSK, 16QAM, 64QAM Antenna Type PCB Antenna Antenna Gain Refer to the table “Antenna List” Channel Control Auto Power Adapter MFR: DVE, M/N: DSA-15P-12 US 120150 Input: AC 100-240V ~ 50/60Hz, 0.5A Output: DC 12V, 1.25A Antenna List No. Manufacturer Part No. Peak Gain 1 WIESON GY196HT0220-014 6.16dBi in 2.4GHz 6.30dBi in 5.0GHz Note: The antenna of EUT is conforming to FCC 15.203. Report No. 109037R-RFUSP24V02 Page : 5 of 62 802.11b/g/n-20MHz (2.4GHz Band) Center Frequency of Each Channel: Channel Frequency Channel FrequencyChannel FrequencyChannel Frequency Channel 01: 2…

Text truncated - open the document above for the full version.

Test Report

Report No. 109037R-RFUSP28V01 Page : 1 of 139 Test Report Product Name SpectraGuard Sensor Model No SS-300-AT-C-50 FCC ID. TOR-SS300ATC50 Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200 Mountain View, CA United States 94043 Date of Receipt Aug. 30, 2010 Issue Date Sep. 17, 2010 Report No. 109037R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 109037R-RFUSP28V01 Page : 2 of 139 Test Report Certification Issue Date: Sep. 17, 2010 Report No.: 109037R-RFUSP28V01 Product Name SpectraGuard Sensor Applicant AirTight Networks, Inc. Address 339 N. Bernardo Avenue, Suite #200 Mountain View, CA United States 94043 Manufacturer Dong Guan G-Com Computer Co., Ltd. Model No. SS-300-AT-C-50 EUT Rated Voltage AC 100-240V, 50/60Hz EUT Test Voltage AC 120V/60Hz Trade Name AirTight Networks Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Eason Hung ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 109037R-RFUSP28V01 Page : 3 of 139 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................24 4.1. Test Equipment............................................................................................................................24 4.2. Test Setup ....................................................................................................................................25 4.3. Limits ..........................................................................................................................................26 4.4. Test Procedure .............................................................................................................................27 4.5. Uncertainty ..................................................................................................................................27 4.6. Test Result of Radiated Emission................................................................................................28 5. RF antenna conducted test........................................................................................................55 5.1. Test Equipment...................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No. 109037R-RFUSP28V01 Page: 91 of 139 Product : SpectraGuard Sensor Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit - 802.11a 6Mbps Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5825 28.027 >20 PASS Report No. 109037R-RFUSP28V01 Page: 92 of 139 Product : SpectraGuard Sensor Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 6: Transmit - 802.11n-20BW_21.6Mbps(5G Band) Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5745 27.720 >20 PASS Report No. 109037R-RFUSP28V01 Page: 93 of 139 Product : SpectraGuard Sensor Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 6: Transmit - 802.11n-20BW_21.6Mbps(5G Band) Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5825 43.429 >20 PASS Report No. 109037R-RFUSP28V01 Page: 94 of 139 Product : SpectraGuard Sensor Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 7: Transmit - 802.11n-40BW_45Mbps(5G Band) Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5755 26.827 >20 PASS Report No. 109037R-RFUSP28V01 Page: 95 of 139 Product : SpectraGuard Sensor Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 7: Transmit - 802.11n-40BW_45Mbps(5G Band) Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5795 45.337 >20 PASS Report No. 109037R-RFUSP28V01 Page: 96 of 139 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 X 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz 8-WAY Power Divider EUT Spectrum Analyzer RF Cable Report No. 109037R-RFUSP28V01 Page: 97 of 139 7.6. Test Result of Occupied Bandwidth Product : SpectraGuard Sensor Test Item : Occupied Bandwi…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Fernando Solorzano(Manager, Product Compliance)
[email protected]4085478279Fax: 1-408-538-8920

Test Firm

Quietek Linkou EMC LabotortyJames Chang
[email protected]886-2-8792-6808Fax: 886-2-8792-6628

Technical Specifications

#Rule PartsFrequency RangePower Output
415C5.75 GHz - 5.79 GHz857.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. Professional installation is required. Device is operating in a 3x3 Spatial Multiplexing MIMO configuration as described in this filing. This composite device is restricted to indoor use only for 5.15-5.25 GHz. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
