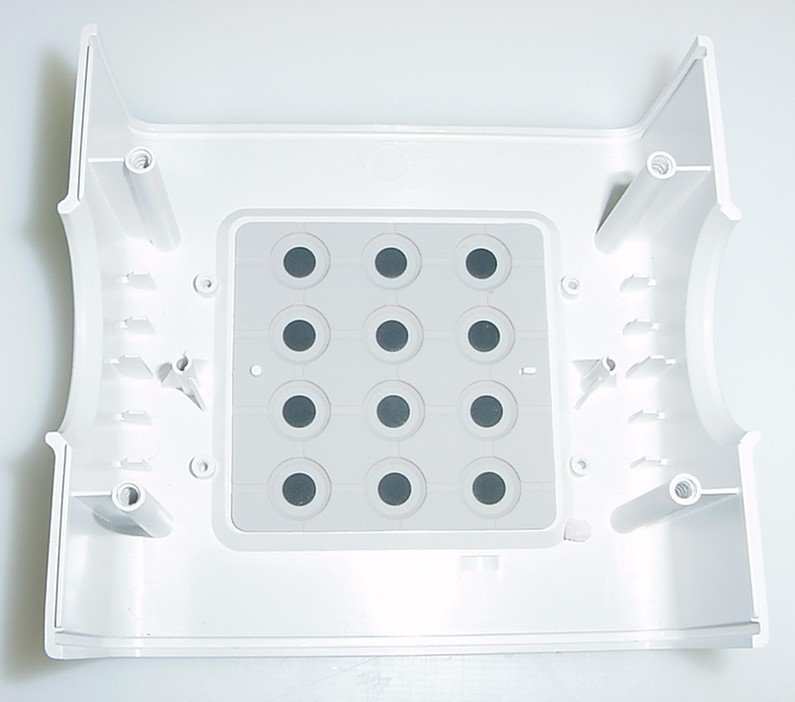

TOW-MU100Portable transmitting device Main Unit

Wireless Components ASK/FSK Single Conversion Receiver TDA 5210 Version 3.0 Specification May 2001 Edition 05.01 Published by Infineon Technologies AG, Balanstraße 73, 81541 München © Infineon Technologies AG May 2001. All Rights Reserved. Attention please! As far as patents or other rights of third parties are concerned, liability is only assumed for components, not for applications, processes and circuits im- plemented within components or assemblies. The information describes the type of component and shall not be considered as assured characteristics. Terms of delivery and rights to change design reserved. Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office. Infineon Technologies AG is an approved CECC manufacturer. Packing Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office. By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs incurred. Components used in life-support devices or systems must be expressly authorized for such purpose! Critical components 1 of the Infineon Technologies AG, may only be used in life-support devices or systems 2 with the express written approval of the Infineon Technologies AG. 1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected to cause the failure of that life- support device or system, or to affect its safety or effectiveness of that device or system. 2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered. ABM ® , AOP ® , ARCOFI ® , ARCOFI ® -BA, ARCOFI ® -SP, DigiTape ® , EPIC ® -1, EPIC ® -S, ELIC ® , FALC ® 54, FALC ® 56, FALC ® -E1, FALC ® -LH, IDEC ® , IOM ® , IOM ® -1, IOM ® -2, IPAT ® -2, ISAC ® -P, ISAC ® -S, ISAC ® -S TE, ISAC ® -P TE, ITAC ® , IWE ® , MUSAC ® -A, OCTAT ® -P, QUAT ® -S, SICAT ® , SICOFI ® , SICOFI ® - 2, SICOFI ® -4, SICOFI ® -4μC, SLICOFI ® are registered trademarks of Infineon Technologies AG. ACE ™ , ASM ™ , ASP ™ , POTSWIRE ™ , QuadFALC ™ , SCOUT ™ are trademarks of Infineon Technologies AG. Revision History Current Version: 3.0 as of 18.05.01 Previous Version: 2.4, Dec. 2000 Page (in previous Version) Page(s) (in current Version) Subjects (major changes since last revision) Product Info, 2-2 Product Info, 2-2 typ. supply current changed 3-123-12Sec. 3.4.8: max. datarate changed, Sec. 3.4.9: max. output current changed 4-44-4value of a changed to 1.414 4-84-8FSK demodulator gain changed to 140μV/kHz 4-134-13value for C2 changed to 22nF according to bill of materials, τ 2 and T 2 changed 5-35-3min. supply current limits added, max. limits changed 5-45-4supply current max. limit changed, min. limit added 5-55-5NF LNA specification removed 5-65-63VOUT min. & max. limits changed, TAGC typ. & max. values changed, IFO: NF mix and RF/IF isolation removed 5-75-7Section “SLICER” reworked, max. datarate at given load capacitance quoted, high output voltage limits changed, precharge current: min., max. limits changed, PDO load and leakage currents limits and typ. values changed, 5-85-8FSK demodulation gain min. limit changed 5-95-9PDWN-current max. limit changed, supply currents min. limits added, max. lim- its changed, 3VOUT min. & max. limits changed, I TAGC_out limits changed 5-105-10Section “SLICER” reworked, max. datarate at given load capacitance quoted, high output voltage limits changed, precharge current: min., max. limits changed, PDO output voltage removed 5-155-15C18 value changed Product Info Product Info Wireless Components Specification, May 2001 Package TDA 5210 Product Info General DescriptionThe IC is a very low power consump- tion single chip FSK/ASK Superhet- erodyne Receiver (SHR) for the frequency bands 810 to 870 MHz and 400 to 440 MHz that is pin compatible with the ASK Receiver TDA5200. The IC offers a high level of integration and needs only a few external compo- nents. The device contains a low noise amplifier (LNA), a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a lim- iter with RSSI generator, a PLL FSK demodulator, a data filter, a data com- parator (slicer) and a peak detector. Additionally there is a power down fea- ture to save battery life. Features
Low supply current (typ. at 868MHz I s = 5.9mA in FSK mode, I s = 5.2mA in ASK mode)
Supply voltage range 5V ±10%
Power down mode with very low supply current (50nA typ)
FSK and ASK demodulation capa- bility
Fully integrated VCO and PLL Synthesiser
ASK sensitivity < –107dBm
Selectable frequency ranges 810- 870 MHz and 400-440 MHz
Limiter with RSSI generation, operating at 10.7MHz
Selectable reference frequency
2nd order low pass data filter with external capacitors
Data slicer with self-adjusting threshold
FSK sensitivity <-100dBm Application
Keyless Entry Systems
Remote Control Systems
Alarm Systems
Low Bitrate Communication Systems Ordering Information TypeOrdering CodePackage TDA 5210 Q67037-A1100P-TSSOP-28-1 samples available on tape and reel 1Table of Contents 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i 2 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 2.1Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2.2Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Wireless Components ASK/FSK Transmitter 868/433 MHz TDK 5100 Version 1.0 Specification October 2002 Preliminary Edition 31.10.2002 Published by Infineon Technologies AG, Balanstraße 73, 81541 München © Infineon Technologies AG 2002. All Rights Reserved. Attention please! As far as patents or other rights of third parties are concerned, liability is only assumed for components, not for applications, processes and circuits im- plemented within components or assemblies. The information describes the type of component and shall not be considered as assured characteristics. Terms of delivery and rights to change design reserved. Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office. Infineon Technologies AG is an approved CECC manufacturer. Packing Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office. By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs incurred. Components used in life-support devices or systems must be expressly authorized for such purpose! Critical components 1 of the Infineon Technologies AG, may only be used in life-support devices or systems 2 with the express written approval of the Infineon Technologies AG. 1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected to cause the failure of that life- support device or system, or to affect its safety or effectiveness of that device or system. 2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered. ABM ® , AOP ® , ARCOFI ® , ARCOFI ® -BA, ARCOFI ® -SP, DigiTape ® , EPIC ® -1, EPIC ® -S, ELIC ® , FALC ® 54, FALC ® 56, FALC ® -E1, FALC ® -LH, IDEC ® , IOM ® , IOM ® -1, IOM ® -2, IPAT ® -2, ISAC ® -P, ISAC ® -S, ISAC ® -S TE, ISAC ® -P TE, ITAC ® , IWE ® , MUSAC ® -A, OCTAT ® -P, QUAT ® -S, SICAT ® , SICOFI ® , SICOFI ® - 2, SICOFI ® -4, SICOFI ® -4μC, SLICOFI ® are registered trademarks of Infineon Technologies AG. Preliminary Revision History Current Version: Version 1.0 as of 31.10.2002 Previous Version: Version 0.1 as of 19.04.2002 Page (in previous Version) Page (in current Version) Subjects (major changes since last revision) 5-24-2ESD-specification added 5-3, 5-64-3, 4-6VCO-frequency range specified 5-4, 5-74-4, 4-7Tolerances of Lcosc specified Value of Iclkout corrected 5-5, 5-84-5, 4-8Tolerances of output power specified Product Info Product Info Wireless Components Specification, October 2002 Package TDK 5100 Product Info General DescriptionThe TDK 5100 is a single chip ASK/ FSK transmitter for the frequency bands 433-435 and 868-870 MHz. The IC offers a high level of integration and needs only a few external components. The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and there- fore to save battery life. Additionally features like a power down mode, a low power detect, a selectable crystal oscil- lator frequency and a divided clock out- put are implemented. The IC can be used for both ASK and FSK modula- tion. Features
fully integrated frequency synthe- sizer
VCO without external components
ASK and FSK modulation
switchable frequency range 433-435 MHz / 868-870 MHz
high efficiency power amplifier (typically 5 dBm / 2 dBm)
low supply current (typically 7mA)
voltage supply range 2.1 - 4 V
temperature range −40 ... +125°C
power down mode
low voltage sensor
selectable crystal oscillator 6.78 MHz / 13.56 MHz
programmable divided clock output for μC
low external component count Applications
Keyless entry systems
Remote control systems
Alarm systems
Communication systems Ordering Information TypeOrdering CodePackage TDK 5100 Q67100-H2060 P-TSSOP-16 available on tape and reel 1Product Description 1.1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.2Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.3Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.4Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Contents of this Chapter Product Description 1 - 2 TDK 5100 Wireless Components Specification, October 2002 1.1 Overview The TDK 5100 is a single chip ASK/FSK transmitter for the frequency bands 433-435 MHz and 868-870 MHz. The IC offers a high level of integration and needs only a few external components. The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additional features like a power down mode, a low power detect, a selectable crystal oscillator fre- quency and a divided clock output are implemented. The IC can be used for both ASK and FSK modulation. 1.2 Applications
Keyless entry systems
Remote control systems
Alarm systems
Communication systems 1.3 Features
fully integrated frequency synthesizer
VCO without external components
ASK and FSK modulation
switchable frequency range 433-435 MHz / 868-870 MHz
high efficiency power amplifier (typically 5 dBm / 2 dBm)
low supply current (typically 7 mA)
voltage supply range 2.1 - 4 V
temperature range −40°C ... 125°C
power down mode
low voltage sensor
selectable crystal…

Text truncated - open the document above for the full version.

1000 Elwell Ct. Suite 200 Palo Alto, CA 94303 www.sentinelvision.com 650-964-6200 Safe Scout Users Guide Version 3.2 By www.sentinelvision.com 650-964-6200 SafeScout Users Guide Page 1 FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provi de reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the SafeScout unit not expressly approved by Sentinel Vision may void the user’s authority to operate the equipment. SafeScout Users Guide Page 2 Table of Contents Quick Set-up Guide................................................................4 Detailed Product Instructions & Information ................9 Your SafeScout Unit.......................................9 Proper Positioning........................................10 Pet Immunity.............................................12 System Test...............................................12 Walk Test..................................................12 Motion Detection & Detection Area..................13 Dial Out with 8 or 9.....................................13 Arming & Disarming Your System...................14 Keypad Operation.......................................14 Keyfob Operation........................................14 Keyfob Battery Replacement Instructions.............15 Siren.......................................................16 Alert, Services & Additional Features .......................18 General Information.....................................18 Motion Alert..............................................18 Panic Alert................................................19 Entry Notification........................................20 Exit Notification..........................................20 Professional Monitoring.................................21 Remote Access of SafeScout Alert Information.....22 Passcode & Other System Changes...................22 Sending images and text to a cell phone..............23 Troubleshooting Guide .........................................24 FCC Part 68 Requirements 26 Product Warranty Information ................................28 SafeScout Users Guide Page 3 Thank you for choosing the SafeScout security and notification system. If you have any questions about your sy stem or set up, please consult our web site at www.sentinelvision.com , or call 877-873-8800 to speak to one of our Customer Service representatives. We will be happy to assist you. Your SafeScout System When you open your SafeScout system, you will find the following items: 1. SafeScout monitoring unit 2. AC charger with 12-foot cord 3. Wireless Siren 4. Extended faceplate screw 5. Male-to-male RJ11 phone cord (14 feet) 6. Three-button keyfob 7. Two back up 9-Volt alkaline batteries 8. SafeScout Quick Installation Guide 9. SafeScout User’s guide 10. Service agreement 11. Self addressed stamped envelope 12. Warning sticker: “Premises Are Under Video & Audio Survellance” 13. 2 Wall mounting screws and sheetrock anchors 14. Clear wall mounting bracket SafeScout Users Guide Page 4 Quick Set-Up Guide You’ll find the installation and set- up instructions for the SafeScout Monitoring Unit and its notification services listed below. There are five easy steps to successfully setting up your SafeScout. Setup usually takes approximately 15 minutes to complete. Figure A 1. SafeScout Location and Installation • Install one of the backup 9 volt alkaline batteries into your SafeScout monitoring unit. Open the battery compartment in the back of your monitoring unit and connect the battery leads. Place the battery into the battery holder and close the battery compartment door. DO NOT attempt to install the battery while the monitoring unit is plugged into a standard electrical wall outlet. • Choose a location to be monitored. It is best to select a location that is centrally located within your premise (for example: the main entry or living area). Your SafeScout monitoring unit will require AC power and a telephone jack located within 12 feet from the unit. This distance could be increased with power or telephone extension cords available from your local electronics retailer. In addition a wireless phone jack system could be used in conjunction with the SafeScout monitoring unit. Please note that the SafeScout system and all of its components are only suitable for indoor use . It is not recommended that the SafeScout system or any of its components be installed outdoors. For optimum keyfob range please chose a location as SafeScout Users Guide Page 5 far away from other electrical equipment such as radios, televisions and microwaves as possible. In addition do not place the Monitoring Units antenna on top of or near electrical cords. • Position or aim the monitoring unit to best vi…

Text truncated - open the document above for the full version.

SafeScout Labels for Production Run, Date: 1/13/2006 Label #4, Goes on bottom of SVMU just in front of the front feet, Label SVMU (phone codes, S/N, FCC) 1.375" X 1.75", Silver w/black text, polyester FCC id & P/N changed Jan 06 SafeScout, SVI-MU-100 For home or office use Sentinel Vision Palo Alto, CA Complies with UL 60950-1 LISTING NO: E112504 CSA C22.2 No. 60950-1 US: J87-AL-00B-MU100 FCC ID: TOW-MU100 Complies with FCC Rules Part 15 & 68 Input 12V... 1.0A Label #6, Goes on back of Siren, Label - SVSR (external UL and FCC, and with S/N) 2"x1", Silver w/ black text, polyester CHANGED Siren S/N: SR-000-034-170 Complies with UL 60950-1 LISTING NO: E112504 CSA C22.2 No. 60950-1 FCC ID: TOW-MU100 Complies with FCC Rules Part 15 US Patent: 6,850,601 INPUT 120V 60Hz .25A <<<Black text on Silver <<<Rounded corners




 SLAS241H − SEPTEMBER 1999 − REVISED SEPTEMBER 2004 1 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 DLow Supply Voltage Range 1.8 V to 3.6 V DUltralow-Power Consumption − Active Mode: 160 μA at 1 MHz, 2.2 V − Standby Mode: 0.7 μA − Off Mode (RAM Retention): 0.1 μA DWake-Up From Standby Mode in less than 6 μs D16-Bit RISC Architecture, 125 ns Instruction Cycle Time DBasic Clock Module Configurations: − Various Internal Resistors − Single External Resistor − 32-kHz Crystal − High-Frequency Crystal − Resonator − External Clock Source D16-Bit Timer_A With Three Capture/Compare Registers DOn-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion DSerial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse DFamily Members Include: MSP430C1101: 1KB ROM, 128B RAM MSP430C1111: 2KB ROM, 128B RAM MSP430C1121: 4KB ROM, 256B RAM MSP430F1101A: 1KB + 128B Flash Memory 128B RAM MSP430F1111A: 2KB + 256B Flash Memory 128B RAM MSP430F1121A: 4KB + 256B Flash Memory 256B RAM DAvailable in a 20-Pin Plastic Small-Outline Wide Body (SOWB) Package, 20-Pin Plastic Small-Outline Thin Package, 20-Pin TVSOP (F11x1A only) and 24-Pin QFN DFor Complete Module Descriptions, Refer to the MSP430x1xx Family User’s Guide, Literature Number SLAU049 description The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs. The MSP430x11x1(A) series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer, versatile analog comparator and fourteen I/O pins. Typical applications include sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system. Stand alone RF sensor front end is another area of application. The I/O port inputs provide single slope A/D conversion capability on resistive sensors. AVAILABLE OPTIONS PACKAGED DEVICES T A PLASTIC 20-PIN SOWB (DW) PLASTIC 20-PIN TSSOP (PW) PLASTIC 20-PIN TVSOP (DGV) PLASTIC 24-PIN QFN (RGE) −40°C to 85°C MSP430C1101IDW MSP430C1111IDW MSP430C1121IDW MSP430C1101IPW MSP430C1111IPW MSP430C1121IPW MSP430F1101AIDGV MSP430F1111AIDGV MSP430C1101IRGE MSP430C1111IRGE MSP430C1121IRGE −40°C to 85°C MSP430C1121IDW MSP430F1101AIDW MSP430F1111AIDW MSP430F1121AIDW MSP430C1121IPW MSP430F1101AIPW MSP430F1111AIPW MSP430F1121AIPW MSP430F1111AIDGV MSP430F1121AIDGV MSP430C1121IRGE MSP430F1101AIRGE MSP430F1111AIRGE MSP430F1121AIRGE Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. Copyright  1999 − 2004 Texas Instruments Incorporated      ! "#$ !  %#&'" ($) (#"! "  !%$""! %$ *$ $!  $ ! !#$! !(( +,) (#" %"$!!- ($!  $"$!!', "'#($ $!-  '' %$$!)



 SLAS241H − SEPTEMBER 1999 − REVISED SEPTEMBER 2004 2 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 RGE PACKAGE (TOP VIEW) 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 TEST V CC P2.5/R osc V SS XOUT XIN RST /NMI P2.0/ACLK P2.1/INCLK P2.2/CAOUT/TA0 P1.7/TA2/TDO/TDI P1.6/TA1/TDI/TCLK P1.5/TA0/TMS P1.4/SMCLK/TCK P1.3/TA2 P1.2/TA1 P1.1/TA0 P1.0/TACLK P2.4/CA1/TA2 P2.3/CA0/TA1 DW, PW, or DGV PACKAGE (TOP VIEW) V SS P2.5/R OSC XOUT V CC XIN TEST RST/NMI P1.7/TA2/TDO/TDI P2.0/ACLK P1.6/TA1/TDI/TCLK NC NC P1.4/SMCLK/TCK P1.3/TA2 P1.2/TA1 P1.1/TA0 P1.0/TACLK P1.5/TA0/TMS Note: NC pins not internally connected P2.1/INCLK P2.2/CAOUT/TA0 NC P2.3/CA0/TA1P2.4/CA1/TA2 NC 1 2 3 4 5 6 18 17 16 15 14 13 891011 20212223 Power Pad connection to V SS recommended functional block diagram Oscillator ACLK SMCLK CPU Incl. 16 Reg. Bus Conv MCB XINXOUTP2 MDB, 16 Bit MAB, 16 Bit MCLK MAB, 4 Bit V CC V SS RST/NMI System Clock R OSC P1/JTAG Flash/ROM 4KB 2KB 1KB RAM 256B 128B 128B Watchdog Timer 15/16-Bit Timer_A3 3 CC Reg I/O Port 1 8 I/Os, with Interrupt Capability I/O Port 2 6 I/Os, with Interrupt Capability POR MDB, 16-Bit MAB, 16-Bit TEST Test JTAG Emulation Module 86 Comparator A MDB, 8 Bit



 SLAS241H − SEPTEMBER 1999 − REVISED SEPTEMBER 2004 3 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 Terminal Functions TERMINAL NAME DW, PW, or DGVRGE I/O DESCRIPTION NAME NO.NO. I/O DESCRIPTION P1.0/TACLK1313I/OGeneral-purpose digital I/O pin/Timer_A, clock signal TACLK input P1.1/TA01414I/OGeneral-purpose digital I/O pin/Timer_A, capture: CCI0A input, compare: Out0 output/BSL transmit P1.2/TA11515I/OGeneral-purpose digital I/O pin/Timer_A, capture: CCI1A input, compare: Out1 output P1.3/TA21616I/OGeneral-purpose digital I/O pin/Timer_A, capture: CCI2A input, compare: Out2 output P1.4/SMCLK/TCK1717I/OGeneral-purpose digital I/O pin/SMCLK signal output/test clock, input terminal for device programming and test P1.5/TA0/TMS1818I/OGeneral-purpose digital I/O pin/Timer_A, compare: Out0 output/test mode select, input terminal for device programming and test P1.6/TA1/TDI/TCLK1920I/OGeneral-purpose digital I/O pin/Timer_A, compare: Out1 output/test data input or test clock input P1.7/TA2/TDO/TDI † 2021I/OGeneral-purpose digital I/O pin/Timer_A, compare: Out2 output/test data output terminal or data input during programming P2.0/ACLK86I/OGeneral-purpose digital I/O pin/ACLK output P2.1/INCLK97I/OGeneral-p…

Text truncated - open the document above for the full version.

2.1033 (12) (9) Tune-up procedure over the power range, or at specific operating power levels. Acceptance limit used within the production of the intentional radiator are: 1. Center Frequency of 433.5Mhz ± 15Khz 2. Deviation no greater than ± 90Khz and no less than ± 70Khz While feeding the transmitter a square wave at 9600 Hz (19.2K Baud), the limits are measured using a calibrated spectrum analyzer on all transceivers during the production process. If a limit is exceeded, the follow corrective actions are taken. 1. If the deviation was greater than ± 90Khz, then the value of C45 would be reduced to lower the deviation swing. It is known that a change of this type would increase the center frequency and that step #4 may be needed after re-measurement. 2. If the deviation was less than ± 70Khz, then the value of C45 would be increased to increase the deviation swing. It is known that a change of this type would decrease the center frequency and that step #3 may be needed after re-measurement. 3. If the center frequency was less than 433.485, then value of C44 would be reduced to increase the center frequency. It is known that a change of this type will also reduce the overall deviation and that step #2 may be needed after re-measurement. 4. If the center frequency was greater than 433.515, then value of C44 would be increased to lower the center frequency. It is known that a change of this type will also increase the deviation and that step #1 may need be needed after re-measurement. If the limits are not then met – the unit will be scrapped.

Sentinel Vision SafeScout CFR Title 47, Part 15, Subpart B and C MET Report: EMCS18082B-FCC231 © 2006, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Sentinel Vision SafeScout Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.231, Subpart B and C MET Report: EMCS18082B-FCC231 January 6, 2006 Prepared For: Sentinel Vision 1000 Elwell Court, Suite 200 Palo Alto, CA 94303 Prepared By: MET Laboratories, Inc. 33439 Western Ave. Union City, California 94587 Sentinel Vision SafeScout CFR Title 47, Part 15, Subpart B and C MET Report: EMCS18082B-FCC231 © 2006, MET Laboratories, Inc. Page ii of vi Electromagnetic Compatibility Criteria Test Report for the Sentinel Vision SafeScout Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.231 for Intentional Radiators Shawn McMillen, Project Engineer Cheryl Anicete Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15.231, of the FCC Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Sentinel Vision SafeScout CFR Title 47, Part 15, Subpart B and C MET Report: EMCS18082B-FCC231 © 2006, MET Laboratories, Inc. Page iii of vi Report Status Sheet Revision Report Date Reason for Revision ∅ January 6, 2006 Initial Issue. Sentinel Vision SafeScout CFR Title 47, Part 15, Subpart B and C MET Report: EMCS18082B-FCC231 © 2006, MET Laboratories, Inc. Page iv of vi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................5 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment ....................................................................................................…
