TPP06C-1Tri-band GSM900/1800/1900 mobile phone

1 C-1 User Manual EN V1.1 Claims All the trademarks and logos indicated as such herein, including the registered and unregistered trademarks and logos, are the property of i-MOBIL and their respective owners. The foregoing is the trademark of i-MOBIL and can not be used without i-MOBIL’s authorization. i-MOBIL reserves its right to make changes and improvements to any of the products described in this manual without prior notice. Under no circumstances shall i-MOBIL be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The content of this manual is provided “as is”. To the fullest extent permissible by law, i-MOBIL makes no representations or warranties of any kind, either express or implied, for, but not limited to, the accuracy, merchantability and fitness of this manual for a particular purpose. 2 3 Contents FOR YOUR SAFETY.................................................................................................................................................................... 6 BRIEF INTRODUCTION............................................................................................................................................................. 7 YOUR PHONE’S LABEL.................................................................................................................................................................. 7 PASSWORD...................................................................................................................................................................................... 7 PHONE IMAGE AND KEY DEFINITION......................................................................................................................................... 7 BRIEF MENU TREE......................................................................................................................................................................... 8 DISPLAY ICON................................................................................................................................................................................ 9 GETTING STARTED.................................................................................................................................................................. 10 USING THE BATTERY.................................................................................................................................................................. 10 INSTALLING A MEMORY CARD AND THE SIM CARD.............................................................................................................. 10 CHARGING THE BATTERY.......................................................................................................................................................... 11 LOW BATTERY WARNING............................................................................................................................................................ 11 BATTERY TIPS.............................................................................................................................................................................. 11 TURNING YOUR PHONE ON/OFF................................................................................................................................................ 11 KEYPAD SHORTCUTS.................................................................................................................................................................. 12 USE AND MAINTENANCE............................................................................................................................................................ 12 BASIC FUNCTIONS................................................................................................................................................................... 13 SIM LOCK.................................................................................................................................................................................... 13 MAKING A CALL........................................................................................................................................................................... 13 ANSWERING OR REJECTING A CALL........................................................................................................................................ 13 DURING A CALL........................................................................................................................................................................... 13 MISSED CALL............................................................................................................................................................................... 14 HOW TO USE MULTIMEDIA ENTERTAINMENT........................................................................................................... 15 MUSIC PLAYER............................................................................................................................................................................ 15 FM RADIO.................................................................................................................................................................................... 16 VOICE RECORDER........................................................................................................................................................................ 17 MASS STORAGE........................................................................................................................................................................... 18 FILE VIEWER................................................................................................................................................................................. 18 SETTING UP RING STYLE…

Text truncated - open the document above for the full version.

PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg To Whom It May Concern: Please be advised that i-MOBIL S.A. de C.V. authorizes Morlab to act on our behalf, until otherwise notified, for applications submitted to PHOENIX TESTLAB GmbH (PTL). Thank you for your attention to this matter. Fernando Hernandez Camacho Technical Manager 2006-06-09

Notified Body Königswinkel 10 D-32825 Blomberg, Germany Phone +49 (0) 52 35 95 00-24 Fax +49 (0) 52 35 95 00-28 [email protected] www.phoenix-testlab.de Ersteller: H. Bentje Revision: 01 Erstelldatum: 03.01.02 Datum: 02.04.04 E:\Project\FCC\iMobile\C1\1.letters\ApplicantLetter0 Applicant Statement Rev02.doc Seite 1 von 6 General Checklist and Application Form for Low Power Transmitters subject to FCC CERTIFICATION regulations The following items need to be submitted in electronic format for Certification application. The applicable formats are described in the PHOENIX TESTLAB TCB User’s Manual. All letters have to be signed by an authorised signatory. Use this checklist to evaluate your application. Please note, that the Applicant’s Statement is part of the application. Applicant i-MOBIL S.A. de C.V. Company Address Ave. Paseo de la Reforma #560, Lomas de Chapultepec, Monte Himalaya y Explanada, Del. Miguel Hidalgo, Mexico D. F.C. P. 11000 Contact person Fernando Hernandez Camacho, Technical Manager E-Mail FERNANDO@I- MOBIL.COM.MX Website/ Company URL Phone 5255-5545-2020 Fax 5255-5545-2030 Agent of the Applicant, if applicable Morlab Company (Agent) Address Electronic Testing Building, Shahe Road, Xili Town, Shenzhen, P.R.China Contact person Wu Xuewen E-Mail [email protected] n Website / Company URL www.morlab.cn Phone +86 0755 86130298-3011 Fax +86 0755 86130218 The applicant is listed in the FCC database: Yes No Applicant/Grantee Code (MUST be obtained, refer to the FCC website http://www.fcc.gov) TPP FCC Identifier (FCC ID) of the product, if applicable 06C-1 Specific Rule Selection applied for (e.g. Section 15.247) Product Details Short Description Mobile phone Type or Model Name C-1 Brand Name i-MOBIL Shenzhen P.R.C, June 12,2006 Place, Date Signature and Stamp - 2 - Applicant’s Statement [..............................................................................] [company name] (hereinafter the “Applicant”) accept the following terms as provided in this Telecommunication Certification Body Agreement. The Applicant authorizes PHOENIX TESTLAB GmbH (hereinafter “PTL”) to perform the required certification and testing in compliance with the current Federal Communications Commission (FCC) regulations. 1. Certificate. The Applicant shall endeavour to ensure that no certificate or report or any part thereof is used in a misleading manner. Equipment shall be represented as certified only if it complies with the FCC regulations and is labelled as required by the FCC. The Applicant will use the certification only to indicate that the respective products are certified in conformity with the specified FCC regulations. 2. Conformity: The equipment, represented, as certified shall comply with all of the FCC technical and administrative requirements. 3. Audits: PTL is authorized to perform audits of the Applicant's equipment and documentation. The Applicant shall make all necessary arrangements for the conduct of the audit and/or evaluation, including provision for examining documentation and access to records (especially to internal audit reports) and personnel for the purpose of evaluation (including but not limited to: testing, inspection, assessment, surveillance, reassessment) and resolution of complaints. 4. Forwarded information: The Applicant is liable that all information, including but not limited to specifications, company information, technical data, testing data etc., given and to be given to PTL are correct, complete, and verifiable. 5. Samples: PTL attempts to keep the need for samples to a minimum. However, if PTL requests samples from time to time for examination and testing purposes from the Applicant, the Applicant shall furnish such samples of the respective equipment without charge. If requested by the Applicant PLT will return the samples at the Applicant's expense. PTL shall not be responsible for the condition of the samples. The samples may be damaged or destroyed during testing. 6. Testing and Certification: The rights of PTL under this Agreement do not relieve the Applicant of any part of its obligations under this Agreement. The Applicant recognizes that the opinions and findings of PTL represent its judgment given with due consideration to the type of certification, the necessary limitations of practical and in accordance with its objects and purposes. The Applicant recognizes that many tests specified in the FCC requirements may be inherently hazardous and agrees that PTL neither assumes nor accepts any responsibility for any injury or damage to the Applicant's property or personnel that may occur during or as a result of tests, whether performed in whole or in part by the Applicant or PTL, and whether or not any device, test equipment, facility or personnel for or in connection with the test is furnished by the Applicant or PTL. Ersteller: H. Bentje Revision: 02 Erstelldatum: 03.01.02 Datum: 24.05.05 Seite 2 von 6 - 3 - 7. Notification to PTL: The Applicant shall notify PTL immediately if the Applicant discovers that the equipment has been or may have been the cause of harm to any telephone network, harmful interference, or of personal injury or property damage. In cases where the results of examination by an agency other than PTL were relied upon by PTL for certification of the equipment, the Applicant shall notify PTL if the Applicant subsequently discovers said results to be invalid. 8. Complaints: The Applicant shall keep a record of all complaints made known to the supplier relating to a product’s compliance with the requirements of the relevant standard. On request, the Applicant will make these records available to PTL. 9. Actions Resulting from Complaints: The Applicant shall take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirement for certification. The Applicant shall document actions taken. 10. Termination: A TCB may revoke a certification gr…

Text truncated - open the document above for the full version.

Date: June 9, 2006 PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: TPP06C-1 Confidentiality Request Pursuant to Section 0.459 and 0.457 of the Commission’s Rule, i-MOBIL S.A. de C.V. hereby requests confidential treatment of information accompanying this Application as outlined below: - Block Diagram - Schematics - Operational Description - Part list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the prublic. The public disclosure of these matters might be harmful to i-MOBIL S.A. de C.V.and provide unjustified benefits to its competitors. Thank you for your attention in this matter. Yours Sincerely, Fernando Hernandez Camacho Technical Manager i-MOBIL S.A. de C.V.

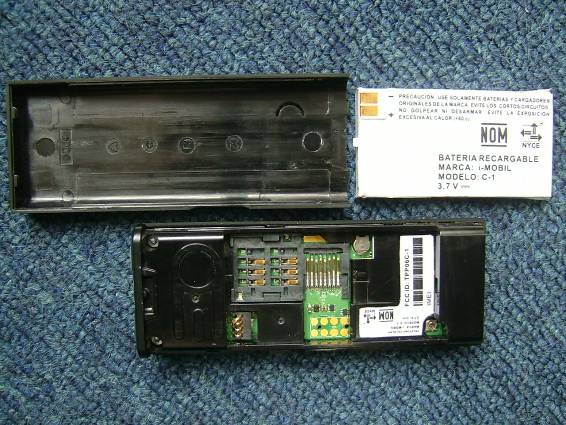

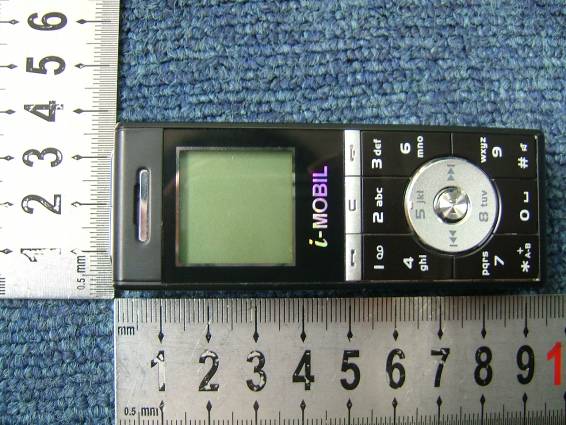

External Photos 1. Front View of EUT 2. Inside View of EUT 3. Back View of EUT 4. AC adapter 5. Side View

Label Label Location

Internal Photos

Report No. SN0112_1900 March 2006 INDEXSAR 1900MHz validation Dipole Type IXD-080 S/N 0112 Performance measurements MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5BG. UK. Tel: +44 (0) 1306 633870 Fax: +44 (0) 1306 631834 e-mail: [email protected] 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An Anritsu MS4623B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made from a low- permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rigid 50 Ohm co-ax, which is joined by soldering and is gold-plated subsequently. The constructed dipoles are easily deformed, if mis-handled, and periodic checks need to be made of their symmetry. Rohacell foam spacers designed for presenting the dipoles to 2mm thick PMMA box phantoms. These components also suffer wear and tear and should be replaced when the central hole is a loose-fit on the dipole arms or if the edges are too worn to ensure accurate alignment. The standard spacers are dimensioned for use with 2mm wall thickness (additional spacers are available for 4mm wall thickness). 2. Typical SAR Measurement A SAR validation check is performed with the box-phantom located on the SARA2 phantom support base on the SARA2 robot system. Tests are then conducted at a feed power level of approx. 0.25W. The actual power level is recorded and used to normalise the results obtained to the standard input power conditions of 1W (forward power). The ambient temperature is 22 o C +/- 1 o C and the relative humidity is around 40% during the measurements. The phantom is filled with a 1900MHz brain liquid using a recipe from [1], which has the following electrical parameters (measured using an Indexsar DiLine kit) at 1900MHz: Relative Permittivity 41.4 Conductivity 1.85 S/m The SARA2 software version 2.2 VPM is used with an Indexsar probe previously calibrated using waveguides. The 3D measurements made using the dipole at the bottom of the phantom box is shown below: The results, normalised to an input power of 1W (forward power) are typically: Averaged over 1 cm3 (1g) of tissue 4.928 W/kg Averaged over 10cm3 (10g) of tissue 2.362 W/kg These results can be compared with Table 8.1 in [1]. The agreement is within 10%. 3. Dipole impedance and return loss The dipoles are designed to have low return loss ONLY when presented against a lossy-phantom at the specified distance. A Vector Network Analyser (VNA) was used to perform a return loss measurement on the specific dipole when in the measurement-location against the box phantom. The distance was as specified in the standard i.e. 10mm from the liquid (for 1900MHz). The Indexsar foam spacers (described above) were used to ensure this condition during measurement. The impedance was measured at the SMA-connector with the network analyser. The following parameters were measured: Dipole impedance at 1900 MHz Re{Z} = 49.996 Ω Im{Z} = 15.160 mΩ Return loss at 1900MHz -26.175 dB 4. Dipole handling The dipoles are made from standard, copper-sheathed coaxial cable. In assembly, the sections are joined using ordinary soft-soldering. This is necessary to avoid excessive heat input in manufacture, which would destroy the polythene dielectric used for the cable. The consequence of the construction material and the assembly technique is that the dipoles are fragile and can be deformed by rough handling. Conversely, they can be straightened quite easily as described in this report. If a dipole is suspected of being deformed, a normal workshop lathe can be used as an alignment jig to restore the symmetry. To do this, the dipole is first placed in the headstock of the lathe (centred on the plastic or brass spacers) and the headstock is rotated by hand (do NOT use the motor). A marker (lathe tool or similar) is brought up close to the end of one dipole arm and then the headstock is rotated by 0.5 rev. to check the opposing arm. If they are not balanced, judicious deformation of the arms can be used to restore the symmetry. If a dipole has a failed solder joint, the dipole can be fixed down in such a way that the arms are co-linear and the joint re-soldered with a reasonably-powerful electrical soldering iron. Do not use gas soldering irons. After such a repair, electrical tests must be performed as described below. Please note th…

Text truncated - open the document above for the full version.

IMMERSIBLE SAR PROBE CALIBRATION REPORT Part Number: IXP – 050 S/N 0177 March 2006 Indexsar Limited Oakfield House Cudworth Lane Newdigate Surrey RH5 5BG Tel: +44 (0) 1306 632 870 Fax: +44 (0) 1306 631 834 e-mail: [email protected] Page 1 of 19 Page 2 of 19 INTRODUCTION This Report presents measured calibration data for a particular Indexsar SAR probe (S/N 0177) and describes the procedures used for characterisation and calibration. Indexsar probes are characterised using procedures that, where applicable, follow the recommendations of CENELEC [1] and IEEE [2] standards. The procedures incorporate techniques for probe linearisation, isotropy assessment and determination of liquid factors (conversion factors). Calibrations are determined by comparing probe readings with analytical computations in canonical test geometries (waveguides) using normalised power inputs. Each step of the calibration procedure and the equipment used is described in the sections below. CALIBRATION PROCEDURE 1. Objectives The calibration process comprises three stages 1) Determination of the channel sensitivity factors which optimise the probe’s overall rotational isotropy in 1800MHz brain fluid 2) At each frequency of interest, application of these channel sensitivity factors to model the exponential decay of SAR in a waveguide fluid cell, and hence derive the liquid conversion factors at that frequency 3) Determination of the effective tip radius and angular offset of the X channel which together optimise the probe’s spherical isotropy in 900MHz brain fluid 2. Probe output The probe channel output signals are linearised in the manner set out in Refs [1] and [2]. The following equation is utilized for each channel: U lin = U o/p + U o/p 2 / DCP (1) where U lin is the linearised signal, U o/p is the raw output signal in voltage units and DCP is the diode compression potential in similar voltage units. DCP is determined from fitting equation (1) to measurements of U lin versus source feed power over the full dynamic range of the probe. The DCP is a characteristic of the Schottky diodes used as the sensors. For the IXP-050 probes with CW signals the DCP values are typically 0.10V (or 20 in the voltage units used by Indexsar software, which are V*200). In turn, measurements of E-field are determined using the following equation (where output voltages are also in units of V*200): Page 3 of 19 E liq 2 (V/m) = U linx * Air Factor x * Liq Factor x + U liny * Air Factor y * Liq Factor y + U linz * Air Factor z * Liq Factor z (3) Here, “Air Factor” represents each channel’s sensitivity, while “Liq Factor” represents the enhancement in signal level when the probe is immersed in tissue-simulant liquids at each frequency of interest. 3. Selecting channel sensitivity factors to optimise isotropic response After manufacture, the first stage of the calibration process is to balance the three channels’ Air Factor values, thereby optimising the probe’s overall axial response (“rotational isotropy”). To do this, an 1800MHz waveguide containing head-fluid simulant is selected. Like all waveguides used during probe calibration, this particular waveguide contains two distinct sections: an air-filled launcher section, and a liquid cell section, separated by a dielectric matching window designed to minimise reflections at the air-liquid interface. The waveguide stands in an upright position and the liquid cell section is filled with 1800MHz brain fluid to within 10 mm of the open end. The depth of liquid ensures there is negligible radiation from the waveguide open top and that the probe calibration is not influenced by reflections from nearby objects. During the measurement, a TE 01 mode is launched into the waveguide by means of an N-type-to-waveguide adapter. The probe is then lowered vertically into the liquid until the tip is exactly 10mm above the centre of the dielectric window. This particular separation ensures that the probe is operating in a part of the waveguide where boundary corrections are not necessary. Care must also be taken that the probe tip is centred while rotating. The exact power applied to the input of the waveguide during this stage of the probe calibration is immaterial since only relative values are of interest while the probe rotates. However, the power must be sufficiently above the noise floor and free from drift. The dedicated Indexsar calibration software rotates the probe in 10 degree steps about its axis, and at each position, an Indexsar ‘Fast’ amplifier samples the probe channels 500 times per second for 0.4 s. The raw U o/p data from each sample are packed into 10 bytes and transmitted back to the PC controller via an optical cable. U linx , U liny and U linz are derived from the raw U o/p values and written to an Excel template. Once data have been collected from a full probe rotation, the Air Factors are adjusted using a special Excel Solver routine to equalise the output from each channel and hence minimise the rotational isotropy. This automated approach to optimisation removes the effect of human bias. Figure 5 represents the output from each diode sensor as a function of probe rotation angle. The directionality of the orthogonally-arranged sensors can be checked by analysing the data using dedicated Indexsar software, which displays the data in 3D format, a representative image of which is shown in Figure 3. The left-hand side of this diagram shows the individual channel outputs after linearisation (see above). The program uses these data to balance the channel outputs and then applies an optimisation process, which makes fine adjustments to the channel factors for optimum isotropic response. 4. Determination of Conversion (“Liquid”) Factors at each frequency of interest A lookup table of conversion factors for a probe allows a SAR value to be derived at the measured frequencies, and for either brain or body fluid- simulant. The method by which the conversion factors are assessed is based…

Text truncated - open the document above for the full version.

49 No.SAR06-020 Page 3 of 49 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test 3.2. Identification of all used Test Sample of the Equipment under Test 4. OPERATIONAL CONDITIONS DURING TEST 4.1. Schematic Test Configuration 4.2. SAR Measurement System 5. CHARACTERISTICS OF THE TEST 5.1. Applicable Limit Regulations 5.2. Applicable Measurement Standards 6. LABORATORY ENVIRONMENT 7. TEST RESULTS 7.1. Dielectric Performance 7.2. Summary of Measurement Results 7.3. Conclusion 8. MEASUREMENT UNCERTAINTY 9. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Accreditation Certificate Annex B: Test Layout Annex C: Sample Photographs Annex D: Graph Test Results No.SAR06-020 Page 4 of 49 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of Shenzhen Electronic Product Quality Testing Center. 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Shenzhen Electronic Product Quality Testing Center and the Accreditation Bodies, if it applies. No. SAR06-020 Page 5 of 49 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: ShenZhen Electronic Product Quality Testing Center Department: Testing Department Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China Telephone: +86-755-26628676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Wu Li’an 2.2. Identification of the Responsible Testing Location(s) Company Name: ShenZhen Electronic Product Quality Testing Center Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China 2.3. Organization Item S.E.T Report No.: SAR06-020 S.E.T Project Leader: Mr. Li Sixiong S.E.T Responsible for accreditation scope: Mr. Wu Li’an Start of Testing: 2006-5-26 End of Testing: 2006-5-27 2.4. Identification of Applicant Company Name: i-MOBIL S.A.de C.V. Address: Ave. Paseo de la Reforma #560, Lomas de Chapultepec, Monte Himalaya y Explanada, Del. Miguel Hidalgo, Mexico D. F.C. P. 11000 Contact person: Fernando Hernandez Camacho Telephone: +86-5255-5545-2020 Fax: +86-5255-5545-2020 2.5. Identification of Manufacture Company Name: i-MOBIL S.A.de C.V. Address: Ave. Paseo de la Reforma #560, Lomas de Chapultepec, Monte Himalaya y Explanada, Del. Miguel Hidalgo, Mexico D. F.C. P. 11000 Contact person: Fernando Hernandez Camacho Telephone: +86-5255-5545-2020 Fax: +86-5255-5545-2020 Notes: This data is based on the information by the applicant. No. SAR06-020 Page 6 of 49 3. Equipment Under Test (EUT) 3.1. Identification of the Equipment under Test Brand Name: i-MOBIL Type Name: C-1 Marking Name: C-1 Test frequency PCS 1900MHz Development Stage Production Accessories Head phone Battery type C-1 Battery specification430mAh 3.7V Antenna type Build inside Operation mode Call established Modulation mode GSM; NO BLUETOOTH General description: Max. Power(EIRP) 0.804w(29.05dBm) 3.2. Identification of all used Test Sample of the Equipment under Test EUT Code Serial Number Hardware Version Software Version IMEI N.A. N.A. V5T3 C5M1_V1.0.0 359915000010005 No. SAR06-020 Page 7 of 49 4 OPERATIONAL CONDITIONS DURING TEST 4.1 Schematic Test Configuration During SAR test, EUT is in Traffic Mode (Channel Allocated) at Normal Voltage Condition. A communication link is set up with a System Simulator (SS) by air link, and a call is established. The TCH is allocated to 512, 661 and 810 respectively in the case of PCS 1900 MHz. The EUT is commanded to operate at maximum transmitting power. The EUT shall use its internal transmitter. The antenna(s), battery and accessories shall be those specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. If a wireless link is used, the antenna connected to the output of the base station simulator shall be placed at least 50 cm away from the handset. The signal transmitted by the simulator to the antenna feeding point shall be lower than the output power level of the handset by at least 35 dB. 4.2 SAR…

Text truncated - open the document above for the full version.
