TQ4XC2903UHF RFID Reader

1. Before You Begin 1.1 Overview l Target client The user who uses Invengo RFID handheld reader products l Software application The RFID handheld reader demo software applies to multiple types of RFID handheld readers, demonstrating the function and parameters setting of the RFID handheld reader. l Features The software applies to multiple types of RFID handheld reader products, integrating many functions including barcode reading and photographing. 1.2 Application Scope The software applies to following types of Invengo RFID handheld readers: l XC2903 l XC2901-FUF 1.3 Supported Operation Systems and Protocols l Supported Operation Systems Windows CE 5.0 Windows CE 6.0 l Supported protocols ISO18000-6C ISO18000-6B 1.4 Knowledge to prepare l Install or uninstall software in Windows CE system. l Basic concepts of the reader and the tag l Basic operations of the RFID handheld reader 1.5 Terms and Abbreviations RFID: Radio Frequency Identification, also called electronic tag or wireless radio frequency identification, is a type of communication technique that could identify target object and read/write relevant data through radio signal. TID: Tag Identification, referring to data stored within TID data memory section, as the unique identification of a tag, could be read but not be modified. EPC: Electronic Product Code, the new generation of product coding system disclaimed by EPCglobal, allowing every product to have the unique code over the world, could be read and written. UserData: User Data, referring to data stored within user data memory section, defined by user, could be reader and written. 1.6 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC RF exposure Statement The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate(SAR). The SAR limit set by the FCC is 1.6 W/kg. The highest SAR level measured for this device isW/kg, so this device meets the FCC Requirement. This device and its antenna(s) must not be co‐located or operation in conjunction with any other antenna or transmitter. 1.06 2. Application Instruction 2.1 Open the Interface Open the demo software, the main i nterface will show as below: Figure 2-1 the main interface l Explorer: To open the explore in the system l Control Panel: To open the control panel in the system. l View process: To open the process viewer in the system. “PDA”, “RFID”, “Barcode”, “Ti meSync” and “Camera” will be described in detail below. 2.2 RFID RFID module i s used for demonstrating the function of radio frequency identifi cation on the RFID handheld reader, including operations on the tag. 2.2.1 Read tag Click the button, the RFID interface will come up as below: Figure 2-2 RFID interface l Clear: To clear the scanning results in the table. l Read: To perform loop reading. l Option: To set reader parameters and tag operations. Click the button “Scan” (the button will be transferred to “Stop” after clicking), the reader will perform loop scanning. That means a tag will be scanned for many times. Then, the data and scanning times of the tag will be listed in the table. The loop scanning will not be stopped until you click the button “Stop” (the button will be transferred to “Scan” after clicking). The example is shown as figure 2-3. Note: scanning can also be performed by pressing the key [SCAN] on the RFID handheld reader. Figure 2-3 read As shown in the figures above, the scanning state (incl uding reading time, reading rate and tag amount) will be displayed under the table. If the data of the last time is not cleared, the current scanning data will be added to the previous data. In the same word, the scanning times will be added to the value displayed at the last stop instead of 0. If you would li ke to count the scanning times from 0, please click “Clear”. Then, the data of the last scanning will be cleared and could perform a new time of scanning. The software is set to read TID of tags in default. The reading settings could be changed in “Read set”. Click “Option”, the interface is shown as figure 2-4. Figure 2-4 RFID option The read settings and other settings will be introduced in detail below. 2.2.2 Read Settings Path: RFID --> Option --> Read Set Settings: Data area, Tag amount, Read interval, TID Length, Tag Type, RSSI, Sound, Char. displ ay. The interface is shown as figure 2-5. Figure 2-5 Read Settings • Data area: ∘ TID_6C: TID data memory section of 6C tag. The default l ength is 8 bytes. ∘ EPC_6C: EPC data memory section of 6C …

Text truncated - open the document above for the full version.

Invengo Information Technology co., Ltd. Equipment Name: UHF RFID Reader FCC ID: TQ4XC2903 Model: XC2903 Hopping description: Divide the bandwidth from 902.75MHz to 927.25MHz to 50 frequency points, each bandwidth with 500KHz. The system selects 16 frequency points from 50 frequency points. The transmitting point is selected randomly, and shared the same priority. The max frequency hopping time is 400ms. Hopping Sequence: For example, for the hop pattern of 925.75, 924.25, 921.75, 919.25, 920.25, 917.25, 910.25, 916.75, 916.25, 913.25, 905.75, 912.75, 908.75, 910.25, 908.25, 904.75 The sequential hops is no any order can follow, is completely random. Sincerely, Signature Shuangliang Yi/Quality manager E-mail: : [email protected] Phone: +86-0755-26525035 Fax: +86-0755-26525035 Address : 3/F，No.T2-B,High-tech industrial Park South, Shenzhen 518057,china

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Invengo Information Technology Co., Ltd. 2014-5-19 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Invengo Information Technology Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: TQ4XC2903 UHF RFID Reader; Model Number: XC2903 We affirm that between SIEMIC and Invengo Information Technology Co., Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Shuangliang Yi /Quality Manager E-mail: [email protected] Phone: +86-755-26525035 Fax: +86-755-26525035 Address 3/F，No.T2-B, High-tech industrial Park South, Shenzhen 518057, China.

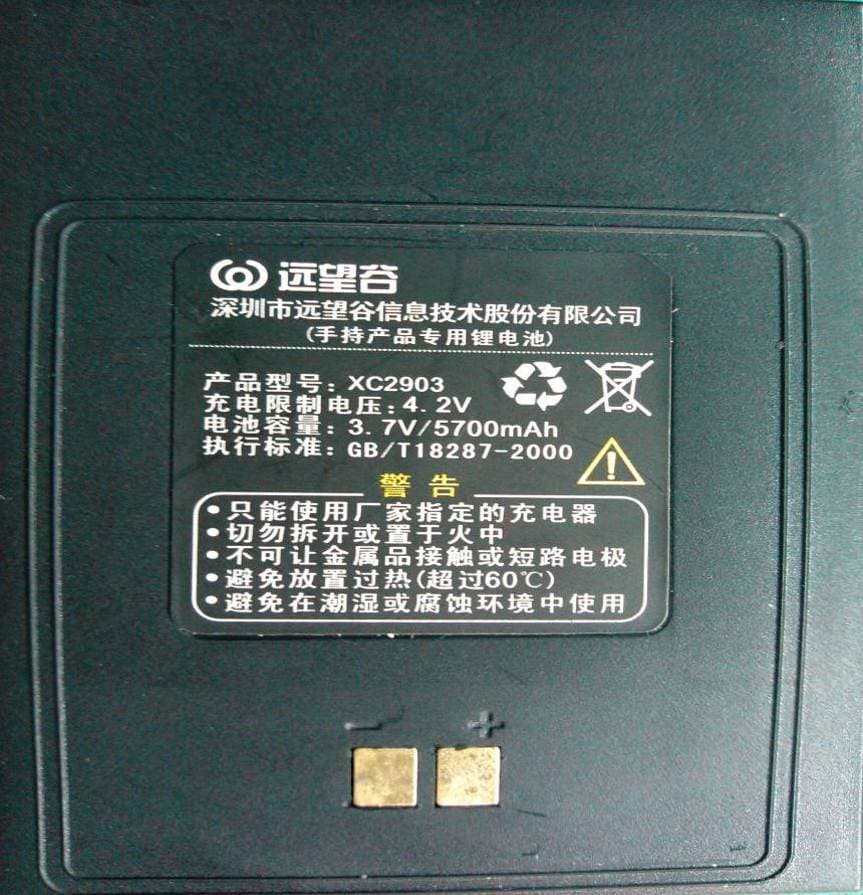

ID Label

Label Location Proposed Label Location on EUT

RFID module RFID Antenna GSM Antenna Port Wifi Antenna Wifi Module 2G Module

TRF No.: FCC SAR/A Page 1 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World SAR TEST REPORT OF UHF RFID Reader MODEL No.: XC2903 FCC ID: TQ4XC2903 Trade Mark: REPORT NO.: ES140124193H ISSUE DATE: May 19, 2014 Prepared for INVENGO INFORMATION TECHNOLOGY CO., LTD. 3/F，No.T2-B, High-tech industrial Park South, Shenzhen 518057, China. Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.: FCC SAR/A Page 2 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World GENERAL SUMMARY Applicant: INVENGO INFORMATION TECHNOLOGY CO., LTD. 3/F，No.T2-B, High-tech industrial Park South, Shenzhen 518057, China. Product Description: UHF RFID Reader Model Number: XC2903 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the following Reference standards: FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r02: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 General RF Exposure Guidance v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 616217 D04 SAR for laptop and tablets v01r01: SAR Evaluation Considerations for Laptop, Notebook, Netbook and Tablet Computers KDB 248227 D01 SAR means for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. KDB941225 D03 Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 4 of this test report are below limits specified in the relevant standards for the tested bands only. The test results of this report relate only to the tested sample identified in this report. Date of Test : May 19, 2014 Prepared by : Jack Li/Editor Reviewer : June Xie/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No.: FCC SAR/A Page 3 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Table of Contents 1. GENERAL INFORMATION..................................................................................................................................4 1.1 PRODUCT DESCRIPTION.................................................................................................................................. 4 1.2 THE MAXIMUM SAR10G VALUE...................................................................................................................... 5 1.3 SPECIAL ACCESSORIES................................................................................................................................... 5 1.4 TEST FACILITY.................................................................................................................................................. 5 2. SPECIFIC ABSORPTION RATE (SAR)............................................................................................................6 2.1 INTRODUCTION................................................................................................................................................. 6 2.2 SAR DEFINITION.............................................................................................................................................. 6 3. SAR MEASUREMENTS SYSTEM CONFIGURATION...................................................................................7 3.1 SAR MEASUREMENT SET-UP.......................................................................................................................... 7 3.2 DASY5 E-FIELD PROBE SYSTEM.................................................................................................................... 8 3.3 E-FIELD PROBE CALIBRATION......................................................................................................................... 9 3.4 OTHER TEST EQUIPMENT................................................................................................................................9 3.5 SCANNING PROCEDURE................................................................................................................................13 3.6 DATA STORAGE AND EVALU ATION.................................................................................................................. 16 3.7 TISSUE-EQUIVALENT LIQUID.......................................................................................................................... 18 3.8 SYSTEM CHECK............................................................................................................................................. 19 4. MEASUREMENT PROCEDURES....................................................................................................................20 4.1 GENERAL DESCRIPTION OF TEST PROCEDURES.......................................................................................... 20 4.2 MEASUREMENT VARIABILITY.....................…

Text truncated - open the document above for the full version.

TRF No.: FCC SAR/A Page 65 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ANNEX F D1950V3 Dipole Calibration Certificate TRF No.: FCC SAR/A Page 66 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 67 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 68 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 69 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 70 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 71 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 72 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 73 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ANNEX G D2450V2 Dipole Calibration Certificate TRF No.: FCC SAR/A Page 74 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 75 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 76 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 77 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 78 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 79 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 80 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 81 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ANNEX H DAE4 Calibration Certificate TRF No.: FCC SAR/A Page 82 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 83 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 84 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 85 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World TRF No.: FCC SAR/A Page 86 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ANNEX I The EUT Appearance and Test Configuration Test position 1 front: Picture 1 Test position 2 left: Picture 2 WIFI Antenna TRF No.: FCC SAR/A Page 87 of 95 Report No.: ES140124193H Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhe…

Text truncated - open the document above for the full version.

TRF No.: FCC 15.247/A Page 1 of 44 Report No.: ES140124192E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF UHF RFID Reader Model Name: XC2903 FCC ID: TQ4XC2903 Trademark: REPORT NO.: ES140124192E1 ISSUE DATE: May 19, 2014 Prepared for INVENGO INFORMATION TECHNOLOGY CO., LTD. 3/F，No.T2-B, High-tech industrial Park South, Shenzhen 518057, China. Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.: FCC 15.247/A Page 2 of 44 Report No.: ES140124192E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World VERIFICATION OF COMPLIANCE Applicant: INVENGO INFORMATION TECHNOLOGY CO., LTD. 3/F, No.T2-B,High-tech industrial Park South, Shenzhen 518057,china. Manufacturer: INVENGO INFORMATION TECHNOLOGY CO., LTD. 3/F, No.T2-B,High-tech industrial Park South, Shenzhen 518057,china. Product Description: UHF RFID Reader Model Number: XC2903 File Number: ES140124192E1 Date of Test: February 27, 2014 to May 19, 2014 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : February 27, 2014 to May 19, 2014 Prepared by : Jack.Li/Editor Reviewer : June xie/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No.: FCC 15.247/A Page 3 of 44 Report No.: ES140124192E1 Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Table of Contents 1. GENERAL INFORMATION .................................................................................................................................. 6 1.1 PRODUCT DESCRIPTION .................................................................................................................................. 6 1.2 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................... 7 1.3 TEST METHODOLOGY ...................................................................................................................................... 7 1.4 SPECIAL ACCESSORIES ................................................................................................................................... 7 1.5 EQUIPMENT MODIFICATIONS............................................................................................................................ 7 1.6 TEST FACILITY .................................................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION .................................................................................................................... 8 2.1 EUT CONFIGURATION ...................................................................................................................................... 8 2.2 EUT EXERCISE ................................................................................................................................................ 8 2.3 TEST PROCEDURE ........................................................................................................................................... 8 2.4 CONFIGURATION OF TESTED SYSTEM ............................................................................................................. 8 3. DESCRIPTION OF TEST MODES ..................................................................................................................... 9 4. SUMMARY OF TEST RESULTS ...................................................................................................................... 10 5. CONDUCTED EMISSIONS TEST .................................................................................................................... 11 5.1 MEASUREMENT PROCEDURE ........................................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED ................................................................................................................ 11 5.4 CONDUCTED EMISSION LIMIT ........................................................................................................................ 11 5.5 MEASUREMENT RESULT ................................................................................................................................ 12 6. RADIATED EMISSION TEST ............................................................................................................................ 13 6.1 MEASUREMENT PROCEDURE ........................................................................................................................ 13 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED ................................................................................................…

Text truncated - open the document above for the full version.

PHOTOGRPHS OF TEST SETUP
