TQ8-AC110D3GNDIGITAL CAR AUDIO SYSTEM

Features of your vehicle 2 4 How vehicle audio worksAM and FM radio signals are broad-cast from transmitter towers locatedaround your city. They are intercept-ed by the radio antenna on your vehi-cle. This signal is then received bythe radio and sent to your vehiclespeakers.When a strong radio signal hasreached your vehicle, the preciseengineering of your audio systemensures the best possible qualityreproduction. However, in somecases the signal coming to your vehi-cle may not be strong and clear. This can be due to factors, such asthe distance from the radio station,closeness of other strong radio sta-tions or the presence of buildings,bridges or other large obstructions inthe area. AM broadcasts can be received atgreater distances than FM broad-casts. This is because AM radiowaves are transmitted at low fre-quencies. These long, low frequencyradio waves can follow the curvatureof the earth rather than travellingstraight out into the atmosphere. Inaddition, they curve around obstruc-tions so that they can provide bettersignal coverage. JBM001 JBM002 FM reception AM (MW, LW) reception LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 2 43 Features of your vehicle FM broadcasts are transmitted athigh frequencies and do not bend tofollow the earth's surface. Becauseof this, FM broadcasts generallybegin to fade at short distances fromthe station. Also, FM signals are eas-ily affected by buildings, mountains,or other obstructions. These canresult in certain listening conditionswhich might lead you to believe aproblem exists with your radio. Thefollowing conditions are normal anddo not indicate radio trouble: • Fading - As your vehicle moves away from the radio station, thesignal will weaken and sound willbegin to fade. When this occurs,we suggest that you select anotherstronger station. • Flutter/Static - Weak FM signals or large obstructions between thetransmitter and your radio can dis-turb the signal causing static orfluttering noises to occur. Reducingthe treble level may lessen thiseffect until the disturbance clears. • Station Swapping - As a FM signal weakens, another more powerfulsignal near the same frequencymay begin to play. This is becauseyour radio is designed to lock ontothe clearest signal. If this occurs,select another station with astronger signal. • Multi-Path Cancellation - Radio signals being received from sever-al directions can cause distortionor fluttering. This can be caused bya direct and reflected signal fromthe same station, or by signalsfrom two stations with close fre-quencies. If this occurs, selectanother station until the conditionhas passed. JBM004 JBM005 JBM003 FM radio station LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 3 Features of your vehicle 4 4 Using a cellular phone or a two- way radio When a cellular phone is used insidethe vehicle, noise may be producedfrom the audio system. This does notmean that something is wrong withthe audio equipment. In such a case,use the cellular phone at a place asfar as possible from the audio equip-ment. Caring for disc• If the temperature inside the car is too high, open the car windows toventilate before using the system. • It is illegal to copy and use MP3/WMA files without permis-sion. Use CDs that are createdonly by lawful means. • Do not apply volatile agents, such as benzene and thinner, normalcleaners and magnetic spraysmade for analogue disc onto CDs. • To prevent the disc surface from getting damaged, hold CDs by theedges or the center hole only. • Clean the disc surface with a piece of soft cloth before playback (wipeit from the center to the outsideedge). • Do not damage the disc surface or attach pieces of sticky tape orpaper. • Make certain only CDs are insert- ed into the CD player (Do not insertmore than one CD at a time). • Keep CDs in their cases after use to protect them from scratches ordirt. CAUTION When using a communication system such as a cellular phone or a radio set inside the vehicle, a separate external antenna must be fitted. When a cellular phone or a radio set is used with an internal antenna alone, it may interfere with the vehi- cle's electrical system and adversely affect safe operation of the vehicle. WARNING Do not use a cellular phonewhile driving. Stop at a safelocation to use a cellular phone. LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 4 45 Features of your vehicle • Depending on the type of CD- R/CD-RW CDs, certain CDs maynot operate normally according tomanufacturing companies or mak-ing and recording methods. In suchcircumstances, continued use maycause malfunctions to your audiosystem. ✽✽ NOTICE - Playing anIncompatible CopyProtected Audio CD Some copy protected CDs, which donot comply with international audioCD standards (Red Book), may notplay on your car audio. Please notethat inabilities to properly play acopy protected CD may indicatethat the CD is defective, not the CDplayer. ✽✽ NOTICE Order of playing files (folders) : 1. Song playing order : to sequentially. 2. Folder playing order : ❈❈ If no song file is contained in thefolder, that folder is not displayed. LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 5 Features of your vehicle 6 4 WARNING • Do not stare at the screen while driving. Staring at thescreen for prolonged periodsof time could lead to trafficaccidents. • Do not disassemble, assem- ble, or modify the audio sys-tem. Such acts could result inaccidents, fire, or electricshock. • Using the phone while driving may lead to a lack of attentionof traffic conditions andincrease the likelihood ofaccidents. Use the phone fea-ture after parking the vehicle. • Heed caution not to spill water or introduce foreign objectsinto the device. Such actscould lead to smoke, fire, orproduct malfunction. (Continued) (Continued)• Driving while distracted can result in a loss of vehicle controlthat may lead to an accident,severe personal injury, anddeath. The driver’s primaryresponsibility is in the safe andlegal operation of a vehicl…

Text truncated - open the document above for the full version.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Tel. 82-31-260-0098 / Fax. 82-31-899-1788 Date: Nov. 11 , 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hyundai Mobis Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project : - Product : DIGITAL CAR AUDIO SYSTEM - Model name : AC110D3GN - FCC ID : TQ8- AC110D3GN We affirm that between SIEMIC and Hyundai Mobis Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, ______________________________________ Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Tel. 82-31-260-0098 / Fax. 82-31-899-1788 FCC Confidentiality Request Letter Date: Nov. 11, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TQ8-AC110D3GN We hereby request confidential treatment of information accompanying this application as outlined below: • Block diagram • Schematics • Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ______________________________________ Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul,135-977, Korea Doc No. RF1410-128 Date : Nov. 11, 2014 Subject: Letter of Similarity Dear Sirs, The specification of basic model name is as below : Basic model name Description AC110D3GN Specification : Car audio with Bluetooth (BDR/EDR) z For USA/General market, we use common marking on front panel Button by character(power, volume, phone, setup, display) Comparing to basic model name, the difference of variant model names are as below : Variant model name Description Remarks AC111D3EE AC110D3EE Variant model name for EU market All model names are electrically identical in construction, radio, characteristics and features AC110D3EG Variant model name for Iranian market AC110D3GL Variant model name for some Middle East market AC110D3GE Variant model name for some Eastern EU market AC110D3GG Variant model name for General market AC110D7GN Variant mode name for most Latin American market Sincerely yours, __________________________________ Seung-Hoon Choe /Manager /Hyundai MOBIS Co., Ltd.

2206 Ringwood Avenue, San Jose, CA 95131, USA Tel: +1(408) 526 1188, Fax: +1(408) 526 1088, Email: [email protected], URL: www.siemic.com Nov17, 2014 To: FCC From: SIEMIC, INC. RE:, Request for supersede of Label exhibits Applicant: Hyundai Mobis Co., Ltd , FCC ID: TQ8-AC110D3GN Per test lab’s request, there is a typo on product label. Existing label shown FCC I C : TQ8-AC110D3GN The correct label exhibit should be FCC I D : TQ8-AC110D3GN Thank you, Annie Jiang SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 Tel: 408-526-1188 Ext 209 Fax: 408-526-1088

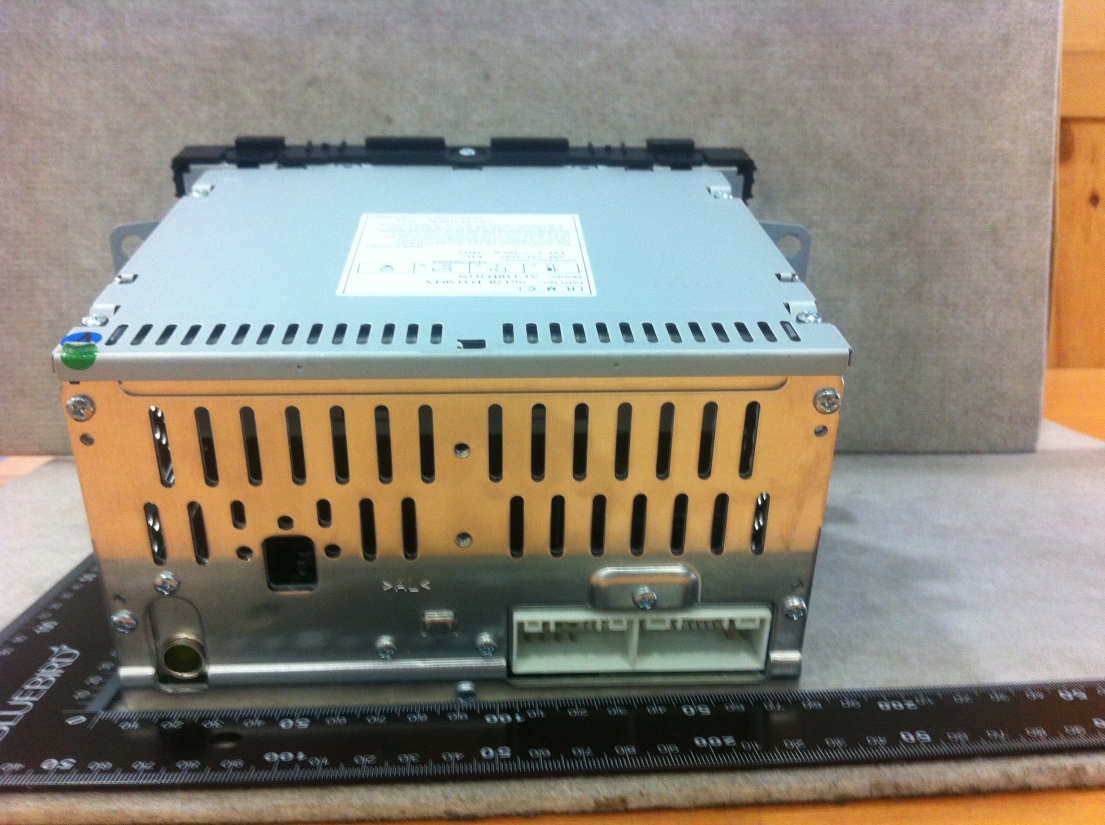

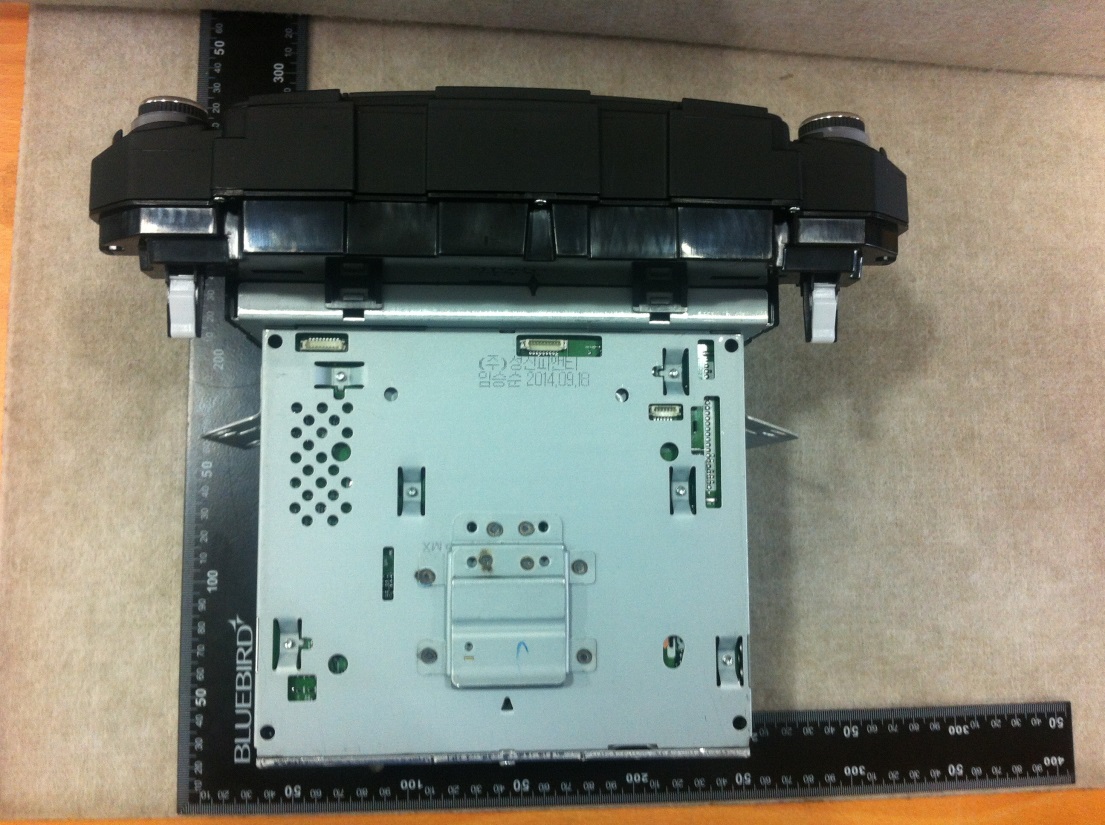

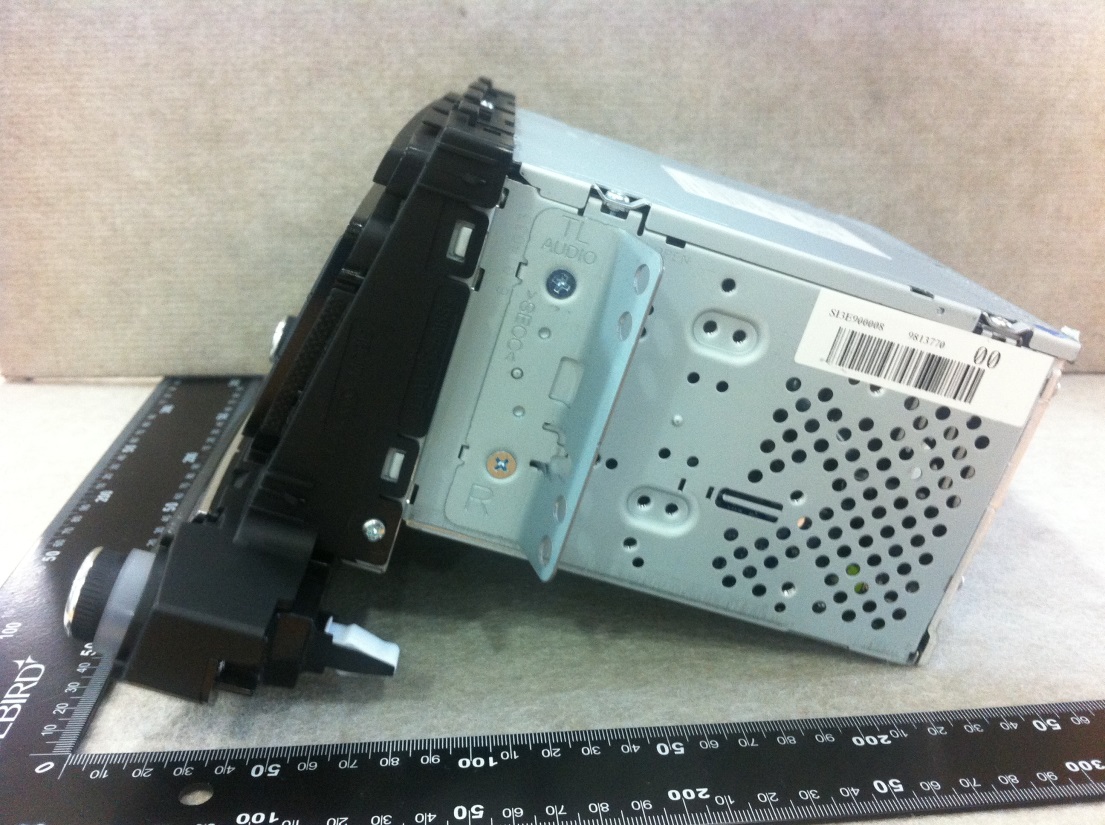

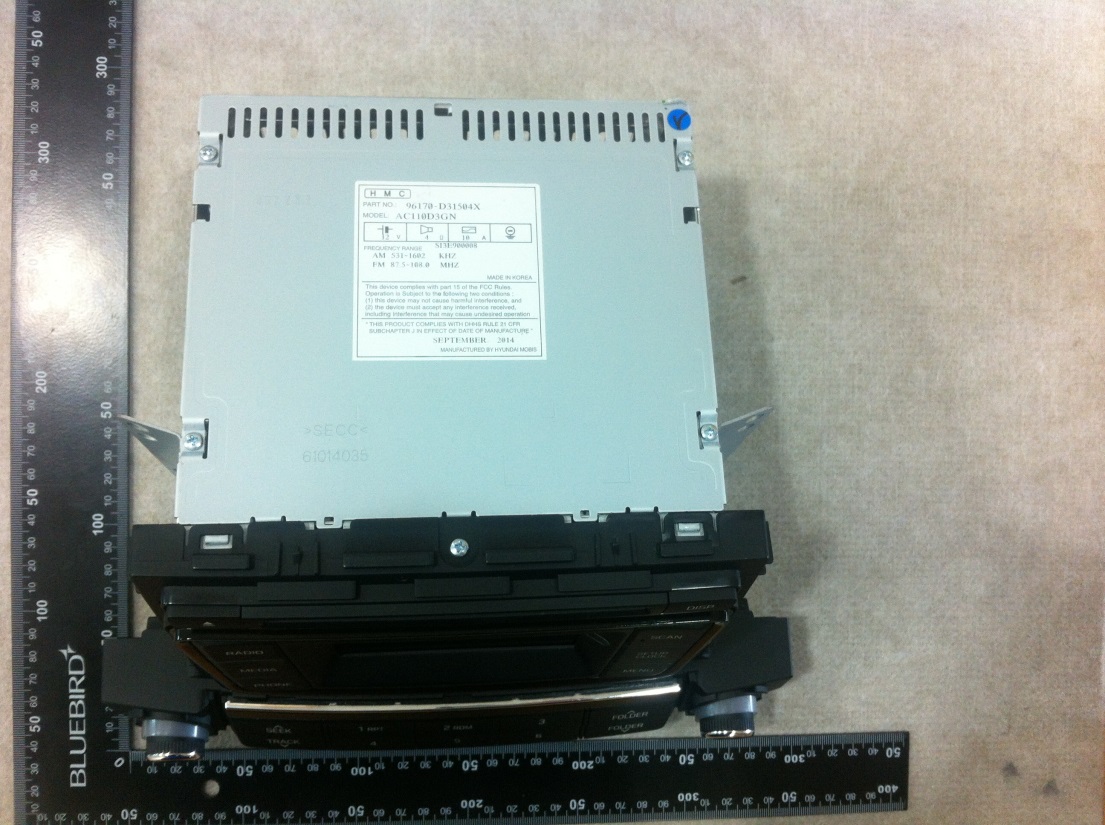

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. External photos of EUT http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 5 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Internal photos of EUT http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 5 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 5 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 4 of 5 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 5 of 5 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. BT Module Antenna

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 1 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824 /f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1500 / / f/1500 30 1500 ~ 15000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S=power density [㎽/㎠] P=Power input to antenna [㎽] G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna [㎝] EUT: Maximum peak output power = 2.96 [㎽](= 4.72 ㏈m) Antenna gain= 2.24(= 3.5 [㏈i]) 100 ㎽, at 20 cm from an antenna 6 [㏈i] S = PG/4πR² = 100 × 3.98 / (4 × π × 400) = 0.079 18 [㎽/㎠] < 1.0 [㎽/㎠] 2.96 ㎽, at 20 cm from an antenna 3.5 [㏈i] S = PG/4πR²= 0.001 32 [㎽/㎠] < 1.0 [㎽/㎠] 1) Target power :5㏈ 2) Tune up tolerance : ±1㏈ 3) Max tune up power : 6 ㏈ 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0186 EMC compliance Ltd. Page: 2 of 63 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description ........................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage ................................................................................................................................................... 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Carrier Frequency Separation ..................................................................................................................... 17 5.4 20 dB Channel Bandwidth .......................................................................................................................... 23 5.5 Number of Hopping Channels .................................................................................................................... 37 5.6 Time of Occupancy(Dwell Time) ............................................................................................................... 41 5.7 Spurious Emission, Band edge, and Restricted bands ................................................................................ 47 6. Test equipment used for test ........................................................................................................................... 63 http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0186 EMC compliance Ltd. Page: 3 of 63 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Hyundai Mobis Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Telephone number: +82-31-260-0098 Facsimile number: +82-31-899-1788 Contact person: Seung-Hoon Choe / [email protected] Manufacturer: Hyundai Mobis Co., Ltd. Address: 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0186 EMC compliance Ltd. Page: 4 of 63 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC compliance Ltd. 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-31-336-9919 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0186 EMC compliance Ltd. Page: 5 of 63 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3. Description of E.U.T. 3.1 Basic description Applicant: Hyundai Mobis Co., Ltd. Address of Applicant 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Manufacturer Hyundai Mobis Co., Ltd. Address of Manufacturer 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea Type of equipment DIGITAL CAR AUDIO SYSTEM Basic Model AC110D3GN Variant Model Name AC111D3EE, AC110D3EE, AC110D3EG, AC110D3GL, AC110D3GE, AC110D3GG, AC110D7GN Serial number N/A * Variant model names are different only for the marketing area. 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Type of Modulation Modulation technologies: FHSS Modulation : GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels Type of Antenna Chip Antenna Antenna Gain 3.5 ㏈i Transmit Power 4.72 ㏈m Power supply DC 12 V* * Declared by the applicant. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0186 EMC compliance Ltd. Page: 6 of 63 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-2…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Te s t setup photos * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * 1 ㎓ Over
