TQ8-AC110GDGNDIGITAL CAR AUDIO SYSTEM

User’s Manual TQ Audio AC110GDGN Hyundai MOBIS Co., Ltd. SYSTEM CONTROLLERS AND FUNCTIONS ❈ Display and settings may differ depending on the selected audio. Audio Head Unit 1. (EJECT) • Ejects the disc. 2. • Changes to FM/AM mode. • Each time the key is pressed,the mode is changed in order of FM1 ➟ FM2 ➟ FMA ➟ AM ➟ AMA.(❈ For RDS Model) • Each time the key is pressed,the mode is changed in order of FM1 ➟ FM2 ➟ AM. ❈ In Setup>Display, the radio pop up screen will be displayed when [Mode Pop up] is turned . When the pop up screen is displayed, use the TUNE knob or keys ~ to select the desired mode. 3. • Changes to CD, USB MP3, iPod, BT MP3, AUX modes. • Each time the key is pressed, the mode is changed in order of CD, USB, iPod, AUX, My Music, BT Audio. ❈ In Setup>Display, the media pop up screen will be displayed when [Mode Pop up] is turned . When the pop up screen is displayed, use the TUNE knob or keys ~ to select the desired mode. 4. • Operates Phone Screen ❈ When a phone is not connected, the connection screen is displayed. 5. • Radio Mode : Automatically searches for broadcast frequencies. • CD, USB, iPod, My Music modes - Shortly press the key (under 0.8 seconds): Moves to next or previous song (file) ① ② ③ ④ ⑤ ⑥ - Press and hold the key (over 0.8 seconds): Rewinds or fast-forwards the current song. 6. PWR/VOL knob • Power Knob: Turns power On/Off by pressing the knob • Volume Knob: Sets volume by turning the knob left/right 9. (Preset) • Radio Mode: Saves frequencies (channels) or receives saved frequencies (channels) • CD, USB, iPod, My Music mode - :Repeat - :Random • In the Radio, Media, Setup, and Menu pop up screen, the number menu is selected. 10. • MP3, CD, USB mode : Folder Search • iPod mode: Moves to parent folder • FM : RDS Program Type Search 11. • Each time the button is shortly pressed (under 0.8 seconds), sets screen Off ➟ Screen On ➟ Screen Off ❈ Audio operation is maintained and only the screen will be turned Off. In the screen Off state, press any key to turn the screen On again. 12. • Radio Mode - Press and hold the key (over 0.8 seconds): Previews each broadcast for 5 seconds each • CD, USB, iPod mode - Press and hold the key (over 0.8 seconds): Previews each song (file) for 10 seconds each ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ❈ Press the key again to continue listening to the current song (file). 13. • Shortly press the key (under 0.8 seconds) : Moves to the Display, Sound, Clock, Phone, System setting modes • Press and hold the key (over 0.8 seconds) : Move to the Time setting screen 14. Displays menus for the current mode. 15. TUNE knob • Radio mode : Changes frequency by turning the knob left/right • CD, USB, iPod mode: Searches songs (files) by turning the knob left/right ❈ When the desired song is displayed, press the knob to play the song. • Moves focus in all selection menus and selects menus DISPLAY SETTINGS Press the key ▶ Select [Display] through TUNE knob or key ▶ Select menu through TUNE knob Mode Pop up [Mode Pop up] ▶ Changes . selection mode • During On state, press the or key to display the mode change pop up screen. Scroll Text [Scroll Text] Set • : Maintains scroll • : Scrolls only one (1) time. Song Info When playing an MP3 file, select the desired display info from ‘Folder/File’ or ‘Album/Artist/Song’. SOUND SETTINGS Press the key ▶ Select [Sound] through TUNE knob or key ▶ Select menu through TUNE knob Audio Settings This menu allows you to set the ‘Bass, Middle, Treble’ and the Sound Fader and Balance. Select [Sound Settings] ▶ Select menu through TUNE knob ▶ Turn TUNE knob left/right to set • Bass, Middle, Treble : Selects the sound tone. • Fader, Balance : Moves the sound fader and balance. • Default : Restores default settings. ❈ Return : While adjusting values, repressing the TUNE knob will restore the parent menu. Power Bass This is a sound system feature that provides live bass. Select [Power Bass] ▶ Set through TUNE knob Speed Dependent Volume Control This feature is used to automatically control the volume level according to the speed of the vehicle. Select [SDVC] ▶ Set in 4 levels [Off/ Low/Mid/High] of TUNE knob Volume Dialogue Adjusts voice recognition volume. Select [Volume Dialogue] ▶ Set volume of TUNE knob CLOCK SETTINGS Press the key ▶ Select [Clock] through TUNE knob or key ▶ Select menu through TUNE knob Clock Settings This menu is used to set the time. Select [Clock Settings] ▶ Set through TUNE knob ▶ Press TUNE knob ❈ Adjust the number currently in focus to set the [hour] and press the tune knob to set the [minute]. Day Settings This menu is used to set the date (DD/MM/YYYY). Select [Day Settings] ▶ Set through TUNE knob ▶ Press TUNE knob ❈ Adjust the number currently in focus to make the settings and press the tune knob to move to the next setting. (Set in order of Day/Month/Year) Clock Display when Power is OFF Select [Clock Disp.(Pwr Off) ▶ Set through TUNE knob • : Displays time/date on screen • :Turn off. Time Format This function is used to set the 12/24 hour time format of the audio system. Select [Time Format] ▶ Set 12Hr / 24Hr through TUNE knob Automatic RDS Time This option is used to automatically set the time by synchronizing with RDS. Select [Automatic RDS Time] Set through TUNE knob • : Turn on Automatic Time • :Turn off. PHONE SETUP (if equipped) Press the key Select [Phone] through TUNE knob or key Select menu through TUNE knob Pair Phone Select [Pair Phone] ▶ Set through TUNE knob ➀ Search for device names as displayed on your mobile phone and connect. ➁ Input the passkey displayed on the screen. (Passkey : 0000) ❈ The device name and passkey will be displayed on the screen for up to 3 minutes. If pairing is not completed within the 3 minutes, the mobile phone pairing process will automatically be canceled. ➂ Pairing completion is displayed. ❈ In some mobile phones, pairing will automatically be followed by connection. ❈ It is possible to pair up to five Bluetooth® Wireless Technology enabled mobile phones. CAUTION To pair a…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 6 February 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyun dai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. S i ncerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

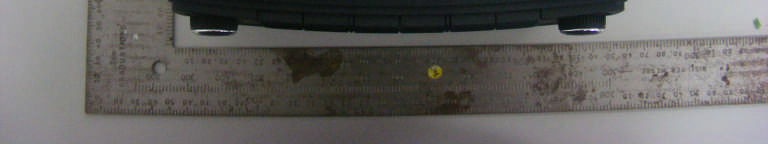

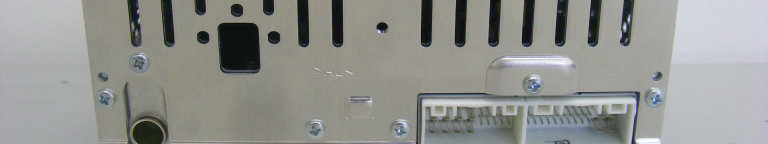

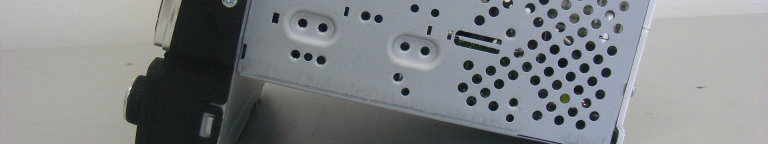

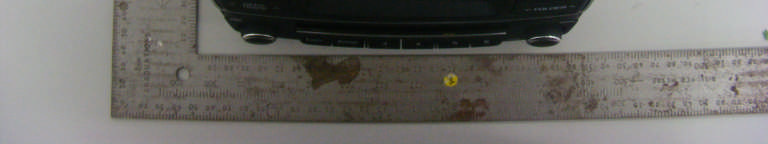

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT

AC1 10G D G N FCC LABEL If ti LABEL LOCATION FCC LABEL I n f orma ti on Hyundai MOBIS Co., Ltd. FCC MODEL: AC1 10 GD G N FCC ID: TQ8 ‐ AC1 10G DGN LABEL LOCATION Nonremovable This device complies with part 15 of the FCC rules and industry Canada license ‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. LABEL operation.Made in Chin a MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FRONT TOP Hyundai MOBIS Co., Ltd.

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB View of Main PCB(Module) Antenna Chip antenna

Report Number:F690501/RF-RTL008367Page:2of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------5 Report Number:F690501/RF-RTL008367Page:3of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2370 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM Model Name AC110GDGN(Alt. : AC110GDGG, AC110GDGE, AC110GDGL, AC112GDGG, AC110GDCG) Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels Antenna Type Internal Type Antenna Gain 3.5㏈i 1.4. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0083672015.02.03Initial Report Number:F690501/RF-RTL008367Page:4of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1.5. Alternative models Model nameInformation AC110GDGN - Basic model - H/W: Bluetooth(o), DAB(o), Voice recognition(x) - S/W: RDS(o), FM/AM BAND(Europe BAND) - Print: Europe AC110GDGG - Same to basic model, but it is different below function. - H/W: Bluetooth(o), DAB(x), Voice recognition(x) - S/W: RDS(x), FM/AM BAND(Normal BAND) - Print: normal AC110GDGE - Same to basic model, but it is different below function. - H/W: Bluetooth(o), DAB(x), Voice recognition(x) - S/W: RDS(x), FM/AM BAND(Europe BAND) - Print: normal AC110GDGL - Same to basic model, but it is different below function. - H/W: Bluetooth(o), DAB(x), Voice recognition(x) - S/W: RDS(x), FM/AM BAND(Colombia BAND) - Print: normal AC112GDGG - Same to basic model, but it is different below function. - H/W: Bluetooth(o), DAB(x), Voice recognition(x) - S/W: RDS(o), FM/AM BAND(Normal BAND) - Print: normal AC110GDCG - Same to basic model, but it is different below function. - H/W: Bluetooth(o), DAB(x), Voice recognition(x) - S/W: RDS(x), FM/AM BAND(Normal BAND) - Print: normal Report Number:F690501/RF-RTL008367Page:5of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.141 6 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density ( ㎽ / ㎠ ) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500----F/3006 1 500 – 100 000----56 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500----F/150030 1 500 – 100 000----130 Report Number:F690501/RF-RTL008367Page:6of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3.Output Power into Antenna & RF Exposure Evaluation Distance Channel Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 4.003.500.001 1191 Note : 1. The power de…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL008366Page:2of62 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------8 3. 20㏈Bandwidth-------------------------------------------------------------------------------------- 32 4. Maximum Peak Output Power -------------------------------------------------------------------39 5. Carrier Frequency Separation --------------------------------------------------------------------41 6. Number of Hopping Frequencies ----------------------------------------------------------------44 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------48 8. Antenna Requirement ------------------------------------------------------------------------------62 Report Number:F690501/RF-RTL008366Page:3of62 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM Model Name AC110GDGN(Alt. : AC110GDGG, AC110GDGE, AC110GDGL,AC112GDGG, AC110GDCG) Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels Antenna Type Internal Type Antenna Gain 3.5㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels Report Number:F690501/RF-RTL008366Page:4of62 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.5.3. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number:F690501/RF-RTL008366Page:5of62 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&SSMR40100272Jul. 18, 2014AnnualJul. 18, 2015 Signal GeneratorR&SSMBV100A259067Jun. 25, 2014AnnualJun. 25, 2015 Spectrum AnalyzerAgilentN9020AMY53421758Nov. 04, 2014AnnualNov. 04, 2015 Spectrum AnalyzerR&SFSV30103101Jul. 16, 2014Ann…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated Spurious Emission Test (Below 1㎓) B. Photo of Radiated Spurious Emission Test (Above 1㎓) \ ]’
