TQ8-AC111G2GGDIGITAL CAR AUDIO SYSTEM

Features of your vehicle 1824 ■CD Player K_UB_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/11/2015 4:39 PM Page 182 4 183 Features of your vehicle Features of your vehicle System Controllers and Functions Audio Head Unit 1. (EJECT) • Ejects the disc. 2. • Converts to Radio mode. • Each time the key is pressed, the mode is changed in order of FM1, FM2, AM, SAT1, SAT2, SAT3. 3. • Converts to Media mode. • Each time the key is pressed, the mode is changed in order of CD, USB(iPod ® ), AUX, My Music, BT Audio. 4. • Converts to Phone mode ❈When a phone is not connected, the connection screen is displayed. 5. POWER/VOL knob • Power : Press to turn power on/ off. • Volume : Turn left/right to control volume. 6. • When pressed shortly(under 0.8 seconds) - Radio mode : plays previous/next frequency. - Media (CD /USB /iPod ® /My Music) modes : changes the track, Song(file) • When pressed and held (Over 0.8 seconds) - Radio mode : continuously changes the frequency. Upon release, plays the current frequency. - Media(CD /USB /iPod ® /My Music) modes : rewinds or fast forwards the track or file - During a Handsfree call, controls the call volume. 7. • SiriusXM RADIO : Category Search • MP3 CD/USB mode : Search Folder CAT FOLDER SEEK TRACK PHONE MEDIA RADIO K_UB_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/11/2015 4:39 PM Page 183 Features of your vehicle 1844 8. • Turns the monitor display on/off. 9. • Shortly press the key(under 0.8 seconds) : Display time screen • Press and hold the key(over 0.8 seconds) : Move to the time setting mode 10. • Radio mode : previews all receiv- able broadcasts for 5 seconds each • Media (CD/USB/My Music) modes : previews each song (file) for 10 seconds each. 11. • Converts to Setup mode. 12. TUNE knob • Radio mode : turn to change broad- cast frequencies. • Media (CD/USB/iPod ® /My Music) modes : turn to search Tracks/ channels/files. 13. RESET • Forced system termination and sys- tem restart. CLOCK SETUP SCAN DISP K_UB_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/11/2015 4:39 PM Page 184 4 185 Features of your vehicle Steering remote controller ❈The actual feature in the vehicle may differ from the illustration. 1. MUTE • Mutes the microphone during a call. 2. MODE • Each time this key is pressed, the mode is changed in order of FM1 ➟ FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟SAT3 ➟ CD ➟ USB(iPod ® ) ➟ AUX ➟ My Music ➟ BT Audio • If the media is not connected or a disc is not inserted, corresponding modes will be disabled. 3. VOLUME • Used to control volume. 4. • When pressed shortly - When pressed in the phone screen, displays call history screen - When pressed in the dial screen, makes a call - When pressed in the incoming call screen, answers the call - When pressed during call waiting, switches to waiting call (Call Waiting) • When pressed and held (over 0.8sec- onds) - When pressed in the Bluetooth ® Wireless Technology Handsfree wait mode, redials the last call - When pressed during a Bluetooth ® Wireless Technology Handsfree call, switches call back to mobile phone (Private) - When pressed while calling on the mobile phone, switches call back to Bluetooth ® Wireless Technology Handsfree (Operates only when Bluetooth ® Wireless Technology Handsfree is connected) 5. • Ends phone call 6. • When pressed shortly - Starts voice recognition - When selecting during a voice prompt, stops the prompt and converts to voice command wait- ing state • When pressed and held (over 0.8sec- onds) - Ends voice recognition 1854 Features of your vehicle K_UB_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/11/2015 4:39 PM Page 185 Features of your vehicle 1864 RADIO MODE Basic Mode Screen 1. Mode Display Displays currently operating mode. 2. Frequency Displays the current frequency. 3. Preset Displays current preset number ~. 4. Preset Display Displays preset buttons. 5. A.Store Automatically saves frequencies with superior reception to Preset buttons. Switching to Radio Mode Pressing the key will change the operating mode in order of FM1 ➟ FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟ SAT3 If is turned on within , then pressing the key will display the Radio P op-up Mode screen. Turn the TUNE knob to move the focus. Press the knob to select. RADIO Display SETUP Mode Pop up RADIO 6 1 K_UB_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/11/2015 4:39 PM Page 186 4 187 Features of your vehicle Searching Radio Frequencies Using Seek Press the key to play the previous/next frequency. Using TUNE Turn the TUNE knob to select the desired frequency. Using Radio Mode Selecting Presets/Saving Presets Press the button to display the broadcast information for the fre- quency saved to each button. Press the ~buttons to play the desired preset. ✽NOTICE While listening to a frequency you want to save as a preset, press and hold one of the ~ preset buttons (over 0.8 seconds) to save the current frequency to the selected preset. Auto Store Press the button to auto- matically save receivable frequen- cies to Preset buttons. Scan Press the key to preview fre- quencies with superior reception for 5 seconds each. Press and hold the key (over 0.8 seconds) to preview presets for 5 seconds each. Once scan is complete, the previous frequency will be restored. While Scan is operating, pressing the key will cancel the scan operation. SCAN SCAN SCAN A.Store 61 61 Preset SEEK TRACK K_UB_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/11/2015 4:39 PM Page 187 Features of your vehicle 1884 SiriusXM ® Satellite Radio infor- mation Satellite Radio channels: Enjoy SiriusXM Satellite Radio with a 3- month trial subscription to the Sirius Select package. You’ll get over 140 channels, including commercial-free music, plus all your favorite sports, exclusive talk, entertainment, and a selection of premium programming. For more information and a complete list of SiriusXM channels, visit sir- iusxm.com in the United States, sir- iusxm.ca in Canada, or call SiriusXM at 1-888-539-7474. Satellite Radio reception factors: To receive the satellite signal, your vehicle has be…

Text truncated - open the document above for the full version.

Date: October 23, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD Product: DIGITAL CAR AUDIO SYSTEM Model name: AC111G2GG FCC ID: TQ8-AC111G2GG To Whom It May Concern: This letter is to ascertain that Hyundai Mobis Co., Ltd. has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, please contact us. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Date: October 23, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hyundai Mobis Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project: Product: DIGITAL CAR AUDIO SYSTEM Model name: AC111G2GG Variant model name: AC110G2GG, AC110G2GN, AC110G2GE, AC110G2GS, AC110G2MG, AC110G2UG, ACBA0G2AN, ACB10G2AJ FCC ID: TQ8-AC111G2GG We affirm that between KCTL Inc. and Hyundai Mobis Co., Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul,135-977, Korea Doc No. RF1509-095 Date : Sep. 15, 2015 Subject: Letter of Similarity Dear Sirs, The specification of basic model name is as below : Basic model name Description AC111G2GG Specification : Car audio with Bluetooth (BDR/EDR) Model classification based configurations up to functions and applicable countries as below table. Model Function Description AC110G2GG With CDP Variant model name for most European, African market AC110G2GN Variant model name for most Latin American market AC110G2GE Variant model name for most Eastern European market AC110G2GS Variant model name for South African market AC110G2MG Variant model name for most Middle Eastern market AC110G2UG Variant model name for most Australian market ACBA0G2AN Without CDP Variant model name for USA market ACB10G2AJ Variant model name for Guam market All model names are electrically identical in construction, radio characteristics, and features. Sincerely yours, __________________________________ Seung-Hoon Choe /Manager /Hyundai MOBIS Co., Ltd.

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

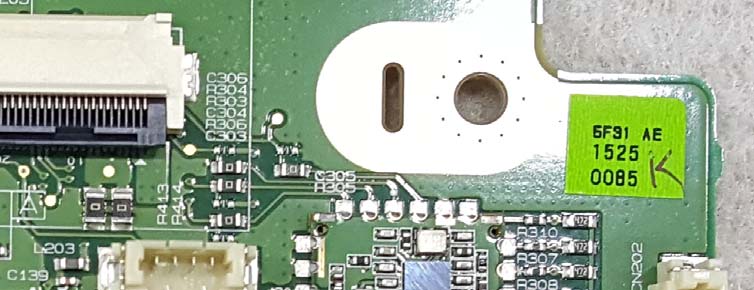

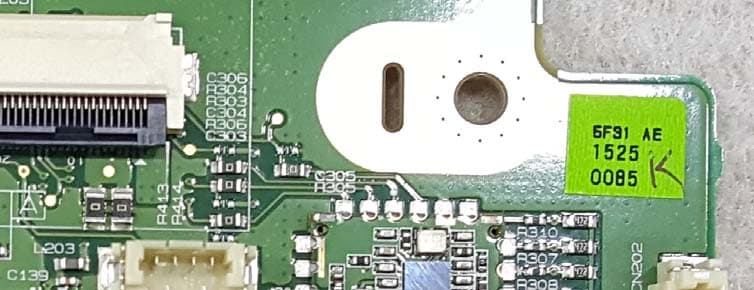

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Antenna

http://www.kctl.co.kr Page: ( 1 ) / ( 2 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] http://www.kctl.co.kr Page: ( 2 ) / ( 2 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Mode Target power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈m] [㏈] [㏈m] [㎽] [㏈i] [㎽] [㎽/㎠] [㎽/㎠] Bluetooth_GFSK -5 ±1.0 -4 0.40 -4.37 0.37 0.000 03 1.000 00 Bluetooth_π/4DQPSK -6 ±1.0 -5 0.32 -4.37 0.37 0.000 02 1.000 00 Bluetooth_8DPSK -6 ±1.0 -5 0.32 -4.37 0.37 0.000 02 1.000 00 4. Target power and tolerance, Max tuneup power Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Average Power [㏈m] Bluetooth_GFSK Lowest -5 ±1.0 -4 -4.68 Bluetooth_GFSK Middle -5 ±1.0 -4 -5.59 Bluetooth_GFSK Highest -5 ±1.0 -4 -5.03 Bluetooth_π/4DQPSK Lowest -6 ±1.0 -5 -6.83 Bluetooth_π/4DQPSK Middle -6 ±1.0 -5 -6.60 Bluetooth_π/4DQPSK Highest -6 ±1.0 -5 -6.52 Bluetooth_8DPSK Lowest -6 ±1.0 -5 -6.61 Bluetooth_8DPSK Middle -6 ±1.0 -5 -6.60 Bluetooth_8DPSK Highest -6 ±1.0 -5 -6.73

http://www.kctl.co.kr Page: ( 2 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0039 KCTL-TIR001-003/0 [ Contents ] 1. Client information.................................................................................................. 3 2. Laboratory information ........................................................................................... 4 3. Description of E.U.T. ............................................................................................... 5 3.1 Basic description .............................................................................................. 5 3.2 General description ............................................................................................ 5 3.3 Test frequency ................................................................................................. 6 3.4 Test Voltage .................................................................................................... 6 4. Summary of test results ............................................................................................ 7 4.1 Standards & results ............................................................................................ 7 4.2 Uncertainty .................................................................................................... 7 5. Test results .......................................................................................................... 8 5.1 Antenna Requirement ......................................................................................... 8 5.2 Maximum Peak Output Power ................................................................................ 9 5.3 Carrier Frequency Separation ............................................................................... 16 5.4 20 dB Channel Bandwidth .................................................................................. 20 5.5 Number of Hopping Channels .............................................................................. 31 5.6 Time of Occupancy(Dwell Time) ........................................................................... 36 5.7 Spurious Emission, Band edge and Restricted bands ...................................................... 43 6. Test equipment used for test .................................................................................... 60 http://www.kctl.co.kr Page: ( 3 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0039 KCTL-TIR001-003/0 1. Client information Applicant: Hyundai Mobis Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Telephone number: +81-31-260-2707 Facsimile number: +81-31-899-1788 Contact person: Choi Seung Hoon/ [email protected] Manufacturer: Hyundai Mobis Co., Ltd. Address: 69-23, Hansam-Ro, Ducksan-Myeon, Jinchun-Gun, Chungcheongbuk-Do 365-843 Korea http://www.kctl.co.kr Page: ( 4 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0039 KCTL-TIR001-003/0 2. Laboratory information Address KCTL Ltd. 65 Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-70-5008-1016 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No: KR0040 FCC Site Registration No: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP KCTL Ltd. Suwon city http://www.kctl.co.kr Page: ( 5 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0039 KCTL-TIR001-003/0 3. Description of E.U.T. 3.1 Basic description Applicant: Hyundai Mobis Co., Ltd. Address of Applicant 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Manufacturer Hyundai Mobis Co., Ltd. Address of Manufacturer 69-23, Hansam-Ro, Ducksan-Myeon, Jinchun-Gun, Chungcheongbuk-Do 365-843 Korea Type of equipment DIGITAL CAR AUDIO SYSTEM Basic Model AC111G2GG Variant Model AC110G2GG, AC110G2GN, AC110G2GE, AC110G2GS, AC110G2MG, AC110G2UG, ACBA0G2AN, ACB10G2AJ Serial number N/A * The difference of country to sell, the existence and nonexistence of CDP. 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Type of Modulation GFSK, π/4DQPSK, 8DPSK Number of Channels 79 ch Type of Antenna Chip Antenna Antenna Gain -4.37 ㏈i Transmit Power 1.33 ㏈m Power supply DC 12 V Product SW/HW version 1.0 Radio SW/HW version 1.0 Test SW Version CSR Bluesuite 2.6.0 RF power setting in TEST SW EXT250, Int63 Note : The above EUT information was declared by the manufacturer. http://www.kctl.co.kr Page: ( 6 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0039 KCTL-TIR001-003/0 3.3 Test frequency Frequency Low frequency 2 402 ㎒ Middle frequency 2 441 ㎒ High frequency 2 480 ㎒ 3.4 Test Voltage Mode Voltage Norminal voltage DC 12 V ※ 15.247 Requirements for Bluetooth transmitter  This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudo-randomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals.  15.247(g): The system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this Section 15.247 should the transmitter be presented with a continuous data (or information) stream.  15.247(h): The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. http://www.kctl.co.kr Page: ( 7 ) / ( 60 ) Pages This test rep…

Text truncated - open the document above for the full version.

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Radiated Emission * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval * 1 ㎓ Over
