TQ8-AC1A0C6ANDIGITAL CAR AUDIO SYSTEM

2TEND08 UVO SYSTEM USER'S MANUAL Congratulations on the Purchase of your new UVO system!Your new UVO system allows you to enjoy various audio and multimedia features through the main audio system. For the latest information about this product or other KIA products and accessories, visit http://www.kia.com Please read this manual to get the full benefit of the system.These operating instructions are designed to ensure that you can operate the UVO system in a safe and convenient way.We recommend that this manual be kept in the car so that it will be easier for you to find information in case of an emergency.If you cannot find the information you need in this manual or in the “Troubleshooting” section, your local authorized retailer will be pleased to help you with the system or operations.Kia Motors recommends the use of only parts and accessories that have been tested and approved by Kia Motors in terms of function, safety and suitability. iPod ȱ iPod ȱ is a registered trademark of Apple, Inc. Bluetooth ȱ The Bluetooth ȱ word mark and logos are registered trademarks owned by Bluetooth ȱ SIG, Inc. and any use of such marks by Kia is under license. A Bluetooth ȱ enabled cell phone is required to use Bluetooth ȱ wireless technology. Microsoft is a registered trademark of Microsoft Corporation in the United States and/or other countries. zune ȱ zune ȱ is a registered trademark of Microsoft Corporation in the United States and or other countries. Copyright(c) 2011 Kia Motors America, Inc. All Rights Reserved.Warning : The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes. 3UHIDFH Table of contents 3 WARNING & SAFETY INFORMATION Safety Symbols ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 7 FCC Information  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 7 Warning ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 8 Caution  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 8 PART 1 GETTING STARTED Controls and Features Control Panel ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-2 Steering Wheel ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-4 Basic Features System Power  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-6 1. Turning System Power On ᔬᔬᔬᔬᔬᔬᔬ 1-6 2. Turning System Power Off ᔬᔬᔬᔬᔬᔬᔬ 1-6 Select Display Language ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-7 Resetting and Initializing UVO system ᔬ 1-7 1. Resetting the system ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-7 2. Initializing the system  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-8 Sound and Display Settings Sound Settings ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-9 1. FADER/BALANCE ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-9 2. TONE ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-10 3. Touch Screen Beep  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-10 4. Speed Dependent Volume Control ᔬ 1-10 Display Settings  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-11 1. Setting Brightness  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 1-11 ᕢ Automatic Brightness Control ᔬᔬᔬᔬ 1-11 ᕢ Manual Brightness Control ᔬᔬᔬᔬᔬᔬ 1-11 Turning Display On and Off  ᔬᔬᔬᔬᔬᔬᔬᔬ 1-12 Turn Text Scroll On and Off  ᔬᔬᔬᔬᔬᔬᔬᔬ 1-13 PART 2 AUDIO FEATURES FM/AM MODE FM/AM Mode Screens and Features ᔬᔬᔬ 2-2 Listening to the FM/AM radio  ᔬᔬᔬᔬᔬᔬᔬᔬ 2-3 1. Selecting a broadcast frequency ᔬᔬᔬᔬ 2-3 ᕢ Selecting through SEEK  ᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-3 ᕢ Selecting through manual search ᔬᔬ 2-3 ᕢ Selecting through preset  ᔬᔬᔬᔬᔬᔬᔬᔬ 2-3 2. Storing presets  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-4 3. Scanning FM/AM broadcast frequencies  2-4 4. Preset Scan  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-4 SIRIUS TM MODE SIRIUS TM Mode Screen and Features ᔬᔬ 2-5 Listening to the SIRIUS TM radio  ᔬᔬᔬᔬᔬᔬ 2-5 1. Selecting a SIRIUS TM channel ᔬᔬᔬᔬᔬ 2-5 ᕢ Selecting through SEEK  ᔬᔬᔬᔬᔬᔬᔬᔬ 2-5 ᕢ Selecting through manual search ᔬ 2-6 ᕢ Selecting through preset  ᔬᔬᔬᔬᔬᔬᔬᔬ 2-6 ᕢ Selecting through channel search ᔬ 2-6 ᕢ Selecting through SIRIUS TM category list ᔬ 2-7 2. Using Skip ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-7 3. Storing preset  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-8 4. Viewing SIRIUS TM channel information  2-8 Table of contents 4 Table of contents Table of contentsMEDIA MODE Common Features  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-9 ᕢ Play/Pause  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-9 ᕢ REW/FF  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-9 ᕢ Jump  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-10 ᕢ Using Repeat ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-10 ᕢ Using Shuffle ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-10 AUDIO CD MODE Cautions upon handling Audio CDs ᔬᔬᔬ 2-11 AUDIO CD Mode Screen and Features ᔬ 2-13 Inserting/Ejecting a Disc ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-13 1. Inserting a Disc  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-13 2. Ejecting a Disc ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-13 Listening to an Audio CD ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-14 Selecting a CD track ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-14 1. Selecting through Track Up/Down ᔬᔬ 2-14 2. Selecting through manual search ᔬᔬ 2-14 MP3 CD MODE Cautions upon handling MP3 CD  ᔬᔬᔬᔬᔬ 2-15 MP3 CD Mode Screen and Features ᔬᔬ 2-16 Listening to an MP3 CD ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-16 Selecting an MP3 CD song  ᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-17 1. Selecting through song Up/Down ᔬᔬ 2-17 2. Selecting through manual search ᔬᔬ 2-17 3. Selecting from MP3 list ᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-17 4. by Artists, Albums, Genres, Songs Composers ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-17 Explore CD  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-18 Viewing song information ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-18 Copying songs into JUKEBOX  ᔬᔬᔬᔬᔬᔬ 2-18 1. Copying the current song ᔬᔬᔬᔬᔬᔬᔬᔬ 2-18 2. Copying songs from list ᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-19 USB MODE Cautions upon handling USB MP3 ᔬᔬᔬᔬ 2-20 Precautions upon handling USB  ᔬᔬᔬᔬᔬ 2-21 Connecting your USB device  ᔬᔬᔬᔬᔬᔬᔬ 2-22 USB Mode Screen and Features ᔬᔬᔬᔬᔬ 2-22 Listening to USB music  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-23 Selecting USB music ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-23 1. Selecting through song Up/Down ᔬᔬ 2-23 2. Selecting through manual search ᔬᔬ 2-23 3. Selecting from the list  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-24 4. by Folders, Artists, Albums, Genres Songs, Composers ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-24 Explore USB  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-24 Viewing song information ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-25 Copying songs into JUKEBOX  ᔬᔬᔬᔬᔬᔬ 2-25 1. Copying the current song ᔬᔬᔬᔬᔬᔬᔬᔬ 2-25 2. Copying songs from list ᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-26 iPod® MODE About iPod ® ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-27 1. Trademark ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-27 2. Connecting your iPod ® device ᔬᔬᔬᔬᔬ 2-27 iPod ® Mode Screen and Features  ᔬᔬᔬᔬ 2-28 Listening to your iPod ® ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-28 Selecting iPod ® music  ᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬᔬ 2-29 1. Sel…

Text truncated - open the document above for the full version.

HYUNDAI MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date : April 17, 2014 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: TQ8-AC1A0C6AN including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same a ffect as acts of our own. This authorization is valid until further written notice from HYUNDAI MOBIS Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seung Hoon Choe Manager

Digital EMC Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: April 17 , 2014 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

HYUNDAI MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: April 17, 2014 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: TQ8-AC1A0C6AN To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, HYUNDAI MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give HYUNDAI MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Seung Hoon Choe Manager

FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 1 / 3 View 1 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 2 / 3 View 2 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 3 / 3 View 3

FCC ID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label locate Top side This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

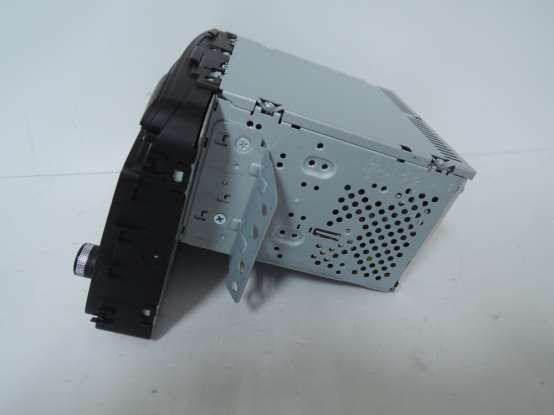

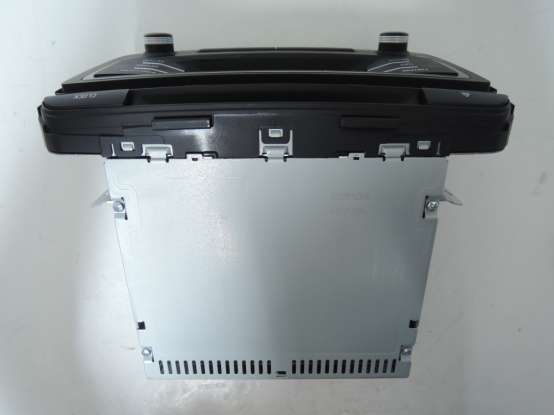

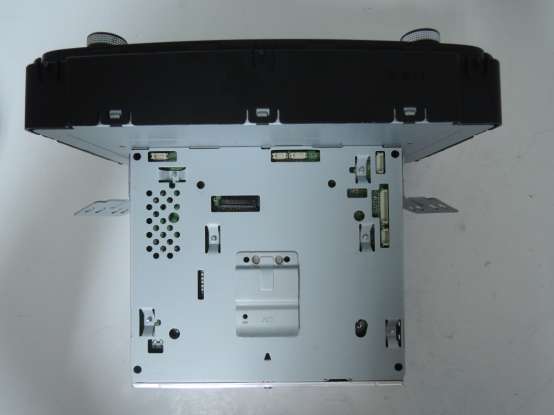

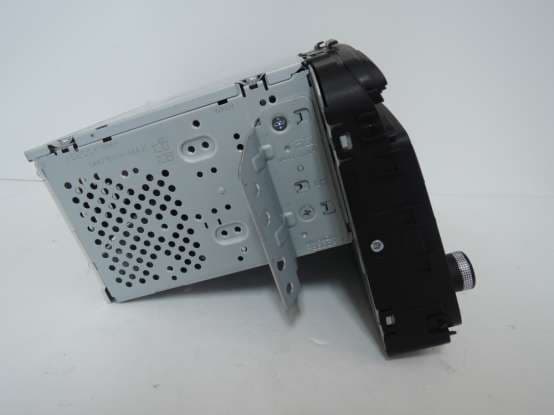

FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 1 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 2 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 3 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 4 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 5 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 6 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 7 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 8 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 9 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 10 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 11 FCCID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 12 <Antenna>

-~ - - ± &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.000251 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 1.259 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) 1.00 dBm1.259 mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 1.50 dBm-0.50 dBi -0.5 Maximum antenna peak gain :dBi Maximum output power for the calculatio 1.50 dBm dB ( Max. -0.50 1.5 dBm Min. Measured RF output power :dBm Target Power & Tolerance :dBm 1.31 0.501 MHz MPE Calculations : (Bluetooth) HYUNDAI MOBIS Co., Ltd. FCCID: TQ8-AC1A0C6AN Frequency range : 2402 MHz2480 TRF-RF-206(01)140415

FCCID: TQ8-AC1A0C6AN DEMC1404-01201 Report No.: DRTFCC1404-0480 TRF-RF-212(02)140314 Page 2 / 71 Copyright ○ C 2014, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1404-0480 Apr. 17, 2014 Initial issue FCCID: TQ8-AC1A0C6AN DEMC1404-01201 Report No.: DRTFCC1404-0480 TRF-RF-212(02)140314 Page 3 / 71 Copyright ○ C 2014, Digital EMC Co., Ltd. Table of Contents 1.General Information ................................................................................................................ 5 1.1. Testing Laboratory .......................................................................................... 5 1.2. Details of Applicant ......................................................................................... 5 1.3. Description of EUT .......................................................................................... 5 1.4. Declaration by the manufacturer .................................................................... 5 1.5. Information about the FHSS characteristics: ................................................ 6 1.6. Test Equipment List ........................................................................................ 7 1.7. Summary of Test Results ................................................................................ 8 1.8 Conclusion of worst-case and operation mode .............................................. 9 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 10 2.1. Test Setup ...................................................................................................... 10 2.2. Limit ................................................................................................................ 10 2.3. Test Procedures............................................................................................. 11 2.3.1. Test Procedures for Radiated Spurious Emissions................................ 11 2.3.2. Test Procedures for Conducted Spurious Emissions ............................ 11 2.4. Test Results ................................................................................................... 12 2.4.1. Radiated Emission .................................................................................... 12 2.4.2. Conducted Spurious Emissions .............................................................. 15 3. Carrier Frequency Separation............................................................................................. 39 3.1.Test Setup ..................................................................................................... 39 3.2. Limit .............................................................................................................. 39 4. Number of Hopping Frequencies ....................................................................................... 44 4.1. Test Setup..................................................................................................... 44 4.2. Limit .............................................................................................................. 44 5. 20dBc BW .............................................................................................................................. 50 5.1. Test Setup..................................................................................................... 50 5.2. Limit .............................................................................................................. 50 5.3. Test Procedure ............................................................................................. 50 5.4. Test Results .................................................................................................. 50 6. Time of Occupancy (Dwell Time) ........................................................................................ 56 6.1. Test Setup..................................................................................................... 56 6.2. Limit .............................................................................................................. 56 6.3. Test Procedure ............................................................................................. 56 6.4. Test Results .................................................................................................. 56 7. Maximum Peak Output Power Measurement .................................................................... 61 7.1. Test Setup..................................................................................................... 61 7.2. Limit .............................................................................................................. 61 7.3. Test Procedure ............................................................................................. 61 7.4. Test Results .................................................................................................. 62 8. Transmitter AC Power Line Conducted Emission ............................................................ 68 FCCID: TQ8-AC1A0C6AN DEMC1404-01201 Report No.: DRTFCC1404-0480 TRF-RF-212(02)140314 Page 4 / 71 Copyright ○ C 2014, Digital EMC Co., Ltd. 8.1. Test Setup..................................................................................................... 68 8.2. Limit .............................................................................................................. 68 8.3. Test Procedures ........................................................................................... 68 8.4. Test Results: N/A ......................................................................................... 68 9. Antenna Requirement .......................................................................................................... 69 10. Occupied Bandwidth(99%) ................................................................................................ 70 APPENDIX I ...............................................…

Text truncated - open the document above for the full version.

FCC ID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. Test Setup photographs EUT Position: X-axis FCC ID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: TQ8-AC1A0C6AN Copyright Ⓒ 2014, Digital EMC Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
