FCC Warning This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCCRules. These limits are designedtoprovide reasonable protectionagainstharmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur ina particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increasethe separation between the equipment and receiver. ■Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected. ■Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interference that may causeundesired operation of the device. Le présent appareil estconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doitacceptertoutbrouillageradioélectriquesubi, mêmesilebrouillageestsusceptibled'en compromettre le fonctionnement.
2TENE07 UVO SYSTEM USER'S MANUAL 1-2 PART 1. GETTING STARTED PART 1 GETTING STARTED 1 DISC EJECT Ejects the inserted disc. 2 FM/AM Turns on FM/AM mode. Each press of the FM / AM key will change the band in the order of FM → AM → FM. 3 SAT Turns on SIRIUS TM mode. 4 MEDIA Turns on MEDIA mode. Each press of the MEDIA key will change the mode in the order of CD → USB/iPod ® /zune ® → JUKEBOX → AUX → BT Audio → PANDORA → CD. 5 POWER/VOLUME Push : Turns Power On/Off. Dial : Turns Volume Up/Down. 6 ∨ SEEK/TRACK ∧ Short (under 0.8 seconds) In FM/AM mode, automatically searches and plays the previous or next frequency. Control Panel Controls and Features 1 2 3 4 5 67 8 9 10 11 13 12 ※ No will be shown if the exterior Amplifier feature is not supported. PART 1. GETTING STARTED 1-3 GETTING STARTED In SIRIUS TM mode, automatically searches and plays the previous or next channel. In MEDIA mode (CD, MP3, USB, iPod ® , zune ® , BT AUDIO), plays the previous or next track, song, or file. In P ANDORA Radio, PANDORA Radio skip (Seek up). In JUKEBOX mode, plays the previous or next track. Long (over 0.8 seconds) In FM/AM mode, quickly moves through the frequencies when the button is pressed and held. Once released, automatically searches and plays the previous or next frequency. In SIRIUS TM mode, quickly moves to the previous or next channel. In MEDIA mode (CD, MP3, USB, iPod ® , zune ® , BT AUDIO), REW/FF the current track, song, or file. In JUKEBOX mode, REW/FF the current track. 7 ∨ CATEGORY ∧ In SIRIUS TM mode, moves to the previous or next SIRIUS TM category. 8 TUNE In FM/AM mode, turn the knob to manually search for frequencies. In SIRIUS TM mode, turn the knob to manually search for channels. Press the knob to receive the selected channel. In MEDIA mode (CD, MP3, USB, iPod ® , zune ® ), turn the knob to manually search for the previous or next track, song, or file. Press the knob to receive the selected track, song, or file. In PANDORA Radio, searches PANDORA Radio stations. In JUKEBOX mode, turn the knob to manually search for the previous or next track. Press the knob to receive the selected track. 9 SETUP Displays SETUP mode. 10 PHONE Displays Bluetooth ® wireless technology Phone mode. 11 eServices Displays UVO eServices mode. 12 DISP Turns off the screen. 13 RESET Reset the system to be used if system is acting abnormally. 1-4 PART 1. GETTING STARTED PART 1 GETTING STARTED Steering Wheel 1 ∨ SEEK/TRACK ∧ Short (under 0.8 seconds) In FM/AM mode, automatically searches and plays the previous or next preset frequency. In SIRIUS TM mode, automatically searches and plays the previous or next preset channel. In MEDIA mode (CD, MP3, USB, iPod ® , zune ® , BT AUDIO), plays the previous or next track, song, or file. In PANDORA Radio, PANDORA Radio skip (Seek up). In JUKEBOX mode, plays the previous or next track. Long (over 0.8 seconds) In FM/AM mode, quickly moves through the frequencies when the button is pressed and held. Once released, automatically searches and plays the previous or next frequency. In SIRIUS TM mode, quickly moves to the previous or next channel. In MEDIA mode (CD, MP3, USB, iPod ® , zune ® , BT AUDIO), REW/FF the current 1 2 34 5 67 PART 1. GETTING STARTED 1-5 GETTING STARTED track, song, or file. In JUKEBO X mode, REW/FF the current track. 2 + VOLUME - Turns Volume Up/Down. 3 MODE Short (under 0.8 seconds) Changes the mode. Each press will change modes in the order of FM → AM → SIRIUS TM → CD → USB/iPod ® /zune ® → JUKEBOX → AUX → BT Audio → PANDORA → FM. Long (over 0.8 seconds) While the system is off, turn the system on. While the system is on, turn off the system. 4 MUTE Mutes the sound. 5 Voice Command Short (under 0.8 seconds) If Voice recognition is off, turns on Voice recognition. If system is speaking, interrupts speaking and enters listening mode. Long (over 0.8 seconds) If Voice recognition is on, turns off Voice recognition. 6 SEND (Bluetooth ® wireless technology Phone) Pressing this key will receive an incoming call. If the Audio is on, the Bluetooth ® wireless technology phone screen will be displayed. When a SMS message is received, reads back message. 7 END (Bluetooth ® wireless technology Phone) Pressing this key will reject an incoming call. If pressed during a call, the current call will be ended. When a SMS message is received, ignores message. 1-6 PART 1. GETTING STARTED PART 1 GETTING STARTED Basic Features System Power 1. Turning System Power On 1. Turn on the ignition. 2. While the system is off, press the POWER/VOL knob to turn the system on. 3. The system will automatically restore the most recently played mode. For example, pressing the POWER/VOL knob will turn on the system and display FM radio mode if FM mode had been the last operated mode prior to turning off the system. 4. You can also turn the system on by pressing the FM / AM , SAT and MEDIA keys. Note ● Pressing any one of the FM / AM , SAT , and MEDIA keys will turn on the system and display the last mode corresponding to each key. For example, pressing the MEDIA key while a CD or other media source is loaded, will turn on the system and display CD mode if the last operated MEDIA mode prior to turning off the system had been CD mode. 2. Turning System Power Off 1. While the system is on, press the POWER/VOL knob to turn off the system. Note ● If the system power was on when the ignition was turned off, the system will turn back on automatically. Conversely, if the system power was off when the ignition was turned off, the system will remain off. ● If the battery voltage is low, the audio may take a prolonged time to boot upon turning on the vehicle. PART 1. GETTING STARTED 1-7 GETTING STARTED Select Display Language The UVO system allows you to select the preferred display language for maximum convenience and system usability. The system provides you with options of three languages - English, French (Canadian) and Spanish. The default language is English. 1. Press the SETUP key on the contr…
Text truncated - open the document above for the full version.
Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 30 July 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We , Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. S incerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.
Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 30 July 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐AC1A3IHAN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The A pplicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

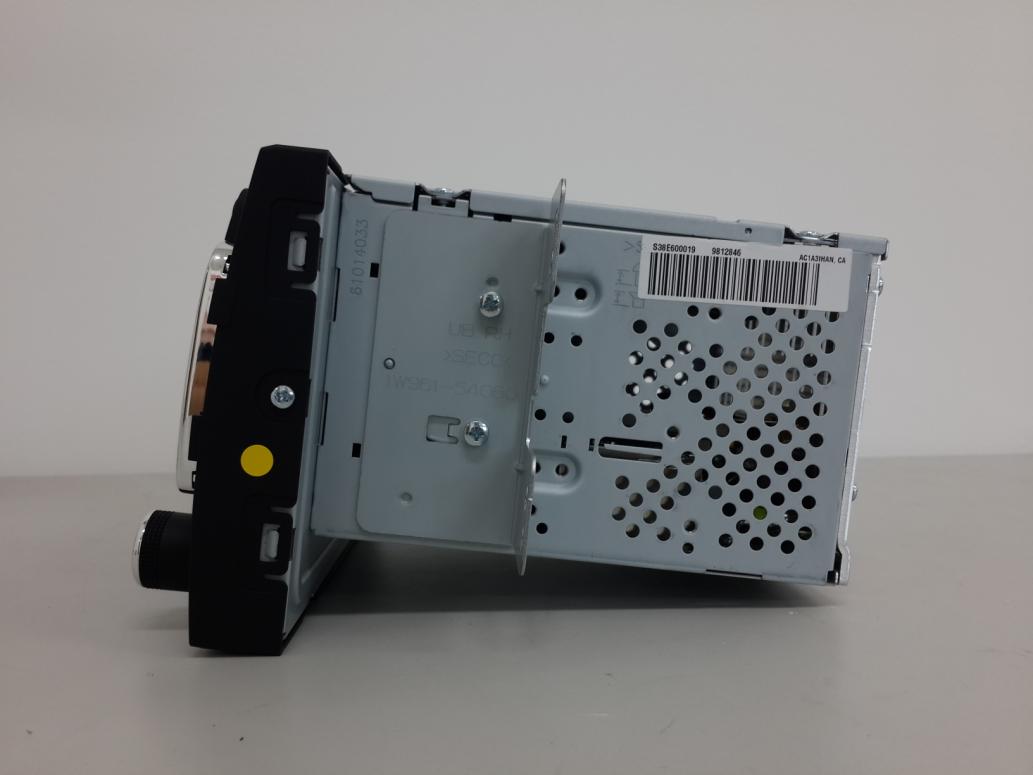

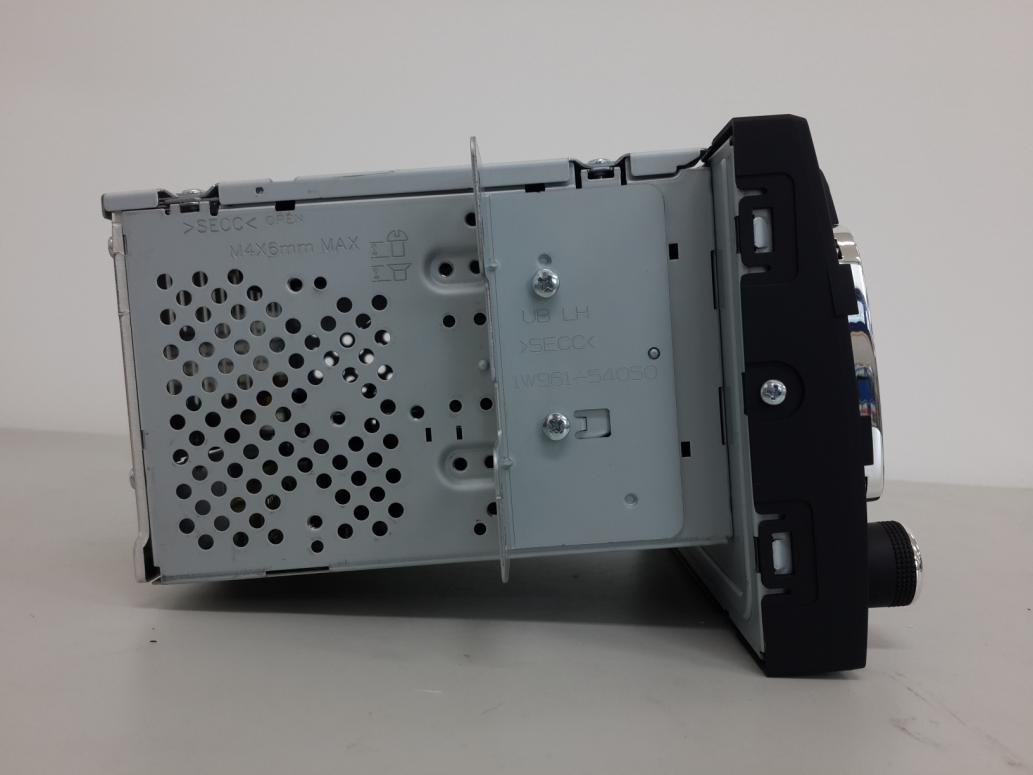

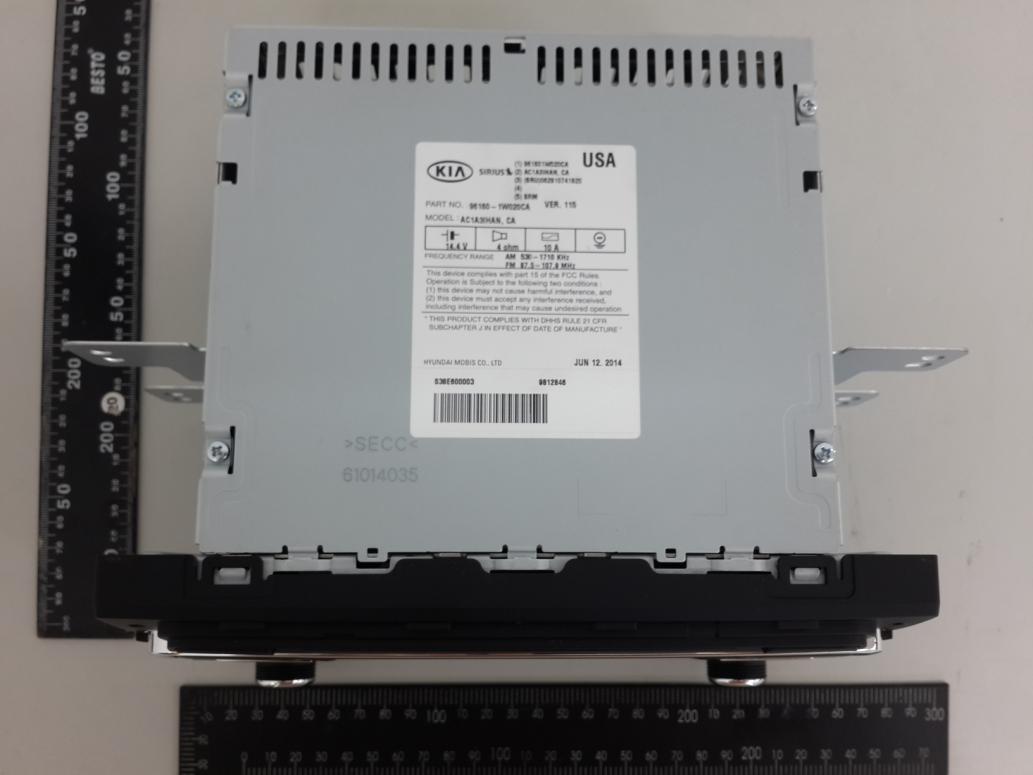

Model : AC1A3IHAN External photos of EUT Model : AC1A3IHAN Top view of EUT Bottom view of EUT Model : AC1A3IHAN Side view of EUT Model : AC1A3IHAN Front view of EUT Back view of EUT
Hyundai MOBIS Co., Ltd. FCC MODEL: FCC ID: IC MODEL: IC: AC1A3IHAN TQ8 -AC1A3IHAN AC1A2IHKN 5074A-AC1A2IHKN FRONT TOP Nonremovable LABEL LABEL LOCATION AC1A3IHAN FCC/IC LABEL Informa)on Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules and industry Canada license-‐exempt RSS standard(s). Opera)on is subject to the following two condi)ons: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired opera)on. Made in Korea MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL Hyundai MOBIS Co., Ltd. FCC MODEL: FCC ID: IC MODEL: IC: AC1A3IHAN TQ8 -AC1A3IHAN AC1A3IHKN 5074A-AC1A2IHKN FRONT TOP Nonremovable LABEL LABEL LOCATION AC1A3IHAN FCC/IC LABEL Informa)on Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules and industry Canada license-‐exempt RSS standard(s). Opera)on is subject to the following two condi)ons: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired opera)on. Made in Korea MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL
Model : AC1A3IHAN Inner photos of EUT Model : AC1A3IHAN Top view of EUT Model : AC1A3IHAN Top view of Main PCB Bottom view of Main PCB Model : AC1A3IHAN Top view of Sub PCB-1 Bottom view of Sub PCB-1 Model : AC1A3IHAN Top view of Sub PCB-2 Bottom view of Sub PCB-2 Model : AC1A3IHAN Top view of CD Master Bottom view of CD Master Model : AC1A3IHAN Antenna Inverted F PCB Antenna
Report Number : F690501/RF-RTL007858 Page: 2 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 Report Number : F690501/RF-RTL007858 Page: 3 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hoon Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM Basic Model Name AC1A3IHAN Alternative Model Name AC1A2IHAN, AC1A4IHAN, AC1A5IHAN, AC1A2IHKN, AC1A3IHKN Power Supply DC 14.4 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type PCB Antenna Antenna Gain -4.30 ㏈i 1.4. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL007858 2014. 07. 24 Initial Report Number : F690501/RF-RTL007858 Page: 4 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 -- -- F/1500 6 1 500 – 100 000 -- -- 1 30 Report Number : F690501/RF-RTL007858 Page: 5 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item : RF Exposure Evaluation Data Test Mode : Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance FHSS : GFSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low 2 402 2.34 -4.30 77.0 0.000 165 1 Middle 2 441 1.88 -4.30 77.0 0.000 148 1 High 2 480 2.06 -4.30 77.0 0.000 154 1 Mode Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 4.00 -4.30 0.000 241 1 FHSS : 8DPSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low 2 402 0.82 -4.30 77.0 0.000 116 1 Middle 2 441 0.35 -4.30 77.0 0.000 104 1 High 2 480 -0.30 -4.30 77.0 0.000 090 1 Mode Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 4.00 -4.30 0.000 241 1 Note : 1. The power density Pd (5th column) at a distance of 20㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠.
