TQ8-AC1B3A5ANDigital Car Audio System

41 Features of your vehicle ■■ CD Player : AC101A5KN, AC181A5KN, AC111A5KN, AC1B3A5KN, AC182A5AN, AC1B2A5AN, AC1B3A5AN, AC104A5GG, AC111A5GG ❋ No logo will be shown if the Bluetooth ® Wireless Technology feature is not supported. GD HMA 4b(130~Audio).qxp 6/20/2013 1:39 PM Page 1 Features of your vehicle 24 SYSTEM CONTROLLERSAND FUNCTIONS❈ Display and settings may differdepending on the selected audio. Audio Head Unit1. (EJECT) • Ejects the disc. 2.• Changes to FM/AM/XM mode. • Each time the key is pressed, the mode is changed in order of FM1 ➟ FM2 ➟ AM ➟ XM1 ➟ XM2 ➟ XM3. ( ❈ For XM Radio equipped Model) • Each time the key is pressed,the mode is changed in order of FM1➟ FM2 ➟ AM. ❈ In Setup>Display, the radio pop upscreen will be displayed when[Mode Pop up] is turned . When the pop up screen is dis-play ed, use the TUNE knob or keys ~ to select thedesired mode. 3.• Changes to CD, USB MP3, iPod ® , BT MP3, AUX modes. • Each time the key is pressed, the mode is changed in order of CD,USB, iPod ® , AUX, My Music, BT Audio(hif equipped). ❈ In Setup>Display, the media popup screen will be displayed when[Mode Pop up] is turned . When the pop up screen is dis-play ed, use the TUNE knob or keys ~ to select thedesired mode. 4. ( ❈ For Bluetooth ® Wireless Technology equipped Model) • Oper ates Phone Screen ❈ When a phone is not connected, the connection screen is displayed. PHONE 5 1 On MEDIA 6 1 On RADIO GD HMA 4b(130~Audio).qxp 6/20/2013 1:39 PM Page 2 43 Features of your vehicle 5. , • Radio Mode : Automatically search- es for broadcast frequencies. • CD, USB, iPod ® , My Music modes - Shortly press the key (under 0.8 seconds): Moves to next or previ-ous song (file) - Press and hold the key (over 0.8 seconds): Rewinds or fast-for-wards the current song. • BT Audio mode : Moves to next or previous song(file) 6. PWR/VOL knob• Power : Turns power On/Off by pressing the knob • Volume : Sets volume by turn- ing the knob left/right 7. ~ (Preset) • Radio Mode: Saves frequencies (channels) or receives saved fre-quencies (channels) • CD, USB, iPod ® , My Music mode - : Repeat- : Random • In the Radio, Media, Setup, and Menu pop up screen, the numbermenu is selected. 8.• Each time the button is shortly pressed (under 0.8 seconds), itsets the screen Off ➟ Screen On ➟ Screen Off ❈ Audio operation is maintained andonly the screen will be turned Off.In the screen Off state, press anykey to turn the screen On again. DISP 21 6 1 TRACK SEEK GD HMA 4b(130~Audio).qxp 6/20/2013 1:39 PM Page 3 Features of your vehicle 4 4 9.• Radio Mode - Shortly press the key (under 0.8 seconds): Previews each broadcastfor 5 seconds each. - Press and hold the key (over 0.8 seconds): Previews the broadcastssaved in Preset ~ for 5 seconds each. ❈ Press the key again to continue listening to the currentfrequency. ❈ XM Radio does not support thePreset scan feature. • CD, USB, iPod ® mode - Shortly press the key (under 0.8 seconds): Previews each song (file)for 10 seconds each ❈ Press the key again to continue listening to the currentsong (file). 10.• Shortly press the key (under 0.8 seconds) : Moves to the Display,Sound, Clock, Phone, System set-ting modes • Press and hold the key (over 0.8 seconds) : Move to the Time set-ting screen 11.• Displays menus for the current mode.12. , • Radio Mode - XM RADIO ™ : Category Search • MP3, CD, USB mode : Folder Search• iPod ® mode: Moves to parent folder ❈ May differ depending on theselected audio. 13. TUNE knob • Radio mode : Changes frequency by turning the knob left/right • CD, USB, iPod ® mode: Searches songs (files) by turning the knobleft/right ❈ When the desired song is displayed, press the knob to play the song. • Moves focus in all selection menus and selects menus. FOLDER CAT MENU SETUP CLOCK SCANSCAN 6 1 SCAN GD HMA 4b(130~Audio).qxp 6/20/2013 1:39 PM Page 4 45 Features of your vehicle Audio Head Unit14.• Changes to FM mode.• Each time the key is pressed, the mode changed in order of FM1 ➟ FM2 ➟ AM 15.• Changes to XM mode.• Each time the key is pressed, the mode changed in order of XM1 ➟ XM2 ➟ XM3 SAT FM/AM GD HMA 4b(130~Audio).qxp 6/20/2013 1:39 PM Page 5 Features of your vehicle 6 4 DISPLAY SETTINGSPress the key Select [Display] through TUNE knob or key Select menu through TUNE knob Mode Pop up[Mode Pop up] Changes / selection mode• During On state, press the or key to display the mode change pop up screen. Text Scroll[Text Scroll] Set / • : Maintains scroll • : Scrolls only one (1) time. Media DisplayWhen playing an MP3 file, select thedesired display info from ‘Folder/File’or ‘Album/Artist/Song’. Off On Off On MEDIA RADIO Off On 1 SETUP GD HMA 4b(130~Audio).qxp 6/20/2013 1:39 PM Page 6 47 Features of your vehicle SOUND SETTINGSPress the key Select [Sound] through TUNE knob or key Select menu through TUNE knob Sound SettingsThis menu allows you to set the‘Bass, Middle, Treble’ and the SoundFader and Balance.Select [Sound Settings] Selectmenu through TUNE knob Turn TUNE knob left/right to set • Bass, Middle, Treble : Selects thesound tone. • Fader, Balance : Moves the soundfader and balance. • Default : Restores default settings. ❈ Back : While adjusting values, re-pressing the TUNE knob will restore the parent menu. Power BassThis is a sound system feature thatprovides live bass.Select [Power Bass] Set / through TUNE knobSpeed Dependent Volume ControlThis feature is used to automaticallycontrol the volume level according tothe speed of the vehicle.Select [SDVC] Set in 4 levels [Off/Low/Mid/High] of TUNE knob Off On 2 SETUP GD HMA 4b(130~Audio).qxp 6/20/2013 1:39 PM Page 7 Features of your vehicle 8 4 Voice Recognition Volume( ❈ For Bluetooth ® Wireless Technology equipped Model)Adjusts voice recognition volume.Select [Voice Recognition Vol.] Setvolume of TUNE knob Blue Link Voice Volume( ❈ For TMU supported Model) Sets the Blue Link voice recognitionvolume.❈ While using Blue Link voice recog- nition, turning the tune knob willdisplay the volume control popupscreen. ❈ May differ d…

Text truncated - open the document above for the full version.

FCC Warning This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCCRules. These limits are designedtoprovide reasonable protectionagainstharmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur ina particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increasethe separation between the equipment and receiver. ■Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected. ■Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interference that may causeundesired operation of the device. Le présent appareil estconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doitacceptertoutbrouillageradioélectriquesubi, mêmesilebrouillageestsusceptibled'en compromettre le fonctionnement.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 11 February 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 20 May 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐AC1B3A5AN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

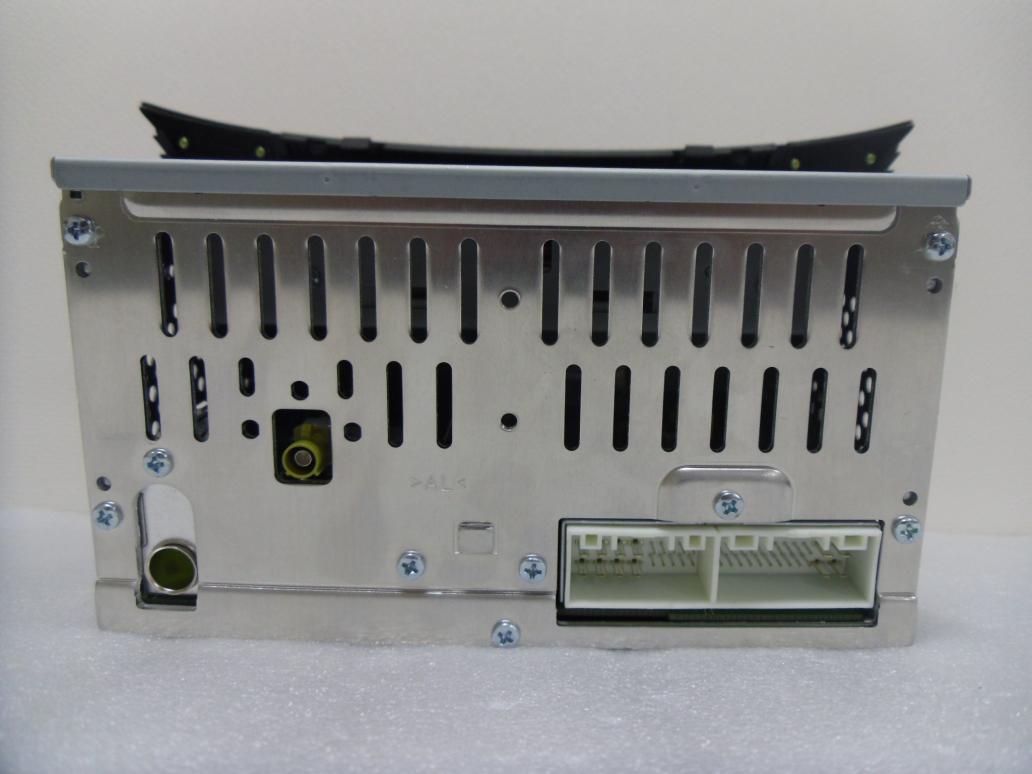

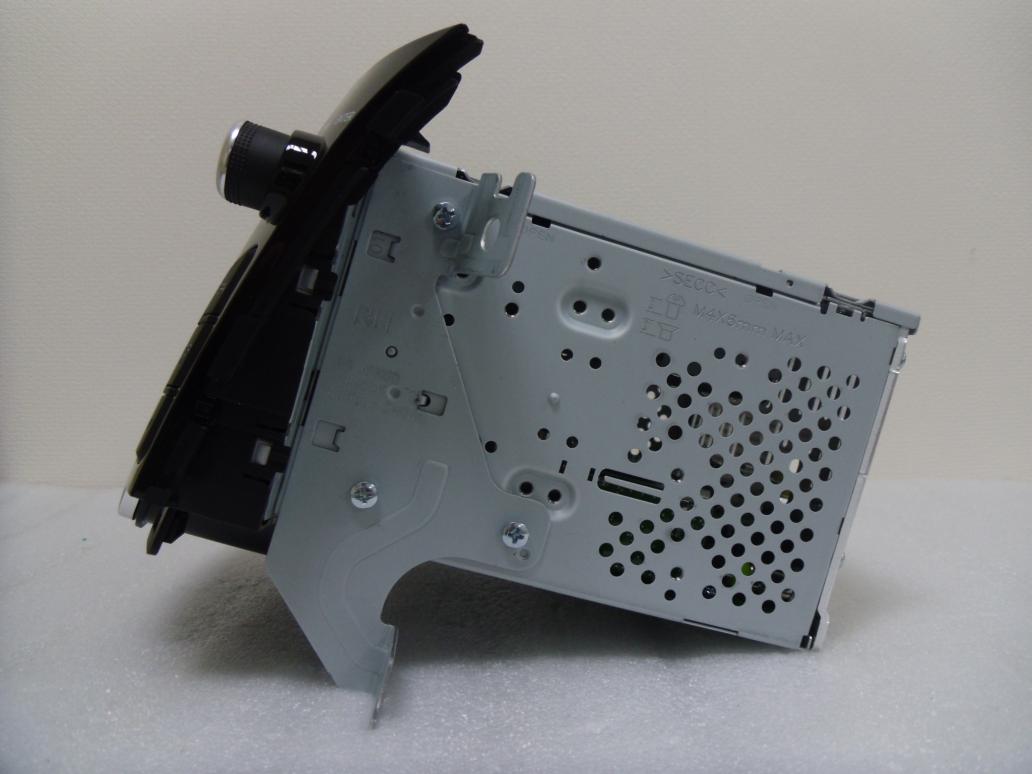

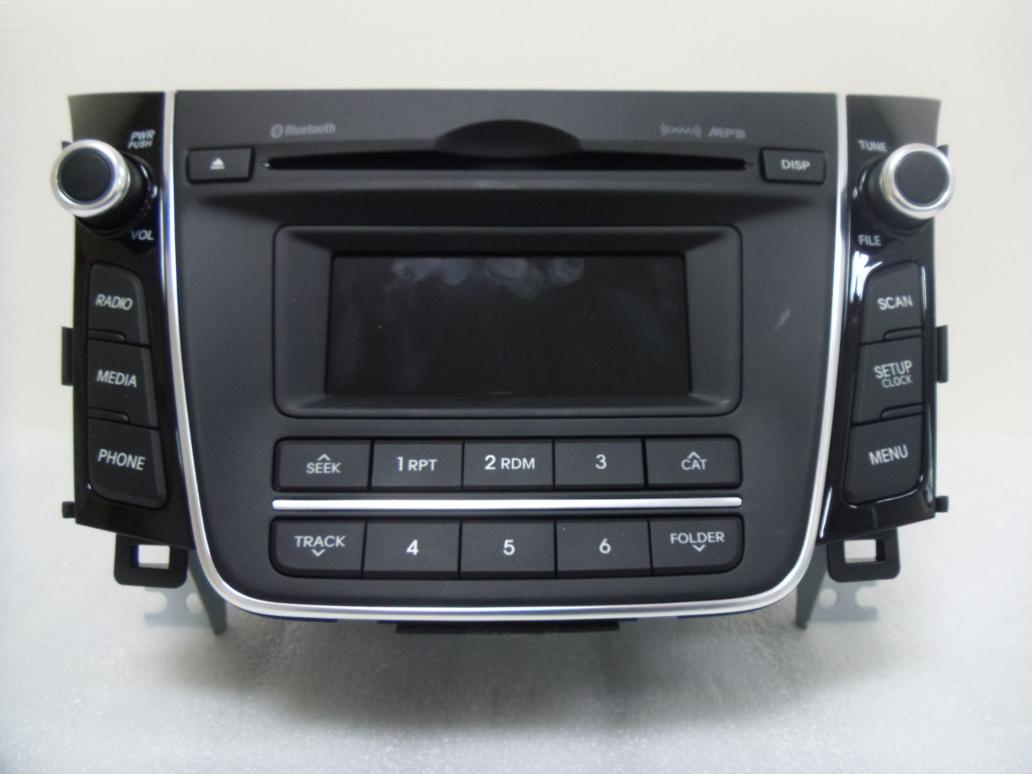

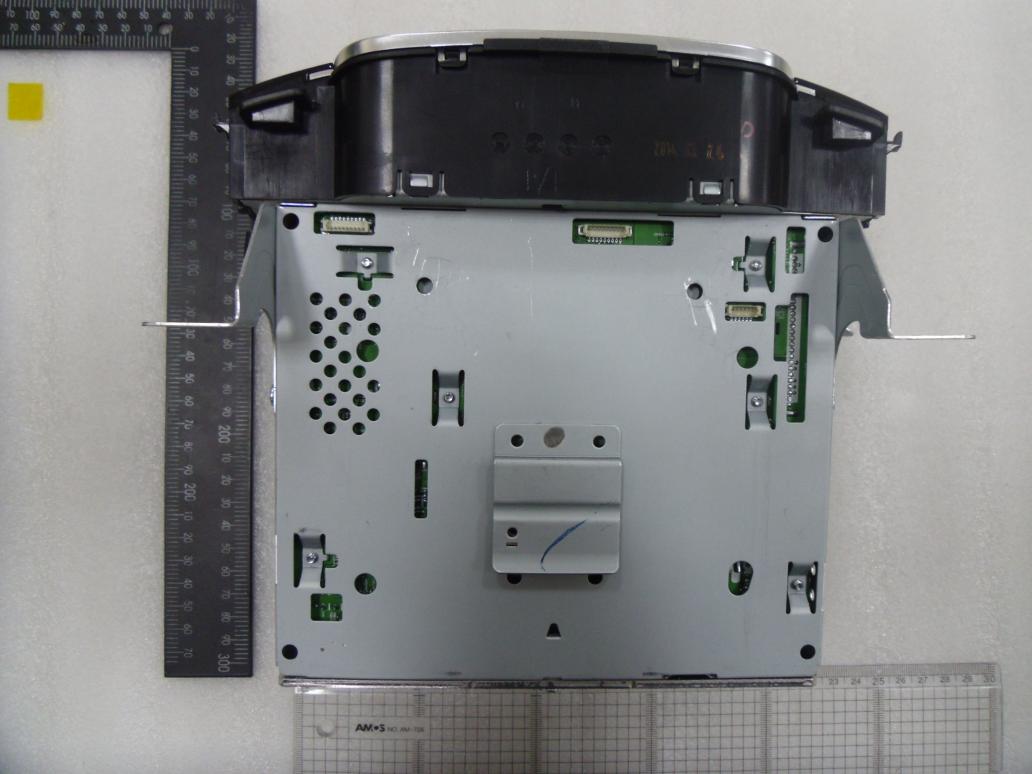

Model : AC1B3A5AN External photos of EUT Model : AC1B3A5AN Top view of EUT Bottom view of EUT Model : AC1B3A5AN Side view of EUT Model : AC1B3A5AN Front view of EUT Back view of EUT

AC1B3A5ANFCC/IC LABEL If ti LABEL LOCATION FCC/IC LABEL I n f orma ti on Hyundai MOBIS Co., Ltd. FCC MODEL: AC1B3A5AN FCC ID: TQ8 ‐ AC1B3A5AN IC MODEL: AC1B3A5KN LABEL LOCATION IC: 5074A ‐ AC1B3A5KN Nonremovable This device complies with part 15 of the FCC rules and industry Canada license ‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, ildi it f th t did LABEL i nc l u di ng i n t er f erence th a t may cause un d es i re d operation. Made in Korea MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FRONT TOP Hyundai MOBIS Co., Ltd.

Model : AC1B3A5AN Inner photos of EUT Model : AC1B3A5AN Top view of EUT Model : AC1B3A5AN Top view of Main PCB Bottom view of Main PCB Model : AC1B3A5AN Top view of Sub PCB-1 Bottom view of Sub PCB-1 Model : AC1B3A5AN view of Main PCB(Module-1:before taking off) view of Sub PCB(Module-1: after taking off) Model : AC1B3A5AN view of Main PCB(Module-2:before taking off) view of Main PCB(Module-2:after taking off) Model : AC1B3A5AN Top view of Sub PCB-2 Bottom view of Sub PCB-2 Model : AC1B3A5AN Top view of CD Master Bottom view of CD Master Model : AC1B3A5AN Antenna Chip Antenna

Report Number : F690501/RF-RTL007663 Page: 2 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 Report Number : F690501/RF-RTL007663 Page: 3 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hoon Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM FCC Basic Model Name AC1B3A5AN IC Basic Model Name AC1B3A5KN FCC Alternative Model Name AC1B2A5AN, AC111A5GG IC Alternative Model Name AC111A5KN Power Supply DC 14.4 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Chip Antenna Antenna Gain -5.03 ㏈i 1.4. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL007663 2014. 05. 19 Initial Report Number : F690501/RF-RTL007663 Page: 4 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 -- -- F/1500 6 1 500 – 100 000 -- -- 1 30 Report Number : F690501/RF-RTL007663 Page: 5 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance FHSS : GFSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low 2 402 -0.89 -3.50 77.0 0.000 094 1 Middle 2 441 -0.14 -3.50 77.0 0.000 112 1 High 2 480 0.89 -3.50 77.0 0.000 142 1 Mode Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 4.00 -3.50 0.000 290 1 FHSS : π/4DQPSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low 2 402 -1.39 -3.50 77.6 0.000 083 1 Middle 2 441 -0.53 -3.50 77.6 0.000 101 1 High 2 480 -0.17 -3.50 77.6 0.000 110 1 Mode Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 4.00 -3.50 0.000 288 1 Note : 1. The power density Pd (5th column) at a distance of 20㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠.

Report Number: F690501/RF-RTL007662 Page: 2 of 69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 8 3. 20㏈ Bandwidth and 99 % BW ------------------------------------------------------------------ 34 4. Maximum Peak Output Power ------------------------------------------------------------------- 46 5. Hopping Channel Separation --------------------------------------------------------------------- 48 6. Number of Hopping Frequency ------------------------------------------------------------------ 51 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 55 8. Antenna Requirement ------------------------------------------------------------------------------ 69 Report Number: F690501/RF-RTL007662 Page: 3 of 69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2370 1.2. Details of Applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hoon Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM FCC Basic Model Name AC1B3A5AN IC Basic Model Name AC1B3A5KN FCC Alternative Model Name AC1B2A5AN, AC111A5GG IC Alternative Model Name AC111A5KN Power Supply DC 14.4 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Chip Antenna Antenna Gain -3.50 ㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels Report Number: F690501/RF-RTL007662 Page: 4 of 69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The selection of frequencies is equal from the inventory of available frequencies. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL007662 Page: 5 of 69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan. 08, 2014 Annual Jan. 08, 2015 Spectrum Analyzer Agilent N9030A MY53120526 Jul. 30, 2013 Annual Jul. 30, 2014 Directional Coupler KRYTAR 152613 127445 Jul. 02, 2013 Annual Jul. 02, 2014 Bluetooth Tester TESCOM TC-3000C 3000C000296 Jul. 02, 2013 Annual Jul. 02, 2014 High Pass Filter Wainwright WHK3.0/18G-6SS 4 Jul. 02, 2013 Annual Jul. 02, 2014 High Pass Filter Wainwright WHK7…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated Spurious Emission Test (Below 1GHz) B. Photo of Radiated Spurious Emission Test (Above 1GHz)
