TQ8-AC210D4EEDIGITAL CAR AUDIO SYSTEM

Features of your vehicle 62 4 SYSTEM CONTROLLERSAND FUNCTIONS ❈ Display and settings may differdepending on the selected audio. Audio Head Unit (for RDS equipped model) (1) (EJECT)Ejects the disc.(2) Converts to Radio(FM/AM) mode.Each time the key is pressed,themode is changed in order of FM1 ➟ FM2 ➟ FMA ➟ AM ➟ AMA. (3) Start Media modeEach time the key is pressed, themode is changed in order of CD,USB(iPod) AUX, My Music, BTAudio.(4) Converts to Phone mode❈ When a phone is not connected,the connection screen is dis-played. (5) PWR/VOL knob Power : Press to turn power on/off. Volume : Turn left/right to control volume.(6) When pressed shortly(under 0.8seconds)- Radio mode : plays previous/next frequency. - Media (CD / USB / iPod / My Music) modes : changes the track, Song(file) When pressed and held (0.8 sec-onds)- Radio mode : continuously changes the frequency. Upon release, playsthe current frequency. - Media(CD / USB / iPod / My Music) modes : rewinds or fast forwardsthe track or file - During a Handsfree call, controls the call volume. SEEK TRACK MEDIARADIO 463 Features of your vehicle (7) Turns the monitor display on/off.(8) Set TA(Traffic Announcement) fea-ture On/Off. (9) Radio Mode : previews all receivablebroadcasts for 5 seconds eachMedia (CD / USB / iPod / My Music)modes : previews each song (file) for10 seconds each.(10) Converts to Setup mode.(11) TUNE knobRadio mode : turn to change broad-cast frequencies.Media (CD / USB / iPod / My Music)modes : turn to search tracks/chan-nels/files.(12) RDS Radio mode : searches RDSprogram types.CD/USB/MP3 modes : searchesfolders. PTY FOLDER SCAN TA 465 Features of your vehicle SYSTEM CONTROLLERSAND FUNCTIONS❈ Display and settings may differdepending on the selected audio. Audio Head Unit (1) (EJECT)Ejects the disc. (2) Converts to Radio(FM/AM) mode.Each time the key is pressed,themode is changed in order of FM1 ➟ FM2 ➟ AM. (3) Start Media modeEach time the key is pressed, themode is changed in order of CD,USB(iPod) AUX, My Music, BTAudio.(4) Converts to Phone mode❈ When a phone is not connected, the connection screen is dis-played. (5) PWR/VOL knob Power : Press to turn power on/off. Volume : Turn left/right to control volume.(6) When pressed shortly(under 0.8seconds)- Radio mode : plays previous/next frequency. - Media (CD / USB / iPod / My Music) modes : changes the track,Song(file) When pressed and held (0.8 sec-onds)- Radio mode : continuously changes the frequency. Upon release, playsthe current frequency. - Media(CD / USB / iPod / My Music) modes : rewinds or fast forwardsthe track or file - During a Handsfree call, controls the call volume. SEEK TRACK PHONE MEDIARADIO Features of your vehicle 66 4 (7) Turns the monitor display on/off.(8) MUTEMutes audio volume. (9) Radio Mode : previews all receivablebroadcasts for 5 seconds eachMedia (CD / USB / iPod / My Music)modes : previews each song (file) for10 seconds each.(10) Converts to Setup mode.(11) TUNE knobRadio mode : turn to change broad-cast frequencies.Media (CD / USB / iPod / My Music)modes : turn to search tracks/chan-nels/files.(12) CD/USB/MP3 modes : searchesfolders. FOLDER SETUP SCAN DISP 467 Features of your vehicle Steering wheel remote con-troller(1) MUTEMutes audio volume.(2) MODEEach time this key is pressed, themode is changed in order of FM1 ➟ FM2 ➟ FMA ➟ AM ➟ AMA ➟ USB or iPod ➟ AUX ➟ My Music ➟ BT Audio If the media is not connected or adisc is not inserted, correspondingmodes will be disabled. (3) VOLUMEUsed to control volume.(4) SEEKWhen pressed shortly (under 0.8seconds)- Radio mode : searches broadcast frequencies saved to presets. - Media (CD / USB / iPod / My Music / BT Audio) modes : changes thetrack, file or ch apter. When pressed and held (over 0.8seconds)- Radio mode, automatically searches broadcast frequencies and channels - Media(CD / USB / iPod / My Music) modes, rewinds or fast forwards thetrack or song(file) (5) (if equipped)When pressed shortly (under 0.8seconds)- Starts voice recognition- When selecting during a voice prompt, stops the prompt and con-verts to voice command waitingstate When pressed and held (over 0.8seconds)- Ends voice recognition. Features of your vehicle 68 4 (6) When pressed shortly (under 0.8 sec- onds) - When pressed in the phone screen, displays call history screen - When pressed in the dial screen, makes a call - When pressed in the incoming call screen, answers the call - When pressed during call waiting, switches to waiting call (CallWaiting) When pressed and held (over 0.8 seconds) - When pressed in the Bluetooth ® Wireless Technology Handsfreewait mode, redials the last call - When pressed during a Bluetooth ® Wireless Technology Handsfreecall, switches call back to mobilephone (Private) - When pressed while calling on the mobile phone, switches call back toBluetooth ® Wireless Technology Handsfree (Operates only when Bluetooth ® Wireless Technology Handsfree is connected) (7) Ends phone call 469 Features of your vehicle Radio Mode (for RDS model)- AM100A7EE, AM110A7EE Basic Mode Screen (1) Mode DisplayDisplays currently operating mode(2) FrequencyDisplays the current frequency(3) PresetDisplays current preset number [1] ~[6](4) Preset DisplayDisplays saved presets(5) AutostoreAutomatically saves frequencies withsuperior reception to Preset buttons(6) RDS MenuDisplays the RDS Menu(7) RDS InfoDisplays RDS broadcast information Features of your vehicle 70 4 Switching to Radio ModePressing the key will change the operating mode in order of FM1➟ FM2 ➟ FMA ➟ AM ➟ AMA. Pressing the or keyto change the operating mode inorder of FM1 ➟ FM2 ➟ FMA and AM ➟ AMA.If [Pop-up Mode] is turned on within [Display], then pressing the key will display the Radio Pop-up Mode screen.Turn the TUNE knob to move the focus. Press the knob to select.Searching Radio Frequencies Using SeekPress the key to play the previous/next frequency.Using TUNETurn the TUNE knob to select the desired frequency.• FM : Increases/decreased by 50kHz• AM : Increase…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: April 06, 2015 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: TQ8-AC210D4EE including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Hyundai MOBIS Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seung Hoon Choe Senior Researcher

Hyundai MOBIS Co., Ltd. #203, Teheran-ro, Gangnam-gu, Seoul, 135-977 Republic of Korea Tel. 82-31-260-0098 / Fax. 82-31-280-276 Date : April 03, 2015 Subject: Letter of Declaration Dear Sirs, This is the difference of the model used in the exporting country. There is no difference of electrical performance and circuit performance. Basic model name Family models name AC210D4EE AC211D4GG,RHD AC211D4EE,RHD AC212D4GG,RHD AC212D4GG AC210D4GL AC210D4GE AC210D4GN AC210D4GN,RHD AC210D4GG AC210D4GG,RHD Sincerely yours, __________________________________ Seung Hoon, Choe /Senior Researcher

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 Apr. 06, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Hyundai MOBIS Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (DIGITAL CAR AUDIO SYSTEM, AC210D4EE, AC211D4GG,RHD, AC211D4EE,RHD, AC212D4GG,RHD, AC212D4GG, AC210D4GL, AC210D4GE, AC210D4GN, AC210D4GN,RHD, AC210D4GG, AC210D4GG,RHD) FCC ID: TQ8-AC210D4EE Sincerely, Client’s signature Client’s name / title Seung Hoon Choe / Senior Researcher Contact information / address Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 4.0 Apr. 06, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: TQ8-AC210D4EE We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Seung Hoon Choe / Senior Researcher Contact information / address: Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 4.0 Apr. 06, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: TQ8-AC210D4EE To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. Ext Photo - e.g. Int Photo - e.g. Test Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name & title : Seung Hoon Choe / Senior Researcher Contact information / address: Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977

FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label locate Top side This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

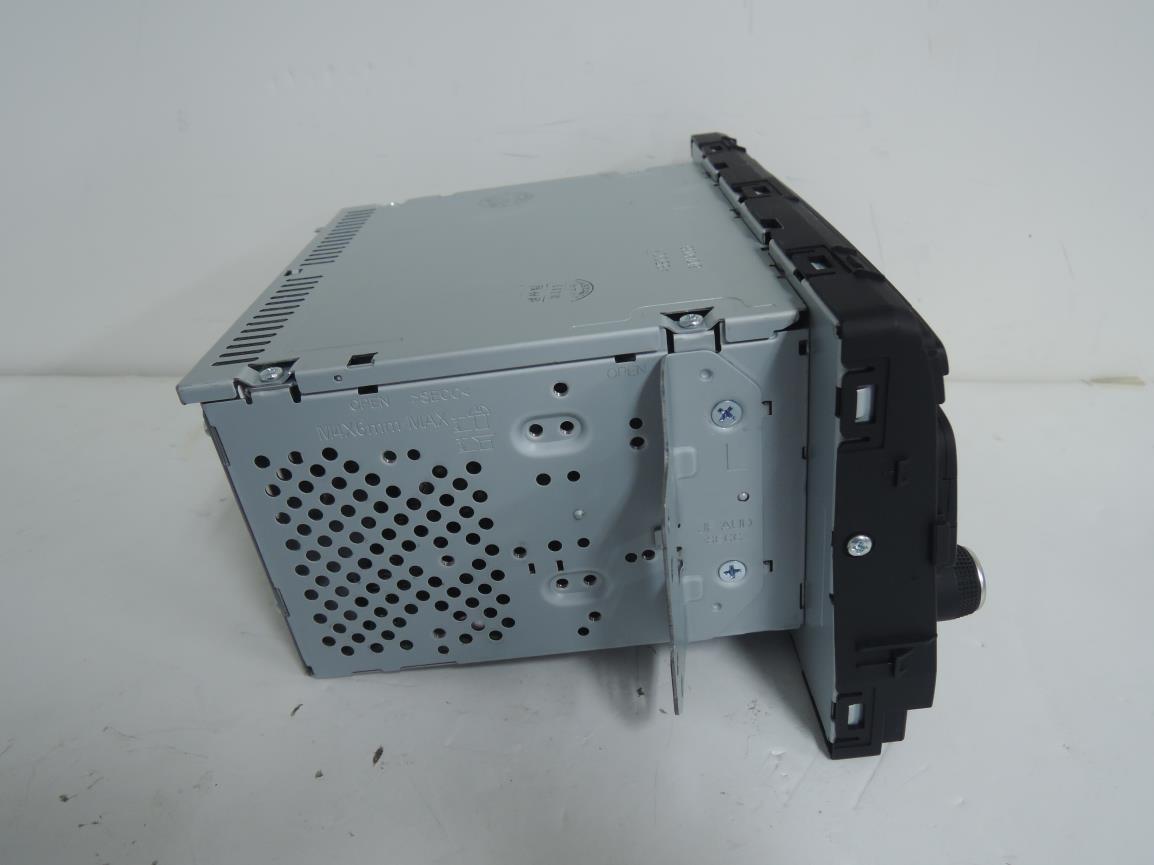

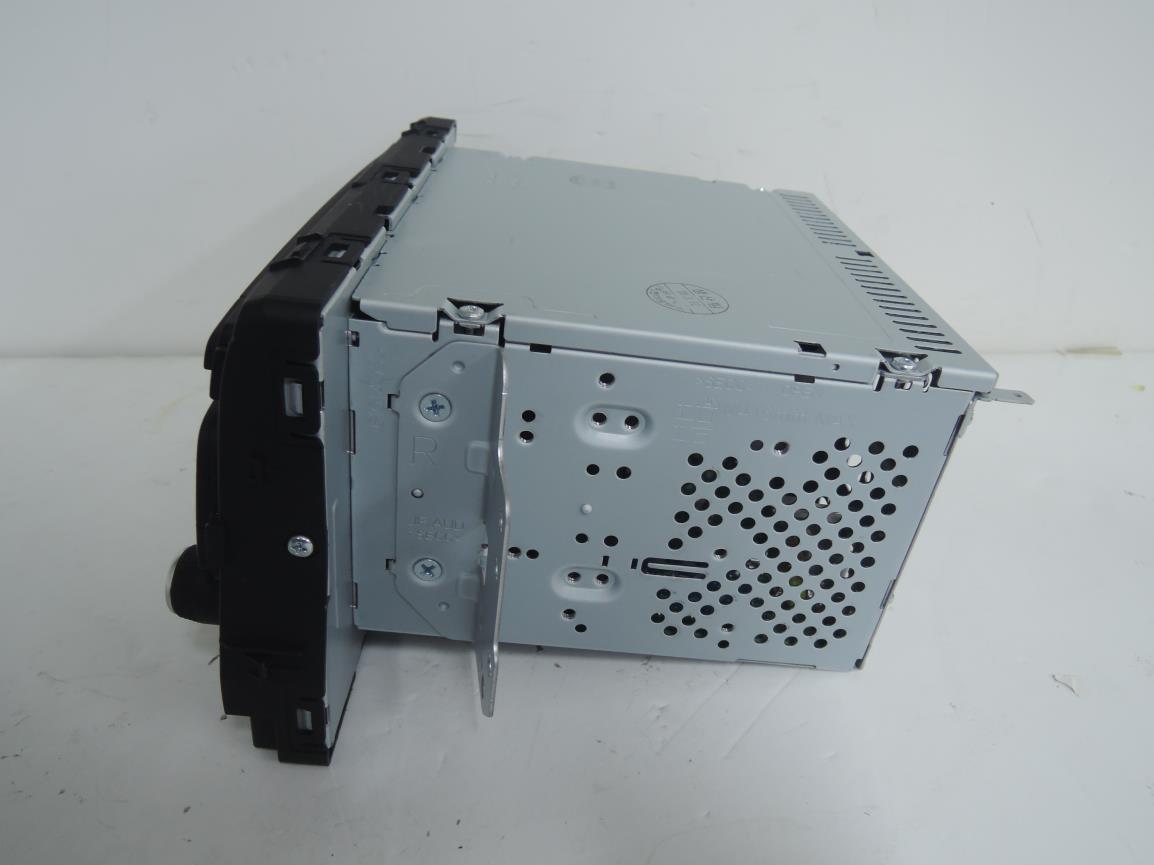

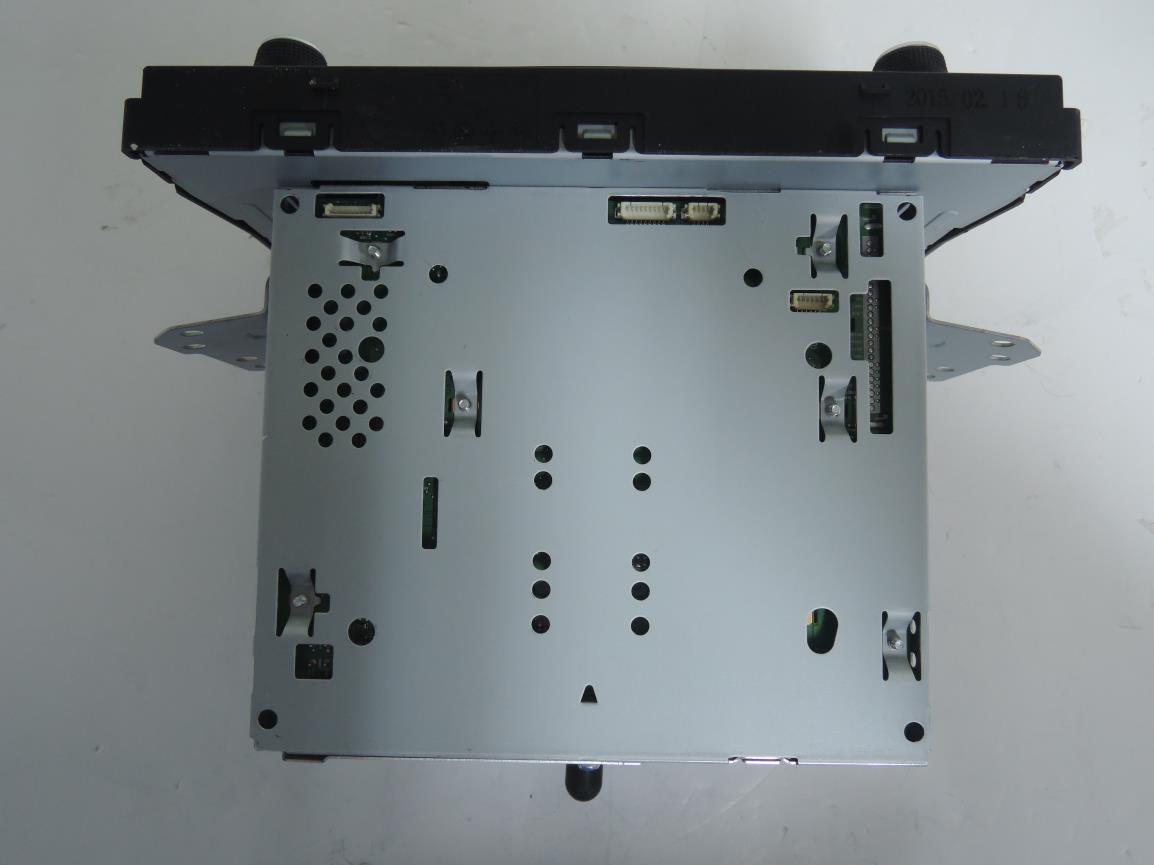

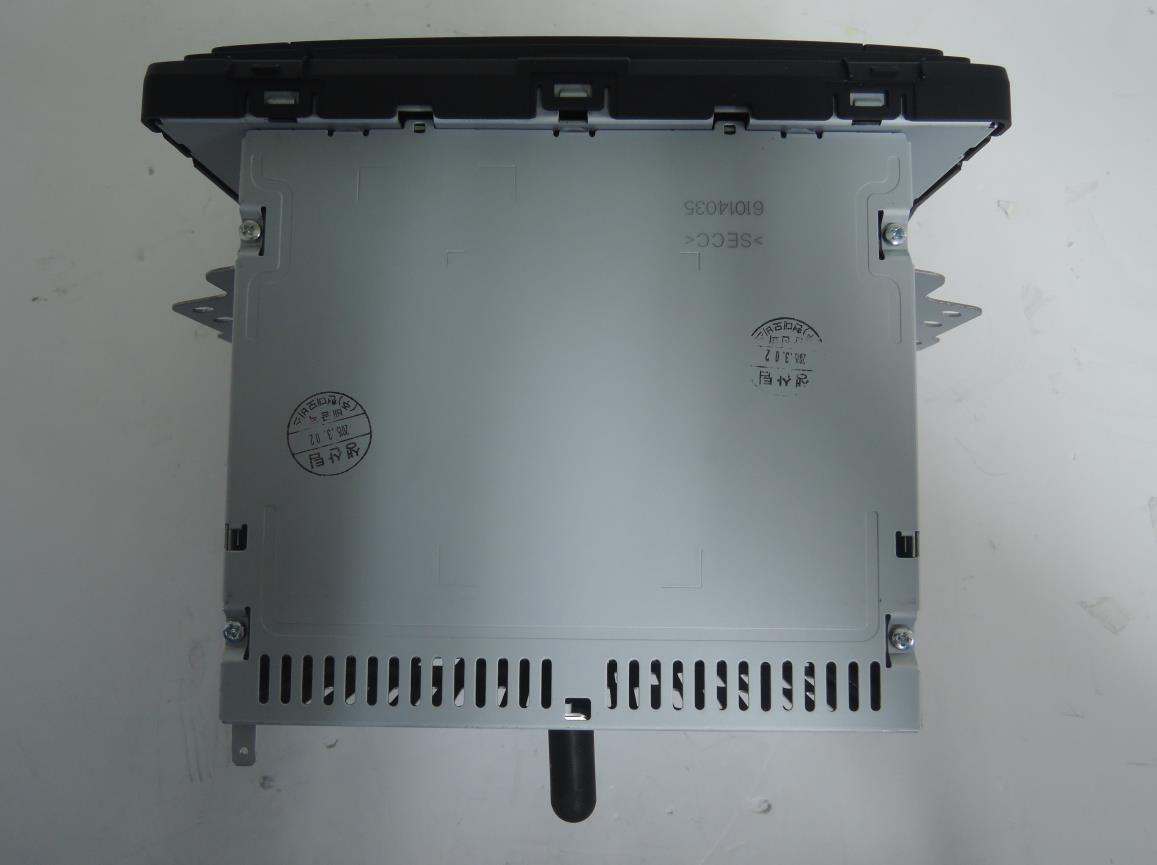

FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 3 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 4 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 6 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 7 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 8 FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 9 <Module> FCCID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. View 10 <Antenna>

-~ - - ± &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.000889 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 4.467 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) 6.50 dBm4.467 mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. EIRPPGNote 3.00 dBm3.50 dBi 0 Maximum antenna peak gain :dBi Maximum output power for the calculatio 3.00 dBm dB ( Max. 3.50 3 dBm Min. Measured RF output power :dBm Target Power & Tolerance :dBm 2.78 1.501.5 MHz MPE Calculations : (Bluetooth) HYUNDAI MOBIS Co., Ltd. FCCID: TQ8-AC210D4EE Frequency range : 2402 MHz2480 TRF-RF-206(01)140415

FCCID: TQ8-AC210D4EE DTNC1503-01348 Report No.: DRTFCC1504-0078 TRF-RF-212(03)140515 Page 2 / 71 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1504-0078 Apr. 08, 2015 Initial issue FCCID: TQ8-AC210D4EE DTNC1503-01348 Report No.: DRTFCC1504-0078 TRF-RF-212(03)140515 Page 3 / 71 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. General Information ............................................................................................................... 5 1.1. Testing Laboratory .......................................................................................... 5 1.2. Details of Applicant ......................................................................................... 5 1.3. Description of EUT .......................................................................................... 5 1.4. Declaration by the manufacturer .................................................................... 5 1.5. Information about the FHSS characteristics: ................................................ 6 1.6. Test Equipment List ........................................................................................ 7 1.7. Summary of Test Results ................................................................................ 8 1.8 Conclusion of worst-case and operation mode .............................................. 9 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 10 2.1. Test Setup ...................................................................................................... 10 2.2. Limit ................................................................................................................ 10 2.3. Test Procedures............................................................................................. 11 2.3.1. Test Procedures for Radiated Spurious Emissions................................ 11 2.3.2. Test Procedures for Conducted Spurious Emissions ............................ 11 2.4. Test Results ................................................................................................... 12 2.4.1. Radiated Emission .................................................................................... 12 2.4.2. Conducted Spurious Emissions .............................................................. 15 3. Carrier Frequency Separation............................................................................................. 39 3.1.Test Setup ....................................................................................................... 39 3.2. Limit ................................................................................................................ 39 4.Number of Hopping Frequencies ........................................................................................ 44 4.1.Test Setup ....................................................................................................... 44 4.2. Limit ................................................................................................................ 44 5. 20dBc BW .............................................................................................................................. 50 5.1. Test Setup ...................................................................................................... 50 5.2. Limit ................................................................................................................ 50 5.3. Test Procedure .............................................................................................. 50 5.4. Test Results ................................................................................................... 50 6. Time of Occupancy (Dwell Time) ........................................................................................ 56 6.1. Test Setup ...................................................................................................... 56 6.2. Limit ................................................................................................................ 56 6.3. Test Procedure .............................................................................................. 56 6.4. Test Results ................................................................................................... 56 7. Maximum Peak Output Power Measurement .................................................................... 61 7.1. Test Setup ...................................................................................................... 61 7.2. Limit ................................................................................................................ 61 7.3. Test Procedure ............................................................................................... 61 7.4. Test Results ................................................................................................... 62 8. Transmitter AC Power Line Conducted Emission ............................................................ 68 FCCID: TQ8-AC210D4EE DTNC1503-01348 Report No.: DRTFCC1504-0078 TRF-RF-212(03)140515 Page 4 / 71 Copyright ○ C 2015, DT&C Co., Ltd. 8.1. Test Setup ...................................................................................................... 68 8.2. Limit ................................................................................................................ 68 8.3. Test Procedures ............................................................................................. 68 8.4. Test Results: N/A ........................................................................................... 68 9. Antenna Requirement .......................................................................................................... 69 10. Occupied Bandwidth (99%) ............................................................................................... 70 APPENDIX I .................................…

Text truncated - open the document above for the full version.

FCC ID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis FCC ID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) Material of Black plate: Plastic (Non-conductive material) FCC ID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) Material of Black plate: Plastic (Non-conductive material) FCC ID: TQ8-AC210D4EE Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) Material of Black plate: Plastic (Non-conductive material)
