TQ8-AC210E6GGDIGITAL CAR AUDIO SYSTEM

Multimedia System AUDIO SYSTEM ......................................................4-2 HOW VEHICLE AUDIO WORKS .............................4-2 CARING FOR DISC ..................................................4-4 SYSTEM CONTROLLERS AND FUNCTIONS - 3.8 INCH MONO TFT.........................................4-16 Audio Head Unit (For RDS model) ..............................4-16 Audio Head Unit (For Bluetooth equipped model)......4-18 Audio Head Unit ..............................................................4-20 SETUP(for RDS model) ..................................................4-21 System Settings ...............................................................4-23 SETUP ................................................................................4-24 RADIO (FOR RDS MODEL) :FM, AM ...........................4-31 RADIO : FM, AM ..............................................................4-33 Making a call using the Steering wheel remote controller...........................................................................4-38 SYSTEM CONTROLLERS AND FUNCTIONS - 4.3 INCH COLOR TFT LCD................................4-42 Audio Head Unit (For RDS model) ..............................4-42 Audio Head Unit ..............................................................4-43 Steering-wheel mounted controls ..............................4-44 RADIO MODE (FOR RDS MODEL) ...............................4-46 RADIO MODE....................................................................4-49 MEDIA MODE ...................................................................4-51 AUDIO CD MODE .............................................................4-52 MP3 CD MODE.................................................................4-55 USB MODE ........................................................................4-58 iPod ® MODE .....................................................................4-61 AUX MODE........................................................................4-64 MY MUSIC MODE............................................................4-65 Bluetooth ® Wireless Technology AUDIO MODE......4-68 USING Bluetooth ® Wireless Technology ...................4-75 USING Bluetooth ® Wireless Technology ...................4-83 VOICE RECOGNITION ......................................................4-87 ENDING VOICE RECOGNITION ......................................4-88 SETUP (FOR RDS, BLUETOOTH ® WIRELESS TECHNOLOGY EQUIPPED MODEL) .............................4-95 SETUP (for Bluetooth ® Wireless Technology equipped model) .....................................4-102 REAR VIEW CAMERA (if equipped) ..........................4-108 44 Multimedia System 4-1 H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:41 AM Page 1 How vehicle audio works AM and FM radio signals are broad- cast from transmitter towers located around your city. They are intercept- ed by the radio antenna on your vehi- cle. This signal is then processed by the radio and sent to your vehicle speakers. When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. However, in some cases the signal coming to your vehi- cle may not be strong and clear. This can be due to factors, such as the distance from the radio station, closeness of other strong radio sta- tions or the presence of buildings, bridges or other large obstructions in the area. AM broadcasts can be received at greater distances than FM broad- casts. This is because AM radio waves are transmitted at low fre- quencies. These long distance, low frequency radio waves can follow the curvature of the earth rather than travelling straight. In addition, they curve around obstructions resulting in better signal coverage. JBM001 FM reception JBM002 AM reception Multimedia System 4-2 H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:41 AM Page 2 FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade within short distances from the station. Also, FM signals are easily affected by buildings, moun- tains, and obstructions. This can lead to undesirable or unpleasant listen- ing conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble: • Fading - As your vehicle moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station. • Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can dis- turb the signal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until the disturbance clears. • Station Swapping - As an FM signal weakens, another more powerful signal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, select another station with a stronger signal. • Multi-Path Cancellation - Radio sig- nals being received from several directions can cause distortion or fluttering. This can be caused by a direct and reflected signal from the same station, or by signals from two stations with close frequencies. If this occurs, select another station until the condition has passed. JBM003 FM radio station JBM004JBM005 4 Multimedia System 4-3 H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:41 AM Page 3 Caring for disc • If the temperature inside the car is too high, open the car windows to venti- late before using the system. • It is illegal to copy and use MP3/WMA files without permission. Use CDs that are created only by lawful means. • Do not apply volatile agents, such as benzene and thinner, normal cleaners and magnetic sprays made for analogue disc onto CDs. • To prevent the disc surface from getting damaged, hold CDs by the edges or the center hole only. • Clea…

Text truncated - open the document above for the full version.

4-61 Multimedia System 4 iPod ® MODE Using iPod ® Mode Playing/Pausing iPod ® Songs Once an iPod ® is connected, the mode will automatically start and begin playing an iPod ® song. While playing, press the button to pause and press button to play. ✽NOTICE iPod ® s with unsupported communi- cation protocols may not properly operate in the audio system. Changing Songs Press the key to move to the previous or next song. ✽NOTICE • Pressing the key after the song has been playing for 2 sec- onds will start the current song from the beginning. • Pressing thekey before the song has been playing for 1 sec- onds will start the previous song. • Slight time differences may exist depending your iPod ® product. Rewinding / Fast-forwarding Songs While playing, press and hold the key (over 0.8 seconds) to rewind or fast-forward the current song. Searching Categories Turn the TUNE knob left/right to search for the desired category. SEEK TRACK SEEK TRACK SEEK TRACK SEEK TRACK <For RDS model> <For RDS model> H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 61 4-62 Multimedia System Once you find the desired category, press the TUNE knob to select and play. ✽NOTICE There are eight categories that can be searched, including Playlists, Artists, Albums, Genres, Songs, Composers, Audiobooks and Podcasts. Category Menu Within the iPod ® Category menu, you will have access to the , , and features. 1. : Displays the play screen 2. (Home) : Moves to the iPod ® root category screen 3. : Moves to the previous cate- gory ✽NOTICE • If the search mode is accessed while playing a song, the most recently searched category is dis- played. • Search steps upon initial connec- tion may differ depending on the type of iPod ® device. iPod ® Mode Menu Within this mode, you will have access to the Random(Shuffle), Repeat and List features. Random(Shuffle) Press the () button to play songs in random(Shuffle) order. • Random(Shuffle) All : Plays all songs in Random(Shuffle) order. Shuffle <For RDS model> <For RDS model> H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 62 4-63 Multimedia System 4 Repeat Press the () button to repeat the current song. Press the button again to turn the repeat fea- ture off. • Repeat : Repeats the current song List Press the () button to display the Category Menu. Turn the TUNE knob left/right to search for the desired category. Once you find the desired category, press the TUNE knob to select and play. ListRepeat <For RDS model> H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 63 4-64 Multimedia System AUX MODE Using AUX Mode Press the key Select [AUX] An external device can be connected to play music. Connecting an External Device External audio players (Camcorders, car VCR, etc.) can be played through a dedicated cable. MEDIA H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 64 4-65 Multimedia System 4 MY MUSIC MODE Using My Music Mode Playing/Pausing My Music Files While playing, press the button to pause and press button to play. ✽NOTICE If there are no files saved within My Music, the button will be disabled. Changing Files Press the key to move to the previous or next file. ✽NOTICE • Pressing the key after the file has been playing for 2 sec- onds will start the current file from the beginning. • Pressing the key before the file has been playing for 1 sec- onds will start the previous file. Selecting from the List Turn the TUNE knob left/right to search for the desired file. Once you find the desired file, press the TUNE knob to start playing. SEEK TRACK SEEK TRACK SEEK TRACK My Music <For RDS model> <For RDS model> H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 65 4-66 Multimedia System Rewinding / Fast-forwarding Files While playing, press and hold the key to rewind or fast-for- ward the current file. Scan Press the key to play the first 10 seconds of each file. My Music Mode Menu Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Delete and List features. Info Press the() button to display details about the current file. ✽NOTICE The title, artist and album info are displayed only when such informa- tion is recorded within the MP3 file ID3 tag. Random Press the () button to play files in random order. Press the button again to turn the Random fea- ture off. Repeat Press the () button to repeat the current song. Press the button again to turn the repeat fea- ture off. Deleting Files Press the () button to delete the current file. Delete Repeat Shuffle SCAN SEEK TRACK Info <For RDS model> H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 66 4-67 Multimedia System 4 List Press the button to display the file list screen. Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play. List Menu From the List screen, it is possible to delete files you previously saved into My Music. Press the () button or individually select the files you want to delete. Once files are selected, the () button and () buttons will be enabled. 1): Moves to the previous screen 2) ( Selects all ) : Selects all files 3) (Unselect All) : Deselects all selected files 4) (Delete) : Deletes selected files After selecting the files you want to delete, press the () button to delete the selected files. ✽NOTICE • If there is memory available, up to 6,000 files can be saved. • Identical files cannot be copied more than 1,000 times. • To check memory information, go to [System] [Memory Information] Delete List SETUP Delete Unselect All Select All <For RDS model> <For RDS model> H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 67 4-68 Multimedia System Bluetooth ® Wireless Technology AUDIO MODE (for Bluetooth ® Wireless Technology equipped model) Using Bluetooth ® Wireless Technology Audio Mode Playing/Pausing Bluetooth ® Wireless TechnologyAudio Once a Bluetooth ® Wireless Technology device is connected, the mode will automatically start. While playin…

Text truncated - open the document above for the full version.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Tel. 82-31-260-0098 / Fax. 82-31-899-1788 Date: August 26, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hyundai Mobis Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project : - Product : DIGITAL CAR AUDIO SYSTEM - Model name : AC210E6GG - FCC ID : TQ8-AC210E6GG We affirm that between SIEMIC and Hyundai Mobis Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, ______________________________________ Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Tel. 82-31-260-0098 / Fax. 82-31-899-1788 FCC Confidentiality Request Letter Date: August 26, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TQ8-AC210E6GG We hereby request confidential treatment of information accompanying this application as outlined below:  Block diagram  Schematics  Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ______________________________________ Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

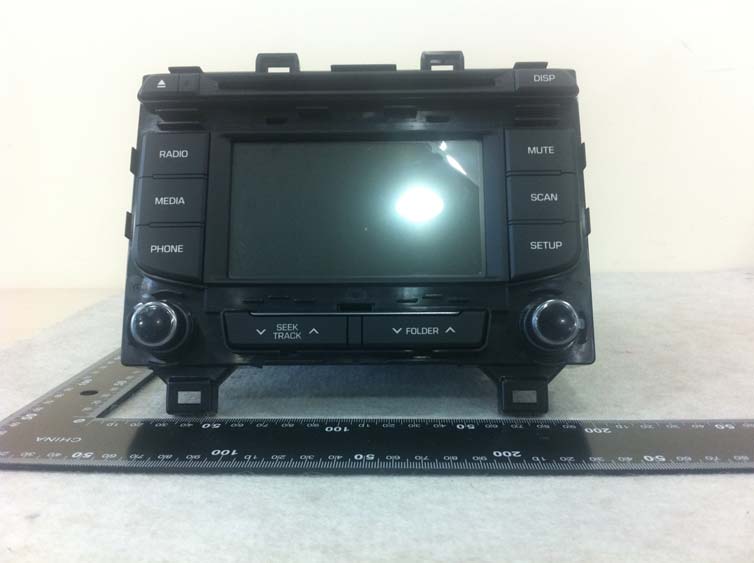

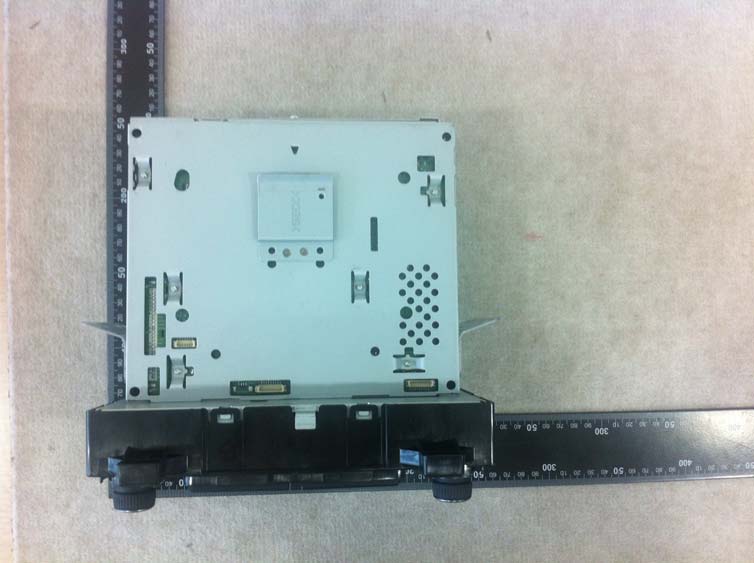

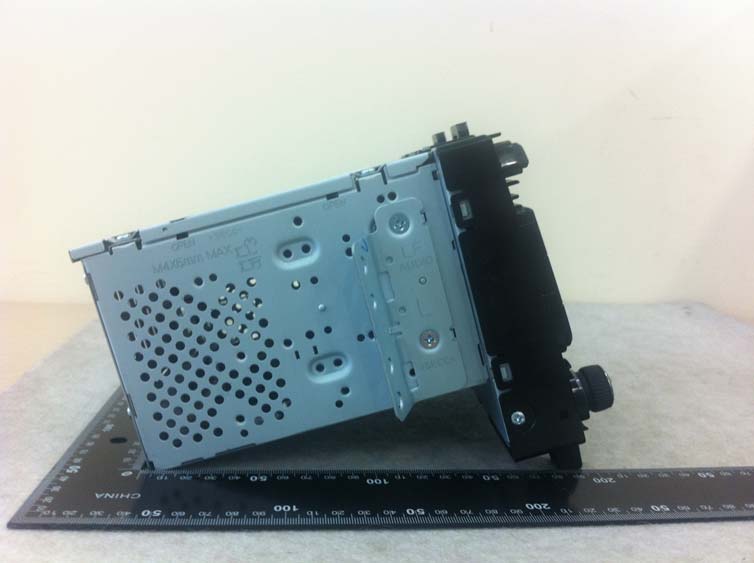

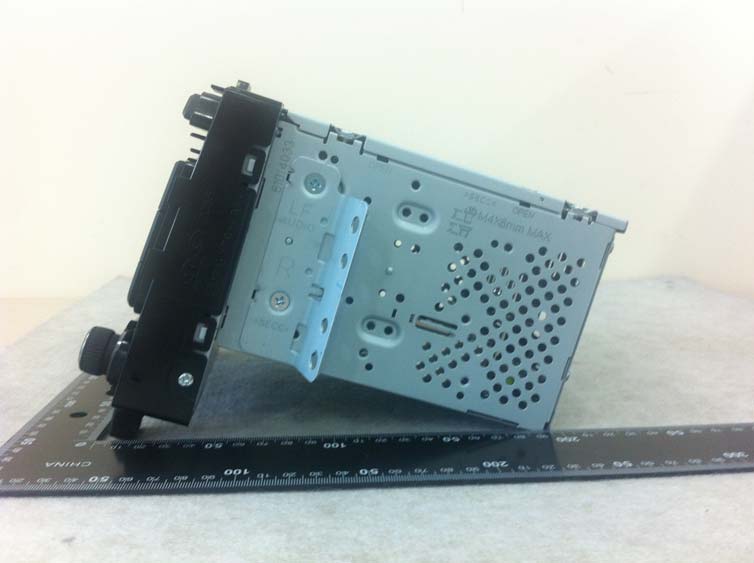

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. External photos of EUT http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

FCC ID LABLE 1. FCC ID label drawing 2. FCC ID label location

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 6 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Internal photos of EUT http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 6 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 6 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 4 of 6 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 5 of 6 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 6 of 6 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 1 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824 /f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1500 / / f/1500 30 1500 ~ 15000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S=power density [㎽/㎠] P=Power input to antenna [㎽] G=Power gain of the antenna in the direction of interest relative to an isotropic radiator R= distance to the center of radiation of the antenna [㎝] EUT: Maximum peak output power = 2.37 [㎽](= 3.75 ㏈m) Antenna gain= 2.24(= 3.5 [㏈i]) 100 ㎽, at 20 cm from an antenna 6 [㏈i] S = PG/4πR² = 100 × 3.98 / (4 × π × 400) = 0.079 18 [㎽/㎠] < 1.0 [㎽/㎠] 2.37 ㎽, at 20 cm from an antenna 3.5 [㏈i] S = PG/4πR²= 0.001 06 [㎽/㎠] < 1.0 [㎽/㎠] 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0177 EMC compliance Ltd. Page: 2 of 46 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information .................................................................................................. 3 2. Laboratory information ........................................................................................... 4 3. Description of E.U.T. ............................................................................................... 5 3.1 Basic description .............................................................................................. 5 3.2 General description ............................................................................................ 5 3.3 Test frequency ................................................................................................. 6 3.4 Test Voltage .................................................................................................... 6 4. Summary of test results ............................................................................................ 7 4.1 Standards & results ............................................................................................ 7 4.2 Uncertainty..................................................................................................... 7 5. Test results .......................................................................................................... 8 5.1 Antenna Requirement ......................................................................................... 8 5.2 Maximum Peak Output Power ................................................................................ 9 5.3 Carrier Frequency Separation ............................................................................... 13 5.4 20 dB Channel Bandwidth .................................................................................. 17 5.5 Number of Hopping Channels .............................................................................. 23 5.6 Time of Occupancy(Dwell Time) ........................................................................... 27 5.7 Spurious Emission, Band edge, and Restricted bands ...................................................... 31 6. Test equipment used for test .................................................................................... 46 http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0177 EMC compliance Ltd. Page: 3 of 46 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Hyundai Mobis Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Telephone number: +82-31-260-0098 Facsimile number: +82-31-899-1788 Contact person: Seung-Hoon Choe / [email protected] Manufacturer: Hyundai Mobis Co., Ltd. Address: 69-23, Hansam-Ro, Ducksan-Myeon, Jinchun-Gun, Chungcheongbuk-Do 365-843 Korea http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0177 EMC compliance Ltd. Page: 4 of 46 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea Telephone Number: 82-31-336-9919 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Registration No.: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0177 EMC compliance Ltd. Page: 5 of 46 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3. Description of E.U.T. 3.1 Basic description Applicant: Hyundai Mobis Co., Ltd. Address of Applicant 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Manufacturer Hyundai Mobis Co., Ltd. Address of Manufacturer 69-23, Hansam-Ro, Ducksan-Myeon, Jinchun-Gun, Chungcheongbuk-Do 365-843 Korea Type of equipment DIGITAL CAR AUDIO SYSTEM Basic Model AC210E6GG Variant Model* AC210E6GN, AC210E6GE, AC210E6GC Serial number Proto Type * Variant model names are different only for the marketing area, and all model names are electrically identical in construction, radio characteristics, and features. 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Type of Modulation GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels Type of Antenna Chip Antenna Antenna Gain 3.5 ㏈i Transmit Power 3.75 ㏈m Power supply DC 14.4 V* * Declared by the applicant. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0177 EMC compliance Ltd. Page: 6 of 46 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3.3 Test frequency Frequency Low frequency 2 402 ㎒ Middle frequency 2 441 ㎒ High frequency 2 480 ㎒ 3.4 Test Voltage mode Voltage Norminal voltage DC 14.4 V ※ 15.247 Requirements for Bluetooth transmitter  This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudo-randomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals.  15.247(g): The system, consist…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 2 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Te s t setup photos * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 2 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * 1 ㎓ Over
