TQ8-AC210F6GGDIGITAL CAR AUDIO SYSTEM

Features of your vehicle 1464 How vehicle audio works AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your vehicle. This signal is then processed by the radio and sent to your vehicle speakers. When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best pos- sible quality reproduction. However, in some cases the signal coming to your vehicle may not be strong and clear. This can be due to factors, such as the distance from the radio station, close- ness of other strong radio stations or the presence of buildings, bridges or other large obstructions in the area. AM broadcasts can be received at greater distances than FM broadcasts. This is because AM radio waves are transmitted at low frequencies. These long distance,low frequency radio waves can follow the curvature of the earth rather than travelling straight. In addition, they curve around obstructions resulting in better signal coverage. ¢¢¢¢¢¢ JBM002 AM reception ¢¢¢ JBM001 FM reception 4 147 Features of your vehicle FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade within short distances from the station. short distances from the station. Also, FM sig- nals are easily affected by buildings, mountains, and obstructions. This can lead to undesirable or unpleasant listen- ing conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble: • Fading - As your vehicle moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station. • Flutter/Static - Weak FM signals or large obstructions between the trans- mitter and your radio can disturb the signal causing static or fluttering nois- es to occur. Reducing the treble level may lessen this effect until the distur- bance clears. • Station Swapping - As an FM signal weakens, another more powerful sig- nal near the same frequency may begin to play. This is because your radio is designed to lock onto the clear- est signal. If this occurs, select another station with a stronger signal. • Multi-Path Cancellation - Radio signals being received from several directions can cause distortion or fluttering. This can be caused by a direct and reflect- ed signal from the same station, or by signals from two stations with close frequencies. If this occurs, select another station until the condition has passed. JBM003 FM radio station JBM005 ¢¢¢ JBM004 Using a cellular phone or a two-way radio When a cellular phone is used inside the vehicle, noise may be produced from the audio system. This does not mean that something is wrong with the audio equip- ment. In such a case, try to operate mobile devices as far from the audio equipment as possible. Caring for disc • If the temperature inside the car is too high, open the car windows to ventilate before using the system. • It is illegal to copy and use MP3/WMA files without permission. Use CDs that are created only by lawful means. • Do not apply volatile agents, such as benzene and thinner, normal cleaners and magnetic sprays made for ana- logue disc onto CDs. • To prevent the disc surface from get- ting damaged, hold CDs by the edges or the center hole only. • Clean the disc surface with a piece of soft cloth before playback (wipe it from the center to the outside edge). • Do not damage the disc surface or attach pieces of sticky tape or paper. • Make certain only CDs are inserted into the CD player (Do not insert more than one CD at a time). • Keep CDs in their cases after use to protect them from scratches or dirt. CAUTION When using a communication system such as a cellular phone or a radio set inside the vehicle, a separate external antenna must be fitted. When a cellular phone or a radio set is used with an internal antenna alone, it may interfere with the vehi- cle's electrical system and adversely affect safe operation of the vehicle. WARNING Do not use a cellular phone while driving. Stop at a safe location to use a cellular phone. 4 148 Features of your vehicle • Depending on the type of CD-R/CD-RW CDs, certain CDs may not operate nor- mally according to the manufacturing companies. In such circumstances, con- tinued use may cause malfunctions to your audio system. ✽NOTICE - Playing an Incompatible Copy Protected Audio CD Some copy protected CDs, which do not comply with international audio CD standards (Red Book), may not play on your car audio. Please note that inabili- ties to properly play a copy protected CD may indicate that the CD is defec- tive, not the CD player. NOTE: Order of playing files (folders) : 1. Song playing order :to sequen- tially. 2. Folder playing order : ❋If no song file is contained in the fold- er, that folder is not displayed. Features of your vehicle 1494 WARNING • Do not stare at the screen while driving. Staring at the screen for prolonged periods of time could lead to traffic accidents. • Do not disassemble, assemble, or modify the audio system. Such acts could result in accidents, fire, or electric shock. • Using the phone while driving may lead to a lack of attention of traffic conditions and increase the likelihood of accidents. Use the phone feature after park- ing the vehicle. • Heed caution not to spill water or introduce foreign objects into the device. Such acts could lead to smoke, fire, or product malfunc- tion. (Continued) (Continued) • Please refrain from use if the screen is blank or no sound can be heard as these signs may indi- cate product malfunction. Continued use in such conditions could lead to accidents(fires, electric shock) or product mal- functions. • Do not touch the antenna during thunder or lightening as such acts may lead to lightning induced electric shock. • Do not stop or pa…

Text truncated - open the document above for the full version.

4 221 Features of your vehicle Deleting a Device Press the key Select [Phone] Select [Paired Phone List] From the paired phone list, select the device you want to delete and select the button. ✽NOTICE • When deleting the currently connect- ed device, the device will automatical- ly be disconnected to proceed with the deleting process. • If a paired Bluetooth ® Wireless Technology device is deleted, the device’s call history and contacts data will also be deleted. • To re-use a deleted device, you must pair the device again. Delete SETUP Features of your vehicle 2224 Phone Menu Screen Phone Menus With a Bluetooth ® Wireless Technology device connected, press the key to display the Phone menu screen. 1) Favorite : Up to 20 frequently used contacts saved for easy access 2) Call History : Device the call history list screen 3) Contacts : Displays the Contacts list screen 4) Dial Number : Displays the dial screen where numbers can be dialed to make calls 5) Setup : Displays Phone related set- tings. ✽NOTICE • If you press the [Call History] button but there is no call history data, a prompt is displayed which asks to download call history data. • If you press the [Contacts] button but there is no contacts data stored, a prompt is displayed which asks to download contacts data. • This feature may not be supported in some mobile phones. For more infor- mation on download support, refer to your mobile phone user’s manual. Favorites Press the key Select [Favorites] 1) Saved favorite contact : Connects call upon selection 2) To add favorite : Downloaded contacts be saved as favorite. 3) Delete All : Deletes all stored favorite contacts ✽NOTICE • To save Favorite, contacts should be downloaded. • Contacts saved in Favorites will not be automatically updated if the con- tact has been updated in the phone. To update Favorites, delete the Favorite and create a new Favorite. PHONE PHONE 4 223 Features of your vehicle Call History Press the key Select [Call History] A list of incoming, outgoing and missed calls is displayed. Select the button to download the call history. 1) Call History : - Displays recent calls (call history) - Connects call upon selection 2) Download : Download Recent Call History • Call history may not be saved in the call history list in some mobile phones. • Calls received with hidden caller ID will not be saved in the call history list. • Calling through the call history is not possible when there is no call history stored or a Bluetooth ® Wireless Technology phone is not connected. • Up to 50 received, dialed and missed calls are stored in Call History. • Time of received/dialed calls and call time information are not saved. Contacts Press the key Select [Contacts] The list of saved phone book entries is displayed. Select the button to download the call history. 1) Contacts List : - Displays downloaded contacts entries - Connects call upon selection 2) Sort by : Find a contact in an alpha- betical order. 3) Download : Download contacts entries Download PHONE Download PHONE Features of your vehicle 2244 ✽NOTICE • Up to 1,000 contacts saved in your Bluetooth ® Wireless Technology phone can be downloaded into the car contacts. Contacts that have been downloaded to the car cannot be edit- ed or deleted on the phone. • Mobile phone contacts are managed separately for each paired Bluetooth ® Wireless Technology device (max 5 devices x 1,000 contacts each). Previously downloaded data is main- tained even if the Bluetooth ® Wireless Technology device has been discon- nected. (However, the contacts and call histo- ry saved to the phone will be deleted if a paired phone is deleted.) • It is possible to download contacts during Bluetooth streaming audio. • When downloading contacts, the icon will be displayed within the status bar. (Continued) (Continued) • It is not possible to begin downloading a contact list when the contact down- load feature has been turned off with- in the Bluetooth ® Wireless Technology device. In addition, some devices may require device authorization upon attempting to download contacts. If downloading does not normally occur, check the Bluetooth ® Wireless Technology device settings or the screen state. • The contacts download feature may not be supported in some mobile phones. For more information of sup- ported Bluetooth ® devices and func- tion support, refer to your phone’s user manual. Calling by Dialing a Number Press the key Select [Dial Number] 1) Dial Pad : Used to enter phone num- ber 2) Call : If a number has been entered, calls the number If no number has been entered, switches to call history screen 3) End : Deletes the entered phone num- ber 4) Delete : Deletes entered numbers one digit at a time PHONE 4 225 Features of your vehicle Answering Calls Answering a Call Answering a call with a Bluetooth ® Wireless Technology device connected will display the following screen. 1) Caller : Displays the other party’s name when the incoming caller is saved within your contacts 2) Incoming Number : Displays the incoming number 3) Accept : Accepts the incoming call 4) Reject : Rejects the incoming call ✽NOTICE • When an incoming call pop-up is dis- played, most Audio and SETUP mode features are disabled. Only the call volume will operate. • The telephone number may not be properly displayed in some mobile phones. • When a call is answered with the mobile phone, the call mode will auto- matically revert to Private mode. During a Handsfree Call 1) Caller : Displays the other party’s name if the incoming caller is saved within your contacts 2) Incoming Number : Displays the incoming number 3) Call time : Displays the call time 4) End : Ends call 5) Private : Converts to Private mode 6) Out Vol. : Sets call volume as heard by the other party 7) Mute : Turns Mic Mute On/Off ✽NOTICE If the mic is muted, the other party will not be able to hear your voice. Features of your vehicle 2264 VOICE RECOGNITION (If equipped) Using Voice Recognition Starting Voice Recognition…

Text truncated - open the document above for the full version.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul,135-977, Korea Date: September 1, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hyundai Mobis Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project: Product: DIGITAL CAR AUDIO SYSTEM Model name: AC210F6GG FCC ID: TQ8-AC210F6GG We affirm that between SIEMIC and Hyundai Mobis Co., Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul,135-977, Korea Date: September 1, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TQ8-AC210F6GG We hereby request confidential treatment of information accompanying this application as outlined below:  Block diagram  Schematics  Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul,135-977, Korea Doc No. RF1509-014 Date : September 1, 2015 Subject: Letter of Similarity Dear Sirs, The specification of basic model name is as below : Basic model name Description AC210F6GG Specification : Car audio with Bluetooth (BDR/EDR)  For European market, we use European marking on front panel button by symbol (Radio, Media, Phone, Mute, Scan, Setup) For below general market, we use Common marking on front panel by character. Comparing to basic model name, the difference of variant model names are as below : Variant model name Description Remarks AC210F6GN Variant model name for most Latin American market All model names are electrically identical in construction, radio characteristics, and features. AC210F6GE Variant model name for most African market AC210F6GL Variant model name for most American market AC211F6GE Variant model name for European market AC211F6GG Variant model name for some Eastern European market AC212F6GG Variant model name for South African market AC210F6CG Variant model name for Chinese market Sincerely yours, __________________________________ Seung-Hoon Choe /Manager /Hyundai MOBIS Co., Ltd.

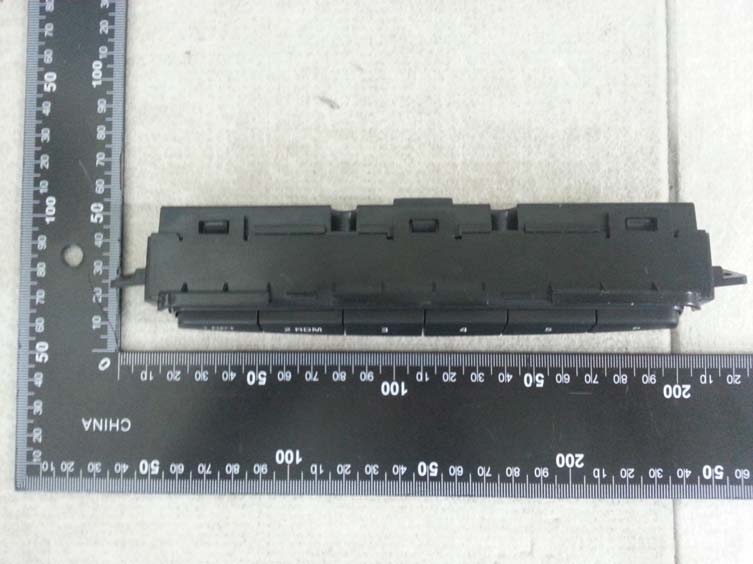

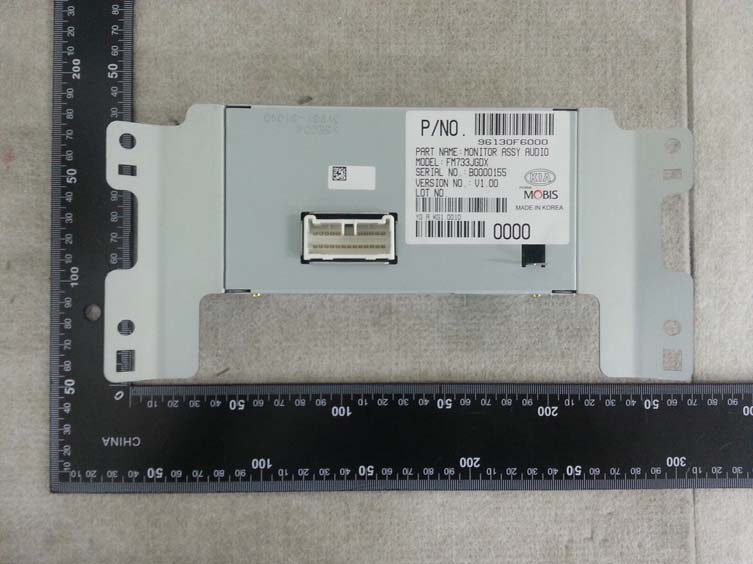

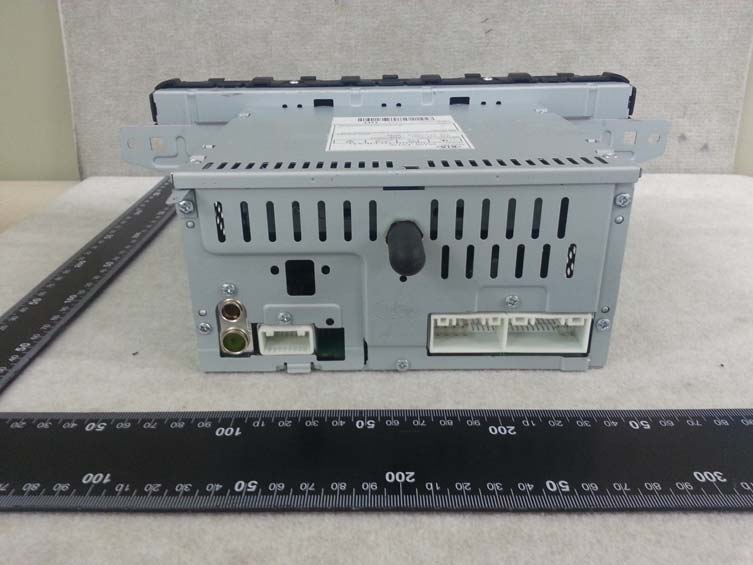

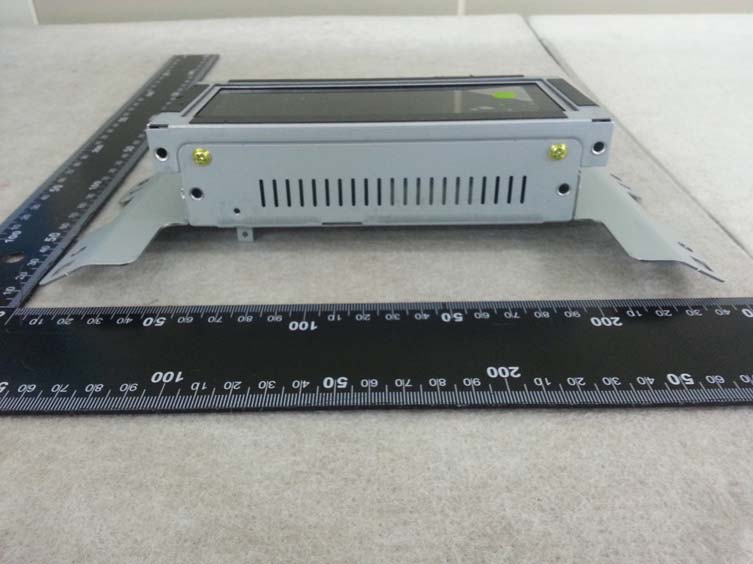

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

http://www.kctl.co.kr Internal photos of EUT http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr Antenna

http://www.kctl.co.kr Page: ( 1 ) / ( 2 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] http://www.kctl.co.kr Page: ( 2 ) / ( 2 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Mode Target power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈m] [㏈] [㏈m] [㎽] [㏈i] [㎽] [㎽/㎠] [㎽/㎠] Blutooth GFSK 1.5 ±1.0 2.5 1.78 3.85 2.43 0.000 86 1.000 00 Blutooth 8DPSK 0 ±2.0 2.0 1.58 3.85 2.43 0.000 77 1.000 00 4. Target power and tolerance, Max tuneup power Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Average Power [㏈m] GFSK 1.5 ±1.0 2.5 1.64 8DPSK 0 ±2.0 2.0 0.84

http://www.kctl.co.kr Page: ( 2 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0023 KCTL-TIR001-003/0 [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description .......................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage .................................................................................................................................................. 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Carrier Frequency Separation ..................................................................................................................... 16 5.4 20 dB Channel Bandwidth .......................................................................................................................... 20 5.5 Number of Hopping Channels .................................................................................................................... 31 5.6 Time of Occupancy(Dwell Time) ............................................................................................................... 36 5.7 Spurious Emission, Band edge and Restricted bands ................................................................................. 43 6. Test equipment used for test ........................................................................................................................... 60 http://www.kctl.co.kr Page: ( 3 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0023 KCTL-TIR001-003/0 1. Client information Applicant: Hyundai Mobis Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Telephone number: +81-31-260-2707 Facsimile number: +81-31-899-1788 Contact person: Choi Seung Hoon/ [email protected] Manufacturer: Hyundai Mobis Co., Ltd. Address: 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea http://www.kctl.co.kr Page: ( 4 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0023 KCTL-TIR001-003/0 2. Laboratory information Address KCTL Ltd. 65 Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-70-5008-1016 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No: KR0040 FCC Site Registration No: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP KCTL Ltd. Suwon city http://www .kctl.co.kr Pa ge: ( 5 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0023 KCTL-TIR001-003/0 3. Description of E.U.T. 3.1 Basic description Applicant: Hyundai Mobis Co., Ltd. Address of Applicant 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Manufacturer Hyundai Mobis Co., Ltd. Address of Manufacturer 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea Type of equipment DIGITAL CAR AUDIO SYSTEM Basic Model AC210F6GG Variant Model AC210F6GN, AC210F6GE, AC210F6GL, AC211F6GE, AC211F6GG, AC212F6GG, AC210F6CG Serial number N/A *Variant model names are different only for the marketing area. 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Type of Modulation GFSK, π/4DQPSK, 8DPSK Number of Channels 79 ch Type of Antenna Chip Antenna Antenna Gain 3.85 ㏈i Transmit Power 4.44 ㏈m Power supply DC 12 V Product SW/HW version 1.0 Radio SW/HW version 1.0 Test SW Version CSR Bluesuite 2.6.0 RF power setting in TEST SW EXT250, Int63 Note : The above EUT information was declared by the manufacturer. http://www.kctl.co.kr Page: ( 6 ) / ( 60 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0023 KCTL-TIR001-003/0 3.3 Test frequency Frequency Low frequency 2 402 ㎒ Middle frequency 2 441 ㎒ High frequency 2 480 ㎒ 3.4 Test Voltage Mode Voltage Norminal voltage DC 12 V ※ 15.247 Requirements for Bluetooth transmitter  This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudo-randomly. 2) Each frequency is us…

Text truncated - open the document above for the full version.

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Radiated Emission * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www .kctl.co.kr This test report shall not be reproduced, except in full, without the written approval *1 ㎓ Over
