TQ8-ACB10HSGGCar Audio System

Audio system 56 AUDIO (Without Touch Screen) (1)AUDIO button • Press to display the radio/media mode selection window. • When the mode selection window dis- plays, turn the [TUNE] knob to select the desired mode and then press the knob. • When the Mode popup is not selected in [MENU/CLOCK] Mode popup, press the [AUDIO] button on the control panel to change the mode. Each time you press the [AUDIO] but- ton on the control panel, the mode switches to radio  media in order. (2 ) PHONE button • Press to start connecting a mobile phone via Bluetooth. • After a Bluetooth phone connection is made, press to access the Bluetooth phone menu. (3)FAV button • While listening to the radio, press to move to next page of the preset list. (4)POWER button/VOL knob • Press to turn the system on or off. • Turn to the left or right to adjust the sys- tem sound volume. (5)SEEK/TRACK button • Change the station/track/file. • While listening to the radio, press and hold to search for a station. • While playing media, press and hold to rewind or fast forward (except for the Bluetooth audio mode). System layout – control panel ❈The actual features in the vehicle may differ from the illustration. K_QLe 19PE_4.0V[EE,EG]AUD_NVVH003:YF eng 4c-Audio.qxd 6/14/2018 2:15 PM Page 6 Audio system 75 (6)MENU button/CLOCK button • Press to access the menu screen for the current mode. • Press and hold to access the time setup screen. (7) TUNE knob/FI LE knob/ENTER button • While listening to the radio, turn to adjust the frequency. • While playing media, turn to search for a track/file (except for the Bluetooth audio mode). • During a search, press to select the current track/file. (8)Number buttons (1 RPT~ 4 BACK) • While listening to the radio, press to lis- ten to a saved radio station. • While listening to the radio, press and hold to save the current radio station to the preset. • In the USB/Bluetooth audio modes, press the [1 RPT] button to change the repeat play mode. Press the [2 SHFL] button to change the shuffle play mode. • Press the [4 BACK] button to return to the previous screen (except for the radio preset list). ❈The actual features in the vehicle may differ from the illustration. K_QLe 19PE_4.0V[EE,EG]AUD_NVVH003:YF eng 4c-Audio.qxd 6/14/2018 2:15 PM Page 7 Audio system 58 System layout – steering wheel remote control (Bluetooth ® equipped model) ❈The actual features in the vehicle may differ from the illustration. (1)MUTE button • Press to mute or unmute the sys- tem. • During a call, press to mute or unmute the microphone. • While playing media, press to pause or resume playback. (2)MODE button • Press to switch between radio and media modes. • Press and hold to turn the system on or off. (if equipped) (3)Volume lever • Push up or down to adjust the volume. (4)Up/Down lever • Change the station/track/file. • While listening to the radio, push to listen to the previous/next saved radio station. • While listening to the radio, push and hold to search for a station. • While playing media, push and hold to rewind or fast forward (except for the Bluetooth audio mode). (5)Call/Answer button • Press to start connecting a mobile phone via Bluetooth. • After a Bluetooth phone connec- tion is made, press to access your call history. Press and hold to dial the most recent phone number. When a call comes in, press to answer the call. • During a call, press to switch between the active call and the held call. Press and hold to switch the call between the system and the mobile phone. (6)Call end button K_QLe 19PE_4.0V[EE,EG]AUD_NVVH003:YF eng 4c-Audio.qxd 6/14/2018 2:15 PM Page 8 Audio system 95 WARNING - About driving •Do not operate the system while driving. Driving while distracted may result in a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver’s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the dri- ver’s attention from this responsibility should never be used during operation of the vehicle. (Continued) (Continued) • Avoid watching the screen while driving. Driving while distracted may lead to a traffic accident. Stop your vehicle in a safe location before using functions that require multiple operations. • Stop your vehicle first before using your mobile phone. Using a mobile phone while driving may lead to a traffic accident. If necessary, use the Bluetooth Handsfree feature to make calls and keep the call as short as possible. • Keep the volume low enough to hear external sounds. Driving without the ability to hear external sounds may lead to a traffic accident. Listening to a loud volume for a long time may cause hear- ing damage. WARNING - About handling the system • Do not disassemble or modify the system. Doing so may result in an accident, fire, or electric shock. • Do not allow liquids or foreign substances to enter the sys- tem. Liquids or foreign sub- stances may cause noxious fumes, a fire, or a system mal- function. • Stop using the system if it malfunctions, such as no audio output or display. If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure. • Do not touch the antenna dur- ing thunder or lightning because such an act may cause electric shock. K_QLe 19PE_4.0V[EE,EG]AUD_NVVH003:YF eng 4c-Audio.qxd 6/14/2018 2:15 PM Page 9 Audio system 510 ✽NOTICE • If you experience any problems with the system, contact your place of purchase or dealer. • Placing the audio system within an electromagnetic environment may result in noise interference. CAUTION - About operating the system • Use the system with the engine running. Using the system for a long time when the engine is stopped may dis- charge the battery. • Do not install unapproved products. Using unapproved products may cause an error while using the system. System errors caused by installing unapproved prod- ucts are not covered under the wa…

Text truncated - open the document above for the full version.

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HYUNDAI MOBIS CO., Ltd HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : Feb 27, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : TQ8-ACB10HSGG We, the undersigned, hereby authorize HCT CO.,LTD to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO.,LTD on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: Seung Hoon Choe / Representative HYUNDAI MOBIS CO., LTD 203, Teheran-ro Gangnam-gu, Seoul, South Korea

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HYUNDAI MOBIS CO., Ltd HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : Feb 27, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : TQ8-ACB10HSGG We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Seung Hoon Choe / Representative HYUNDAI MOBIS CO., LTD 203, Teheran-ro Gangnam-gu, Seoul, South Korea 8 Part List

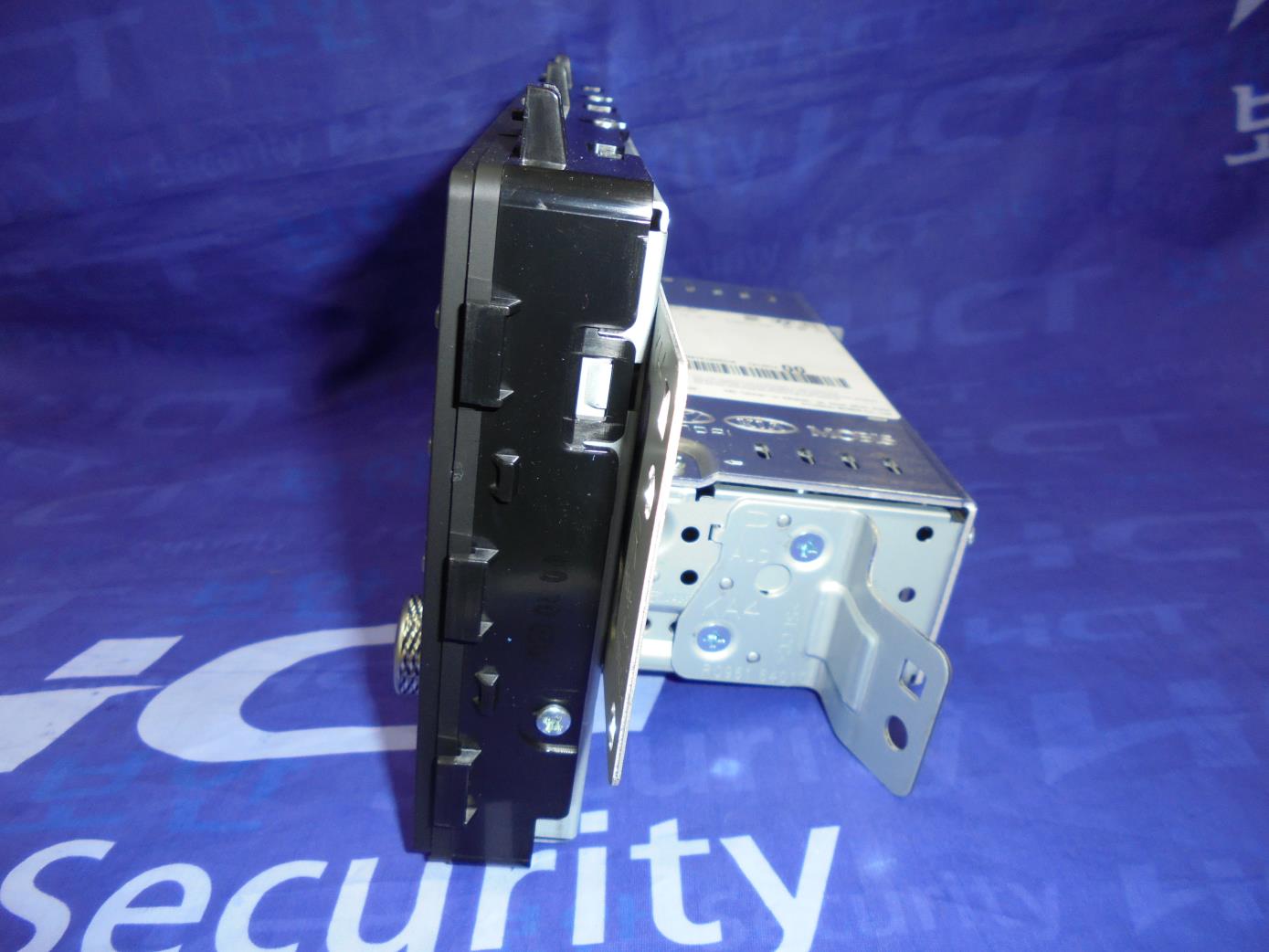

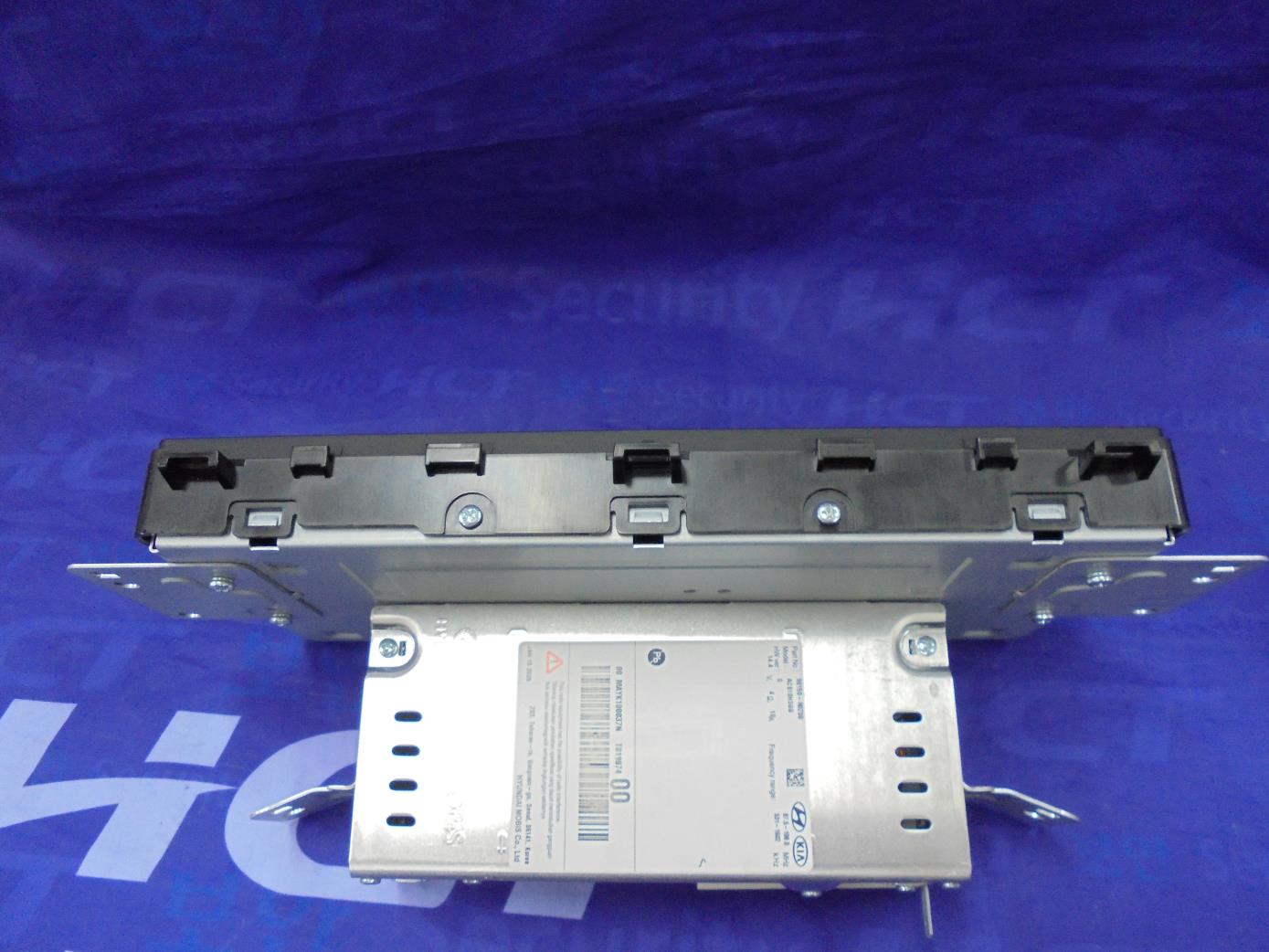

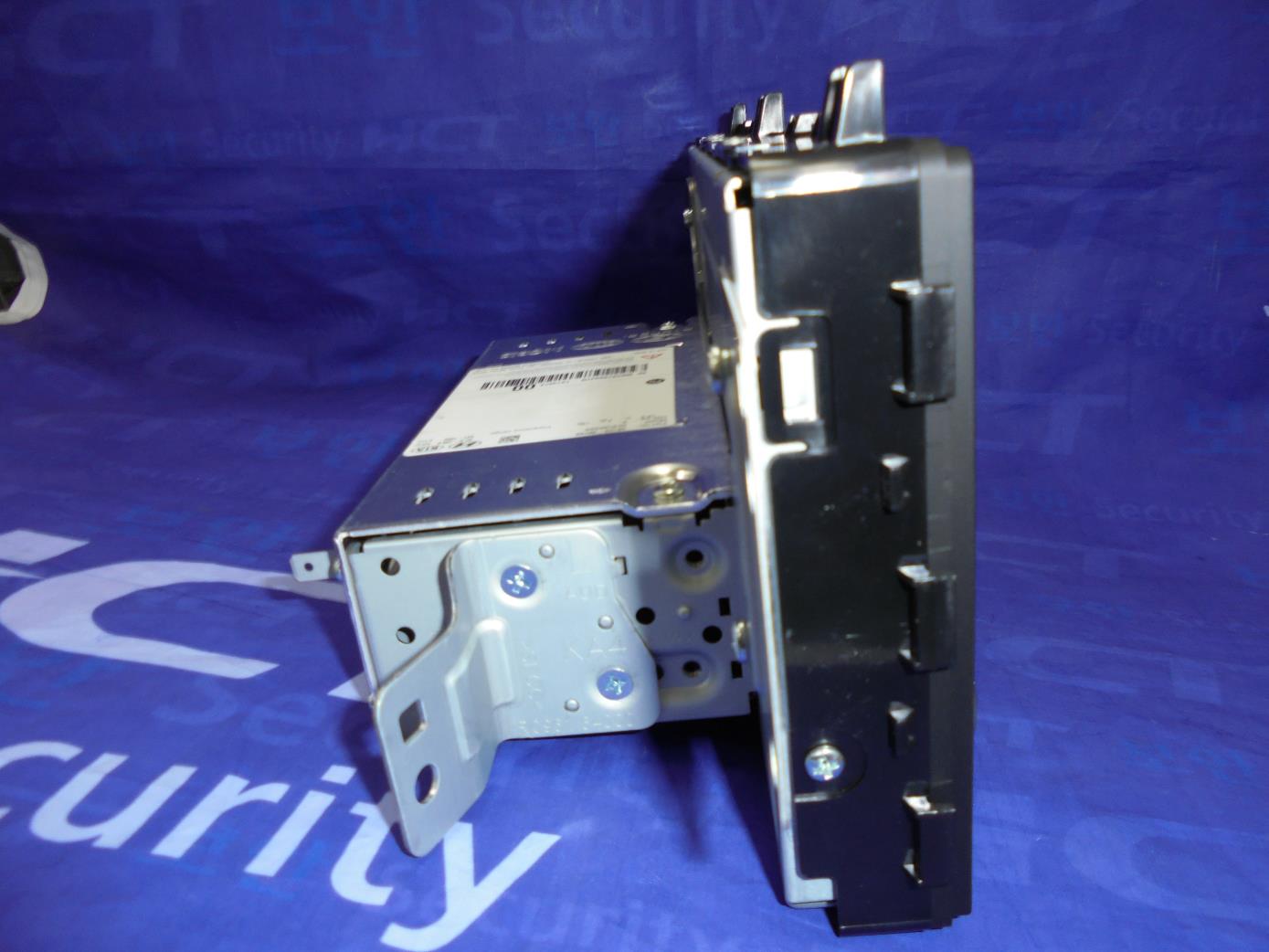

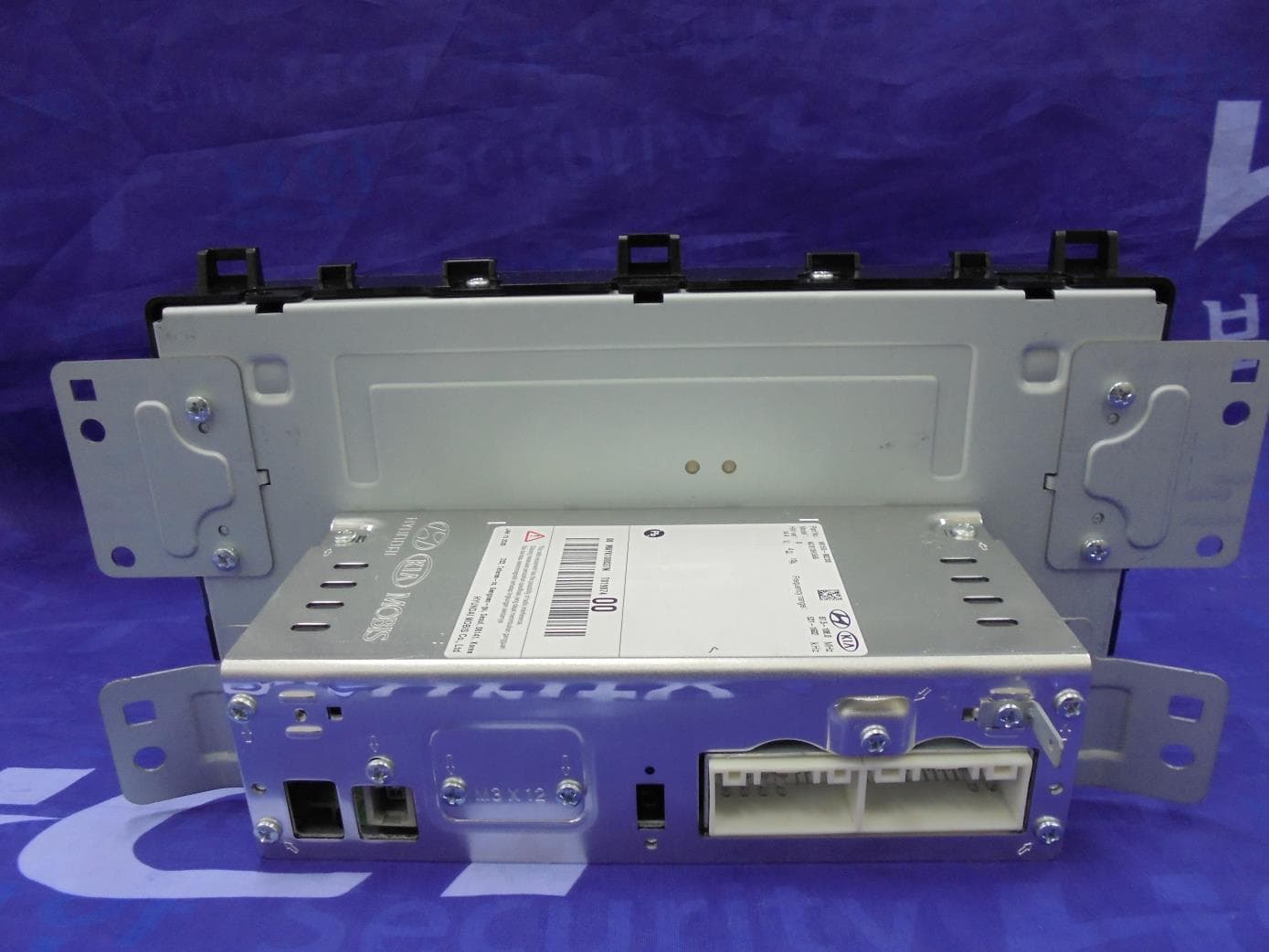

FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

ACB10HSGG FCC ID : TQ8-ACB10HSGG Label

FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 12 INTERNAL PHOTOGRAPHS FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 12 ■ INTERNAL PHOTO FCC ID: TQ8-ACB10HSGG HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 12 ■ INTERNAL PHOTO(BT Antenna)

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC BT Test for ACB10HSGG Certification APPLICANT HYUNDAI MOBIS CO., LTD REPORT NO. HCT-RF-2002-FC005 DATE OF ISSUE February 24, 2020 Report No. HCT-RF-2002-FC005 F-TP22-03 (Rev. 02) Page 3 of 81 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of IssueDescription 0 February 24, 2020Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-2002-FC005 F-TP22-03 (Rev. 02) Page 4 of 81 CONTENTS 1. EUT DESCRIPTION 5 2. Requirements for Bluetooth transmitter(15.247) 6 3. TEST METHODOLOGY 7 EUT CONFIGURATION 7 EUT EXERCISE 7 GENERAL TEST PROCEDURES 7 DESCRIPTION OF TEST MODES 8 4. INSTRUMENT CALIBRATION 8 5. FACILITIES AND ACCREDITATIONS 8 FACILITIES 8 EQUIPMENT 8 6. ANTENNA REQUIREMENTS 9 7. MEASUREMENT UNCERTAINTY 10 8. DESCRIPTION OF TESTS 11 9. SUMMARY OF TEST RESULTS 29 10. TEST RESULT 30 10.1 PEAK POWER 30 10.2 BAND EDGES 36 10.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW) 43 10.4 NUMBER OF HOPPING FREQUENCY 51 10.5 TIME OF OCCUPANCY (DWELL TIME) 55 10.6 SPURIOUS EMISSIONS 61 10.6.1 CONDUCTED SPURIOUS EMISSIONS 61 10.6.2 RADIATED SPURIOUS EMISSIONS 69 10.6.3 RADIATED RESTRICTED BAND EDGES 76 11. LIST OF TEST EQUIPMENT 79 12. ANNEX A_ TEST SETUP PHOTO 81 Report No. HCT-RF-2002-FC005 F-TP22-03 (Rev. 02) Page 5 of 81 1. EUT DESCRIPTION Model ACB10HSGG Additional Model ACB11HSGG, ACB10HSGN, ACB10HSGL, ACB11HSMG EUT Type Car Audio System Power Supply DC 14.4 V Frequency Range 2402 MHz - 2480 MHz Max. RF Output Power 3.203 dBm (2.09 mW) BT Operating Mode Normal, EDR, AFH Modulation Type GFSK(Normal), π/4DQPSK and 8DPSK(EDR) Modulation Technique FHSS Number of Channels 79 Channels, Minimum 20 Channels(AFH) Antenna Specification Antenna type: Pattern Antenna Peak Gain : -0.01 dBi Date(s) of Tests February 14, 2020 ~ February 19, 2020 Report No. HCT-RF-2002-FC005 F-TP22-03 (Rev. 02) Page 6 of 81 2. Requirements for Bluetooth transmitter(15.247) This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudo-randomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals. ▪ 15.247(g): The system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this Section 15.247 should the transmitter be presented with a continuous data (or information) stream. ▪ 15.247(h): The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. Report No. HCT-RF-2002-FC005 F-TP22-03 (Rev. 02) Page 7 of 81 3. TEST METHODOLOGY The measurement procedure described in the American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device (ANSI C63.10-2013, KDB 558074) is used in the measurement of the test device. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 6.2 of ANSI C63.10. (Version :2013) Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane below 1GHz. Above 1GHz with 1.5m using absorbers between the EUT and receive antenna. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3.75 m away from the receiving antenna, which varied from 1 m to 4 m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the max. emission, the relative positions of this hand-held transmitter (EUT) was rotated through three orthogonal axes according to the requirements in Section 6.6.5 of ANSI C63.10. (Version: 2013). To record the final measurements, the analyzer detector function was set to CISPR quasi-peak mode and the bandwidth of the spectrum analyzer was set to 120 kHz for frequencies below 1 GHz or 1 MHz for frequencies above 1 GHz. For average measurements above 1 GHz, the analyzer was set to peak detector with a reduced VBW setting(RBW = 1 MHz, VBW = 1/T Hz, where T = Pulse width). Report No. HCT-RF-2002-FC005 F-TP22-03 (Rev. 02) Page …

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC MPE Test for ACB16H6GG Certification APPLICANT HYUNDAI MOBIS CO., LTD REPORT NO. HCT-RF-2002-FC006 DATE OF ISSUE February 24, 2020 Report No. HCT-RF-2002-FC006 F-TP22-03 (Rev. 01) Page 3 of 5 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of IssueDescription 0 February 24, 2020Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-2002-FC006 F-TP22-03 (Rev. 01) Page 4 of 5 RF Exposure Statement 1. Limit According to §1.1310, §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1.34 - 30 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 30 - 300 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 300 - 1500 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1500 - 100.000 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 614 824/f 27.5 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... 1.63 2.19/f 0.073 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance S=PG/4πR ଶ S = Power density P = Power input to antenna G = Power gain to the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Report No. HCT-RF-2002-FC006 F-TP22-03 (Rev. 01) Page 5 of 5 3. RESULTS 3-1. Bluetooth Average output Power at antenna input terminal 4.00 dBm Average output Power at antenna input terminal 2.51 mW Prediction distance 20.00 cm Prediction frequency 2402 ˊ 2480 MHz Antenna Gain(typical) -0.01 dBi Antenna Gain(numeric) 0.998 - Power density at prediction frequency( S) 0.00050 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 3.99 (dBm) ERP 1.84 (dBm) ERP 0.002 (W) ERP Limit 3.00 (W) MARGIN 32.93 (dB)
