TQ8-ACB40G5ANDIGITAL CAR AVN SYSTEM

CAR MULTIMEDIA SYSTEM USER'S MANUAL D9EUF12 (미국/영어-English) CAR MULTIMEDIA SYSTEM I 미국/영어-English Thank you for purchasing this multimedia system. This user's manual explains how to use the Kia Motor multimedia system. Before using the product, read the con- tents of this user's manual carefully and use this product safely. • The screens shown in this manual may differ with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while driving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or service center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi- als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM ser- vice at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic informa- tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. WARNING • Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. Read the following safety precautions for your safety Before using the product, read the contents of this user's manual carefully and use this product safely. The design and specifi cations of this product may change without prior notifi cation for product and service improvement. The actual features in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue. This Audio system contains open source software, including without limitation, software distributed and/or modifi ed under the GNU General Public license, Version 2, June 1991, and the GNU lesser General Public License, Version 2.1, February 1999. For additional information and to obtain related materials including without limitation, the previous referred to licenses and software, please contact us at [email protected] Notations used within this User's Manual WARNING • Failure to observe the instructions within this category could result in death or serious injury or damage to the vehicle. CAUTION • Information on matters that could potentially lead to injury or vehicle damage/malfunction Information that could lead to higher user safety i Information • Information and tips that provide additional user convenience in using the product NOTICE • Information on specific features that facilitate proper product use and functional understanding • Information on terminology used within this manual iPod ® iPod ® is a registered trademark of Apple Inc. Bluetooth ® Wireless Technology The Bluetooth ® Wireless Technology word mark and logos are registered trademarks owned by Bluetooth ® Wireless Technology SIG, Inc. and any use of such marks by Kia is under license. A Bluetooth ® Wireless Technology enabled cell phone is required to use Bluetooth ® Wireless Technology. Bluetooth ® Wireless Technology phone compatibility can be checked by visiting http://www.kia.com. HD Radio™ Technology HD Radio™ Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and "Arc" logos are proprietary trademarks of iBiquity Digital Corp. Pandora ® Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission. Pandora is only available in certain countries. Please visit http://www. pandora.com/legal for more information. Warnings and Cautions Key Product Features Component Names and Functions Starting the System for the First Time part.1 Basic 1-2 I Basic Safety Warnings Do not stare at the screen whi…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: Jan. 07, 2016 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: TQ8-ACB40G5AN including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Hyundai MOBIS Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seung Hoon Choe Senior Researcher

Hyundai MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: Jan 06, 2016 Declaration of identity FCC ID: TQ8-ACB40G5AN Model Name: ACB40G5AN Add Model Name: ACBB0G5AN We hereby declare that the above add model name is technically and mechanically identical to the granted model name. Sincerely, Seung Hoon Choe Senior Researcher

Hyundai MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: Jan 06, 2016 DTS-UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: TQ8-ACB40G5AN (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 5180 – 5240 Yes , No Yes , No Yes , No Yes , No 5260 – 5320 Yes , No Yes , No Yes , No Yes , No 5500 – 5720 Yes , No Yes , No Yes , No Yes , No 5745 - 5825 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If yes, pls explain how it was implemented: (pls also help to provide detail of options for each country selection) (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can’t be modified by end user or an installer. Apply, No Apply, (If apply, pls help to provide explanation on it was implement, and how software was controlled) Sincerely, Seung Hoon Choe Senior Researcher

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 Jan. 07, 2016 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Hyundai MOBIS Co., Ltd.hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (DIGITAL CAR AVN SYSTEM, ACB40G5AN) FCC ID: TQ8-ACB40G5AN Sincerely, Client’s signature Client’s name / title Seung Hoon Choe / Senior Researcher Contact information / address Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 5.0 Jan. 07, 2016 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: TQ8-ACB40G5AN Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title Seung Hoon Choe / Senior Researcher Contact information / address Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 5.0 Jan. 07, 2016 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: TQ8-ACB40G5AN To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920.. - e.g. User Manual - e.g. Internal Photos - e.g. Test Setup photos - e.g. External Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title Seung Hoon Choe / Senior Researcher Contact information / address Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977

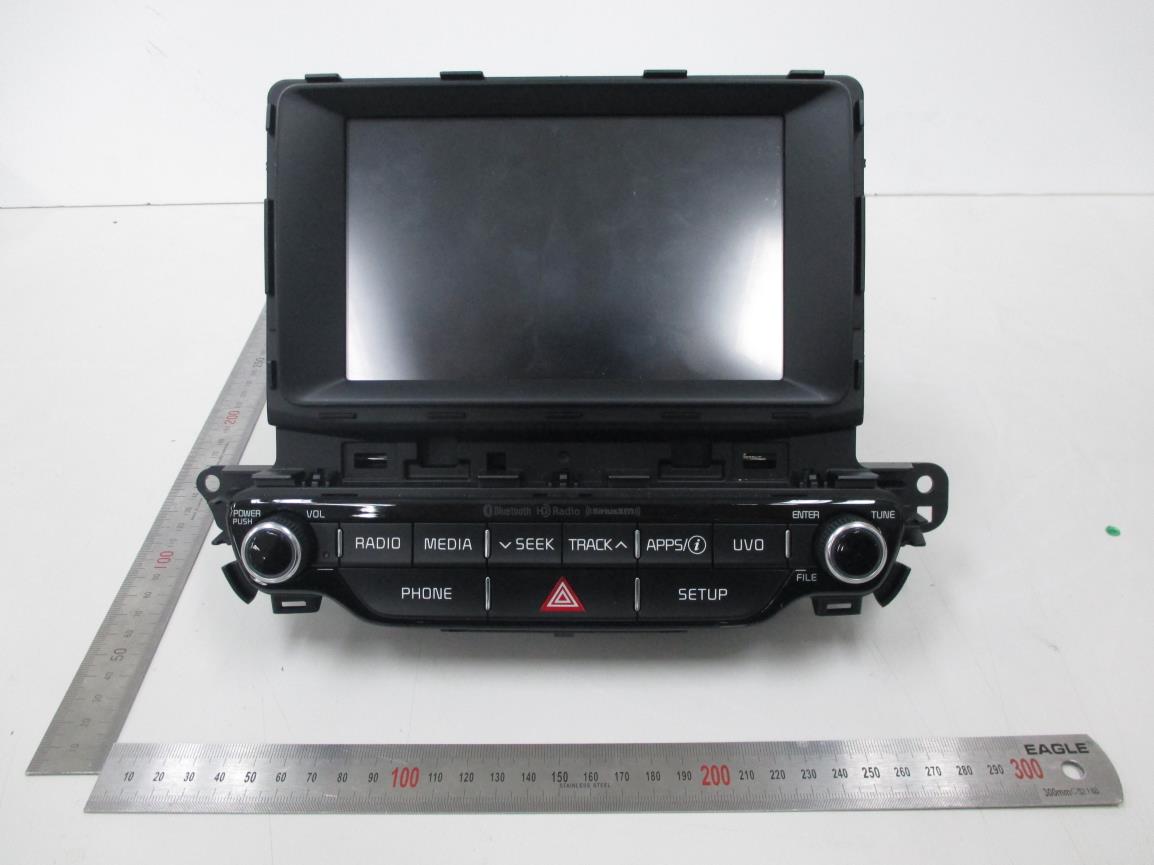

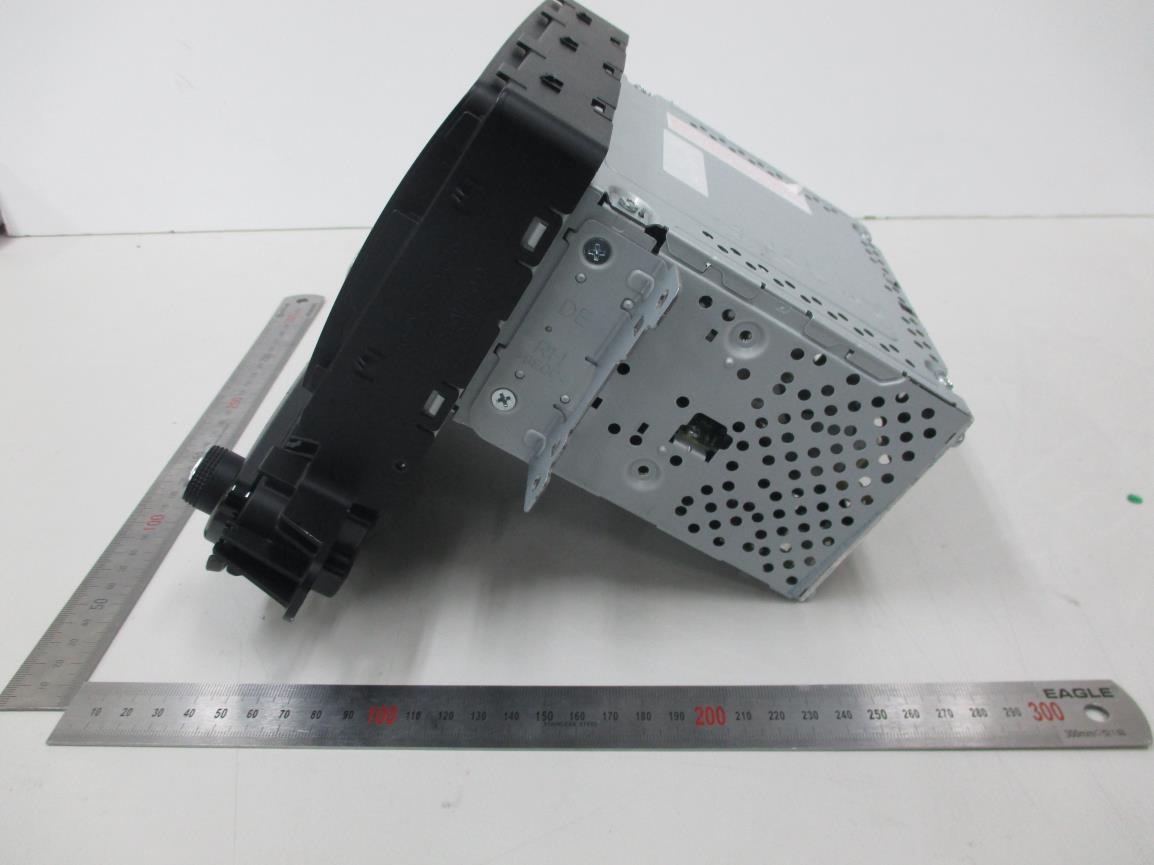

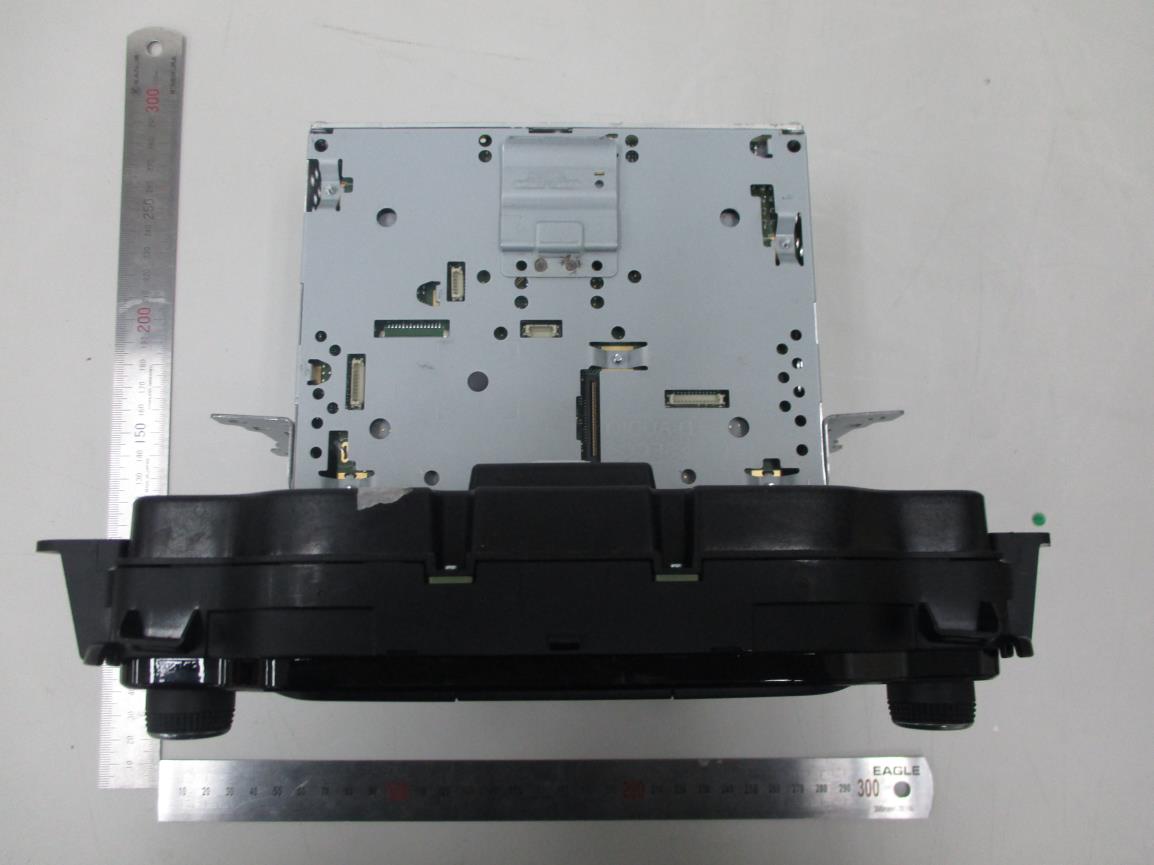

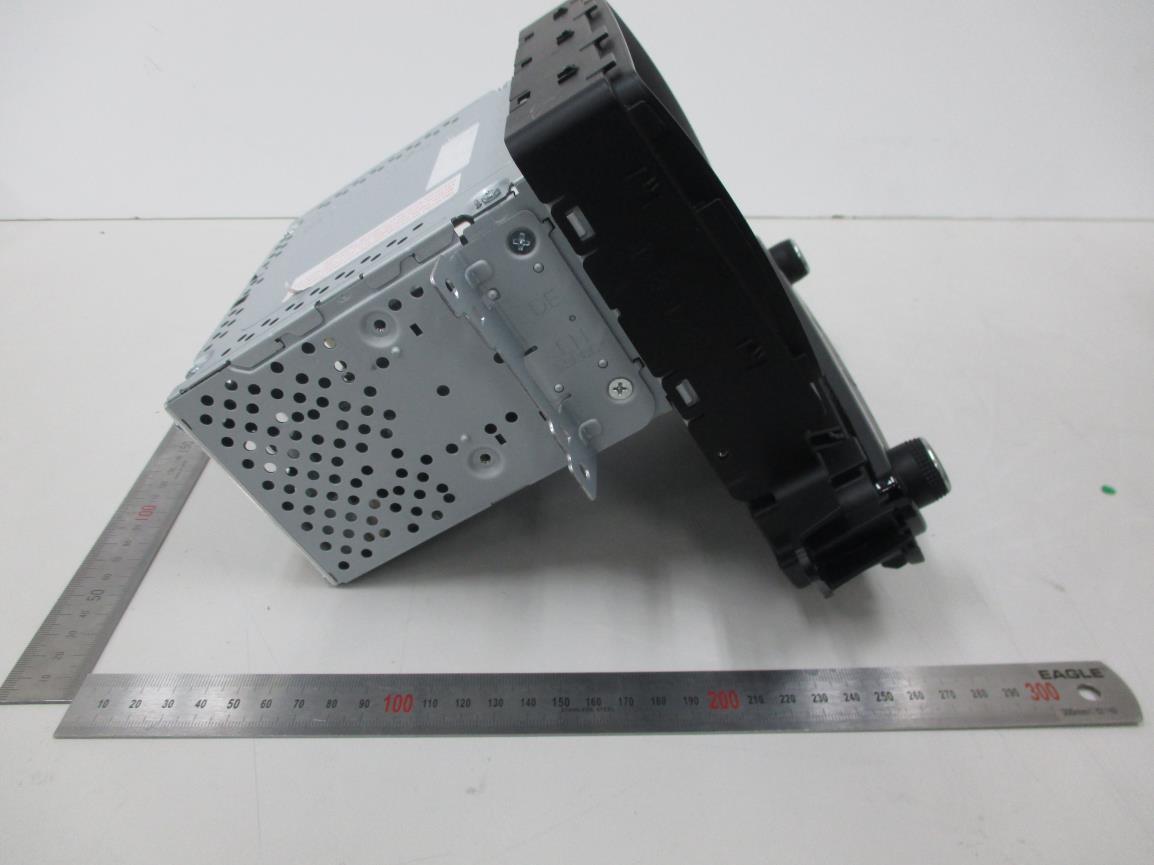

FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: TQ8-ACB40G5AN Copyright Ⓒ 2016, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 1 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 2 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 3 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 4 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 5 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 6 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 7 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 8 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 9 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 10 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 11 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 12 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 13 FCCID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Copyright Ⓒ 2016, DT&C Co., Ltd. View 14 <BT Antenna> < WLAN Antenna >

FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Max i mum power density (mW/cm 2 ) Requriment (mW/cm 2 ) 802.11b 2412.00 ~ 2462.00 17.50 1.32 18.82 76.208 0.016 1.000 802.11g 2412.00 ~ 2462.00 13.50 1.32 14.82 30.339 0.007 1.000 802.11n(HT20) 2412.00 ~ 2462.00 13.50 1.32 14.82 30.339 0.007 1.000 ~~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : The exposure condition of this device is compliant with FCC TQ8-ACB40G5AN 76.208 S= Maximum power density(mW/cm 2 ) 0.016 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the anten n f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation : Frequency range (MHz) WLAN(2.4GHz) Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. EIRP / ( 4 R 2 π ) ▪ Limits for General Population/Uncontrolled Exposure FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Max i mum power density (mW/cm 2 ) Requriment (mW/cm 2 ) 802.11a/n(HT20)/ac(VHT20) 5180.00 ~ 5240.00 13.50 3.00 16.50 44.669 0.009 1.000 802.11n(HT40)/ac(VHT40) 5190.00 ~ 5230.00 9.00 3.00 12.00 15.849 0.004 1.000 802.11ac(80) 5210.00 ~ 5210.00 8.50 3.00 11.50 14.126 0.003 1.000 802.11a/n(HT20)/ac(VHT20) 5260.00 ~ 5320.00 13.00 3.00 16.00 39.811 0.008 1.000 802.11n(HT40)/ac(VHT40) 5270.00 ~ 5310.00 10.00 3.00 13.00 19.953 0.004 1.000 802.11ac(80) 5290.00 ~ 5290.00 9.50 3.00 12.50 17.783 0.004 1.000 802.11a/n(HT20)/ac(VHT20) 5500.00 ~ 5720.00 11.50 -1.84 9.66 9.247 0.002 1.000 802.11n(HT40)/ac(VHT40) 5510.00 ~ 5710.00 8.00 -1.84 6.16 4.131 0.001 1.000 802.11ac(80) 5530.00 ~ 5690.00 8.00 -1.84 6.16 4.131 0.001 1.000 802.11a/n(HT20)/ac(VHT20) 5745.00 ~ 5825.00 11.50 -1.03 10.47 11.143 0.003 1.000 802.11n(HT40)/ac(VHT40) 5755.00 ~ 5795.00 8.00 -1.03 6.97 4.978 0.001 1.000 802.11ac(80) 5775.00 ~ 5775.00 8.00 -1.03 6.97 4.978 0.001 1.000 ~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 11.143 S= Maximum power density(mW/cm 2 ) 0.003 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the anten n f = frequency in MHz * = Plane-wave equivalent power density ▪ Limits for General Population/Uncontrolled Exposure FALSE TQ8-ACB40G5AN MPE Calculation : WLAN(5GHz) Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Max i mum power density (mW/cm 2 ) Requriment (mW/cm 2 ) Bluetooth(1Mbps) 2402.00 ~ 2480.00 3.00 2.46 5.46 3.516 0.001 1.000 Bluetooth(2/3Mbps) 2402.00 ~ 2480.00 1.50 2.46 3.96 2.489 0.001 1.000 ~~~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 3.516 S= Maximum power density(mW/cm 2 ) 0.001 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the anten n f = frequency in MHz * = Plane-wave equivalent power density ▪ Limits for General Population/Uncontrolled Exposure Frequency range (MHz) TQ8-ACB40G5AN MPE Calculation : Bluetooth Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. ▪ ▪ - Configuration 2: MPE ratio (Power Density/Requirement) 2.4GHz WLAN + Bluetooth 5GHz WLAN + Bluetooth Conclusion : Σ of MPE ratios ≤ 1▪ Requirment = The exposure condition of this device is compliant with FCC rul RF function or mode Σ of MPE ratios 0.003 0.016 0.001 Power Density (mW/cm2) Configurations for simultaneous 0.017 0.001 0.001 Configurations for simultaneous 0.016 - Configuration 1: 0.004 TQ8-ACB40G5ANFCC ID: RF Exposure Compliance for simultaneous operations Configuration 1 (MPE ratio) 0.0160.003 Note: Above configuration was declared from applicant. 2.4GHz WLAN Note: The maximum power density in each RF function was used for above table. Bluetooth 0.0030.001Configuration 2 (MPE ratio) Requirement (mW/cm2) 1.0001.000 5GHz WLAN 1.000

FCC ID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Report No.: DRTFCC1601-0018 TRF-RF-228(01)151005 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 14 Test Report Version Test Report No. Date Description DRTFCC1601-0018 Jan. 15, 2016 Initial issue FCC ID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Report No.: DRTFCC1601-0018 TRF-RF-228(01)151005 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 14 Table of Contents 1. EUT DESCRIPTION ................................................................... 4 1.1. Auxiliary equipment .............................................................................. 4 2. DYNAMIC FREQUENCY SELECTION TEST DESCRIPTION ... 5 2.1. Applicability of DFS requirements prior to use of a channel ............. 5 2.2. Applicability of DFS requirements during normal operation ............. 5 2.3. Requirements of client devices ............................................................ 6 2.4. DFS response requirement values ....................................................... 6 2.5. DFS detection thresholds ..................................................................... 7 2.6. Radar test waveforms ........................................................................... 8 3. Test procedure .......................................................................... 9 3.1. Setup for Client with injection at the Master ....................................... 9 3.2. Spectrum analyzer setting parameter .................................................. 9 3.3. Conducted test procedure .................................................................... 9 4. SUMMARY OF TESTS ............................................................. 10 5. LIST OF EQUIPMENTS ............................................................11 6. TEST RESULTS ....................................................................... 12 6.1. Move time and aggregate time ........................................................... 12 6.1.1. U-NII-2A : 802.11ac(VHT80), 5290 MHz ..................................................... 12 6.1.2. U-NII-2C : 802.11ac(VHT80), 5530 MHz ..................................................... 12 6.2. Non-occupancy period ........................................................................ 13 6.2.1. U-NII-2A : 802.11ac(VHT80), 5290 MHz ..................................................... 13 6.2.2. U-NII-2C : 802.11ac(VHT80), 5530 MHz ..................................................... 13 6.3. Radar test waveforms injection level ................................................. 14 6.3.1. U-NII-2A : 5290MHz .................................................................................... 14 6.3.2. U-NII-2C : 5530MHz ................................................................................... 14 FCC ID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Report No.: DRTFCC1601-0018 TRF-RF-228(01)151005 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 4 / 14 1. EUT DESCRIPTION FCC equipment class Unlicensed National Information Infrastructure (UNII) Product DIGITAL CAR AVN SYSTEM Model name(FCC) ACB40G5AN, ACBB0G5AN Model name(IC) ACBB0G5KN Hardware version 4.0 Software version 1.0 EUT capabilities DFS Power supply DC 14.4 V Test condition Conducted Radiated Channel bandwidth 802.11a/n/ac: 20 MHz, 802.11n/ac: 40MHz, 802.11ac: 80MHz Frequency Range U-NII 2A(5250 ~ 5350 MHz) ▪ 802.11a/n/ac(20MHz): 5260 ~ 5320 MHz ▪ 802.11n/ac(40MHz): 5270 ~ 5310 MHz ▪ 802.11ac(80MHz): 5290 MHz U-NII 2C(5470 ~ 5725 MHz) ▪ 802.11a/n/ac(20MHz): 5500 ~ 5720 MHz ▪ 802.11n/ac(40MHz): 5510 ~ 5710 MHz ▪ 802.11ac(80MHz): 5530 ~ 5690 MHz Modulation type OFDM Operational mode Master mode Client mode without radar detection Client mode with radar detection Antenna specification Antenna type: Internal Antenna Antenna gain U-NII-2A 3.00 dBi U-NII-2C -1.84 dBi Note1: The above EUT information was declared by the manufacturer. Note2: Refer to UNII report 1.1. Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note Access Point (Master) DIR-868L R3X81E6000093 D-Link FCCID: RRK2012060056-1 - - - - - FCC ID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Report No.: DRTFCC1601-0018 TRF-RF-228(01)151005 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 5 / 14 2. DYNAMIC FREQUENCY SELECTION TEST DESCRIPTION 2.1. Applicability of DFS requirements prior to use of a channel Requirement Operational mode Master Client without radar detection Client with radar detection Non-Occupancy Period Yes Not required Yes DFS Detection Threshold Yes Not required Yes Channel Availability Check time Yes Not required Not required U-NII Detection Bandwidth Yes Not required Yes 2.2. Applicability of DFS requirements during normal operation Requirement Operational mode Master or client with radar detection Client without radar detection DFS Detection Threshold Yes Not required Channel Closing Transmission Time Yes Yes Channel Move time Yes Yes U-NII Detection Bandwidth Yes Not required Additional requirements for devices with multiple bandwidth modes Operational mode Master or client with radar detection Client without radar detection U-NII Detection Bandwidth and Statistical Performance Check All BW modes must be tested Not required Channel Move Time and Channel Closing Transmission Time Test using widest BW mode available Test using the widest BW mode available for the link All other tests Any single BW mode Not required Note: Frequencies selected for statistical performance check (Section 7.8.4) should include several frequencies within the radar detection bandwidth and frequencies near the edge of the radar detection bandwidth. For 802.11 devices it is suggested to select frequencies in each of the bonded 20 MHz channels and the channel center frequency. The EUT was tested according to the following specification: 905462 D02 UNII DFS Compliance Procedure New Rules v01r02 FCC ID: TQ8-ACB40G5AN IC: 5074A…

Text truncated - open the document above for the full version.

FCC ID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Report No.: DRTFCC1601-0017 TRF-RF-234(01)151127 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 146 Test Report Version Test Report No. Date Description DRTFCC1601-0017 Jan. 15, 2016 Initial issue FCC ID: TQ8-ACB40G5AN IC: 5074A-ACBB0G5KN Report No.: DRTFCC1601-0017 TRF-RF-234(01)151127 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 146 CONTENTS 1. EUT Description ........................................................................ 4 2. Information about test items .................................................... 5 2.1 Test mode ............................................................................... 5 2.2 Tested Channel Information .................................................... 5 2.3 Auxiliary equipment ................................................................ 6 2.4 Tested environment ................................................................ 6 2.5 EMI Suppression Device(s) / Modifications ............................ 6 3. Summary of Tests ..................................................................... 7 4. Test Methodology ..................................................................... 8 4.1 EUT configuration .................................................................. 8 4.2 EUT exercise .......................................................................... 8 4.3 General test procedures ......................................................... 8 4.4 Description of test modes ....................................................... 8 5. Instrument Calibration .............................................................. 9 6. Facilities and Accreditations ................................................... 9 6.1 Facilities ................................................................................. 9 6.2 Equipment .............................................................................. 9 7. Antenna Requirements ............................................................. 9 8. TEST RESULT ......................................................................... 10 8.1 Emission Bandwidth (26 dB Bandwidth) ............................... 10 8.2 Minimum Emission Bandwidth (6 dB Bandwidth) .................. 32 8.3 Maximum Conducted Output Power ..................................... 41 8.4 Maximum Power Spectral Density ........................................ 49 8.5 Frequency Stability ............................................................... 79 8.6 Radiated Spurious Emission Measurements ........................ 81 8.7 AC Conducted Emissions ..................................................... 92 8.8 Occupied Bandwidth ............................................................ 93 9. List of Test Equipment ......................................................... 120 APPENDIX I ............................................................................... 121 APPENDIX II ......................................................…

Text truncated - open the document above for the full version.
