TQ8-ADB10SWENDISPLAY CAR SYSTEM

User Manual DISPLAY CAR SYSTEM Model Name : ADB10SWEN, ADB12SWEN 1 Car Infotainment System User's Manual [This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [Your system's functions and specifications are subject to change without prior notice for performance improvement. [The functions and services described in this guide are subject to change without prior notice for performance improvement. If the system software is updated, the screenshots in this guide may appear different than the actual images on the system. [You can view the up-to-date information about changed functions and services from the web manual. [The functions and services described in this guide may differ from those provided in your vehicle. For precise information related to your vehicle, refer to the owner's manual or catalogue of your vehicle. [Your system is not compatible with the system software for regions outside of the country of purchase. Available information for users Car Infotainment System Quick Reference Guide (Print) This guide contains basic information to use your system including component names and functions. To use your system correctly and safely, read this guide before use. Car Infotainment System User's Manual (Web) This guide is a web manual you can access by scanning a QR code in the Quick Reference Guide or on your system′s screen. This guide introduces your system's functions and explains how to use them. 2 Symbols used in this guide Warning Indicates important information related to user safety. Failure to follow warnings may result in death or serious personal injury. Caution Indicates important information related to user safety. Failure to follow cautions may result in personal injury, or damage or malfunction your vehicle. Note Indicates helpful information for convenient use. (if equipped) Indicates descriptions for optional features, which may not be available on your specific vehicle depending on the model or trim level. This guide covers specifications for all vehicle models, including optional specifications. It may include descriptions for features that are not equipped in your vehicle or are unavailable for your vehicle model. Safety warnings For safety, follow the instructions below. Failure to do so may increase the risk of a traffic accident, which may result in death or personal injury. ÜAbout driving Do not operate the system while driving. •Driving while distracted may result in a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver′s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver′s attention from this responsibility should never be used during operation of the vehicle. Avoid watching the screen while driving. •Driving while distracted may lead to a traffic accident. •Stop your vehicle in a safe location before using functions that require multiple operations. Stop your vehicle first before using your mobile phone. •Using a mobile phone while driving may lead to a traffic accident. •If necessary, use the Bluetooth Handsfree feature to make calls and keep the call as short as possible. Keep the volume low enough to hear external sounds. •Driving without the ability to hear external sounds may lead to a traffic accident. •Listening to a loud volume for a long time may cause hearing damage. 3 ÜAbout handling the system Do not disassemble or modify the system. •Doing so may result in an accident, fire, or electric shock. Do not allow liquids or foreign substances to enter the system. •Liquids or foreign substances may cause noxious fumes, a fire, or a system malfunction. Stop using the system if it malfunctions, such as no audio output or display. •If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. Safety cautions For safety, follow the instructions below. Failure to do so may result in personal injury or damage to the system. ÝAbout operating the system Use the system with the engine running. •Using the system for a long time when the engine is stopped may discharge the battery. Do not install unapproved products. •Using unapproved products may cause an error while using the system. •System errors caused by installing unapproved products are not covered under the warranty. ÝAbout handling the system Do not apply excessive force to the system. •Excessive pressure on the screen may damage the LCD panel or the touch panel. When cleaning the screen or button panel, make sure to stop the engine and use a soft, dry cloth. •Wiping the screen or buttons with a rough cloth or using solvents (alcohol, benzene, paint thinner, etc.) may scratch or chemically damage the surface. If you attach a liquid-type air freshener to the fan louvre, the surface of the louvre may become deformed due to the flowing air. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. 4 1 System overview Component names and functions 1-2 Control panel 1-2 Steering wheel remote control 1-4 Turning the system on or off 1-5 Turning on the system 1-5 Turning off the system 1-6 Using the touch screen 1-6 Getting to know the Home screen 1-8 Getting familiar with the Home screen layout 1-8 Changing the Home screen widgets 1-9 Changing the Home screen menu icons 1-9 Getting to know the All menus screen 1-10 Getting familiar with the All menus screen layout 1-10 Rearranging the All menus screen 1-10 Using Favourites 1-11 Adding favourite items 1-11 Rearranging the items in favourites 1-11 Deleting favourite items 1-11 2 Useful functions Using phone projection 2-2 Connecting your Android smartphone via Android Auto 2-2 Connecting your iPhone via Apple CarPlay 2-4 Getting to kn…

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -ADB10SWEN Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I , the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in ac cordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made i n t his application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c )if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensur e t hat production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept t hat they are the responsibl e par ty and agree to abide by t heir responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements . (1 ) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. S ee 47C FR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions . Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Hyundai MOBIS Co., Ltd. (“ the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Hyundai MOBIS Co., Ltd. ( “the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2023-04-26 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Item Contents Antenna Type Pattern Antenna Antenna peak gain 2 402 ㎒ ~ 2 480㎒: -0.18 ㏈i (BT) 2 412 ㎒ ~ 2 462㎒: -0.01 ㏈i (WLAN 2GHz) 5 150 ㎒ ~ 5 250 ㎒: -0.61 ㏈i (WLAN 5GHz) 5 250 ㎒ ~ 5 350 ㎒: -0.18 ㏈i (WLAN 5GHz) 5 470 ㎒ ~ 5 725 ㎒: -0.77 ㏈i (WLAN 5GHz) 5 725 ㎒ ~ 5 850 ㎒: -0.18 ㏈i (WLAN 5GHz) Manufacturer / Model name Partron / D-Audio2.0V Address of manufacturer 22, Samsung 1-ro 2-gil, Hwaseong-si, Gyeonggi-do, Korea(18449) Test laboratory LG Innoteck Co., Ltd. BT Antenna Length 1.7 cm Width 0.8 cm WLAN Antenna Length 2.1 cm Width 0.8 cm Antenna Information Length: 1.7 cm Width:0.8 cm Bluetooth Antenna WLAN Antenna Length: 2.1 cm Width:0.8 cm Pattern Antenna - Application Frequency - Band [MHz] BT2400 ~ 2485 Pattern (BT) Antenna Data Sheet - Model : D-Audio2.0V - Pattern Antenna ■ ■■ ■ ELECTRICAL CHARACTERISTICS ■ MEASUREMENT VSWR S SS Sm mm mi ii it tt th hh hC CC Ch hh ha aa ar rr rt tt t Pattern Antenna ■ RADIATION PATTERN 2 22 2D DD DG GG Ga aa ai ii in nn n/ // /E EE Ef ff ff ff fi ii ic cc ci ii ie ee en nn nc cc cy yy y Theta Phi Pattern Antenna - Application Frequency - Band [MHz] WiFi 2400 ~ 2485 5150 ~ 5850 Pattern (WiFi) Antenna Data Sheet - Model : D-Audio2.0V - Pattern Antenna ■ ■■ ■ ELECTRICAL CHARACTERISTICS ■ MEASUREMENT VSWR S SS Sm mm mi ii it tt th hh hC CC Ch hh ha aa ar rr rt tt t Pattern Antenna ■ RADIATION PATTERN 2 22 2D DD DG GG Ga aa ai ii in nn n/ // /E EE Ef ff ff ff fi ii ic cc ci ii ie ee en nn nc cc cy yy y Theta Phi

UNITED STATES DESIGNATED AGENT LETTER Date: 2023‐03‐08 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Hyundai MOBIS Co., Ltd.Company Name: Americas Compliance Consulting LLC dba iCertifi Grantee Code: TQ8FRN:0033399411 Contact Name: Seung Hoon Choe Contact Name: Paul Preston Address: 203, Teheran‐ro Gangnam‐gu Address:1001 SW Disk Drive Suite 250 City/Province/Zip: Seoul, Republic of KoreaCity/Province/Zip: Bend, Oregon 97702 USA Telephone: +82‐31‐260‐0098‐ Telephone:+1 866‐885‐4575 Fax: N/AFax:N/A Email: [email protected] Email:[email protected] GRANTEE CODE: TQ8 We, Hyundai MOBIS Co., Ltd. and Americas Compliance Consulting LLC dba iCertifi understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e‐mail of the designated agent listed above. We, Hyundai MOBIS Co., Ltd. and Americas Compliance Consulting LLC dba iCertifi acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission‐related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed) Seung Hoon Choe Name (Printed) Paul Preston Title Senior Research Engineer TitlePresident Signature Signature

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 06141, Korea Tel. 82‐31‐260‐0092 April 26, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Jimyoung Hong, Jinhyoung Cho) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 April 26, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-ADB10SWEN To Whom It May Concern: P ursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. W e are also hereby request Short-Te r m Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. T he requested Permanent and Temporary Confidential exhibits are listed as follows: C ONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Te r m 4 External Photos 5 Internal Photos 6 Te s t-Setup Photos 7 User’s Manual Th e Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Si ncerely, S eung-Hoon Choe Senior Researcher Hyundai MOIBS Co., Ltd.

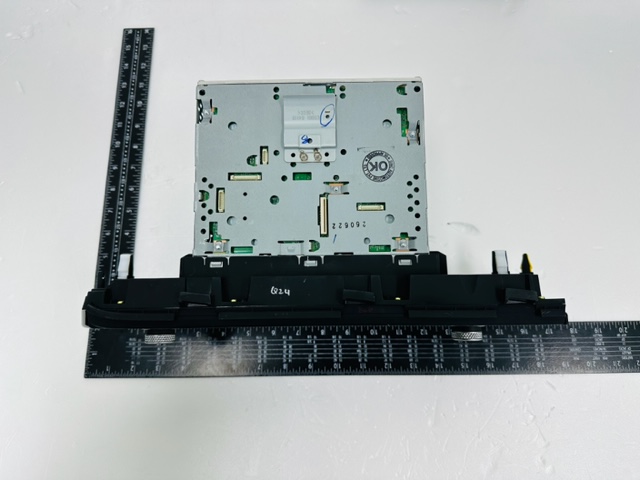

Model name: ADB10SWEM External photos of EUT Model name: ADB10SWEM Top view of EUT Bottom view of EUT Model name: ADB10SWEM Side view of EUT Model name: ADB10SWEM

FCC LABEL Information Model Name: ADB10SWEN, ADB12SWEN Hyundai MOBIS Co., Ltd. FCC ID: TQ8-ADB10SWEN FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

Model name: ADB10SWEN Internal photos of EUT Model name: ADB10SWEN Internal view of EUT Model name: ADB10SWEN Top view of Main PCB Bottom view of Main PCB Model name: ADB10SWEN Top view of Sub1 PCB Bottom view of Sub1 PCB

Model name: ADB10SWEN Top view of Sub2 PCB Bottom view of Sub2 PCB Model name: ADB10SWEN View of WiFi Module Module Model name: ADB10SWEN View of Antenna WLAN Antenna (Pattern) Bluetooth Antenna (Pattern)

FCC ID: TQ8-ADB10SWEN According to KDB 447498 D04 Interim General RF Exposure Guidance v01 1. MPE-Based Exemption An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 ㎑ to 100 ㎓, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time- averaged power. For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). Table 1 to 1.1307(b)(3)(i)(c) – Single RF Sources Subject to Routine Environmental Evaluation RF Source Frequency (㎒) Threshold ERP (watts) 0.3-1.34 1 920 R 2 1.34-30 3 450 R 2 /f 2 30-300 3.83 R 2 300-1 500 0.012 8 R 2 f 1 500-100 000 19.2 R 2 2. RF Exposure Test Exemptions for Single Source Mode Frequency Range (㎒) Minimum Separation Distance (㎝) Maximum Average Target Power (㏈m) Maximum Tune up (㏈) Maximum Average Power (㏈m) Antenna Gain (㏈i) ERP P th Ratio Result (㏈m) (㎽) (㎽) Bluetooth 2 400 ~ 2 483.5 20 2 3 5.0 -0.18 2.67 1.85 768 0.002 Pass WLAN (2.4㎓) 2 400 ~ 2 483.5 20 4 2 6.0 -0.01 3.84 2.42 768 0.003 Pass WLAN (5㎓) 5 150 ~ 5 250 20 8 2 10.0 -0.61 7.24 5.30 768 0.007 Pass WLAN (5㎓) 5 250 ~ 5 350 20 8 2 10.0 -0.18 7.67 5.85 768 0.008 Pass WLAN (5㎓) 5 470 ~ 5 725 20 5 2 7.0 -0.77 4.08 2.56 768 0.003 Pass WLAN (5㎓) 5 725 ~ 5 850 20 2.5 2 4.5 -0.18 2.17 1.65 768 0.002 Pass Note ; - Maximum average target power is the manufacturer’s declared rated power. - Maximum average power = Maximum average target power ( ㏈m) + Maximum tune up (㏈). - ERP (㏈m) = Maximum average Power (㏈m) + Antenna Gain (㏈i) -2.15 3. RF Exposure Test Exemptions for Simultaneous Transmission Mode P i /P th Ratio Mode A P i /P th Ratio Mode B Σ P i /P th Ratio Mode A+B Limit Result Bluetooth + WLAN(5G) 0.002 0.008 0.010 1 Pass Note; - Bluetooth and WLAN can transmit simultaneously. Conclusion: No SAR is required.

G G FL FL (DATE) (DESIGN FOLDER NAME) (SHTS) SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM (APPROVED) (SHT) (CHECKED)(DESIGNED) FL FL Q302 BVSS138LT1G 1 2 3 *R2280 R335 47K *L103 SPM6530T-5R6M-HZ *R217 4.7K 4.7uF *C176 /50 3225 R336 2M +-1% M_GND 22uF *C181 /6.3 3216 *R208 51K DCDC_3.3V 0.1uF *C177 /50 MODEM_DCDC_SW BATT_IN_SUB 22uF *C180 /6.3 3216 *R215 12K +-1% 0.1uF *C167 R334 100 *R224 47K 2200pF *C170 DSP_3.3V 10uF *C183 /50 3225 0.1uF C323 *D106 SMAB34-RTK/H 1 2 *U104 MAX20003CATPA/V+ M3209100214 1 FOSC 2 OUT 3 FB 4 COMP 5 BIAS 6 AGND 7 EN 8 SUPSW_1 9 SUPSW_2 11 PGOOD 12 SPS 10 SUP 13 PGND_1 14 PGND_2 15 BST 16 LX_1 17 LX_2 18 LX_3 19 NC 20 FSYNC WIFI_P_AGNDM_GND *R2070 220pF *C184 0.1uF *C186 /50 2.2uF *C185 /50 3216 10uF *C187 /50 3225 *R216 10K WIFI_VBIAS *R232 100K +-1% *R337 200K +-1% *R348 30K +-1% *R349 10K WIFI_VBIAS WIFI_VBIAS 2.2uF *C188 /16 2012 3.3pF *C189 WIFI_P_AGND TOUCH_LED_I2C3_SCL M_GND 9277_LOCK_FAULT_DET *R158 4.7K R120 10K *R1240 100pF C103 NO R197 10K R103 33 *R1631K A_GND_5 0.1uF *C108 /16 WIFI_SDIO_DAT[0] WIFI_SDIO_DAT[1] 9277_ADD1 BATT_IN_SUB LVDS_TX_DATA0N A_GND_4 *R168 10K TOUCH_RESET 2:I7;2:O4;6:J4 *R150 10K 9277_MS *D100 PS05TBUL2 1 2 47uF C193 3225 /6.3 MAX9277_/PWDN *R113 47K DCDC_3.3V 0.01uF *C142 /100 *R147 47K *R157 4.7K *R13433 *F102 BLM18PG471SH1D 1 2 MAX9277GTM/V+ *U101 RXIN0- 1 RXIN0+ 2 RXIN1- 3 RXIN1+ 4 LVDSVDD1 5 AGND1 6 RXIN2- 7 RXIN2+ 8 RXCLKIN- 9 RXCLKIN+ 10 SD/CNTL0 16 RXIN3- 11 RXIN3+ 12 AGND2 13 LVDSVDD2 14 AVDD1 15 SCK 17 WS 18 CNTL1 19 CNTL2 20 BWS 41 PWDN 42 CDS/CNTL3 43 MS/CNTL0 44 AGND3 21 DVDD1 22 GND1 23 IOVDD1 24 RX/SDA 25 TX/SCL 26 CONF1 27 LMN1 28 AGND4 29 OUT- 30 OUT+ 31 AVDD2 32 LMN0 33 LFLT 34 GPO/HIM 35 CONF0 36 IOVDD2 37 GND2 38 DVDD2 39 ADD0 40 AUTOS 45 ADD1 46 AVDD3 47 CX/TP 48 GND3 49 LVDS_TX_DATA3N *R146 47K *R138 1K *CN100 CN,B-TO-B,MG644508 60 1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 10 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 BT_VER *R161 30K *R130 0 *R201 4.7K *F103 BLM18PG471SH1D 1 2 100pF C107 NO *D104 SD103AWS 1 2 LED_BL_ON M_GND *R12510 *R115 47K *R182 24K 1% PWRGPIO_1.8V BT_PCM_CLK M_GND 0.1uF *C132 /16 0.22uF *C143 0.22uF *C131 *R16533 A_GND_3 BT_PCM_DOUT 47uF *C191 3225 /6.3 *R13733 1000pF *C117 /50 *R179 1K *R156 45.3K PWRGPIO_1.8V BT_VER 9277_LINE_FAULT 9277_BWS R199 10K LQG15HH1N0S02D*C101 M_GND *R142 10K M_GND WIFI_SDIO_DAT[2] 47uF C192 3225 /6.3 TOUCH_LED_I2C3_SDA WIFI_SDIO_DAT[3] R190 4.7K 1000pF *C136 /50 SERIAL_OUT_- *R159 45.3K WIFI_SDIO_DAT[3] *R1510 LVDS_TX_DATA1P *R196 10K PWRGPIO_1.8V R110 0 LVDS_TX_DATA2N BT_UART_TX 10uF *C104 /10 TOUCH_LED_I2C3_SCL BT_PCM_DOUT 9277_SSEN R1720YES R105 33 R102 33 9277_MS M_GND *R189 4.7K BT_UART_RTS R1750YES 0.22uF *C134 SERIAL_OUT_+ *D102 KDS160E 1 2 9277_ADD1 1000pF *C138 M_GND M_GND TOUCH_LED_I2C3_SDA 0.1uF *C114 /16 *D101 PS05TBUL2 1 2 TOUCH_LED_I2C3_SDA WIFI_SDIO_CMD M_GND *R19133 BT_PCM_DIN R1760YES *R139 1K LVDS_TX_CLK0N R114 10K M_GND 0.1uF *C116 /16 9277_ADD0 0.1uF *C144 /16 *R11233 *R15533 1000pF *C139 /100 *R111 47K *R1641K 0.1uF *C127 /16 0.1uF *C146 /50 *R178 1K *R13133 LVDS_TX_DATA3P *CN101 KD40A-200-04 1 2 3 4 1000pF *C119 /50 LVDS_TX_CLK0N *R13633 *R198 10K M_GND *R116 47K 1000pF *C112 /50 0.1uF *C135 /16 9277_DRS BT_UART_RTS R185 4.7K *R149 10K 9277_AUTOS WIFI_SDIO_DAT[1] M3012001296 *U100 MODULE,BWR-B89359 SMA 1 PCIE_CLK_P 1 PCIE_CLK_N 2 PCIE_TD_N 3 PCIE_TD_P 4 SDIO_CLK 5 SDIO_CMD 6 SDIO_DATA3 7 SDIO_DATA2 8 SDIO_DATA1 9 SDIO_DATA0 10 SECI_IN 11 SECI_OUT 12 VBAT_1 13 VBAT_2 14 VIO_SDIO 15 BT_ANT 16 WL_REG_ON 17 BT_REG_ON 18 BT_PCM_CLK 19 BT_PCM_SYNC 20 BT_PCM_IN 21 BT_PCM_OUT 22 WL_ANT_CORE0 23 GND_1 24 LPO 25 GND_2 26 GPIO0 27 WL_HOST_WAKE 28 GND_3 29 GND_4 30 WL_ANT_CORE1 31 SDIO_PAD 32 BT_UART_RTS_N 33 BT_UART_CTS_N 34 BT_UART_RXD 35 BT_UART_TXD 36 VIO 37 SDIO_DIS 38 PCIE_EN 39 PCIE_PME_L 40 PCIE_PERST_N 41 PCIE_CLKREQ 42 PCIE_RD_P 43 PCIE_RD_N 44 GND_5 45 GND_6 46 GND_7 47 GND_8 48 100pF C121 R184 4.7K 100pF C115 *D105 SD103AWS 1 2 DCDC_3.3V 0.1uF *C137 /16 PWRGPIO_1.8V *R12910 LVDS_TX_DATA3P *R16633 *D103 RClamp0582BQ 1 2 3 M_GND I2C_TOUCH_INT 2:I7;2:O4;6:J4 R194 4.7K *R15233 DSP_3.3V 9277_DRS *R10733 LCD_DIMMER 9277_LOCK_DET WIFI_SDIO_CMD R123 1K I2C_TOUCH_INT *R13333 9277_LOCK_FAULT_DET 0.1uF *C105 /16 LVDS_TX_CLK0P LCD_MUTE LVDS_TX_DATA0N *R181 18K 1% *F101 BLM18PG471SH1D 1 2 R140 10K WIFI_SDIO_CLK *R12810 *R170 10K 1% 47uF *C190 3225 /6.3 M_GND WL_HOST_WAKE_UP LED_BL_ON BT_UART_RX TOUCH_LED_I2C3_SCL DSP_3.3V 10uF *C145 /10 LCD_DIMMER *F100 BLM18PG471SH1D 1 2 BT_UART_TX LVDS_TX_DATA3N R1740YES *R13233 1000pF *C126 /50 *R117 47K *R180100K *R167100 *R141 10K *R12710 *R230 0 *R171 2.2K +-1% LVDS_TX_DATA0P 0.1uF *C122 /16 WL_HOST_WAKE_UP R188 4.7K WIFI_SDIO_CLK BT_RESET BT_PCM_LRCK M_GND 9277_LINE_FAULT *R193 4.7K DSP_3.3V 1000pF *C133 /50 1000pF *C130 /50 9277_CDS WL_REG_ON WIFI_SDIO_DAT[0] DCDC_3.3V R118 10K 9277_BWS DSP_3.3V *Q101 SDTC114YET1G 2 3 1 R104 33 *R177 100 A_GND_1 MAX9277_/PWDN R187 4.7K R1730YES *R169 3.9K 1% *R13533 BT_UART_RX *R200 10K *R12610 LVDS_TX_DATA1N LVDS_TX_DATA2P BT_RESET A_GND_2 1.2pF *C118 R195 10K BT_PCM_CLK 100pF *C102 *R15433 *R109 10K BT_PCM_DIN R183 4.7K *Q100 SBC847BLT1G 1 2 3 LVDS_TX_DATA1N WIFI_SDIO_DAT[2] LVDS_TX_DATA1P DSP_3.3V BT_UART_CTS *R162 10K R186 4.7K LVDS_TX_DATA2N 10uF *C140 /10 *R144 10K BT_UART_CTS 100pF *C106 /50 *R15333 *R148 10K 1000pF *C124 /50 9277_SSEN M_GND WL_REG_ON 100pF *C109 *U102 S-13A1A00-U5001 2 VSS 3 ON/OFF 1 VADJ 5 VOUT 4 VIN DSP_3.3V DCDC_3.3V LQG15HH4N7S02D *C100 1uF *C182 /6.3 DSP_3.3V LQG15HH2N7B02D *L101 9277_LOCK_DET R122 1K LCD_MUTE 0.1uF *C113 /16 0.5pF*C123 *R160 10K LVDS_TX_CLK0P 0.1uF *C129 /16 *R145 10K 1000pF *C120 /50 9277_AUTOS *R231 0 R121 10K LVDS_TX_DATA2P PWRGPIO_1.8V R101 33 TOUCH_RESET LVDS_TX_DATA0P PWRGPIO_1.8V 9277_ADD0 MODEM_DCDC_SW 9277_CDS R119 10K 4.7uF C110 /10 0.1uF *C125 /16 *R10633 BT_PCM_LRCK *R19233 10uF *C128 /10 0.1uF*C141 /16 R2290NO M_GND R3500NO R2250NO R2090NO…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004012 Page: 2 of 50 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emissions --------- 10 3. 6 ㏈ Bandwidth ------------------------------------------------------------------------------------------- 37 4. Maximum Peak Conducted Output Power --------------------------------------------------------- 42 5. Power Spectral Density --------------------------------------------------------------------------------- 45 6. Antenna Requirement ----------------------------------------------------------------------------------- 50 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004012 Page: 3 of 50 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : HYUNDAI MOBIS CO., LTD. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Hyundaei Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, Korea, 06141 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name ADB10SWEN Variant Model Name ADB12SWEN Serial Number Conducted Sample: C-001 Radiated Sample: R-001 Power Supply DC 14.4 V Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) Modulation Technique DSSS, OFDM Number of Channels 11 channels (11b/g/n_HT20) Antenna Type Pattern antenna Antenna Gain ※ -0.01 ㏈i H/W Version 1.0 S/W Version 1.0 FVIN N/A SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004012 Page: 4 of 50 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMA100B 106887 Oct. 13, 2022 Annual Oct. 13, 2023 Signal Generator R&S SMBV100A 255834 May 25, 2022 Annual May 25, 2023 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2022 Annual Dec. 07, 2023 Spectrum Analyzer Agilent N9020A MY53421758 Aug. 26, 2022 Annual Aug. 26, 2023 Attenuator AEROFLEX / INMET 40AH2W-10 40G-1 Jun. 08, 2022 Annual Jun. 08, 2023 High Pass Filter Wainwright Instrument GmbH WHKX3.0/18G-6SS 21 Jun. 09, 2022 Annual Jun. 09, 2023 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 15 May 31, 2022 Annual May 31, 2023 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-2 Feb. 09, 2023 Annual Feb. 09, 2024 Power Sensor R&S NRP-Z81 100669 May 06, 2022 Annual May 06, 2023 DC Power Supply R&S HMP2020 020089489 May 17, 2022 Annual May 17, 2023 Preamplifier H.P. 8447F 2944A03909 Aug. 04, 2022 Annual Aug. 04, 2023 Signal Conditioning Unit R&S SCU-18 10117 Jun. 13, 2022 Annual Jun. 13, 2023 Preamplifier TESTEK TK-PA1840H 130016 Jan. 11, 2023 Annual Jan. 11, 2024 Loop Antenna Schwarzbeck Mess- Elektronik FMZB 1519 1519-039 Aug. 23, 2021 Biennial Aug. 23, 2023 Bilog Antenna Schwarzbeck Mess- Elektronik VULB9163 01126 Feb. 09, 2023 Annual Feb. 09, 2024 Horn Antenna R&S HF906 100326 Feb. 28, 2023 Annual Feb. 28, 2024 Horn Antenna Schwarzbeck Mess- Elektronik BBHA 9170 9170-540 Nov. 30, 2022 Annual Nov. 30, 2023 Test Receiver R&S ESU 26 100109 Jan. 18, 2023 Annual Jan. 18, 2024 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000- 4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 Coaxial Cable Qualwave Inc. QA500-18-NN-10 (10 m) 22200114 Apr. 04, 2023 Semi- Annual Oct. 04, 2023 Coaxial Cable RFONE PL360P-292M292M- 1.5M-A 20200324002 Feb. 18, 2023 Semi- Annual Aug. 18, 2023 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004012 Page: 5 of 50 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: Part15 Su…

Text truncated - open the document above for the full version.
