TQ8-ADB13H9ANCar Audio System

Car Infotainment System Quick Reference Guide Q5MS2-DE000 DE2 (영어 | 일반) 디오디오2Value 1 Accessing the web manual via QR codes You can view the web manual of the system by scanning QR codes with your smartphone. ÜWarning Park your vehicle in a safe location before scanning the QR code. For safety reasons, you are not able to access QR codes from the system′s screen while the vehicle is moving. 1 Select one of the following methods to access a QR code. •On the system′s Home screen, press All Menus > User′s Manual. •On the system′s Home screen, press All Menus > Setup > General > System Info > User′s Manual on Web (QR Code). •Alternatively, find the QR code in the Quick Reference Guide. 2 Install a QR code reader application from the App Store ( ) or the Google Play Store ( ) and scan a QR code. 3 On your smartphone's screen, press the URL for the web manual. •You can view the web manual of the system in the Internet browser application of your smartphone. •Depending on how you scan the QR code, you may be able to open the web manual without pressing its URL. 1 Car Infotainment System User's Manual [This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [Your system's functions and specifications are subject to change without prior notice for performance improvement. [The functions and services described in this guide are subject to change without prior notice for performance improvement. If the system software is updated, the screenshots in this guide may appear different than the actual images on the system. [You can view the up-to-date information about changed functions and services from the web manual. [The functions and services described in this guide may differ from those provided in your vehicle. For precise information related to your vehicle, refer to the owner's manual or catalog of your vehicle. [Your system is not compatible with the system software for regions outside of the country of purchase. Available information for users Car Infotainment System Quick Reference Guide (Print) This guide contains basic information to use your system including component names and functions. To use your system correctly and safely, read this guide before use. Car Infotainment System User's Manual (Web) This guide is a web manual you can access by scanning a QR code in the Quick Reference Guide or on your system′s screen. This guide introduces your system's functions and explains how to use them. 2 Symbols used in this guide Warning Indicates important information related to user safety. Failure to follow warnings may result in death or serious personal injury. Caution Indicates important information related to user safety. Failure to follow cautions may result in personal injury, or damage or malfunction your vehicle. Note Indicates helpful information for convenient use. (if equipped) Indicates descriptions for optional features, which may not be available on your specific vehicle depending on the model or trim level. This guide covers specifications for all vehicle models, including optional specifications. It may include descriptions for features that are not equipped in your vehicle or are unavailable for your vehicle model. Safety warnings For safety, follow the instructions below. Failure to do so may increase the risk of a traffic accident, which may result in death or personal injury. ÜAbout driving Do not operate the system while driving. •Driving while distracted may result in a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver′s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver′s attention from this responsibility should never be used during operation of the vehicle. Avoid watching the screen while driving. •Driving while distracted may lead to a traffic accident. •Stop your vehicle in a safe location before using functions that require multiple operations. Stop your vehicle first before using your mobile phone. •Using a mobile phone while driving may lead to a traffic accident. •If necessary, use the Bluetooth Handsfree feature to make calls and keep the call as short as possible. Keep the volume low enough to hear external sounds. •Driving without the ability to hear external sounds may lead to a traffic accident. •Listening to a loud volume for a long time may cause hearing damage. 3 ÜAbout handling the system Do not disassemble or modify the system. •Doing so may result in an accident, fire, or electric shock. Do not allow liquids or foreign substances to enter the system. •Liquids or foreign substances may cause noxious fumes, a fire, or a system malfunction. Stop using the system if it malfunctions, such as no audio output or display. •If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. Safety cautions For safety, follow the instructions below. Failure to do so may result in personal injury or damage to the system. ÝAbout operating the system Use the system with the engine running. •Using the system for a long time when the engine is stopped may discharge the battery. Do not install unapproved products. •Using unapproved products may cause an error while using the system. •System errors caused by installing unapproved products are not covered under the warranty. ÝAbout handling the system Do not apply excessive force to the system. •Excessive pressure on the screen may damage the LCD panel or the touch panel. When cleaning the screen or button panel, make sure to stop the engine and use a soft, dry cloth. •Wiping the screen or buttons with a rough cloth or using solvents (alcohol, benzene, paint thinner, etc.) may scratch or chemically damage the surface. If you attach a liqui…

Text truncated - open the document above for the full version.

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HYUNDAI MOBIS CO., Ltd HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : January 2, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : TQ8-ADB13H9AN We, the undersigned, hereby authorize HCT CO.,LTD to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO.,LTD on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: Seung Hoon Choe / Representative HYUNDAI MOBIS CO., LTD 203, Teheran-ro Gangnam-gu, Seoul, South Korea

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HYUNDAI MOBIS CO., Ltd HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : January 2, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : TQ8-ADB13H9AN We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Seung Hoon Choe / Representative HYUNDAI MOBIS CO., LTD 203, Teheran-ro Gangnam-gu, Seoul, South Korea

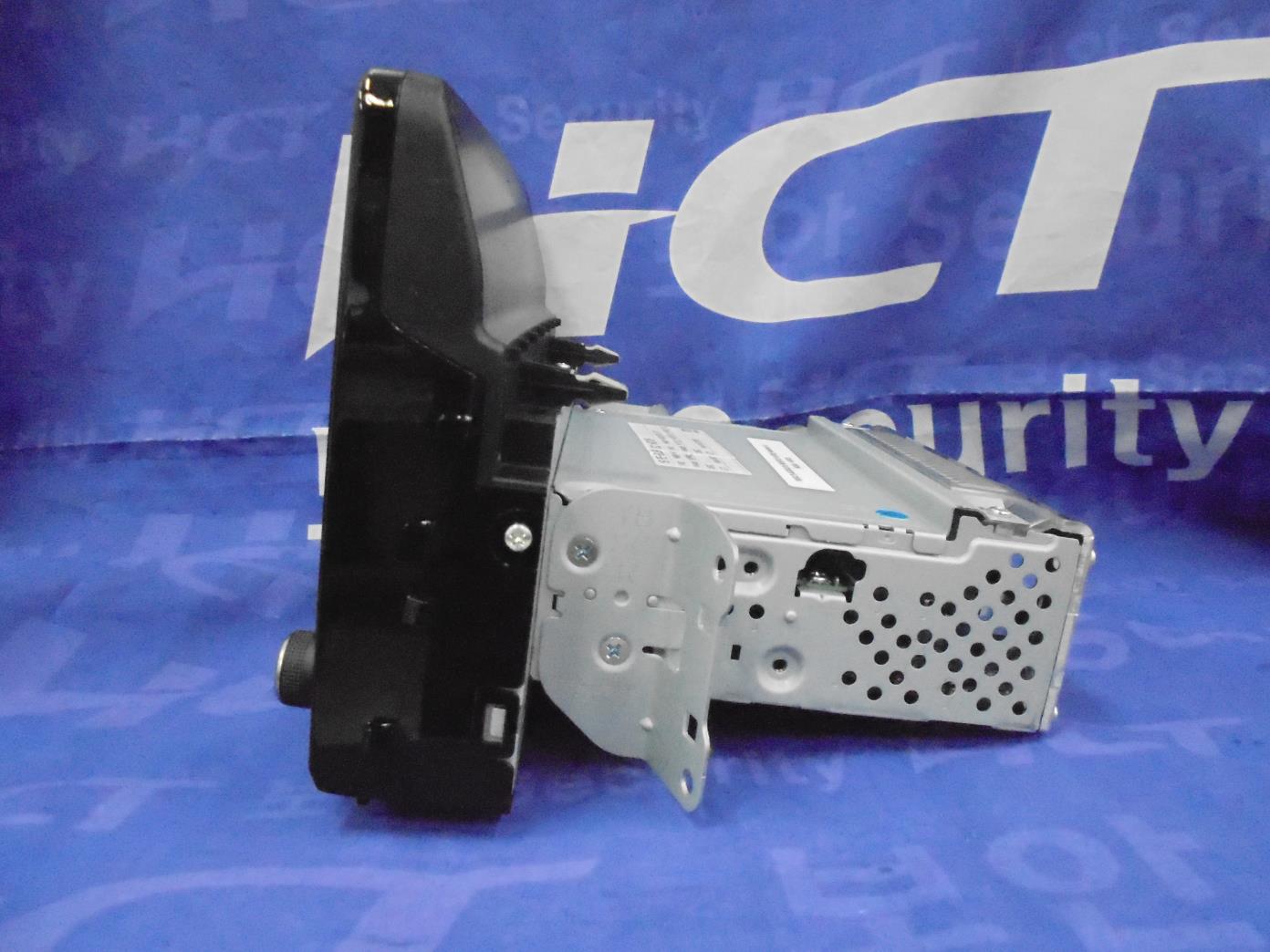

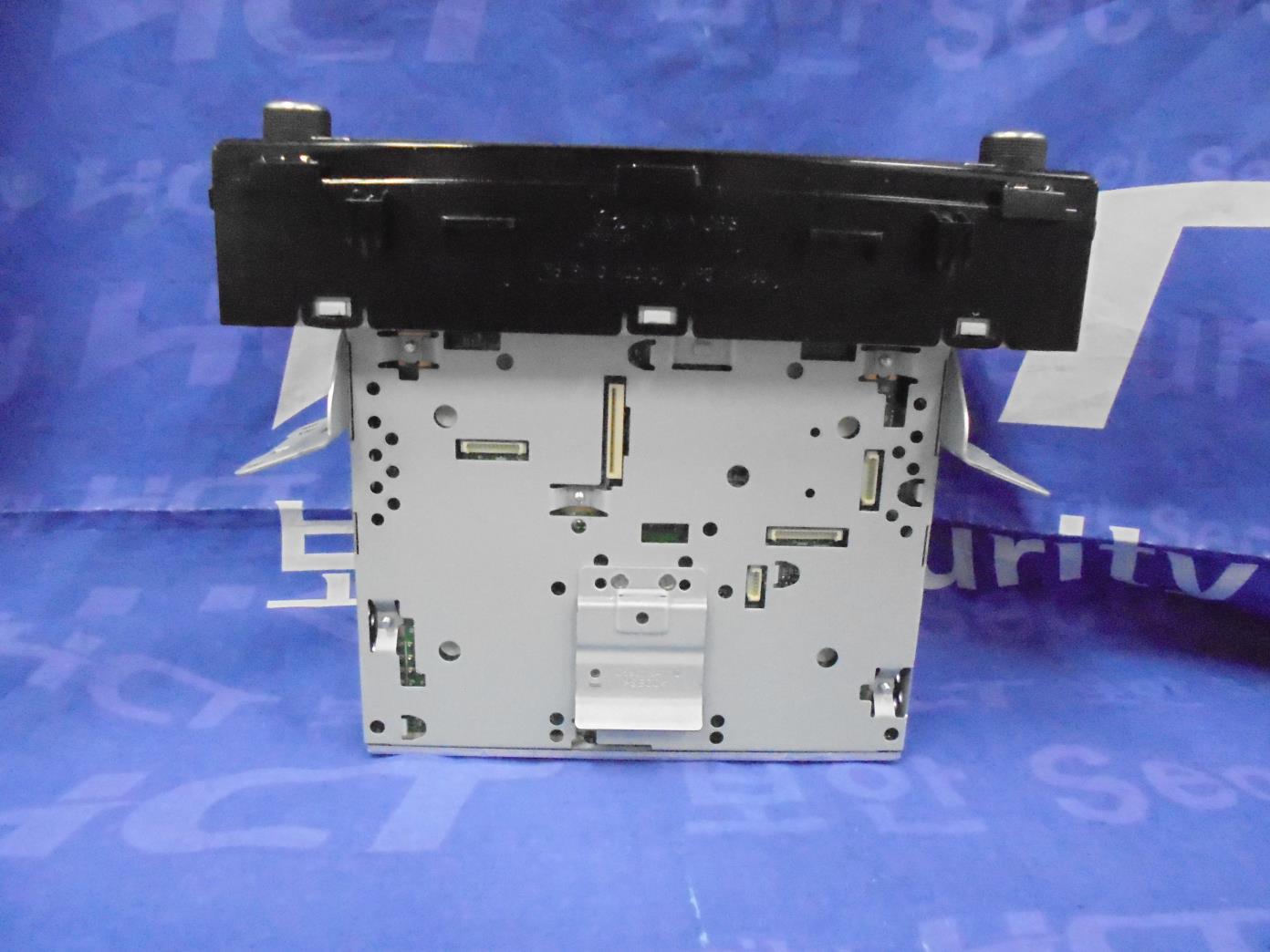

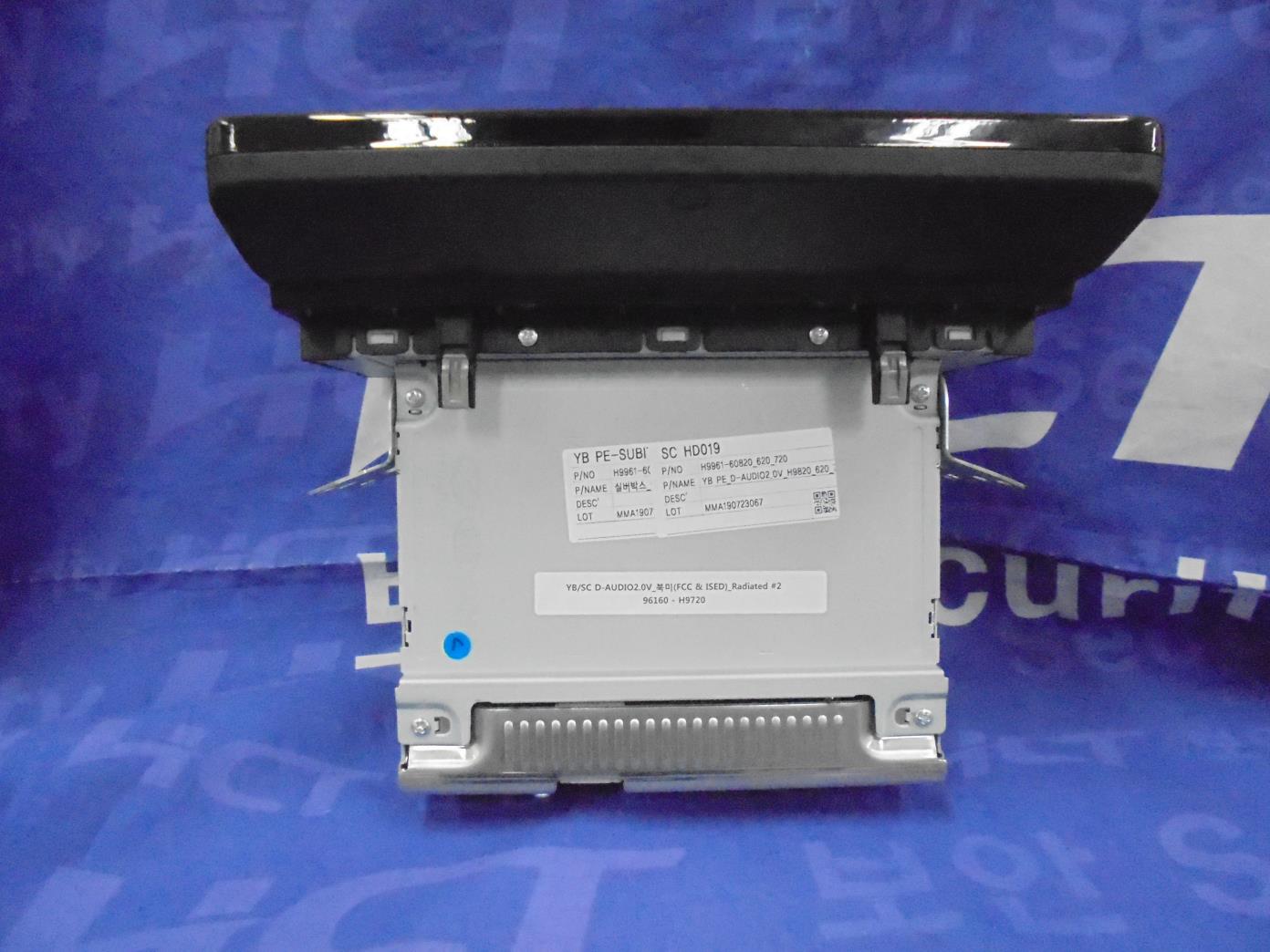

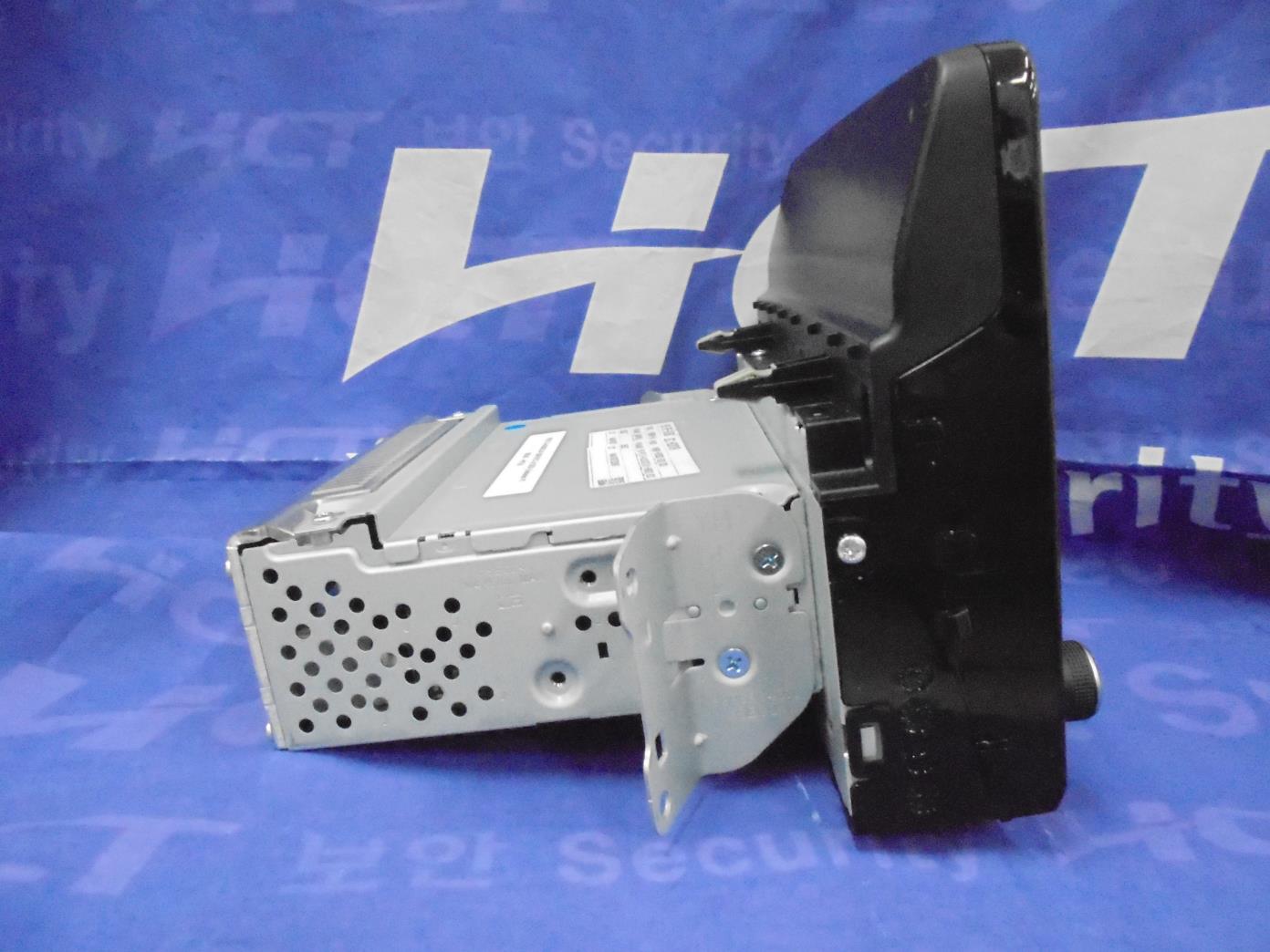

FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

ADB13H9AN FCC ID : TQ8-ADB13H9AN Label Supporting Band: BT, WLAN ADB43H9AN F CC ID : TQ8-ADB13H9AN Contains FCC ID : YZP-VL3010 Supporting Band: BT, WLAN, LTE

FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 10 INTERNAL PHOTOGRAPHS FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 10 ■ INTERNAL PHOTO FCC ID : TQ8- ADB13H9AN / IC : 5074A- ADB13H9KN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 10 ■ INTERNAL PHOTO

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC MPE Test for ADB13H9AN&ADB13H9KN Certification APPLICANT HYUNDAI MOBIS CO., LTD. REPORT NO. HCT-RF-1912-FI019 DATE OF ISSUE December 27, 2019 Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 3 of 13 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 December 27, 2019 Initial Release The measurements shown in this report were made in accordance with the procedures specified in §2.947. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 4 of 13 RF Exposure Statement 1. Limit According to §1.1310, §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1500 1500 - 100.000 614 824/f 27.5 ... ... 1.63 2.19/f 0.073 ... ... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance ଶ S = Power density P = Power input to antenna G = Power gain to the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 5 of 13 3. RESULTS 3-1. Bluetooth Average output Power at antenna input terminal 4.00 dBm Average output Power at antenna input terminal 2.512 mW Prediction distance 20.00 cm Prediction frequency 2402 ˊ 2480 MHz Antenna Gain(typical) -0.18 dBi Antenna Gain(numeric) 0.959 - Power density at prediction frequency( S) 0.0005 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 3.82 (dBm) ERP 1.67 (dBm) ERP 0.001 (W) ERP Limit 3.00 (W) MARGIN 33.10 (dB) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 6 of 13 3-2. DTS Average output Power at antenna input terminal 10.00 dBm Average output Power at antenna input terminal 10.000 mW Prediction distance 20.00 cm Prediction frequency 2412 ˊ 2462 MHz Antenna Gain(typical) -0.01 dBi Antenna Gain(numeric) 0.998 - Power density at prediction frequency( S) 0.0020 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 9.99 (dBm) ERP 7.84 (dBm) ERP 0.006 (W) ERP Limit 3.00 (W) MARGIN 26.93 (dB) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 7 of 13 3-3. UNII Average output Power at antenna input terminal 10.00 dBm Average output Power at antenna input terminal 10.000 mW Prediction distance 20.00 cm Prediction frequency 5180 - 5825 MHz Antenna Gain(typical) -0.18 dBi Antenna Gain(numeric) 0.959 - Power density at prediction frequency( S) 0.0019 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 9.82 (dBm) ERP 7.67 (dBm) ERP 0.006 (W) ERP Limit 3.00 (W) MARGIN 27.10 (dB) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 8 of 13 3-4. CDMA BC0 Average output Power at antenna input terminal 25.00 dBm Average output Power at antenna input terminal 316.23 mW Prediction distance 20.000 cm Prediction frequency 824-849 MHz Cable Loss -1.71 dB Antenna Gain(typical) 2.800 dBi Antenna Gain(numeric) 1.905 - Power density at prediction frequency( S) 0.11988 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.549 mW/cm 2 2.1091 EIRP 27.8 (dBm) ERP 25.65 (dBm) ERP 0.37 (W) ERP Limit 1.50 (W) MARGIN 6.11 (dB) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 9 of 13 3-5. CDMA BC1 Average output Power at antenna input terminal 25.00 dBm Average output Power at antenna input terminal 316.23 mW Prediction distance 20.000 cm Prediction frequency 1850-1910 MHz Cable Loss -3.300 dB Antenna Gain(typical) 5.230 dBi Antenna Gain(numeric) 3.334 - Power density at prediction frequency( S) 0.20976 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 30.23 (dBm) ERP 28.08 (dBm) ERP 0.643 (W) ERP Limit 3.00 (W) MARGIN 6.69 (dB) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 10 of 13 3-6. LTE B4 Average output Power at antenna input terminal 24.00 dBm Average output Power at antenna input terminal 251.19 mW Prediction distance 20.000 cm Prediction frequency 1710-1755 MHz Cable Loss -3.300 dB Antenna Gain(typical) 3.960 dBi Antenna Gain(numeric) 2.489 - Power density at prediction frequency( S) 0.12437 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 27.96 (dBm) ERP 25.81 (dBm) ERP 0.38 (W) ERP Limit 3.00 (W) MARGIN 8.96 (dB) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 11 of 13 3-7. LTE B13 Average output Power at antenna input terminal 24.00 dBm Average output Power at antenna input terminal 251.19 mW Prediction distance 20.000 cm Prediction frequency 777-787 MHz Cable Loss -1.710 dB Antenna Gain(typical) 1.380 dBi Antenna Gain(numeric) 1.374 - Power density at prediction frequency( S) 0.06866 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.518 mW/cm 2 2.1091 EIRP 25.38 (dBm) ERP 23.23 (dBm) ERP 0.21 (W) ERP Limit 1.50 (W) MARGIN 8.53 (dB) Report No. HCT-RF-1912-FI019 F-TP22-03 (Rev. 01) Page 12 of 13 3-8. LTE B5 Average output Power at antenna input terminal 24.00 dBm Average output Power at antenna input terminal 251.19 mW Prediction distance 20.000 cm Prediction frequency 824-849 MHz Cable Loss -1.71 dB Antenna Gai…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC/IC DFS Test for ADB13H9AN&ADB13H9KN Certification APPLICANT HYUNDAI MOBIS CO., LTD. REPORT NO. HCT-RF-1912-FI018 DATE OF ISSUE December 27, 2019 Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 3 of 22 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 December 27, 2019 Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / IC Rules under normal use and maintenance. Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 4 of 22 CONTENTS 1. EUT DESCRIPTION EUT DESCRIPTION 5 2. SCOPE 7 3. INSTRUMENT CALIBRATION 7 4. FACILITIES AND ACCREDITATIONS 8 FACILITIES 8 EQUIPMENT 8 5. SUMMARY OF TEST RESULTS 9 6. DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST 10 6.1 Requirements 10 6.2 Limit 11 6.3 DFS detection threshold values 12 6.4 DFS test signals 13 6.5 Test and measurement system 14 6.6 TEST RESULT 17 7. LIST OF TEST EQUIPMENT 21 8. ANNEX A_ TEST SETUP PHOTO 22 Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 5 of 22 1. EUT DESCRIPTION EUT DESCRIPTION FCC Model ADB13H9AN IC Model ADB13H9KN FCC Additional Model ADB43H9AN IC Additional Model ADB43H9KN EUT Type Car Audio System Power Supply DC 14.4 V Modulation Type OFDM Operating mode Slave Device without radar detection Frequency Range 5250 ˊ 5350 MHz (UNII-2A Band) 5470 ˊ 5725 MHz (UNII-2C Band) Test Procedure FCC KDB 905462 D02 v02 Architecture 802.11a/n/ac Channel Bandwidth 20, 40, 80MHz Antenna Specification Antenna type: Pattern Antenna Peak Gain : -0.18 dBi Date(s) of Tests November 11, 2019 ~ December 24, 2019 PMN (Product Marketing Number) ADB13H9KN, ADB43H9KN HVIN (Hardware Version Identification Number) ADB13H9KN, ADB43H9KN FVIN (Firmware Version Identification Number) N/A HMN (Host Marketing Name) N/A Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 6 of 22 Note: 1. TPC is not required since the maximum EIRP is less than 500mW(27dBm). 2. WLAN traffic that meets or exceeds the minimum required loading was generated by transferring a data stream from the controller/server PC to the EUT using Streaming Video. Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 7 of 22 Max. RF Output Power: 2. SCOPE This report has been prepared to demonstrate compliance with the requirements for Dynamic Frequency Selection(DFS) as stated in KDB 905462 D02 v02. Testing was performed in accordance with the measurement procedure described in FCC KDB 905462 D02 v02. 3. INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipmentˏs, which is traceable to recognized national standards. Especially, all antenna for measurement is calibrated in accordance with the requirements of C63.5 (Version : 2017). Band Mode RF Output Power (dBm) RF Output Power (W) U-NII-2A 802.11a 8.02 0.01 802.11n (HT20) 8.59 0.01 802.11n (HT40) 7.34 0.01 802.11ac (VHT20) 8.90 0.01 802.11ac (VHT40) 7.73 0.01 802.11ac (VHT80) 7.49 0.01 U-NII-2C 802.11a 6.20 0.00 802.11n (HT20) 6.30 0.00 802.11n (HT40) 6.28 0.00 802.11ac (VHT20) 6.42 0.00 802.11ac (VHT40) 6.44 0.00 802.11ac (VHT80) 6.06 0.00 Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 8 of 22 4. FACILITIES AND ACCREDITATIONS FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA. The site is constructed in conformance with the requirements of ANSI C63.4. (Version :2014) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated April 02, 2018 (Registration Number: KR0032 ). For ISED, test facility was accepted dated February 14, 2019 (CAB identifier: KR0032). EQUIPMENT Radiated emissions are measured with one or more of the following types of Linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre-selectors and quasi-peak detectors are used to perform radiated measurements. Conducted emissions are measured with Line Impedance Stabilization Networks and EMI Test Receivers. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, ˑRadio Interference Measuring Apparatus and Measurement Methods.˒ Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 9 of 22 5. SUMMARY OF TEST RESULTS Band Parameter Limit Result UNII-2A Channel Move Time 10 seconds NT Note2 Channel Closing Transmission Time 200 ms + aggregate of 60 ms over remaining 10 second period NT Note2 Non-occupancy Period 30 minutes NT Note2 UNII-2C Channel Move Time 10 seconds PASS Channel Closing Transmission Time 200 ms + aggregate of 60 ms over remaining 10 second period PASS Non-occupancy Period 30 minutes PASS Note: 1. NT = Not Tested, NA = Not Applicable 2. The KDB905462 D02 v02 : Each one channel selected between UNII-2A, UNII-2C is chosen for the testing. Therefore, We performed the only UNII-2C test Report No. HCT-RF-1912-FI018 F-TP22-03 (Rev. 01) Page 10 of 22 6. DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST 6.1 Re…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC/IC UNII Test for ADB13H9AN&ADB13H9KN Certification APPLICANT HYUNDAI MOBIS CO., LTD. REPORT NO. HCT-RF-1912-FI017 DATE OF ISSUE December 27, 2019 Report No. HCT-RF-1912-FI017 F-TP22-03 (Rev. 01) Page 3 of 140 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 December 27, 2019 Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / IC Rules under normal use and maintenance Report No. HCT-RF-1912-FI017 F-TP22-03 (Rev. 01) Page 4 of 140 CONTENTS 1. GENERAL INFORMATION 5 EUT DESCRIPTION 5 2. MAXIMUM OUTPUT POWER 6 3. TEST METHODOLOGY 7 EUT CONFIGURATION 7 EUT EXERCISE 7 GENERAL TEST PROCEDURES 7 DESCRIPTION OF TEST MODES 8 4. INSTRUMENT CALIBRATION 9 5. FACILITIES AND ACCREDITATIONS 9 5.1 FACILITIES 9 5.2 EQUIPMENT 9 6. ANTENNA REQUIREMENTS 10 7. MEASUREMENT UNCERTAINTY 10 8. DESCRIPTION OF TESTS 11 9. SUMMARY OF TEST RESULTS 33 10. TEST RESULT 35 10.1 DUTY CYCLE 35 10.2 26DB BANDWIDTH & 99 % BANDWIDTH 38 10.3 6DB BANDWIDTH 47 10.4 OUTPUT POWER MEASUREMENT 50 10.5 POWER SPECTRAL DENSITY 53 10.6 FREQUENCY STABILITY. 62 10.6.1 80MHz BW 62 10.7 STRADDLE CHANNEL 78 10.7.1 26dB Bandwidth 78 10.7.2 6dB Bandwidth 81 10.7.3 Output Power 84 10.7.4 Power Spectral Density 87 10.8 RADIATED SPURIOUS EMISSIONS 90 10.9 RADIATED RESTRICTED BAND EDGE 124 10.10 RECEIVER SPURIOUS EMISSIONS 137 11. LIST OF TEST EQUIPMENT 138 12. ANNEX A_ TEST SETUP PHOTO 140 Report No. HCT-RF-1912-FI017 F-TP22-03 (Rev. 01) Page 5 of 140 1. GENERAL INFORMATION EUT DESCRIPTION FCC Model ADB13H9AN IC Model ADB13H9KN FCC Additional Model ADB43H9AN IC Additional Model ADB43H9KN EUT Type Car Audio System Power Supply DC 14.4 V Modulation Type OFDM : 802.11a, 802.11n, 802.11ac Frequency Range (MHz) U-NII-1 20MHz BW : 5180 - 5240 40MHz BW : 5190 - 5230 80MHz BW : 5210 U-NII-2A 20MHz BW : 5260 - 5320 40MHz BW : 5270 - 5310 80MHz BW : 5290 U-NII…

Text truncated - open the document above for the full version.
