TQ8-ADB40J5ANDISPLAY CAR SYSTEM

User Manual DISPLAY CAR SYSTEM Model Names: ADB40J5AN, ADB40J5KN 1 [This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [Your system's functions and specifications are subject to change without prior notice for performance improvement. [The functions and services described in this guide are subject to change without prior notice for performance improvement. If the system software is updated, the screenshots in this guide may appear different than the actual images on the system. [You can view the up-to-date information about changed functions and services from the web manual. [The functions and services described in this guide may differ from those provided in your vehicle. For precise information related to your vehicle, refer to the owner's manual or catalog of your vehicle. [Your system is not compatible with the system software for regions outside of the country of purchase. Available information for users Car Infotainment System Quick Reference Guide (Print) This guide contains basic information to use your system including component names and functions. To use your system correctly and safely, read this guide before use. Car Infotainment System User's Manual (Web) This guide is a web manual you can access by scanning a QR code in the Quick Reference Guide or on your system′s screen. This guide introduces your system's functions and explains how to use them. Car Infotainment System User's Manual 2 Symbols used in this guide Warning Indicates important information related to user safety. Failure to follow warnings may result in death or serious personal injury. Caution Indicates important information related to user safety. Failure to follow cautions may result in personal injury, or damage or malfunction your vehicle. Note Indicates helpful information for convenient use. (if equipped) Indicates descriptions for optional features, which may not be available on your specific vehicle depending on the model or trim level. This guide covers specifications for all vehicle models, including optional specifications. It may include descriptions for features that are not equipped in your vehicle or are unavailable for your vehicle model. Safety warnings For safety, follow the instructions below. Failure to do so may increase the risk of a traffic accident, which may result in death or personal injury. ÜAbout driving Avoid watching the screen while driving. •Driving while distracted may lead to a traffic accident. •Stop your vehicle in a safe location before using functions that require multiple operations. Stop your vehicle first before using your mobile phone. •Using a mobile phone while driving may lead to a traffic accident. •If necessary, use the Bluetooth Handsfree feature to make calls and keep the call as short as possible. Keep the volume low enough to hear external sounds. •Driving without the ability to hear external sounds may lead to a traffic accident. •Listening to a loud volume for a long time may cause hearing damage. ÜAbout handling the system Do not disassemble or modify the system. •Doing so may result in an accident, fire, or electric shock. Do not allow liquids or foreign substances to enter the system. •Liquids or foreign substances may cause noxious fumes, a fire, or a system malfunction. Stop using the system if it malfunctions, such as no audio output or display. •If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure. 3 ÛNote If you experience any problems with the system, contact one of our authorized service centers. Safety cautions For safety, follow the instructions below. Failure to do so may result in personal injury or damage to the system. ÝAbout operating the system Use the system with the engine running. •Using the system for a long time when the engine is stopped may discharge the battery. Do not install unapproved products. •Using unapproved products may cause an error while using the system. •System errors caused by installing unapproved products are not covered under the warranty. ÝAbout handling the system Do not apply excessive force to the system. •Excessive pressure on the screen may damage the LCD panel or the touch panel. When cleaning the screen or button panel, make sure to stop the engine and use a soft, dry cloth. •Wiping the screen or buttons with a rough cloth or using solvents (alcohol, benzene, paint thinner, etc.) may scratch or chemically damage the surface. If you attach a liquid-type air freshener to the fan louver, the surface of the louver may become deformed due to the flowing air. ÛNote If you experience any problems with the system, contact one of our authorized service centers. System overview Component names and functions Turning the system on or off Using the touch screen Getting to know the Home screen Getting to know the All Menus screen Using Favorites 1-2 Component names and functions The following explains the names and functions of the components on your system's control panel and steering wheel remote control. Control panel ÛNote Depending on the vehicle model or specifications, the system components' appearance and layout may differ from the actual product. Refer to the Quick Reference Guide. Reset button •Restart the system. Power button (POWER)/ Volume knob (VOL) •Turn the radio/media function on or off. •Press and hold to turn off the screen and the sound. •Turn to the left or right to adjust the system sound volume. Radio button •Turn on the radio. While listening to the radio, press to change the radio mode. Media button •Play content from a media storage device. If you have multiple media storage devices, select one from the media selection window. •Press and hold to display the media selection window. Search backward/forward button (SEEK/TRACK) •While using the radio/media function, change the station/ track/file. •While listening to the radio, press and hol…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Letter of Declaration Product Equality We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that they have the following differences in supported features. _________________________ Seung Hoon Choe Representative Hyundai MOBIS Co., Ltd. Model Names Description AMPUSB BT WIFI HDDAB FM Frequency Range FM Channel Space AM Frequency Range AM Channel Space Basic Model FCCADB40J5ANIn.O BT WIFI OX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ Variant Models FCC ADB10J5GGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB10J5GNIn.O BT WIFI XX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ ADB10J5GLIn.O BT WIFI XX 87.5 ~ 107.9㎒100㎑530 ~ 1 710㎑10㎑ ADB10J5BBIn.O BT WIFI XX 76.1 ~ 107.9㎒100㎑530 ~ 1 710㎑10㎑ ADB12J5GPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB12J5MGIn.OBTXX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB10J5EGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB10J5EPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB11J5GGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB11J5EPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB12J5EPIn.OBTXX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADBC0J5EPIn.O BT WIFI XO 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB10J5UXIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 701㎑9㎑ ADB40J5KNIn.O BT WIFI OX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ ADB10J5RPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB20J5FNIn.O BT WIFI OX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ ADB12J5GGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135-977, Korea Tel. 82‐31‐260‐0092 March 02, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Joohee Park, Jungmin Yang) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Ant i‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. Request of Confidentiality for FCC ID: TQ8-ADB40J5AN March 24, 2020

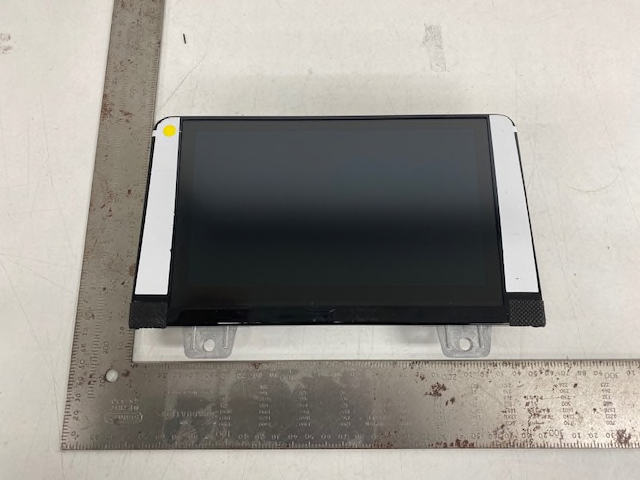

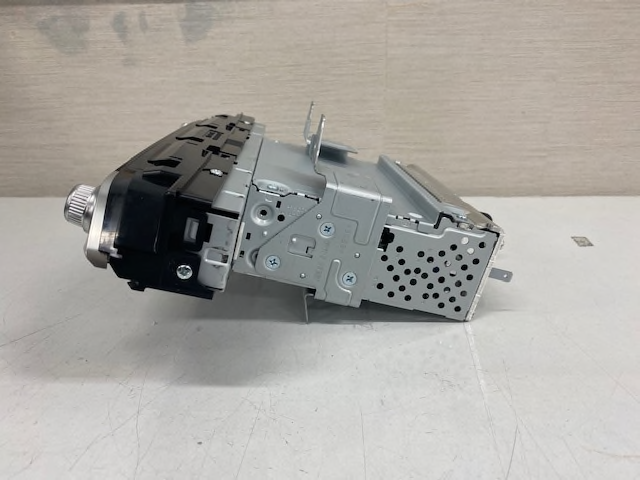

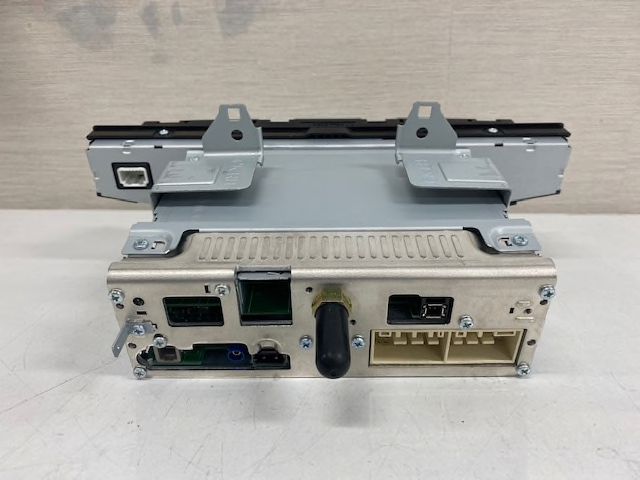

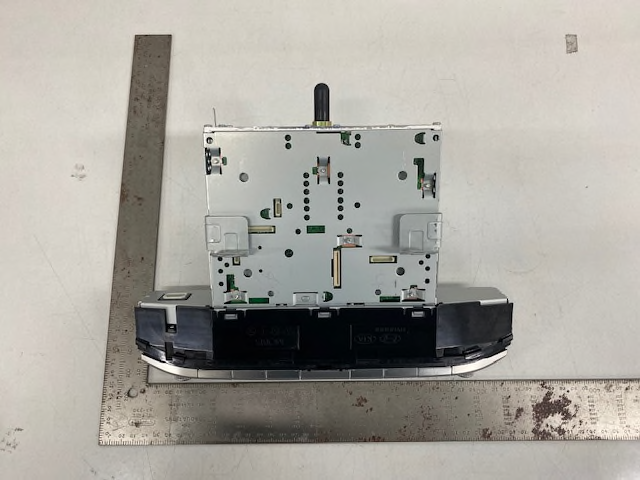

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT Top view of LCD Bottom view of LCD

BT+WIFI FCC LABEL Information Model Name (BT+WIFI): ADC40J5AN, ADB10J5GG, ADB10J5GN, ADB10J5GL, ADB10J5BB, ADB12J5GP, ADB12J5MG, ADB10J5EG, ADB10J5EP, ADB11J5GG, ADB11J5EP, ADB12J5EP, ADBC0J5EP, ADB10J5UX, ADB40J5KN, ADB10J5RP, ADB20J5FN, ADB12J5GG Hyundai MOBIS Co., Ltd. FCC ID: TQ8-ADB40J5AN FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of Sub PCB3 Bottom view of Sub PCB3 Top view of Sub PCB4 Bottom view of Sub PCB4 View of Module BT/WIFI Module View of Antenna Wi-Fi Antenna Bluetooth Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000433 Page:2of55 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of Contents 1. General Information --------------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----------9 3. 6㏈Bandwidth & 99 % Bandwidth -----------------------------------------------------------------38 4. Maximum Peak Conducted Output Power ---------------------------------------------------------47 5. Power Spectral Density ---------------------------------------------------------------------------------50 6. Antenna Requirement -----------------------------------------------------------------------------------55 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000433 Page:3of55 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM FCC Model Name ADB40J5AN IC Model Name ADB40J5KN FCC Variant Model Names ADB10J5GG, ADB10J5GN, ADB10J5GL, ADB10J5BB, ADB12J5GP, ADB12J5MG, ADB10J5EG, ADB10J5EP, ADB11J5GG, ADB11J5EP, ADB12J5EP, ADBC0J5EP, ADB10J5UX, ADB40J5KN, ADB10J5RP, ADB20J5FN, ADB12J5GG Power Supply DC 14.4 V Frequency Range 2 412㎒~ 2 462㎒(11b/g/n_HT20) Modulation Technique DSSS, OFDM Number of Channels 11 channels (11b/g/n_HT20) Antenna Type Pattern antenna Antenna Gain -0.01㏈i SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000433 Page:4of55 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMR40100272Jun. 07, 2019AnnualJun. 07, 2020 Signal GeneratorR&SSMBV100A255834Jun. 10, 2019AnnualJun. 10, 2020 Spectrum AnalyzerR&SFSV30103102Jun. 05, 2019AnnualJun. 05, 2020 Spectrum AnalyzerAgilentN9030AUS51350132Nov. 15, 2019AnnualNov. 15, 2020 AttenuatorAEROFLEX / INMET40AH2W-1040G-3Jun. 20, 2019AnnualJun. 20, 2020 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS344May 21, 2019AnnualMay 21, 2020 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS15Jun. 07, 2019AnnualJun. 07, 2020 Low Pass FilterMini-CircuitsNLP-1200+V9500401023-2Jun. 05, 2019AnnualJun. 05, 2020 Power SensorR&SNRP-Z81100748Jun. 05, 2019AnnualJun. 05, 2020 DC Power SupplyR&SHMP2020020089489May 21, 2019AnnualMay 21, 2020 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Signal Conditioning Unit R&SSCU-1810117Jun. 12, 2019AnnualJun. 12, 2020 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891May 13, 2019AnnualMay 13, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22, 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF907100019Jun. 18, 2019BiennialJun. 18, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170BBHA9170431Sep. 10, 2018BiennialSep. 10, 2020 Test ReceiverR&SESU26100109Feb. 18, 2020AnnualFeb. 18, 2021 Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. ControllerInnco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna MastInnco systems GmbHMA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableSUCOFLEX104 (3 m)MY3258414Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableSUCOFLEX104 (10 m)MY3145814Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 07/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000433 Page:5of55 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C, IC RSS-247 Issue 2, RSS-Gen Issue 5 Section in FCCSection in IC Test Item(s)Result 15.205(a) 15.209 15.247(d) RSS-247 Issue 2 5.5 RSS-Gen Issue 5 8.9 Transmitter Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(2) RSS-247 Issue 2 5.2(a) RSS-Gen Issue 5 6.7 6㏈Bandwidth & 99 % Bandwidth Complied 15.247(b)(3) RSS-247 Issue 2 5.4(d) Maximum Peak Conducted Output PowerComplied 15.247(e) RSS-247 Issue 2 5.2(b) Power Spectral DensityComplied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted EmissionN/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.7. Test Procedure(s) The measurement procedures described in the American National Standard of Procedure for Compliance Testing of unlicensed Wireless Devices (ANSI C63.10-2013) and the guidance provided in KDB 558074 D01 15.247 Meas Guidance v05r02 were used in the measurement of the DUT. 1.8. Sample Calculation Where relevant, the following sampl…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000436 Page:2of8 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000436 Page:3of8 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company:Same as applicant Address:Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000436 Page:4of8 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name ADB40J5AN Variant Model Names ADB10J5GG, ADB10J5GN, ADB10J5GL, ADB10J5BB, ADB12J5GP, ADB12J5MG, ADB10J5EG, ADB10J5EP, ADB11J5GG, ADB11J5EP, ADB12J5EP, ADBC0J5EP, ADB10J5UX, ADB40J5KN, ADB10J5RP, ADB20J5FN, ADB12J5GG Power Supply DC 14.4 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) 2 412㎒~ 2 462㎒(11b/g/n_HT20) 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40) 5 210㎒(Band 1: 11ac_VHT80) 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40) 5 290㎒(Band 2A: 11ac_VHT80) 5 500㎒~ 5 720㎒(Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510㎒~ 5 710㎒(Band 2C: 11n_HT40, 11ac_VHT40) 5 530㎒~ 5 690㎒(Band 2C: 11ac_VHT80) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 11 channels (11b/g/n_HT20) 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 2 402㎒~ 2 480㎒: -0.18㏈i (Bluetooth) 2 412㎒~ 2 462㎒: -0.01㏈i (WLAN 2.4 G) 5 180㎒~ 5 240㎒: -0.61㏈i (WLAN 5 G) 5 260㎒~ 5 320㎒: -0.18㏈i (WLAN 5 G) 5 500㎒~ 5 720㎒: -0.77㏈i (WLAN 5 G) 5 745㎒~ 5 825㎒: -0.18㏈i (WLAN 5 G) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000436 Page:5of8 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Information of Variant Model Model Names Description AMPUSB BT WIFI HDDAB FM Frequency Range FM Channel Space AM Frequency Range AM Channel Space Basic Model FCCADB40J5ANIn.O BT WIFI OX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ Variant Models FCC ADB10J5GGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB10J5GNIn.O BT WIFI XX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ ADB10J5GLIn.O BT WIFI XX 87.5 ~ 107.9㎒100㎑530 ~ 1 710㎑10㎑ ADB10J5BBIn.O BT WIFI XX 76.1 ~ 107.9㎒100㎑530 ~ 1 710㎑10㎑ ADB12J5GPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB12J5MGIn.OBTXX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB10J5EGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB10J5EPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB11J5GGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ ADB11J5EPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB12J5EPIn.OBTXX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADBC0J5EPIn.O BT WIFI XO 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB10J5UXIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 701㎑9㎑ ADB40J5KNIn.O BT WIFI OX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ ADB10J5RPIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑522 ~ 1 620㎑9㎑ ADB20J5FNIn.O BT WIFI OX 87.5 ~ 107.9㎒200㎑530 ~ 1 710㎑10㎑ ADB12J5GGIn.O BT WIFI XX 87.5 ~ 108.0㎒100㎑531 ~ 1 602㎑9㎑ 1.6. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0004362020.03.23Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000436 Page:6of8 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the below orthogonal plane and measured. X-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photo of DFS Test
