TQ8-ADC10SXFNDISPLAY CAR SYSTEM

Q5MS2-DE000 DE2 (영어 | 일반) 디오디오2Value USER MANUAL DISPLAY CAR SYSTEM Model Names: ADC10SXFN, ADC10SXGG, ADC10SXGN, ADC10SXGL, ADC11SXGG, DA331SXGG, ADC10SXMG, DA340SXGG, DA341SXGG 1 Accessing the web manual via QR codes You can view the web manual of the system by scanning QR codes with your smartphone. ÜWarning Park your vehicle in a safe location before scanning the QR code. For safety reasons, you are not able to access QR codes from the system′s screen while the vehicle is moving. 1 Select one of the following methods to access a QR code. •On the system′s Home screen, press All Menus > User′s Manual. •On the system′s Home screen, press All Menus > Setup > General > System Info > User′s Manual on Web (QR Code). •Alternatively, find the QR code in the Quick Reference Guide. 2 Install a QR code reader application from the App Store ( ) or the Google Play Store ( ) and scan a QR code. 3 On your smartphone's screen, press the URL for the web manual. •You can view the web manual of the system in the Internet browser application of your smartphone. •Depending on how you scan the QR code, you may be able to open the web manual without pressing its URL. 1 Car Infotainment System User's Manual [This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [Your system's functions and specifications are subject to change without prior notice for performance improvement. [The functions and services described in this guide are subject to change without prior notice for performance improvement. If the system software is updated, the screenshots in this guide may appear different than the actual images on the system. [You can view the up-to-date information about changed functions and services from the web manual. [The functions and services described in this guide may differ from those provided in your vehicle. For precise information related to your vehicle, refer to the owner's manual or catalog of your vehicle. [Your system is not compatible with the system software for regions outside of the country of purchase. Available information for users Car Infotainment System Quick Reference Guide (Print) This guide contains basic information to use your system including component names and functions. To use your system correctly and safely, read this guide before use. Car Infotainment System User's Manual (Web) This guide is a web manual you can access by scanning a QR code in the Quick Reference Guide or on your system′s screen. This guide introduces your system's functions and explains how to use them. 2 Symbols used in this guide Warning Indicates important information related to user safety. Failure to follow warnings may result in death or serious personal injury. Caution Indicates important information related to user safety. Failure to follow cautions may result in personal injury, or damage or malfunction your vehicle. Note Indicates helpful information for convenient use. (if equipped) Indicates descriptions for optional features, which may not be available on your specific vehicle depending on the model or trim level. This guide covers specifications for all vehicle models, including optional specifications. It may include descriptions for features that are not equipped in your vehicle or are unavailable for your vehicle model. Safety warnings For safety, follow the instructions below. Failure to do so may increase the risk of a traffic accident, which may result in death or personal injury. ÜAbout driving Do not operate the system while driving. •Driving while distracted may result in a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver′s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver′s attention from this responsibility should never be used during operation of the vehicle. Avoid watching the screen while driving. •Driving while distracted may lead to a traffic accident. •Stop your vehicle in a safe location before using functions that require multiple operations. Stop your vehicle first before using your mobile phone. •Using a mobile phone while driving may lead to a traffic accident. •If necessary, use the Bluetooth Handsfree feature to make calls and keep the call as short as possible. Keep the volume low enough to hear external sounds. •Driving without the ability to hear external sounds may lead to a traffic accident. •Listening to a loud volume for a long time may cause hearing damage. 3 ÜAbout handling the system Do not disassemble or modify the system. •Doing so may result in an accident, fire, or electric shock. Do not allow liquids or foreign substances to enter the system. •Liquids or foreign substances may cause noxious fumes, a fire, or a system malfunction. Stop using the system if it malfunctions, such as no audio output or display. •If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. Safety cautions For safety, follow the instructions below. Failure to do so may result in personal injury or damage to the system. ÝAbout operating the system Use the system with the engine running. •Using the system for a long time when the engine is stopped may discharge the battery. Do not install unapproved products. •Using unapproved products may cause an error while using the system. •System errors caused by installing unapproved products are not covered under the warranty. ÝAbout handling the system Do not apply excessive force to the system. •Excessive pressure on the screen may damage the LCD panel or the touch panel. When cleaning the screen or button panel, make sure to stop the engine and use a soft, dry cloth. •Wiping the screen or buttons with a rough cloth or using solvents (alcohol, b…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Letter of Declaration Product Equality We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that they have the following differences in supported features. _________________________ Seung Hoon Choe Representative Hyundai MOBIS Co., Ltd. Model NameBT/WIFI Broadcast Freq. DRMArkamysHDEcallRDSRBDS MIC type Basic Model ADC10SXFNBT/WIFINA--O--OOHCL Variant Models ADC10SXGGBT/WIFIGeneral------OHCL ADC10SXGNBT/WIFINA-- - ---OHCL ADC10SXGLBT/WIFIColumbia-- - ---OHCL ADC11SXGGBT/WIFIGeneral----O-OHCL DA331SXGGBTGeneral----O-OHCL ADC10SXMGBTGeneral---OO-OHCL DA340SXGGBT/WIFIGeneral------OHCL DA341SXGGBT/WIFIGeneral----O-OHCL

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135-977, Korea Tel. 82‐31‐260‐0092 March 02, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Joohee Park, Jungmin Yang) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Ant i‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. Request of Confidentiality for FCC ID: TQ8-ADC10SXFN March 20, 2020

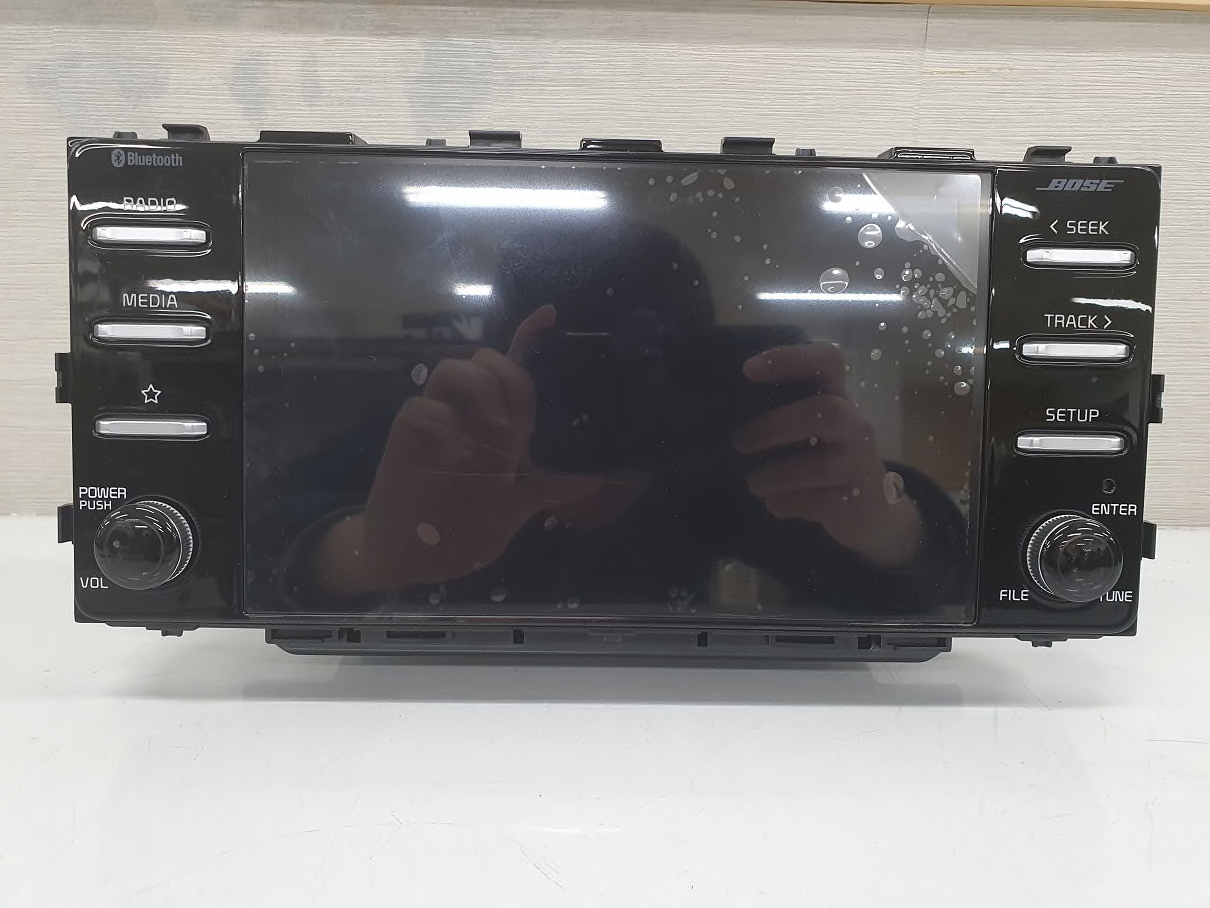

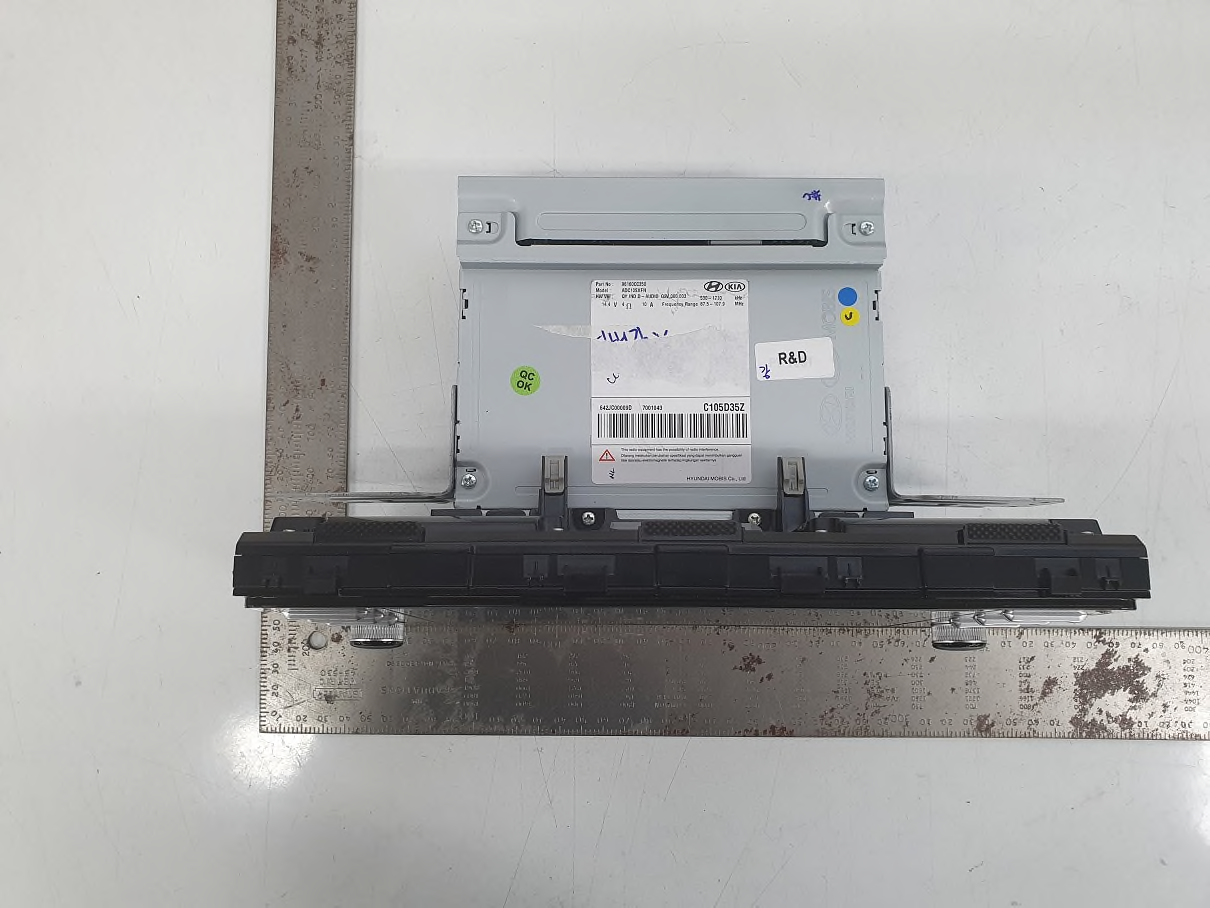

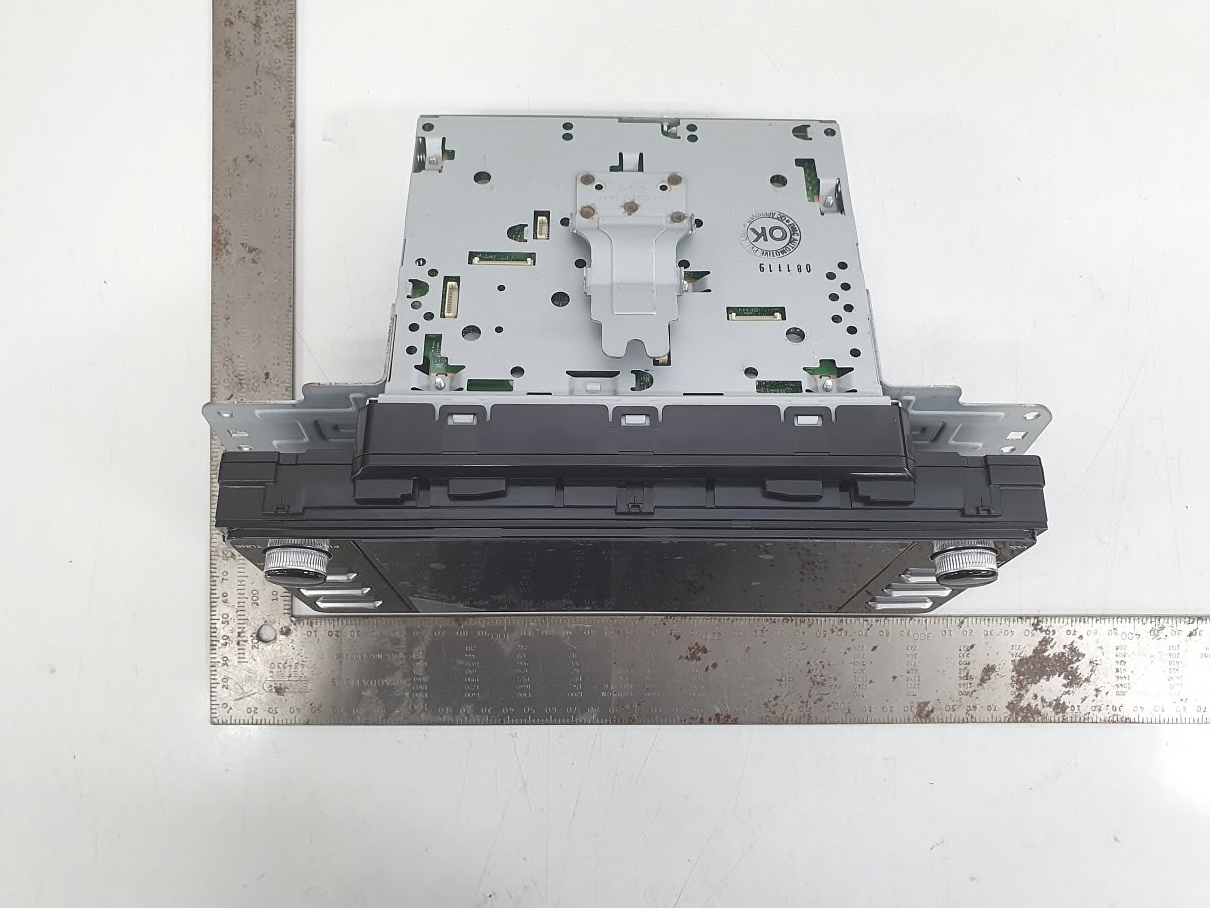

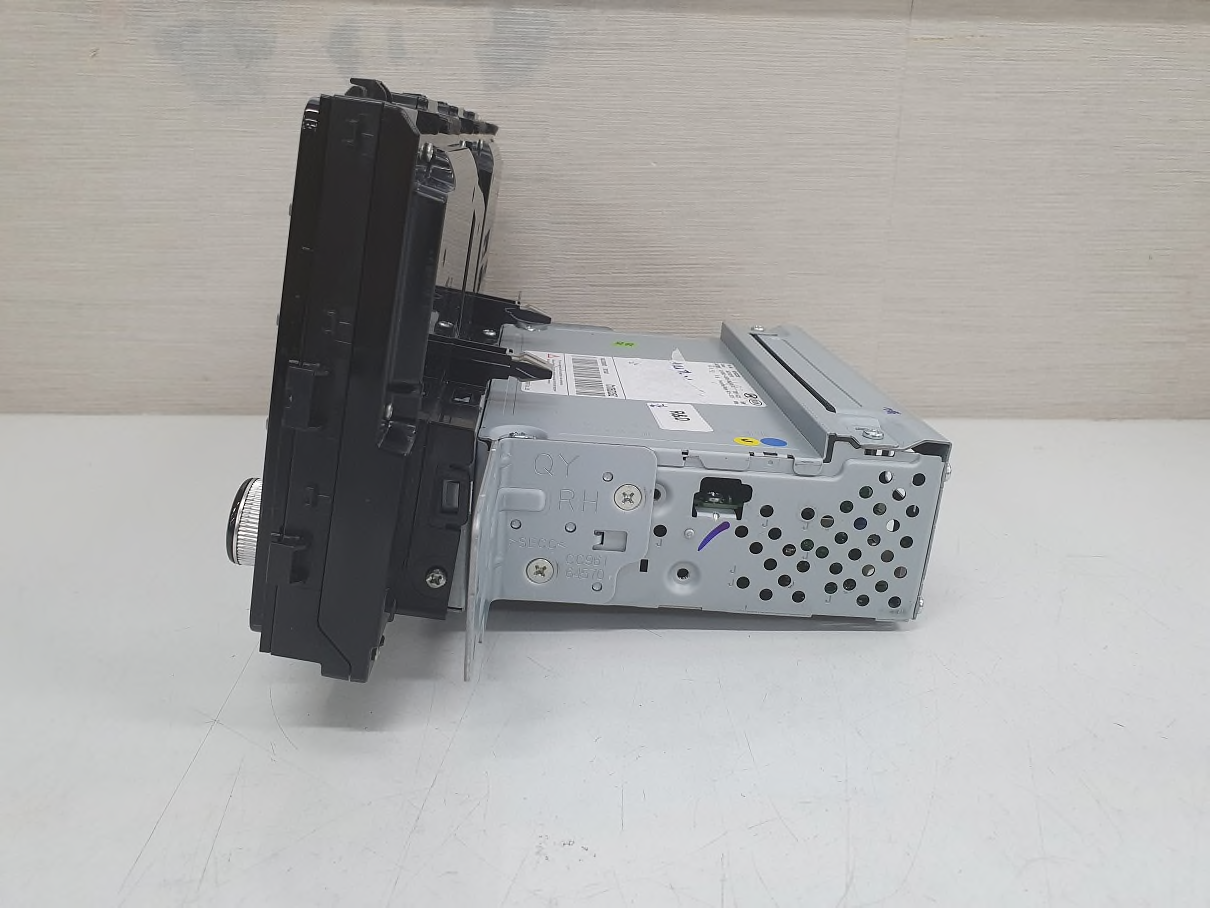

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC LABEL Information Model Name: ADC10SXFN, ADC10SXGG, ADC10SXGN, ADC10SXGL, ADC11SXGG, DA331SXGG, ADC10SXMG, DA340SXGG, DA341SXGG Hyundai MOBIS Co., Ltd. FCC ID:TQ8- ADC10SXFN FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 View of Antenna & Module Bluetooth Antenna BT+WIFI Module Wi-Fi Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000416 Page:2of7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000416 Page:3of7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 -Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company:Same as applicant Address:Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000416 Page:4of7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name ADC10SXFN Variant Model Names ADC10SXGG, ADC10SXGN, ADC10SXGL, ADC11SXGG, DA31SXGG, ADC10SXMG, DA340SXGG, DA341SXGG Power Supply DC 14.4 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) 2 412㎒~ 2 462㎒(11b/g/n_HT20) 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40) 5 210㎒(Band 1: 11ac_VHT80) 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40) 5 290㎒(Band 2A: 11ac_VHT80) 5 500㎒~ 5 720㎒(Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510㎒~ 5 710㎒(Band 2C: 11n_HT40, 11ac_VHT40) 5 530㎒~ 5 690㎒(Band 2C: 11ac_VHT80) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 11 channels (11b/g/n_HT20) 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 2 400㎒~ 2 483.5㎒:-0.18㏈i (Bluetooth) 2 400㎒~ 2 483.5㎒: -0.01㏈i (WLAN 2.4 G) 5 150㎒~ 5 250㎒: -0.61㏈i (WLAN 5G) 5 250㎒~ 5 350㎒: -0.18㏈i (WLAN 5G) 5 470㎒~ 5 725㎒: -0.77㏈i (WLAN 5G) 5 725㎒~ 5 850㎒: -0.18㏈i (WLAN 5G) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000416 Page:5of7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Information of Variant Models Model NameBT/WIFI Broadcast Freq. DRMArkamysHDEcallRDSRBDSMIC type Basic Model ADC10SXFNBT/WIFINA--O--OOHCL Variant Models ADC10SXGGBT/WIFIGeneral------OHCL ADC10SXGNBT/WIFINA-- - ---OHCL ADC10SXGLBT/WIFIColumbia-- - ---OHCL ADC11SXGGBT/WIFIGeneral----O-OHCL DA331SXGGBTGeneral----O-OHCL ADC10SXMGBTGeneral---OO-OHCL DA340SXGGBT/WIFIGeneral------OHCL DA341SXGGBT/WIFIGeneral----O-OHCL 1.6. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0004162020.03.18Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000416 Page:6of7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40.1631.06 300-1 500--f/3006 1 500-100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1 500--f/150030 1 500-100 000 -- 1.030 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000416 Page:7of7 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Bluetooth - Maximum tune up tolerance Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 402 ~ 2 4804-0.180.000 4791 WLAN (2.4G) - Maximum tune up tolerance Frequency (㎒) Output Average Power to Ante…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000415 Page:2of16 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of contents 1. General Information‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐ 3 2. DFS (Dynamic Frequency Selection)‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---------------- 7 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000415 Page:3of16 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000415 Page:4of16 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name ADC10SXFN Variant Model Names ADC10SXGG, ADC10SXGN, ADC10SXGL, ADC11SXGG, DA31SXGG, ADC10SXMG, DA340SXGG, DA341SXGG Power Supply DC 14.4 V Frequency Range 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40) 5 210㎒(Band 1: 11ac_VHT80) 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40) 5 290㎒(Band 2A: 11ac_VHT80) 5 500㎒~ 5 720㎒(Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510㎒~ 5 710㎒(Band 2C: 11n_HT40, 11ac_VHT40) 5 530㎒~ 5 690㎒(Band 2C: 11ac_VHT80) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique OFDM Number of Channels 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 5 150㎒~ 5 250㎒: -0.61㏈i 5 250㎒~ 5 350㎒: -0.18㏈i 5 470㎒~ 5 725㎒: -0.77㏈i 5 725㎒~ 5 850㎒: -0.18㏈i 1.5. Declaration by the Manufacturer ‐The EUT is a slave without radar detection and TPC. - The EUT is not supported TDWR(5.6 - 5.65㎓) band. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000415 Page:5of16 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMBV100A255834 Jun. 10, 2019AnnualJun. 10, 2020 Spectrum AnalyzerR&SFSV30103453 Nov. 06, 2019AnnualNov. 06, 2020 Attenuator AEROFLEX / INMET 18N-20dB3 Feb. 19, 2019AnnualFeb. 19, 2020 Power SplitterMini-CircuitsZFSC-2-10G001Jun. 07, 2019AnnualJun. 07, 2020 Power SplitterMini-CircuitsZFSC-2-10G002Jun. 07, 2019AnnualJun. 07, 2020 DC Power SupplyAgilentU8002AMY50020026Dec. 03, 2019AnnualDec. 03, 2020 ▶Support Equipment DescriptionManufacturerModelFCC ID Access PointAerohive networks Inc.AP650XWBV-AP650X NotebookLG Electronics Inc.LGE-DMLGA51- 1.7. Summary of Test Result The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part 15 Subpart E SectionTest ItemResult 15.407(h) DFS ‐Channel closing transmission time ‐Channel move time ‐Non occupied period Complied 1.8. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0004152020.03.18Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000415 Page:6of16 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.9. Information of Variant Models Model NameBT/WIFI Broadcast Freq. DRMArkamysHDEcallRDSRBDSMIC type Basic Model ADC10SXFNBT/WIFINA--O--OOHCL Variant Models ADC10SXGGBT/WIFIGeneral------OHCL ADC10SXGNBT/WIFINA-- - ---OHCL ADC10SXGLBT/WIFIColumbia-- - ---OHCL ADC11SXGGBT/WIFIGeneral----O-OHCL DA331SXGGBTGeneral----O-OHCL ADC10SXMGBTGeneral---OO-OHCL DA340SXGGBT/WIFIGeneral------OHCL DA341SXGGBT/WIFIGeneral----O-OHCL SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000415 Page:7of16 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. DFS (Dynamic Frequency Selection) 2.1. System Overview 2.1.1. Set up of EUT The radar signal generation equipment consists of a vector signal generator The signal monitoring equipment consists of a spectrum analyzer set to display 8 001 bins on the horizontal axis. The time domain resolution is 2 msec/bin with a 16 second sweep time, meeting the 10 second short pulse reporting criteria. The aggregate ON time is calculated by multiplying the number of bins above a threshold during a particular observation period by the dwell time per bin, with the analyzer set to peak detection and max hold. The Slave is tested separately for compliance with the Chann…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL000414 Page: 2 of 111 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of contents 1. General Information ---------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions ----------------------------------------------------------- 11 3. 26 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------------- 48 4. 6 ㏈ Bandwidth -------------------------------------------------------------------------------------------- 70 5. Maximum Conducted Output Power------------------------------------------------------------------- 77 6. Peak Power Spectral Density --------------------------------------------------------------------------- 86 7. Antenna Requirement ------------------------------------------------------------------------------------- 111 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL000414 Page: 3 of 111 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL000414 Page: 4 of 111 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name ADC10SXFN Variant Model Names ADC10SXGG, ADC10SXGN, ADC10SXGL, ADC11SXGG, DA331SXGG, ADC10SXMG, DA340SXGG, DA341SXGG Power Supply DC 14.4 V Frequency Range 5 180 ㎒ ~ 5 240 ㎒ (Band 1: 11a/n_HT20, 11ac_VHT20) 5 190 ㎒ ~ 5 230 ㎒ (Band 1: 11n_HT40, 11ac_VHT40) 5 210 ㎒ (Band 1: 11ac_VHT80) 5 260 ㎒ ~ 5 320 ㎒ (Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270 ㎒ ~ 5 310 ㎒ (Band 2A: 11n_HT40, 11ac_VHT40) 5 290 ㎒ (Band 2A: 11ac_VHT80) 5 500 ㎒ ~ 5 720 ㎒ (Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510 ㎒ ~ 5 710 ㎒ (Band 2C: 11n_HT40, 11ac_VHT40) 5 530 ㎒ ~ 5 690 ㎒ (Band 2C: 11ac_VHT80) 5 745 ㎒ ~ 5 825 ㎒ (Band 3: 11a/n_HT20, 11ac_VHT20) 5 755 ㎒ ~ 5 795 ㎒ (Band 3: 11n_HT40, 11ac_VHT40) 5 775 ㎒ (Band 3: 11ac_VHT80) Modulation Technique OFDM Number of Channels 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 5 150 ㎒ ~ 5 250 ㎒: -0.61 ㏈i 5 250 ㎒ ~ 5 350 ㎒: -0.18 ㏈i 5 470 ㎒ ~ 5 725 ㎒: -0.77 ㏈i 5 725 ㎒ ~ 5 850 ㎒: -0.18 ㏈i 1.5. Declaration by the Manufacturer - The EUT is a slave without radar detection and TPC. - The EUT is not supported TDWR(5.6 - 5.65 ㎓) band. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL000414 Page: 5 of 111 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Automatically Discontinue Transmission 1.6.1. Limit of Automatically Discontinue Transmission The device shall automatically discontinue transmission in case of either absence of information to transmit or operating failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization to describe how this requirement is met. 1.6.2. Test Result of Automatically Discontinue Transmission While the EUT is not transmitting any information, the EUT can automatically discontinue transmission and become standby mode for power saving. The EUT can detect the controlling signal of ACK message transmitting form remote device and verify whether it shall resend or discontinue transmission. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL000414 Page: 6 of 111 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.7. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator Agilent E8257D MY51501169 Nov. 21, 2019 Annual Nov. 21, 2020 Signal Generator R&S SMBV100A 255834 Jun. 10, 2019 Annual Jun. 10, 2020 Spectrum Analyzer R&S FSV30 103453 Nov. 06, 2019 Annual Nov. 06, 2020 Spectrum Analyzer Agilent N9030A US51350132 Nov. 15, 2019 Annual Nov. 15, 2020 Power Meter Anritsu ML2495A 1223004 Jun. 05, 2019 Annual Jun. 05, 2020 Power Sensor Anritsu MA2411B 1207272 Jun. 05, 2019 Annual Jun. 05, 2020 Attenuator AEROFLEX / INMET 40AH2W-10 40G-3 Jun. 20, 2019 Annual Jun. 20, 2020 Low Pass Filter Mini-Circuits NLP-1200+ V9500401023-2 Jun. 05, 2019 Annual Jun. 05, 2020 High Pass Filter Wainwright Instrument GmbH WHKX6.0/18G-10SS51 Jun. 07, 2019 Annua…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL000414 Page: 70 of 111 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 4. 6 ㏈ Bandwidth 4.1. Test Setup EUT Attenuator Spectrum Analyzer 4.2. Limit According to §15.407(e), within the 5.725-5.85 ㎓ band, the minimum 6 ㏈ bandwidth of U-NII devices shall be at least 500 ㎑. 4.3. Test Procedure All data rates and modes were investigated for this test. The full data for the worst case data rate are reported in this section. 1. This measurement settings are specified in section II.C.2 of KDB 789033 D02 General UNII Test Procedures New Rules v02r01. 2. Set RBW = 100 ㎑. 3. Set the video bandwidth (VBW) ≥ 3 x RBW. 4. Detector = Peak. 5. Trace mode = max hold. 6. Sweep = auto couple. 7. Allow the trace to stabilize. 8. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 ㏈ relative to the maximum level measured in the fundamental emission. Remark; In case of band crossing channels 138, 142 and 144, the measurement is complied with section III.A of KDB 789033 D02 General UNII Test Procedures New Rules v02r01. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL000414 Page: 71 of 111 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 4.4. Test Result Ambient temperature : (23 ± 1) °C Relative humidity : 47 % R.H. Band Mode Frequency (㎒) Ch. Data Rate (Mbps) 6 ㏈ Bandwidth (㎒) Minimum Bandwidth (㎑) U-NII 3 11a 5 745 149 6 16.440 500 5 785 15716.440 5 825 16516.440 11n_HT20 5 745 149 MCS0 17.598 5 785 15717.656 5 825 16517.656 11ac_VHT40 5 755 15…

Text truncated - open the document above for the full version.
