TQ8-ADC400AANDISPLAY CAR SYSTEM

USER MANUAL Manufacturer: Hyundai Mobis Co., Ltd. Model Names: ADC400AAN, ADC401VAN, ADC400AKN, ADC401VKN 1 Car Infotainment System User's Manual [This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [Your system's functions and specifications are subject to change without prior notice for performance improvement. [The functions and services described in this guide are subject to change without prior notice for performance improvement. If the system software is updated, the screenshots in this guide may appear different than the actual images on the system. [You can view the up-to-date information about changed functions and services from the web manual. [The functions and services described in this guide may differ from those provided in your vehicle. For precise information related to your vehicle, refer to the owner's manual or catalogue of your vehicle. Available information for users Car Infotainment System Quick Reference Guide (Print) This guide contains basic information to use your system including component names and functions. To use your system correctly and safely, read this guide before use. Car Infotainment System User's Manual (Web) This guide is a web manual you can access by scanning a QR code in the Quick Reference Guide or on your system′s screen. This guide introduces your system's functions and explains how to use them. 2 Symbols used in this guide Warning Indicates important information related to user safety. Failure to follow warnings may result in death or serious personal injury. Caution Indicates important information related to user safety. Failure to follow cautions may result in personal injury, or damage or malfunction your vehicle. Note Indicates helpful information for convenient use. (if equipped) Indicates descriptions for optional features, which may not be available on your specific vehicle depending on the model or trim level. This guide covers specifications for all vehicle models, including optional specifications. It may include descriptions for features that are not equipped in your vehicle or are unavailable for your vehicle model. Safety warnings For safety, follow the instructions below. Failure to do so may increase the risk of a traffic accident, which may result in death or personal injury. ÜAbout driving Do not operate the system while driving. •Driving while distracted may result in a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver′s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver′s attention from this responsibility should never be used during operation of the vehicle. Avoid watching the screen while driving. •Driving while distracted may lead to a traffic accident. •Stop your vehicle in a safe location before using functions that require multiple operations. Stop your vehicle first before using your mobile phone. •Using a mobile phone while driving may lead to a traffic accident. •If necessary, use the Bluetooth Handsfree feature to make calls and keep the call as short as possible. Keep the volume low enough to hear external sounds. •Driving without the ability to hear external sounds may lead to a traffic accident. •Listening to a loud volume for a long time may cause hearing damage. 3 ÜAbout handling the system Do not disassemble or modify the system. •Doing so may result in an accident, fire, or electric shock. Do not allow liquids or foreign substances to enter the system. •Liquids or foreign substances may cause noxious fumes, a fire, or a system malfunction. Stop using the system if it malfunctions, such as no audio output or display. •If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. Safety cautions For safety, follow the instructions below. Failure to do so may result in personal injury or damage to the system. ÝAbout operating the system Use the system with the engine running. •Using the system for a long time when the engine is stopped may discharge the battery. Do not install unapproved products. •Using unapproved products may cause an error while using the system. •System errors caused by installing unapproved products are not covered under the warranty. 4 ÝAbout handling the system Do not apply excessive force to the system. •Excessive pressure on the screen may damage the LCD panel or the touch panel. When cleaning the screen or button panel, make sure to stop the engine and use a soft, dry cloth. •Wiping the screen or buttons with a rough cloth or using solvents (alcohol, benzene, paint thinner, etc.) may scratch or chemically damage the surface. If you attach a liquid-type air freshener to the fan louvre, the surface of the louvre may become deformed due to the flowing air. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. 5 1 System overview Component names and functions 1-2 Control panel 1-2 Steering wheel remote control 1-4 Turning the system on or off 1-5 Turning on the system 1-5 Turning off the system 1-6 Using the touch screen 1-6 Getting to know the Home screen 1-8 Getting familiar with the Home screen layout 1-8 Changing the Home screen widgets 1-9 Changing the Home screen menu icons 1-9 Getting to know the All menus screen 1-10 Getting familiar with the All menus screen layout 1-10 Rearranging the All menus screen 1-10 Using Favourites 1-11 Adding favourite items 1-11 Rearranging the items in Favourites 1-11 Deleting favourite items 1-11 2 Useful functions Using phone projection 2-2 Connecting your Android smartphone via Android Auto 2-2 Connecting your iPhone via Apple CarPlay 2-4 Getting to know the driving assistance screen 2-6 Rear view screen 2-6 Ste…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Letter of Declaration Product Equality We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that they have the following differences in supported features. FCC Basic model: ADC400AAN FCC Variant models: ADC401VAN ISED Basic model: ADC400AKN ISED Variant models: ADC401VKN RDS: Radio data system DAB: Digital audio broadcasting SXM: Sirius XM Radio RHD: Right-hand drive LHD: Light-hand drive _________________________ Seung Hoon Choe Representative Hyundai MOBIS Co., Ltd. Model Names Description BT/WIFI FM/AM Code INTERNAL /EXTERNAL USB RDS DABSXM HD RHD/LHD Basic Model FCCADC400AANBT/WIFI/LTEA2EXTERNALOOXOOLHD ICADC400AKNBT/WIFI/LTEA2EXTERNALOOXOOLHD Variant Model FCCADC401VANBT/WIFI/LTEA2EXTERNALOOXOOLHD ICADC401VKNBT/WIFI/LTEA2EXTERNALOOXOOLHD

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-0098, Fax. +82-31-899-1788 LETTER OF DECLARATION We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that (1) the band from 5600-5650MHz will be disabled by the software during the manufacturing and which cannot be changed by the end-user. (2) When being operating for Slave mode, this Product will be only controlled by a master device which does not use 5600-5650MHz Band in USA and Canada. Sincerely, January 3, 2020 ______________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd ADC400AAN FCC Basic model: FCC Variant models: ISED Basic model: ADC401VAN ISED Variant models: ADC401VKN ADC400AKN

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135-977, Korea Tel. 82‐31‐260‐0092 January 3, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Sang-a Lee, Jungmin Yang) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefi ts, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. Request of Confidentiality for FCC ID: TQ8-ADC400AAN January 3, 2020

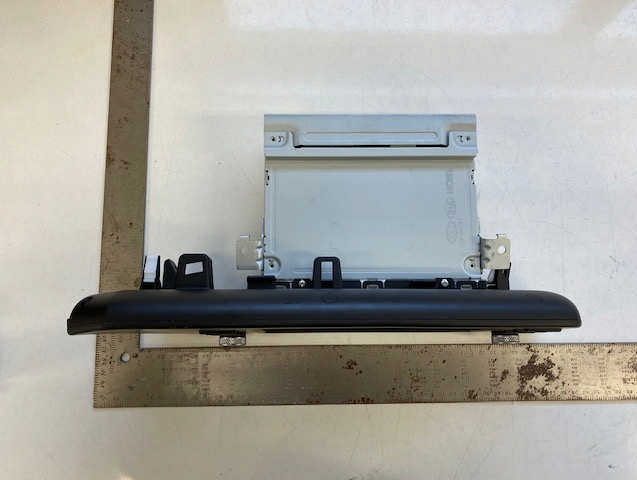

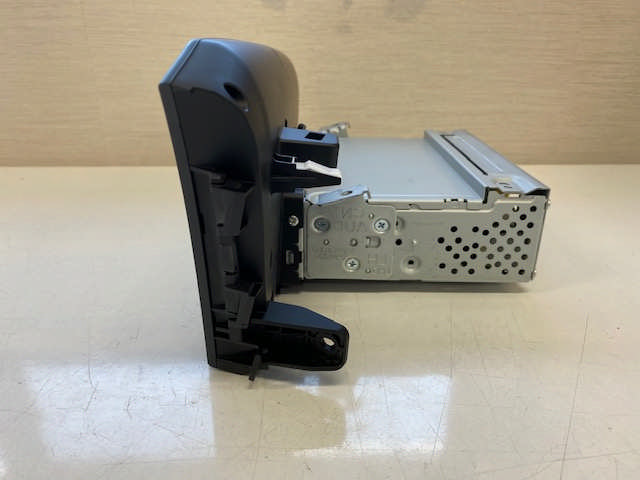

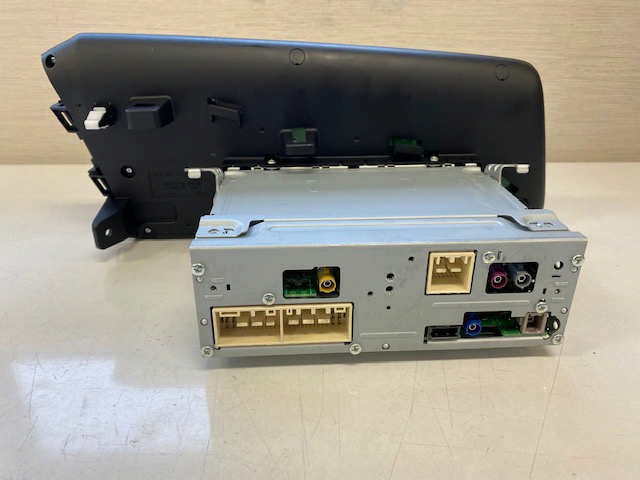

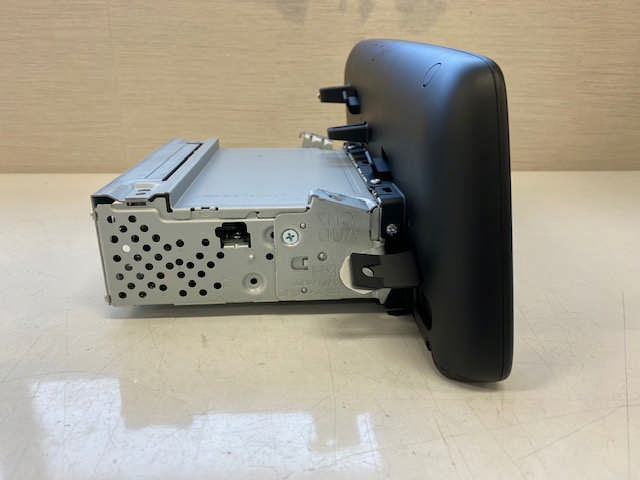

External photos of EUT Top view of EUT Bottom view of EUT Front view of EUT Rear view of EUT Side view of EUT

BT+WIFI+LTE FCC LABEL Information Model Name (BT+WIFI+LTE): ADC400AAN, ADC401VAN Hyundai MOBIS Co., Ltd. FCC ID:TQ8-ADC400AAN Contains FCC ID:YZP-VL3010 FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

Internal photo of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub1 Bottom view of Sub1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of Sub PCB3 Bottom view of Sub PCB3 View of Bluetooth, Wi-Fi Combo module with the shielding cover View of Bluetooth, Wi-Fi Combo module without the shielding cover View of Bluetooth antenna View of Wi-Fi antenna Wi-Fi antenna Bluetooth antenna Approved the module with the shielding cover View of WWAN antenna

Report Number:F690501-RF-RTL000162 Page:2of10 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------6 Report Number:F690501-RF-RTL000162 Page:3of10 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company:Same as applicant Address:Same as applicant Report Number:F690501-RF-RTL000162 Page:4of10 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name ADC400AAN Variant Model Name ADC401VAN Power Supply DC 14.4 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) 2 412㎒~ 2 462㎒(11b/g/n_HT20) 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40) 5 210㎒(Band 1: 11ac_VHT80) 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40) 5 290㎒(Band 2A: 11ac_VHT80) 5 500㎒~ 5 720㎒(Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510㎒~ 5 710㎒(Band 2C: 11n_HT40, 11ac_VHT40) 5 530㎒~ 5 690㎒(Band 2C: 11ac_VHT80) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 11 channels (11b/g/n_HT20) 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 2 400㎒~ 2 483.5㎒: -0.18㏈i (Bluetooth) 2 400㎒~ 2 483.5㎒: -0.01㏈i (WLAN 2.4 G) 5 150㎒~ 5 250㎒: -0.61㏈i (WLAN 5G) 5 250㎒~ 5 350㎒: -0.18㏈i (WLAN 5G) 5 470㎒~ 5 725㎒: -0.77㏈i (WLAN 5G) 5 725㎒~ 5 850㎒: -0.18㏈i (WLAN 5G) Report Number:F690501-RF-RTL000162 Page:5of10 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information of Variant Model Model Names Description BT/WIFI FM/AM Code INTERNAL /EXTERNAL USBRDSDABSXMHDRHD/LHD Basic ModelADC400AANBT/WIFI/LTEA2EXTERNALOOXOOLHD Variant ModelADC401VANBT/WIFI/LTEA2EXTERNALOOXOOLHD CODEBANDFREQUENCY RANGESTEPLOCAL A2 FM 87.5-107.9㎒200㎑ NA/GEN AM 530-1710㎑10㎑ 1.6. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0001622019.12.31Initial Report Number:F690501-RF-RTL000162 Page:6of10 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CF…

Text truncated - open the document above for the full version.

Report Number:F690501-RF-RTL000161 Page:2of17 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of contents 1. General Information‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐ 3 2. DFS (Dynamic Frequency Selection)‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---------------- 7 Report Number:F690501-RF-RTL000161 Page:3of17 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM FCC Model Name ADC400AAN IC Model Name ADC400AKN FCC Variant Model Name ADC401VAN IC Variant Model Name ADC401VKN Power Supply DC 14.4 V Frequency Range 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40) 5 210㎒(Band 1: 11ac_VHT80) 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40) 5 290㎒(Band 2A: 11ac_VHT80) 5 500㎒~ 5 720㎒(Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510㎒~ 5 710㎒(Band 2C: 11n_HT40, 11ac_VHT40) 5 530㎒~ 5 690㎒(Band 2C: 11ac_VHT80) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Report Number:F690501-RF-RTL000161 Page:4of17 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Modulation Technique OFDM Number of Channels 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 5 150㎒~ 5 250㎒: -0.61㏈i 5 250㎒~ 5 350㎒: -0.18㏈i 5 470㎒~ 5 725㎒: -0.77㏈i 5 725㎒~ 5 850㎒: -0.18㏈i 1.5. Declaration by the Manufacturer ‐The EUT is a slave without radar detection and TPC. - The EUT is not supported TDWR(5.6 - 5.65㎓) band. Report Number:F690501-RF-RTL000161 Page:5of17 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Information of Variant Models Model Names Description BT/WIFI FM/AM Code INTERNAL /EXTERNAL USBRDSDABSXMHDRHD/LHD Basic Model FCCADC400AANBT/WIFI/LTEA2EXTERNALOOXOOLHD ICADC400AKNBT/WIFI/LTEA2EXTERNALOOXOOLHD Variant Model FCCADC401VANBT/WIFI/LTEA2EXTERNALOOXOOLHD ICADC401VKNBT/WIFI/LTEA2EXTERNALOOXOOLHD CODEBANDFREQUENCY RANGESTEPLOCAL A2 FM 87.5-107.9㎒200㎑ NA/GEN AM 530-1710㎑10㎑ 1.7. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMBV100A255834 Jun. 10, 2019AnnualJun. 10, 2020 Spectrum AnalyzerR&SFSV30103102 Jun. 05, 2019AnnualJun. 05, 2020 Spectrum AnalyzerR&SFSW43100637 Jul. 03, 2019AnnualJul. 03, 2020 Attenuator AEROFLEX / INMET 18N-20dB3 Feb. 19, 2019AnnualFeb. 19, 2020 Power SplitterMini-CircuitsZFSC-2-10G001Jun. 07, 2019AnnualJun. 07, 2020 Power SplitterMini-CircuitsZFSC-2-10G002Jun. 07, 2019AnnualJun. 07, 2020 DC Power SupplyAgilentU8002AMY53150029Jun. 10, 2019AnnualJun. 10, 2020 ▶Support Equipment DescriptionManufacturerModelFCC ID Access PointCisco system Inc.AIR-RM3000AC-A-K9LDK102086 NotebookLG Electronics Inc.LGE-DMLGA51- Report Number:F6905…

Text truncated - open the document above for the full version.

Report Number: F690501-RF-RTL000160-1 Page: 2 of 147 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of contents 1. General Information ---------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions ----------------------------------------------------------- 12 3. 26 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------------- 50 4. 6 ㏈ Bandwidth -------------------------------------------------------------------------------------------- 94 5. Maximum Conducted Output Power------------------------------------------------------------------- 102 6. Peak Power Spectral Density --------------------------------------------------------------------------- 115 7. Antenna Requirement ------------------------------------------------------------------------------------- 147 Report Number: F690501-RF-RTL000160-1 Page: 3 of 147 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM FCC Model Name ADC400AAN IC Model Name ADC400AKN FCC Variant Model Name ADC401VAN IC Variant Model Name ADC401VKN Power Supply DC 14.4 V Frequency Range 5 180 ㎒ ~ 5 240 ㎒ (Band 1: 11a/n_HT20, 11ac_VHT20) 5 190 ㎒ ~ 5 230 ㎒ (Band 1: 11n_HT40, 11ac_VHT40) 5 210 ㎒ (Band 1: 11ac_VHT80) 5 260 ㎒ ~ 5 320 ㎒ (Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270 ㎒ ~ 5 310 ㎒ (Band 2A: 11n_HT40, 11ac_VHT40) 5 290 ㎒ (Band 2A: 11ac_VHT80) 5 500 ㎒ ~ 5 720 ㎒ (Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510 ㎒ ~ 5 710 ㎒ (Band 2C: 11n_HT40, 11ac_VHT40) 5 530 ㎒ ~ 5 690 ㎒ (Band 2C: 11ac_VHT80) 5 745 ㎒ ~ 5 825 ㎒ (Band 3: 11a/n_HT20, 11ac_VHT20) 5 755 ㎒ ~ 5 795 ㎒ (Band 3: 11n_HT40, 11ac_VHT40) 5 775 ㎒ (Band 3: 11ac_VHT80) Modulation Technique OFDM Report Number: F690501-RF-RTL000160-1 Page: 4 of 147 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Number of Channels 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 5 150 ㎒ ~ 5 250 ㎒: -0.61 ㏈i 5 250 ㎒ ~ 5 350 ㎒: -0.18 ㏈i 5 470 ㎒ ~ 5 725 ㎒: -0.77 ㏈i 5 725 ㎒ ~ 5 850 ㎒: -0.18 ㏈i 1.5. Declaration by the Manufacturer - The EUT is a slave without radar detection and TPC. - The EUT is not supported TDWR(5.6 - 5.65 ㎓) band. 1.6. Automatically Discontinue Transmission 1.6.1. Limit of Automatically Discontinue Transmission The device shall automatically discontinue transmission in case of either absence of information to transmit or operating failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization to describe how this requirement is met. 1.6.2. Test Result of Automatically Discontinue Transmission While the EUT is not transmitting any information, the EUT can automatically discontinue transmission and become standby mode for power saving. The EUT can detect the controlling signal of ACK message transmitting form remote device and verify whether it shall resend or discontinue transmission. Report Number: F690501-RF-RTL000160-1 Page: 5 of 147 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling…

Text truncated - open the document above for the full version.

Report Number: F690501-RF-RTL000160-1 Page: 50 of 147 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 3. 26 ㏈ Bandwidth & 99 % Bandwidth 3.1. Test Setup EUT Attenuator Spectrum Analyzer 3.2. Limit None; for reporting purpose only. 3.3. Test Procedure A…

Text truncated - open the document above for the full version.
