TQ8-AM1A0A7ANDIGITAL CAR AUDIO SYSTEM

4 149 Features of your vehicle The Bluetooth and Voice Recognition Manual is provided in two versions due to software version differences. Before reading the manual, check the following. Press the key in FM Radio screen. 1. If you can find “FM <87.5~107.9>”on the screen, (Go to #### page) 2. If you can find “FM <89.1>”on the screen, (Go to #### page) K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:49 PM Page 149 Features of your vehicle 1504 ✽NOTICE If you install an after market HID head lamp, your vehicle’s audio and electronic device may malfunction. Glass antenna (if equipped) When the radio power switch is turned on while the ignition switch is in either the “ON” or “ACC” position, your car will receive both AM and FM broadcast signals through the anten- na in the rear window glass. AUDIO SYSTEM CAUTION • Do not clean the inside of the rear window glass with a cleaner or use a scraper to remove foreign deposits as this may cause damage to the antenna elements. • Avoid adding metallic coat- ings such as Ni, Cd, and so on. These can disturb receiv- ing AM and FM broadcast sig- nals. OYDEMM2001 K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:50 PM Page 150 4 151 Features of your vehicle Steering wheel audio controls (if equipped) The steering wheel may incorporate audio control buttons. Do not operate audio remote control buttons simultaneously. VOLUME ( / ) (1) • Press the lever upward ( ) to increase the volume. • Press the lever downward ( ) to decrease the volume. SEEK/PRESET (/) (2) The SEEK/PRESET button has dif- ferent functions based on the system mode. For the following functions the button should be pressed for 1 sec- ond or more. RADIO mode It will function as the AUTO SEEK select button. CD/USB/iPod ® mode It will function as the FF/REW button. If the SEEK/PRESET button is pressed for less than 1 second, it will work as follows in each mode. RADIO mode It will function as the PRESET STA- TION buttons. CD/USB/iPod ® mode It will function as TRACK UP/DOWN button. OYDDMM2002 OYDDMM2003 ■Type A ■Type B WARNING Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver's primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle sys- tems which take the driver's eyes, attention and focus away from the safe operation of a vehi- cle or which are not permissible by law should never be used during operation of the vehicle. K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:50 PM Page 151 Features of your vehicle 1524 MODE (3) Press the button to change audio source. FM(1~2) ➟AM➟SAT(1~3)➟CD➟USB AUX(iPod ® )➟FM... In addition to mode change, Power on/off can be made by pressing this button when the ignition switch is on ACC or ON. - Power ON: Press the button when the audio is off - Power OFF: Press the button for more than 1 second when the audio is on. MUTE (4, if equipped) • Press the button to mute the sound. • Press the button to turn off the microphone during a telephone call. Detailed information for audio control buttons are described in the following pages in this chapter. Aux, USB and iPod ® * port If your vehicle has an aux and/or USB(universal serial bus) port or iPod ® port, you can use an aux port to connect audio devices and an USB port to plug in an USB and also an iPod ® port to plug in an iPod ® . ✽NOTICE When using a portable audio device connected to the power outlet, noise may occur during playback. If this happens, use the power source of the portable audio device. * iPod ® is a Registered trademark of Apple Inc. OYDDMM2004 K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:50 PM Page 152 4 153 Features of your vehicle How vehicle audio works AM and FM radio signals are broad- cast from transmitter towers located around your city. They are intercept- ed by the radio antenna on your vehi- cle. This signal is then processed by the radio and sent to your vehicle speakers. When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. However, in some cases the signal coming to your vehi- cle may not be strong and clear. This can be due to factors, such as the distance from the radio station, closeness of other strong radio sta- tions or the presence of buildings, bridges or other large obstructions in the area. AM broadcasts can be received at greater distances than FM broad- casts. This is because AM radio waves are transmitted at low fre- quencies. These long distance,low frequency radio waves can follow the curvature of the earth rather than travelling straight. In addition, they curve around obstructions resulting in better signal coverage. ¢¢¢¢¢¢ JBM002 AM reception ¢¢¢ JBM001 FM reception K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:50 PM Page 153 Features of your vehicle 1544 FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade within short distances from the station. short distances from the station. Also, FM signals are eas- ily affected by buildings, mountains, and obstructions. This can lead to undesirable or unpleasant listening conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble: • Fading - As your vehicle moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station. • Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can dis- turb the signal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until the disturbance clears. • Station Swapping - As an FM sig- nal weakens, another more power- fu…

Text truncated - open the document above for the full version.

Features of your vehicle 2124 Steering remote controller 1. MUTE • Mutes the microphone during a call. 2. MODE • Each time this key is pressed, the mode is changed in order of FM1 ➟ FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟SAT3 ➟ CD ➟ USB(iPod ® ) ➟ AUX ➟ My Music ➟ BT Audio • If the media is not connected or a disc is not inserted, corresponding modes will be disabled. 3. VOLUME • Used to control volume. 4. SEEK • When pressed briefly (less than 0.8 seconds) - Radio mode : searches broadcast frequencies saved to presets. - Media(CD/ USB/ iPod ® / My Music/ BT Audio) modes : changes the track, file or chapter. • When pressed and held (more than 0.8 seconds) - Radio mode, automatically search- es broadcast frequencies and channels - Media(CD/USB/iPod ® /My Music) modes, rewinds or fast forwards the track or song(file) - BT Audio mode may not be sup- ported in some mobile phones. 5. • When pressed briefly - Starts voice recognition - When selected during a voice prompt, stops the prompt and converts to voice command wait- ing state • When pressed and held (more than 0.8 seconds) - Ends voice recognition K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:52 PM Page 212 4 213 Features of your vehicle 6. • When pressed briefly - When pressed in the phone screen, displays call history screen - When pressed in the dial screen, makes a call - When pressed in the incoming call screen, answers the call - When pressed during call waiting, switches to waiting call (Call Waiting) • When pressed and held (more than 0.8 seconds) - When pressed in the Bluetooth ® Wireless Technology Handsfree wait mode, redials the last call - When pressed during a Bluetooth ® Wireless Technology Handsfree call, switches call back to mobile phone (Private) - When pressed while calling on the mobile phone, switches call back to Bluetooth ® Wireless Technology Handsfree (Operates only when Bluetooth ® Wireless Technology Handsfree is connected) 7. • Ends phone call K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:52 PM Page 213 Features of your vehicle 2144 RADIO MODE Basic Mode Screen 1. Mode Display Displays currently operating mode. 2. Frequency Displays the current frequency. 3. Preset Displays current preset number ~. 4. Preset Display Displays preset buttons. 5. A.Store Automatically saves frequencies with superior reception to Preset buttons. Switching to Radio Mode Pressing the key will change the operating mode in order of FM1 ➟ FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟ SAT3 If is turned on within , then pressing the key will display the Radio Pop-up Mode screen. Turn the TUNE knob to move the focus. Press the knob to select. RADIO Display SETUP Mode Pop up RADIO 6 1 K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 214 4 215 Features of your vehicle Searching Radio Frequencies Using Seek Press the key to play the previous/next frequency. Using TUNE Turn the TUNE knob to select the desired frequency. Using Radio Mode Selecting Presets/Saving Presets Press the button to display the broadcast information for the fre- quency saved to each button. Press the ~buttons to play the desired preset. ✽NOTICE While listening to a frequency you want to save as a preset, press and hold one of the ~ preset buttons (more than 1 second) to save the current frequency to the selected preset. Auto Store Press the button to auto- matically save receivable frequen- cies to Preset buttons. Scan Press the key to preview fre- quencies with superior reception for 5 seconds each. Press and hold the key (more than 1 second) to preview pre- sets for 5 seconds each. Once scan is complete, the previous frequency will be restored. While Scan is operating, pressing the key will cancel the scan operation. SCAN SCAN SCAN A.Store 61 61 Preset SEEK TRACK K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 215 Features of your vehicle 2164 Satellite Radio channels: Enjoy SiriusXM Satellite Radio with a 3-month trial subscription to the Sirius Select package. You'll get over 140 channels, including commercial-free music, plus all your favorite sports, exclusive talk, entertainment, and a selection of premium programming. For more information and a complete list of SiriusXM channels, visit sir- iusxm.com in the United States, sir- iusxm.ca in Canada, or call SiriusXM at 1-888-539-7474. Satellite Radio reception factors: To receive the satellite signal, your vehi- cle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance: • Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible. • Terrain: Hills, mountains, tall build- ings, bridges, tunnels, freeway over- passes, parking garages, dense tree foliage and thunderstorms can interfere with your reception. SiriusXM Satellite Radio service: SiriusXM is a subscription-based satellite radio service that broad-casts music, sports, news and entertain- ment programming to radio receivers, which are available for installation in motor vehicles or factory installed, as well as for the home, portable and wireless devices, and through an Internet connection on personal com- puter. Vehicles that are equipped with a factory installed SiriusXM Satellite Radio system include: • Hardware and an introductory trial subscription term, which begins on the date of sale or lease of the vehicle. • For a small upgrade fee, access to SiriusXM music channels, and other select channels over the Internet using any computer con- nected to the Internet (U.S. cus- tomers only). For information on extended sub- scription terms, contact SiriusXM at 1-888-539-7474. NOTE: SiriusXM services require a sub- scription sold separately, or as a pac…

Text truncated - open the document above for the full version.

HYUNDAI MOBIS CO., LTD. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: January 20, 2015 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: TQ8-AM1A0A7AN including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from HYUNDAI MOBIS CO., LTD. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seung Hoon Choe Manager

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: January 20, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

HYUNDAI MOBIS CO., LTD. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: January 20, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: TQ8-AM1A0A7AN To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, HYUNDAI MOBIS CO., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give HYUNDAI MOBIS CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Seung Hoon Choe Manager

FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label locate Top side This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

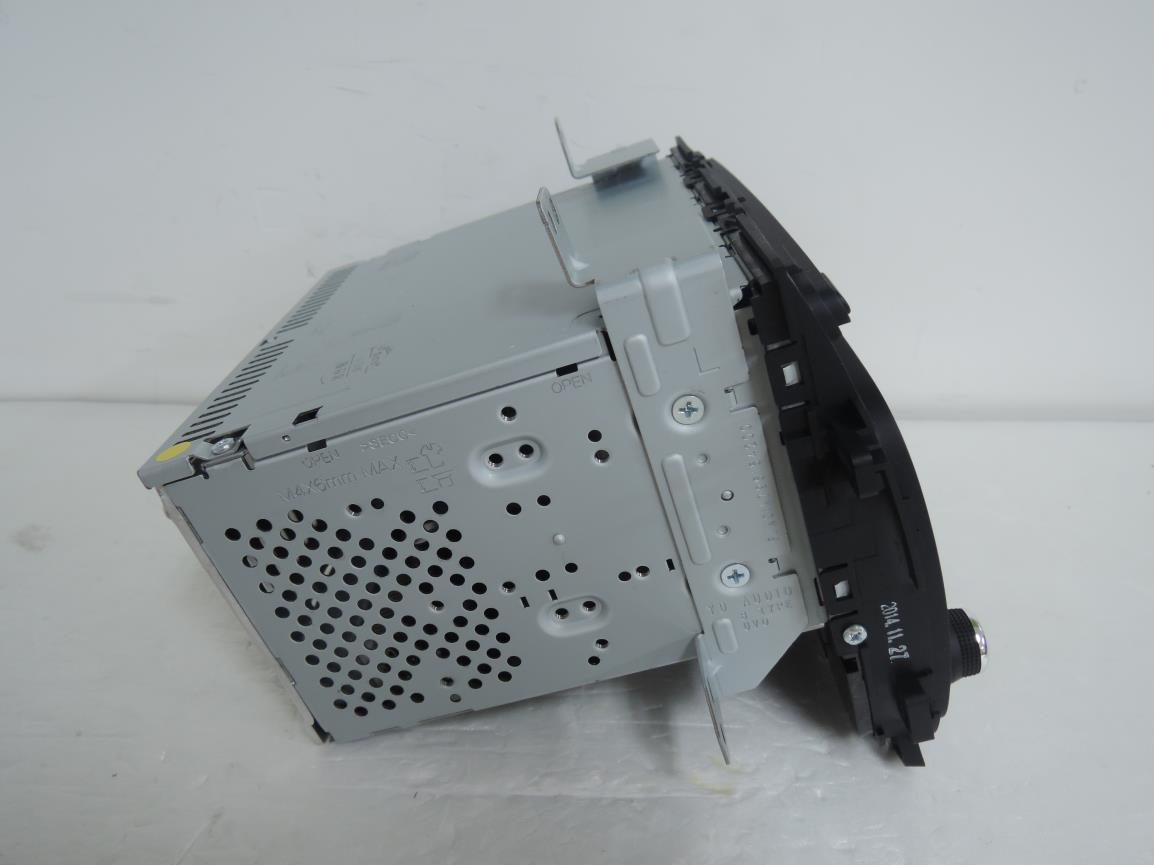

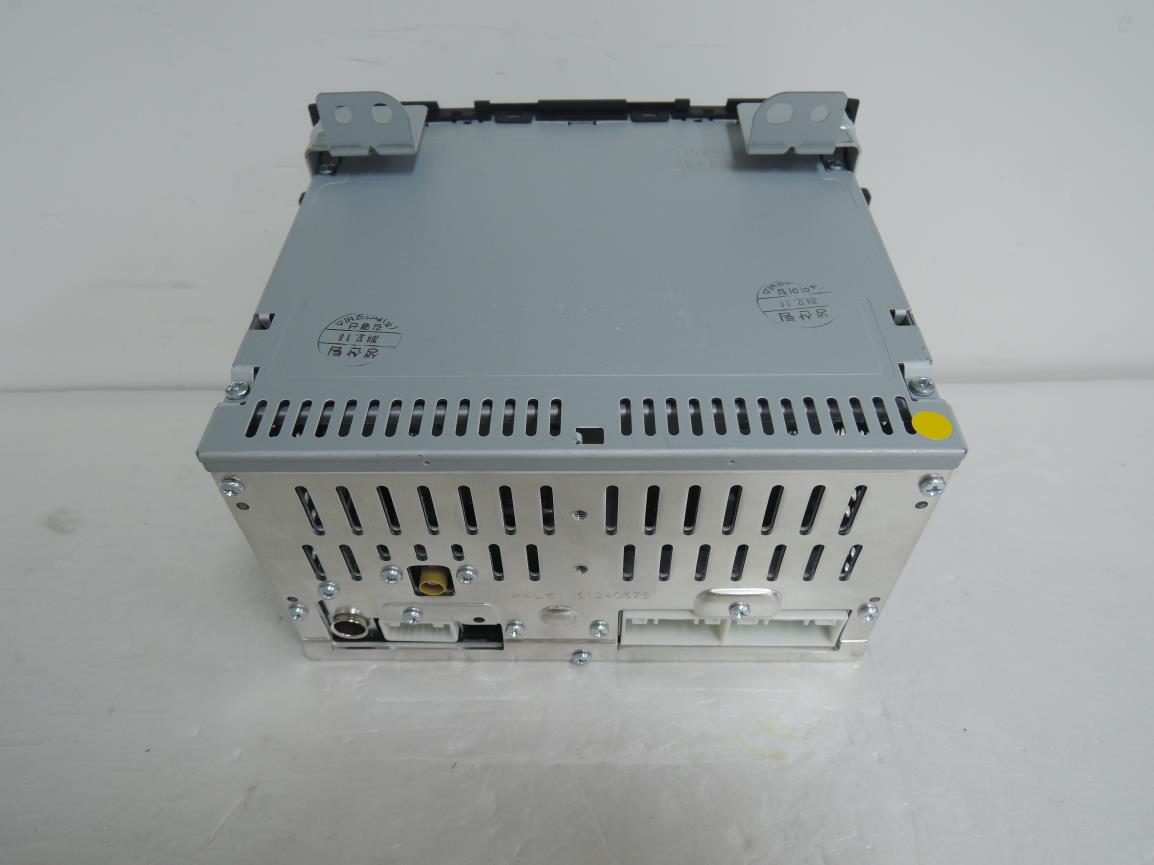

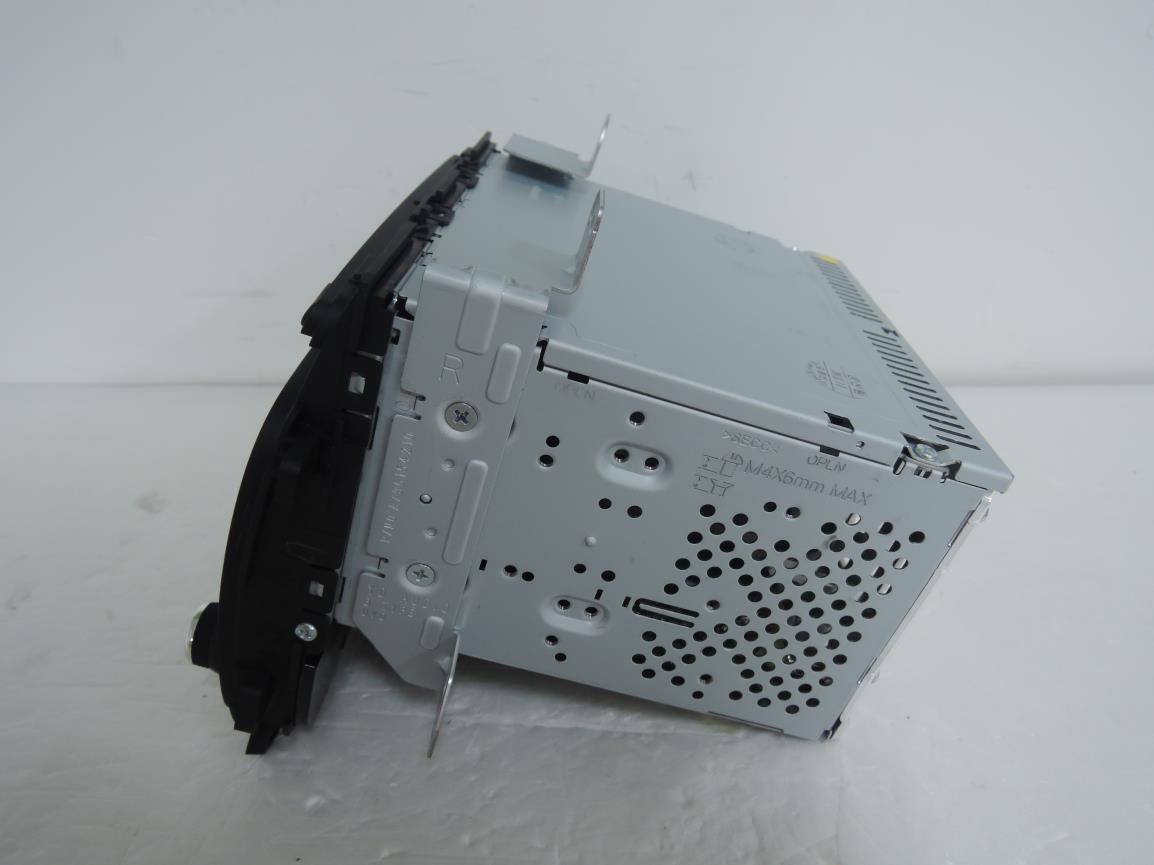

FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 3 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 4 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 6 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 7 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 8 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 9 FCCID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 10 <Antenna> <Module>

-~ - -±&dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.001256 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 6.310 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) 8.00dBm6.31mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. EIRPPGNote 4.50dBm3.50dBi 1.5 Maximum antenna peak gain :dBi Maximum output power for the calculation :4.50dBm dB (Max. 3.50 4.5dBmMin. Measured RF output power :dBm Target Power & Tolerance :dBm 3.44 3.001.5 MHz MPE Calculations :(Bluetooth) HYUNDAI MOBIS Co., Ltd. FCCID: TQ8-AM1A0A7AN Frequency range :2402MHz2480 TRF-RF-206(01)140415

FCCID: TQ8-AM1A0A7AN DTNC1501-00152 Report No.: DRTFCC1501-0011 TRF-RF-212(03)140515 Page 2 / 71 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1501-0011 Jan. 21, 2015 Initial issue FCCID: TQ8-AM1A0A7AN DTNC1501-00152 Report No.: DRTFCC1501-0011 TRF-RF-212(03)140515 Page 3 / 71 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1.General Information ................................................................................................................ 5 1.1. Testing Laboratory .......................................................................................... 5 1.2. Details of Applicant ......................................................................................... 5 1.3. Description of EUT .......................................................................................... 5 1.4. Declaration by the manufacturer .................................................................... 5 1.5. Information about the FHSS characteristics: ................................................ 6 1.6. Test Equipment List ........................................................................................ 7 1.7. Summary of Test Results ................................................................................ 8 1.8 Conclusion of worst-case and operation mode .............................................. 9 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 10 2.1. Test Setup ...................................................................................................... 10 2.2. Limit ................................................................................................................ 10 2.3. Test Procedures............................................................................................. 11 2.3.1. Test Procedures for Radiated Spurious Emissions................................ 11 2.3.2. Test Procedures for Conducted Spurious Emissions ............................ 11 2.4. Test Results ................................................................................................... 12 2.4.1. Radiated Emission .................................................................................... 12 2.4.2. Conducted Spurious Emissions .............................................................. 15 3. Carrier Frequency Separation............................................................................................. 39 3.1.Test Setup ..................................................................................................... 39 3.2. Limit ................................................................................................................ 39 4.Number of Hopping Frequencies ........................................................................................ 44 4.1.Test Setup ..................................................................................................... 44 4.2. Limit ................................................................................................................ 44 5. 20dBc BW .............................................................................................................................. 50 5.1. Test Setup ...................................................................................................... 50 5.2. Limit ................................................................................................................ 50 5.3. Test Procedure .............................................................................................. 50 5.4. Test Results ................................................................................................... 50 6. Time of Occupancy (Dwell Time) ........................................................................................ 56 6.1. Test Setup ...................................................................................................... 56 6.2. Limit ................................................................................................................ 56 6.3. Test Procedure .............................................................................................. 56 6.4. Test Results ................................................................................................... 56 7. Maximum Peak Output Power Measurement .................................................................... 61 7.1. Test Setup ...................................................................................................... 61 7.2. Limit ................................................................................................................ 61 7.3. Test Procedure ............................................................................................... 61 7.4. Test Results ................................................................................................... 62 8. Transmitter AC Power Line Conducted Emission ............................................................ 68 FCCID: TQ8-AM1A0A7AN DTNC1501-00152 Report No.: DRTFCC1501-0011 TRF-RF-212(03)140515 Page 4 / 71 Copyright ○ C 2015, DT&C Co., Ltd. 8.1. Test Setup ...................................................................................................... 68 8.2. Limit ................................................................................................................ 68 8.3. Test Procedures ............................................................................................. 68 8.4. Test Results: N/A ........................................................................................... 68 9. Antenna Requirement .......................................................................................................... 69 10. Occupied Bandwidth (99%) ............................................................................................... 70 APPENDIX I .....................................…

Text truncated - open the document above for the full version.

FCC ID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis FCC ID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: TQ8-AM1A0A7AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
