TQ8-AM213D9GGDIGITAL CAR AUDIO SYSTEM

4 1 Features of your vehicle ■ CD Player K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:37 AM Page 1 Features of your vehicle 24 SYSTEM CONTROLLERS AND FUNCTIONS Audio Head Unit 1. (EJECT) • Ejects the disc. 2. • Convert sto Radio mode. • Each time the key is pressed, the mode is changed in order of FM1, FM2, AM, SAT1, SAT2, SAT3. 3. • Convert sto Media mode. • Each time the key is pressed, the mode is changed in order of CD, USB(iPod ® ), AUX, My Music, BT Audio. 4. • Converts to Phone mode ❈When a phone is not connected, the connection screen is displayed. 5. POWER/VOL knob • Power : Press to turn power on/ off. • Volume : Turn left/right to control volume. 6. • When pressed shortly(under 0.8 seconds) - Radio mode : plays previous/next frequency. - Media (CD /USB /iPod ® /My Music) modes : changes the track, Song(file) • When pressed and held (Over 0.8 seconds) - Radio mode : continuously changes the frequency. Upon release, plays the current frequency. - Media(CD /USB /iPod ® /My Music) modes : rewinds or fast forwards the track or file - During a Handsfree call, controls the call volume. 7. • SIRIUS ® RADIO : Category Search • MP3 CD/USB mode : Search Folder CAT FOLDER SEEK TRACK PHONE MEDIA RADIO K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 2 4 3 Features of your vehicle 8. • Turns the monitor display on/off. 9. • The sound stops playing. Press again to unmute. 10. • Radio mode : previews all receiv- able broadcasts for 5 seconds each • Media (CD/USB/My Music) modes : previews each song (file) for 10 seconds each. 11. • Converts to Setup mode. 12. TUNE knob • Radio mode : turn to change broad- cast frequencies. • Media (CD/USB/iPod ® /My Music) modes : turn to search Tracks/chan- nels/files. 13. RESET • Forced system termination and sys- tem restart. MUTE SETUP SCAN DISP K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 3 Features of your vehicle 44 Steering remote controller 1. MUTE • Mutes the microphone during a call. 2. MODE • Each time this key is pressed, the mode is changed in order of FM1 ➟ FM2 ➟ AM ➟ SA T1 ➟ SAT2 ➟SAT3 ➟ CD ➟ USB(iPod ® ) ➟ AUX ➟ My Music ➟ BT Audio • If the media is not connected or a disc is not inserted, corresponding modes will be disabled. 3. VOLUME • Used to control volume. 4. SEEK • When pressed shortly (under 0.8 sec- onds) - Radio mode : searches broadcast frequencies saved to presets. - Media(CD/ USB/ iPod ® / My Music/ BT Audio) modes : changes the track, file or chapter. • When pressed and held (over 0.8 sec- onds) - Radio mode, automatically search- es broadcast frequencies and channels - Media(CD/USB/iPod ® /My Music) modes, rewinds or fast forwards the track or song(file) - BT Audio mode may not be sup- ported in some mobile phones. K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:59 AM Page 4 4 5 Features of your vehicle 5. • When pressed shortly - Starts voice recognition - When selecting during a voice prompt, stops the prompt and con- verts to voice command waiting state • When pressed and held (over 0.8 sec- onds) - Ends voice recognition 6. • When pressed shortly - When pressed in the phone screen, displays call history screen - When pressed in the dial screen, makes a call - When pressed in the incoming call screen, answers the call - When pressed during call waiting, switches to waiting call (Call Waiting) • When pressed and held (over 0.8 sec- onds) - When pressed in the Bluetooth ® Wireless Technology Handsfree wait mode, redials the last call - When pressed during a Bluetooth ® Wireless Technology Handsfree call, switches call back to mobile phone (Private) - When pressed while calling on the mobile phone, switches call back to Bluetooth ® Wireless Technology Handsfree (Operates only when Bluetooth ® Wireless Technology Handsfree is connected) 7. • Ends phone call K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:59 AM Page 5 Features of your vehicle 64 RADIO MODE Basic Mode Screen 1. Mode Display Displays currently operating mode. 2. Frequency Displays the current frequency. 3. Preset Displays current preset number ~. 4. Preset Display Displays preset buttons. 5. A.Store Automatically saves frequencies with superior reception to Preset buttons. Switching to Radio Mode Pressing the key will change the operating mode in order of FM1 ➟ FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟ SAT3 If is turned on within , then pressing the key will dis play the Radio P op-up Mode screen. Turn the TUNE knob to move the focus. Press the knob to select. RADIO Display SETUP Mode Pop up RADIO 6 1 K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 6 4 7 Features of your vehicle Searching Radio Frequencies Using Seek Press the key to play the previous/next frequency. Using TUNE Turn the TUNE knob to select the desired frequency. Using Radio Mode Selecting Presets/Saving Presets Press the button to display the broadcast information for the fre- quency saved to each button. Press the ~buttons to play the desired preset. ✽NOTICE While listening to a frequency you want to save as a preset, press and hold one of the ~ preset buttons (over 0.8 seconds) to save the current frequency to the selected preset. Auto Store Press the button to auto- matically save receivable frequen- cies to Preset buttons. Scan Press the key to preview fre- quencies with superior reception for 5 seconds each. Press and hold the key (over 0.8 seconds) to preview presets for 5 seconds each. Once scan is complete, the previous frequency will be restored. While Scan is operating, pressing the key will cancel the scan operation. SCAN SCAN SCAN A.Store 61 61 Preset SEEK TRACK K_YD_B3.0_AUDIO_A7MS7H3E00_V7:NC 3/9/2015 11:38 AM Page 7 Features of your vehicle 84 SIRIUS ® Satellite Radio infor- mation Satellite Radio channels: SIRIUS ® Satellite Radio has over 130 channels, including 69 channels of 100% commercial-free music, plus sports, news, talk and entertainment available nationwide in your vehicle. For more information and a complete list of SIRIUS ® Satellite Radio chan- nels, visit sirius.com…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 10 May 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (DONGMIN KIM) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐ Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 6 Marc h 201 5 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐AM213D9GG To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applic ant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

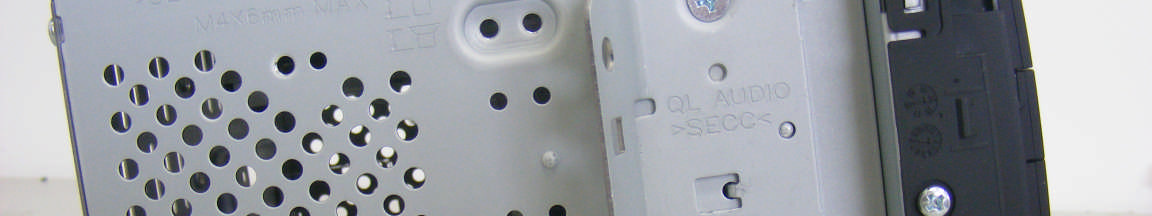

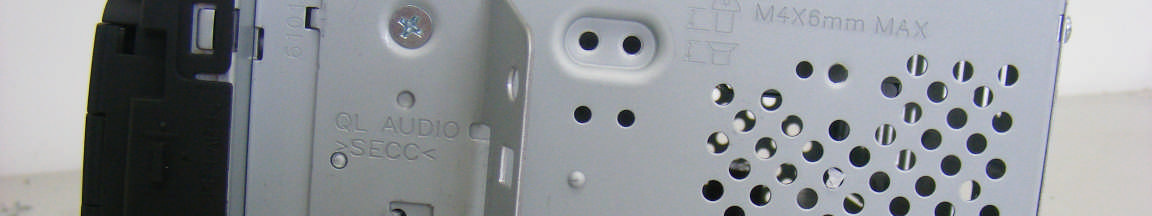

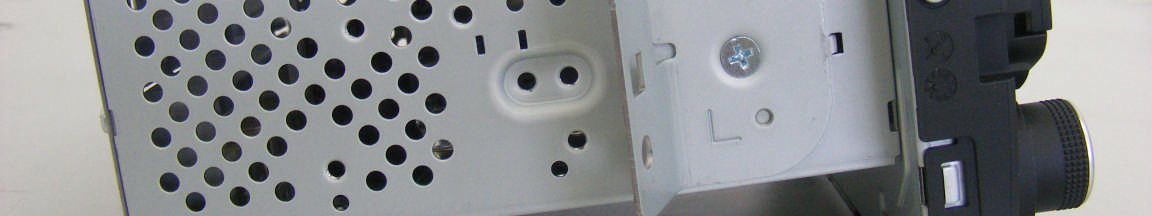

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT Front view of EUT Back view of EUT

LABEL LOCATION AM213D9GG Hyundai MOBIS Co., Ltd. FCC ID: TQ8 ‐ AM 213D9GG LABEL LOCATION Non-removable This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. LABEL MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FRONT TOP Hyundai MOBIS Co., Ltd.

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB Top view of Key PCB Bottom view of Key PCB View of Module View of Antenna

Report Number:F690501/RF-RTL008707Page:2of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------4 Report Number:F690501/RF-RTL008707Page:3of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+ 82 31 688 0901 FAX:+ 82 31 688 0921 1.2. Details of applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM Model Name AM213D9GG(Alt. : AM213D9GE, AM213D9GN, AM213D9GL) Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒ Antenna Gain 3.50㏈i 1.4. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0087072015. 05. 07Initial 1.5. Alternative models Model nameInformation AM213D9GG- Basic model AM213D9GE, AM213D9GN, AM213D9GL - Same to basic model, but they are separated models only marketing purpose. Report Number:F690501/RF-RTL008707Page:4of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3 – 3.06141.63*1006 3.0 – 301842/f4.89/f*900/f 2 6 30 - 30061.40.1631.06 300 – 1 500--f/3006 1 500 – 100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.346141.63*10030 1.34 – 30824/f2.19/f*180/f 2 30 30 - 30027.50.0730.230 300 – 1 500--f/150030 1 500 – 100 000 -- 1.030 Report Number:F690501/RF-RTL008707Page:5of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3.Output Power into Antenna & RF Exposure Evaluation Distance Mode: BT Maximum tune up tolerance Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝(㎽/㎠) Limits (㎽/㎠) 02 40243.500.001 1191 Note : 1. The power density Pd (5th column) at a distance of 20㎝calculated from the friis transmission formula is far below the limit of 1㎽/㎠.

Report Number:F690501/RF-RTL008706Page:2of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------7 3. 20㏈Bandwidth ------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power -------------------------------------------------------------------38 5. Carrier Frequency Separation --------------------------------------------------------------------40 6. Number of Hopping Frequencies-----------------------------------------------------------------43 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------47 8. Antenna Requirement ------------------------------------------------------------------------------60 Report Number:F690501/RF-RTL008706Page:3of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+ 82 31 688 0901 FAX:+ 82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM Model Name AM213D9GG(Alt.: AM213D9GE, AM213D9GN, AM213D9GL) Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels Operation Temperature -20°C~ 70°C Antenna Type Internal type Antenna Gain 3.50㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. Report Number:F690501/RF-RTL008706Page:4of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.5.3. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the Rx input bandwidths shift frequencies in synchronization with the transmitted signals. 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number:F690501/RF-RTL008706Page:5of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Signal GeneratorR&S SMBV100A255834Jun. 25, 2014AnnualJun. 25, 2015 Signal GeneratorR&S SMR40100272 Jul. 18, 2014AnnualJul. 18, 2015 Spectrum AnalyzerAgilent N9030AMY53120526Jul. 17, 2014AnnualJul. 17, 2015 Bluetooth TesterTESCOMTC-3000C3000C000142Dec. 11…
