TQ8-AM9B1MDANDIGITAL CAR AUDIO SYSTEM

4157 Features of your vehicle ✽✽ NOTICE If you install an aftermarket HID headlamp, your vehicle's audio and electronic device may malfunction. Antenna Roof antenna Your vehicle uses a roof antenna to receive both AM and FM broadcast signals. AUDIO SYSTEM OANNMM2901 CAUTION Before entering a place with a low height clearance or a car wash, remove the antenna by rotating it counterclockwise. If not, the antenna may be dam- aged. Features of your vehicle 1584 Steering wheel audio control (if equipped) The steering wheel may incorporate audio control buttons. MODE (1) Press the button to change audio source. PRESET/SEEK (/) (2) The SEEK/PRESET button has dif- ferent functions based on the system mode. For the following functions the button should be pressed for 0.8 second or more. RADIO mode It will function as the AUTO SEEK select button. CD/USB/iPod ® mode It will function as the FF/REW button. If the SEEK/PRESET button is pressed for less than 0.8 second, it will work as follows in each mode. RADIO mode It will function as the PRESET STA- TION buttons. CD/USB/iPod ® mode It will function as TRACK UP/DOWN button. VOLUME (VOL+/-) (3) • Push the lever upward (+) to increase the volume. • Push the lever downward (-) to decrease the volume. MUTE (4) • Press the button to mute the sound. • Press the button to turn off the microphone during a telephone call. Detailed information for audio control buttons are described in the following pages in this section. CAUTION Do not operate audio remote control buttons simultaneously. ODM042327 4159 Features of your vehicle How vehicle audio works AM and FM radio signals are broad- cast from transmitter towers located around your city. They are intercept- ed by the radio antenna on your vehi- cle. This signal is then processed by the radio and sent to your vehicle speakers. When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. However, in some cases the signal coming to your vehi- cle may not be strong and clear. This can be due to factors, such as the distance from the radio station, closeness of other strong radio sta- tions or the presence of buildings, bridges or other large obstructions in the area. AM broadcasts can be received at greater distances than FM broad- casts. This is because AM radio waves are transmitted at low fre- quencies. These long distance, low frequency radio waves can follow the curvature of the earth rather than travelling straight. In addition, they curve around obstructions resulting in better signal coverage. JBM001 FM reception JBM002 AM reception Features of your vehicle 1604 FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade within short distances from the station. Also, FM signals are easily affected by buildings, moun- tains, and obstructions. This can lead to undesirable or unpleasant listen- ing conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble: • Fading - As your vehicle moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station. • Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can dis- turb the signal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until the disturbance clears. • Station Swapping - As an FM sig- nal weakens, another more power- ful signal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, select another station with a stronger signal. • Multi-Path Cancellation - Radio signals being received from sever- al directions can cause distortion or fluttering. This can be caused by a direct and reflected signal from the same station, or by signals from two stations with close fre- quencies. If this occurs, select another station until the condition has passed. JBM003 FM radio station JBM004JBM005 4161 Features of your vehicle Using a cellular phone or a two- way radio When a cellular phone is used inside the vehicle, noise may be produced from the audio system. This does not mean that something is wrong with the audio equipment. In such a case, try to operate mobile devices as far from the audio equipment as possi- ble. Caring for disc • If the temperature inside the car is too high, open the car windows to venti- late before using the system. • It is illegal to copy and use MP3/WMA files without permission. Use CDs that are created only by lawful means. • Do not apply volatile agents, such as benzene and thinner, normal cleaners and magnetic sprays made for analogue disc onto CDs. • To prevent the disc surface from getting damaged, hold CDs by the edges or the center hole only. • Clean the disc surface with a piece of soft cloth before playback (wipe it from the center to the outside edge). • Do not damage the disc surface or attach pieces of sticky tape or paper. • Make certain only CDs are insert- ed into the CD player (Do not insert more than one CD at a time). • Keep CDs in their cases after use to protect them from scratches or dirt. CAUTION When using a communication system such as a cellular phone or a radio set inside the vehicle, a separate external antenna must be fitted. When a cellular phone or a radio set is used with an internal antenna alone, it may interfere with the vehi- cle's electrical system and adversely affect safe operation of the vehicle. WARNING Do not use a cellular phone while driving. Stop at a safe location to use a cellular phone. Features of your vehicle 1624 • Depending on the type of CD- R/CD-RW CDs, certain CDs may not operate normally according to the manufacturing companies. In such circumstances, continued use may cau…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 16 January 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel Jeong of SGS Korea Co., Ltd.(hereafter referred to as SGS Korea) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel Jeong of SGS Korea Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)usecertification only to indicate the products are certified as being in conformity specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a manner; h)ensure that any reference to our product certif documents, brochures or advertising, complies with the requirements of Division; i)keep a record of all complaints made known to the us relating to the product’s with requirements of the rel Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements for k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd. Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135 Tel. 82-31-288-5232/ Fax. 82 certification only to indicate the products are certified as being in conformity endeavor to ensure that no certificate or report nor any part thereof is used in a ensure that any reference to our product certification in communication media documents, brochures or advertising, complies with the requirements of keep a record of all complaints made known to the us relating to the product’s with requirements of the relevant standard and to make these records Certification Division when requested; take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements forcertification; document the actions taken. This authorization is valid until further written notice from the applicant. Hyundai MOBIS Co., Ltd. gu, Seoul, 135-977, Korea / Fax. 82-31-280-2764 certification only to indicate the products are certified as being in conformitywith endeavor to ensure that no certificate or report nor any part thereof is used in amisleading ication in communication mediasuch as documents, brochures or advertising, complies with the requirements ofthe Certification keep a record of all complaints made known to the us relating to the product’scompliance evant standard and to make these recordsavailable to take appropriate action with respect to such complaints and any deficienciesfound in certification;

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 10 April 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID:TQ8-AM9B1MDAN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,Hyundai MOBIS Co., Ltd.hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for180days after the grant as outlined in Public Notice DA 04-1705. This provision will giveHyundai MOBIS Co., Ltd.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1Block Diagram 2Operational Descriptions 3Schematics Short-Term 4External Photos 5Internal Photos 6Test-Setup Photos 7User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd.

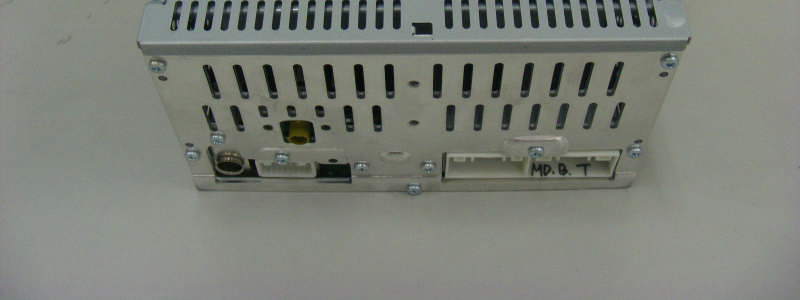

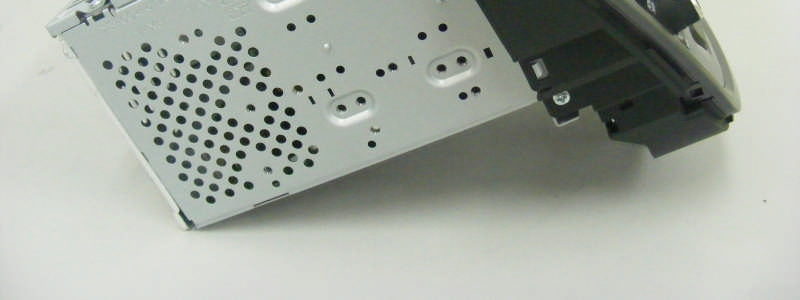

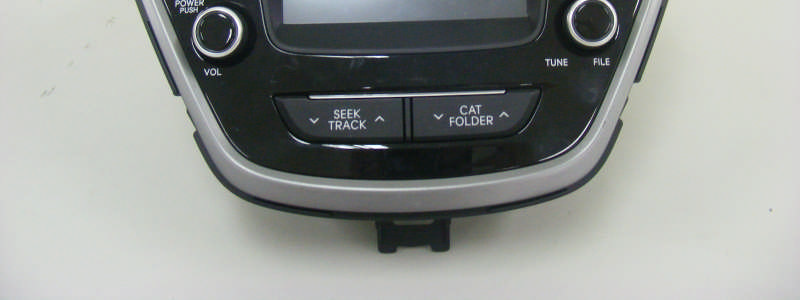

External photos of EUT Top view of EUT Bottom view of EUT Front view of EUT Rear view of EUT Side view of EUT

Hyundai MOBIS Co., Ltd. FCC MODEL:AM9B1MDAN IC MODEL:AM9B0MDKN FCC ID:TQ8-AM9B1MDAN IC:5074A-AM9B0MDKN This device complies with part 15 of the FCC Rules. Operation is Subject to the following to conditions: (1) This device may not cause harmful interference, and (2) The device must accept any interference received, Including interference that may cause undesired operation Made in Korea MANUFACTURED BY HYUNDAI MOBIS FRONT LABEL LABEL LOCATION PRODUCT LABEL LABEL Information FCC MODEL:AM9B1MDAN IC MODEL:AM9B0MDKN TOP

Internal photos of EUT Internal view of EUT Top view of LCD PCB Bottom view of LCD PCB Top view of Keypad PCB1 Bottom view of Keypad PCB1 Top view of Keypad PCB2 Bottom view of Keypad PCB2 Top view of CD Player Bottom view of CD Player Top view of Main PCB Bottom view of Main PCB Top view of Bluetooth Antenna Bluetooth Antenna

Report Number :F690501/RF-RTL006395Page:2of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------4 Report Number :F690501/RF-RTL006395Page:3of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - Wireless Div. 1FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:80-9, Mabook-Dong, Giheung-Gu Yongin-Shi, Gyunggi-Do, 446-912, South Korea Contact Person:Kim, Jong-Tae Phone No.:+82 31 260 0092 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM Model Name FCC: AM9B1MDAN(Alt:AM9B0MDAN, AM9B0MDKN, AM910MDMG, AM911MDMG, AM910MDMN, AM910MDEE, AM911MDMN, AM910MDXN, AM910MDAN) Serial Number N/A Power Supply DC 12 V Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Chip antenna Antenna Gain 3.5㏈i 1.4. Test report revision RevisionReport numberDescription 0F690501/RF-RTL006395Initial Report Number :F690501/RF-RTL006395Page:4of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500----F/3006 1 500 – 100 000----56 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500----F/15006 1 500 – 100 000----130 Report Number :F690501/RF-RTL006395Page:5of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3.Output Power into Antenna & RF Exposure Evaluation Distance FHSS: GFSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low2 4020.903.5460.000 2521 Middle2 4411.033.5460.000 2601 High2 4800.883.5460.000 2511 FHSS: 8DPSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low2 4020.103.5420.000 1911 Middle2 4410.213.5420.000 1961 High2 480-0.303.5420.000 1751 Note : 1. The power density Pd (5th column) at a distance of 20㎝calculated from the friis transmission formula is far below the limit of 1㎽/㎠.

Report Number:F690501/RF-RTL006389Page:2of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------7 3. 20㏈Bandwidth and 99% BW ------------------------------------------------------------------- 30 4. Maximum Peak Output Power -------------------------------------------------------------------38 5. Hopping Channel Separation ---------------------------------------------------------------------40 6. Number of Hopping Frequency ------------------------------------------------------------------43 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------47 8. Antenna Requirement ------------------------------------------------------------------------------61 Report Number:F690501/RF-RTL006389Page:3of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - Wireless Div. 1FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:80-9, Mabook-Dong, Giheung-Gu Yongin-Shi, Gyunggi-Do, 446-912, South Korea Contact Person:Kim, Jong-Tae Phone No.:+82 31 260 0092 1.3. Description of EUT Kind of Product DIGITAL CAR AUDIO SYSTEM Model Name FCC: AM9B1MDAN(Alt:AM9B0MDAN, AM9B0MDKN, AM910MDMG, AM911MDMG, AM910MDMN, AM910MDEE, AM911MDMN, AM910MDXN, AM910MDAN) IC : AM9B0MDKN Serial Number N/A Power Supply DC 12 V Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Chip antenna Antenna Gain 3.5㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels Report Number:F690501/RF-RTL006389Page:4of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.4. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. 1.6. Alternative models Model nameInformation AM9B1MDAN - Basic model - Bluetooth, North America frequency, XM, TMU, General knob AM9B0MDAN - Same to basic model but it is different below function - Bluetooth, North America frequency, XM, General knob AM9B0MDKN - Same to basic model but it is different below function - Bluetooth, North America frequency, XM, General knob AM910MDEE - Same to basic model but it is different below function - Bluetooth, Europe frequency, Europe knob AM910MDMG - Same to basic model but it is different below function - Bluetooth, Europe frequency, Europe knob AM911MDMG - Same to basic model but it is different below function - Bluetooth, General frequency, General knob AM910MDMN - Same to basic model but it is different below function - Bluetooth, North America frequency, Europe knob AM910MDEE - Same to basic model but it is different below function - Bluetooth, Europe frequency, Europe knob AM911MDMN - Same to basic model but it is different below function - Bluetooth, Colombia frequency, Europe knob AM910MDXN - Same to basic model but it is different below function - Bluetooth, Guam frequency, General knob AM910MDAN - Same to basic model but it is different below function - Bluetooth, North America frequency, General knob Report Number:F690501/RF-RTL006389Page:5of61 The results shown in this test report refer only …

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test for Bluetooth
