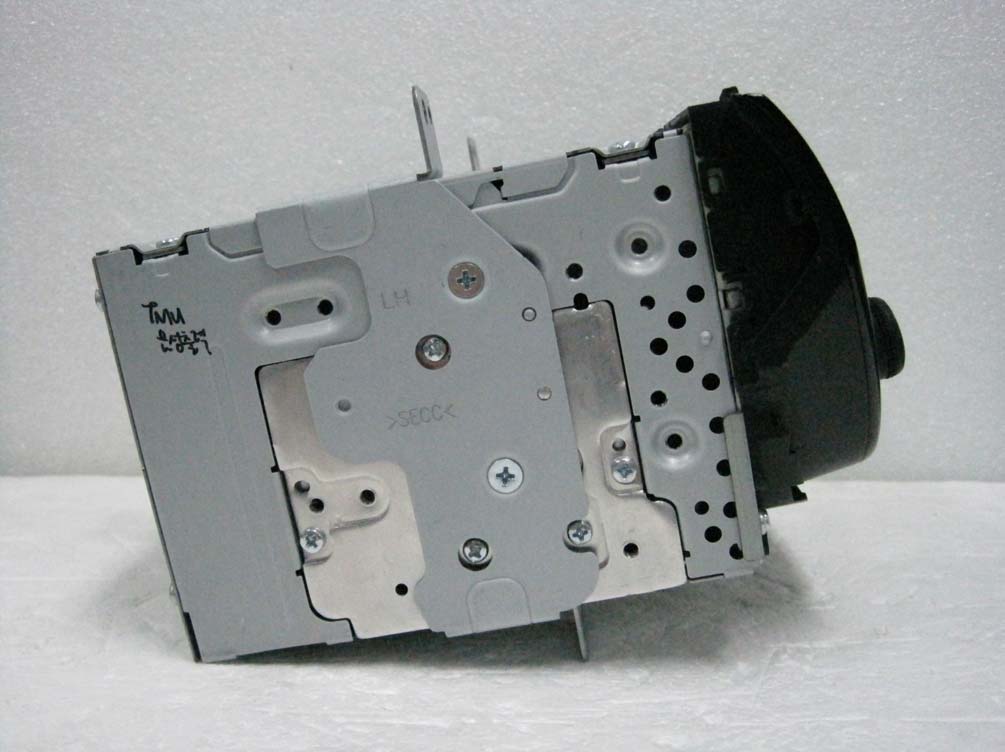

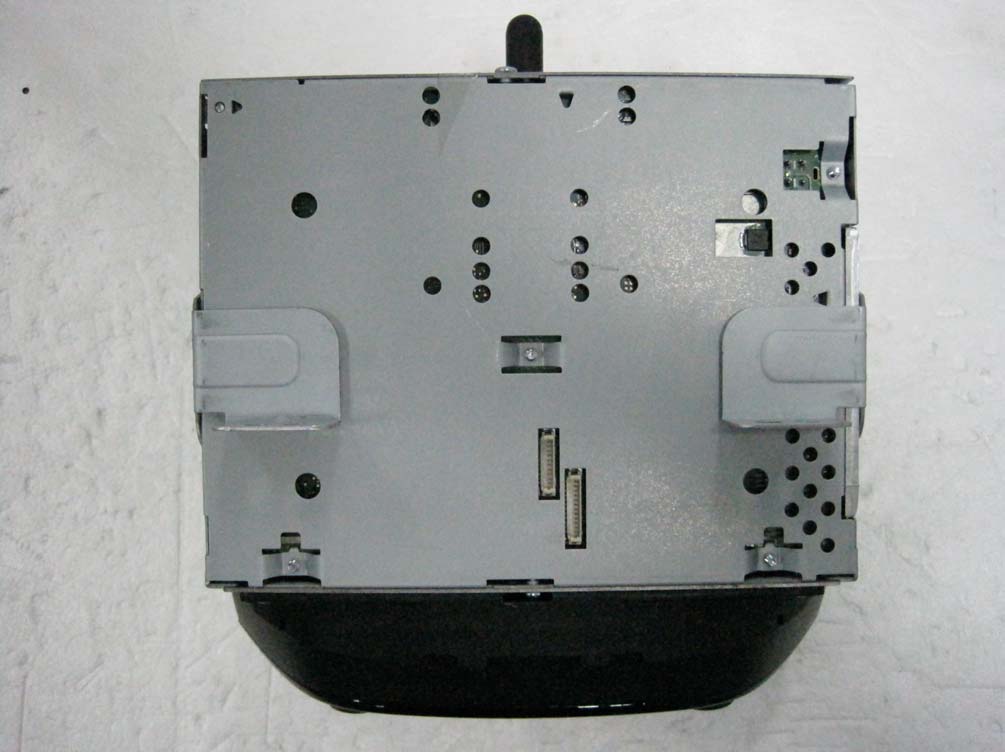

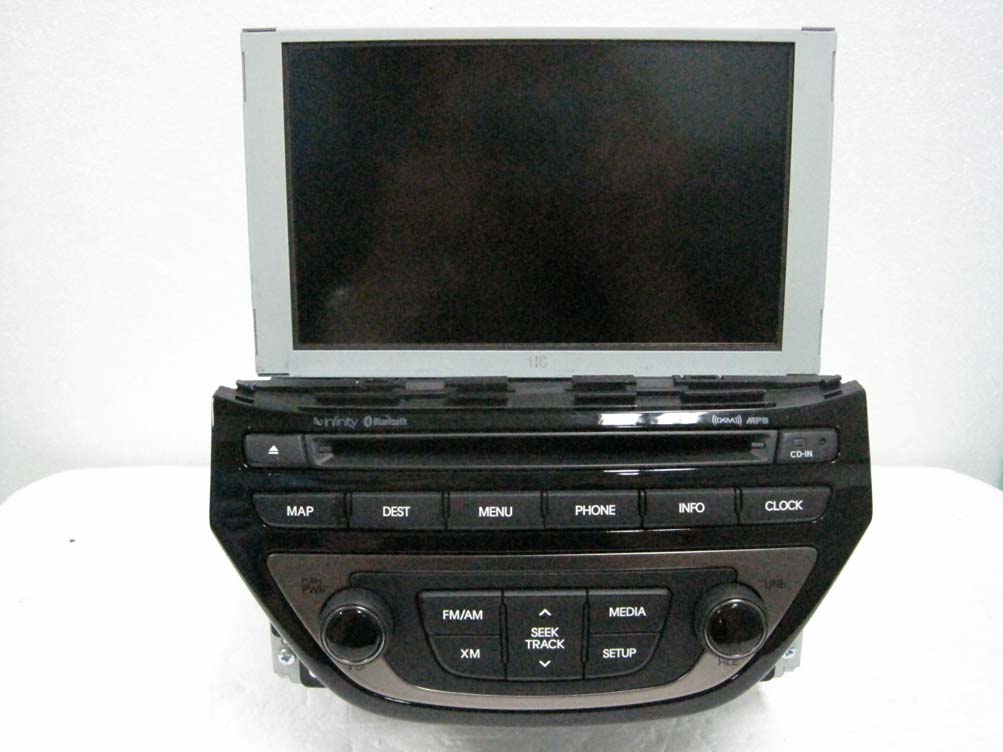

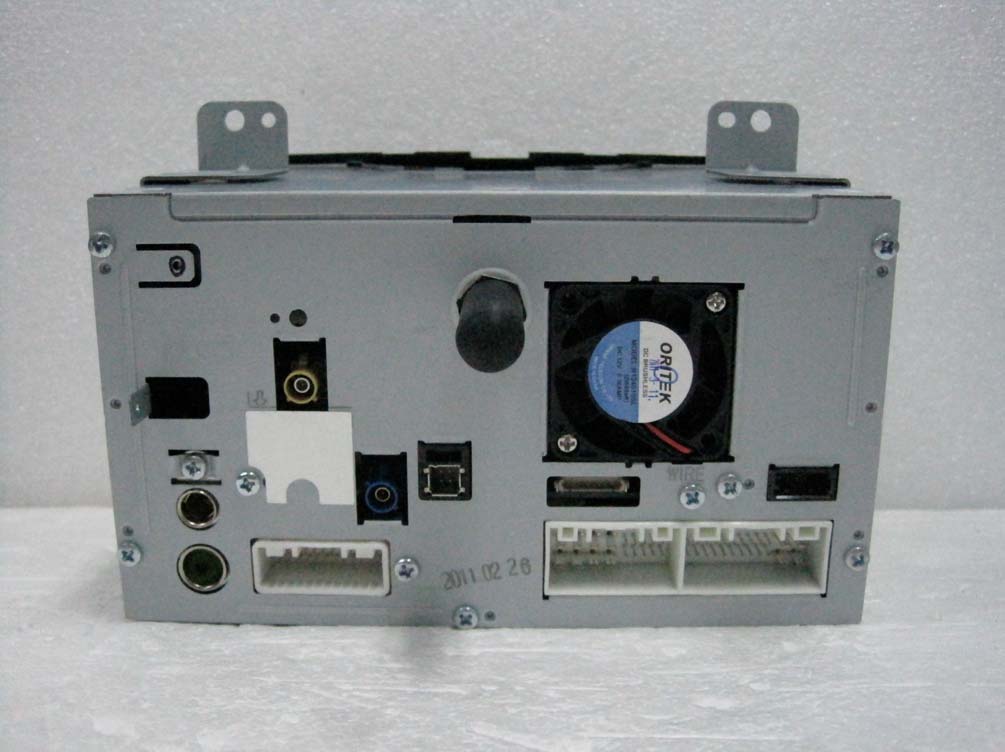

TQ8-AN240DKANCAR AVN

DIGITAL NAVIGATION SYSTEM User's Manual DIGITAL NAVIGATION SYSTEM User's Manual Thank you for purchasing this Audio Navigation System. This user's manual explains how to use the Hyundai Motor Audio Navigation System. Before using the product, read the contents of this user's manual carefully and use this product safely. ● The screens shown in this manual may differ with the actual screens of the product. ●  The design and specification of this product may change without prior notification for product improvement. ● When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. iPod® iPod® is a registered trademark of Apple Inc. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hyundai is under license. A Bluetooth® enabled cell phone is requi- red to use Bluetooth® wireless technology. Bluetooth® phone compatibility can be checked by visiting www.hyundaiusa.com and under the SERVICE & PARTS – BLUETOOTH COMPATIBILITY menu. ● Areas that can be checked – 9 areas, such as Pairing, Connection, Handsfree Calling, Streaming, etc. HD Radio™ Technology (if equipped) HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp. Preface All Map Database cannot be copied without permission. This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent. PRE-OVERVIEW 1-1 PRE-OVERVIEW PART 1 PRE-OVERVIEW Introduction..............................1-2 Important information about this manual 1-2 Precaution for safe usage ..................1-2 Controller...and...functions...............1-3 Control panel .................................1-3 Steering wheel remote controller .........1-5 HVAC System .................................1-6 Room Mirror .................................1-7 Basic...operation...and...setting............1-9  System Power ON ........................1-9 Turning the Power ON .....................1-9 Turning the Power OFF .....................1-9 Turning the Audio ON/OFF ...............1-9 Adjusting audio volume ..................1-10 How to operate the screen menu ......1-10  Operating typical screen menu ......1-10  Inputting letter by using screen keyboard .................................1-10  Displaying the list .....................1-10  Selecting an item in a list ............1-11  Sorting items from list ...............1-11   Conditions for voice recognition system ....................................1-11 How to operate menu by voice command .................................1-11 Sound setting ..............................1-12  Giving voice command ...............1-12 FAD/BAL .................................1-12 BASS/MID/TREB ........................1-13 Auto volume control ON/OFF ......1-13 Touch screen beep ON/OFF .........1-13 Operating Variable EQ ...............1-13 Variable EQ Setup (Optional) ............1-13 Display mode ...........................1-14 Brightness ..............................1-14 Display OFF ...........................1-14 Display ON ..............................1-14 Display setting ...........................1-14 Viewing Current Time .....................1-14 Display Photo Frame ..................1-15 Setting the Clock ........................1-15 Setting Display OFF .....................1-15 PART 1 PRE-OVERVIEW 1-2PRE-OVERVIEW Introduction Important...information...about...this... manual This user manual contains instructions related to safety. Closely observe and comply with all of the safety instructions found within this manual. WARNING...! Disobeying the warnings listed within this user's manual may cause fatal or serious inju- ries. Warnings indicate matters which may directly lead to accidents. CAUTION! Disobeying the cautions listed within this user manual may lead to accidents or cause injury. Cautions indicate matters which may lead to vehicle damage or malfunction. INFORMATION Information which the user must be aware or allows for more convenient use of the device. Precaution...for...safe...usage WARNING...! ● Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. ● Do not operate the Audio Navigation system while driving. ● Do not disassemble, assemble, or modify the Audio Navigation system. ● Do not watch the screen for prolonged peri- ods of time while driving. ● Set the volume to a level which allows the driver to be aware of external conditions. CAUTION! ● Do not operate the Audio Navigation system for prolonged periods of time with the vehi- cle ignition in ACC. Such operations may lead to battery discharge. ● Be cautious not to spill water or introduce foreign objects into the device. ● Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. ● In case of product malfunction, please con- tact your place of purchase or service center. ● When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia, ben- zene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. Reference...Page This indicates the title and page that you should refer to. This indicates a k…

Text truncated - open the document above for the full version.

NAVIGATION SYSTEM 3-47 NAVIGATION SYSTEM 7 . Press the Yes button. Deleting an address book 1 . Press the SETUP key. 2 . Press the My Places button. 3 . Press the Address Book button. 4 . Press the desired address book (user) but- ton. 4 . Press the Delete all button. 5 . Press the Yes button. PART 3 NAVIGATION SYSTEM 3-48NAVIGATION SYSTEM Registering home address 1 . Press the SETUP key. 2 . Press the My Places button. 3 . Press the Home Address button. 4 . Press the Search button. INFORMATION Press the Store current position button to reg- ister the current position as Home. 5 . Search the address. The process is the same method as search- ing an address. [Searching an Address], page 3-13. 6 . Press the Done button to complete. Deleting home address 1 . Press the SETUP key. 2 . Press the My Places button. 3 . Press the Home Address button. 4 . Press the Delete button. NAVIGATION SYSTEM 3-49 NAVIGATION SYSTEM 5 . Press the Yes button. Registering favorite place 1 . Press the SETUP key. 2 . Press the My Places button. 3 . Press the Favorite Places button. 4 . Press the number of the Favorite Place to register. 5 . Press the Search button. INFORMATION Press the Store current position button to reg- ister the current position as a Favorite place. 6 . Search the address. The process is the same as the method for searching an address. [Searching an Address], page 3-13. PART 3 NAVIGATION SYSTEM 3-50NAVIGATION SYSTEM 7 . Press the Done button to complete. Deleting favorite place 1 . Press the SETUP key. 2 . Press the My places button. 3 . Press the Favorite Places button. 4 . Select the desired favorite place button to delete. 5 . Press the Delete button. 6 . Press the Yes button. NAVIGATION SYSTEM 3-51 NAVIGATION SYSTEM System information and update 1 . Press the SETUP key. 2 . Press the main button. 3 . Press the System Info button. Voice guidance volume setting 1 . Press the SETUP key. 2 . Press the Voice Setup button. Voice guidance volume control ● Set the desired volume level by using the ◀ or ▶ buttons and press the Listen button to verify the volume level. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Voice Guidance Louder" "Voice Guidance Softer" ● Press the Mute button when voice guid- ance is unnecessary. Voice guidance can be turned back on by pressing the ◀ or ▶ buttons or press- ing the Mute button. Voice Command 1. Press the key on the steering Wheel remote controller. 2. After the beep sound, say a command. "Voice Guidance On" "Voice Guidance Of" PART 3 NAVIGATION SYSTEM 3-52NAVIGATION SYSTEM Adaptive volume control ON/OFF ● Press the desired setting button. INFORMATION Adaptive Volume Control If the speed of the vehicle is over approxi- mately 60 mi/h (100km/h), the volume level can be increased one level higher than the current level. If the speed of the vehicle falls under 60 mi/h (100km/h), the volume level will return to its original level. Traffic Setup 1 . Press the SETUP key. 2 . Press the Traffic Setup button. 3 . Select the desired changes and press the Done button. INFORMATION ● Display Traffic and Flow data on Map : select whether to display traffic information on the map. ● Voice Prompt for traffic and flow warning : select whether to provide voice guidance in front of Traffic Information. (On route - 3mile) ● Display Detour pop-up message : select whether to display Detour pop up in front of Traffic Information. (On route - 3mile) Traffic Information (a) Viewing Traffic Information 1 . When the Traffic option is active, press the button on the Map screen. Traffic Flow INFORMATION Normal, Free Flowing (46 mph ~) Moderate Congestion (26 ~ 45 mph) Heavy Traffic, Stop and Go (0 ~ 25 mph) Road Construction Accident Congestion/Slow Traffic Incient Hazardous Road Conditions Travel Information NAVIGATION SYSTEM 3-53 NAVIGATION SYSTEM INFORMATION ● Traffic information will be shown on the map up until the scale is ~4mile. ● Displays the traffic information around vehi- cle for up to a radius of 50 miles. (Information exceeding 50 miles will not be displayed) ● The above list can be sorted by either Distance (Default) or Category. 2 . Select the desired List button. 3 . The user can check points of accidents and traffic details. (b) Changing Traffic Category 1 . Press the Advanced button at No. 2. 2 . After selecting the desired menu among the six menus, press the Done button to save. Once returning to the previous List screen, the corresponding Category list will be shown and maintained until Category information is changed. PART 3 NAVIGATION SYSTEM 3-54NAVIGATION SYSTEM Help 1 . Press the SETUP key. 2 . Press the Help button. 3 . Press the Navigation button. 4 . Press the desired Help menu button. 5 . The full content of the help section can be viewed by using the top-down scroll but- tons. XM DATA 4-1 XM DATA PART 4 XM DATA XM Data mode ...........................4-2 Entering XM Data mode .................. 4-2 XM Data mode screen and functions ... 4-2 Traffic data Service Information ......4-2 Stock Data Service Information .........4-3 Sport Data Service Information .........4-3 Weather data Service Information......4-4 4-2XM DATA PART 4 XM DATA XM Data mode The XM Data Service is a paid membership satellite radio service which provides users with traffic, stock, sports, and weather infor- mation. However, weather information is not supported for vehicles purchased in Canada. For information on registration or related con- tent, please visit the XM radio website (www. xmradio.com). Entering XM Data mode 1 . From the current location map screen with- in the navigation, press the XM DATA button. 2 . The main XM data service screen will be dis- played. Within the main screen, there are four categories of Traffic, Stocks, Sports and Weather. XM Data mode screen and functions Traffic data Service Information • Automatic route recalculation (guidance) according to changes in traffic conditions. • Provi…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. August 12,2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AVN, AN240DKAN, AN241DKAN We affirm that between SIEMIC and HYUNDAI MOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Seung-Kun Chon/ Senior Engineer HYUNDAI MOBIS CO.,LTD. 80-9, Mabook-Dong, Giheung-Gu Yongin-shi, Gyunggi-Do South Korea 446-912 FCC ID : TQ8-AN240DKAN

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD. August 12,2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TQ8-AN240DKAN We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2 Schematics 3 Operational Description SHORT-TERM CONFIDENTIAL 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Kun Chon / Senior Engineer HYUNDAI MOBIS CO., LTD. 80-9, Mabook-Dong, Giheung-Gu Yongin-shi, Gyunggi-Do South Korea 446-912

FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 7 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 7 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 7 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 7 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 7 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 7 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 7 / 7

FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model No IC Model FCC ID IC EUT Type Serial No : AN240DKAN : AN240DKKN : TQ8-AN240DKAN : 5074A-AN240DKKN : CAR AVN : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Including interference that may cause undesired operation. HYUNDAI MOBIS CO., LTD. 80-9, Mabook-Dong, Giheung-Gu, Yongin-shi, Gyunggi-Do,446-912 South Korea MADE IN KOREA FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 3 FCC Model No IC Model FCC ID IC EUT Type Serial No : AN241DKAN : AN241DKKN : TQ8-AN240DKAN : 5074A-AN240DKKN : CAR AVN : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Including interference that may cause undesired operation. HYUNDAI MOBIS CO., LTD. 80-9, Mabook-Dong, Giheung-Gu, Yongin-shi, Gyunggi-Do,446-912 South Korea MADE IN KOREA FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 3 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 7 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 8 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 9 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 10 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 11 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 12 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 13 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 14 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 15 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 16 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 17 / 18 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 18 / 18

MPE CALCULATION For HYUNDAI MOBIS CO., LTD – ; Model: AN240DKAN FCC ID: TQ8-AN240DKAN RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2402 MHz): Power =2.35 d Bm, Antenna Gain =-0.76 dBi, Prediction distance 20cm S = 0.00028 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20cm. Completed By : Jong Suk LEE Date :August 12,2011

FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1108FR13 Date of Issue: August 12, 2011 EUT Type: CAR AVN FCC ID : TQ8-AN240DKAN IC : 5074A-AN240DKKN Page 2 of 45 Version TEST REPORT NO. DATE DESCRIPTION HCTR1108FR13 August 12, 2011First Approval Report FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1108FR13 Date of Issue: August 12, 2011 EUT Type: CAR AVN FCC ID : TQ8-AN240DKAN IC : 5074A-AN240DKKN Page 3 of 45 Table of Contents 1. GENERAL INFORMATION ....................................................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................................. 4 3. TEST METHODOLOGY ............................................................................................................................ 5 3.1 EUT CONFIGURATION ............................................................................................................. 5 3.2 EUT EXERCISE ......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ............................................................................................. 5 3.4 DESCRIPTION OF TEST MODES ............................................................................................ 5 4. INSTRUMENT CALIBRATION .................................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ...................................................................................................... 6 5.1 FACILITIES ................................................................................................................................ 6 5.2 EQUIPMENT .............................................................................................................................. 6 6. ANTENNA REQUIREMENTS.................................................................................................................... 6 7. SUMMARY OF TEST RESULTS............................................................................................................... 7 8. FCC PART 15.247 REQUIREMENTS ....................................................................................................... 8 8.1 PEAK POWER ........................................................................................................................... 8 8.2 BAND EDGES MEASUREMENT ............................................................................................ 12 8.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW) ................................... 15 8.4 NUMBER OF HOPPING FREQUENCY .................................................................................. 20 8.5 TIME OF OCCUPANCY (DWELL TIME) ................................................................................. 23 8.6 SPURIOUS EMISSIONS.......................................................................................................... 27 8.6.1 CONDUCTED SPURIOUS MEASUREMENT.................................................................. 27 8.6.2 RADIATED SPURIOUS EMISSIONS .............................................................................. 34 8.6.3 RECEIVER SPURIOUS EMISSIONS............................................................................... 42 8.6.4 RADIATED RESTRICTED BAND EDGE MEASUREMENTS......................................... 43 8.7 POWERLINE CONDUCTED EMISSIONS............................................................................... 44 9. LIST OF TEST EQUIPMENT................................................................................................................... 45 FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1108FR13 Date of Issue: August 12, 2011 EUT Type: CAR AVN FCC ID : TQ8-AN240DKAN IC : 5074A-AN240DKKN Page 4 of 45 1. GENERAL INFORMATION Applicant Name: HYUNDAI MOBIS CO., LTD. Address: 80-9, Mabook-Dong, Giheung-Gu Yongin-shi Gyunggi-Do, 446-912 South Korea FCC ID: TQ8-AN240DKAN IC: 5074A-AN240DKKN EUT: CAR AVN FCC Model name: AN240DKAN Additional FCC Model name(s): AN241DKAN IC Model name: AN240DKKN Additional IC Model name(s): AN241DKKN Date(s) of Tests: August 10, 2011 ~ August 11, 2011 Contact Person: Name: Jong Tai Kim Phone #: +82-31-288-6081 Fax #: +82-31-899-1788 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type CAR AVN FCC Model Name AN240DKAN Additional FCC Model(s) AN241DKAN IC Model Name AN240DKKN Additional IC Model Name(s) AN241DKKN Power Supply DC 12 V Frequency Range 2402 MHz - 2480 MHz (Bluetooth) Transmit Power 2.35 dBm(1.72 mW) Modulation Type GFSK(Normal), PSK(EDR) Modulation Technique FHSS Number of Channels 79Channels Antenna Specification Manufacturer: AUTO INDUSTRIAL Co., Ltd. Antenna type: PCB Antenna Peak Gain : -0.76 dBi 15.247 Requirements for Bluetooth transmitter※ ▪ This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudorandomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals. ▪ 15.247(g): The system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this Section 15.247 should the transmitter be presented with a continuous data (or information) stream. ▪ 15.247(h): The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupan…

Text truncated - open the document above for the full version.

FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 1 of 5 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 2 of 5 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 3 of 5 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 4 of 5 FCC ID: TQ8-AN240DKAN/ IC: 5074A-AN240DKKN HCT CO.,…

Text truncated - open the document above for the full version.
