TQ8-AT140C2ANDISPLAY AUDIO SYSTEM

CAR MULTIMEDIA SYSTEM l USER'S MANUAL 3VENE10 (영어/미국) II CAR MULTIMEDIA SYSTEM Thank you for purchasing this multimedia system. This user's manual explains how to use the HYUNDAI Motor multimedia system. Bef ore using the product, read the con- tents of this user's manual carefully and use this product safely. • The screens shown in this manual may differ with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while driving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or service center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi- als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM ser- vice at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic informa- tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. WARNING • Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. All Map Database cannot be copied without permission. Important Notice : This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify and distribute the content without HYUNDAI MnSoft, Inc’s prior written consent. Warnings and Cautions Key Product Features Component Names and Functions Starting the System for the First Time part.1 Basic 01 1-2 I Basic Safety Warnings Even when receiving route guidance from the Navigation system, please abide by actual traffic and road regu- lations. Following only the Navigation route guidance may lead to violations of actual traffic and road regulations and lead to traffic accidents. Do not stare at the screen while driv- ing. Staring at the screen for prolonged periods of time could lead to traffic acci- dents. Do not operate the Navigation system while driving, such as entering POIs or conducting route searches. Such acts could lead to accidents, fire, or electric shock. Park the vehicle before operating the device. Do not disassemble, assemble, or mod- ify the Multimedia system. Such acts could result in accidents, fire, or electric shock. Heed caution not to spill water or intro- duce foreign objects into the device. Such acts could lead to smoke, fire, or product malfunction. If you use phone related functions while driving, you will find it difficult to concen- trate on operating the vehicle and the current traffic conditions, so the possibil- ity of an accident may increase. Please use phone related functions only when parked. Please refrain from use if the screen is blank or no sound can be heard as these signs may indicate product mal- function. Continued use in such con- ditions could lead to accidents (fires, electric shock) or product malfunctions. Do not touch the antenna during thun- der or lightening as such acts may lead to lightning induced electric shock. Do not stop or park in parking-restricted areas to operate the product. Such acts could lead to traffic accidents. For most Audio and multimedia modes, the display will not operate when the vehicle is in motion. For your safety, first park the vehicle to watch or view the screen.(The screen will only operate when the parking brake is ON for man- ual transmission vehicles and when the parking brake is ON or the gearshift is in the P (PARK) position for automatic.) Some functions other than the one mentioned above cannot be used while driving. These functions operate only when the vehicle is parked. Basic Warnings and Cautions I 1-3 01 Safety Cautions Pay attention to traffic conditions while driving.…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 16 March 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Attestation letter regarding UNII client device without radar detection capability To whom it may concern, With reference to KDB 905462 D03, We, Hyundai MOBIS Co., Ltd. hereby declare the following for FCC ID: TQ8‐AT140C2AN. The device client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad‐hoc peer‐to‐peer modes. 1) 2.4GHz Frequency(MHz) Channel Scanning ad‐hoc mode 2412 1 Active No 2417 2 Active No 2422 3 Active No 2427 4 Active No 2432 5 Active No 2437 6 Active No 2442 7 Active No 2447 8 Active No 2452 9 Active No 2457 10 Active No 2462 11 Active No Channel 12 and 13 are permanently disabled. Hyundai MOBIS Co., Ltd. #679‐4, Yeoksam‐dong, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐288‐5232 / Fax. 82‐31‐280‐2764 1) 5GHz Frequency(MHz) Channel Scanning ad‐hoc mode 5180 36 Active No 5190 38 Passive No 5200 40 Active No 5210 42 Passive No 5220 44 Active No 5230 46 Passive No 5240 48 Active No 5260 52 Passive No 5280 56 Passive No 5300 60 Passive No 5320 64 Passive No 5500 100 Passive No 5520 104 Passive No 5540 108 Passive No 5560 112 Passive No 5580 116 Passive No 5660 132 Passive No 5680 136 Passive No 5700 140 Passive No 5745 149 Passive No 5765 153 Active No 5785 157 Active No 5805 161 Active No 5825 165 Passive No Sincerely, __________________________ SeungHoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 16 March 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. #679‐4, Yeoksam‐dong, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐288‐5232 / Fax. 82‐31‐280‐2764 6 March 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-AT140C2AN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune Up Procedure 5 Part List Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The A ppli c ant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

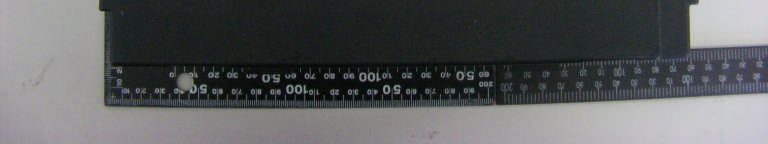

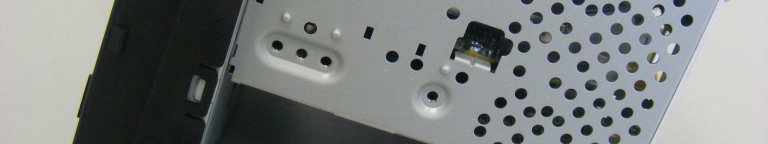

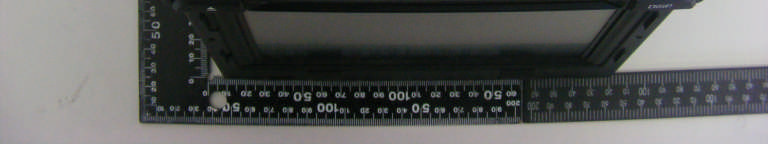

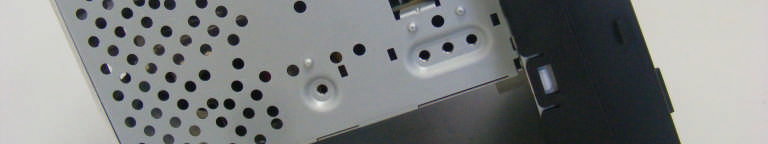

External photos of EUT Total view of EUT EUT LTE Antenna CDMA Antenna Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

AT140C2ANFCC LABEL If ti LABEL LOCATION FCC LABEL I n f orma ti on Hyundai MOBIS Co., Ltd. FCC ID: Contains FCC ID: TQ8 ‐ AT140C2AN LHJ-CASAN LABEL LOCATION Non-removable This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. LABEL Made in Korea MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FRONT TOP Hyundai MOBIS Co., Ltd.

Internal photos of EUT Inner of EUT Top view of Main PCB1 Bottom view of Main PCB1 Top view of Main PCB2 Bottom view of Main PCB2 Top view of CD Player Bottom view of CD Player Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of WLAN Module Bottom view of WLAN Module Top view of LTE/CDMA Module Bottom view of LTE/CDMA Module Top view of BT Module View of WLAN Antenna View of BT Antenna View of LTE Antenna View of CDMA Antenna

Report Number:F690501/RF-RTL008471Page:2of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------4 Report Number:F690501/RF-RTL008471Page:3of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+ 82 31 688 0901 FAX:+ 82 31 688 0921 1.2. Details of applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DISPLAY AUDIO SYSTEM Model Name AT140C2AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 824.70㎒~ 848.31㎒(CDMA850), 1 851.25㎒~ 1 908.75㎒(CDMA1 900), 1 710.7~ 1 754.3(LTE BAND 4_1.4), 1 711.5~ 1 753.5(LTE BAND 4_3), 1 712.5㎒~ 1 752.5㎒(LTE BAND 4_5), 1 715.0㎒~ 1 750.0㎒(LTE BAND 4_10), 1 717.5㎒~ 1 747.5㎒(LTE BAND 4_15), 1 720.0㎒~ 1 745.0㎒(LTE BAND 4_20), 779.5㎒~ 784.5㎒(LTE BAND 13_5), 782㎒(LTE BAND 13_10), 2 402㎒~ 2 480㎒(BT), 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20), 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40), 5 775㎒(Band 3: 11ac_VHT80), 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20), 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40), 5 210㎒(Band 1: 11ac_VHT80), 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20), 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40), 5 290㎒(Band 2A: 11ac_VHT80), 5 500㎒~ 5 700㎒(Band 2C: 11a/n_HT20, 11ac_VHT20), 5 510㎒~ 5 670㎒(Band 2C: 11n_HT40, 11ac_VHT40), 5 530㎒(Band 2C: 11ac_VHT80) Antenna Gain 824.70㎒~ 848.31㎒: 4.75㏈i, 1 851.25㎒~ 1 908.75㎒: 5.68㏈i, 1 710.7㎒~ 1 754.3㎒: 3.27㏈i, 779.5㎒~ 784.5㎒: 2.90㏈i, 2 402㎒~ 2 480㎒: 2.29㏈i, 2 412㎒~ 2 472㎒: -0.09㏈i, 5 180㎒~ 5 320㎒: 4.77㏈i, 5 500㎒~ 5 700㎒: 1.68㏈i, 5 745㎒~ 5 805㎒: 2.78㏈i 1.4. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0084712015.03.04Initial Report Number:F690501/RF-RTL008471Page:4of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3 – 3.06141.63*1006 3.0 – 301842/f4.89/f*900/f 2 6 30 - 30061.40.1631.06 300 – 1 500--f/3006 1 500 – 100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.346141.63*10030 1.34 – 30824/f2.19/f*180/f 2 30 30 - 30027.50.0730.230 300 – 1 500 -- f/150030 1 500 – 100 000 -- 1.030 Report Number:F690501/RF-RTL008471Page:5of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3.Output Power into Antenna & RF Exposure Evaluation Distance Mode: CDMA850_Maximum tune up tolerance Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) 1013824.70264.751000.236 4450.549 80 Mode: CDMA1 900_Maximum tune up tolerance Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) 251 851.25265.681000.292 9071 Mode: LTE Band 4_Maximum tune up tolerance Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) 201751 732.5253.271000.133 5771 Mode: LTE Band 13_Maximum tune up tolerance Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL008455Page:2of14 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Table of contents 1. General information‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐------------ 3 2. DFS (Dynamic Frequency Selection)‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---------------- 5 Report Number:F690501/RF-RTL008455Page:3of14 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General information 1.1 Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+ 82 31 688 0901 Fax No.:+ 82 31 688 0921 1.2 Details of applicant Applicant: Hyundai MOBIS Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person: Choi, Seung-Hoon Phone No.: + 82 31 260 0098 1.3. Description of EUT Kind of Product DISPLAY AUDIO SYSTEM Model Name AT140C2AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒(BT), 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20), 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40), 5 775㎒(Band 3: 11ac_VHT80), 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20), 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40), 5 210㎒(Band 1: 11ac_VHT80), 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20), 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40), 5 290㎒(Band 2A: 11ac_VHT80), 5 500㎒~ 5 700㎒(Band 2C: 11a/n_HT20, 11ac_VHT20), 5 510㎒~ 5 670㎒(Band 2C: 11n_HT40, 11ac_VHT40), 5 530㎒(Band 2C: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT), 11 channel (11b/g/n_HT20), 5 channel (Band 3: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 3: 11n_HT40, 11ac_VHT40), 1 channel (Band 3: 11ac_VHT80), 4 channel (Band 1: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 1: 11n_HT40, 11ac_VHT40), 1 channel (Band 1: 11ac_VHT80), 4 channel (Band 2A: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 2A: 11n_HT40, 11ac_VHT40), 1 channel (Band 2A: 11ac_VHT80), 8 channel (Band 2C: 11a/n_HT20, 11ac_VHT20), 3 channel (Band 2C: 11n_HT40, 11ac_VHT40), 1 channel (Band 2C: 11ac_VHT80) Operation Temperature -20°C~ 70°C Antenna Type Internal type Antenna Gain 2 402㎒~ 2 480㎒: 2.29㏈i, 2 412㎒~ 2 472㎒: -0.09㏈i, 5 180㎒~ 5 320㎒: 4.77㏈i, 5 500㎒~ 5 700㎒: 1.68㏈i, 5 745㎒~ 5 805㎒: 2.78㏈i Report Number:F690501/RF-RTL008455Page:4of14 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Declaration by the manufacturer ‐Client without Radar Detection and TPC. 1.5. Test equipment list EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Spectrum AnalyzerR&S FSW43100637 Jul. 24, 2014AnnualJul. 24, 2015 Signal GeneratorR&SSMBV100A 255834 Jun. 25, 2014 Annual Jun. 25, 2015 AttenuatorAgilent8490D50449Dec. 08, 2014 Annual Dec. 08, 2015 Power Splitter Mini‐CircuitsZFSC‐2‐10G 001Jun. 10, 2014 Annual Jun. 10, 2015 Power Splitter Mini‐CircuitsZFSC‐2‐10G 002Jun. 10, 2014 Annual Jun. 10, 2015 DC Power SupplyAgilentU8002AMY50060028Mar. 27, 2014 Annual Mar. 27, 2015 ▶Support equipment DescriptionManufacturerModelSerial Number / FCC ID Access Point (Master) BuffaloWZR-1750DHP20062631158240 NotebookLG Electronics Inc.LGE-DMLGA51012QTHL022697 1.6. Summary of test result The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart E Section in FCC 15 Test ItemResult 15.407(h) DFS ‐Channel closing transmission time ‐Channel move time ‐Non occupied period Complied 1.7. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0084552015.02.27Initial Report Number:F690501/RF-RTL008455Page:5of14 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. DFS (Dynamic Frequency Selection) 2.1. System overview 2.1.1. Set up of EUT The radar signal generation equipment consists of a vector signal generator The signal monitoring equipment consists of a spectrum analyzer set to display 8001 bins on the horizontal axis. The time domain resolution is 2 msec/bin with a 16 second sweep time, meeting the 10 second short pulse reporting criteria. The aggregate ON time is calculated by multiplying the number of bins above a threshold during a particular observation period by the dwell time per bin, with the analyzer set to peak detection and max hold. The Slave is tested separately for compliance with the Channel Shutdown requirements, for the situation when the Slave device vacates the channel in resp…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL008456-1Page:2of97 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Table of contents 1. General information‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐ 3 2. Transmitter radiated spurious emissions‐‐-‐‐-------------------------------------------------------- 6 3. 26 dB Bandwidth & 99 % Bandwidth‐--‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 26 4. 6 dB Bandwidth--------------------------------------------------------------------------------------------- 53 5. Output power‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 61 6. Peak power spectral density‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐‐‐‐‐‐‐‐-- 72 Report Number:F690501/RF-RTL008456-1Page:3of97 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.General information 1.1 Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+ 82 31 688 0901 Fax No.:+ 82 31 688 0921 1.2. Details of Applicant Applicant: Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DISPLAY AUDIO SYSTEM Model Name AT140C2AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒(BT), 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20), 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40), 5 775㎒(Band 3: 11ac_VHT80), 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20), 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40), 5 210㎒(Band 1: 11ac_VHT80), 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20), 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40), 5 290㎒(Band 2A: 11ac_VHT80), 5 500㎒~ 5 700㎒(Band 2C: 11a/n_HT20, 11ac_VHT20), 5 510㎒~ 5 670㎒(Band 2C: 11n_HT40, 11ac_VHT40), 5 530㎒(Band 2C: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT), 11 channel (11b/g/n_HT20), 5 channel (Band 3: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 3: 11n_HT40, 11ac_VHT40), 1 channel (Band 3: 11ac_VHT80), 4 channel (Band 1: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 1: 11n_HT40, 11ac_VHT40), 1 channel (Band 1: 11ac_VHT80), 4 channel (Band 2A: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 2A: 11n_HT40, 11ac_VHT40), 1 channel (Band 2A: 11ac_VHT80), 8 channel (Band 2C: 11a/n_HT20, 11ac_VHT20), 3 channel (Band 2C: 11n_HT40, 11ac_VHT40), 1 channel (Band 2C: 11ac_VHT80) Operation Temperature -20°C~ 70°C Antenna Type Internal type Antenna Gain 2 402㎒~ 2 480㎒: 2.29㏈i, 2 412㎒~ 2 472㎒: -0.09㏈i, 5 180㎒~ 5 320㎒: 4.77㏈i, 5 500㎒~ 5 700㎒: 1.68㏈i, 5 745㎒~ 5 805㎒: 2.78㏈i Report Number:F690501/RF-RTL008456-1Page:4of97 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Declaration by the manufacturer ‐Client without Radar Detection and TPC. - EUT is not supported TDWR(5.6-5.65㎓) band. 1.5. Test equipment list EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&S SMR40100272 Jul. 18, 2014AnnualJul. 18, 2015 Signal GeneratorR&SSMBV100A255834Jun. 25, 2014AnnualJun. 25, 2015 Spectrum AnalyzerAgilentN9030AUS51350132Sep. 24, 2014AnnualSep. 24, 2015 AttenuatorMCLIFAS-23-2023834Jun. 20, 2014AnnualJun. 20, 2015 Band Reject FilterWainwright WRCJV5150/5350-5130/ 5370-50/16SS 1Sep. 24, 2014 Annual Sep. 24, 2015 Band Reject FilterWainwright WRCJV5470/5725-5450/ 5745-50/20SS 1Sep. 24, 2014 Annual Sep. 24, 2015 High Pass FilterWainwrightWHK6.0/18G-10SS11 Jun. 10, 2014 Annual Jun. 10, 2015 High Pass FilterWainwrightWHK7.5/26.5G-6SS11 Jun. 10, 2014 Annual Jun. 10, 2015 Low Pass FilterMini circuitsNLP-1200+V8979400903-2 Mar. 21, 2014 Annual Mar. 21, 2015 Power MeterAnritsu ML2495A1223004 Jun. 10, 2014 Annual Jun. 10, 2015 Power SensorAnritsu MA2411B1207272 Jun. 10, 2014 Annual Jun. 10, 2015 DC Power SupplyAgilentU8002AMY50060028Mar. 27, 2014AnnualMar. 27, 2015 PreamplifierH.P.8447F2944A03909Aug. 27, 2014AnnualAug. 27, 2015 PreamplifierR&SSCU 1810117Dec. 26, 2014 Annual Dec. 26, 2015 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891Apr. 28, 2014 Annual Apr. 28, 2015 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163396Jun. 07, 2013BiennialJun. 07, 2015 Loop AntennaR&SHFH2-Z2100118Jul. 12, 2013BiennialJul. 12, 2015 Horn AntennaR&SHF906 100326Dec. 10, 2013BiennialDec. 10, 2015 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170BBHA9170431May 15, 2014BiennialMay 15, 2016 Test ReceiverR&SESU26100109Mar. 04, 2014 Annual Mar. 04, 2015 Antenna MasterINN-COMM4000N/AN/AN/AN.C.R. Turn TableINN-CODS 1200 SN/AN/AN/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN/AN/AN.C.R. ▶Support equipment DescriptionManuf…

Text truncated - open the document above for the full version.

Test setup photos of EUT Photo of Field Strength & Spurious Emission Test(BT) Photo of Field Strength & Spurious Emission Test(WLAN) Photo of Field Strength & Spurious Emission Test(LTE) Photo of Field Strength & Spurious Emission Test(CDMA)
