TQ8-AT140DPANDISPLAY CAR SYSTEM

CAR MULTIMEDIA SYSTEM l USER'S MANUAL II CAR MULTIMEDIA SYSTEM Thank you for purchasing this multimedia system. This user's manual explains how to use the HYUNDAI Motor multimedia system. Bef ore using the product, read the con- tents of this user's man ual carefully and use this product safely. • The screens shown in this manual may diff er with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices , other equipment, or vehicle systems which tak e the driver’s eyes, attention and f ocus a way from the safe operation of a v ehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while dr iving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to batter y discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor ma y cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or ser vice center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi- als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners , etc.) as such mater ials may damage the de vice panel or cause color and quality deter ioration. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM ser- vice at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D .C., and PR (with coverage limitations). Traffic informa- tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are tr ademarks of Sirius XM Radio Inc. WARNING •Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should nev er be used dur ing operation of the vehicle. All Map Database cannot be copied without permission. Important Notice : This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify and distribute the content without HYUNDAI MnSoft, Inc’s prior written consent. Warnings and Cautions Key Product Features Component Names and Functions Starting the System for the First Time part.1 Basic 01 1-2 I Basic Safety Warnings Even when receiving route guidance from the Navigation system, please abide by actual traffic and road regu- lations. Following only the Navigation route guidance may lead to violations of actual traffic and road regulations and lead to traffic accidents. Do not stare at the screen while driv- ing. Staring at the screen for prolonged periods of time could lead to traffic acci- dents. Do not operate the Navigation system while driving, such as entering POIs or conducting route searches. Such acts could lead to accidents, fire, or electric shock. Park the vehicle before operating the device. Do not disassemble, assemble, or mod- ify the Multimedia system. Such acts could result in accidents, fire, or electric shock. Heed caution not to spill water or intro- duce foreign objects into the device. Such acts could lead to smoke, fire, or product malfunction. If you use phone related functions while driving, you will find it difficult to concen- trate on operating the vehicle and the current traffic conditions, so the possibil- ity of an accident may increase. Please use phone related functions only when parked. Please refrain from use if the screen is blank or no sound can be heard as these signs may indicate product mal- function. Continued use in such con- ditions could lead to accidents (fires, electric shock) or product malfunctions. Do not touch the antenna during thun- der or lightening as such acts may lead to lightning induced electric shock. Do not stop or park in parking-restricted areas to operate the product. Such acts could lead to traffic accidents. For most Audio and multimedia modes, the display will not operate when the vehicle is in motion. For your safety, first park the vehicle to watch or view the screen.(The screen will only operate when the parking brake is ON for man- ual transmission vehicles and when the parking brake is ON or the gearshift is in the P (PARK) position for automatic.) Some functions other than the one mentioned above cannot be used while driving. These functions operate only when the vehicle is parked. Basic Warnings and Cautions I 1-3 01 Safety Cautions Pay attention to traffic conditions while drivin…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 16 March 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 10 May 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐AT140DPAN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The A pplicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

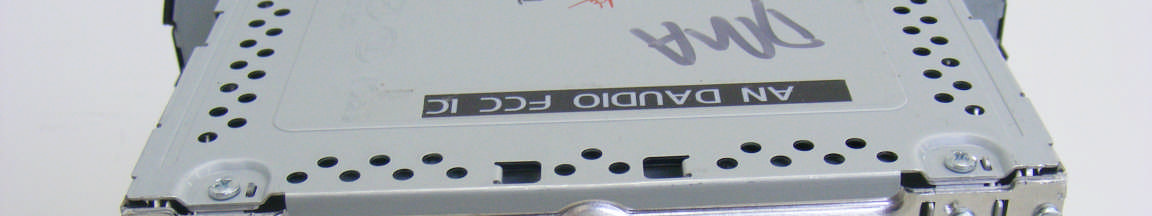

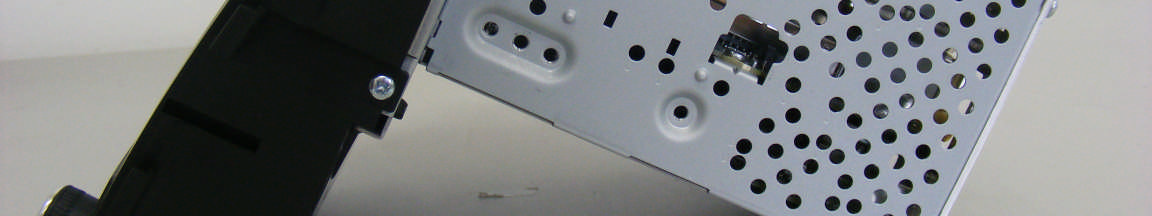

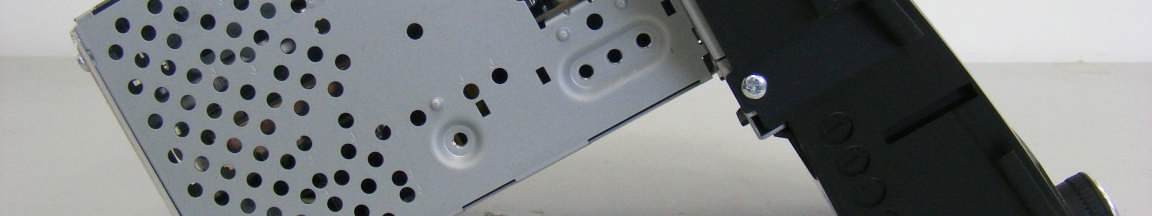

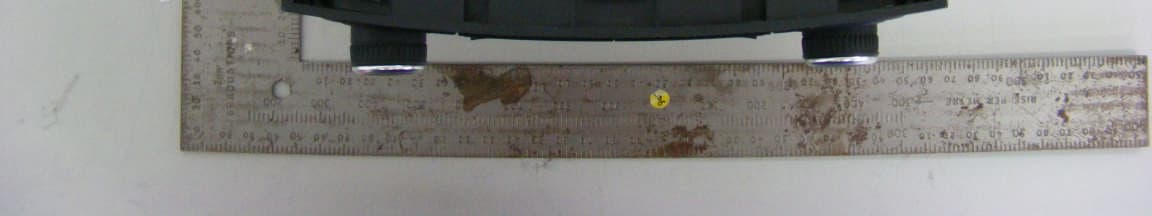

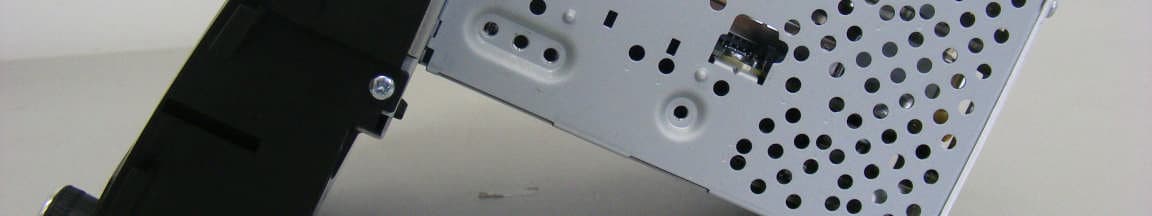

Model :AT140DPAN External photos of EUT Model :AT140DPAN Top view of EUT Bottom view of EUT Model :AT140DPAN Front view of EUT Rear view of EUT Model :AT140DPAN Side view of EUT

AT140DPANFCC LABEL If ti LABEL LOCATION FCC LABEL I n f orma ti on Hyundai MOBIS Co., Ltd. FCC ID: TQ8 ‐ AT 140DPAN Contains FCC ID: LHJ ‐ CASAN LABEL LOCATION Non-removable This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired o p eration. LABEL p MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FRONT TOP Hyundai MOBIS Co., Ltd.

Model :AT140DPAN Internal photos of EUT Model :AT140DPAN Top view of EUT Model :AT140DPAN Top view LCD Bottom view LCD Model :AT140DPAN Top view Key pad Bottom view Key pad Model :AT140DPAN Top view PCB Bottom view PCB Model :AT140DPAN Top view SUB PCB Bottom view SUB PCB Model :AT140DPAN Top view SUB PCB Bottom view SUB PCB Model :AT140DPAN View of BT Module View of WLAN Module Model :AT140DPAN View of BT Antenna View of WLAN Antenna

Report Number: F690501/RF-RTL008657-1 Page: 2 of 8 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 Report Number: F690501/RF-RTL008657-1 Page: 3 of 8 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx . Telephone : + 82 31 688 0901 FAX : + 82 31 688 0921 1.2. Details of applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hoon Phone No. : + 82 31 260 0098 1.3. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name AT140DPAN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT), 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20), 5 745 ㎒ ~ 5 825 ㎒ (Band 3: 11a/n_HT20, 11ac_VHT20), 5 755 ㎒ ~ 5 795 ㎒ (Band 3: 11n_HT40, 11ac_VHT40), 5 775 ㎒ (Band 3: 11ac_VHT80), 5 180 ㎒ ~ 5 240 ㎒ (Band 1: 11a/n_HT20, 11ac_VHT20), 5 190 ㎒ ~ 5 230 ㎒ (Band 1: 11n_HT40, 11ac_VHT40), 5 210 ㎒ (Band 1: 11ac_VHT80), 5 260 ㎒ ~ 5 320 ㎒ (Band 2A: 11a/n_HT20, 11ac_VHT20), 5 270 ㎒ ~ 5 310 ㎒ (Band 2A: 11n_HT40, 11ac_VHT40), 5 290 ㎒ (Band 2A: 11ac_VHT80), 5 500 ㎒ ~ 5 700 ㎒ (Band 2C: 11a/n_HT20, 11ac_VHT20), 5 510 ㎒ ~ 5 670 ㎒ (Band 2C: 11n_HT40, 11ac_VHT40), 5 530 ㎒ (Band 2C: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT), 11 channel (11b/g/n_HT20), 5 channel (Band 3: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 3: 11n_HT40, 11ac_VHT40), 1 channel (Band 3: 11ac_VHT80), 4 channel (Band 1: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 1: 11n_HT40, 11ac_VHT40), 1 channel (Band 1: 11ac_VHT80), 4 channel (Band 2A: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 2A: 11n_HT40, 11ac_VHT40), 1 channel (Band 2A: 11ac_VHT80), 8 channel (Band 2C: 11a/n_HT20, 11ac_VHT20), 3 channel (Band 2C: 11n_HT40, 11ac_VHT40), 1 channel (Band 2C: 11ac_VHT80) Operation Temperature -20 °C ~ 70 °C Antenna Type Internal type Antenna Gain 2 402 ㎒ ~ 2 480 ㎒: 2.29 ㏈i, 2 412 ㎒ ~ 2 462 ㎒: 4.67 ㏈i, 5 180 ㎒ ~ 5 320 ㎒: 2.89 ㏈i, 5 500 ㎒ ~ 5 700 ㎒: 2.51 ㏈i, 5 745 ㎒ ~ 5 825 ㎒: 5.78 ㏈i Report Number: F690501/RF-RTL008657-1 Page: 4 of 8 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1.4. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL008657 2015.04.27 Initial 1 F690501/RF-RTL008657-12015.05.27 Added calculation of simultaneous transmission with WWAN module 1.5. Declaration by the manufacturer - WLAN & BT do not transmit simultaneously. Report Number: F690501/RF-RTL008657-1 Page: 5 of 8 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 *100 6 3.0 – 30 1842/f 4.89/f *900/f 2 6 30 - 300 61.4 0.163 1.0 6 300 – 1 500 - - f/300 6 1 500 – 100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 *100 30 1.34 – 30 824/f 2.19/f *180/f 2 30 30 - 300 27.5 0.073 0.2 30 300 – 1 500 - - f/1500 30 1 500 – 100 000 - - 1.0 30 Report Number: F690501/RF-RTL008657-1 Page: 6 of 8 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL008653Page:2of55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------7 3. 6㏈bandwidth -------------------------------------------------------------------------------------------38 4. Maximum Conducted output power -----------------------------------------------------------------45 5. Power Spectral Density ---------------------------------------------------------------------------------48 6. Antenna Requirement -----------------------------------------------------------------------------------55 Report Number:F690501/RF-RTL008653Page:3of55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name AT140DPAN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒(BT), 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20), 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40), 5 775㎒(Band 3: 11ac_VHT80), 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20), 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40), 5 210㎒(Band 1: 11ac_VHT80), 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20), 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40), 5 290㎒(Band 2A: 11ac_VHT80), 5 500㎒~ 5 700㎒(Band 2C: 11a/n_HT20, 11ac_VHT20), 5 510㎒~ 5 670㎒(Band 2C: 11n_HT40, 11ac_VHT40), 5 530㎒(Band 2C: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT), 11 channel (11b/g/n_HT20), 5 channel (Band 3: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 3: 11n_HT40, 11ac_VHT40), 1 channel (Band 3: 11ac_VHT80), 4 channel (Band 1: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 1: 11n_HT40, 11ac_VHT40), 1 channel (Band 1: 11ac_VHT80), 4 channel (Band 2A: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 2A: 11n_HT40, 11ac_VHT40), 1 channel (Band 2A: 11ac_VHT80), 8 channel (Band 2C: 11a/n_HT20, 11ac_VHT20), 3 channel (Band 2C: 11n_HT40, 11ac_VHT40), 1 channel (Band 2C: 11ac_VHT80) Operation Temperature -20°C~ 70°C Antenna Type Internal type Antenna Gain 2 402㎒~ 2 480㎒: 2.29㏈i, 2 412㎒~ 2 462㎒: 4.67㏈i, 5 180㎒~ 5 320㎒: 2.89㏈i, 5 500㎒~ 5 700㎒: 2.51㏈i, 5 745㎒~ 5 825㎒: 5.78㏈i Report Number:F690501/RF-RTL008653Page:4of55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Declaration by the manufacturer - WLAN & BT do not transmit simultaneously. 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&SSMBV100A255834Jun. 25, 2014AnnualJun. 25, 2015 Signal GeneratorR&S SMR40100272 Jul. 18, 2014AnnualJul. 18, 2015 Spectrum AnalyzerAgilentN9030AUS53120526Jul. 17, 2014AnnualJul. 17, 2015 AttenuatorMCLI FAS-23-2023834 Jun. 20, 2014 Annual Jun. 20, 2015 High Pass FilterWainwrightWHK3.0/18G-10SS344 Jun. 10, 2014 Annual Jun. 10, 2015 High Pass FilterWainwrightWHNX7.5/26.5G-6SS15Jul. 02, 2014AnnualJul. 02, 2015 Low Pass FilterMini circuitsNLP-1200+V8979400903-2 Mar. 12, 2015 Annual Mar. 12, 2016 Power SensorR&S NRP-Z81100669 Mar. 12, 2015 Annual Mar. 12, 2016 DC Power SupplyAgilentU8002AMY50060028Mar. 23, 2015AnnualMar. 23, 2016 PreamplifierH.P.8447D2727A05143Aug. 13, 2014AnnualAug. 13, 2015 PreamplifierR&SSCU-1810070Apr. 02, 2015 Annual Apr. 02, 2016 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891 Apr. 28, 2014AnnualApr. 28, 2015 Test ReceiverR&SESU8100128Feb. 05, 2015 Annual Feb. 05, 2016 Bilog AntennaTESEQCBL6112D25232Oct. 24, 2013BiennialOct. 24, 2015 Loop Antenna SCHWARZBECK MESSELEKTRONIK FMZB 15191519-039Jul. 09, 2013BiennialJul. 09, 2015 Horn AntennaR&SHF906 100564Dec. 11, 2013BiennialDec. 11, 2015 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA 9170BBHA9170431May 15, 2014BiennialMay 15, 2016 Antenna MasterINN-COMM4000 N/AN.C.R.N/AN.C.R. Turn TableINN-CODS 1200S N/AN.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. ▶Support equipment DescriptionManufacturerModelSerial Number N/A--- Report Number:F690501/RF-RTL008653Page:5of55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-g…

Text truncated - open the document above for the full version.

Model :AT140DPAN Test setup photos of EUT Model :AT140DPAN Photo of Field Strength & Spurious Emission Test(BT) Photo of Field Strength & Spurious Emission Test(WLAN) Model :AT140DPAN
