TQ8-AT240A5ANDIGITAL CAR AVNT SYSTEM

HYUNDAI MOBIS CO., LTD.
DIGITAL CAR AVNT SYSTEM - FCC ID TQ8-AT240A5AN - HYUNDAI MOBIS CO., LTD.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jul 16, 2014
Application Purpose
Original Equipment
Date of Application
Jul 16, 2014
Equipment Note
DIGITAL CAR AVNT SYSTEM
Frequency Range
2402.00000000 - 2480.00000000
Company
HYUNDAI MOBIS CO., LTD.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick Manual Contents Before using ....................................................................................................... 4 1 Precaution for safe usage ............................................................................. 4 2 Component Names and Functions .................................................................. 4 2.1 Head Unit ............................................................................................ 4 2.2 Steering Wheel Remote Controller ......................................................... 5 First starting ....................................................................................................... 6 1 Turning the System On/Off ............................................................................ 6 1.1 Turning the System On ......................................................................... 6 1.2 Turning the System Off ......................................................................... 6 2 Resetting the System ................................................................................... 6 3 Battery Warning Message ............................................................................. 7 4 Auto Video Lock(Driving Regulations) ........................................................... 8 PART 1. About HOME screen ................................................................................. 9 Chapter 1. Menu structure in HOME screen ........................................................ 9 1.1 All Menus .......................................................................................... 10 1.2 My Menu ........................................................................................... 10 1.3 My Menu Settings .............................................................................. 11 PART 2. AV ....................................................................................................... 12 Chapter 1. Radio Mode .................................................................................. 12 Chapter 2. Media .......................................................................................... 14 2.1 CD Mode ........................................................................................... 15 2.2 MP3 CD Mode .................................................................................... 16 2.3. USB Mode ........................................................................................ 18 2.4 iPod Mode ......................................................................................... 22 2.5 AUX Mode ....................................................................................... 24 2.6 Bluetooth Audio Mode ........................................................................ 25 2.7 My Music Mode .................................................................................. 26 PART 3. Phone .................................................................................................. 28 Chapter 1. Before using Bluetooth.................................................................. 28 1.1 Guidance for how to use Bluetooth Handsfree ....................................... 28 1.2 Caution for Safety .............................................................................. 28 1.3 Caution for connecting Bluetooth Phone .............................................. 28 Chapter 2. Bluetooth Connection ................................................................... 29 2.1 Add a new device ............................................................................... 29 ▶2.1.1 Add a new device through selecting PHONE Key/CALL Key .......... 29 ▶2.1.2 Add a new device through Phone Settings .................................. 29 2.2 Connect a Bluetooth Device ................................................................ 29 2.2.1 Connect a device through selecting [PHONE]/[CALL] Key .............. 29 2.2.2 Connect a device through Phone Settings ..................................... 29 2.3 Disconnect Bluetooth device .............................................................. 30 2.4 Delete Bluetooth device ..................................................................... 30 Chapter 3. Bluetooth Phone ........................................................................... 30 3.1 Bluetooth Status Icon ......................................................................... 30 3.2 Make a call ........................................................................................ 31 3.3 Accept/Reject a call ........................................................................... 32 3.4 Controlling menu while calling ............................................................ 32 3.5 Call History ....................................................................................... 32 3.6 Contacts ........................................................................................... 33 3.7 Favorites .......................................................................................... 33 Chapter 4. Phone Settings ............................................................................. 34 4.1 Bluetooth Connection Settings ............................................................ 34 4.2 Auto Connection Priority .................................................................... 34 4.3 Ringtone ........................................................................................... 34 4.4 Audio Streaming ................................................................................ 35 4.5 System Bluetooth Info ........................................................................ 35 PART 4. Blue Link ............................................................................................. 36 Chapter 1. Name and function of the each part ................................................. 36 1.1 Rear View Mirror Switch .....................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 11 February 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Cover Letter(s)

Hyundai MOBIS Co., Ltd. #679‐4, Yeoksam‐dong, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐288‐5232 / Fax. 82‐31‐280‐2764 9 July 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐AT240A5AN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune Up Procedure 5 Part List Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

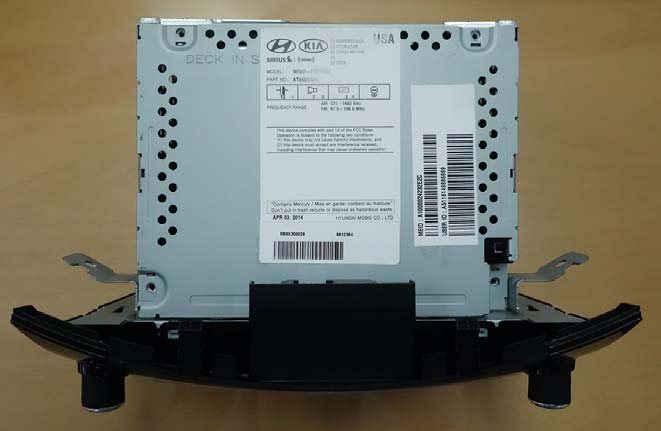

External Photos

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT Antenna of EUT WLAN Antenna CDMA Antenna BT Antenna (Internal)

ID Label/Location Info

AT240A5ANLABEL If i LABEL LOCATION LABEL I n f ormat i on Hyundai MOBIS Co., Ltd. FCC MODEL: AT240A5AN FCC ID: TQ8 ‐ AT240A5AN LABEL LOCATION This device complies with part 15 of the FCC Rules. Operation is Subject to the following to conditions: (1) This device may not cause harmful interference, and (2) The device must accept any interference received, Including interference that may cause undesired operation LABEL Made in Korea MANUFACTURED BY HYUNDAI MOBIS LABEL PRODUCT LABEL FRONT

Internal Photos

Internal photos of EUT Inner of EUT Top view of Main PCB1 Bottom view of Main PCB1 Top view of Main PCB2 Bottom view of Main PCB2 Top view of Keypad PCB1 T op view of Keypad PCB1 T op view of CD player PCB Bottom view of CD player PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of Sub PCB3 Bottom view of Sub PCB3 T op view of module PCB1 Bottom view of module PCB1 Top view of module PCB3 View of BT Antenna BT Antenna

RF Exposure Info

Report Number: F690501/RF-RTL007793 Page: 2 of 8 INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTL007793 Page: 3 of 8 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2370 1.2. Details of Applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hun Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AVNT SYSTEM Model Name AT240A5AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 824.70 ㎒ ~ 848.31 ㎒ (CDMA850) 1 851.25 ㎒ ~ 1 908.75 ㎒ (CDMA1900) 2 402 ㎒ ~ 2 480 ㎒ (BT) 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) Antenna Gain 824.70 ㎒ ~ 848.31 ㎒ : 2.99 ㏈i, 1 851.25 ㎒ ~ 1 908.75 ㎒ : 5.09 ㏈i, 2 402 ㎒ ~ 2 480 ㎒ : -3.26 ㏈i, 2 412 ㎒ ~ 2 462 ㎒ : 3.08 ㏈i 1.4. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL007793 2014.07.03 Initial The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTL007793 Page: 4 of 8 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 -- -- F/1500 30 1 500 – 100 000 -- -- 1 30 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTL007793 Page: 5 of 8 2.1.2. Test Result of RF Exposure Evaluation Test Item : RF Exposure Evaluation Data Test Mode : Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Mode: CDMA850 1xRTT Channel Channel Frequency (㎒) Measured E . R . P. (㏈m) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Low 824.70 25.46 100 0.069 941 0.549 80 Middle 836.52 23.27 100 0.042 241 0.557 68 High 848.31 24.82 100 0.060 357 0.565 54 Mode Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 824.70 25.50 2.99 0.071 692 0.549 80 Mode: CDMA1 900 1xRTT Channel Channel Frequency (㎒) Measured E.I.R.P. (㏈m) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Low 1 851.25 26.63 100 0.091 565 1 Middle 1 880.00 27.68 100 0.116 608 1 High 1 908.75 26.83 100 0.095 880 1 Mode Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 1 880.00 25.50 5.09 0.116 271 1 Note : 1. The power density Pd (5th column) at a distance of 20㎝ calculated from the friis transmission formula is far below the limit . The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTL007793 Page: 6 of 8 Mode: CDMA850 1xEV-DO Channel Channel Frequency (㎒) Measured E.R.P. (㏈m) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Low 824.70 23.99 100 0.049 857 0.549 80 Middle 836.52 23.43 100 0.043 826 0.557 68 High 848.31 24.68 100 0.058 443 0.565 54 Mode Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 848.31 25.50 2.99 0.071 692 0.565 54 Mode: CDMA1900 1xEV-DO Channel C…

Text truncated - open the document above for the full version.

Test Report

Report Number: F690501/RF-RTl007790 Page: 2 of 60 INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth ------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power ------------------------------------------------------------------- 38 5. Hopping Channel Separation ------------------------------------------------ --------------------- 40 6. Number of Hopping Frequency ------------------------------------------------------------------ 43 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 47 8. Antenna Requirement ------------------------------------------------------------------------------ 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTl007790 Page: 3 of 60 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2370 1.2. Details of Applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hun Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AVNT SYSTEM Model Name AT240A5AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT) Antenna Type Internal type(PCB type) Antenna Gain -3.26 ㏈i The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTl007790 Page: 4 of 60 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTl007790 Page: 5 of 60 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Aug. 10, 2013 Annual Aug. 10, 2014 Signal Generator R&S 8648D 3847M00534 Mar. 27, 2014 Annual Mar. 27, 2015 Spectrum Analyzer Agilent N9030A US51350132 Oct. 08, 2013 Annual Oct. 08, 2014 Bluetooth Tester TESOM TC-3000C 3000C000142 Dec. 12, 2013 Annual Dec. 12, 2014 Directional Coupler KRYTAR 152613 122660 Jun. 10, 2014 Annual Jun. 10, 2015 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jun. 10, 2014 Annual Jun. 10, 2015 High Pass Filter Wainwright WHK7.5/26.5G-6SS 11 Jun. 10, 2014 Annual Jun. 10, 2015 Low Pass Filter Mini circuits NLP-1200+ V8979400903-2 Mar. 21, 2014 Annual Mar. 21, 2015 Power Sensor R&S NRP-Z81 100669 Mar. 19. 2014 Annual Mar. 19. 2015 DC Power Supply Agilent U8002A MY50060028 Mar. 27, 2014 Annual Mar. 27, 2015 Preamplifier H . P. 8447D 2944A07087 Ja n. 06, 2014 Annual Jan. 06, 2015 Preamplifier R&S SCU 18 1391123 Jan. 14, …

Text truncated - open the document above for the full version.

Test Setup Photos

Test setup photos of EUT Photo of Field Strength & Spurious Emission Test(WLAN) Photo of Field Strength & Spurious Emission Test(BT) Photo of Field Strength & Spurious Emission Test(CDMA)

Contact Information

Applicant

Seung Hoon Choe(Senior Engineer)
[email protected]+82-31-260-0098Fax: +82-31-899-1788

Test Firm

SGS Korea Co., Ltd.Forest Lee
[email protected]82(0)31-428-5715Fax: 82(0)31-427-2373

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.40 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. Other configurations or co-location with other transmitters requires additional evaluation and possible filing for a C2PC or new certification in accordance with FCC multi-transmitter procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
