TQ8-AT240A9ANDIGITAL CAR AVN SYSTEM

Before using 1 Precaution for safe usage 2 Component Names and Functions 2.1 Head Unit ® 2.2 Steering Wheel Remote Controller ®  ® ® ® ® First starting 1 Turning the System On/Off 1.1 Turning the System On çñ 1.2 Turning the System Off 2 Resetting the System 3 Battery Warning Message 4 Auto Video Lock(Driving Regulations) PART 1. About HOME screen Chapter 1. Menu structure in HOME screen 1.1 All Menus 1.2 My Menu 1.3 My Menu Settings PART 2. AV Chapter 1. Radio Mode Chapter 2. Media 2.1 CD Mode 2.2 MP3 CD Mode 2.3. USB Mode 2.4 iPod Mode 2.5 AUX Mode 2.6 Bluetooth Audio Mode ® ®® ®® ® ® 2.7 My Music Mode                                   Part 5. WIFI Wi-Fi Settings Appendix Homologation FCC Compliance Statement. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interferencethat may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Do Not Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Be sure The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. < For Bluetooth & Wi-Fi Technology > Power listed is maximum conducted RF output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. IC Compliance Statement. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Hyundai Mobis Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Tel. 82-31-260-0098 / Fax. 82-31-899-1788 FCC Confidentiality Request Letter Date: February 20, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TQ8-AT240A9AN We hereby request confidential treatment of information accompanying this application as outlined below:  Block diagram  Schematics  Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ______________________________________ Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

External photos of EUT

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

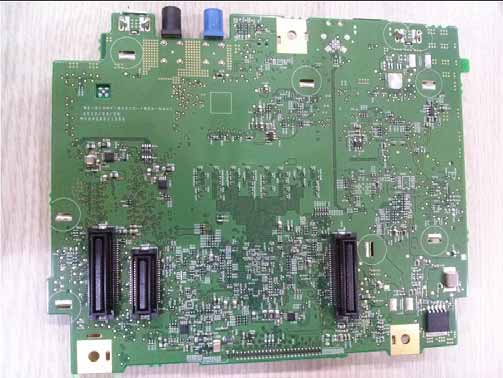

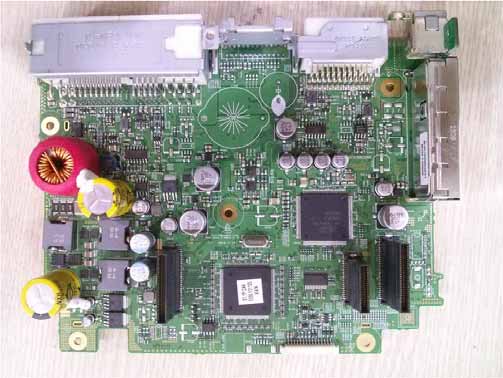

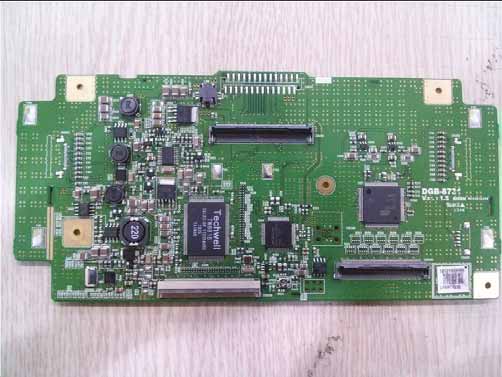

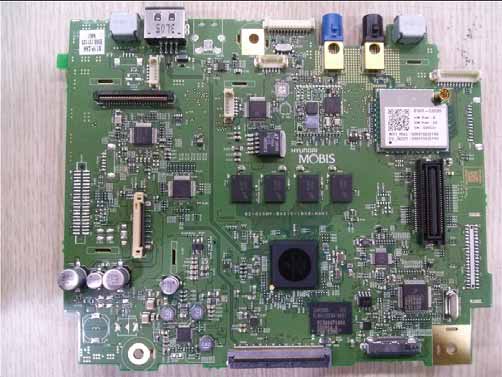

Internal photos of EUT BT Antenna location External Wi-Fi Antenna (BT/Wi-Fi Combo module)

http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0155 EMC compliance Ltd. Page: 49 of 51 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 5.6 RF Exposure 5.6.1 Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [mW/cm 2 ] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in MHz, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [mW/cm 2 ] P = Power input to antenna [mW] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [cm] EUT: Maximum peak output power = 71.78 [mW] (18.56 dBm) Antenna gain = 2.03 (3.08 [dBi]) 100 mW, at 20 cm from an antenna 6 [dBi] S = PG/4πR² = 100 × 3.98 / (4 × π × 400) = 0.079 18 [mW/cm 2 ] < 1.0 [mW/cm 2 ] 71.78 mW, at 20 cm from an antenna 3.08 [dBi] S = PG/4πR² = 0.029 02 [mW/cm 2 ] < 1.0 [mW/cm 2 ] 5.6.2 RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0155 EMC compliance Ltd. Page: 50 of 51 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 5.6.3 Calculation Result of RF Exposure * 802.11b Channel Frequency Ant Gain power power Power Density at 20 cm [MHz] [mW] [dBm] [mW] [mW/cm 2 ] Lowest 2 412 2.03 16.73 47.10 0.019 04 Middle 2 437 2.03 16.59 45.60 0.018 44 Highest 2 462 2.03 15.95 39.36 0.015 91 * 802.11g Channel Frequency Ant Gain power power Power Density at 20 cm [MHz] [mW] [dBm] [mW] [mW/cm 2 ] Lowest 2 412 2.03 18.50 70.79 0.028 62 Middle 2 437 2.03 18.56 71.78 0.029 02 Highest 2 462 2.03 18.36 68.55 0.027 72 * 802.11n HT20 Channel Frequency Ant Gain power power Power Density at 20 cm [MHz] [mW] [dBm] [mW] [mW/cm 2 ] Lowest 2 412 2.03 18.34 68.23 0.027 59 Middle 2 437 2.03 18.45 69.98 0.028 30 Highest 2 462 2.03 18.08 64.27 0.025 99 * configurations for simultaneous operations configuration 1 : 2.4 GHz WLAN + Bluetooth RF funtion802.11b802.11g802.11nBT Band2.4 GHz2.4 GHz2.4 GHz2.4 GHz Power Density (mW/cm2) 0.029020.002490.002340.00085 Configuration 10.029020.000850.02987 Total Power Densityc (mW/cm2) RF Exposure Compliance for simultaneous operations

http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0155 EMC compliance Ltd. Page: 2 of 51 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description ........................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage ................................................................................................................................................... 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Peak Power Spectral Density ...................................................................................................................... 14 5.4 6 dB Bandwidth(DTS Channel Bandwidth) .............................................................................................. 19 5.5 Spurious Emission, Band Edge, and Restricted bands ................................................................................ 27 5.6 RF Exposure ............................................................................................................................................... 49 6. Test equipment used for test ........................................................................................................................... 51 http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0155 EMC compliance Ltd. Page: 3 of 51 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Hyundai Mobis Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Telephone number: +82-31-260-0098 Facsimile number: +82-31-899-1788 Contact person: Seung-Hoon Choe / [email protected] Manufacturer: Hyundai Mobis Co., Ltd. Address: 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0155 EMC compliance Ltd. Page: 4 of 51 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea Telephone Number: 82-31-336-9919 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Registration No.: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0155 EMC compliance Ltd. Page: 5 of 51 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3. Description of E.U.T. 3.1 Basic description Applicant: Hyundai Mobis Co., Ltd. Address of Applicant 203, Teheran-ro, Gangnam-gu, Seoul, Korea (135-977) Manufacturer Hyundai Mobis Co., Ltd. Address of Manufacturer 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea Type of equipment DIGITAL CAR AVN SYSTEM Basic Model AT240A9AN Serial number Proto Type 3.2 General description Frequency Range 2 412 ~ 2 462 MHz(802.11b/g/n_HT20) Communication IEEE 802.11b/g/n_HT20 Type of Modulation CCK, OFDM Number of Channels 11 ch Type of Antenna Monopole type Antenna Gain 3.08 dBi Transmit Power 18.56 dBm Power supply DC 14.4 V http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0155 EMC compliance Ltd. Page: 6 of 51 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3.3 Test frequency For all teset items, the low, middle and high channels of the modes were tested with above worst case data rate. Frequency Low frequency 2 412 MHz Middle frequency 2 437 MHz High freq…
